Whirlpool 25RI-D4 PT Operating and installation instructions

SERVICE Whirlpool EMEA
Customer Services 25RI-D4 PT
Service Information
Side by Side
25RI-D4 PT
8586 422 11000
Last Modification: 10/01/10
Creation Date: 04/03/08
Spare Part List 2
Exploded View 6
Circuit Diagram 17
Technical Data 19
Service Bulletin 4812 711 40317 21
Service Bulletin 4812 711 40353 22
Service Bulletin 4812 711 40358 28
Service Bulletin 4812 711 40329 30
Service Bulletin 4812 711 40362 32
Service Bulletin 4812 711 40361 36
Service Bulletin 4812 711 40306 38
Service Bulletin 4812 711 40330 42
Service Bulletin 4812 711 40322 43
Service Bulletin 4812 711 40384 45
Service Bulletin 4812 711 40347 55
Service Bulletin 4812 711 40310 59
This document is only intended for qualified technicans who are aware of the
respective safety regulations.
Subject to modifications
© Whirlpool EMEA www.scc-service.com

SERVICE Whirlpool EMEA
Customer Services
8586 422 11000, 10/01/10
page 2 of 59
Spare Part List
Pos 12NC Description
012 1 4812 528 78061 Roller complete
012 3 4812 528 78059 Roller front
012 4 4812 310 68021 Key ,Wheel kit; Wheel kit
033 7 4812 459 48188 Cover corner BL
040 0 4812 417 19245 Hinge upper left
040 1 4812 417 19246 Hinge upper right
040 2 4812 417 19261 Hinge lower right
040 4 4812 417 19262 Hinge lower left
040 6 4812 417 19102 Holder adjust. bottom
040 7 4812 462 28957 Cover hinge
040 8 4812 462 28958 Cover hinge
047 0 4819 021 82178 Bushing door cooling
047 1 4812 532 48035 Bushing door freezer
047 2 4812 440 29448 Cover door bushing fridge
047 4 4812 462 28564 Stopper door freezer
070 0 4812 452 98349 Plinth
084 3 4812 404 18558 Rubber motor fan
101 0 4812 416 10639 Door freezer
104 0 4812 416 10638 Door refriger.
105 4 4812 535 38099 Bracket door freezer
111 0 4812 462 69016 Door handle cooling + freezing
111 2 4812 462 29375 Plug handle lower
111 3 4812 462 29376 Plug handle upper
111 4 4812 404 18631 Support handle
111 7 4812 459 18218 Nameplate WHIRLPOOL
131 0 4812 460 48968 LEVER
131 1 4812 460 48967 LEVER
131 2 4812 440 69307 Flap ice outlet
131 3 4819 021 80224 Hopper icecubes
131 4 4812 440 69075 Mechanism ice dispenser
131 7 4819 021 80223 Delay ice dispenser
131 8 4819 021 80210 Pin ice dispenser
151 0 4812 488 68139 Profile door freezer
152 2 4812 418 29922 Door dairy freezer door
153 0 4812 418 28371 Flap door dairy printed
153 3 4812 418 28649 Bottle shelf fridge door
154 0 4812 418 28421 Door dairy printed GALLON BALCONY
154 1 4812 418 28748 Separator bottles
154 2 4812 404 78552 Bushing door dairy
154 3 4812 462 28478 Stopper
154 4 4812 418 28373 Holder bottles upper
154 6 4812 418 28376 Holder bottles bottom
154 9 4812 418 28422 Door dairy printed 2-LITRE BALCONY
155 0 4812 440 29483 Rack egg
191 0 4812 466 88674 Magnetic seal; cooling
191 1 4812 466 88675 Magnetic seal; freezing
201 7 4819 466 69949 Gasket support fan
233 2 4812 404 48697 Support grid
239 2 4812 440 98124 Support flap icemaker
239 4 4812 440 69204 Cover ice maker
© Whirlpool EMEA www.scc-service.com

SERVICE Whirlpool EMEA
Customer Services
8586 422 11000, 10/01/10
page 3 of 59
Pos 12NC Description
239 5 4812 418 29716 Ice maker
239 7 4812 418 28758 Container ice
239 8 4812 418 28433 Container ice complete
241 0 4812 458 19139 Basket top
241 1 4812 458 19177 Basket bottom
241 3 4812 440 69391 Cover drawer
241 5 4812 440 69357 Insert basket
241 8 4812 458 19138 Basket center
242 0 4812 418 48585 Drawer bottom
242 1 4812 418 48583 Drawer top
242 3 4812 418 48584 Drawer center
245 5 4812 458 19136 Grid center
245 6 4812 458 38086 Grid top
245 8 4812 458 28018 Basket
245 9 4812 440 79319 Grill water tray
249 0 4812 460 49299 Trim drawer
249 1 4812 460 49283 Trim basket
249 2 4812 460 49284 Trim
249 3 4812 460 49302 Trim printed HUMIDITY CONTROL
249 4 4812 460 49282 Trim glass plate
249 9 4812 460 49755 Trim
251 1 4812 440 98282 Cover f. lamp
251 7 4812 440 79048 Cover f. lamp
251 8 4812 380 28033 Cover f. lamp
251 9 4812 440 98125 Cover f. lamp freezer
252 0 4812 310 28188 Holder,lamp; light, compl.
252 5 4812 442 29312 Air diffuser multiflow
255 1 4812 450 88378 Glass shelf
255 4 4812 450 88109 Glass shelf
255 5 4812 450 88395 Glass shelf top
255 7 4812 450 58716 Frame printed ULTRA-COOL COMP.
255 8 4812 450 58715 Frame printed VEGATABLE COMPAR.
255 9 4812 450 58717 Frame printed SNACK COMPARTMENT
256 0 4812 460 58384 Slide air inlet
256 5 4819 466 98997 Rail ,air inlet; air inlet
261 0 4812 462 38139 Slide right
261 1 4812 462 38138 Slide left
261 2 4812 462 38153 Slide left
261 3 4812 462 38154 Slide right
263 6 4812 462 38155 Guide icemaker right
263 7 4812 460 98041 Guide icemaker left
263 8 4812 404 48702 Stud right
263 9 4812 404 48701 Stud left
304 0 4812 440 98295 Support
320 0 4812 452 28935 Panel control d-grey rounded IDI 7-seg.
320 1 4812 218 48169 Unit electrical 7-seg. IDI blue-LED
324 6 4812 442 29299 Air diffuser
400 0 4812 028 58363 Motor ice conveyor compl.
402 0 4812 360 39017 Compressor EGY 100 HLC CP
402 1 4812 418 28424 Cup thaw water
© Whirlpool EMEA www.scc-service.com

SERVICE Whirlpool EMEA
Customer Services
8586 422 11000, 10/01/10
page 4 of 59
Pos 12NC Description
402 2 4819 360 48014 Valve flap
402 4 4812 440 79129 Clip compressor
406 2 4812 440 89009 Housing ice maker
406 3 4812 492 98044 Spring ice motor bar
406 7 4812 440 79023 Cover icemotor
406 8 4812 530 88024 Shaft gear ice motor
407 0 4812 404 78554 Fastener coupling ice motor
407 1 4812 310 28142 Bushing; for shaft kit
420 0 4812 121 58129 Capacitor 5ÈF
437 0 4812 218 48129 Sensor
438 0 4812 217 28003 Receiver
440 3 4812 361 38103 Air diffuser
440 4 4812 462 38141 Slide
440 5 4812 445 28036 Air diffuser filter microban
440 6 4819 462 38778 Slide
440 7 4812 452 98253 Insulator
440 8 4812 440 79136 Flap deoderiser
441 0 4812 028 58339 Motor
441 1 4819 462 48418 Grommet compressor
441 2 4812 440 68962 Support right
442 0 4812 361 38119 Motor,fan sub 480132103073
442 1 4819 404 78682 Bracket evaporator fan
443 0 4819 515 48057 Fan blade
443 1 4812 442 29337 Housing motor fan
451 0 4819 021 88177 ELEMENT DEFROST
451 1 4812 401 18807 Clamp defrost heater
480 7 4812 321 78368 Cable harness
491 0 4812 290 88087 Cover connection block
526 2 4812 217 78242 Control board assy
526 5 4812 440 29368 Lid electronic box
561 2 4812 442 29319 Connectionblock
562 1 4812 320 58132 Cable harness bi-metal thermostat
562 2 4812 404 18519 Support bimetal
571 0 4812 360 58486 valve
614 0 4812 282 28338 Monoblock
620 1 4812 277 88002 Switch dispenser
620 4 4812 276 18538 Switch light
621 0 4819 271 38044 Microswitch icemaker + dispenser
626 1 4812 440 79112 Deflector fresh food comp.
643 0 4812 215 38024 Thermometer
651 0 4812 134 18033 Lamp 40W 220V T-CLICK
651 2 4812 134 28092 Lamp 10W 240V E14 T25
652 4 4812 255 68008 Holder lamp dispenser
691 3 4812 404 78553 Support NTC
691 4 4812 210 58053 Cover sensor
691 5 4812 404 78706 Support sensor
691 7 4812 310 18846 Sensor KIT
701 0 4812 530 29272 Tube
711 0 4812 310 19128 Reservoir
740 0 4812 511 48435 Condenser
© Whirlpool EMEA www.scc-service.com

SERVICE Whirlpool EMEA
Customer Services
8586 422 11000, 10/01/10
page 5 of 59
Pos 12NC Description
743 0 4812 440 89103 Grid air
743 3 4812 466 88722 Gasket condenser fan frame
745 0 4812 360 38648 Evaporator
745 2 4812 442 29317 Panel icemaker
745 4 4819 492 68684 Clip earthing
745 6 4812 440 79113 Heat shield evaporator
746 1 4812 440 98226 Conveyor
746 2 4812 440 69203 Cover evaporator
746 3 4812 440 98062 Gasket air guide
762 0 4812 480 48172 Filter anti-bacterium WH
764 2 4812 480 28092 Dryer
781 0 4812 262 78009 Cap water filter
781 1 4812 535 48013 Clutch water pipe door
781 8 4812 817 29632 Filter water SxS Scandinavia
781 9 4812 418 28379 Filter body sub 481248048179
783 1 4812 530 29454 Tube
783 2 4812 535 48035 Support, hose icemaker
783 8 4812 530 29458 Adapter hose 3/4"
783 9 4812 530 29408 Hose connection filter/inlet valve
785 0 4812 530 29348 Tube evaporator drain
900 5 4819 492 68544 Clip fix drain tube
900 7 4812 404 18483 Bracket heating
900 8 4819 492 69522 Clip
912 4 4812 560 18067 Screw ice motor
913 2 4812 560 18013 Screw door
913 4 4812 502 18759 Screw
913 5 4812 500 18108 Screw
913 7 4812 502 18578 Screw clamp drain tube
930 0 4812 492 28217 Spring ice dispenser
930 1 4819 021 94719 Rail dispenser
930 2 4812 492 38395 Spring dispenser
962 1 4812 460 49343 Holder cable cover icemaker
965 6 4812 462 28664 Stopper
© Whirlpool EMEA www.scc-service.com

SERVICE Whirlpool EMEA
Customer Services
8586 422 11000, 10/01/10
page 6 of 59

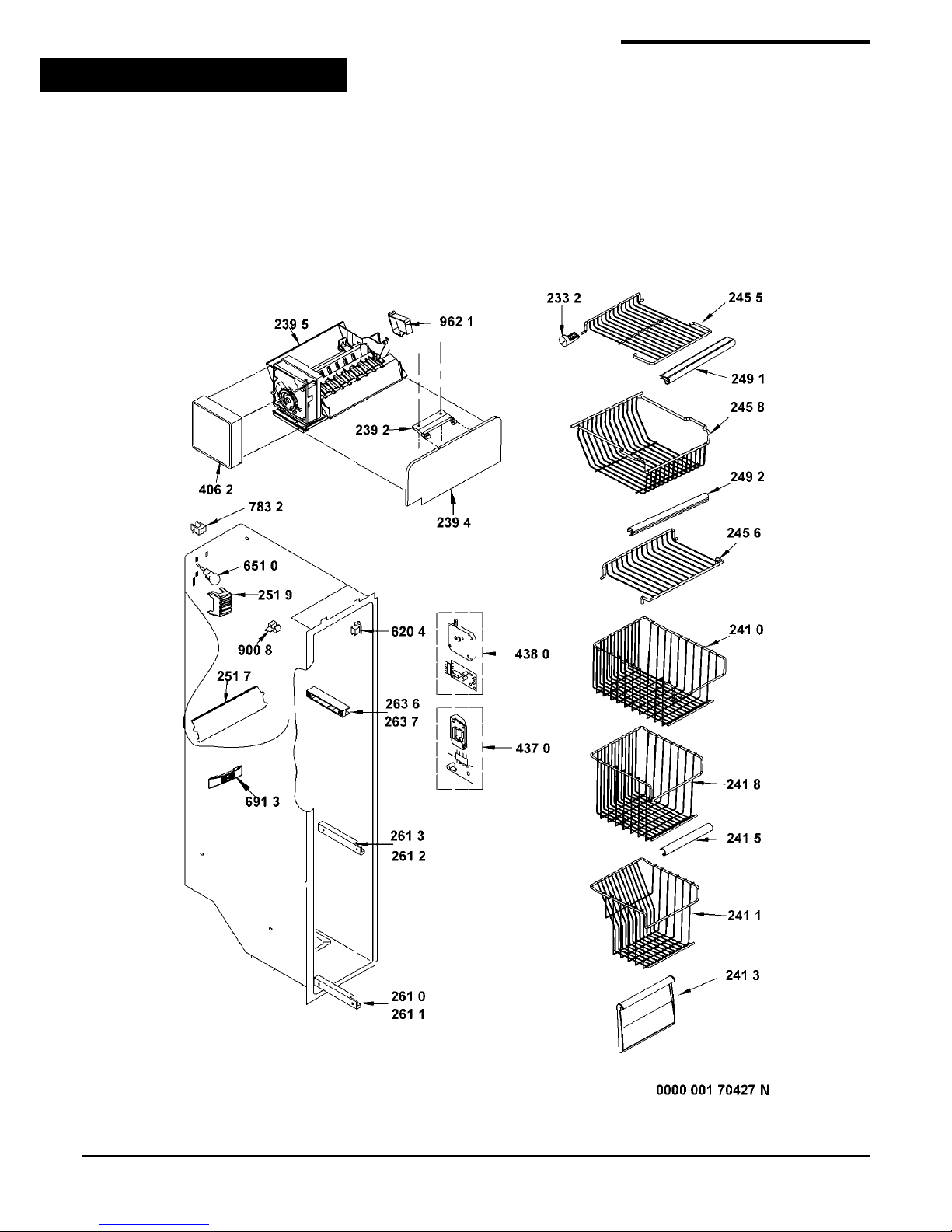

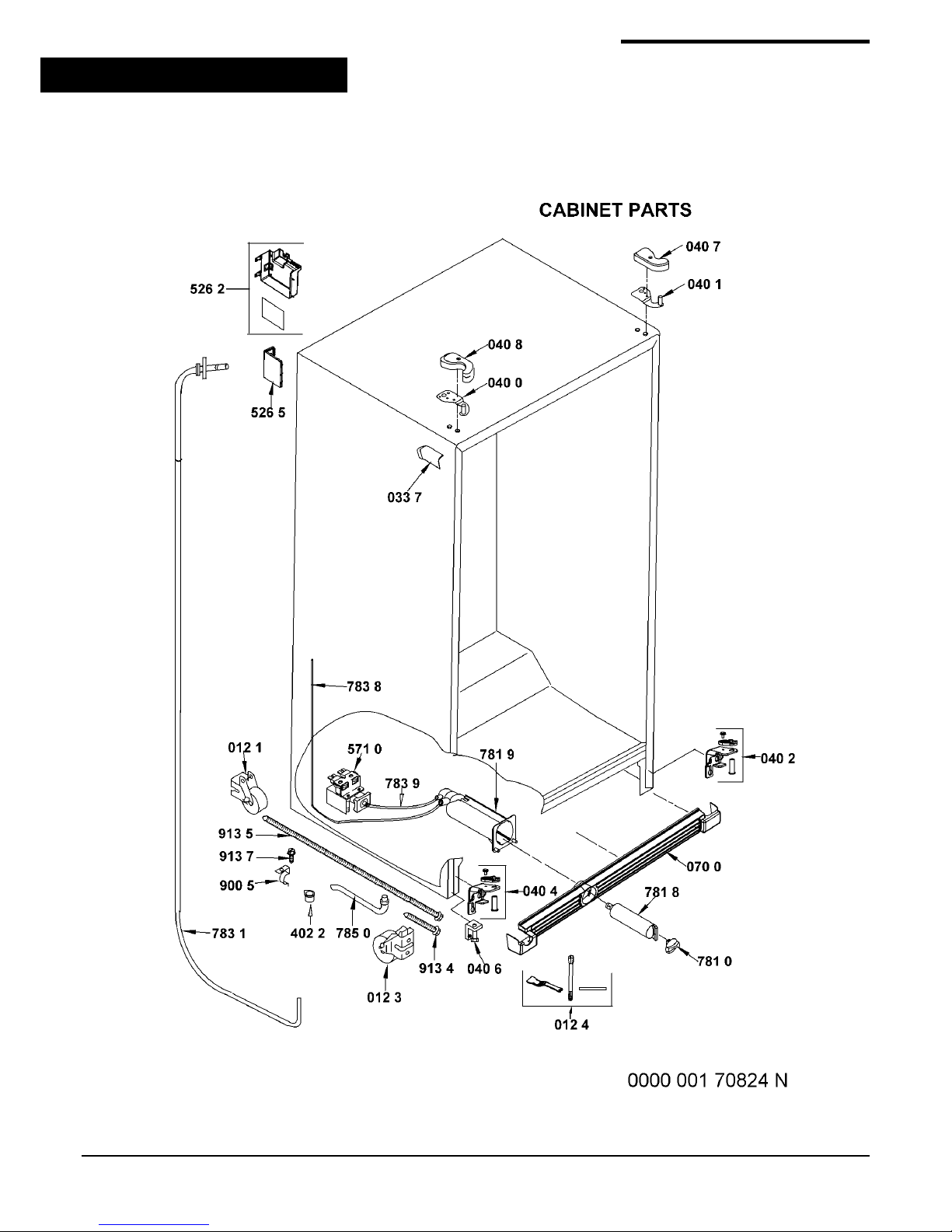

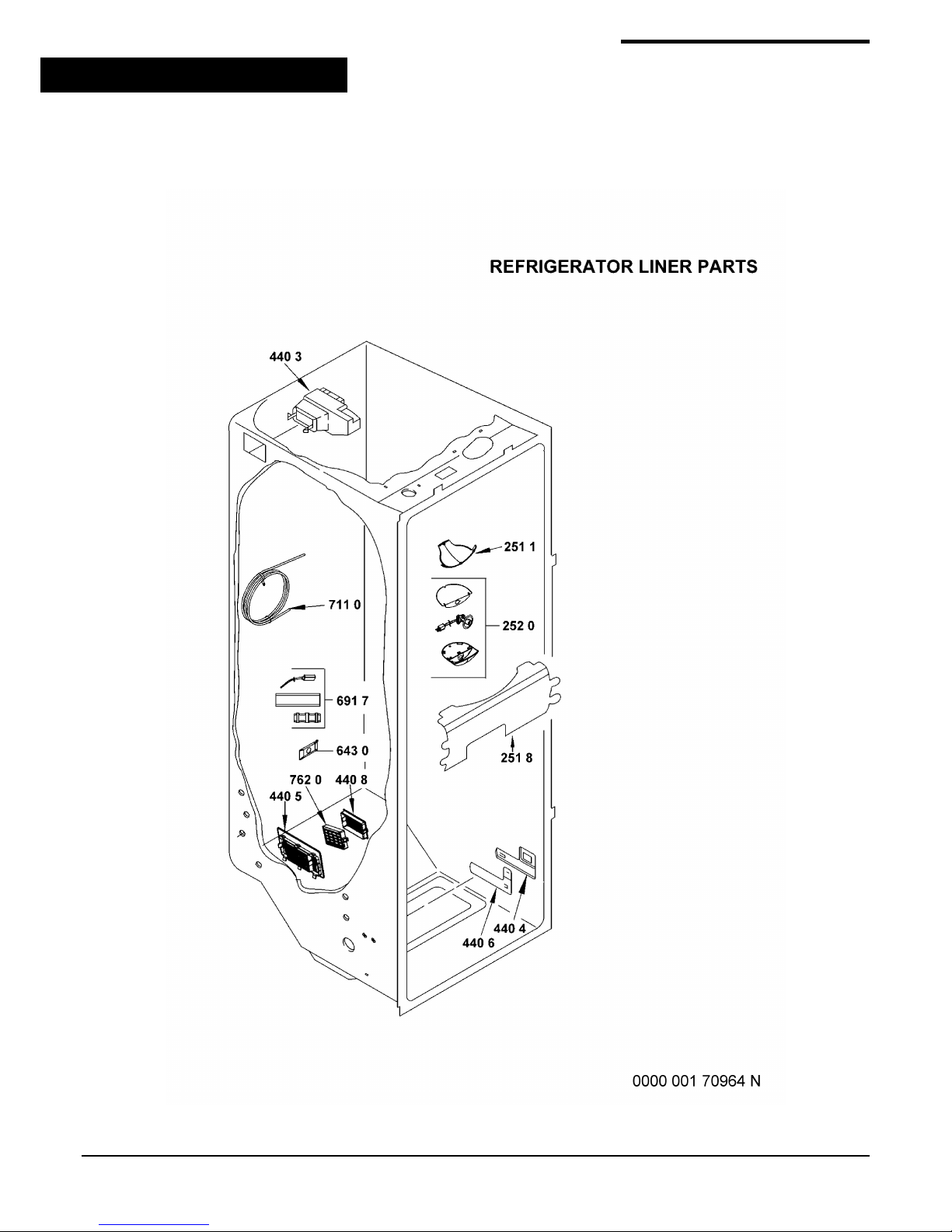

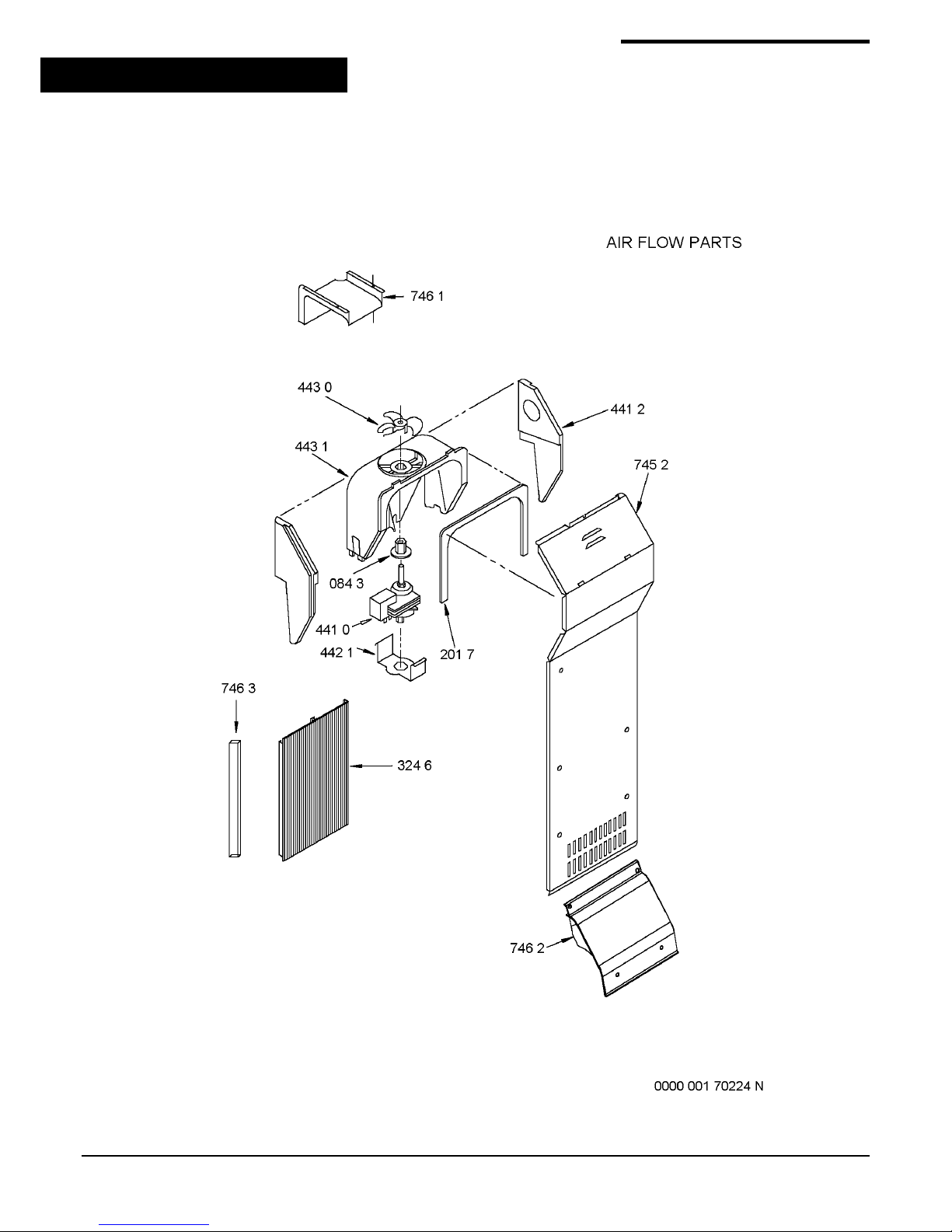

Exploded View
© Whirlpool EMEA www.scc-service.com

SERVICE Whirlpool EMEA
Customer Services
8586 422 11000, 10/01/10
page 7 of 59
Exploded View
© Whirlpool EMEA www.scc-service.com

SERVICE Whirlpool EMEA
Customer Services
8586 422 11000, 10/01/10
page 8 of 59
Exploded View
© Whirlpool EMEA www.scc-service.com

SERVICE Whirlpool EMEA
Customer Services
8586 422 11000, 10/01/10
page 9 of 59
Exploded View
© Whirlpool EMEA www.scc-service.com

SERVICE Whirlpool EMEA
Customer Services
8586 422 11000, 10/01/10
page 10 of 59
Exploded View
© Whirlpool EMEA www.scc-service.com

SERVICE Whirlpool EMEA
Customer Services
8586 422 11000, 10/01/10
page 11 of 59
Exploded View
© Whirlpool EMEA www.scc-service.com

SERVICE Whirlpool EMEA
Customer Services
8586 422 11000, 10/01/10
page 12 of 59
Exploded View
© Whirlpool EMEA www.scc-service.com

SERVICE Whirlpool EMEA
Customer Services
8586 422 11000, 10/01/10
page 13 of 59
Exploded View
© Whirlpool EMEA www.scc-service.com

SERVICE Whirlpool EMEA
Customer Services
8586 422 11000, 10/01/10
page 14 of 59
Exploded View
© Whirlpool EMEA www.scc-service.com

SERVICE Whirlpool EMEA
Customer Services
8586 422 11000, 10/01/10
page 15 of 59
Exploded View
© Whirlpool EMEA www.scc-service.com

SERVICE Whirlpool EMEA
Customer Services
8586 422 11000, 10/01/10
page 16 of 59
Exploded View
© Whirlpool EMEA www.scc-service.com

SERVICE Whirlpool EMEA
Customer Services
8586 422 11000, 10/01/10
page 17 of 59

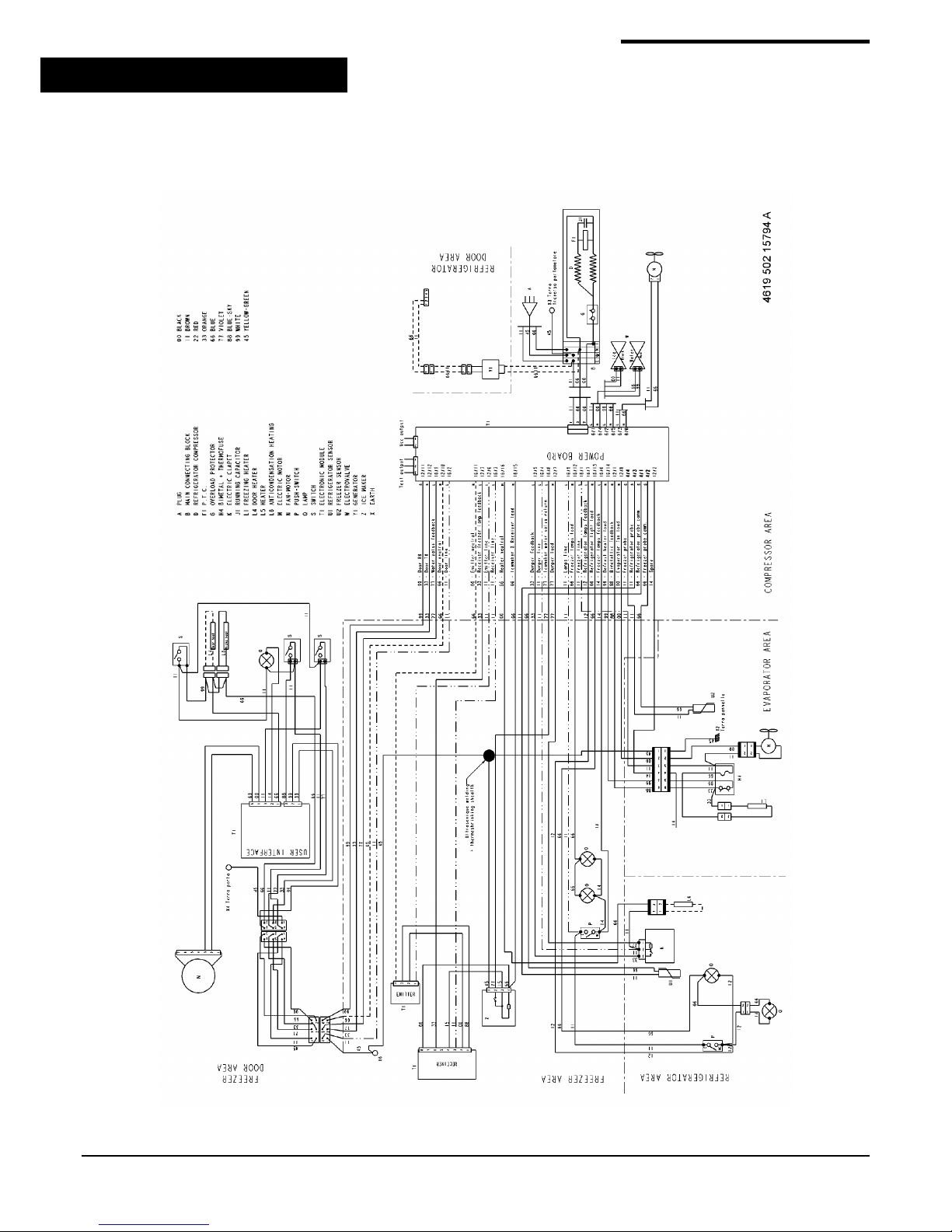

Circuit Diagram
© Whirlpool EMEA www.scc-service.com

SERVICE Whirlpool EMEA
Customer Services
8586 422 11000, 10/01/10
page 18 of 59

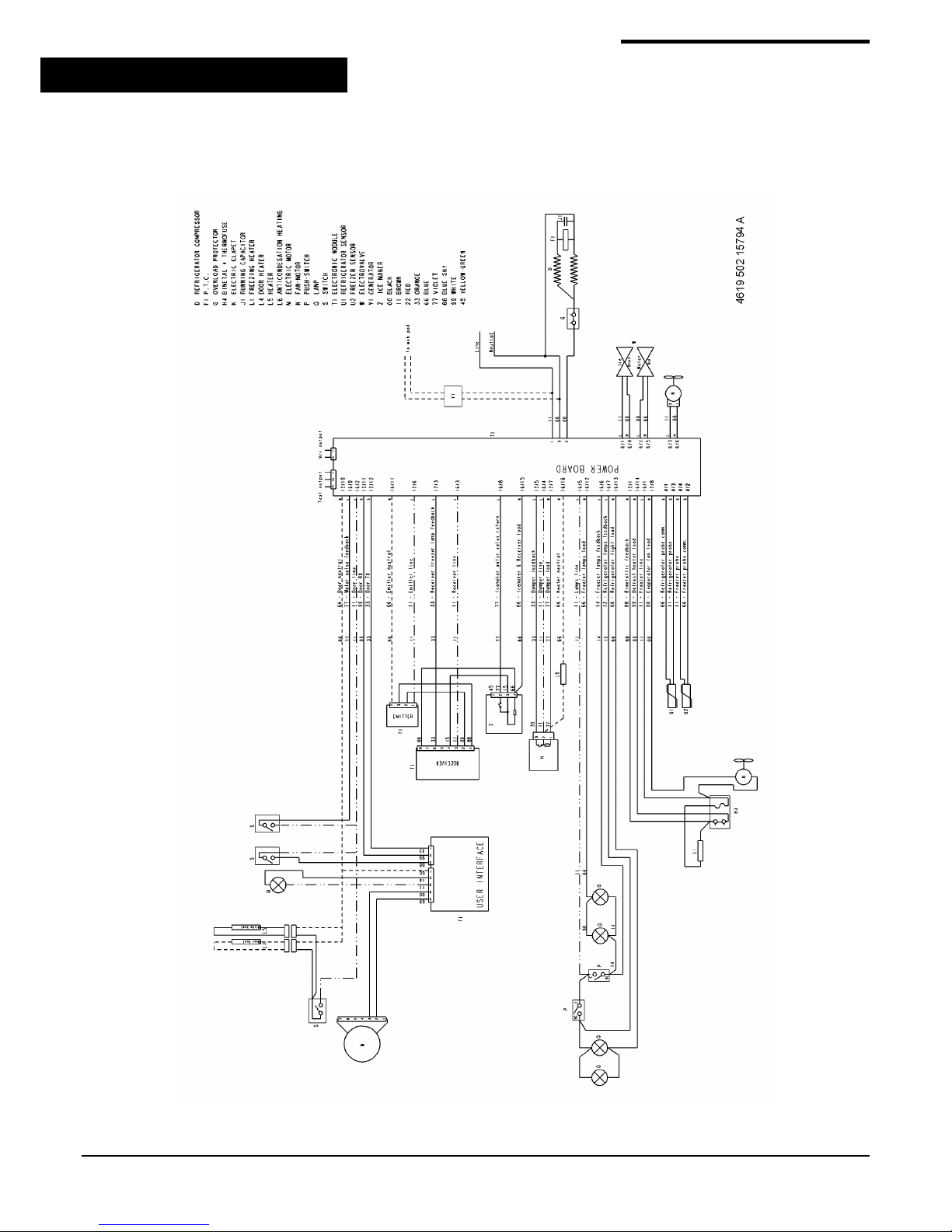

Circuit Diagram
© Whirlpool EMEA www.scc-service.com

SERVICE Whirlpool EMEA
Customer Services
8586 422 11000, 10/01/10
page 19 of 59
Technical Data
Factory Code
................................................................................................................SB715W
Product dimensions
Height ................................................................................................193.0cm
Width ..................................................................................................90.2cm
Depth ..................................................................................................86.7cm
Capacity
Total
Gross ..................................................................................................707l
net .....................................................................................................642l
Cooling
Gross ..................................................................................................430l
net .....................................................................................................420l
Freezing
Gross ..................................................................................................277l
net .....................................................................................................222l
Electrical base data
Voltage ...........................................................................................220V-240V
Frequency ...............................................................................................50Hz
Power Consumption
in24hours ............................................................................................1.7kWh
Freezing capacity
in24hours ...............................................................................................14kg
Ice cube maker capacity
in24hours ...............................................................................................2.3kg
Compressor
Type .............................................................................................EGY100HLC
Capacity(CECOMAF) ....................................................................................190W
Refrigerant
Type ...................................................................................................R134a
Quantity ..................................................................................................160g
© Whirlpool EMEA www.scc-service.com

SERVICE Whirlpool EMEA
Customer Services
8586 422 11000, 10/01/10
page 20 of 59
Thermostat
Electronic
© Whirlpool EMEA www.scc-service.com
