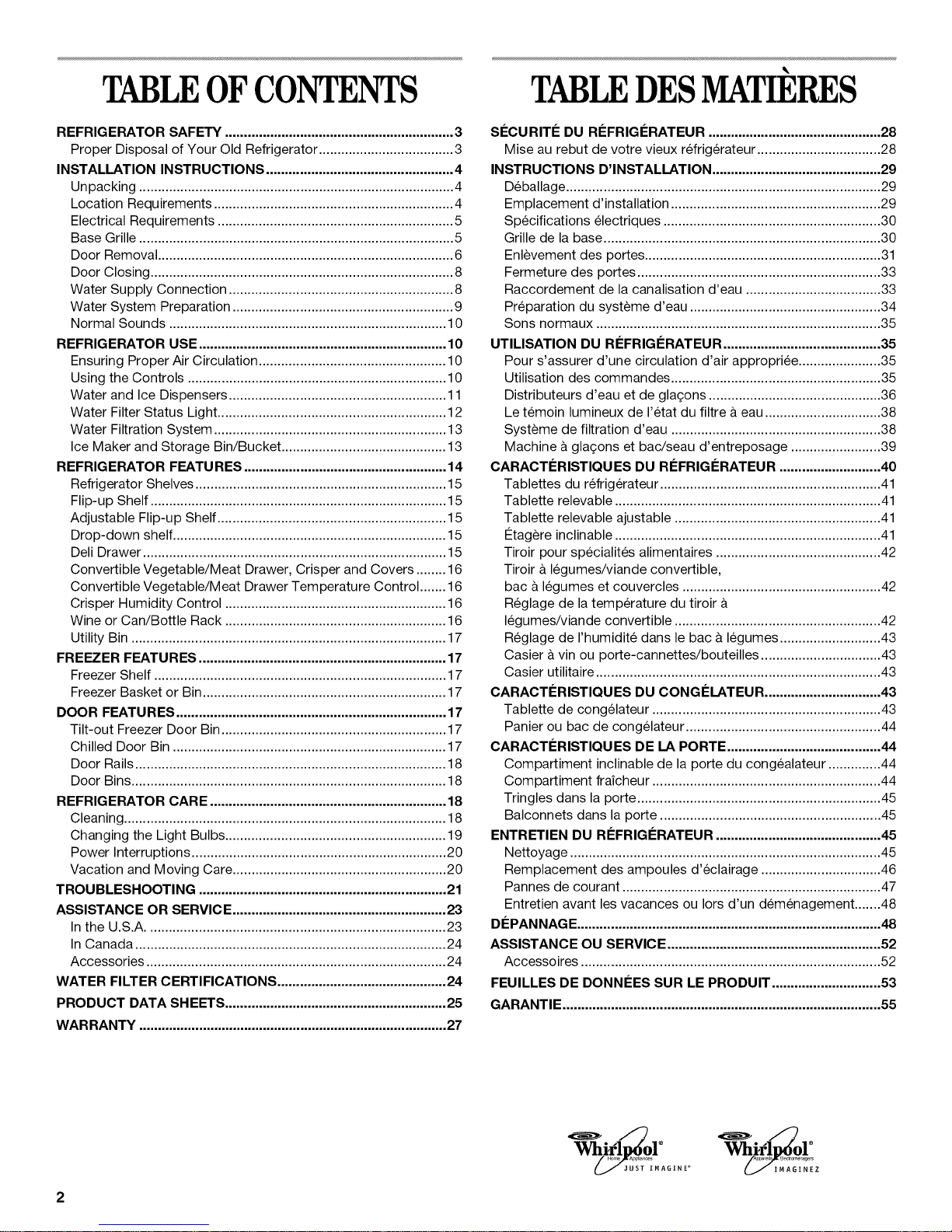

TABLEOF CONTENTS TABLEDESMATIERES
REFRIGERATOR SAFETY ............................................................. 3
Proper Disposal of Your Old Refrigerator .................................... 3
INSTALLATION INSTRUCTIONS .................................................. 4
Unpacking .................................................................................... 4
Location Requirements ................................................................ 4
Electrical Requirements ............................................................... 5
Base Grille .................................................................................... 5
Door Removal ............................................................................... 6
Door Closing ................................................................................. 8
Water Supply Connection ............................................................ 8
Water System Preparation ........................................................... 9
Normal Sounds .......................................................................... 10
REFRIGERATOR USE .................................................................. 10
Ensuring Proper Air Circulation .................................................. 10
Using the Controls ..................................................................... 10
Water and Ice Dispensers .......................................................... 11
Water Filter Status Light ............................................................. 12
Water Filtration System .............................................................. 13
Ice Maker and Storage Bin/Bucket ............................................ 13
REFRIGERATOR FEATURES ...................................................... 14
Refrigerator Shelves ................................................................... 15
Flip-up Shelf ............................................................................... 15
Adjustable Flip-up Shelf ............................................................. 15
Drop-down shelf ......................................................................... 15
Deli Drawer ................................................................................. 15
Convertible Vegetable/Meat Drawer, Crisper and Covers ........ 16
Convertible Vegetable/Meat Drawer Temperature Control ....... 16
Crisper Humidity Control ........................................................... 16
Wine or Can/Bottle Rack ........................................................... 16
Utility Bin .................................................................................... 17
FREEZER FEATURES .................................................................. 17
Freezer Shelf .............................................................................. 17
Freezer Basket or Bin................................................................. 17
DOOR FEATURES ........................................................................ 17
Tilt-out Freezer Door Bin............................................................ 17
Chilled Door Bin ......................................................................... 17
Door Rails ................................................................................... 18
Door Bins.................................................................................... 18
REFRIGERATOR CARE ............................................................... 18
Cleaning ...................................................................................... 18
Changing the Light Bulbs ........................................................... 19
Power Interruptions .................................................................... 20
Vacation and Moving Care ......................................................... 20
TROUBLESHOOTING .................................................................. 21
ASSISTANCE OR SERVICE ......................................................... 23
In the U.S.A................................................................................ 23
In Canada ................................................................................... 24
Accessories ................................................................................ 24
WATER FILTER CERTIFICATIONS ............................................. 24
PRODUCT DATA SHEETS ........................................................... 25
WAR RANTY .................................................................................. 27
SI_CURITI_ DU RI_FRIGI_RATEUR .............................................. 28
Mise au rebut de votre vieux refrigGrateur ................................. 28
INSTRUCTIONS D'INSTALLATION ............................................. 29
Deballage .................................................................................... 29
Emplacement d'installation ........................................................ 29
Specifications electriques .......................................................... 30
Grille de la base .......................................................................... 30
Enlevement des portes ............................................................... 31
Fermeture des portes ................................................................. 33
Raccordement de la canalisation d'eau .................................... 33
Preparation du systeme d'eau ................................................... 34
Sons normaux ............................................................................ 35
UTILISATION DU RI_FRIGI_RATEUR .......................................... 35
Pour s'assurer d'une circulation d'air appropriee ...................... 35
Utilisation des commandes ........................................................ 35
Distributeurs d'eau et de gla£_ons.............................................. 36
Le temoin lumineux de I'etat du filtre heau ............................... 38
Systeme de filtration d'eau ........................................................ 38
Machine h glagons et bac/seau d'entreposage ........................ 39
CARACTI_RISTIQUES flU RI_FRIGI_RATEUR ........................... 40
Tablettes du refrigGrateur ........................................................... 41
Tablette relevable ....................................................................... 41
Tablette relevable ajustable ....................................................... 41
€:tagere inclinable....................................................................... 41
Tiroir pour specialitGs alimentaires ............................................ 42
Tiroir hlegumes/viande convertible,
bach legumes et couvercles ..................................................... 42
Reglage de la temperature du tiroir h
16gumes/viande convertible ....................................................... 42
Reglage de I'humidite dans le bach legumes ........................... 43
Casier h vin ou porte-cannettes/bouteilles ................................ 43
Casier utilitaire ............................................................................ 43
CARACTERISTIQUES flU CONGELATEUR ............................... 43
Tablette de congelateur ............................................................. 43
Panier ou bac de congelateur .................................................... 44
CARACTI_RISTIOUES DE LA PORTE ......................................... 44
Compartiment inclinable de la porte du congealateur .............. 44
Compartiment fraicheur ............................................................. 44
Tringles dans la porte ................................................................. 45
Balconnets dans la porte ........................................................... 45
ENTRETIEN flU REFRIGERATEUR ............................................ 45
Nettoyage ................................................................................... 45
Remplacement des ampoules d'eclairage ................................ 46
Pannes de courant ..................................................................... 47
Entretien avant les vacances ou Iors d'un demGnagement .......48
DEPANNAGE ................................................................................. 48
ASSISTANCE OU SERVICE ......................................................... 52
Accessoires ................................................................................ 52
FEUILLES DE DONNEES SUR LE PRODUIT ............................. 53
GARANTIE ..................................................................................... 55
2
Wh 1° Whh,_ol °

REFRIGERATORSAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all
safety messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or
"WARNING." These words mean:
You can be killed or seriously injured if you don't
immediately follow instructions.
You can be killed or seriously injured if you don't
follow instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you
what can happen if the instructions are not followed.
IMPORTANT SAFETY INSTRUCTIONS
WARNING: To reduce the risk of fire, electric shock, or injury when using your refrigerator, follow these basic
precautions:
• Plug into a grounded 3 prong outlet.
• Do not remove ground prong.
• Do not use an adapter.
• Do not use an extension cord.
• Disconnect power before servicing.
• Replace all panels before operating.
• Remove doors from your old refrigerator.
• Use nonflammable cleaner.
• Keep flammable materials and vapors, such as
gasoline, away from refrigerator.
• Use two or more people to move and install
refrigerator.
• Disconnect power before installing ice maker (on
ice maker kit ready models only).
• Use a sturdy glass when dispensing ice or water
(on some models).
SAVE THESE INSTRUCTIONS
ProperDisposalofYourOld Refrigerator
Suffocation Hazard
Remove doors from your old refrigerator.
Failure to do so can result in death or
brain damage.
IMPORTANT: Child entrapment and suffocation are not problems
of the past. Junked or abandoned refrigerators are still dangerous
- even if they will sit for "just a few days." If you are getting rid of
your old refrigerator, please follow these instructions to help
prevent accidents.
Before you throw away your old refrigerator or freezer:
• Take off the doors.
• Leave the shelves in place so that children may not easily
climb inside.

INSTALIATION
INSTRUCTIONS
Excessive Weight Hazard
Use two or more people to move and install
refrigerator.
Failure to do so can result in back or other injury.
Removing packaging materials
• Remove tape and glue residue from surfaces before turning
on the refrigerator. Rub a small amount of liquid dish soap
over the adhesive with your fingers. Wipe with warm water
and dry.
• Do not use sharp instruments, rubbing alcohol, flammable
fluids, or abrasive cleaners to remove tape or glue. These
products can damage the surface of your refrigerator. For
more information, see the "Refrigerator Safety" section.
When Moving "{our Refrigerator:
Your refrigerator is heavy. When moving the refrigerator
for cleaning or service, be sure to protect the floor.
Always pull the refrigerator straight out when moving it.
Do not wiggle or "walk" the refrigerator when trying to move
it, as floor damage could occur.
Cleaning before use
After you remove all of the packaging materials, clean the inside
of your refrigerator before using it. See the cleaning instructions
in the "Refrigerator Care" section.
important information to know about glass shelves
and covets:
Do not clean glass shelves or covers with warm water when
they are cold. Shelves and covers may break if exposed to
sudden temperature changes or impact, such as bumping.
For your protection, tempered glass is designed to shatter
into many small, pebble-size pieces. This is normal. Glass
shelves and covers are heavy. Use special care when re-
moving them to avoid impact from dropping.
Explosion Hazard
Keep flammable materials and vapors, such as
gasoline, away from refrigerator.
Failure to do so can result in death, explosion,
or fire.
To ensure proper ventilation for your refrigerator, allow for 1/2in.
(1.25 cm) space on each side and at the top. When installing your
refrigerator next to a fixed wall, leave 2 in. (5.08 cm) minimum on
each side (depending on your model) to allow for the door to
swing open. If your refrigerator has an ice maker, allow extra
space at the back for the water line connections.
NOTE: Do not install the refrigerator near an oven, radiator, or
other heat source, nor in a location where the temperature will fall
below 55°F (13°C).
I I I (
II J
II r= _
2"(s.oa ore)i--

Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in
death, fire, or electrical shock.
Before you move your refrigerator into its final location, it is
important to make sure you have the proper electrical
connection:
Recommended grounding method
A 115 Volt, 60 Hz., AC only 15 or 20 ampere fused, grounded
electrical supply is required. It is recommended that a separate
circuit serving only your refrigerator be provided. Use an outlet
that cannot be turned off by a switch. Do not use an
extension cord.
NOTE: Before performing any type of installation, cleaning, or
removing a light bulb, turn the control (Thermostat, Refrigerator
or Freezer Control depending on the model) to OFF and then
disconnect the refrigerator from the electrical source. When you
are finished, reconnect the refrigerator to the electrical source
and reset the control (Thermostat, Refrigerator or Freezer Control
depending on the model) to the desired setting.
To remove the base grille:
1. Open both doors.
2. Place hands along the ends of the grille, with your thumbs
along the top. Push in with your thumbs and pull up on the
bottom.
NOTE: Be sure to refasten the Tech Sheet behind the base grille
after cleaning.
To replace the base grille:
1. Open both doors.
2. Line up the grille support tabs with the metal clips.
3. Push the grille firmly to snap it into place.

TOOLSNEEDED:1/4in.hex-headsocketwrench,%6in.hex-headsocketwrenchandaflat-bladescrewdriver.
IMPORTANT:Beforeyoubegin,turntherefrigeratorcontrolOFEUnplugrefrigeratorordisconnectpower.Removefoodandany
adjustabledoororutilitybinsfromdoors.
NOTE:Itmayonlybenecessarytoremoveeitherthedoorhandleorthedoorstogetyourproductthroughthedoorwayofyourhome.
Measurethedooropeningtoseewhetheryouneedtoremovetherefrigeratorhandlesorthedoors.
Electrical Shock Hazard
Disconnect power before removing doors.
Reconnect both ground wires before operating.
Failure to do so can result in death or electrical shock.
\
Top Left Hinge
Style 1
Style 2
1. Do Not Remove Screw
Water Dispenser
Tubing Connection
1
1. Red Outer Ring
Door Removal Top Right Hinge
/./j
1
1. Do Not Remove Screw
Handle
Removal
(Optional)
Door Alignment
1.LevelingScrew
Style 2
Handle
Removal
(Optional)
Bottom Hinge
1.Do Not Remove Screw
6

Handle Removal (optional)
Style 1
1. Apply firm pressure with your hand on the face of trim. Slide
top trim up and bottom trim down away from handle. Lift trim
pieces off shoulder screws (see Graphic 1).
NOTE: Some models include accent pieces between the handle
and the handle trim. If your model includes the accents, you will
need to carefully remove them with a flat-blade screwdriver
before removing the handle screws. The accent pieces are
optional and can be reinstalled or left off the handle assembly.
2. Remove handle screws and handles. (See Graphic 1)
3. Move refrigerator into place. Replace handles as shown (see
Graphic 1).
Style 2
1. Apply firm pressure on the handle to slide it up and off of the
shoulder screws (see Graphic 1).
2. Move refrigerator into place. Replace handles as shown (see
Graphic 1).
Door Removal
Electrical Shock Hazard
Disconnect power before removing doors.
Failure to do so can result in death or
electrical shock.
1. Unplug refrigerator or disconnect power.
2. Open both refrigerator doors. Remove the base grille by
pulling up on the bottom outside corners (see Graphic 2).
3. Close both doors and keep them closed until you are ready to
lift them free from the cabinet.
4. If you have a dispenser (ice or water), disconnect the water
dispenser tubing located behind the base grille on the freezer
door side (see Graphic 3).
• Press the red outer ring against the face of the fitting and
pull the dispenser tubing free.
• On some models, remove the tubing from the hose clip.
5. Remove the top left hinge cover and screws as shown (see
Graphic 4). Do not remove screw 1.
6. Disconnect wiring:
Style 1
• Disconnect wiring plug.
• Remove green ground wire screw to disconnect ground
wires.
1. Do not remove screw 1.
2. Ground wires
3. Green ground wire screw
Style 2
• Disconnect wiring plug.
1.Do not remove screw 1.
2. Wiring plug
7. Carefully lift the freezer door straight up and off of the bottom
hinge (see Graphic 5). The water dispenser tubing remains
attached to the freezer door and pulls through the bottom left
hinge. Make sure you protect the dispenser tubing from
damage.
8. Remove the top right hinge cover and screws as shown (see
Graphic 6). Do not remove screw 1.
9. Lift the refrigerator door straight up and off of the bottom
hinge.
10. It may not be necessary to remove the bottom hinge to move
the refrigerator through a doorway. Both bottom hinges have
similar construction. If necessary, disassemble the hinges as
shown (see Graphic 7). Do not remove screw 1.
Door and Hinge Replacement
1. Replace both bottom hinges, if removed. Tighten screws.
2. Assistance may be needed to feed the water dispenser
tubing through the bottom hinge while reinstalling the freezer
door. Carefully feed the dispenser tubing through the bottom
left hinge before replacing the door on the hinge.
NOTE: Provide additional support for the doors while the top
hinges are being replaced. Do not depend on the door magnets
to hold the doors in place while you are working.
3. Reconnect water dispenser tubing by pushing tubing into
fitting until it stops and black mark touches face of fitting (see
Graphic 3). On some models, replace tubing in hose clip.

4. Alignandreplacethetoplefthingeasshown(seeGraphic4).
Tightenscrews.
Electrical Shock Hazard
Reconnect both ground wires.
Failure to do so can result in death or
electrical shock.
Style 1
• Reconnect both ground wires.
• Reconnect wiring plug.
1. Do not remove screw 1.
3. Green ground wire screw
2. Ground wires
Style 2
• Reconnect wiring plug.
1. Do not remove screw 1.
2. Wiring plug
5. Replace left hinge cover and screws.
6. Replace the refrigerator door by carefully lifting the door onto
the bottom right hinge.
7. Align and replace the top right hinge as shown (see
Graphic 6). Tighten screws.
8. Replace hinge cover and screws. Tighten screws.
9. Plug into a grounded 3 prong outlet.
Your refrigerator has two front adjustable rollers -- one on the
right and one on the left. If your refrigerator seems unsteady or if
you want the doors to close more easily, adjust the refrigerator's
tilt using the instructions below:
1. Move the refrigerator into its final position.
2. The two leveling screws are part of the front roller assemblies,
which are at the base of the refrigerator on either side (see
Graphic 8).
3. Use a hex-head socket wrench to adjust the leveling screws.
Turn the leveling screw to the right to raise that side of the
refrigerator or turn the leveling screw to the left to lower that
side. It may take several turns of the leveling screws to adjust
the tilt of the refrigerator (see Graphic 8).
NOTE: Having someone push against the top of the
refrigerator takes some weight off the leveling screws and
rollers. This makes it easier to adjust the screws.
4. Open both doors again and check to make sure that they
close as easily as you like. If not, tilt the refrigerator slightly
more to the rear by turning both leveling screws to the right. It
may take several more turns, and you should turn both
leveling screws the same amount.
5. Replace the base grille.
NOTE: Be sure to refasten the Tech Sheet behind the base grille.
Read all directions carefully before you begin.
IMPORTANT:
•If you turn the refrigerator on before the water line is
connected, turn the ice maker OFE
• All installations must meet local plumbing code requirements.
• Use copper tubing and check for leaks. Install copper tubing
only in areas where the household temperatures will remain
above freezing.
Tools required: Flat-blade screwdriver, 7_ein. and V2in. open-end
wrenches or two adjustable wrenches, V4in. nut driver and drill
bit, hand drill or electric drill (properly grounded).
NOTE: Your refrigerator dealer has a kit available with a V4in.
(6.35 mm) saddle-type shutoff valve, a union, and copper tubing.
Before purchasing, make sure a saddle-type valve complies with
your local plumbing codes. Do not use a piercing-type or 3/lein.
(4.76 mm) saddle valve which reduces water flow and clogs more
easily.
Cold water supply
Connect the ice maker to a cold water line with water pressure
between 30 and 120 psi (207-827 kPa). If you have questions
about your water pressure, call your utility company.
1,
2.
3.
Connecting to Water Line
Unplug refrigerator or disconnect power.
Turn OFF main water supply. Turn ON nearest faucet long
enough to clear line of water.
Locate a V2in. to 1V4in. (1.25 cm to 3.18 cm) vertical COLD
water pipe near the refrigerator.
NOTE: Horizontal pipe will work, but drill on the top side of
the pipe, not the bottom. This will help keep water away from
the drill and normal sediment from collecting in the valve.
8

4.
5.
Determine the length of copper tubing you need. Measure
from the connection on the lower left rear of refrigerator to the
water pipe. Add 7 ft. (2.1 m) to allow for cleaning. Use 1/4in.
(6.35 mm) O.D. (outside diameter) copper tubing. Be sure
both ends of copper tubing are cut square.
Using a grounded drill, drill a 1/4in. hole in the cold water pipe
you have selected.
.......... ........ 1
2
7_ _ ....................3
85
1.Cold WaterPipe 5. Compression Sleeve
2. Pipe Clamp 6. Shutoff Valve
3. Copper Tubing 7.Packing Nut
4. Compression Nut
6. Fasten the shutoff valve to the cold water pipe with the pipe
clamp. Be sure the outlet end is solidly in the 1/4in. drilled hole
in the water pipe and that the washer is under the pipe clamp.
Tighten the packing nut. Tighten the pipe clamp screws
carefully and evenly so washer makes a watertight seal. Do
not overtighten or you may crush the copper tubing.
7. Slip the compression sleeve and compression nut on the
copper tubing as shown. Insert the end of the tubing into the
outlet end squarely as far as it will go. Screw compression nut
onto outlet end with adjustable wrench. Do not overtighten.
8. Place the free end of the tubing in a container or sink, and
turn ON the main water supply. Flush the tubing until water is
clear. Turn OFF the shutoff valve on the water pipe. Coil the
copper tubing.
Connecting to Refrigerator
1.
2.
3.
Attach the copper tube to the valve inlet using a compression
nut and sleeve as shown. Tighten the compression nut. Do
not overtighten. Use the tube clamp on the back of the
refrigerator to secure the tubing to the refrigerator as shown.
This will help prevent damage to the tubing when the
refrigerator is pushed back against the wall.
Turn shutoff valve ON.
Check for leaks. Tighten any connections (including
connections at the valve) or nuts that leak.
_ .................1
iiiiiii iiiii%
1.Tube Clamp 3. Compression Nut
2. Copper Tubing 4. ValveInlet
4. The ice maker is equipped with a built-in water strainer. If
your water conditions require asecond water strainer, install it
in the 1/4in. (6.35 mm) water line at either tube connection.
Obtain a water strainer from your nearest appliance dealer.
5. Plug in refrigerator or reconnect power.
Please read before using the water system.
Immediately after installation, follow the steps below to make
sure that the water system is properly cleaned.
1. Open the freezer door and turn off the ice maker. For Style 1
lift up the wire shutoff arm as shown. For Style 2 move the
switch to the OFF (right) setting as shown. The ON/OFF
switch is located on the top right side of the freezer
compartment.
Style I
Style 2
NOTES:
• If your model has a base grille filter system, make sure the
base grille filter is properly installed and the cap is in the
horizontal position.
•Do not use with water that is microbiologically unsafe or
of unknown quality without adequate disinfection before
or after the system.
2. Use a sturdy container to depress the water dispenser bar
until the water begins to flow. Flush the water system by
dispensing and discarding 2 to 3 gal. (8 to 12 L) of water.
Cleaning the system will take approximately 6 to 7 minutes
and will help clear air from the line. Additional flushing may be
required in some households.
NOTE: As air is cleared from the system, water may spurt out
of the dispenser.
3. Open the freezer door and turn on the ice maker. For Style 1
lower the wire shutoff arm. For Style 2 move the switch to the
ON (left) position. Please refer to the "Ice Maker and Storage
Bin/Bucket" section for further instructions on the operation
of your ice maker.
• Allow 24 hours to produce the first batch of ice.
• Discard the first three batches of ice produced.
• Depending on your model, you may want to select the
maximum ice feature to increase the production of ice.

Yournewrefrigeratormaymakesoundsthatyouroldonedidn't
make.Becausethesoundsarenewtoyou,youmightbe
concernedaboutthem.Mostofthenewsoundsarenormal.Hard
surfaces,suchasthefloor,walls,andcabinets,canmakethe
soundsseemlouder.Thefollowingdescribesthekindsofsounds
andwhatmaybemakingthem.
• Ifyourproductisequippedwithanicemaker,youwillheara
buzzingsoundwhenthewatervalveopenstofilltheice
makerforeachcycle.
• Yourrefrigeratorisdesignedtorunmoreefficientlytokeep
yourfooditemsatthedesiredtemperaturesandtominimize
energyusage.Thehighefficiencycompressorandfansmay
causeyourrefrigeratortorunlongerthanyouroldone.You
mayalsohearapulsatingorhigh-pitchedsoundfromthe
compressororfansadjustingtooptimizeperformance.
• Youmayheartheevaporatorfanmotorcirculatingairthrough
therefrigeratorandfreezercompartments.Thefanspeed
mayincreaseasyouopenthedoorsoraddwarmfood.
• Rattlingnoisesmaycomefromtheflowofrefrigerant,the
waterline,oritemsstoredontopoftherefrigerator.
• Waterdrippingonthedefrostheaterduringadefrostcycle
maycauseasizzlingsound.
• Aseachcycleends,youmayhearagurglingsounddueto
therefrigerantflowinginyourrefrigerator.
• Contractionandexpansionoftheinsidewallsmaycausea
poppingnoise.
• Youmayhearairbeingforcedoverthecondenserbythe
condenserfan.
• Youmayhearwaterrunningintothedrainpanduringthe
defrostcycle.
REFRIGERATORUSE
In order to ensure proper temperatures, you need to permit air to
flow between the two sections. Cold air enters the bottom of the
freezer section and moves up. It then enters the refrigerator
section through the top vent. Air then returns to the freezer as
shown.
7
Do not block any of these vents with food such as soda, cereal,
bread, etc. If the vents are blocked, airflow will be prevented and
the temperature controls will not function properly.
IMPORTANT: Because air circulates between both sections, any
odors formed in one section will transfer to the other. You must
thoroughly clean both sections to eliminate odors. To prevent
odor transfer from food, wrap or cover foods tightly.
For your convenience, your refrigerator controls are preset at the
factory. When installing your refrigerator, make sure that the
controls are still preset to the "mid-settings" as shown.
Style I
FREEZER REFRIGERATOR
n I
COLD
Style 2
COLDER COLD COLDER
IMPO RTANT:
• Your product will not cool when the Refrigerator Control is set
to OFE
• The Refrigerator Control adjusts the refrigerator compartment
temperature. The Freezer Control adjusts the freezer
compartment temperature. Higher numbered settings make
the compartment colder. Lower numbered settings make the
temperature less cold.
• Wait 24 hours before you put food into the refrigerator. Ifyou
add food before the refrigerator has cooled completely, your
food may spoil.
NOTE: Adjusting the Refrigerator and Freezer Controls to a
higher (colder) setting will not cool the compartments any
faster.
• The preset settings should be correct for normal household
usage. The controls are set correctly when milk or juice is as
cold as you like and when ice cream is firm.
• If the temperature is too warm or too cold in the refrigerator or
freezer, first check the air vents to be sure they are not
blocked before adjusting the controls.
Adjusting the Controls
If you need to adjust temperatures, adjust the refrigerator
temperature first.
NOTE: Wait at least 24 hours between adjustments and then
recheck the temperatures.
Style 1
Turn the control to the right (clockwise) to make the compartment
colder or to the left (counterclockwise) to make it less cold.
10

Style 2
1. Push in on the control and release it.
2. The control will pop out. Turn the control to the desired
setting.
3. Push the control in to lock it in place.
CONDITION/REASON:
REFRIGERATOR too cold
Not set correctly for your
conditions
REFRIGERATOR too warm
Door opened often, large amount of
food added or room temperature
very warm
FREEZER too cold
Not set correctly for your
conditions
FREEZER too warm/too little ice
Door opened often, or large amount
of food added or very cold room
temperature (can't cycle often
enough) or heavy ice usage
SETTING
ADJUSTM ENT:
REFRIGERATOR
Control one setting
lower
REFRIGERATOR
Control one setting
higher
FREEZER Control one
setting lower
FREEZER Control one
setting higher
Some models dispense both cubed and crushed ice. Before
dispensing ice, select which type of ice you prefer. The button
controls are designed for easy use and cleaning.
Style 1Style 2
ICE
CRUSH CUBE
® ®
C_US_%% CUSt%
For crushed ice, cubes are crushed before they are dispensed.
This may cause a slight delay when dispensing crushed ice.
Noise from the ice crusher is normal, and pieces of ice may vary
in size. When changing from crushed to cubed, a few ounces of
crushed ice will be dispensed along with the first cubes.
To dispense ice:
1. Press button for the desired type of ice.
2. Press a sturdy glass against the ice dispenser lever. Hold the
glass close to the dispenser opening so ice does not fall
outside of the glass.
IMPORTANT: You do not need to apply a lot of pressure to
the lever in order to activate the ice dispenser. Pressing hard
will not make the ice dispense faster or in greater quantities.
Cut Hazard
Use a sturdy glass when dispensing ice or water.
Failure to do so can result in cuts.
Depending on your model, you may have one or more of the
following options: the ability to select either crushed or cubed
ice, a special light that turns on when you use the dispenser, a
special Night Light mode, or a lock option to avoid accidental
dispensing.
The ice dispenser
Ice dispenses from the ice maker storage bin in the freezer. When
the dispenser lever is pressed:
• A trap door opens in a chute between the dispenser and the
ice bin. Ice moves from the bin and falls through the chute.
• When you release the dispenser lever, the trap door closes
and the ice dispensing stops. The dispensing system will not
operate when the freezer door is open.
3. Remove the glass to stop dispensing.
NOTE: The first few batches of ice may have an off-flavor
from new plumbing and parts. Throw the ice away. Also, take
large amounts of ice from the ice bin, not through the
dispenser.
The water dispenser
If you did not flush the water system when the refrigerator was
first installed, press the water dispenser bar with a glass or jar
until you draw and discard 2 to 3 gal. (8 to 12 L) or approximately
6 to 7 minutes of water after water begins dispensing. It will take
3 to 4 minutes for the water to begin dispensing. The water you
draw and discard cleans the system and helps clear air from the
lines. Allow several hours for the refrigerator to cool down and
chill water.
IMPORTANT: Depending on your model, the small removable
tray at the bottom of the dispenser is designed to catch small
spills and allow for easy cleaning. There is no drain in the tray.
The tray can be removed from the dispenser and carried to the
sink to be emptied or cleaned.
11

To dispense water:
1. Press a glass against the water dispenser lever.
2. Remove the glass to stop dispensing.
NOTE: Water may have an off-flavor if you do not use the
dispenser periodically. Dispense enough water every week to
maintain a fresh supply.
The dispenser light
Style 1
The dispenser area has a light. It can be turned on manually by
pressing the ON button (touch pad or rocker switch).
On some models: Whenever you use the dispenser the lever will
automatically turn the light on.
LIGHT
NOTE: See the "Changing the Light Bulbs" section for
information on changing the dispenser light bulb.
Style 2
When you use the dispenser, the lever will automatically turn the
light on. If you want the light to be on continuously, you may
choose either ON or NIGHT LIGHT.
NIGHT
ON LIGHT
• ®
ON: Press the LIGHT button to turn the dispenser light on.
NIGHT LIGHT: Press the LIGHT button a second time to select
the Night Light mode. The dispenser light will automatically
adjust to become brighter as the room brightens, dimmer as the
room darkens.
OFF: Press the LIGHT button a third time to turn the dispenser
light off.
The dispenser lights are LEDs which should not need to be
changed. If it appears that your dispenser lights are not working,
check to be sure that the light sensor is not blocked (in Night
Light mode). See "Troubleshooting" for more information.
The dispenser lock (on some models)
Your dispenser can be turned off for easy cleaning or to prevent
accidental dispensing by small children and pets.
NOTE: The lock feature does not shut off power to the product,
to the ice maker, or to the dispenser light. It simply deactivates
the dispenser levers.
Style 1
Toturn off the dispenser, press the LOCK button until the
indicator appears. The ice and water dispensers will not work. To
unlock the dispenser, press the UNLOCK button until the
indicator appears. Then continue to dispense ice or water as
usual.
DISPENSER
LOCK UNLOCK
Style 2
Toturn off the dispenser, press and hold the LOCK OUT button
until the indicator appears. The ice and water dispensers will not
work. To unlock the dispenser, press the LOCK OUT button until
the indicator disappears. Then continue to dispense ice or water
as usual. ®
LOcK
PRESS& HOLD
The water filter status light will help you know when to change
your water filter cartridge. The light will change from green to
yellow. This tells you that it is almost time to change the water
filter cartridge (90% of the filter life has been used). It is
recommended that you replace the base grille water filter
cartridge when the water filter indicator light changes to red OR
water flow to your water dispenser or ice maker decreases
noticeably. (See "Water Filtration System.")
After changing the water filter cartridge, reset the water filter
status light.
Style 1
Press the light switch 5 times within 10 seconds. The status light
will change from red to green.
Style 2
Press and hold the water filter reset button until the status light
turns green. Your reset button may be located on the water
dispenser or on the control panel in the refrigerator compartment.
Dispenser Control Panel
••
PRESS& HOLD ER F\L
12

Non-indicator water filter (on some models)
If your refrigerator does not have the water filter status light, you
should change the water filter cartridge every 6 to 9 months
depending upon your usage. If the water flow to the water
dispenser or ice maker decreases noticeably before 6 months
have passed, replace the water filter cartridge more often.
NOTE: Do not use with water that is microbiologically unsafe
or of unknown quality without adequate disinfection before
or after the system.
Changing a base grille water filter cartridge
The base grille water filter is located below the freezer
compartment door. Depending on your model, you may have a
filter that is installed behind the base grille (Style 1) or a filter that
is installed through the base grille (Style 2).
Style 1: Behind the base grille filter
1. Remove the base grille (see "Door Removal" section). Rotate
the cartridge counterclockwise to a vertical position and pull
the filter cartridge out.
NOTE: There will be water in the cartridge. Some spilling may
occur.
2. Take the new cartridge out of its packaging and remove
protective cover from o-rings.
3. Push the new filter cartridge into the base until it stops.
Rotate the cartridge clockwise to a horizontal position. Flush
the water system (see "Flushing the water system after
replacing filter" later in this section).
Style 2: Through the base grille filter
1. Locate the water filter cartridge cap in the front base grille.
Rotate the cap counterclockwise to a vertical position and
pull the cap and filter cartridge out through the base grille.
NOTE: There will be water in the cartridge. Some spilling may
occur.
2. Remove the cartridge cap by sliding it off the end of the old
cartridge. The cap will slide to the left or right. DO NOT
DISCARD THE CAP.
3. Take the new cartridge out of its packaging and remove
protective cover from o-rings.
4. Slide the cartridge cap onto the new cartridge. See
illustration in Step 2.
5. With cartridge cap in the vertical position, push the new filter
cartridge into the base grille until it stops. Rotate the cartridge
cap clockwise to a horizontal position. Flush the water
system (see "Flushing the water system after replacing filter"
later in this section).
Flushing the water system after replacing filter
Use a sturdy container to depress the water dispenser bar until
the water begins to flow. Flush the water system by dispensing
and discarding 2 to 3 gal. (8 to 12 L) of water. Cleaning the
system will take approximately 6 to 7 minutes and will help clear
air from the line. Additional flushing may be required in some
households.
NOTE: As air is cleared from the system, water may spurt out of
the dispenser.
Using the dispenser without the water filter
You can run the dispenser without a water filter cartridge. Your
water will not be filtered.
1. Remove the base grille water filter cartridge. For Style 1,
replace the base grille after removing the filter.
2. For Style 2, slide the cartridge cap off the end of the filter
cartridge. DO NOT DISCARD THE CAR With the cartridge
cap in the vertical position, insert the cap into the base grille
until it stops.
3. Rotate the cartridge cap to a horizontal position. The
cartridge cap might not be even with the base grille.
=- ...... II ,I ..................
/,0II fOR/If II/O01:)lS =%CQI_SOI <}_
Style I
To turn the ice maker on/off
The on/off switch for the ice maker is a wire shutoff arm located
on the side of the ice maker.
1. To turn the ice maker on, simply lower the wire shutoff arm.
NOTE: Your ice maker has an automatic shutoff. As ice is
made, the ice cubes will fill the ice storage bin and the ice
cubes will raise the wire shutoff arm to the OFF (arm up)
position.
13

2.
To increase ice production rate:
To manually turn the ice maker off, lift the wire shutoff arm to
the OFF (arm up) position and listen for the click to make sure
the ice maker will not continue to operate.
• Normal Ice Production: In normal ice production mode, the
ice maker should produce approximately 7 to 9 batches of ice
in a 24-hour period. If ice is not being made fast enough, turn
the Freezer Control toward a higher (colder) number in half
number steps. (For example, if the control is at 3, move it to
between 3 and 4.) Wait 24 hours between each increase.
• Maximum Ice Production (on some models): In maximum ice
production, the ice maker should produce approximately 10
to 14 batches of ice in a 24-hour period. If your refrigerator
has the maximum ice production feature, push the switch to
MAX.
To remove and replace ice storage bin:
1. Pull the covering panel out from the bottom and then slide it
back toward the rear.
2. Lift the wire shutoff arm so it clicks into the OFF (up) position.
Ice can still be dispensed, but no more can be made.
3. Lift up the front of the storage bin and pull it out.
4. Replace the bin by pushing it in all the way or the dispenser
will not work. Push the wire shutoff arm down to the ON
position to restart ice production. Make sure the door is
closed tightly.
Style 2
To turn the ice maker on/off:
The ON/OFF switch is located on the top right side of the freezer
compartment.
1. To turn the ice maker on, slide the control to the ON (left)
position.
NOTE: Your ice maker has an automatic shutoff. The ice
maker sensors will automatically stop ice production, but the
control will remain in the ON (left) position.
2. To manually turn the ice maker off, slide the control to the
OFF (right) position.
To remove and replace the ice storage bucket:
1. Hold the base of the storage bin with both hands and press
the release button to lift the storage bin up and out.
NOTE: It is not necessary to turn the ice maker control to the
OFF (right) position when removing the storage bin. The
sensor cover ("flipper door") on the left wall of the freezer
stops the ice maker from producing ice if the door is open or
the storage bin is removed.
2. Replace the storage bin on the door and push down to make
sure it is securely in place.
j i,
Clean the ice storage bin or bucket
1. Empty the ice container. Use warm water to melt the ice if
necessary.
NOTE: Never use anything sharp to break up the ice in the
bin or bucket. This can cause damage to the ice container
and the dispenser mechanism.
2. Wash ice bin or bucket with a mild detergent, rinse well and
dry thoroughly. Do not use harsh or abrasive cleaners or
solvents.
REMEMBER
Allow 24 hours to produce the first batch of ice.
Discard the first three batches of ice produced to avoid
impurities that may be flushed out of the system.
The quality of your ice will be only as good as the quality of
the water supplied to your ice maker.
Avoid connecting the ice maker to a softened water supply.
Water softener chemicals (such as salt) can damage parts of
the ice maker and lead to poor quality ice. If a softened water
supply cannot be avoided, make sure the water softener is
operating properly and is well maintained.
It is normal for the ice cubes to be attached at the corners.
They will break apart easily.
For Style 1ice maker, do not force the wire shutoff arm up or
down.
Do not store anything on top of the ice maker or in the ice
storage bin/bucket.
REFRIGERATOR
FFA S
Your model may have some or all of these features. Features that
can be purchased separately as product accessories are labeled
with the word "Accessory." Not all accessories will fit all models.
If you are interested in purchasing one of the accessories, please
call the toll-free number on the cover or in the "Accessories"
section.
14

Important information to know about glass shelves
and covers:
Do not clean glass shelves or covers with warm water when
they are cold. Shelves and covers may break if exposed to
sudden temperature changes or impact, such as bumping.
For your protection, tempered glass is designed to shatter
into many small, pebble-size pieces. This is normal. Glass
shelves and covers are heavy. Use special care when re-
moving them to avoid impact from dropping.
Your model may have glass or wire shelves. Store similar foods
together and adjust the shelves to fit different heights. This
reduces the time the refrigerator door is open and saves energy.
Slide-out Shelves (on some models)
To remove and replace a shelf in a metal frame:
1. Pull the shelf forward to the stop. Tilt the front of the shelf up
and lift it slightly as you pull the shelf from the frame.
2. Replace the shelf by guiding it back into the slots on the
frame and pushing the shelf in past the stop.
Shelves and Shelf Frames
To remove and replace a shelf/frame:
1. Remove the shelf/frame by tilting itup at the front and lifting it
out of the shelf supports.
2. Replace the shelf/frame by guiding the rear shelf hooks into
the shelf supports. Tilt the front of the shelf up until rear shelf
hooks drop into the shelf supports. Check to make sure that
the shelf is securely in position.
To raise or lower the shelf:
1. Raise the shelf by first sliding it back and down to make it
half-width. (You can use the shelf in this position to allow
taller items to be stored on the shelf below.)
2. Lift the front of the shelf until it fits securely in place against
the back wall. Lower the shelf securely back into position.
3. Pull the front of the shelf forward until it fits into place.
To remove and replace the drop-down shelf:
1. Remove the drop-down shelf by sliding it up and back. Pull
forward slightly to release the rear pegs from the track as
shown.
2.
3. With the rear pegs released, pull the shelf down and forward.
Replace the shelf by sliding the front pegs into the track.
Push the shelf up and back until the rear pegs drop into the
track. Pull down and forward to be sure the shelf is securely
in place.
To raise or lower the shelf:
1. Raise the shelf by pulling forward on the lever located at the
bottom front of the shelf and lift until the shelf locks into the
vertical position.
2. Lower the shelf until it is latched securely in place.
The dell drawer stores raisins, nuts, spreads, and other small
items at normal refrigerator temperatures.
To remove and replace the dell drawer:
1. Remove the dell drawer by sliding it straight out to the stop.
Lift the front and slide the drawer out the rest of the way.
2. Replace the dell drawer by sliding it back past the stop.
15

IMPORTANT: If food starts to freeze, move the control to the left
(less cold). Remember to wait 24 hours between adjustments.
Doing so gives the temperature of the food time to change.
.............. _I I,+'-
{0[}>(£_:@ I:_v_@>
Crisper and Convertible Vegetable Meat Drawers
To remove and replace drawers:
1. Slide crisper or meat drawer straight out to the stop. Lift the
front of drawer with one hand while supporting the bottom of
drawer with other hand and slide the drawer out the rest of
the way.
2. Replace the crisper or meat drawer by sliding it back in fully
past the drawer stop.
Crisper or Vegetable/Meat Drawer Covers
To remove and replace covers:
1. Remove the crisper and meat drawer. Press up in center of
crisper glass insert until it rises above the plastic frame.
Holding the crisper glass firmly, carefully slide the glass insert
forward to remove.
2. Lift crisper cover frame and remove. Repeat steps to remove
the meat drawer cover.
3. Replace back of meat drawer cover frame into supports or
slides on side walls of the refrigerator and lower or slide the
front of the cover frame into place.
4. Slide rear of glass insert into cover frame and lower front into
place. Repeat steps to replace the crisper cover.
The convertible vegetable/meat drawer can be adjusted to
properly chill meats or vegetables. The air inside the pan is
cooled to prevent "spot" freezing and can be set to keep meats
at the National Livestock and Meat Board recommended storage
temperatures of 28°- 32°F (-2°- 0°C).
IMPORTANT: To extend freshness, wrap meats in airtight,
moisture-proof materials before storing. Always store meat as
recommended.
Adjusting the control
The convertible control comes preset at the lowest meat setting.
To change a control setting: Move the control to the right
(colder) or to the left (less cold) as desired.
To store vegetables: Set the control to VEG (all the way to the
left) to store vegetables at their optimal storage temperatures
(which need to be warmer than those for meat).
Meat storage guide
Store most meat in original wrapping as long as it is airtight and
moisture-proof. Rewrap if necessary. See the following chart for
storage times. When storing meat longer than the times given,
freeze the meat.
Fresh fish or shellfish ......................... use same day as purchased
Chicken, ground beef, variety meat (liver, etc.) ................ 1-2 days
Cold cuts, steaks/roasts .................................................. 3-5 days
Cured meats ................................................................... 7-10 days
Leftovers - Cover leftovers with plastic wrap, aluminum foil, or
plastic containers with tight lids.
You can control the amount of humidity in the moisture-sealed
crisper. Adjust the control to any setting between LOW and
HIGH.
fL E/E
LOW (open) lets moist air out of the crisper for best storage of
fruits and vegetables with skins.
• Fruit: Wash, let dry and store in refrigerator in plastic bag or
crisper. Do not wash or hull berries until they are ready to use.
Sort and keep berries in original container in crisper, or store
in a loosely closed paper bag on a refrigerator shelf.
• Vegetables with skins: Place in plastic bag or plastic
container and store in crisper.
HIGH (closed) keeps moist air in the crisper for best storage of
fresh, leafy vegetables.
• Leafy vegetables: Wash in cold water, drain and trim or tear
off bruised and discolored areas. Place in plastic bag or
plastic container and store in crisper.
{es£se s >Iris ,.£<_'ces£0 )
To remove and replace the wine rack (left) or an/bottle
rack (right):
1. Remove the rack by pulling it straight out from the shelf.
2. Replace the rack by sliding it in between the shelf and the
wall of the refrigerator.
16

NOTE: For long-term storage, place eggs in a covered container
or in their original carton on an interior shelf.
FREEZERFEATURES
Your model may have some or all of these features. Features that
can be purchased separately as product accessories are labeled
with the word "Accessory." Not all accessories will fit all models.
If you are interested in purchasing one of the accessories, please
call the toll-free number on the cover or in the "Accessories"
section.
3. Replace the basket or bin by positioning it on the side wall
guide rails. Lift the basket or bin front slightly while pushing it
past the guide rail stops and slide basket or bin in the rest of
the way.
DOORFEATURES
Your model may have some or all of these features. Features that
can be purchased separately as product accessories are labeled
with the word "Accessory." Not all accessories will fit all models.
If you are interested in purchasing one of the accessories, please
call the toll-free number on the cover or in the "Accessories"
section.
To remove and replace the shelf:
1. Lift the shelf off of the supports.
2. Slide it out of the shelf support holes.
3. Replace shelf in the reverse order.
Frozen food storage guide
Storage times will vary according to the quality and type of food,
the type of packaging or wrap used (should be airtight and
moisture-proof), and the storage temperature. Ice crystals inside
a sealed package are normal. This simply means that moisture in
the food and air inside the package have condensed, creating ice
crystals.
Put no more unfrozen food into the freezer than will freeze within
24 hours (no more than 2 to 3 Ibs. of food per cubic foot
[907-1,350 g per L] of freezer space). Leave enough space in the
freezer for air to circulate around packages. Be careful to leave
enough room for the door to close tightly.
For more information on preparing food for freezing, check a
freezer guide or reliable cookbook.
The freezer basket or bin can be used to store bags of frozen
fruits and vegetables that may slide off freezer shelves.
To remove and replace the freezer basket or bin:
1. Remove basket or bin by sliding it out to the stop.
2. Lift the front of the basket or bin and slide it out the rest of the
way.
Remove and replace the bin:
1. Remove the bin by pulling out on the tabs behind the basket
to release it from the door liner.
2. Replace the bin by aligning the tabs with the buttons on the
sides of the door liner. Firmly snap the tabs onto the buttons
as shown.
(.,£1111@(I I__..= ,_
1A)@£ I11!]I=
Cool air from the freezer is directed to the refrigerator door bin
directly beneath the vents.
NOTE: The dairy compartment and can rack are not chilled.
17

ChilledDoorBinControl
The chilled door bin control is located on the left-hand side of the
refrigerator compartment.
1.Door Chillcontrol
Turn the control clockwise (right) to reduce the flow of cold air
to the bin and make it less cold.
Turn the control counterclockwise (left) to increase the flow of
cold air to the bin and make it colder.
The door rails may be removed for easier cleaning.
Snap-on Door Rails
To remove and replace the rails:
1. Remove the rails by pushing in slightly on the front of the
bracket while pulling out on the inside tab. Repeat these
steps for the other end of the rail.
2. Replace the rails by aligning the ends of the brackets with the
buttons on the sides of the door liner. Firmly snap bracket
and rail assembly onto the tabs above the shelf as shown.
Drop-in Door Rails
To remove and replace the rails:
1. Remove the rails by pulling straight up on each end of the rail.
2. Replace the rails by sliding the shelf rail into the slots on the
door and pushing the rail straight down until it stops.
To remove and replace the door bins:
1. Remove the rack/bin by lifting it and pulling it straight out.
2. Replace the rack/bin by sliding it in above the desired
support and pushing it down until it stops.
REFRIGERATORCARE
Explosion Hazard
Use nonflammable cleaner.
Failure to do so can result in death, explosion,
or fire.
Both the refrigerator and freezer sections defrost automatically.
However, clean both sections about once a month to prevent
odors from building up. Wipe up spills immediately.
Cleaning your refrigerator
1. Unplug refrigerator or disconnect power.
2. Remove all removable parts from inside, such as shelves,
crispers, etc.
3. Hand wash, rinse, and dry removable parts and interior
surfaces thoroughly. Use a clean sponge or soft cloth and a
mild detergent in warm water.
• Do not use abrasive or harsh cleaners such as window
sprays, scouring cleansers, flammable fluids, cleaning
waxes, concentrated detergents, bleaches or cleansers
containing petroleum products on plastic parts, interior
and door liners or gaskets. Do not use paper towels,
scouring pads, or other harsh cleaning tools. These can
scratch or damage materials.
• To help remove odors, you can wash interior walls with a
mixture of warm water and baking soda (2 tbs. to 1 qt.
[26 g to .95 L] of water).
4. Wash stainless steel and painted metal exteriors with a clean
sponge or soft cloth and a mild detergent in warm water. Do
not use abrasive or harsh cleaners. Dry thoroughly with a soft
cloth. For additional protection against damage to painted
metal exteriors, apply appliance wax (or auto paste wax) with
a clean, soft cloth. Do not wax plastic parts.
18

5=
6.
NOTE: To keep your Stainless Steel refrigerator looking like
new and to remove minor scuffs or marks, it is suggested that
you use the manufacturer's approved Stainless Steel Cleaner
& Polish.
IMPORTANT: This cleaner is for Stainless Steel parts only!
Do not allow the Stainless Steel Cleaner & Polish to come into
contact with any plastic parts such as the trim pieces,
dispenser covers or door gaskets. If accidental contact does
occur, clean plastic part with a sponge and mild detergent in
warm water. Dry thoroughly with a soft cloth. To order the
cleaner, see the "Accessories" section.
There is no need for routine condenser cleaning in normal
home operating environments. If the environment is
particularly greasy or dusty, or there is significant pet traffic in
the home, the condenser should be cleaned every 2 to 3
months to ensure maximum efficiency.
If you need to clean the condenser:
• Remove the base grille. See "Base Grille" or "Door
Removal" section.
• Use a vacuum cleaner with a soft brush to clean the grille,
the open areas behind the grille and the front surface area
of the condenser.
• Replace the base grille when finished.
Plug in refrigerator or reconnect power.
NOTE: Not all appliance bulbs will fit your refrigerator. Be sure to
replace the bulb with one of the same size and shape. The
dispenser light requires a heavy duty 1O-watt bulb. All other lights
require a 40-watt appliance bulb. Replacement bulbs are
available from your dealer.
1. Unplug refrigerator or disconnect power.
2. Remove light shield when applicable as shown.
NOTE: To clean the light shield, wash it with warm water and
liquid detergent. Rinse and dry the shield well.
3. Remove light bulb and replace with one of the same size,
shape and wattage.
4. Replace light shield when applicable as shown.
5. Plug in refrigerator or reconnect power.
Dispenser Light (on some models)
Style 1
Reach through the dispenser area to remove and replace
light bulb.
1. Dispenser Light
Style 2
The dispenser lights are LEDs which should not need to be
changed. If it appears that your dispenser lights are not working,
check to be sure that the light sensor is not blocked (in Night
Light mode). See "Troubleshooting" for more information.
Refrigerator Control Panel Light
Reach behind the refrigerator control panel to remove and
replace light bulb.
Style1
Style 2
Crisper Lights
• If necessary, remove the top crisper drawer to access the
crisper light shield. Remove the light shield by lifting the ends
out of the brackets as shown.
• Replace the light shield by inserting the ends into the
brackets. If necessary, replace the top crisper drawer.
Upper Freezer Light (on some models)
Style 1
• Remove light shield by grasping the top center of the shield
and pulling forward while turning it slightly to one side. If
necessary, remove top crisper drawer to access crisper light
shield.
Replace the light shield by inserting the tabs on one end into
the slotted holes in the refrigerator or freezer liner. Then,
carefully bend the shield at the center to insert the tabs on the
other end.
19

Style 2
• Remove the light shield by grasping the sides and squeezing
in toward the center and while pulling forward the shield.
• Replace the light shield by fitting the tabs into the slotted
holes in the freezer liner. Push in the shield until it snaps into
place.
Lower Freezer Light (on some models)
Style 1 - Beneath Ice Bin
• Remove the light shield by grasping the sides and squeezing
in toward the center. Once the side hooks of shield are free
from the freezer lining, pull down the shield.
• Replace the light shield by squeezing the sides toward the
center and inserting the side hooks into the slotted holes.
Once the side hooks are in place, snap the front tab into the
slotted hole.
Style 2 - Behind Freezer Basket
• Depending on your model, remove the top freezer basket or
top freezer basket shelf. Remove light shield by removing the
Phillips screw on the top of the shield. Carefully, rotate the
shield until the left tab can be gently pulled from the freezer
wall.
Replace the light shield by inserting the left tab into the
freezer wall. Align top tab with screw hole and replace screw.
If the power will be out for 24 hours or less, keep both refrigerator
doors closed to help food stay cold and frozen.
If the power will be out for more than 24 hours, do one of the
following:
• Remove all frozen food and store it in a frozen food locker.
• Place 2 Ibs (907 g) of dry ice in the freezer for every cubic foot
(28 L) of freezer space. This will keep the food frozen for 2 to
4 days.
• If neither a food locker nor dry ice is available, consume or
can perishable food at once.
REMEMBER: A full freezer stays cold longer than a partially filled
one. A freezer full of meat stays cold longer than a freezer full of
baked goods. Ifyou see that food contains ice crystals, it may be
refrozen, although the quality and flavor may be affected. If the
condition of the food is poor, dispose of it.
..... _ '1
_,2 ¢<.';:>j_ ;j;
Vacations
If you choose to leave the refrigerator on while you're
away:
1. Use up any perishables and freeze other items.
2. If your refrigerator has an automatic ice maker:
• Raise wire shutoff arm to OFF (up) position or move the
switch to the OFF (right) setting.
• Shut off water supply to the ice maker.
3. Empty the ice bin.
If you choose to turn the refrigerator off before you leave:
1. Remove all food from the refrigerator.
2. If your refrigerator has an automatic ice maker:
• Turn off the water supply to the ice maker at least one day
ahead of time.
• When the last load of ice drops, raise the wire shutoff arm
to the OFF (up) position or move the switch to the OFF
(right) setting.
3. Depending on your model, turn the Thermostat Control or
Refrigerator Control to OFF. See the "Using the Control(s)"
section.
4. Clean refrigerator, wipe it, and dry well.
5. Tape rubber or wood blocks to the tops of both doors to prop
them open far enough for air to get in. This stops odor and
mold from building up.
Moving
When you are moving your refrigerator to a new home, follow
these steps to prepare it for the move.
1. If your refrigerator has an automatic ice maker:
• Turn off the water supply to the ice maker at least one day
ahead of time.
• Disconnect the water line from the back of the
refrigerator.
• When the last load of ice drops, raise the wire shutoff arm
to the OFF (up) position or move the switch to the OFF
(right) setting.
2. Remove all food from the refrigerator and pack all frozen food
in dry ice.
3. Empty the ice bin.
4. Depending on your model, turn the Thermostat Control or
Refrigerator Control to OFF. See the "Using the Control(s)"
section.
5. Unplug refrigerator.
6. Empty water from the defrost pan.
7. Clean, wipe, and dry thoroughly.
8. Take out all removable parts, wrap them well, and tape them
together so they don't shift and rattle during the move.
9. Depending on the model, raise the front of the refrigerator so
it rolls more easily OR screw in the leveling legs so they don't
scrape the floor. See the "Door Closing" or "Leveling Your
Refrigerator" section.
10. Tape the doors shut and the power cord to the refrigerator
cabinet.
When you get to your new home, put everything back and refer to
the "Installation Instructions" section for preparation instructions.
Also, if your refrigerator has an automatic ice maker, remember to
reconnect the water supply to the refrigerator.
20
