Whirlpool TT14DK Installation instructions

UseAndCare
A Note To You 2
Important Safety
Instructions 3
Parts And Features 4
Before Using Your
Refrigerator 5
Using Your
Refn’gerator 7
Caring For Your
Refrigerator 12
Food Storage Guide 16
If You Need
Assistance
Or Service 18
Warranty 20
I -800-253-I 301
Call us with questions or comments.
NO-FROST REFRIGERATOR-FREEZER
MODELS TT14DK l-l-14HD

A Note To You
Thank you for buying an Estate@ appliance.
You have purchased a quality, worldclass home appliance. Years of engineering experience
went into its manufacturing. To ensure that you enjoy many years of trouble-free operation,
we developed this Use and Care Guide. It is full of valuable information on how to operate
and maintain your appliance properly and safely. Please read it carefully. Also, please com-
plete and mail the Ownership Registration Card provided with your appliance. This will help
us notify you about any new information on your appliance.
Your safety is important to us.
This guide contains safety symbols and statements. Please pay special attention to these
symbols and follow any instructions given. Here is a brief explanation of the use of each
symbol.
This symbol will help alert you to such
dangers as personal injury, burns, fire
and electrical shock.
This symbol will help you avoid actions
which could cause product damage
(scratches, dents, etc.) and damage to
your personal property.
Our Consumer Assistance Center number, l-800-253-1301.
is toll-free, 24 hours a day.
If you ever have a question concerning your appliance’s operation, or if you need service, first
see “If You Need Assistance Or Service” on page 18. If you need further help, feel free to call
our Consumer Assistance Center. When calling, you will need to know your appliance’s
complete model number and serial number. You can find this information on the model and
serial number label (see diagram on page 4). For your convenience, we have included a
handy place below for you to record these numbers, the purchase date from the sales slip
and your dealer’s name and telephone number. Keep this book and the sales slip together in
a safe place for future reference.
Model Number
Serial Number
Purchase Date
Dealer Name
Dealer Phone
2

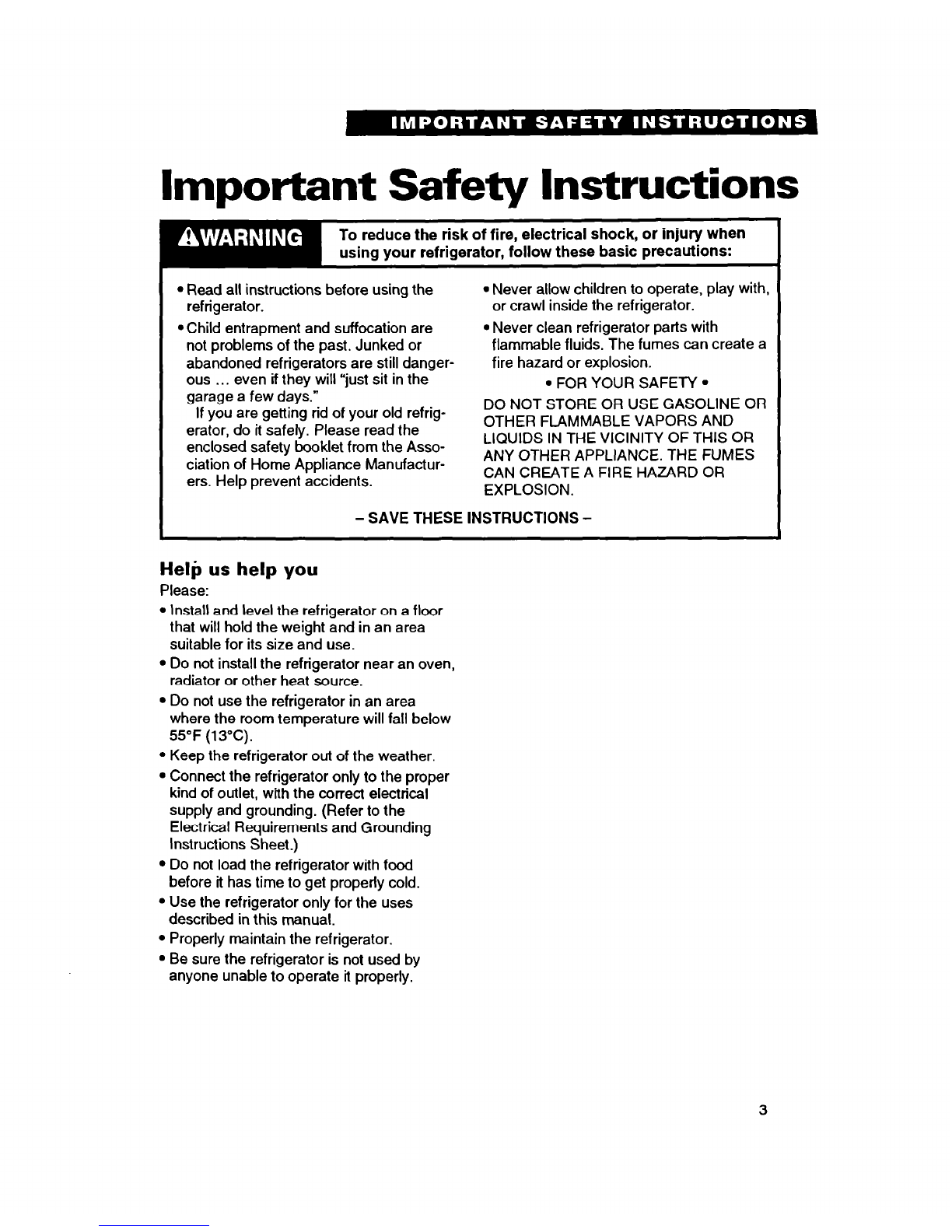

Important Safety Instructions
To reduce the risk of fire, electrical shock, or injury when
using your refrigerator, follow these basic precautions:
l Read all instructions before using the l Never allow children to operate, play with,
refrigerator. or crawl inside the refrigerator.
l Child entrapment and suffocation are l Never clean refrigerator parts with
not problems of the past. Junked or flammable fluids. The fumes can create a
abandoned refrigerators are still danger- fire hazard or explosion.
ous ... even if they will “just sit in the l FOR YOUR SAFETY l
garage a few days.”
If you are getting rid of your old refrig- DO NOT STORE OR USE GASOLINE OR
erator, do it safely. Please read the OTHER FLAMMABLE VAPORS AND
enclosed safety booklet from the Asso- LIQUIDS IN THE VICINITY OF THIS OR
ciation of Home Appliance Manufactur- ANY OTHER APPLIANCE. THE FUMES
ers. Help prevent accidents. CAN CREATE A FIRE HAZARD OR
EXPLOSION.
I -SAVE THESE INSTRUCTIONS -
Heli, us help you
Please:
l Install and level the refrigerator on a floor
that will hold the weight and in an area
suitable for its size and use.
l Do not install the refrigerator near an oven,
radiator or other heat source.
l Do not use the refrigerator in an area
where the room temperature will fall below
55°F (13°C).
l Keep the refrigerator out of the weather.
l Connect the refrigerator only to the proper
kind of outlet, with the correct electrical
supply and grounding. (Refer to the
Electrical Requirements and Grounding
Instructions Sheet.)
l Do not load the refrigerator with food
before it has time to get properly cold.
l Use the refrigerator only for the uses
described in this manual.
l Properly maintain the refrigerator.
l Be sure the refrigerator is not used by
anyone unable to operate it properly.

Parts And Features
This section contains captioned illustrations of your appliance. Use them to become familiar
with where all parts and features are located and what they look like.
Ice cube
trays -
Partial
freezer shelf
Control pant
Adjustable
wire shelves
Crisper
cover H
Crispers -
Control panel
Butter
-compartment
4

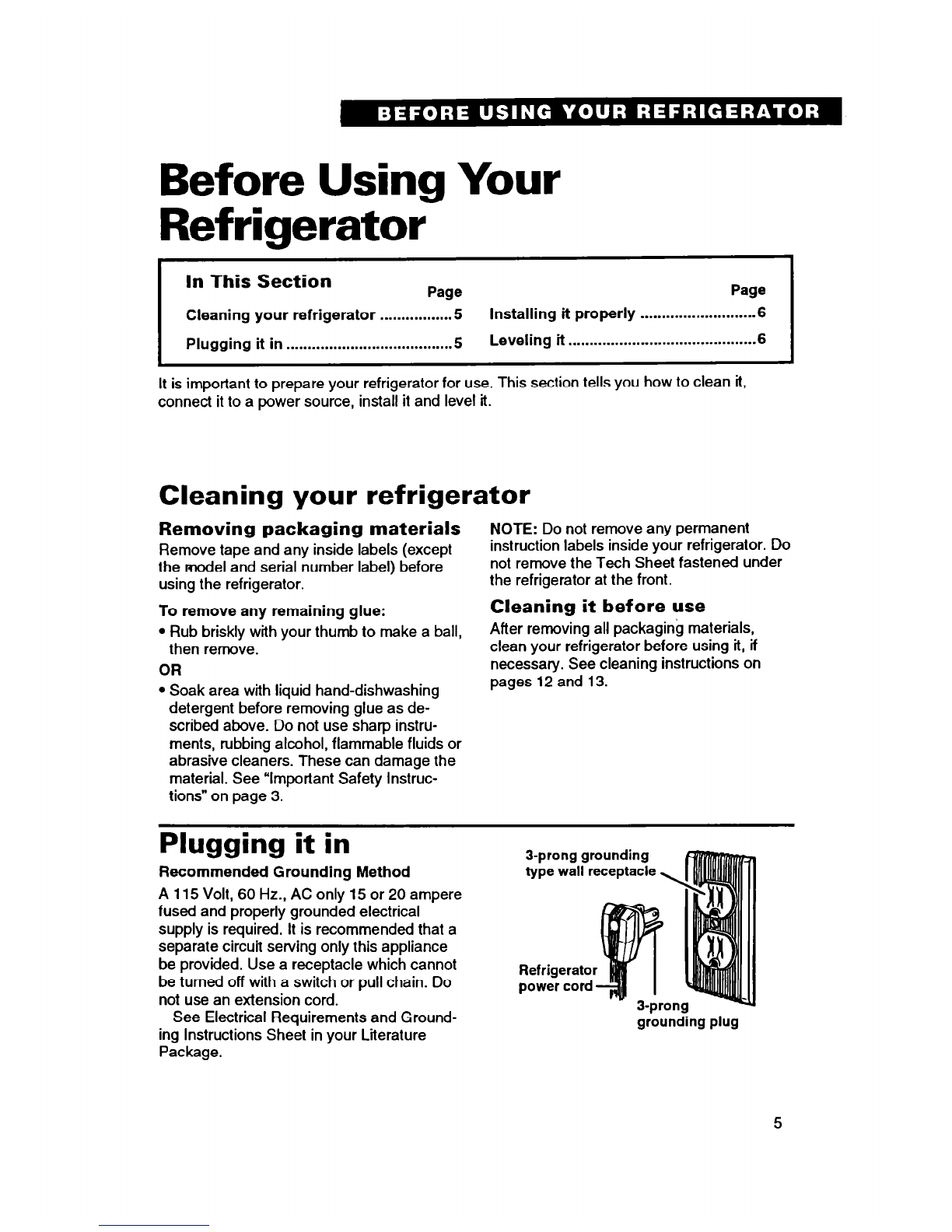

Before Using Your
Refrigerator
In This Section
Page Page
Cleaning your refrigerator .................5 Installing it properly ...........................6
Plugging it in .......................................5 Leveling it ..............................
..............6 .
It is important to prepare your refrigerator for use. This section tells you how to clean it,
connect it to a power source, install it and level it.
Cleaning your refrigerator
Removing packaging materials
NOTE: Do not remove any permanent
Remove tape and any inside labels (except instruction labels inside your refrigerator. Do
the model and serial number label) before not remove the Tech Sheet fastened under
using the refrigerator. the refrigerator at the front.
To remove any remaining glue:
Cleaning it before use
l Rub briskly with your thumb to make a ball, After removing all packaging materials,
then remove. clean your refrigerator before using it, if
OR necessary. See cleaning instructions on
l Soak area with liquid hand-dishwashing pages 12 and 13.
detergent before removing glue as de-
scribed above. Do not use sharp instru-
ments, rubbing alcohol, flammable fluids or
abrasive cleaners. These can damage the
material. See “Important Safety Instruc-
tions” on page 3.
Plugging it in
Recommended Grounding Method
A 115 Volt, 60 Hz., AC only 15 or 20 ampere
fused and properly grounded electrical
supply is required. It is recommended that a
separate circuit serving only this appliance
be provided. Use a receptacle which cannot
be turned off with a switch or pull chain. Do
not use an extension cord.
See Electriial Requirements and Ground-
ing Instructions Sheet in your Literature
Package.
l-prong grounding
type wall receptacle,
Refrigerator r
power cord -
grbunding plug

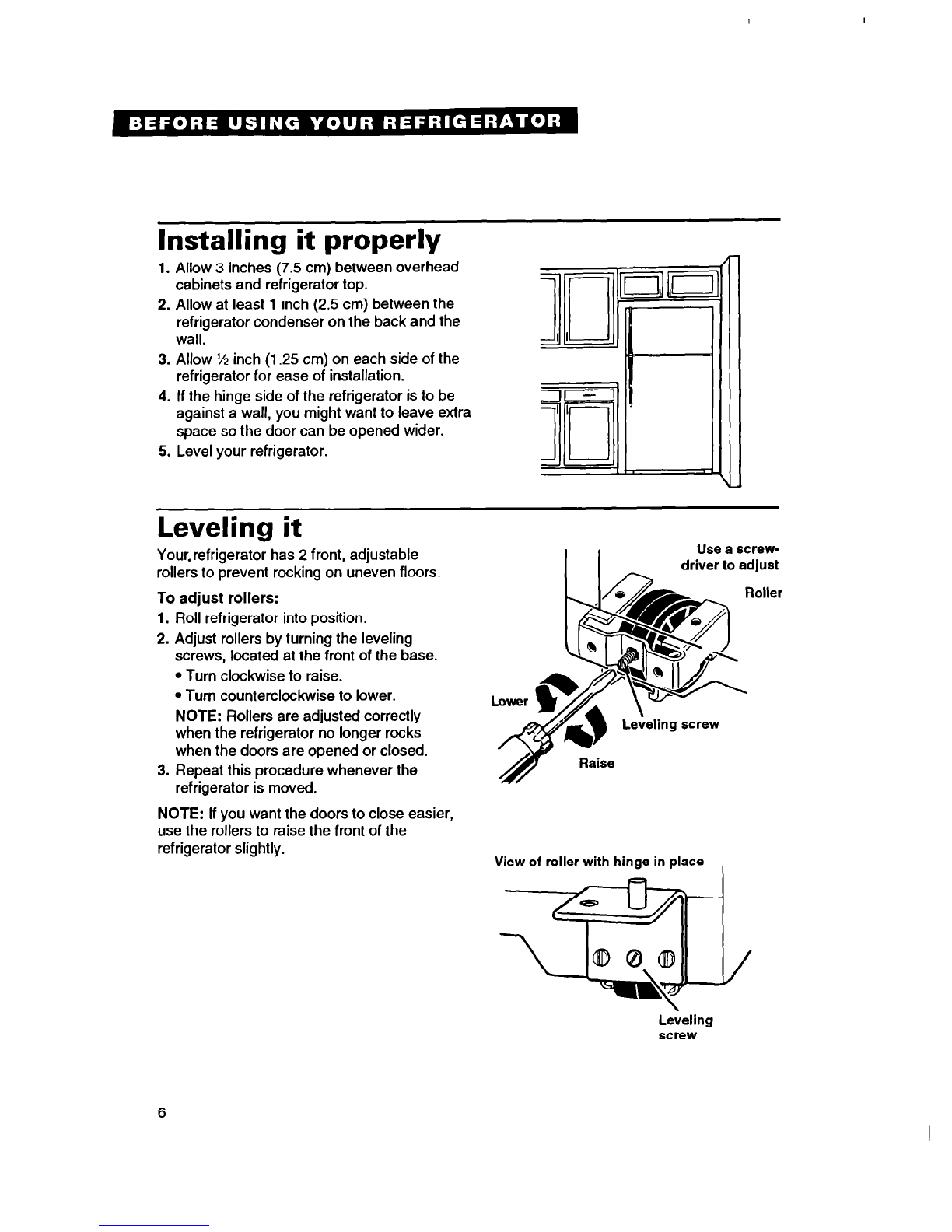

Installing it properly
1. Allow 3 inches (7.5 cm) between overhead
cabinets and refrigerator top.
2. Allow at least 1 inch (2.5 cm) between the
refrigerator condenser on the back and the
wall.
3. Allow ‘/2inch (1.25 cm) on each side of the
refrigerator for ease of installation.
4. If the hinge side of the refrigerator is to be
against a wall, you might want to leave extra
space so the door can be opened wider.
5. Level your refrigerator.
Leveling it
Your-refrigerator has 2 front, adjustable
rollers to prevent rocking on uneven floors.
To adjust rollers:
1. Roll refrigerator into position.
2. Adjust rollers by turning the leveling
screws, located at the front of the base.
l Turn clockwise to raise.
l Turn counterclockwise to lower.
NOTE: Rollers are adjusted correctly
when the refrigerator no longer rocks
when the doors are opened or closed.
3. Repeat this procedure whenever the
refrigerator is moved.
NOTE: If you want the doors to close easier,
use the rollers to raise the front of the
refrigerator slightly.
I I-
Use a screw-
driver to adjust
View of roller with hinge in place
Leveling
screw
6

Using Your Refrigerator
In This Section Page
Page
Setting the temperature control ........7 Changing the light bulb ...................10
Adjusting the refrigerator shelves ....a Reversing the door swing ................11
Removing the crispers and cover .....a Understanding the sounds
Using the ice cube trays ........m...........9 you may hear ....................................11
Using the optional automatic Saving energy ...................................11
ice maker .............................................9
To obtain the best possible resuits from your refrigerator, it is important that you operate it
properly. This section tells you how to set the temperature control, remove and adjust some
of the features in your refrigerator, and how to save energy.
Setting the temperature control
The Temperature Control is in the refrigera-
tor. It controls the temperature in both the
refrigerator and freezer compartments.
When you plug in the refrigerator for the first
time:
1. Set the Temperature Control to 3 (nor-
mal). Temperature Control adjustments
range from 1 (warmest) to 5 (coldest).
NOTE: Turning the Temperature Control
to OFF stops cooling in both the refrigera-
tor and freezer compartments, but it does
not disconnect the refrigerator from the
power supply.
2. Give the refrigerator time to cool down
completely before adding food. This could
take several hours.
3. Adjust the Temperature Control to have
food as cold as you like. The settings
indicated above should be correct for
normal, household refrigerator usage.
NOTE: The built-in exterior moisture control
continuously guards against moisture build-
up on the outside of the refrigerator cabinet.

Adjusting the refrigerator shelves
The refrigerator shelves can be adjusted to
match the way you use your refrigerator.
To remove the shelves:
1. Remove items from the shelf.
2. Slide shelf straight out to the stop.
3. Lift back of shelf over stop.
4. Slide shelf out the rest of the way.
To replace the shelves:
1. Slide back of shelf into shelf track in wall
of cabinet.
2. Guide front of shelf into shelf track.
3. Slide shelf in all the way.
Removing the crispers and cover
To remove the crispers:
1. Slide crispers straight out to the stop.
2. Lift the front.
3. Slide out the rest of the way.
4. Replace in reverse order.
To remove the cover:
1. Lift cover front and remove the cover
support.
Lift cover front,
then the back.
2. Lift cover up and slide out.
To replace the cover:
1. Fit cover tabs into lowest cabinet slots
and push in. Lower the front retainers into
place.
2. Insert cover support (with the long tab
toward the front) into the groove on the
underside of the cover.
NOTE: If the support needs adjustment,
turn base clockwise to raise or counter-
clockwise to lower.
8

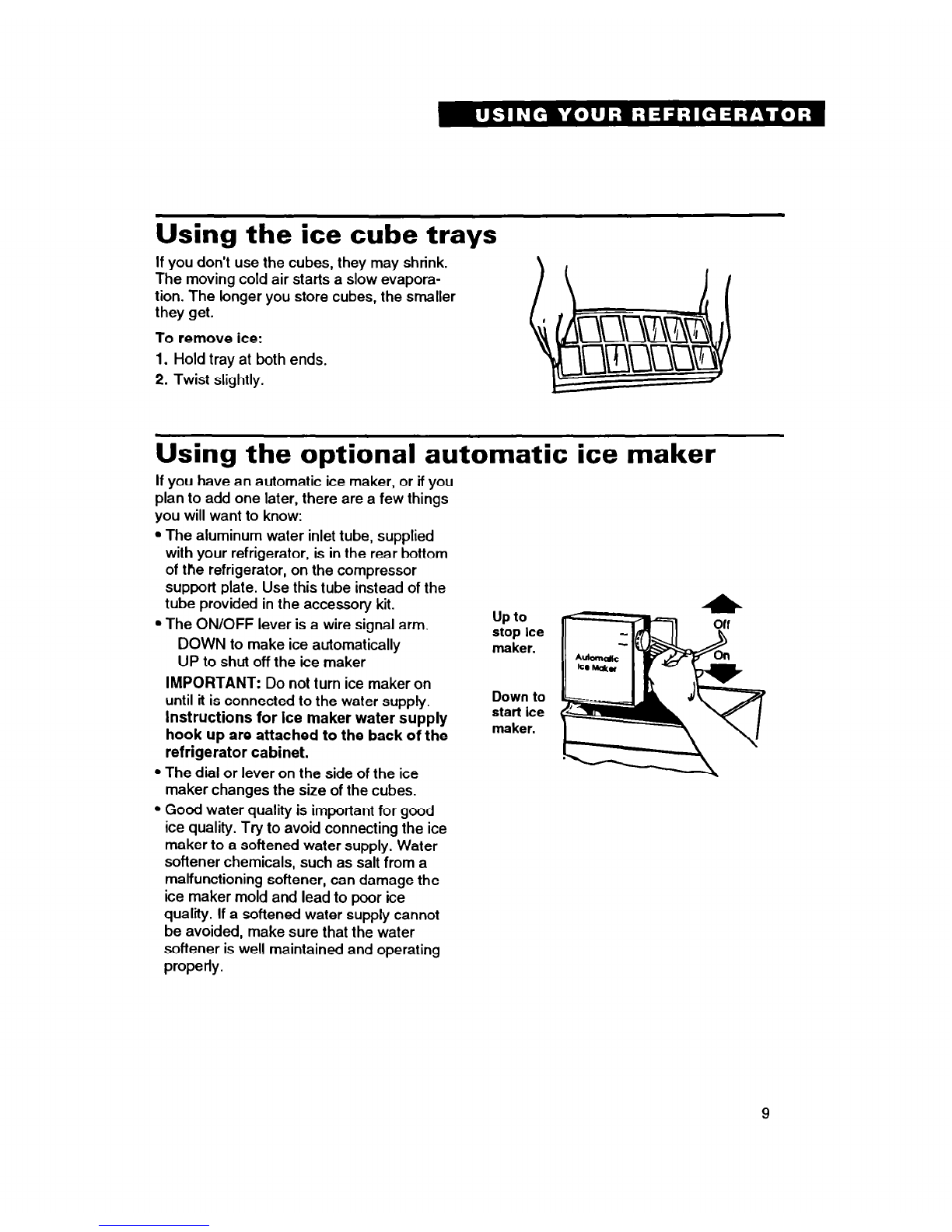

Using the ice cube trays
If you don’t use the cubes, they may shrink.
The moving cold air starts a slow evapora-
tion. The longer you store cubes, the smaller
they get.
To remove ice:
1. Hold tray at both ends.
2. Twist slightly.
Using the optional automatic ice maker
If you have an automatic ice maker, or if you
plan to add one later, there are a few things
you will want to know:
. The aluminum water inlet tube, supplied
with your refrigerator, is in the rear bottom
of the refrigerator, on the compressor
support plate. Use this tube instead of the
tube provided in the accessory kit.
l The ON/OFF lever is a wire signal arm.
DOWN to make ice automatically
UP to shut off the ice maker
IMPORTANT: Do not turn ice maker on
until it is connected to the water supply.
Instructions for Ice maker water supply
hook up are attached to the back of the
refrigerator cabinet.
. The dial or lever on the side of the ice
maker changes the size of the cubes.
l Good water quality is important for good
ice quality. Try to avoid connecting the ice
maker to a softened water supply. Water
softener chemicals, such as salt from a
malfunctioning softener, can damage the
ice maker mold and lead to poor ice
quality. If a softened water supply cannot
be avoided, make sure that the water
softener is well maintained and operating
properly.
up to
stop ice
maker.
Down to
start ice
maker.

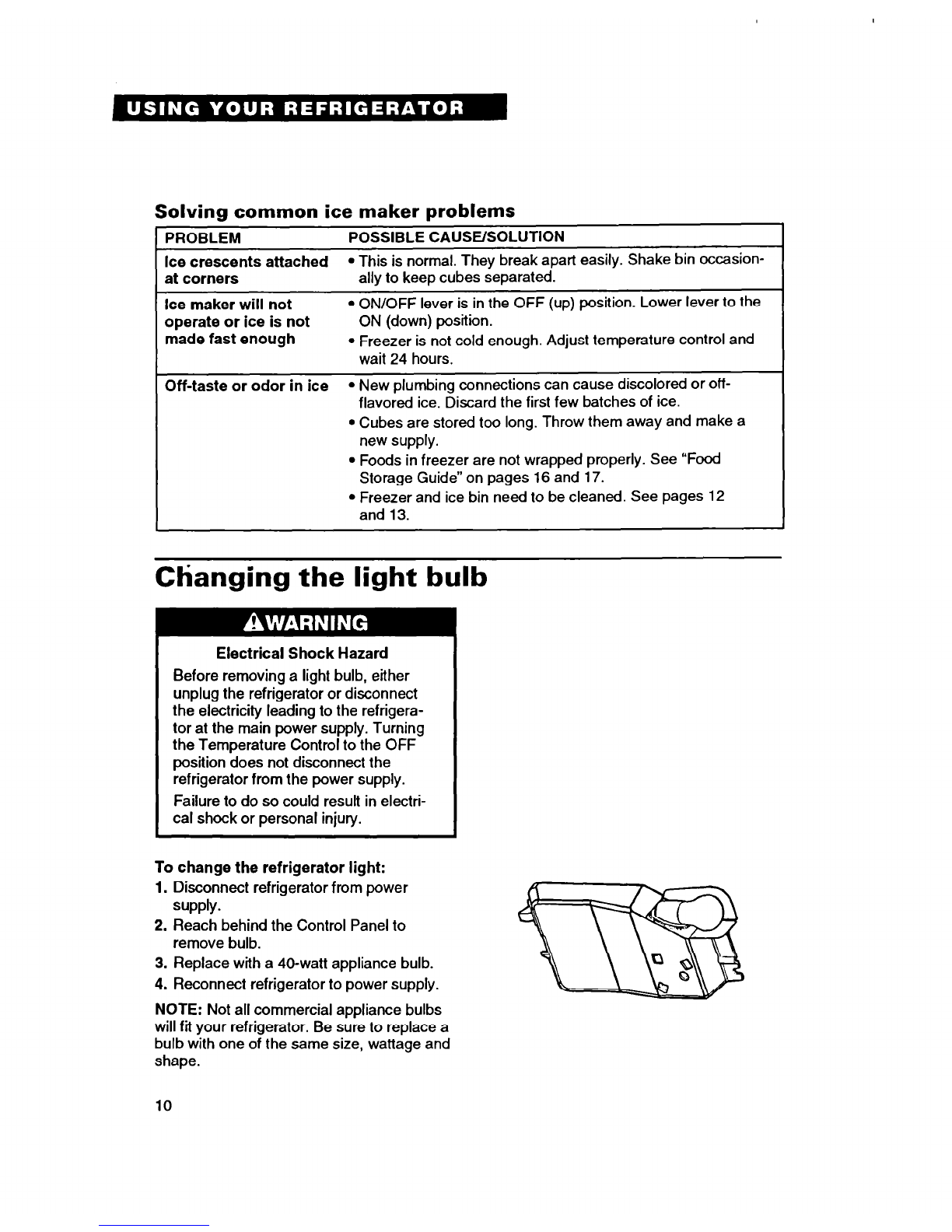

Solving common ice maker problems
PROBLEM POSSIBLE CAUSE/SOLUTION
Ice crescents attached l This is normal. They break apart easily. Shake bin occasion-
at corners ally to keep cubes separated.
Ice maker will not l ON/OFF lever is in the OFF (up) position. Lower lever to the
operate or ice is not ON (down) position.
made fast enough . Freezer is not cold enough. Adjust temperature control and
wait 24 hours.
Off-taste or odor in ice l New plumbing connections can cause discolored or off-
flavored ice. Discard the first few batches of ice.
l Cubes are stored too long. Throw them away and make a
new supply.
l Foods in freezer are not wrapped properly. See “Food
Storage Guide” on pages 16 and 17.
l Freezer and ice bin need to be cleaned. See pages 12
and 13.
Ctianging the light bulb
Electrical Shock Hazard
Before removing a light bulb, either
unplug the refrigerator or disconnect
the electricity leading to the refrigera-
tor at the main power supply. Turning
the Temperature Control to the OFF
position does not disconnect the
refrigerator from the power supply.
Failure to do so could result in electri-
cal shock or personal injury.
To change the refrigerator light:
1. Disconnect refrigerator from power
supply.
2. Reach behind the Control Panel to
remove bulb.
3. Replace with a 40-watt appliance bulb.
4. Reconnect refrigerator to power supply.
NOTE: Not all commercial appliance bulbs
will fit your refrigerator. Be sure to replace a
bulb with one of the same size, wattage and
shape.
10

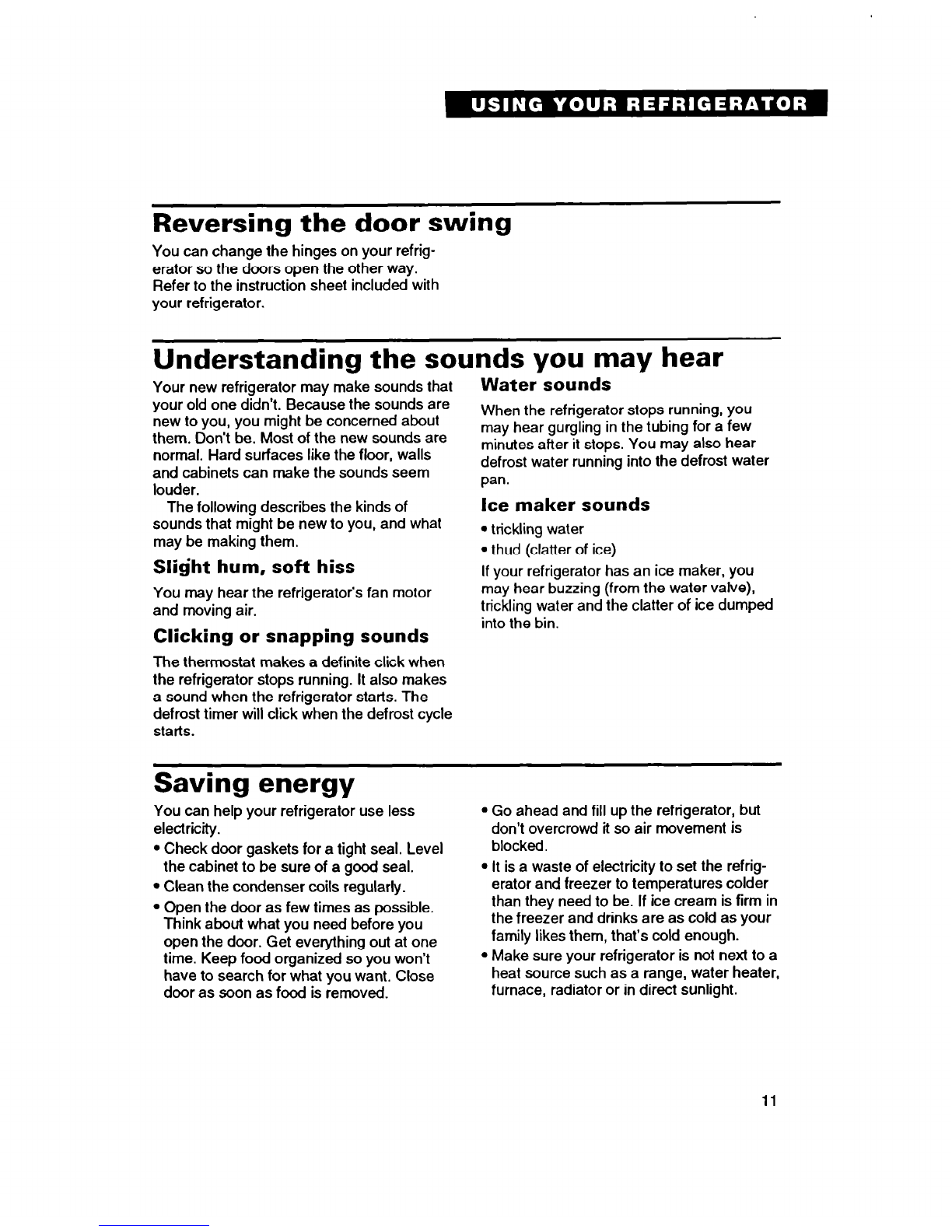

Reversing the door swing
You can change the hinges on your refrig-
erator so the doors open the other way.
Refer to the instruction sheet included with
your refrigerator.
Understanding the sounds you may hear
Your new refrigerator may make sounds that
your old one didn’t. Because the sounds are
new to you, you might be concerned about
them. Don’t be. Most of the new sounds are
normal. Hard surfaces like the floor, walls
and cabinets can make the sounds seem
louder.
The following describes the kinds of
sounds that might be new to you, and what
may be making them.
Slig’ht hum, soft hiss
You may hear the refrigerator’s fan motor
and moving air.
Clicking or snapping sounds
The thermostat makes a definite click when
the refrigerator stops running. It also makes
a sound when the refrigerator starts. The
defrost timer will click when the defrost cycle
starts.
Water sounds
When the refrigerator stops running, you
may hear gurgling in the tubing for a few
minutes after it stops. You may also hear
defrost water running into the defrost water
pan.
Ice maker sounds
l trickling water
l thud (clatter of ice)
If your refrigerator has an ice maker, you
may hear buzzing (from the water valve),
trickling water and the clatter of ice dumped
into the bin.
Saving energy
You can help your refrigerator use less
electricity.
l Check door gaskets for a tight seal. Level
the cabinet to be sure of a good seal.
l Clean the condenser coils regularly.
l Open the door as few times as possible.
Think about what you need before you
open the door. Get everything out at one
time. Keep food organized so you won’t
have to search for what you want. Close
door as soon as food is removed.
l Go ahead and fill up the refrigerator, but
don’t overcrowd it so air movement is
blocked.
l It is a waste of electricity to set the refrig-
erator and freezer to temperatures colder
than they need to be. If ice cream is firm in
the freezer and drinks are as cold as your
family likes them, that’s cold enough.
l Make sure your refrigerator is not next to a
heat source such as a range, water heater,
furnace, radiator or in direct sunlight.
11

Caring For Your Refrigerator
In This Section
Page Page
Cleaning your refrigerator ...............12 Power interruptions ,............................
15
Vacation and moving care ...............14
Your refrigerator is built to give you many years of dependable service. However, there are a
few things you can do to extend its product life. This section tells you how to clean your
refrigerator and what to do when going on vacation, moving or during a power outage.
Cleaning your refrigerator
Both the refrigerator and freezer sections
defrost automatically. However, clean both
about once a month to help prevent odors
from building up. Wipe up spills right away. Personal Injury Hazard
To clean your refrigerator, turn the Refrig- Refrigeration system tubes are located
era@ Control to OFF, unplug it, take out all near the defrost pan and can become
removable parts and clean the refrigerator hot. Remove
and install defrost pan
accordina to the followina directions. carefully.
Failure to do so could result in personal
injury.
PART
Removable parts
(shelves, crisper,
etc.)
Outside
Inside walls
(allow freezer to
warm up so cloth
won’t stick)
WHAT TO USE
Sponge or cloth with mild
detergent and warm
water
Sponge, cloth or paper
towel with mild detergent,
warm water and an
appliance wax (or good
auto paste wax)
Sponge, soft cloth or
paper towel with baking
soda or mild detergent
and warm water
HOW TO CLEAN
l Hand wash, rinse and dry
thoroughly.
l Wash outside of cabinet. Do not
use abrasive or harsh cleaners.
l Rinse and dry thoroughly.
l Wax painted metal surfaces at least
twice a year. Apply wax with a
clean, soft cloth. Waxing painted
metal surfaces provides rust
protection.
Do not wax plastic parts.
. Wash with mixture of warm water
and
- mild detergent, or
- baking soda (2 tablespoons
[26 g] to 1 quart [.95 L] of water).
l Rinse and dry thoroughly.
12

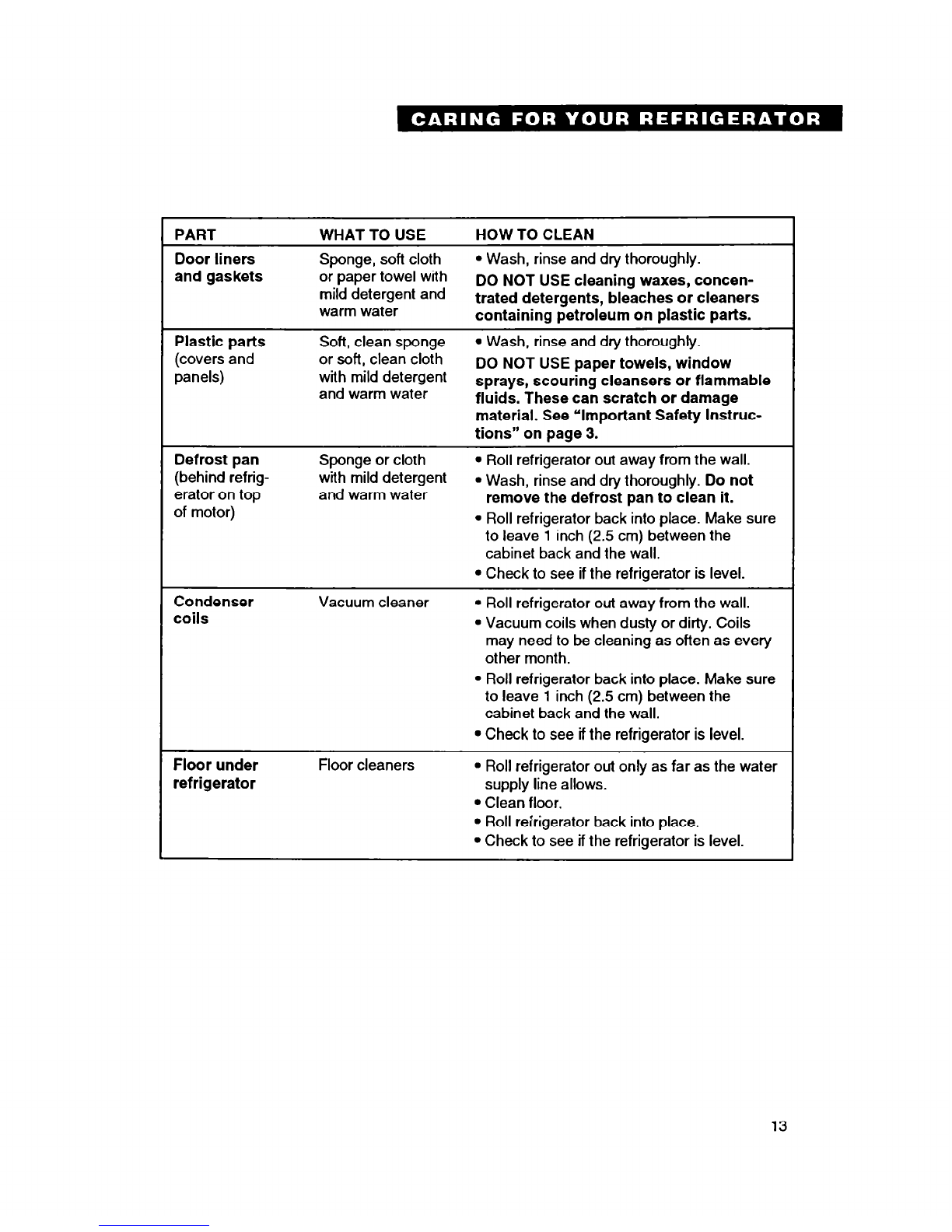

1 PART WHAT TO USE HOW TO CLEAN
Door liners
and gaskets
Plastic parts
(covers and
panels)
Defrost pan
(behind refrig-
erator on top
of motor)
Sponge, soft cloth l Wash, rinse and dry thoroughly.
or paper towel with
mild detergent and DO NOT USE cleaning waxes, concen-
warm water trated detergents, bleaches or cleaners
containing petroleum on plastic parts.
Soft, clean sponge l Wash, rinse and dry thoroughly.
or soft, clean cloth
with mild detergent DO NOT USE paper towels, window
and warm water sprays, scouring cleansers or flammable
fluids. These can scratch or damage
material. See ‘Important Safety Instruc-
tions” on page 3.
Sponge or cloth l Roll refrigerator out away from the wall.
with mild detergent
and warm water l Wash, rinse and dry thoroughly. Do not
remove the defrost pan to clean it.
l Roll refrigerator back into place. Make sure
to leave 1 inch (2.5 cm) between the
cabinet back and the wall.
l Check to see if the refrigerator is level.
Condenser
coils Vacuum cleaner l Roll refrigerator out away from the wall.
. Vacuum coils when dusty or dirty. Coils
may need to be cleaning as often as every
other month.
l Roll refrigerator back into place. Make sure
to leave 1 inch (2.5 cm) between the
cabinet back and the wall.
l Check to see if the refrigerator is level.
Floor under
refrigerator Floor cleaners l Roll refrigerator out only as far as the water supply line allows.
l Clean floor.
l Roll reirigerator back into place.
l Check to see if the refrigerator is level.
13

Vacation and moving care
Short vacations
No need to shut off the refrigerator if you will
be away for less than four weeks.
1. Use up any perishables.
2. Freeze other items.
3. If your refrigerator has an automatic ice
maker:
l Raise signal arm to OFF (up) position.
l Shut off water supply to ice maker.
l Empty the ice bin.
Long vacations
If you will be gone a month or more:
1. Remove all food from the refrigerator.
2. If your refrigerator has an automatic ice
maker:
; Turn off the water supply to the ice
maker at least one day ahead of time.
l When the last load of ice drops, turn off
the ice maker. Make sure all ice is dis-
pensed out of the ice maker mecha-
nism.
3. Unplug the refrigerator.
4. Clean it, rinse well and dry.
5. Tape rubber or wood blocks to the tops of
both doors to prop them open far enough
for air to get in. This stops odor and mold
from building up.
Personal Injury Hazard
Do not allow children to climb on, play
near or climb inside the refrigerator
when the doors are blocked open.
They may become injured or trapped.
Moving
When you are moving the refrigerator to a
new home:
1. If your refrigerator has an automatic ice
maker:
l Turn off the water supply to the ice
maker at least one day ahead of time.
l Disconnect the water line.
l After the last load of ice drops, lift the
signal arm to the OFF (up) position.
2. Remove all food from the refrigerator.
3. Pack all frozen food in dry ice.
4. Unplug the refrigerator.
5. Clean it thoroughly. Rinse well and dry.
6. Take out all removable parts, wrap them
well, and tape them together so they don’t
shift and rattle.
7. Screw in the leveling rollers.
8. Tape the doors shut and tape the power
supply cord to the cabinet.
When you get to your new home, put
everything back and refer to page 5. Also, if
your refrigerator has an automatic ice
maker, remember to reconnect the water
supply line.
To restart refrigerator, see “Using Your
Refrigerator” on page 7.
14

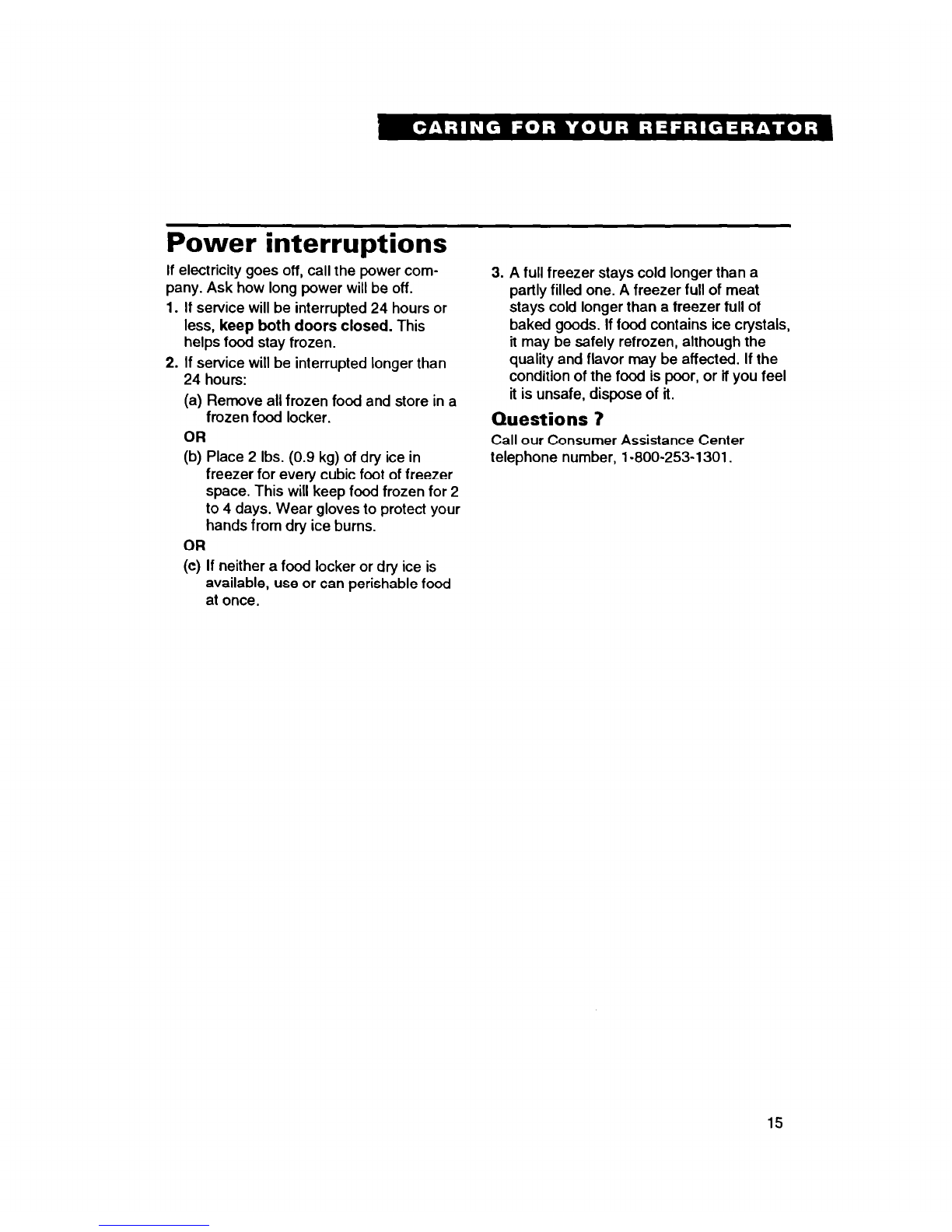

Power interruptions
If electricity goes off, call the power com-
pany. Ask how long power will be off.
1. If service will be interrupted 24 hours or
less, keep both doors closed. This
helps food stay frozen.
2. If service will be interrupted longer than
24 hours:
(a) Remove all frozen food and store in a
frozen food locker.
OR
(b) Place 2 Ibs. (0.9 kg) of dry ice in
freezer for every cubic foot of freezer
space. This will keep food frozen for 2
to 4 days. Wear gloves to protect your
hands from dry ice burns.
OR
(c) If neither a food locker or dry ice is
available, use or can perishable food
at once.
3. A full freezer stays cold longer than a
partly filled one. A freezer full of meat
stays cold longer than a freezer full of
baked goods. If food contains ice crystals,
il may be safely refrozen, although the
quality and flavor may be affected. If the
condition of the food is poor, or if you feel
it is unsafe, dispose of it.
Questions 7
Call our Consumer Assistance Center
telephone number, 1-800-253-l 301.
15

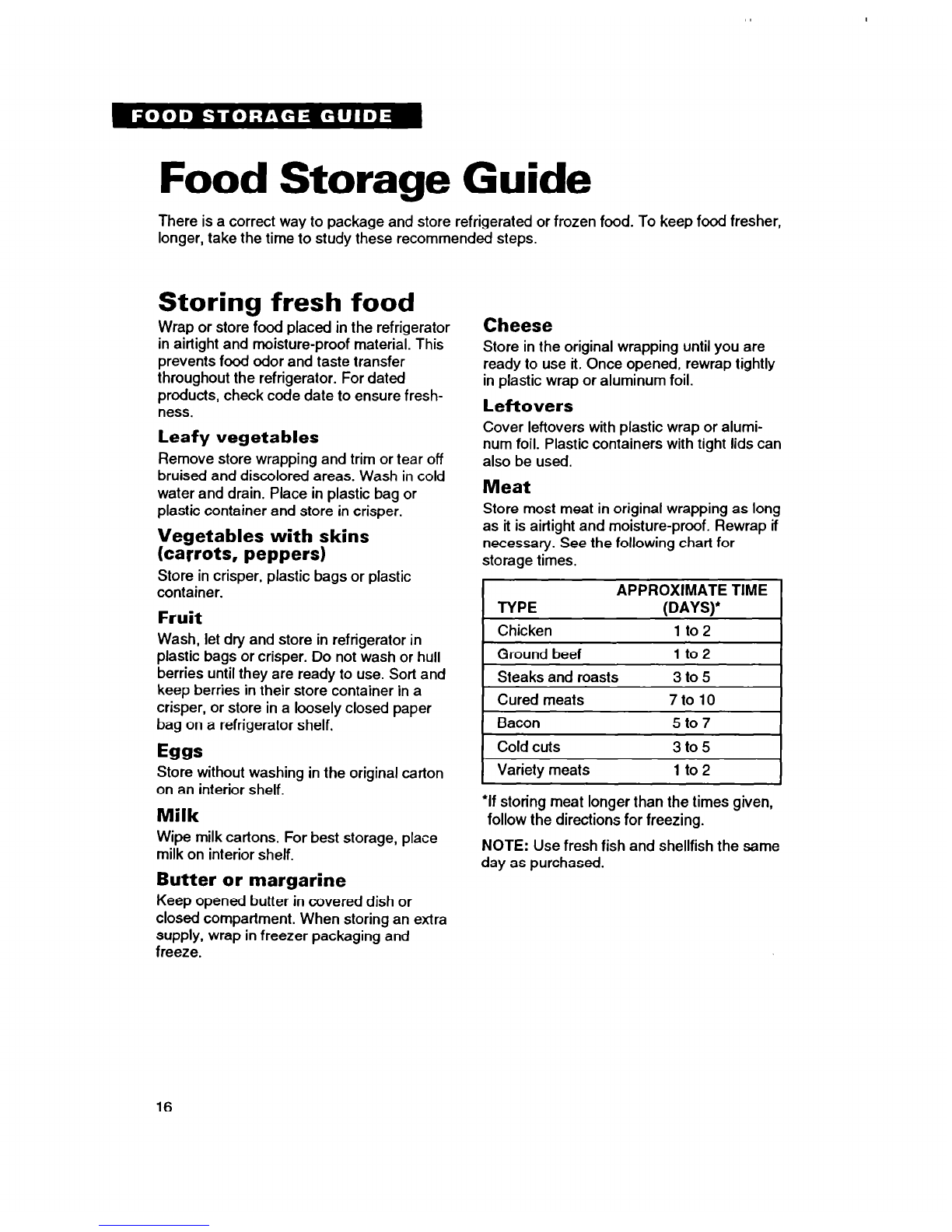

Food Storage Guide
There is a correct way to package and store refrigerated or frozen food. To keep food fresher,
longer, take the time to study these recommended steps.
Storing fresh food
Wrap or store food placed in the refrigerator
in airtight and moisture-proof material. This
prevents food odor and taste transfer
throughout the refrigerator. For dated
products, check code date to ensure fresh-
ness.
Leafy vegetables
Remove store wrapping and trim or tear off
bruised and discolored areas. Wash in cold
water and drain. Place in plastic bag or
plastic container and store in crisper.
Vegetables with skins
(carrots, peppers)
Store in crisper, plastic bags or plastic
container.
Fruit
Wash, let dry and store in refrigerator in
plastic bags or crisper. Do not wash or hull
berries until they are ready to use. Sort and
keep berries in their store container in a
crisper, or store in a loosely closed paper
bag on a refrigerator shelf.
E99s
Store without washing in the original carton
on an interior shelf.
Milk
Wipe milk cartons. For best storage, place
milk on interior shelf.
Butter or margarine
Keep opened butter in covered dish or
closed compartment. When storing an extra
supply, wrap in freezer packaging and
freeze.
Cheese
Store in the original wrapping until you are
ready to use it. Once opened, rewrap tightly
in plastic wrap or aluminum foil.
Leftovers
Cover leftovers with plastic wrap or alumi-
num foil. Plastic containers with tight lids can
also be used.
Meat
Store most meat in original wrapping as long
as it is airtight and moisture-proof. Rewrap if
necessary. See the following chart for
storage times.
APPROXIMATE TIME
TYPE (DAYS)’
Chicken 1 to 2
Ground beef 1 to2
Steaks and roasts 3 to 5
Cured meats 7to 10
Bacon 5 to 7
Cold cuts 3 to 5
Variety meats 1 to 2 ,
*If storing meat longer than the times given,
follow the directions for freezing.
NOTE: Use fresh fish and shellfish the same
day as purchased.
16

Storing frozen food
The freezer section is designed for storage
of commercially frozen food and for freezing
food at home.
NOTE: For further information about prepar-
ing food for freezing or food storage times,
contact your local Cooperative Extension
Service or check a freezer guide or reliable
cookbook.
Packaging
The secret of successful freezing is in the
packaging. The way you close and seal the
package must not allow air or moisture in or
out. Packaging done in any other way could
cause food odor and taste transfer through-
out the refrigerator and drying of frozen
food.
Pa&aging recommended for use:
l Rigid plastic containers with tight-fitting lids
l Straight-sided canning/freezing jars
l Heavy-duty aluminum foil
l Plastic-coated paper
l Non-permeable plastic wraps (made from
a Saran film)
Follow package or container instructions for
proper freezing methods.
Do not use:
l Bread wrappers
l Non-polyethylene plastic containers
l Containers without tight lids
l Waxed paper
l Waxed-coated freezer wrap
l Thin, semi-permeable wrap
The use of these wrappings could cause
food odor, taste transfer and drying of frozen
food.
Freezing
Do not expect your freezer to quick-freeze
any large quantity of food. Put no more
unfrozen food into the freezer than will
freeze within 24 hours (no more than 2 to
3 pounds of food per cubic foot of freezer
space). Leave enough space for air to
circulate around packages. Be careful to
leave enough rmm at the front so the door
can close tightly.
Storage times will vary according to the
quality of the food, the type of packaging or
wrap used (airtight and moisture-proof) and
the storage temperature, which should be
0°F (-17.8%).
17

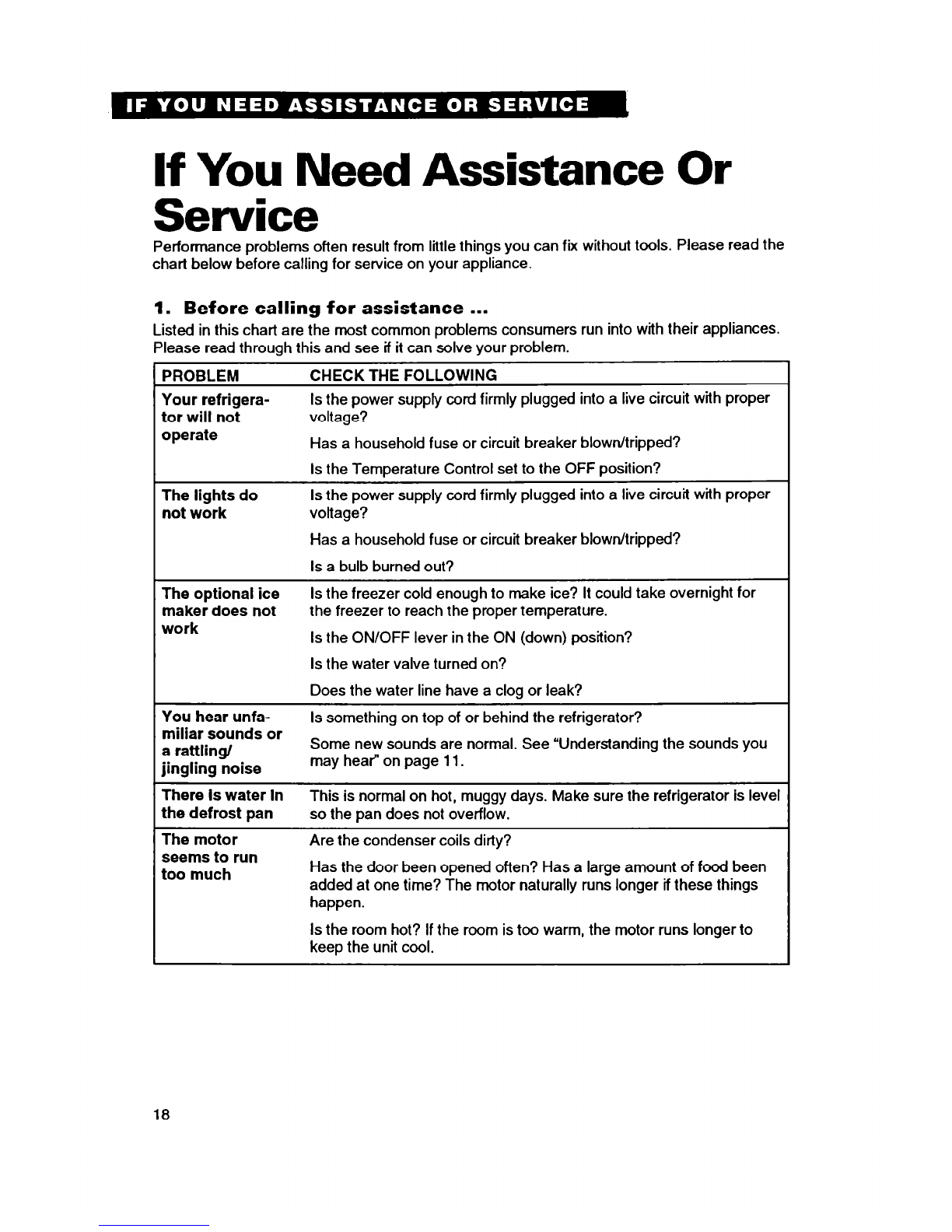

If You Need Assistance Or
Service
Performance problems often result from little things you can fix without tools. Please read the
chart below before calling for service on your appliance.
1. Before calling for assistance ...
Listed in this chart are the most common problems consumers run into with their appliances.
Please read through this and see if it can solve your problem.
PROBLEM
Your refrigera-
tor will not
operate
The lights do
not work
CHECK THE FOLLOWING
Is the power supply cord firmly plugged into a live circuit with proper
voltage?
Has a household fuse or circuit breaker blown/tripped?
Is the Temperature Control set to the OFF position?
Is the power supply cord firmly plugged into a live circuit with proper
voltage?
Has a household fuse or circuit breaker blown/tripped?
Is a bulb burned out?
The optional ice Is the freezer cold enough to make ice? It could take overnight for
maker does not the freezer to reach the proper temperature.
work Is the ON/OFF lever in the ON (down) position?
Is the water valve turned on?
Does the water line have a clog or leak?
You hear unfa- Is something on top of or behind the refrigerator?
miliar sounds or
a rattling/ Some new sounds are normal. See “Understanding the sounds you
jingling noise may heaf on page 11.
There is water in This is normal on hot, muggy days. Make sure the refrigerator is level
the defrost pan so the pan does not overflow.
The motor
seems to run
too much
Are the condenser coils dirty?
Has the door been opened often? Has a large amount of food been
added at one time? The motor naturally runs longer if these things
happen.
Is the room hot? If the room is too warm, the motor runs longer to
keep the unit cool.
18

2. If you need assistance* ...
Call Whirlpool Consumer Assistance
Center telephone number. Dial toll-free
from anywhere in the U.S.A.:
l-800-253-1 301
and talk with one of our trained consultants.
The consultant can instruct you in how to
obtain satisfactory operation from your
appliance or, if service is necessary, recom-
mend a qualified service company in your
area.
If you prefer, write to:
Mr. William Clark
Consumer Assistance Representative
Whirlpool Corporation
2000 M-63
Benton Harbor, MI 49022
Please include a daytime phone number in
your correspondence.
3. If you need service* ...
Whirlpool has a nationwide network of
authorized Whirlpool” service companies.
Whirlpool service technicians are trained to
fulfill the product warranty and provide after-
warranty service, anywhere in the United
States. To locate the authorized Whirlpool
service company in your area, call our
Consumer Assistance Center telephone
number (see Step 2) or look in your tele-
phone directory Yellow Pages under:
‘APPUANCE-HOUSEHOLD- l WASHINQ MACHINES 6
MAJOR. SERVICE A REPAIR DRYERS SERVICE A REPAJR
- Smt Whldpool Appliances or - SW: Whirlpool Appliarces or
Aumorlzed Whlrlpcel .Servlce Aulhorkd Whirlpool Service
(mb: XYZ Servke Co.) (EmTpb: XYi! service Co.)
*When asking for help or service:
Please provide a detailed description of
the problem, your appliance’s complete
model and serial numbers, and the pur-
chase date. (See page 2.) This informa-
tion will help us respond properly to your
request.
4. If you need FSP replace-
ment parts ...
FSP is a registered trademark of Whirlpool
Corporation for quality parts. Look for this
symbol of quality whenever you need a
replacement part for your Estate@ appliance.
FSP replacement parts will fit right and work
right, because they are made to the same
exacting specifications used to build every
new Estate appliance.
To locate FSP replacement parts in your
area, refer to Step 3 above or call the
Whirlpool Consumer Assistance Center
number in Step 2.
5. If you are not satisfied with
how the problem was
solved ...
l Contact the Major Appliance Consumer
Action Panel (MACAP). MACAP is a group
of independent consumer experts that
voices consumer views at the highest
levels of the major appliance industry.
l Contact MACAP only when the dealer,
authorized servicer and Whirlpool have
failed to resolve your problem.
Major Appliance Consumer Action Panel
20 North Wacker Drive
Chicago, IL 60606
l MACAP will in turn inform us of your
action.
19

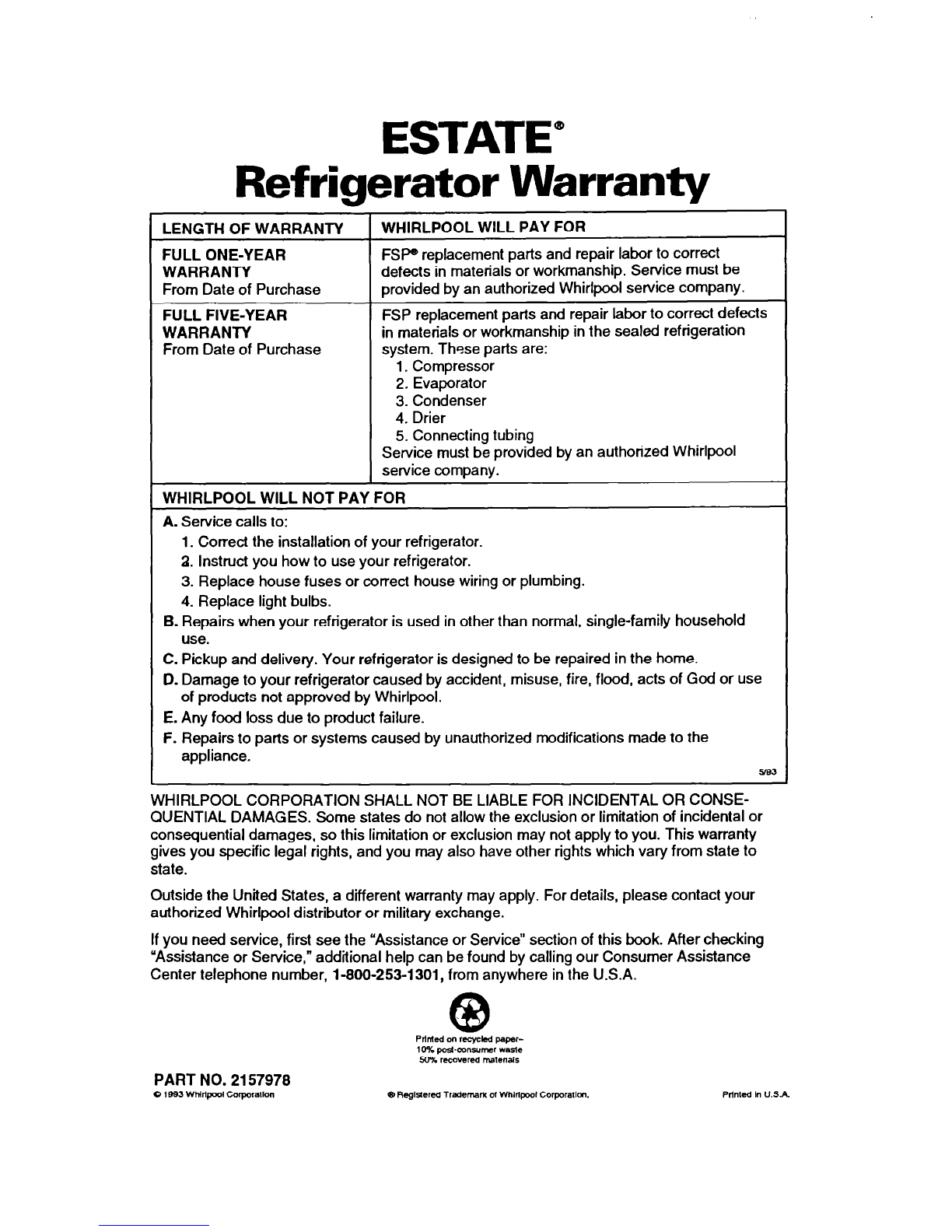

ESTATE”
Refrigerator Warranty
LENGTH OF WARRANTY
FULL ONE-YEAR
WARRANTY
From Date of Purchase
FULL FIVE-YEAR
WARRANTY
From Date of Purchase
WHIRLPOOL WILL PAY FOR
FSPQ replacement parts and repair labor to correct
defects in materials or workmanship. Service must be
provided by an authorized Whirlpool service company.
FSP replacement parts and repair labor to correct defects
in materials or workmanship in the sealed refrigeration
system. These parts are:
1. Compressor
2. Evaporator
3. Condenser
4. Drier
5. Connecting tubing
Service must be provided by an authorized Whirlpool
service company.
WHIRLPOOL WILL NOT PAY FOR
A. Service calls to:
1. Correct the installation of your refrigerator.
2. Instruct you how to use your refrigerator.
3. Replace house fuses or correct house wiring or plumbing.
4. Replace light bulbs.
6. Repairs when your refrigerator is used in other than normal, single-family household
use.
C. Pickup and delivery. Your refrigerator is designed to be repaired in the home.
D. Damage to your refrigerator caused by accident, misuse, fire, flood, acts of God or use
of products not approved by Whirlpool.
E. Any food loss due to product failure.
F. Repairs to parts or systems caused by unauthorized modifications made to the
appliance.
WHIRLPOOL CORPORATION SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSE-
QUENTIAL DAMAGES. Some states do not allow the exclusion or limitation of incidental or
consequential damages, so this limitation or exclusion may not apply to you. This warranty
gives you specific legal rights, and you may also have other rights which vary from state to
state.
Outside the United States, a different warranty may apply. For details, please contact your
authorized Whirlpool distributor or military exchange.
If you need service, first see the “Assistance or Service” section of this book. After checking
“Assistance or Service,” additional help can be found by calling our Consumer Assistance
Center telephone number, 1-800-253-i 301, from anywhere in the U.S.A.
@
Printed on recyckd paper-
104( posi.eonwmr waste
50% recovered materials
PART NO. 2157978
0 1003 Whirlpool Corpcmlion @ Reglskred Trademark of Whirlpool Corporation. Printed h USA
