Whirlpool ETZOZK User manual

A Note To You 2
Important Safety
Instructions 3
Parts And Features 4
Befefriig Your 5
j Using Your
Refrigerator 7
Warranty 24
1-800-253-1301
Call us with questions or comments.
NO-FROST REFRIGERATOR-FREEZER
B
MODELS ETZOZK ETl8ZK

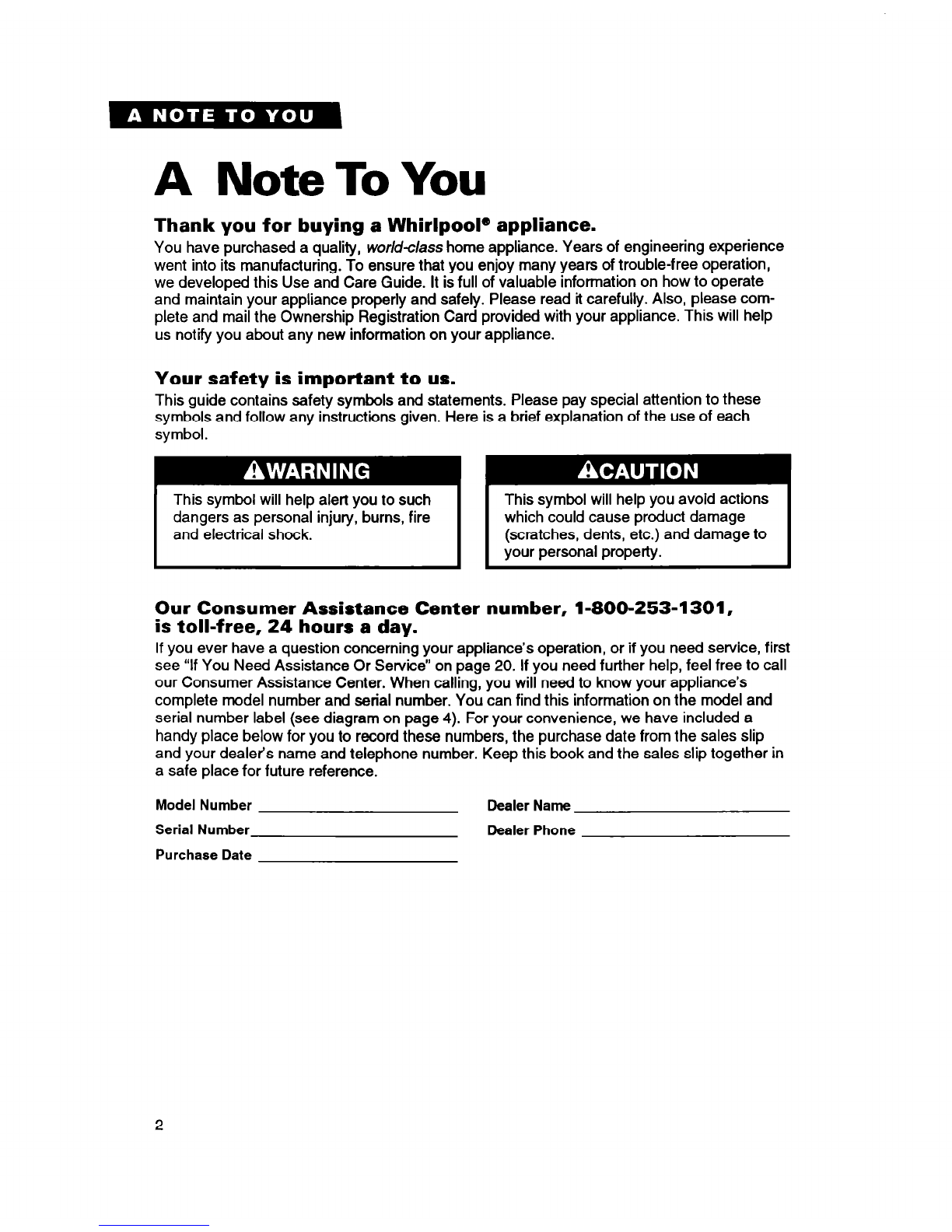

A Note To You
Thank you for buying a Whirlpool@ appliance.
You have purchased a quality, wor/r%c/ass home appliance. Years of engineering experience
went into its manufacturing. To ensure that you enjoy many years of trouble-free operation,
we developed this Use and Care Guide. It is full of valuable information on how to operate
and maintain your appliance properly and safely. Please read it carefully. Also, please com-
plete and mail the Ownership Registration Card provided with your appliance. This will help
us notify you about any new information on your appliance.
Your safety is important to us.
This guide contains safety symbols and statements. Please pay special attention to these
symbols and follow any instructions given. Here is a brief explanation of the use of each
symbol.
This symbol will help alert you to such
dangers as personal injury, burns, fire
and electrical shock.
This symbol will help you avoid actions
which could cause product damage
(scratches, dents, etc.) and damage to
your personal property.
Our Consumer Assistance Center number, 1-800-253-1301,
is toll-free, 24 hours a day.
If you ever have a question concerning your appliance’s operation, or if you need service, first

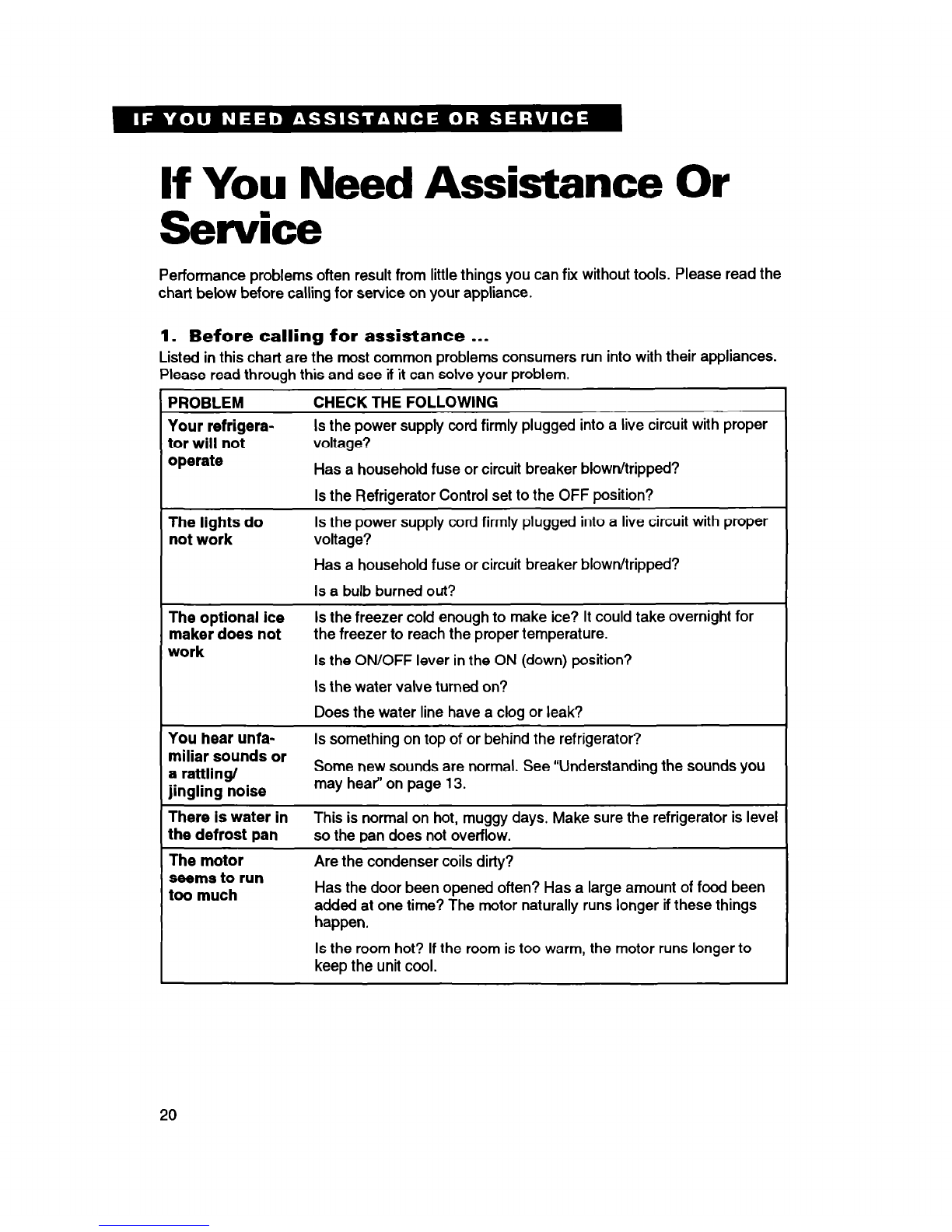

see “If You Need Assistance Or Service” on page 20. If you need further help, feel free to call
our Consumer Assistance Center. When calling, you will need to know your appliance’s
complete model number and serial number. You can find this information on the model and
serial number label (see diagram on page 4). For your convenience, we have included a
handy place below for you to record these numbers, the purchase date from the sales slip
and your dealer’s name and telephone number. Keep this book and the sales slip together in
a safe place for future reference.
Model Number
Serial Number
Purchase Date
Dealer Name
Dealer Phone
2

Important Safety Instructions
To reduce the risk of fire, electrical shock, or injury when
using your refrigerator, follow these basic precautions:
l Read all instructions before using the l Never allow children to operate, play with,
refrigerator. or crawl inside the refrigerator.
*Child entrapment and suffocation are l Never clean refrigerator parts with
not problems of the past. Junked or flammable fluids. The fumes can create a
abandoned refrigerators are still danger- fire hazard or explosion.
ous ... even if they will “just sit in the . FOR YOUR SAFETY l
garage a few days.”
If you are getting rid of your ok4 refrig-
erator, do it safely. Please read the
enclosed safety booklet from the Asso-
ciation of Home Appliance Manufactur-
ers. Help prevent accidents.
DO NOT STORE OR USE GASOLINE OR
OTHER FLAMMABLE VAPORS AND
LIQUIDS IN THE VICINITY OF THIS OR
ANY OTHER APPLIANCE. THE FUMES
CAN CREATE A FIRE HAZARD OR
EXPLOSION.
- SAVE THESE INSTRUCTIONS -
Help us help you
Please:
l Install and level the refrigerator on a floor
that will hold the weight and in an area
suitable for its size and use.
l Do not install the refrigerator near an oven,
radiator or other heat source.
l Do not use the refrigerator in an area
where the room temperature will fall below
55°F (13°C).
l Keep the refrigerator out of the weather.
l Connect the refrigerator only to the proper
kind of outlet, with the correct electrical
supply and grounding. (Refer to the
Electrical Requirements and Grounding
Instruct ions Sheet .)
l Do not load the refrigerator with food
before it has time to get properly cold.
l Use the refrigerator only for the uses
described in this manual.
l Properly maintain the refrigerator.
l Be sure the refrigerator is not used by
anyone unable to operate it properly.

Parts And Features
This section contains captioned illustrations of your appliance. Use them to become familiar
with where all parts and features are located and what they look like. The model you pur-
chased may have all or some of the parts and features shown and they may not match the
illustration exactly. This manual covers several models.
Freezer shelf
/
Ice cube trays .
Ice bin
Control panel I
Model and
serial number
Ee!id>
Meat drawer -
Crisper cover ,
Crispers
base grille)
Utility
compartment
Butter
compartment
Adjustable
wire shelves
- Egg bin
M Shelf glide
, Base grille
Model ET1 8ZK shown
Control panel
Refrigerator
control Exterior moisture Light
control switch Freezer
control
4

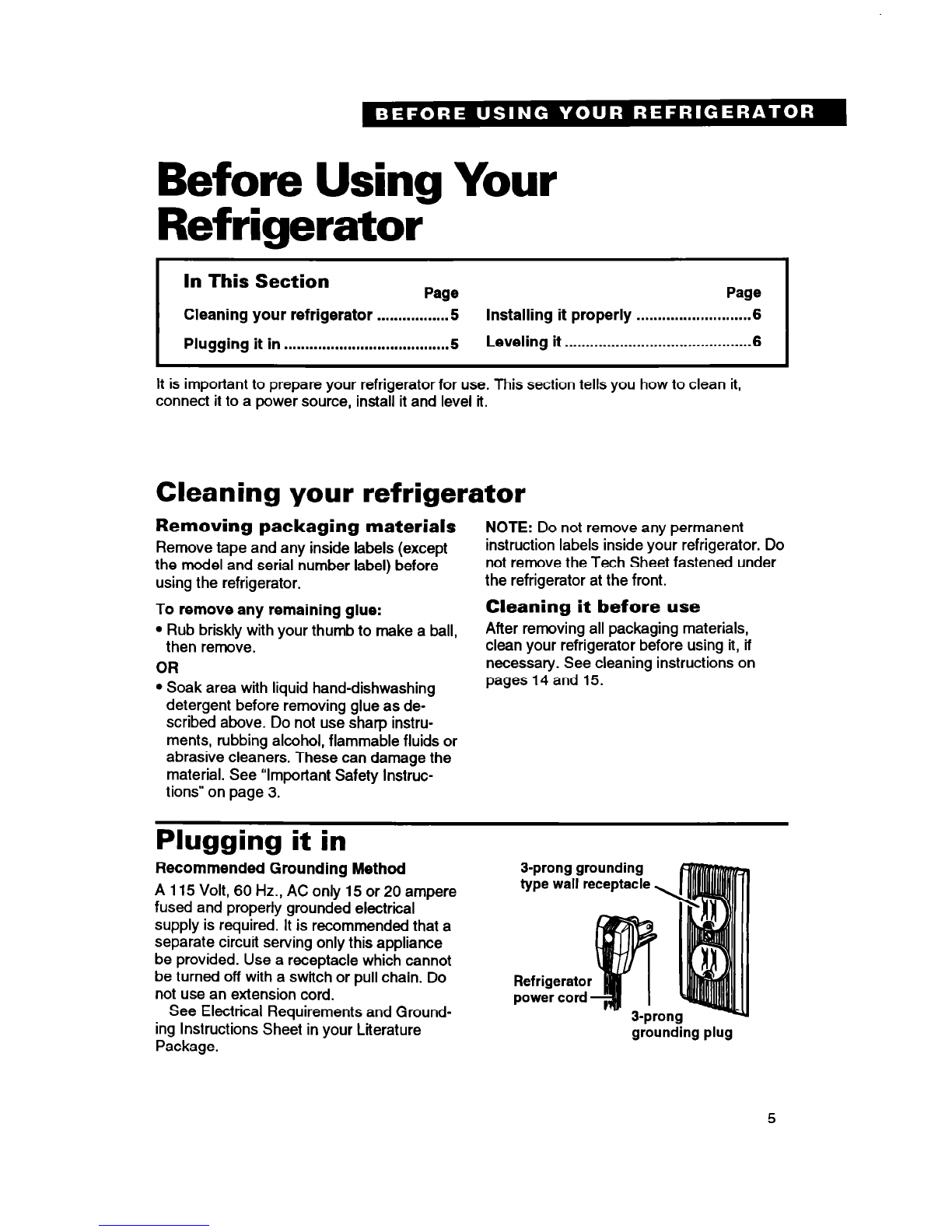

Before Using Your
Refrigerator
In This Section
Page Page
Cleaning your refrigerator .................5 Installing it properly ...........................6
Plugging it in 5 Leveling it 6 ....................................... ............................................
It is important to prepare your refrigerator for use. This section tells you how to clean it,
connect it to a power source, install it and level it.
Cleaning your refrigerator
Removing packaging materials
NOTE: Do not remove any permanent
Remove tape and any inside labels (except
the model and serial number label) before
using the refrigerator.
To remove any remaining glue:
l Rub briskly with your thumb to make a ball,
then remove.
OR
l Soak area with liquid hand-dishwashing
detergent before removing glue as de-
scribed above. Do not use sharp instru-
ments, rubbing alcohol, flammable fluids or
abrasive cleaners. These can damage the
material. See “Important Safety Instruc-
tions” on page 3.
instruction labels inside your refrigerator. uo
not remove the Tech Sheet fastened under
the refrigerator at the front.
Cleaning it before use
After removing all packaging materials,
clean your refrigerator before using it, if

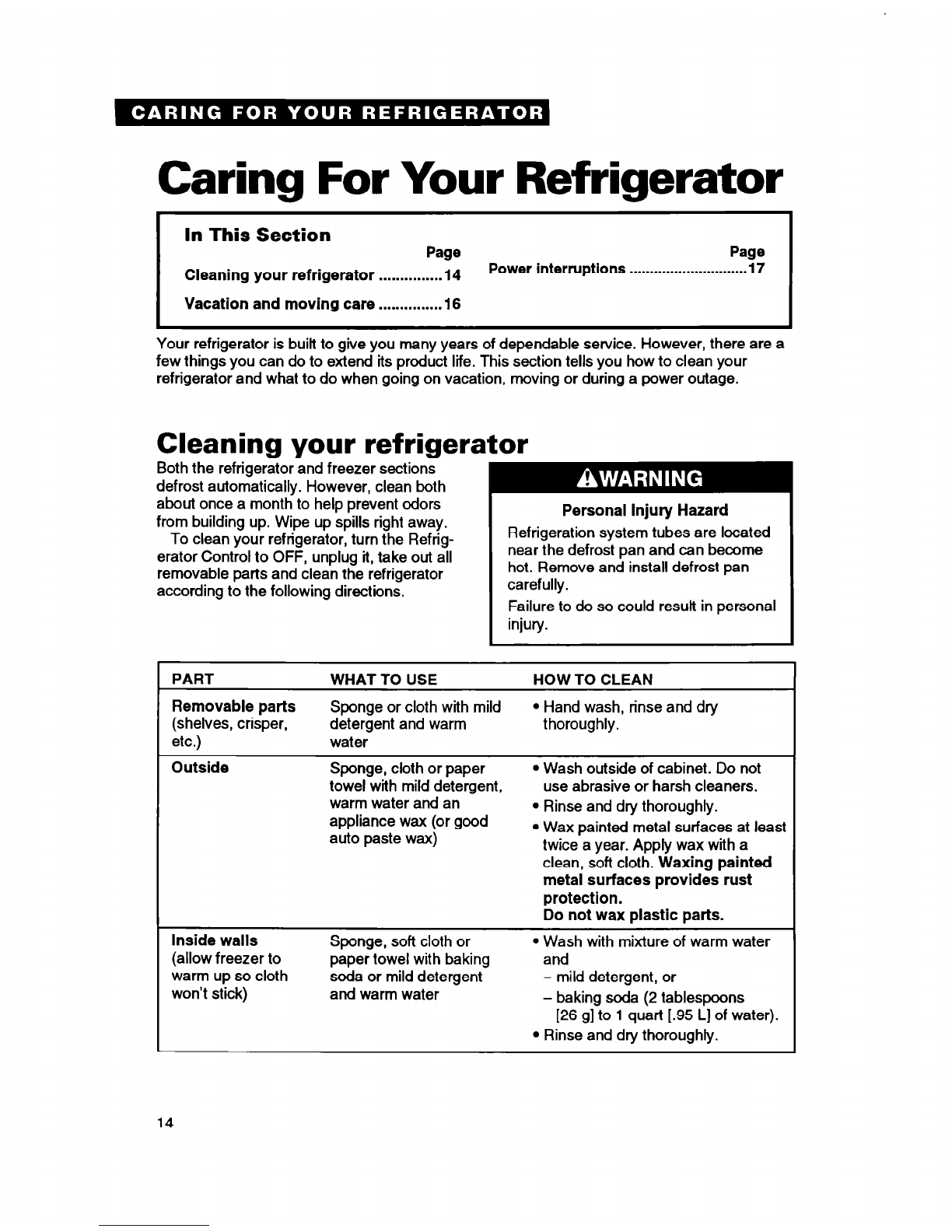

necessary. See cleaning instructions on
pages 14 and 15.
Plugging it in
Recommended Grounding Method
3-prong grounding
-
A 115 Volt, 60 Hz., AC only 15 or 20 ampere
fused and properly grounded electrical ’
supply is required. It is recommended that a
separate circuit serving only this appliance
be provided. Use a receptacle which cannot
be turned off with a switch or pull chain. Do
not use an extension cord.
See Electrical Requirements and Ground-
ing Instructions Sheet in your Literature
Package.
type wall receptacle,
grounc
4 Plug

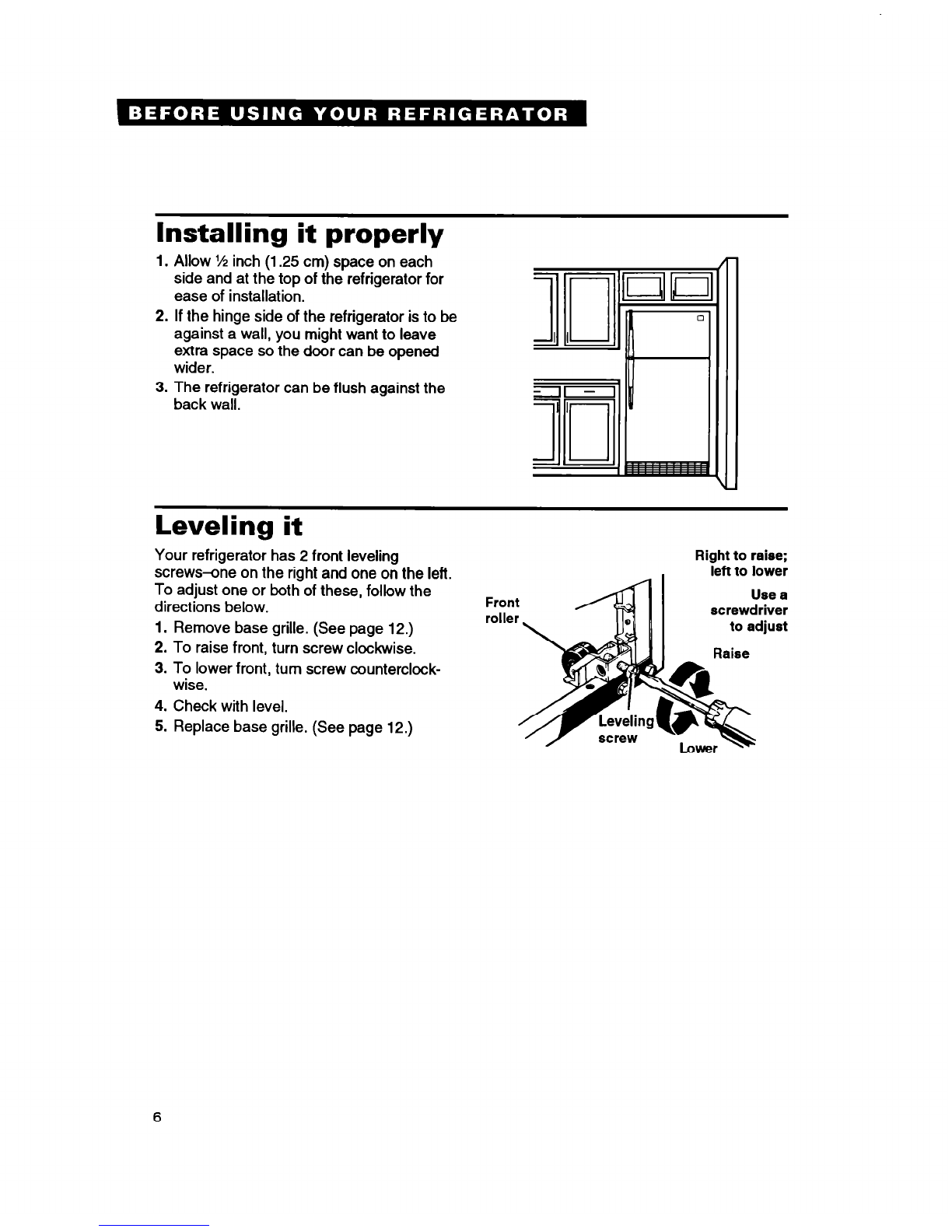

Installing it properly
1. Allow 1/2inch (1.25 cm) space on each
side and at the top of the refrigerator for
ease of installation.
2. If the hinge side of the refrigerator is to be
against a wall, you might want to leave
extra space so the door can be opened
wider.
3. The refrigerator can be flush against the
back wall.
Leveling it
Your refrigerator has 2 front leveling
screws-one on the right and one on the left.
To adjust one or both of these, follow the
directions below.
1. Remove base grille. (See page 12.)
2. To raise front, turn screw clockwise.
3. To lower front, turn screw counterclock-
Right to raise;
left to lower
screwdriver
wise.
4. Check with level.
5. Replace base grille. (See page 12.)
6

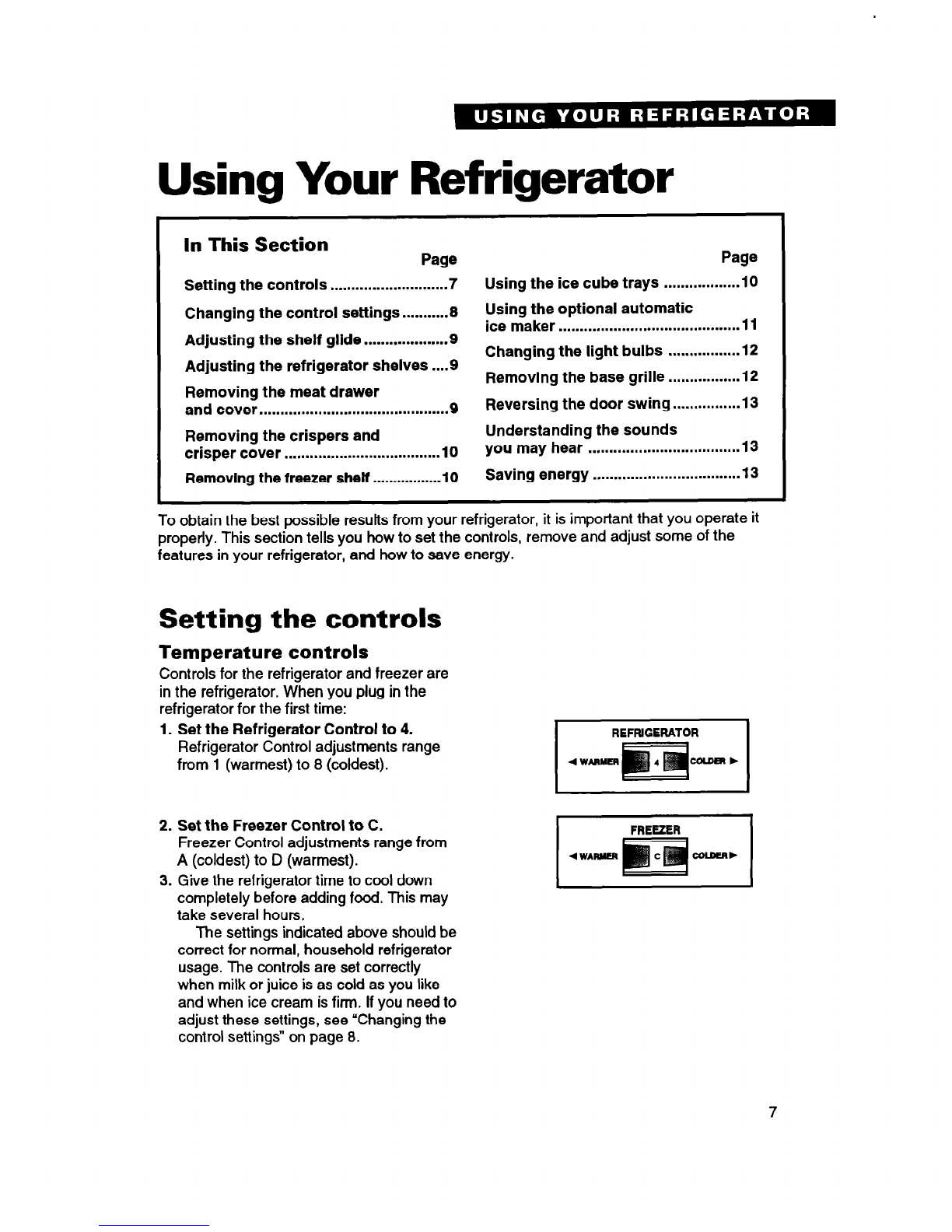

Using Your Refrigerator
In This Section
Page
Setting the controls ............................7
Changing the control settings ...........8
Adjusting the shelf glide ....................9
Adjusting the refrigerator shelves ....9
Removing the meat drawer
and cover .............................................9
Removing the crispers and
crisper cover .....................................10
Removing the freezer shetf .................10
Page
Using the ice cube trays ..................10

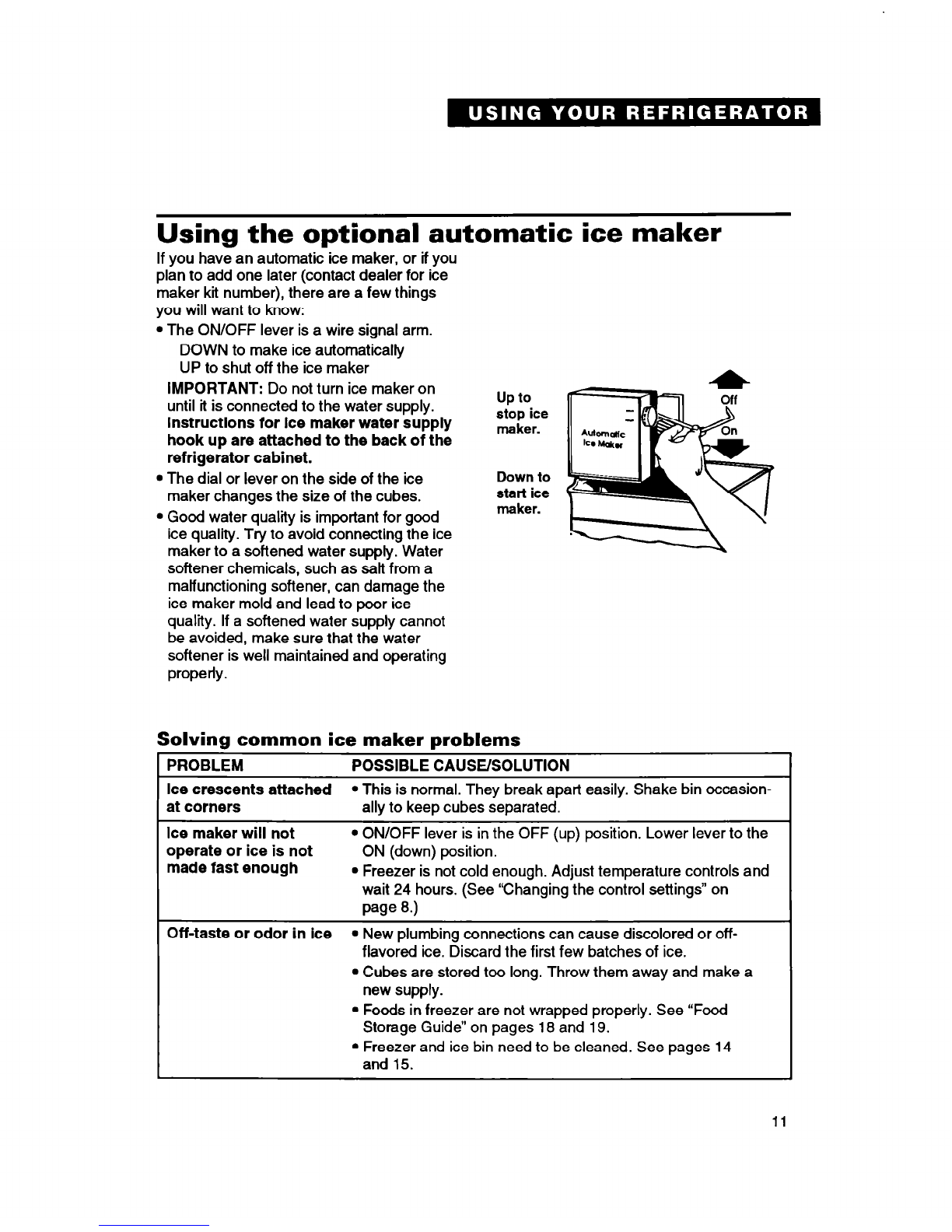

Using the optional automatic
ice maker .................................
.......... 11
Changing the light bulbs .................12
Removing the base grille .................12
Reversing the door swing ................13
Understanding the sounds
you may hear ....................................13
Saving energy ...................................13
To obtain the best possible results from your refrigerator, it is important that you operate it
property. This section tells you how to set the controls, remove and adjust some of the
features in your refrigerator, and how to save energy.
Setting the controls
Temperature controls
Controls for the refrigerator and freezer are
in the refrigerator. When you plug in the
refrigerator for the first time:
1. Set the Refrigerator Control to 4.
Refrigerator Control adjustments range
from 1 (warmest) to 8 (coldest).
2. Set the Freezer Control to C.
Freezer Control adjustments range from
A (coldest) to D (warmest).
3. Give the refrigerator time to cool down
completely before adding food. This may
take several hours,
The settings indicated above should be
correct for normal, household refrigerator
usage. The controls are set correctly
when milk or juice is as cold as you like
and when ice cream is firm. if you need to
adjust these settings, see “Changing the
control settings” on page 8.
REFRIGERATOR
7

Exterior moisture control
The Exterior Moisture Control operates
electric heaters around the door openings.
These heaters help keep moisture from
forming on the outside of the refrigerator
cabinet.
l Use the OFF setting when humidity is low.
l Use the ON setting if moisture forms on
the outside of the refrigerator cabinet.
ExERloRYusTuREcoNlRol
-ml OEl
I
CONDITION:
Refrigerator
section
too warm
Freezer
section
too warm
Refrigerator
section
too cold
Ice not
made fast
enough
Both
sections
too warm
REASON:
l Door opened often
l Large amount of food added
l Room temperature too warm
l Door opened often
l Large amount of food added
l Very cold room temperature
(can’t cycle often enough)
l Controls not set correctly
for your conditions
RECOMMENDED
CONTROL SETTINGS:
Refrigerator 6
Freezer D
Refrigerator 4
Freezer A
Refrigerator 2
Freezer A
l Heavy ice usage
l Very cold room temperature
(can’t cycle often enough)
l Door opened often
l Large amount of food added
l Very warm or very cold room
temperatures
Refrigerator 4
Freezer A
Refrigerator 6
Freezer C
Changing the control settings
If you need to adjust temperatures in l Adjust the Refrigerator Control first.
refrigerator or freezer, use the settings listed
in the chart below as a guide. if you have l Wait at least 24 hours between adjust-
ments.
questions, call our Consumer Assistance
Center number, 1-800-253-l 301. l Then adjust the Freezer Control if needed.
8

Adjusting the shelf glide
Use the shelf glide to secure odd-shaped
items or to separate other items.
To adjust the shelf glide:
1. Grasp glide.
2. Slide glide along track.
NOTE: The shelf glide cannot be removed.
Adjusting the refrigerator shelves
Adjust the shelves to match the way you use
your refrigerator.
To remove shelves:
1. Remove items from shelf.
2. Tilt shelf up at front.
3. Lift back of shelf.
4. Pull shelf straight out.
To replace shelves:
1. Guide the rear shelf hooks into the slots
in the shelf supports on cabinet wail.
2. Tilt shelf up at front until hooks drop into
slots. Lower front of shelf to level position.
Removing the meat drawer and cover
To remove the meat drawer:
1. Slide meat drawer out to the stop.
2. Lift front of meat drawer.
3. Slide meat drawer out the rest of the way.
4. Replace in reverse order.
To remove the cover:
1. Tift front of cover up.
2. Lift back of cover.
3. Pull cover straight out.
4. Replace cover in reverse order.
Pull out to the stop,
lift the front and pull
again.

Removing the crispers and crisper cover
To remove the crispers:
1. Slide the crisper straight out to the stop.
2. Lift the front.
3. Slide out the rest of the way.
4. Replace in reverse order.
To remove the cover:
1. Push up glass insert from the bottom,
then slide it out with both hands.
2. Lift front of cover frame.
3. Pull cover frame up and out.
4. Remove metal cover support.
To replace the cover:
1. Replace metal cover support on wall
supports in front section of cabinet.
2. Fit back corners of cover frame into notch
supports on walls of refrigerator, then
lower front onto metal cover support.
3. Slide back of glass insert into cover
frame. Then lower front to level position.
I e Pull out to the
Remove the
glass insert.
Lift front of
cover frame,
then the
back
Removing the freezer shelf
Remove the freezer shelf for easier cleaning.
To remove the shelf:
1. Lift front of shelf slightly.
2. Lift back of shelf off supports.
3. Replace in reverse order.
Using the ice cube trays
If you don’t use cubes, they may shrink. The
moving cold air starts a slow evaporation.
The longer you store cubes, the smaller they
get.
To remove ice:
1. Hold tray at both ends.
2. Twist slightly.
10
