Whirlpool GC3SHEXNB00 User manual

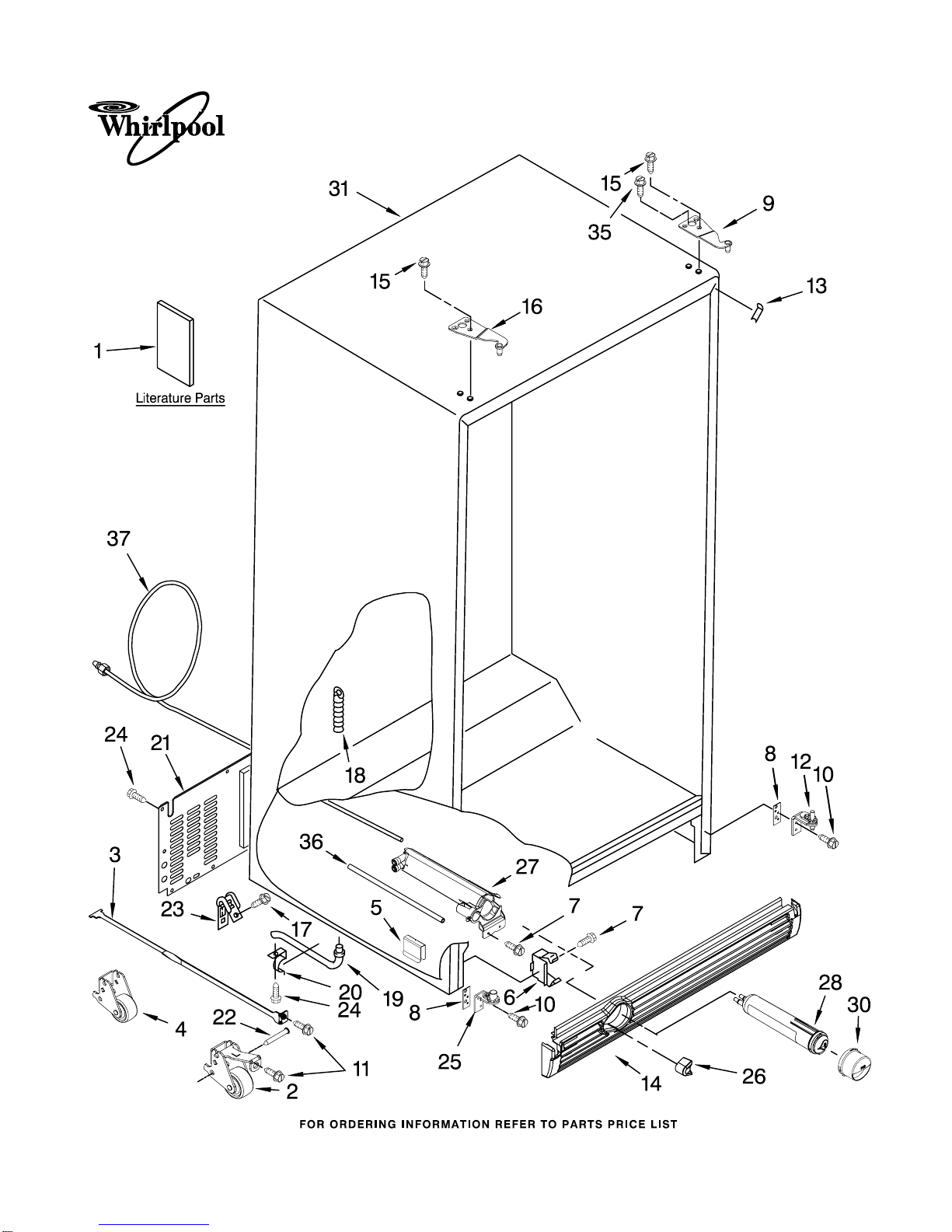

CABINET PARTS
1
For Models: GC3SHEXNQ00, GC3SHEXNT00, GC3SHEXNB00, GC3SHEXNS00
(White) (Biscuit) (Black) (Stainless Steel)
REFRIGERATOR
10−05 Printed In U.S.A. (kdr) Part No. 8198905 Rev. A

CABINET PARTS
2
For Models: GC3SHEXNQ00, GC3SHEXNT00, GC3SHEXNB00, GC3SHEXNS00
(White) (Biscuit) (Black) (Stainless Steel)
8198905
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 Literature Parts
2306981 Use & Care Guide
2223419 Service & Wiring
Sheet
2223996 Installation
Instructions
2308412 Energy Guide
628370 Modular Icemaker
Service Sheet
2 Front Roller Asm
2306950 Left Side
2306951 Right Side
3 2223263 Strap, Roller
4 2306949 Roller, Rear (2)
5 2223388 Clip, Retainer (4)
6 2155013 Clip, Grille
7 489478 Screw
8 2223545 Shim
9 Hinge Top, RC
2307008W White
2307008T Biscuit
2307008B Black
10 3400113 Screw
11 3400243 Screw
12 2223520 Hinge Assembly,
Bottom−RC
13 Filler, Wrapper
2223893W White
2223893T Biscuit
2223893B Black
14 Grille
2223514W White
2223514T Biscuit
2223514B Black
15 3400108 Screw
16 Hinge, Top FC
2307007W White
2307007T Biscuit
2307007B Black
17 489464 Screw
18 940139 Drain Fitting
19 2199954 Tube, Extension
20 1108439 Clip, Drain Tube
21 2223409 Cover, Unit
22 2223387 Pin, Roller (4)
23 549193 Clamp, Service
Cord
24 489084 Screw
25 2223460 Hinge Assembly,
Bottom−FC
26 Button, Water
Filter
2260503W White
2260503T Biscuit
2260503B Black
27 2260526 Housing, Water
Filter
28 4396710 Water Filter
30 Cap, Water
Filter
2260518W White
2260518T Biscuit
2260518B Black
31 Cabinet (Not A
Serviceable Part)
35 3400858 Screw
36 2224020 Tube, Filter
Outlet
37 2305536 Tube, Filter
Inlet

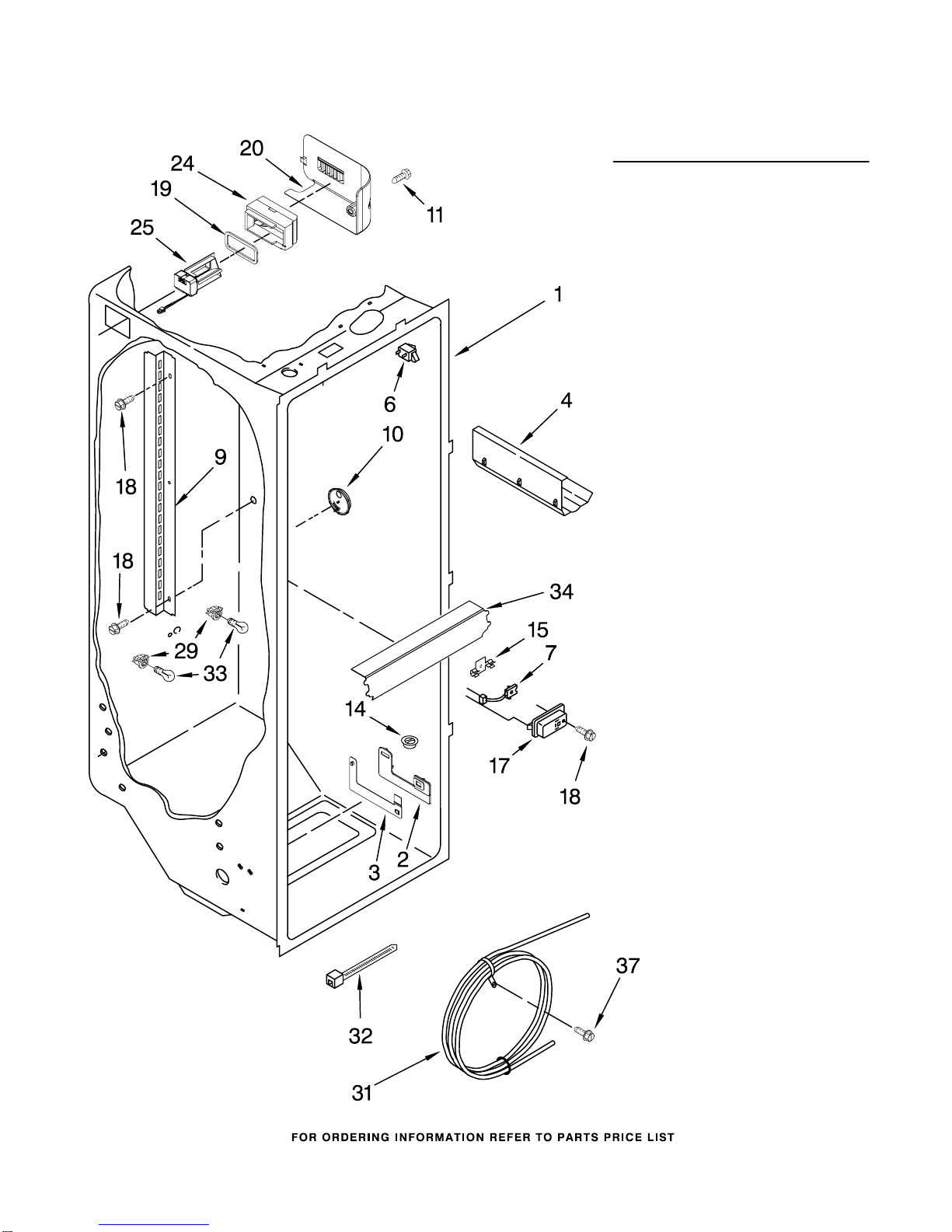

REFRIGERATOR LINER PARTS
3
For Models: GC3SHEXNQ00, GC3SHEXNT00, GC3SHEXNB00, GC3SHEXNS00
(White) (Biscuit) (Black) (Stainless Steel)
8198905
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 2223338 Escutcheon, Meat
Pan Control
3 2223339 Slide Meat
Pan Control
4 2179404K Wine Rack
6 1118894 Switch, Rocker
Arm
7 2188820 Thermistor
9 2206273 Ladder, Shelf (2)
10 2261601 Housing, Door
Control
11 489084 Screw
14 2171846 Release Valve
15 2209204 Clip, Thermistor
17 1116793 Cover, Thermistor
18 489478 Screw
19 2304597 Gasket,
Air Baffle
20 2223403 Cover,
Air Baffle
24 2224076 Air Diffuser
Assembly
25 2220377 Air Baffle
29 2162085 Socket
31 2223876 Reservoir
32 2205813 Strap
33 2255743 Light Bulb
34 2223663 Light Lens
37 488280 Screw

REFRIGERATOR SHELF PARTS
4
For Models: GC3SHEXNQ00, GC3SHEXNT00, GC3SHEXNB00, GC3SHEXNS00
(White) (Biscuit) (Black) (Stainless Steel)
8198905
Illus. Part
No. No. DESCRIPTION
1 2223288 Pan Assembly
2 2223309 Button, Humidity
3 2223308 Slide, Humidity
5 2223525 Cover, Meat Pan
(Includes Items
13, 14, 15 & 20)
6 2223261 Snack Pan
7 2216624K Egg Bin
9 2223592 Cover, Crisper
(Includes 2,
3, 13, 14 & 19)
10 2223591 Glass, Cover
13 2174478 Eyelet, Roller
14 2188212 Roller
15 489211 Screw
16 2223235 Crisper Pan
(Includes 13
14 & 19)
17 2223526 Meat Pan
(Includes 13,
14, 19 & 22)
18 2224059 Shelf and Frame
Assembly (3)
19 489261 Screw
20 2223487 Deflector
22 2203029 Handle
25 2196485 Stud Assembly
27 3400894 Screw
28 2196483 Stud Assembly
29 8281158 Screw
31 2223320 Slide, Pan

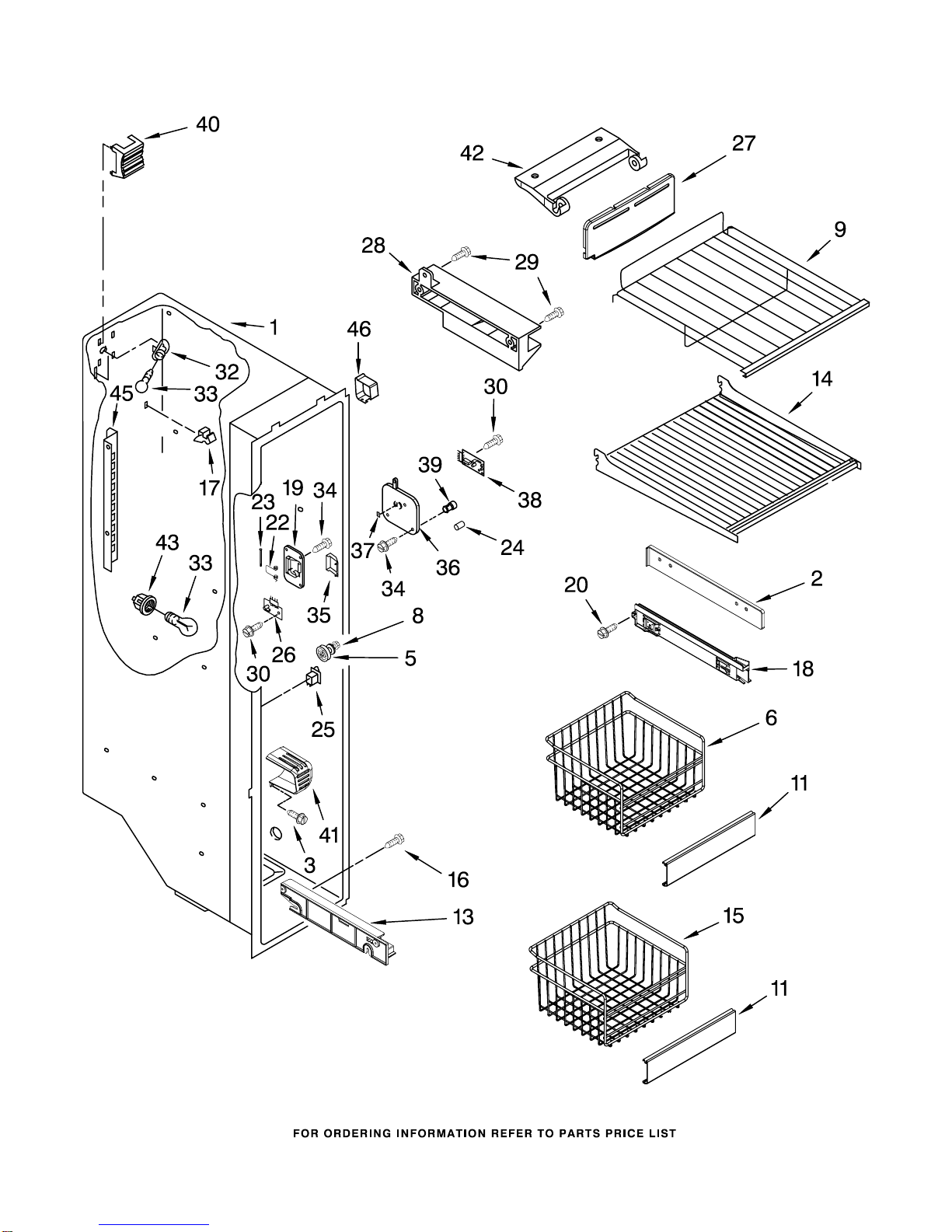

FREEZER LINER PARTS
5
For Models: GC3SHEXNQ00, GC3SHEXNT00, GC3SHEXNB00, GC3SHEXNS00
(White) (Biscuit) (Black) (Stainless Steel)
8198905

FREEZER LINER PARTS
6
For Models: GC3SHEXNQ00, GC3SHEXNT00, GC3SHEXNB00, GC3SHEXNS00
(White) (Biscuit) (Black) (Stainless Steel)
8198905
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Seviceable Part)
2 2223777 Spacer, Slide (2)
3 3400893 Screw
5 2196483 Stud Assembly
6 2223690 Basket, Deep (2)
8 8281158 Screw
9 2223500 Shelf Assembly,
Cantilever (2)
11 2223782 Front, Basket
13 Shelf Track
2223787 Right Side
2223788 Left Side
14 2223681 Shelf, Fixed
15 2223692 Basket, Lower
16 486298 Screw
17 842534 Clip, Air Duct (2)
18 Glide Assembly,
Basket (2)
2301544 Right Side
2301545 Left Side
19 2223991 Cover, Emitter
20 8534064 Screw
22 2198635 Spring
23 2198634 Pin
24 2198665 Tube, P.C. Board
25 1115373 Switch, Rocker Arm
26 2220398 P.C. Board
Emitter
27 2223321 Cover, Ice Maker
28 Slide, Ice Maker
Mounting
2212321 Right Side
2306900 Left Side
29 489478 Screw
30 489214 Screw
32 2162085 Light Socket
33 2255743 Light Bulb
34 8281185 Screw
35 2198633 Flipper
36 2255558 Cover, Receiver
37 2255562 Slide, Ice Maker
Shut Off
38 2255114 P.C. Board,
Receiver
39 2198643 Lens
40 2198589 Light Shield
41 2212340 Light Lens
42 2198641 Bracket, Ice Maker
Cover
43 2155597 Socket, Light
45 Ladder
2198609 Left Side
2198610 Right Side
46 2306901 Shield, Wiring

MOTOR AND ICE CONTAINER PARTS
7
For Models: GC3SHEXNQ00, GC3SHEXNT00, GC3SHEXNB00, GC3SHEXNS00
(White) (Biscuit) (Black) (Stainless Steel)
8198905

MOTOR AND ICE CONTAINER PARTS
8
For Models: GC3SHEXNQ00, GC3SHEXNT00, GC3SHEXNB00, GC3SHEXNS00
(White) (Biscuit) (Black) (Stainless Steel)
8198905
Illus. Part
No. No. DESCRIPTION
1 2223317 Ice Bin
2 2255574 Crusher Bin
3 2258222 Auger
4 2258220 Washer
5 1119007 Spacer, Flat (6)
6 2255460 Cover, Crusher
7 2257022 Blade, Rotary
8 1119005 Spacer, Step (2)
9 2257020 Blade, Fixed
10 2257023 Blade, Rotary
11 2198602 Block, Blade
12 489229 Roll Pin
13 2257024 Blade, Rotary
14 489235 Washer, Plain
15 2198661 Washer, Coupling
16 2220457 Coupling
17 8281164 Screw
18 3400065 Screw
19 2255575 Button, Bin
20 2212371 Latch, Bin
21 2198608 Spring, Latch
22 2198671 Screw
23 8281163 Screw
24 2212369 Holder
25 2220458 Coupling, Bottom
26 2198628 Seal
27 2212370 Washer
29 2198607 Spring
30 999536 Drive Shaft
31 2256154 Enclosure, Motor
32 2188860 Dispenser, Motor
33 2212305 Cover
36 2212365 Sleeve, Coupling
37 2187725 Wire Harness,
IDI Motor

REFRIGERATOR DOOR PARTS
9
For Models: GC3SHEXNQ00, GC3SHEXNT00, GC3SHEXNB00, GC3SHEXNS00
(White) (Biscuit) (Black) (Stainless Steel)
8198905

REFRIGERATOR DOOR PARTS
10
For Models: GC3SHEXNQ00, GC3SHEXNT00, GC3SHEXNB00, GC3SHEXNS00
(White) (Biscuit) (Black) (Stainless Steel)
8198905
Illus. Part
No. No. DESCRIPTION
1 Refrigerator Door
(Includes #7)
2223835W White
2223835T Biscuit
2223835B Black
2224132S Stainless Steel
2 2203087K Trim, Shelf
3 2255421 Dairy Door
4 2223463K Door Bin
5 2223464K Mat, Bin (3)
6 2255411 Clip, Mounting
7 Door Gasket,
Magnetic
2223841 Mist Beige
2223911 Black
8 Handle
2305993W White
2305993T Biscuit
2305993B Black
9 8533920 Screw
10 2223879 Dairy Compartment
11 489491 Screw
12 2182178 Door Closer,
Upper Cam
13 2308091 Thimble, Top
14 489420 Screw
15 Bracket, Door Stop
2306940 Chrome
2306940B Black
16 2223239K Door Bin (2)
17 3400012 Screw
18 2224173 Door Bin,
Shallow
20 2156006K Plug, Trim
21 2220214 Nameplate

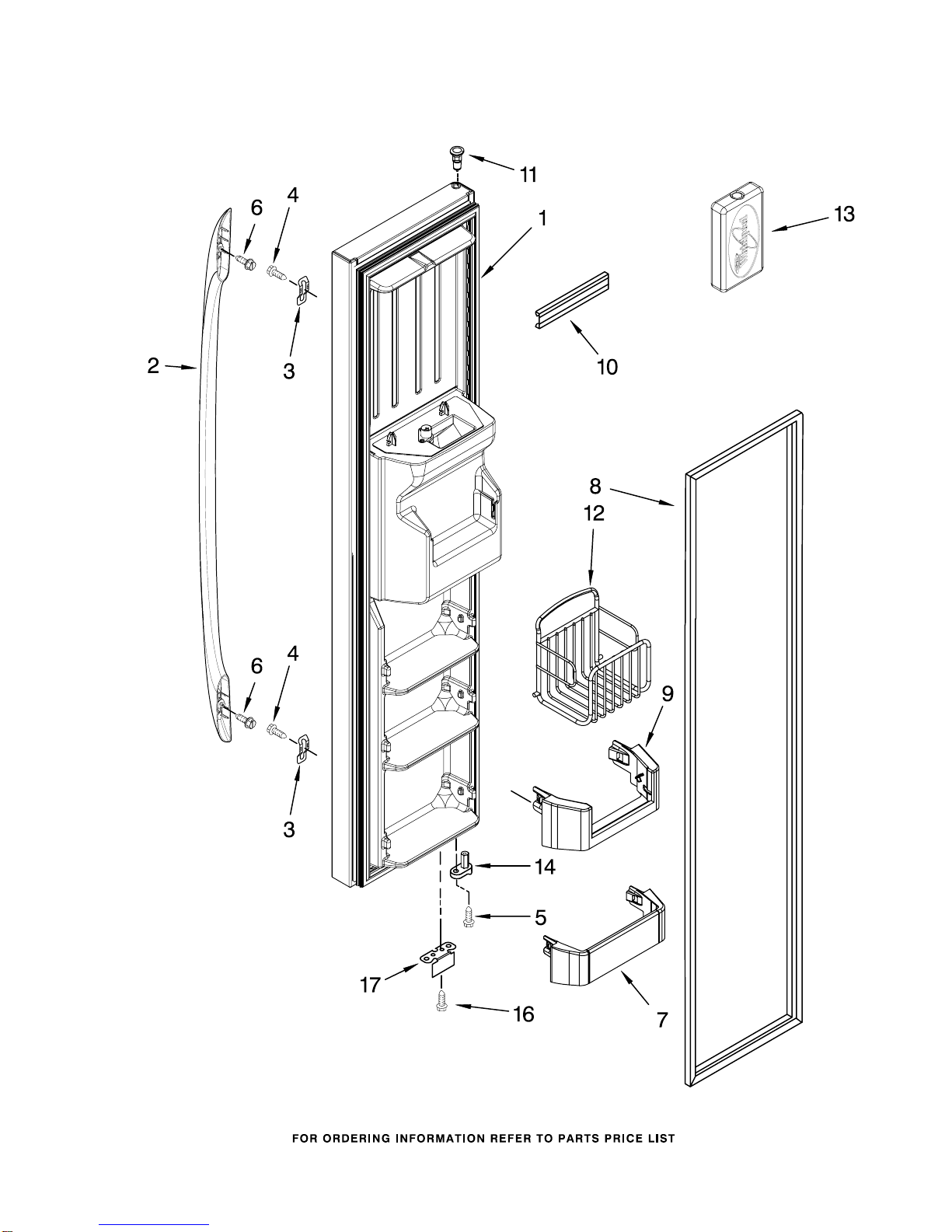

FREEZER DOOR PARTS
11
For Models: GC3SHEXNQ00, GC3SHEXNT00, GC3SHEXNB00, GC3SHEXNS00
(White) (Biscuit) (Black) (Stainless Steel)
8198905

FREEZER DOOR PARTS
12
For Models: GC3SHEXNQ00, GC3SHEXNT00, GC3SHEXNB00, GC3SHEXNS00
(White) (Biscuit) (Black) (Stainless Steel)
8198905
Illus. Part
No. No. DESCRIPTION
1 Freezer Door
(Includes #8
And Dispenser
Front Parts)
2223842W White
2223842T Biscuit
2223842B Black
2224191SB Stainless Steel
2 Handle
2305993W White
2305993T Biscuit
2305993B Black
3 2255411 Clip, Mounting
4 489491 Screw
5 3400012 Screw
6 8533920 Screw
7 2171157K Shelf Bin
8 Door Gasket,
Magnetic
2223850 Mist Beige
2223912 Black
9 2223334 Trivet,
Tilt−Out (2)
10 2219982 Trim, Door Shelf
11 2308091 Thimble, Top
12 2304309 Basket,
Tilt−Out (2)
13 2255459K Bottle, Ice Pack
14 2223752 Door Closer,
Upper Cam
16 489420 Screw
17 Bracket, Door Stop
2306940 Chrome
2306940B Black

13
DISPENSER FRONT PARTS
For Models: GC3SHEXNQ00, GC3SHEXNT00, GC3SHEXNB00, GC3SHEXNS00
(White) (Biscuit) (Black) (Stainless Steel)
8198905

DISPENSER FRONT PARTS
14
For Models: GC3SHEXNQ00, GC3SHEXNT00, GC3SHEXNB00, GC3SHEXNS00
(White) (Biscuit) (Black) (Stainless Steel)
8198905
Illus. Part
No. No. DESCRIPTION
1 Housing, Dispenser
(Not Serviced)
2 3196537 Screw
3 2194719 Retainer, Levers
4 2180209 Spring, Torsion
5 2196195 Pin
6 2180353 Door, Ice
7 2304355 Door Mechanism
Assembly
8 2205686 Mechanism Delay
9 Grille, Overflow
2206670W White
2206670T Biscuit
2206670B Black
10 2209718 Water Fitting
Assembly (Includes
Water Tube)
11 Lever, Ice
Dispenser
2255431W White
2255431T Biscuit
2255431B Black
12 2180224 Guide, Ice
13 2305571 Gasket
15 2306937 Bracket, Control
17 Lever, Water
Dispenser
2255432W White
2255432T Biscuit
2255432B Black
19 Overlay, Front
Cover
(Not Available,
Order #23)
20 LED Display
(Not Available,
Order #23)
21 Front Cover,
Housing
(Not Available,
Order #23)
22 489000 Screw
23 Front Cover
Assembly
(Includes Items
13, 19, 20 & 21)
2224183W White
2224183T Biscuit
2224183B Black
24 2188355 Bracket, Dispenser
25 2195051 Strain Relief
26 3400065 Screw
27 2252127 Sleeve, Mechanism

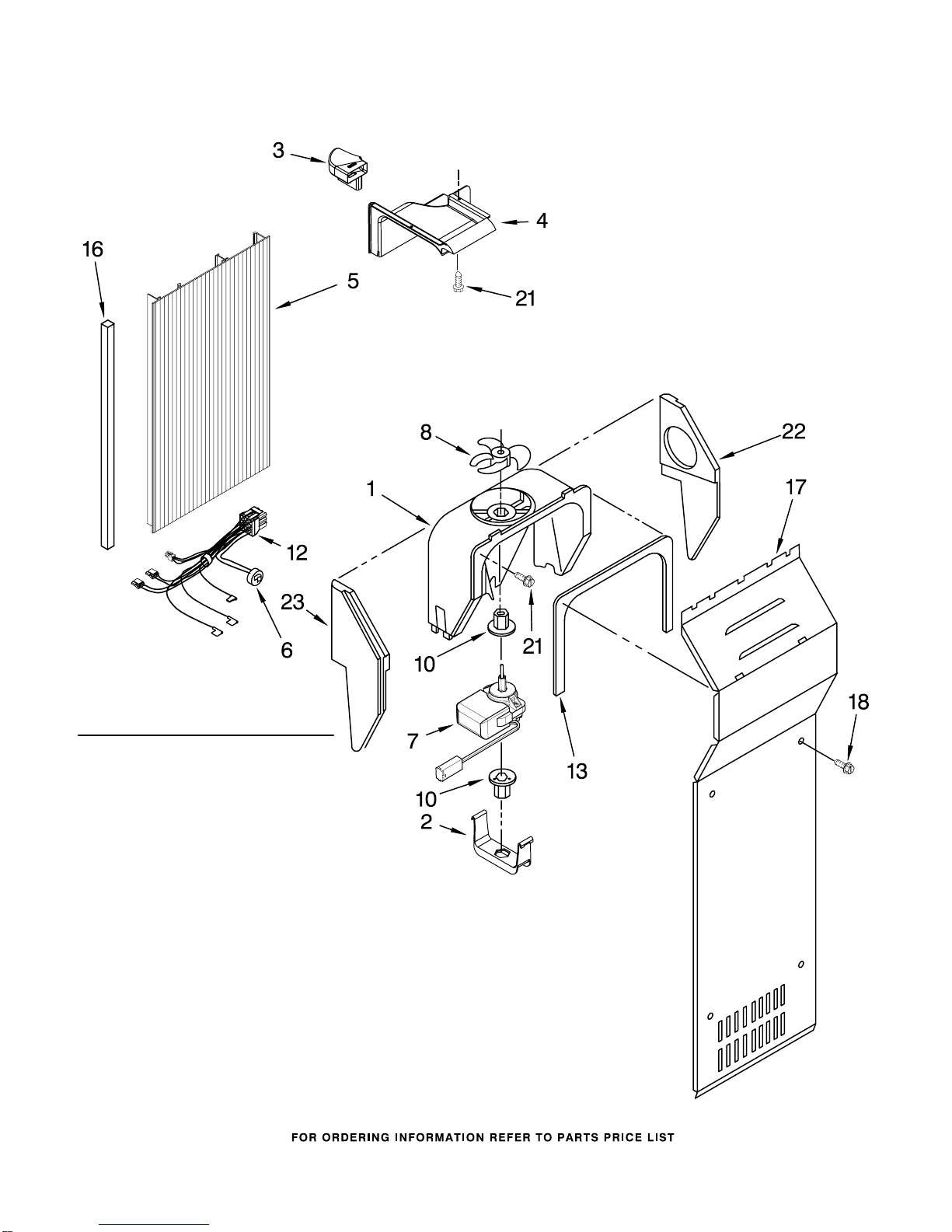

AIR FLOW PARTS
15
For Models: GC3SHEXNQ00, GC3SHEXNT00, GC3SHEXNB00, GC3SHEXNS00
(White) (Biscuit) (Black) (Stainless Steel)
8198905
Illus. Part
No. No. DESCRIPTION
1 2182120 Fan Scroll
2 2223733 Retainer,
Fan Motor
3 2223298 Air Scoop
4 2223303 Air Duct, Upper
5 2223771 Air Duct Freezer
6 2188824 Bi−Metal, Defrost
7 2259385 Fan Motor
8 2169142 Fan Blade
10 2223986 Fan Grommet (2)
12 2310110 Harness, Fan
Evaporator
(Includes #6)
13 2155789 Gasket Cover
16 2203876 Gasket
17 2223413 Cover, Evaporator
18 8281159 Screw
21 489478 Screw
22 2223395 Support, R.S
23 2203596 Support, L.S

CONTROL PARTS
16
For Models: GC3SHEXNQ00, GC3SHEXNT00, GC3SHEXNB00, GC3SHEXNS00
(White) (Biscuit) (Black) (Stainless Steel)
8198905
Illus. Part
No. No. DESCRIPTION
1 2306990 Control Box
(Includes #6)
2 2223877 Latch
3 2306952 Trim, Control Box
4 2223512 Spring, Torsion
5 2223882 Heat Shield Asm
6 2307037 Control Board Asm
10 2223506 Light Lens,
Control Box
17 2223857 Light Socket
19 2223678 Light Bulb

UNIT PARTS
17
For Models: GC3SHEXNQ00, GC3SHEXNT00, GC3SHEXNB00, GC3SHEXNS00
(White) (Biscuit) (Black) (Stainless Steel)
8198905

UNIT PARTS
18
For Models: GC3SHEXNQ00, GC3SHEXNT00, GC3SHEXNB00, GC3SHEXNS00
(White) (Biscuit) (Black) (Stainless Steel)
8198905
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 777070 Screw
2 2225834 Fan, Blade
3 2223315 Condenser
Assembly
4 8281197 Screw
5 3400524 Screw (6)
6 2223703 Housing,
Control Board
7 2223351 Tube Suction
8 2161302 Sleeve
10 2301979 Plate, Mounting
11 8281196 Screw
12 2215676 Cover, Terminal
14 2185788 Clamp, Cable
15 488649 Screw
18 2223353 Tube, Condenser
to Heat Loop
19 2307028 Electronic Control
20 2306932 Baseplate
21 489478 Screw
22 2188823 Evaporator
23 2161324 Clamp
24 2188729 Fan, Motor
25 2223398 Tray, Evaporator
26 2224022 Heat Shield
27 2199167 Drier
28 2223801 Compressor
(Includes Items
12 & 39)
29 2223800 Spacer (5)
31 2187849 Harness,
Main Control
32 2224024 Fan, Motor Bracket
33 2210737 Heater, Defrost
34 2304287 Clip
36 2306957 Inverter Box
37 489473 Screw
38 2223352 Tube, Discharge
39 Grommet (4)
2183042 Production
4387558 Service
41 2223394 Extension,
Air Baffle
42 2155547 Clip, Heat Shield
45 2187737 Unit Harness
63 2209709 Connector, Water
Tube
Following Parts Not Illustrated
and Optional Parts Not Included
978025 Valve, Access
(1/4")
978026 Valve, Access
(5/16")
978027 Valve, Access
(3/8")
978028 Valve, Access
(1/2")
978029 Valve, Access
(5/8")
978030 Valve, Access
(3/4")
876764 Valve, Access
(3/16")
REFRIGERANT CHARGE
6.00 oz.
(R−134A)

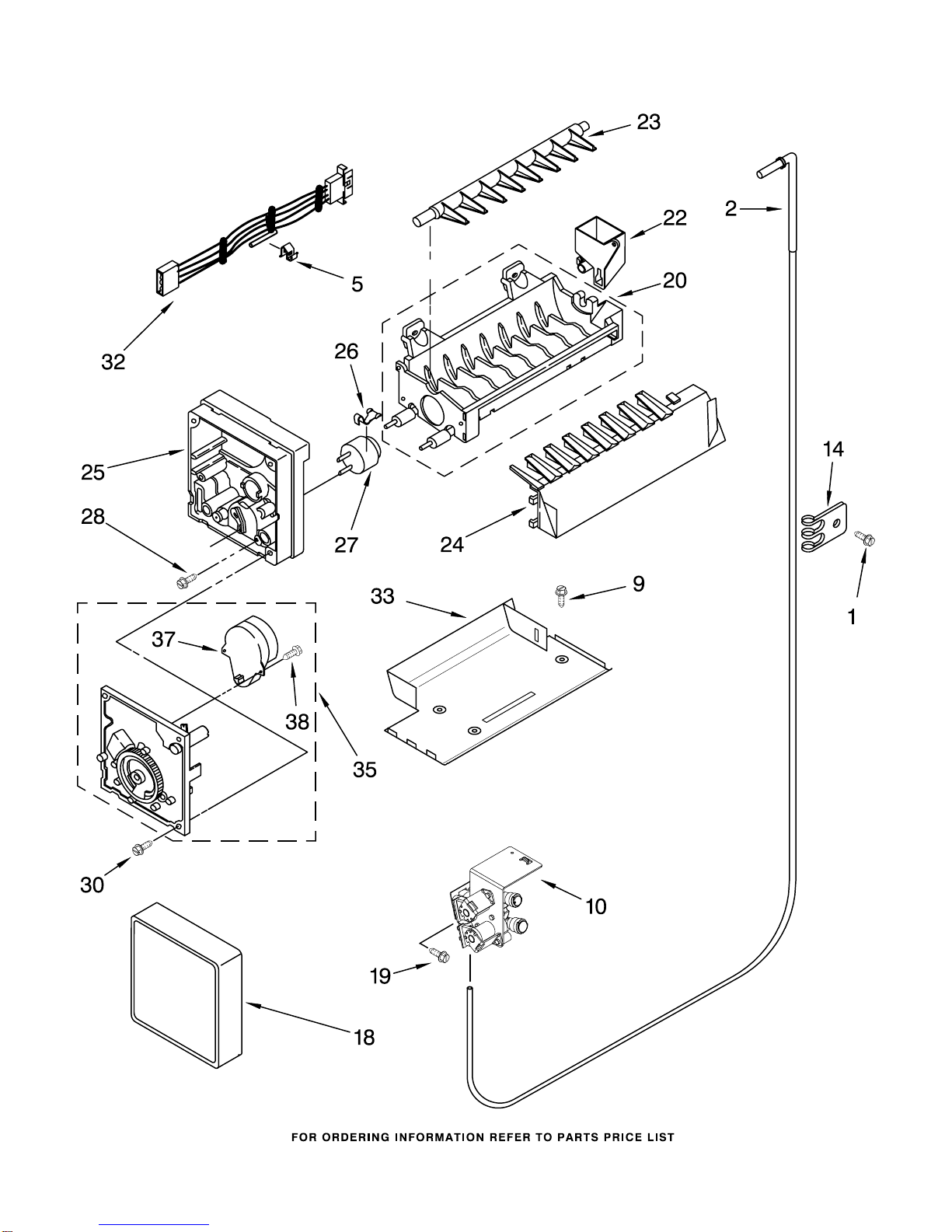

ICEMAKER PARTS
19
For Models: GC3SHEXNQ00, GC3SHEXNT00, GC3SHEXNB00, GC3SHEXNS00
(White) (Biscuit) (Black) (Stainless Steel)
8198905

ICEMAKER PARTS
20
For Models: GC3SHEXNQ00, GC3SHEXNT00, GC3SHEXNB00, GC3SHEXNS00
(White) (Biscuit) (Black) (Stainless Steel)
8198905
Illus. Part
No. No. DESCRIPTION
1 489084 Screw
2 2256096 Fitting, Water
Tube
5 628379 Clip, Fuse
9 489478 Screw
10 2315533 Water Valve Asm
14 2208136 Tube Clip
18 2174358 Cover
19 488649 Screw
20 628228 Mold & Heater
Assembly (Also
Order 542638
22 628356 Cup, Water Fill
23 627843 Ejector
24 2198598 Ice Striper
25 2194712 Support
26 627796 Retainer,
Thermostat
27 627985 Thermostat (Also
Order 542369
Cement
Alumilastic)
28 8533917 Screw
30 489276 Screw
32 2187467 Harness, Wiring
33 2212322 Bracket, Icemaker
Mounting
35 626678 Module Assembly
(Includes Items
37 & 38)
37 626676 Motor
38 489136 Screw
100 2198597 Icemaker Assembly
