A Note to You ............ 2
Refrigerator Safety.... 3
Parts and Features ... 4
Installing Your
Refrigerator ............... 7
Using Your
Refrigerator ............. 12
Caring for Your
Refrigerator ............. 24
Food Storage
Guide ...................... 27
‘-tof,;t;~~shoo[ing
C-T,4!JIil;p RT
...................... id
Requesting
Assistance
or Service ................ 36
Index ....................... 37
W&ranty ................. 40
I=
-2534301
Call our Consumer Assistance
Center anytime with
questions or comments.

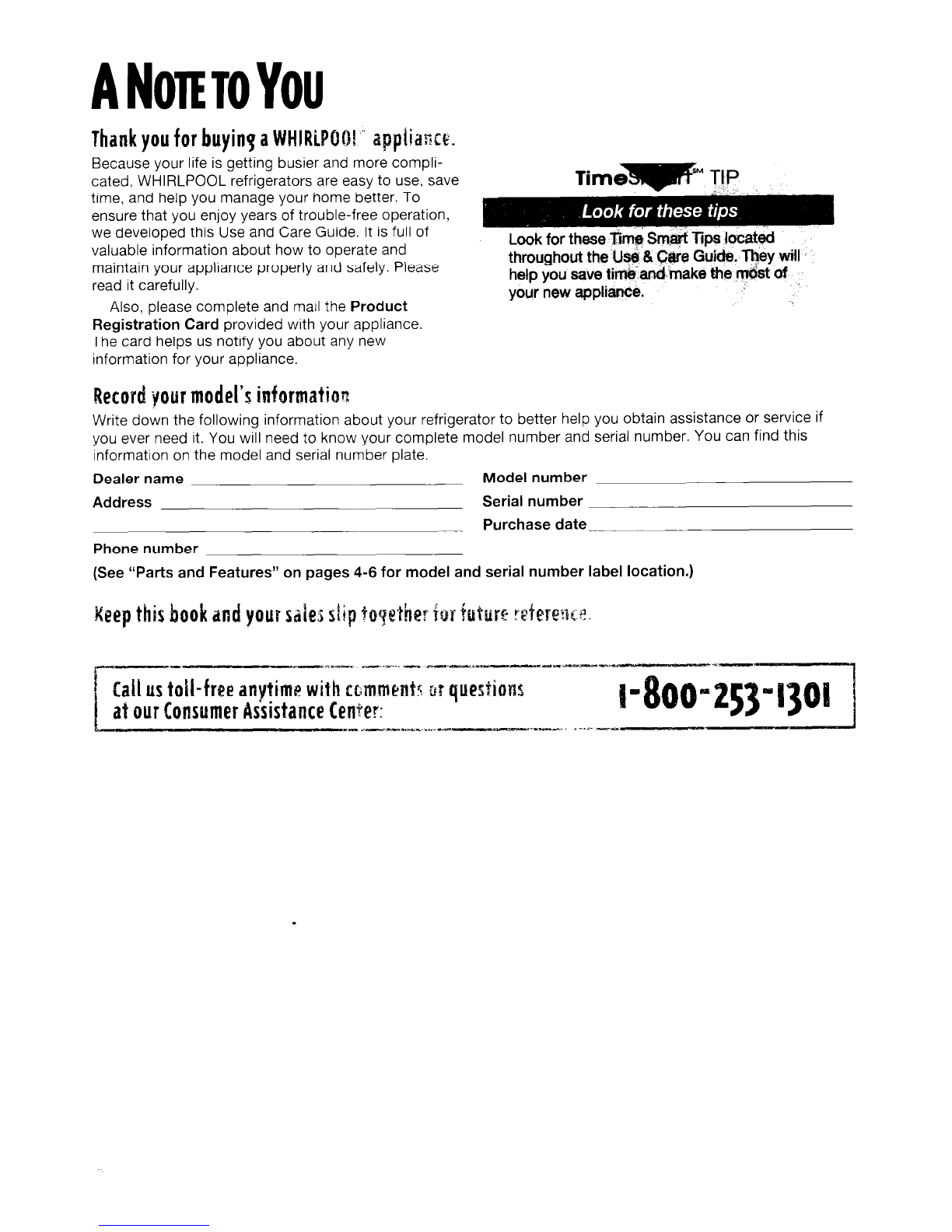

ANOIETOYOU
Thankyoufor buying a WHlRiPOOt~~applkme.
Because your life is getting busier and more compli-
cated, WHIRLPOOL refrigerators are easy to use, save
time, and help you manage your home better. To
ensure that you enjoy years of trouble-free operation,
we developed this Use and Care Guide. It is full of
valuable information about how to operate and
maintain your appliance properly and safely. Please
read it carefully.
Also, please complete and mall the Product
Registration Card provided with your appliance.
The card helps us notify you about any new
information for your appliance.
record yourmodel’sinformation
Write down the following information about your refrigerator to better help you obtain assistance or service if
you ever need it. You will need to know your complete model number and serial number. You can find this
information on the model and serial number plate.
Dealer name Model number
Address Serial number
Purchase date
Phone number
(See “Parts and Features” on pages 4-6 for model and serial number label location.)
I
Callustoll-free anytimewith txmmentstrrquestions
at ourConsumerAssistance Center:

Yoursafety isimportant to us.
This guide contains safety statements under a
warning symbol. This symbol alerts you
to such dangers as fire, electrical shock,
burns, and personal injury. Please pay
special attention to this symbol and
follow any instructions given.
IMPORTANTSAFETYINSTRUCTIONS
0 Read all instructions before using the refrigerator. 0 Never allow children to operate, play with, or crawl
0 Child entrapment and suffocation are not inside the refrigerator.
problems of the past. Junked or abandoned 0 Never clean refrigerator parts with flammable fluids.
refrigerators are still dangerous ... even if they The fumes can create a fire hazard or explosion.
will “just sit in the garage a few days.” 0 FOR YOUR SAFE-W 0
If you are getting rid of your old refrigerator, do
it safely. Please read the enclosed safety booklet DO NOT STORE OR USE GASOLINE OR OTHER
from the Association of Home Appliance Manu- FLAMMABLE VAPORS AND LIQUIDS IN THE
facturers. Help prevent accidents. VICINITY OF THIS OR ANY OTHER APPLIANCE.
THE FUMES CAN CREATE A FIRE HAZARD OR
EXPLOSION.
- SAVETHESEINSTRUCTIONS-
Helpushelpyou
Please:
0 Install and level the refrigerator on a floor that will
hold the weight and in an area suitable for its size
and use.
0 Do not install the refrigerator near an oven, radiator,
or other heat source.
0 Do not use the refrigerator in an area where the
temperature will fall below 55°F (13°C).
0 Keep the refrigerator out of the weather.
0 Connect the refrigerator only to the proper kind of
outlet, with the correct electrical supply and ground-
ing. (See “Electrical Requirements” on page 7 or
refer to the Electrical Requirements and Grounding
Instructions Sheet in your Literature Package.)
0 Do not load the refrigerator with food before it has
time to get properly cool. (See “Setting the controls”
on page 12.)
0 Use the refrigerator only for the uses described in
this manual.
0 Properly maintain the refrigerator.
0 Be sure the refrigerator is not used by anyone unable
to operate it properly.
3

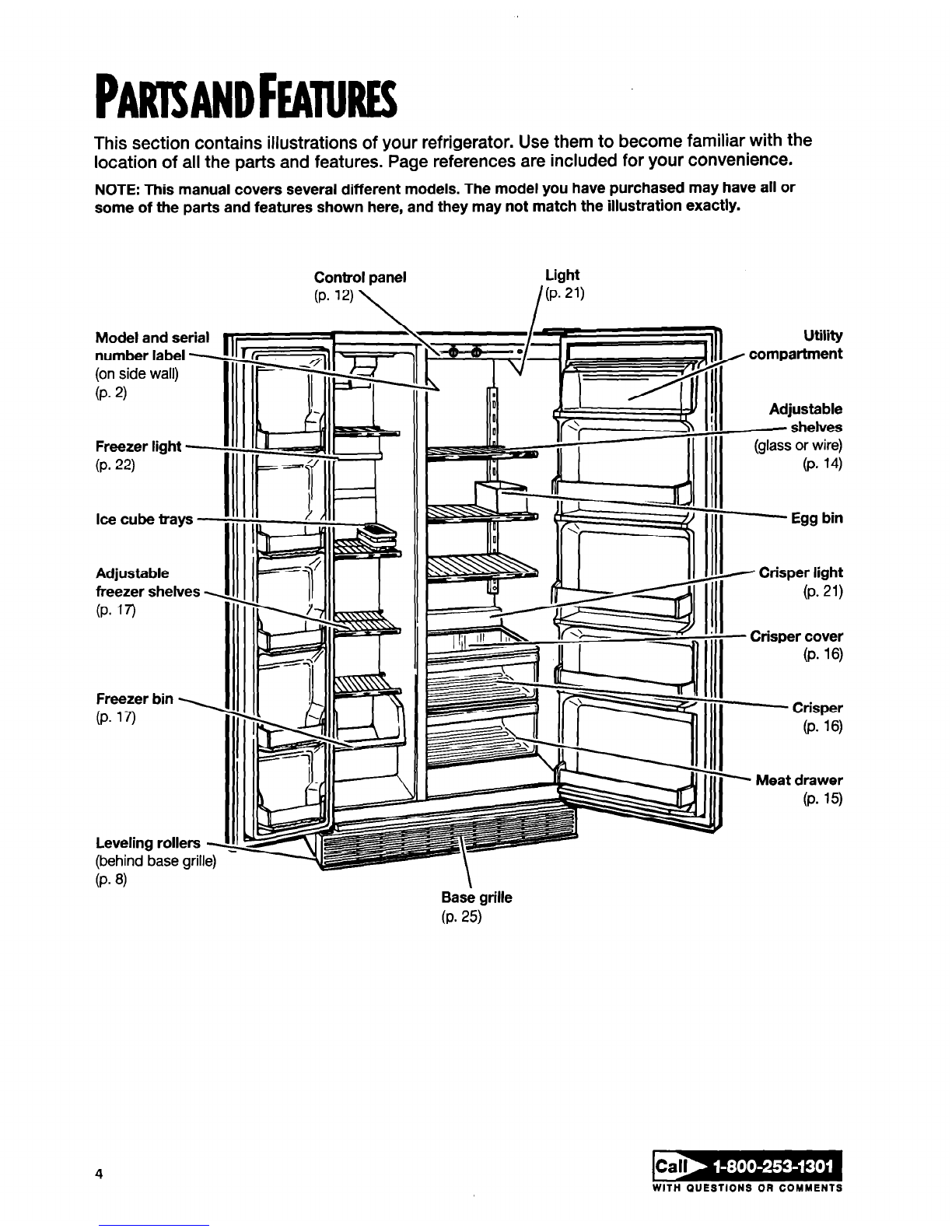

This section contains illustrations of your refrigerator. Use them to become familiar with the
location of all the parts and features. Page references are included for your convenience.
NOTE: This manual covers several different models. The model you have purchased may have all or
some of the parts and features shown here, and they may not match the illustration exactly.
Model and !
number labc
(on side wall,
(P. 2)
Freezer ligh
(P. 22)
Ice cube tra
Adjustable
freezer she1
(P. 17)
Freezer bin
(P. 17)
Leveling rol
(behind base
(P. 8)
serial
E!lJ
1
Control panel
(P- 12)
\
Light
I (P. 21)
Yr- II
in
Utility
Base grille
(P. 25)
WITH QUESTIONS OR COMMENTS

NOTE: This manual covers several different models. The model you have purchased may have all or
some of the parts and features shown here, and they may not match the illustration exactly.
Model and serial Control panel
Removable
freezer shelves+
Ice and water
freezer basket?
.. ,
Leveling rollers .altE
;;l$d base gnlle) b
(P- 15)
Meat drawer
Base grille
(P. 25)
t Number varies with model
5

NOTE: This manual covers several different models. The model you have purchased may have all or
some of the parts and features shown here, and they may not match the illustration exactly.
Model and serial
number label
(on side wall)
(Pa2)
Adjustable
freezer shelw
(Pm17)
Freezer light -
(P. 22)
Ice cube tray!
Snap-on
door trivet ’
(Pa13)
Snack bin 0
(Pa17)
Crisper cover
(P- 16)
Freezer bin -
(Pa17)
Leveling roller
(behind base g
(P. 6)
Control panel
(P. 12)
\ /
Light
(P. 21) Utility
Adjustable
Base grille
(P. 25)
6
WITH QUESTIONS OR COMMENTS

INSTALLINGYOURREFRIGERATOR
It is important to prepare your refrigerator for use. This section tells you how to clean it,
connect it to a power source, install it, and level it.
Removingpackagingmaterials cleaningbefore use
Remove tape and any labels from your refrigerator After you remove all of the packaging materials,
before using (except the model and serial clean your refrigerator before using it if
number label). needed. See the cleaning instructions
To remove any remaining tape or glue, rub the on page 24 for more information.
area briskly with your thumb. Do not use sharp
instruments, rubbinq alcohol, flammable fluids, or
UNPACKING YOURREFRIGERATOR
abrasive cleaners. These products can damage the
surface of your refrigerator. For more information,
see “Important Safety Instructions” cn page 3.
NOTE: Do not remove any permanerit instruction
labels inside your refrigerator, or the Tech Sheet
that is tastened under the front.
Recommended Grounding Method
A 115 Volt, 60 Hz., AC only 15 or 20 ampere fused,
grounded electrical supply is required. It is recom-
mended that a separate circuit serving only your
refrigerator be provided. Use an outlet that cannot
be turned off by a switch. Do not use an extension
cord. Refer to the Electrical Requirements and
Grounding Instructions Sheet in your Literature
Package for more details.
NOTE: Before performing any type of installation,
cleaning, or removing a light bulb, turi the
Refrigerator Control to OFF and then unplug the
refrigerator. When you are finished with any of
these steps, plug the refrigerator in and reset the
Refrigerator Control to the desired se:ting.
Before you move your refrigerator int#I its final
location, it is important to make sure you have the
proper electrical connection.
EIHTRKA~ REQUIREMENTS
3-prong grounding
type wall receptacle
7

SPACEREQUIREMENTS
--__ _._.__.^._..--_-.
To ensure proper ventilation for your refrigerator,
’
I allow for a M inch (1.25 cm) space on each side
; and at the top. For models that have ice and water
dispensers, make sure you leave some extra space
) at the back to allow for the water line connections.
I
Y2” minimum at
1 -
/
g
I
-
-
I
_-____ I ___. -.-_ _-- _ _......._._ _ ---
LEVELING
--_.-^-_-._--~_--.-..,__.._-.__
,
I-
I
_/
Move the refrigerator into it’s final position. Use a
level and check that the refrigerator is level.
NOTE: If your refrigerator has an automatic ice
maker, do this before attaching the ice maker to a
water supply. If you move the refrigerator after the
water line has been hooked up you may loosen or
disconnect the fittings.
left to lower
Use a screw-
driver to adjust
Your refrigerator has two leveling screws, one on
each side.
To level your refrigerator:
1. Check to see if the rear of the refrigerator is
level. Shimming may be necessary if your
refrigerator is placed on an uneven surface. Leveling screw
2. Adjust the front of the refrigerator by removing
the base grille (see page 25).
3. Turn the leveling screw clockwise on the side
that you want to raise. If you want to lower that
side, turn the screw counter clockwise.
--.- --_I ----- -_._-----... ~-
WITH QUESTIONS OR COMMENTS

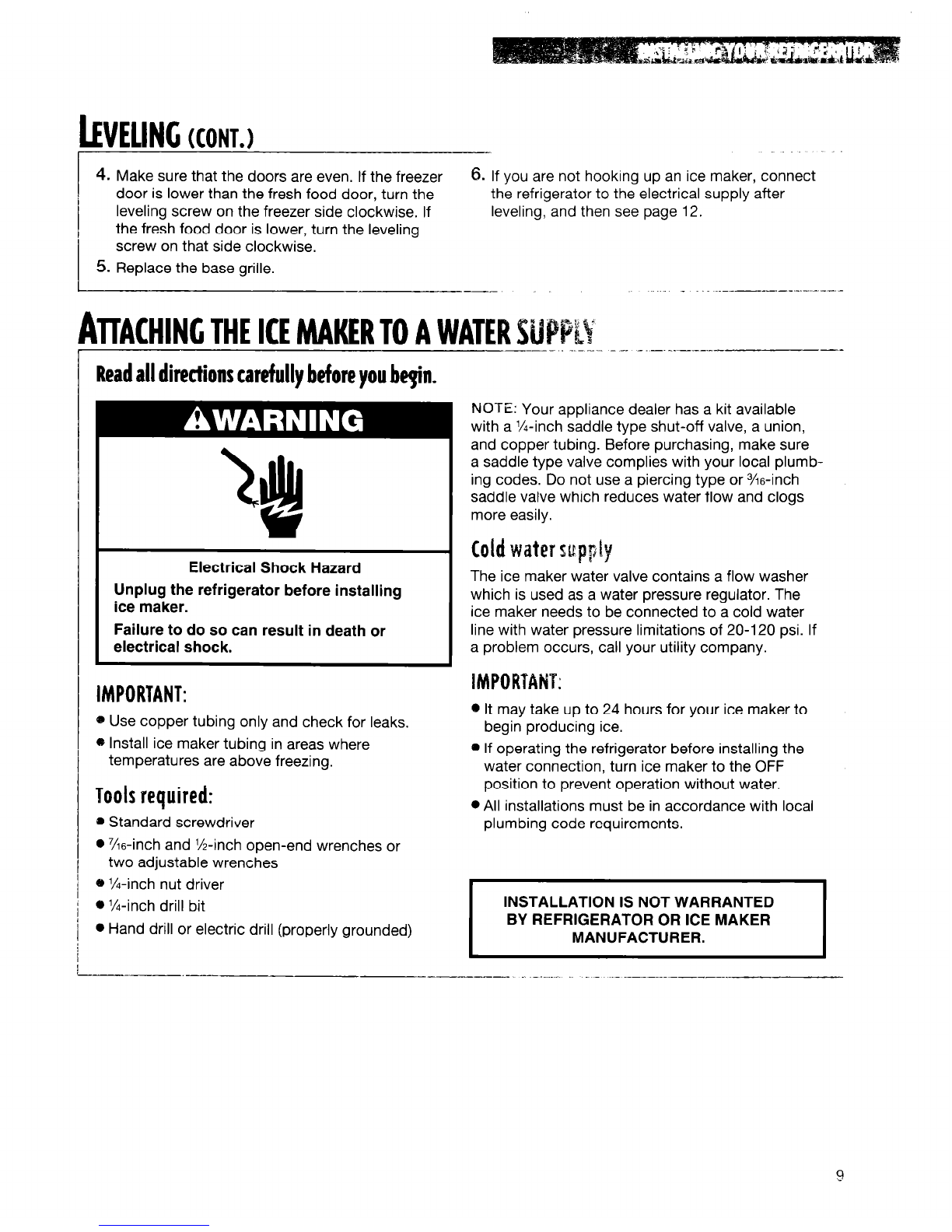

hlNC (CONT.1
4. Make sure that the doors are even. If the freezer 6. If you are not hooking up an ice maker, connect
door is lower than the fresh food door, turn the the refrigerator to the electrical supply after
leveling screw on the freezer side clockwise. If leveling, and then see page 12.
the fresh food door is lower, turn the leveling
screw on that side clockwise.
5. Replace the base grille. - ---
ATTACHING THEICEMAKERTOAWATER
Readall directionscarefullybeforeyoube@.
Electrical Shock Hazard
Unplug the refrigerator before installing
ice maker.
Failure to do so can result in death or
electrical shock.
IMPORTANT:
e Use copper tubing only and check for leaks.
@Install ice maker tubing in areas where
temperatures are above freezing.
Toolsrequired:
0 Standard screwdriver
0 7/16-inch and M-inch open-end wrenches or
two adjustable wrenches
8 X-inch nut driver
l N-inch drill bit
l Hand drill or electric drill (properly grounded)
NOTE: Your appliance dealer has a kit available
with a %-inch saddle type shut-off valve, a union,
and copper tubing. Before purchasing, make sure
a saddle type valve complies with your local plumb-
ing codes. Do not use a piercing type or G-inch
saddle valve which reduces water flow and clogs
more easily.
Cold water supply
The ice maker water valve contains a flow washer
which is used as a water pressure regulator. The
ice maker needs to be connected to a cold water
line with water pressure limitations of 20-120 psi. If
a problem occurs, call your utility company.
1MPORTANT:
* It may take up to 24 hours for your ice maker to
begin producing ice.
@If operating the refrigerator before installing the
water connection, turn ice maker to the OFF
position to prevent operation without water.
l All installations must be in accordance with local
plumbing code requirements.
INSTALLATION IS NOT WARRANTED
BY REFRIGERATOR OR ICE MAKER
MANUFACTURER.

ATCACHING MEICEMAKERTOAWAITRSUPPLY (CONT.)
Connectingto water line
1. Find a M-inch to 1%-inch vertical COLD water Vertical cold
pipe near the refrigerator. water pipe
NOTE: Horizontal pipe will work, but the follow- X-inch O.D.
ing precaution must be taken: Drill on the top
side of the pipe, not the bottom. This will help
keep water away from the drill. This also keeps n
normal sediment from collecting in the valve.
2. Measure from connection on rear of refrigerator
to water pipe. Add 7 feet (2.1 m) to allow for
moving refrigerator for cleaning. This is the
length of %-inch O.D. copper tubing you will
need for the job (length from connection to
water pipe PLUS 7 feet [2.1 ml). Be sure both
ends of copper tubing are cut square.
3. Turn OFF main water supply. Turn ON nearest
faucet long enough to clear line of water. sion sleeve nut
4. Using a grounded drill, drill a %-inch hole on the TO REFRIGERATOR +
cold water pipe you have selected. * Controls water supply
5. Fasten shut-off valve to cold water pipe with pipe
clamp. Be sure outlet end is solidly in the X-inch
drilled hole in the water pipe and that washer is
under the pipe clamp. Tighten packing nut.
Tighten the pipe clamp screws carefully and
evenly so washer makes a watertight seal. Do not
over-tighten or you may crush the copper tubing,
especially if soft (coiled) copper tubing is used.
Now you are ready to connect the copper tubing.
6. Slip compression sleeve and compression nut on
copper tubing as shown in diagram. Insert end of
tubing into outlet end squarely as far as it will go.
Screw compression nut onto outlet end with
adjustable wrench. Do not overtighten. Turn ON
main water supply and flush out tubing until water
is clear. Turn OFF shut-off valve on the water
pipe. Coil copper tubing.
10
WITH OUESTIONS OR COMMENTS
