Whirlpool W10197275 User manual

CABINET PARTS
1
For Models:
(White) (Biscuit) (Black) (Stainless Steel) (Stainless VCM) (Monochromatic (Monochromatic
GS6NBEXRQ04, GS6NBEXRT04, GS6NBEXRB04, GS6NBEXRS04, GS6NBEXRL04, GS6NBEXRY04, GS6NBEXRA04
Satina) Stainless)
3−11 Litho In U.S.A. (jdc) (eeb) Part No. W10197275 Rev. A
REFRIGERATOR

CABINET PARTS
2
For Models:
(White) (Biscuit) (Black) (Stainless Steel) (Stainless VCM) (Monochromatic (Monochromatic
GS6NBEXRQ04, GS6NBEXRT04, GS6NBEXRB04, GS6NBEXRS04, GS6NBEXRL04, GS6NBEXRY04, GS6NBEXRA04
Satina) Stainless)
W10197275
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 Literature Parts
W10184934 Energy Guide
2318587 Owner’s Manual
W10152828 Service & Wiring
Sheet
2220407 Modular Icemaker
Service Sheet
2308394 Instruction Sheet,
Door Removal
2 2174748 Front Roller (2)
3 3400517 Screw
4 2196236 Rear Roller (2)
5 489427 Screw
6 2155013 Clip, Grille
7 488500 Screw
8 2156056 Shim
9 2203771 Hinge Top (RC)
11 8281227 Screw
12 Hinge Cover
2203407W White
2203407T Biscuit
2203407B Black
2203407AP Apollo Gray
13
W10138965 Bottom Hinge (RC)
14 Filler, Wrapper
2304846 White
2304849 Biscuit
2304848 Black
W10143043 Apollo Gray
15 Grille
2303494W White
2303494T Biscuit
2303494B Black
2303494MG Apollo Grey
16 489497 Screw
17 489464 Screw
18 2304888 Drain Fitting
19 2304937 Extension Tube
20 3400858 Screw
21 2188739 Cover, Unit
22 Cabinet (Not A
Serviceable Part)
23 Hinge Cover
2203408W White
2203408T Biscuit
2203408B Black
2203408AP Apollo Gray
24 549193 Clamp, Service
Cord
25 489084 Screw
26 2155311 Door Closer, RC
27 489483 Screw
28 2260507 Housing, Water
Filter
29 4396841 Water Filter
30 Cap, Water
Filter
2260502W White
2260502T Biscuit
2260502B Black
2260502MG Apollo Grey
31 489500 Screw
32 3400113 Screw
33 2303141 Bottom Hinge (FC)
34 2260519 Block, Housing
Support
35 2255012 Tube, Filter
Outlet
36 2203770 Hinge Top (FC)
37 2319867 Tube, Filter
Inlet
38 Button, Water
Filter
2260503W White
2260503T Biscuit
2260503B Black
2260503MG Apollo Grey
39 2223751 Door Closer, FC
40 2305373 Clamp, Cord

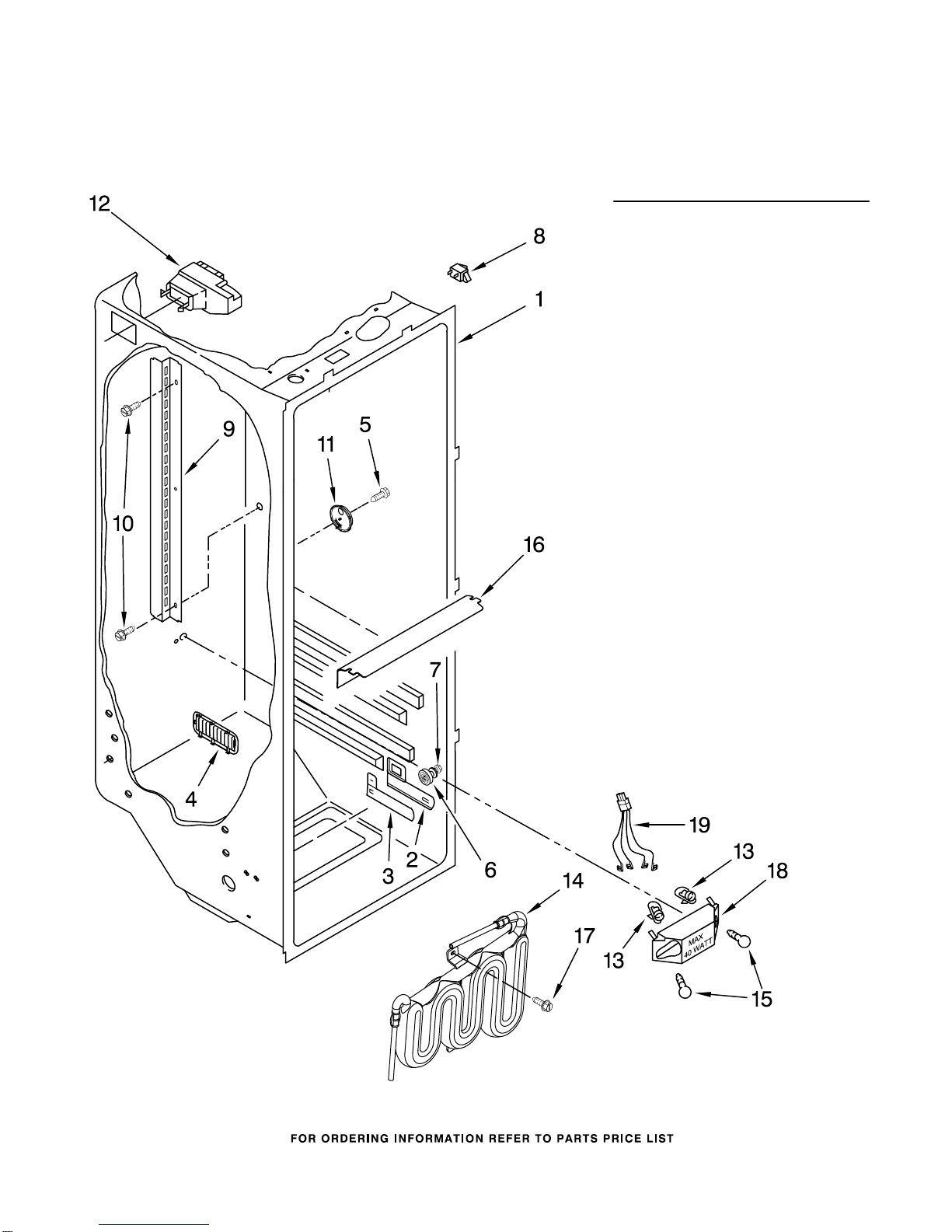

REFRIGERATOR LINER PARTS
3
For Models:
(White) (Biscuit) (Black) (Stainless Steel) (Stainless VCM) (Monochromatic (Monochromatic
GS6NBEXRQ04, GS6NBEXRT04, GS6NBEXRB04, GS6NBEXRS04, GS6NBEXRL04, GS6NBEXRY04, GS6NBEXRA04
Satina) Stainless)
W10197275
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2
W10175967 Escutcheon, Meat
Pan Control
3 2182757 Slide Meat
Pan Control
4 2257741 Louver
5
W10004810 Screw
6 2196485 Stud Assembly
7 3400894 Screw
8 1118894 Switch,
Rocker Arm
9 2319866 Shelf Ladder
10 489478 Screw
11 2261601 Door Control Asm
12
W10151374 Air Diffuser
Assembly
13 2162085 Socket
14 2307107 Reservoir
15 2255743 Light Bulb
16 2209769 Light Lens
17 488280 Screw
18 2256035 Bracket,
Dual Crisper
19 2311637 Wire Harness,
Dual Crisper

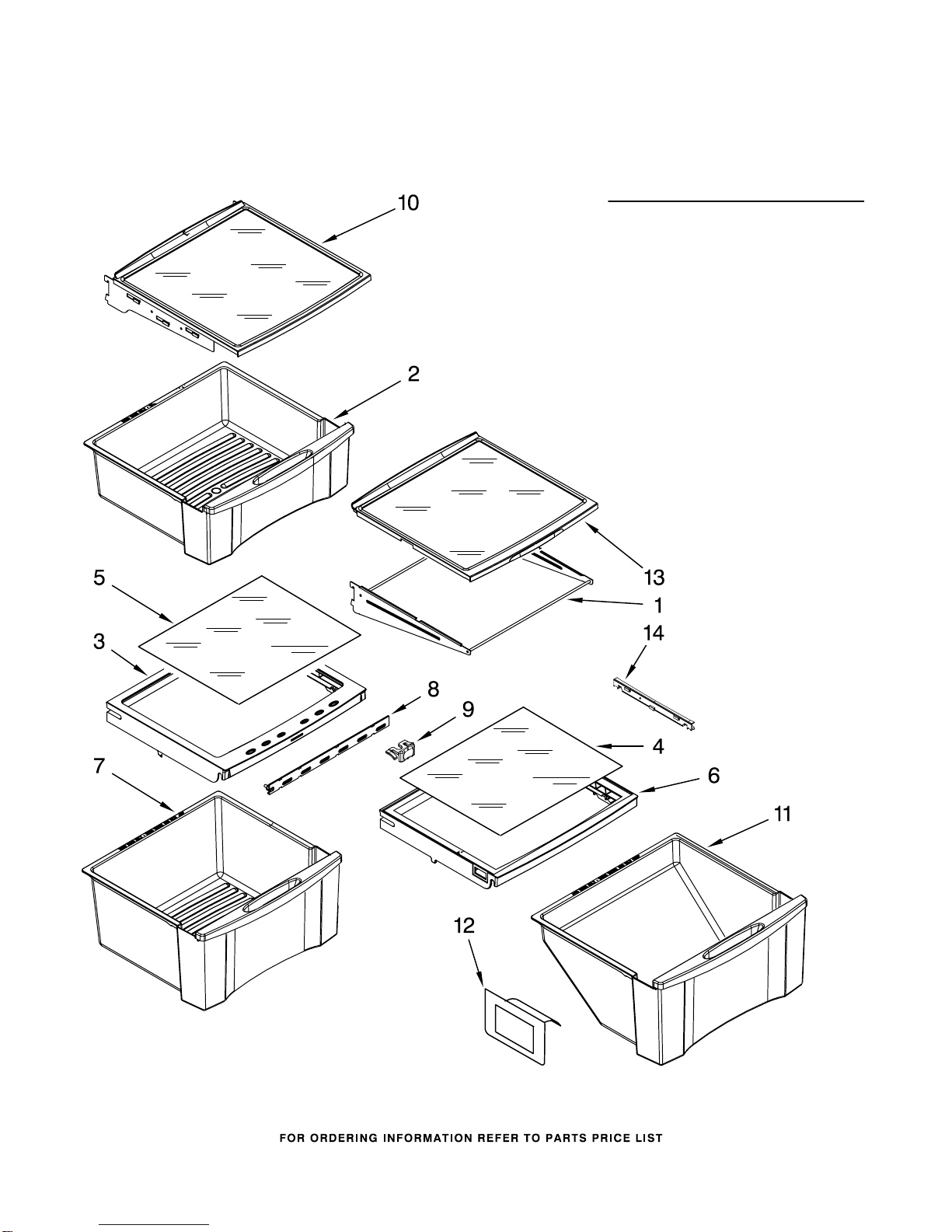

REFRIGERATOR SHELF PARTS
4
For Models:
(White) (Biscuit) (Black) (Stainless Steel) (Stainless VCM) (Monochromatic (Monochromatic
GS6NBEXRQ04, GS6NBEXRT04, GS6NBEXRB04, GS6NBEXRS04, GS6NBEXRL04, GS6NBEXRY04, GS6NBEXRA04
Satina) Stainless)
W10197275
Illus. Part
No. No. DESCRIPTION
1 2223517 Frame Assembly (2)
2 2223261 Snack Bin Asm
3 2223592 Cover, Crisper
4 2223714 Glass, Meat Cover
5 2223591 Glass, Cover
6 2223242 Cover, Meat Pan
7 2223235 Crisper Pan Asm
8 2223308 Slide, Humidity
Control
9 2223309 Knob, Humidity
Control
10 2223288 Shelf Pan Assembly
11 2223243 Meat Pan Assembly
12 2179350 Deflector
13 2255160 Shelf,
Slide Out (2)
14 2223320 Slide, Pan

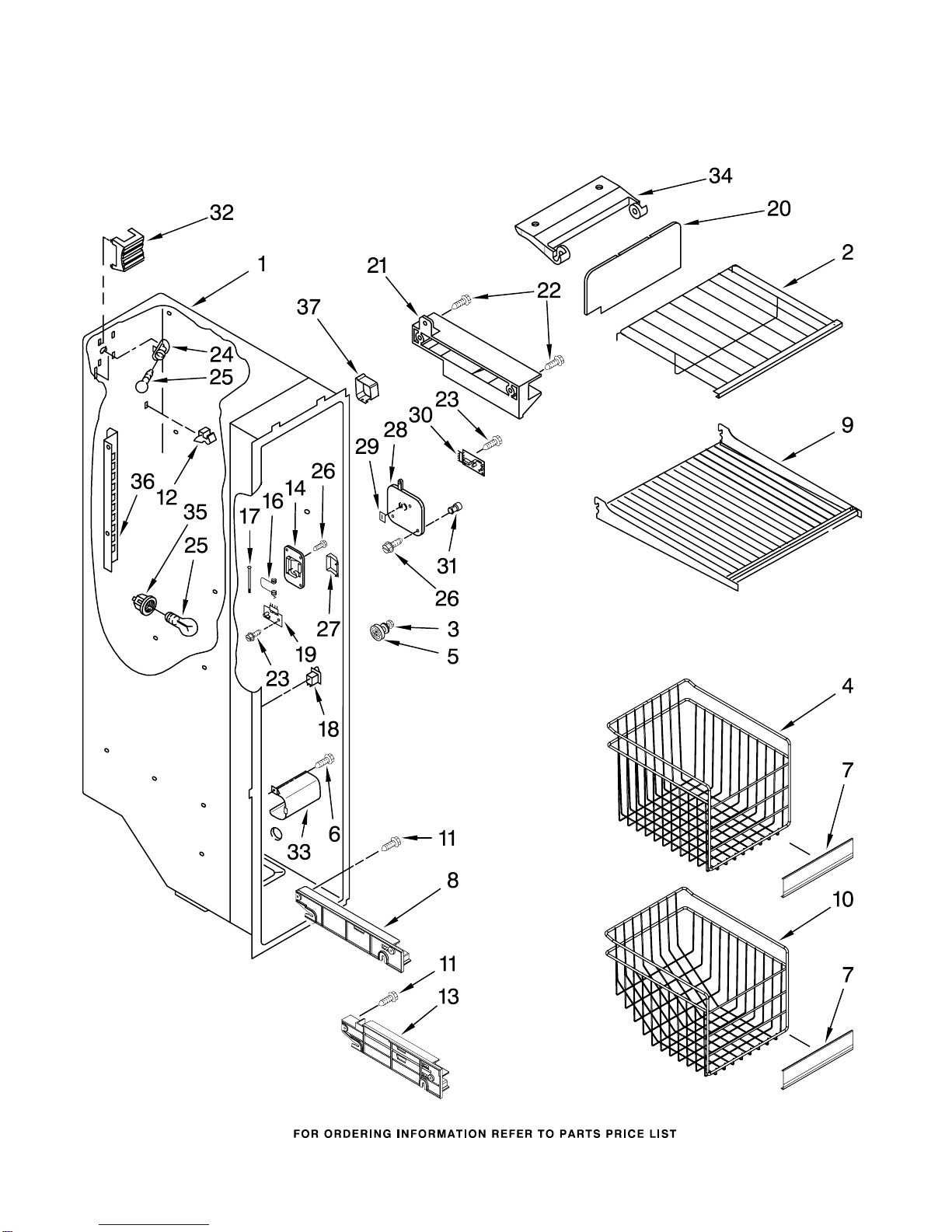

FREEZER LINER PARTS
5
For Models:
(White) (Biscuit) (Black) (Stainless Steel) (Stainless VCM) (Monochromatic (Monochromatic
GS6NBEXRQ04, GS6NBEXRT04, GS6NBEXRB04, GS6NBEXRS04, GS6NBEXRL04, GS6NBEXRY04, GS6NBEXRA04
Satina) Stainless)
W10197275

FREEZER LINER PARTS
6
For Models:
(White) (Biscuit) (Black) (Stainless Steel) (Stainless VCM) (Monochromatic (Monochromatic
GS6NBEXRQ04, GS6NBEXRT04, GS6NBEXRB04, GS6NBEXRS04, GS6NBEXRL04, GS6NBEXRY04, GS6NBEXRA04
Satina) Stainless)
W10197275
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Seviceable Part)
2 2211746K Shelf, Slide Out
3 2196483 Stud Assembly
4 2301190 Basket, Tall
5 8281158 Screw
6 3400893 Screw
7 2195905K Trim, Basket
8 Shelf Track
2301289 Right Side
2301290 Left Side
9 2205837K Shelf (2)
10 2301191 Basket, Sloped
11
W10004810 Screw (8)
12 842534 Clip, Air Duct (2)
13 Shelf Track, Dual
2301293 Right Side
2301294 Left Side
14 2198587 Cover, Emitter
16 2198635 Spring
17 2198634 Pin
18 1115373 Switch, Rocker Arm
19 2220398 P.C. Board
Emitter
20 2255720 Cover, Ice Maker
21 2212321 Slide, Ice Maker
Mounting
22 489478 Screw
23 489214 Screw
24 2162085 Light Socket
25 2255743 Light Bulb
26 8281185 Screw
27 2198633 Flipper
28
W10173569 Cover, Receiver
29 2315398 Slide, Ice Maker
Shut Off
30 2255114 P.C. Board,
Receiver
31 2198643 Lens
32 2198589 Light Shield
33 2212340 Light Lens
34 2198641 Bracket,
Ice Maker Cover
35 2155597 Socket, Light
36 Ladder
2198609 Left Side
2198610 Right Side
37 2303234 Shield, Wiring

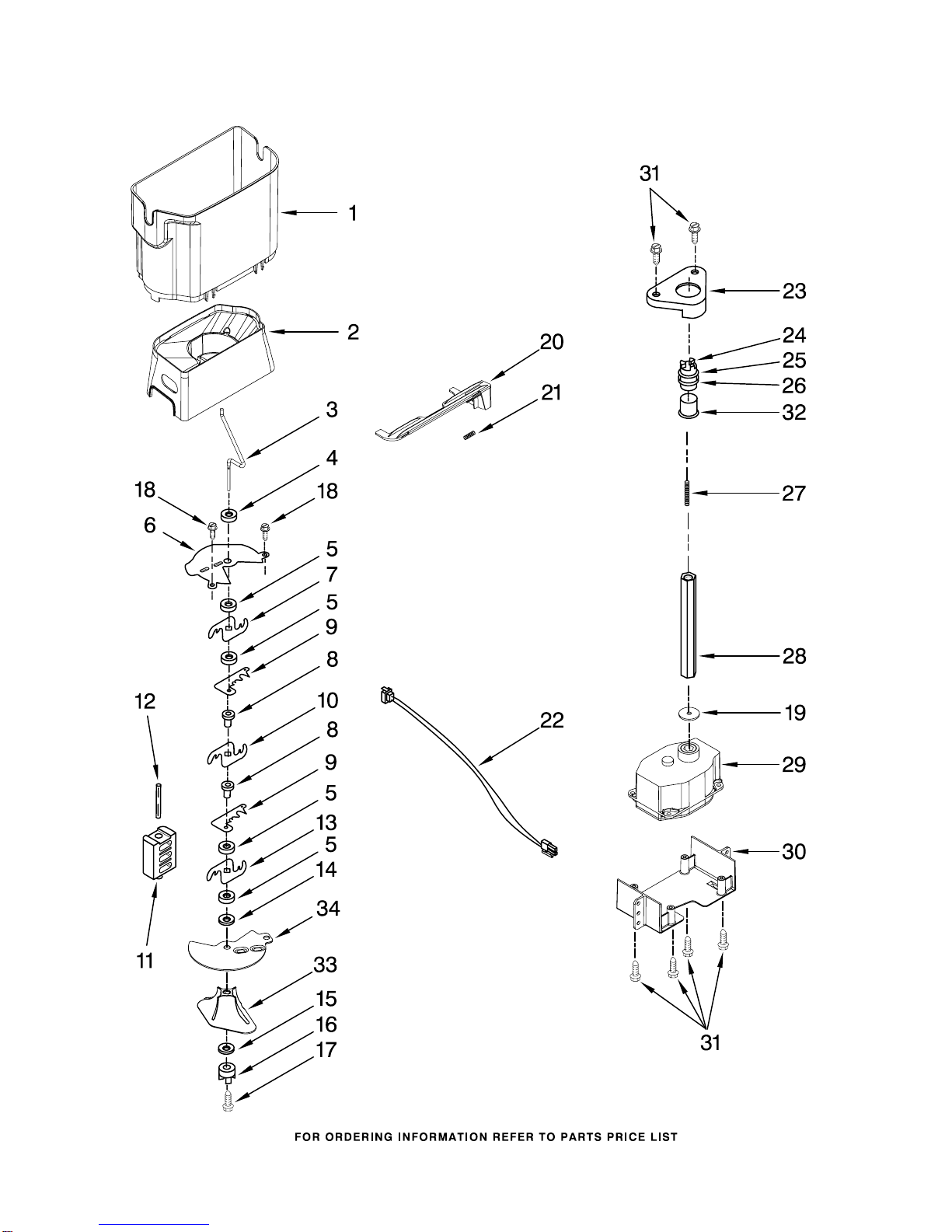

MOTOR AND ICE CONTAINER PARTS
7
For Models:
(White) (Biscuit) (Black) (Stainless Steel) (Stainless VCM) (Monochromatic (Monochromatic
GS6NBEXRQ04, GS6NBEXRT04, GS6NBEXRB04, GS6NBEXRS04, GS6NBEXRL04, GS6NBEXRY04, GS6NBEXRA04
Satina) Stainless)
W10197275

MOTOR AND ICE CONTAINER PARTS
8
For Models:
(White) (Biscuit) (Black) (Stainless Steel) (Stainless VCM) (Monochromatic (Monochromatic
GS6NBEXRQ04, GS6NBEXRT04, GS6NBEXRB04, GS6NBEXRS04, GS6NBEXRL04, GS6NBEXRY04, GS6NBEXRA04
Satina) Stainless)
W10197275
Illus. Part
No. No. DESCRIPTION
1 W10139383 Ice Bin
2
W10138753 Crusher Bin
3
W10140642 Auger
4 2258220 Washer, Auger
5 1119007 Spacer, Flat (4)
6
W10139321 Cover, Crusher
7 2257024 Blade, Rotary
8 1119005 Spacer, Step (2)
9 2257020 Blade, Fixed
10 2257023 Blade, Rotary
11 2317239 Block, Blade
12 489229 Roll Pin
13 2257022 Blade, Rotary
14 489235 Washer, Plain
15 2198661 Washer, Coupling
16 2220457 Coupling
17 8281164 Screw
18 3400065 Screw
19 2305382 Rubber Boot
20
W10140684 Latch, Bin
21 2198608 Spring, Latch
22 2187813 Wire Assembly,
IDI Motor
23 2212369 Holder
24 2220458 Coupling, Bottom
25 2198628 Seal
26 2212370 Washer
27 2198607 Spring
28 2305243 Drive Shaft
29 2252130 Dispenser, Motor
30 2305208 Bracket, Motor
31 8281163 Screw
32 2212365 Sleeve, Coupling
33 2317243 Wiper
34 2317250 Divider−
Chamber
100
W10140651 Ice Container
(Complete)

REFRIGERATOR DOOR PARTS
9
For Models:
(White) (Biscuit) (Black) (Stainless Steel) (Stainless VCM) (Monochromatic (Monochromatic
GS6NBEXRQ04, GS6NBEXRT04, GS6NBEXRB04, GS6NBEXRS04, GS6NBEXRL04, GS6NBEXRY04, GS6NBEXRA04
Satina) Stainless)
W10197275

REFRIGERATOR DOOR PARTS
10
For Models:
(White) (Biscuit) (Black) (Stainless Steel) (Stainless VCM) (Monochromatic (Monochromatic
GS6NBEXRQ04, GS6NBEXRT04, GS6NBEXRB04, GS6NBEXRS04, GS6NBEXRL04, GS6NBEXRY04, GS6NBEXRA04
Satina) Stainless)
W10197275
Illus. Part
No. No. DESCRIPTION
1 Refrigerator Door
(Includes Item #6)
2255535W White
2255535T Biscuit
2255535B Black
2255535SB Stainless Steel
2255535LB Stainless VCM
2255535SAP Monochromatic
Stainless
2255535LAP Monochromatic
Satina
2 2255421 Dairy Door
3 2223239K Door Bin (2)
4 3400012 Screw
5 2255411 Clip
6 Door Gasket,
Magnetic
2221302 Mist Beige
2221313 Black
2326338 Apollo Grey
7 2223727 Trivet
8 Handle
W10135837 White
W10135841 Biscuit
W10135840 Black
W10135838 Universal Silver
9 489491 Screw
10 2182178 Door Closer,
Upper Cam
11 489420 Screw
12 Bracket, Door Stop
2200082 Chrome
2200082B Black
13 8533920 Screw
14 2255420 Door Compartment
15 2255422 Frame, Can Rack
16 2255424 Air Diffuser Asm
17 2220214 Nameplate
18 2255423 Floor, Can Rack
19 2223463K Door Bin
20 2223464K Mat−Bin−(2)

FREEZER DOOR PARTS
11
For Models:
(White) (Biscuit) (Black) (Stainless Steel) (Stainless VCM) (Monochromatic (Monochromatic
GS6NBEXRQ04, GS6NBEXRT04, GS6NBEXRB04, GS6NBEXRS04, GS6NBEXRL04, GS6NBEXRY04, GS6NBEXRA04
Satina) Stainless)
W10197275

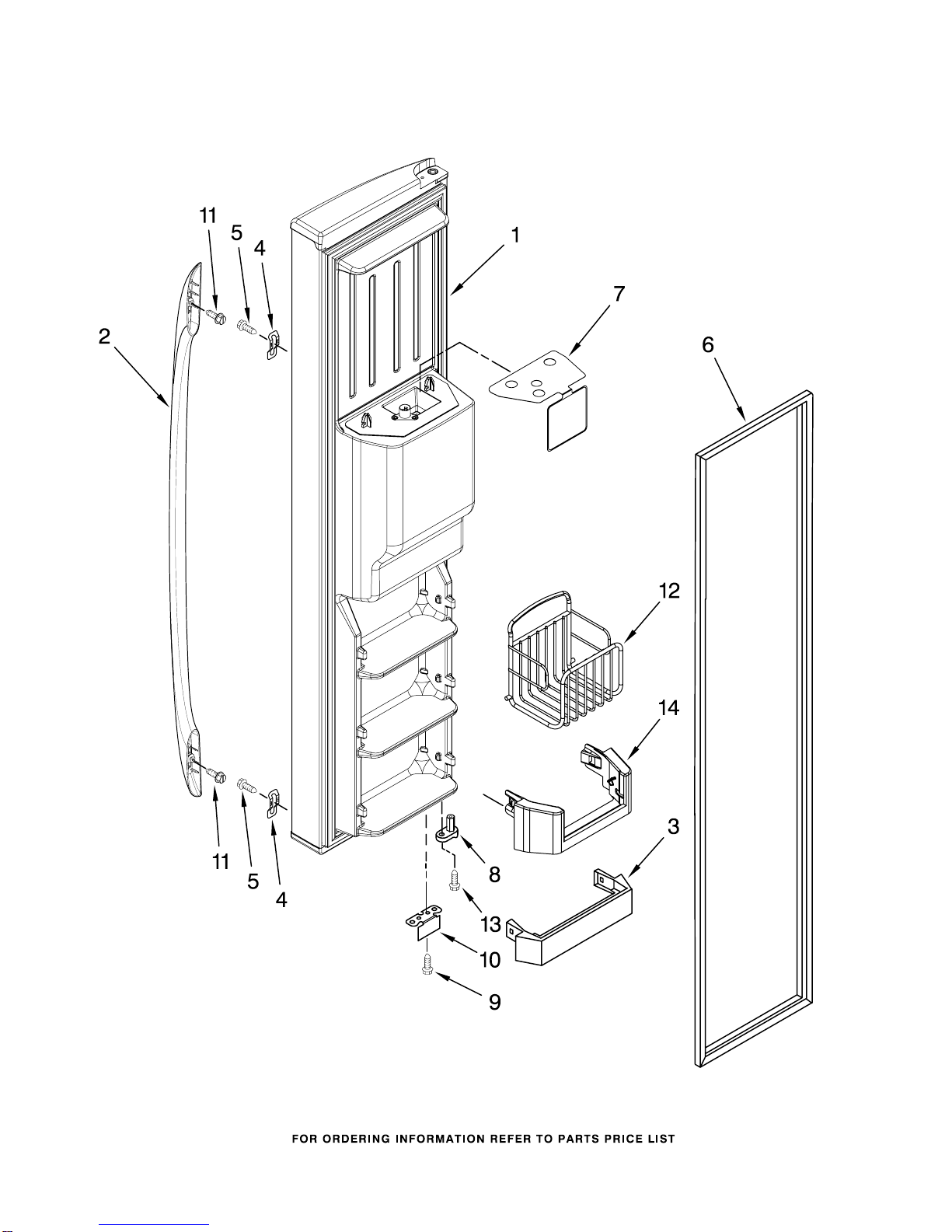

FREEZER DOOR PARTS
12
For Models:
(White) (Biscuit) (Black) (Stainless Steel) (Stainless VCM) (Monochromatic (Monochromatic
GS6NBEXRQ04, GS6NBEXRT04, GS6NBEXRB04, GS6NBEXRS04, GS6NBEXRL04, GS6NBEXRY04, GS6NBEXRA04
Satina) Stainless)
W10197275
Illus. Part
No. No. DESCRIPTION
1 Freezer Door
(Includes #6
And Dispenser
Front Parts)
W10149600 White
W10149601 Biscuit
W10149602 Black
W10149603 Stainless Steel
W10149605 Stainless VCM
W10149639 Monochromatic
Stainless
W10149638 Monochromatic
Satina
2 Handle
W10135837 White
W10135841 Biscuit
W10135840 Black
W10135838 Universal Silver
3 2171157K Trivet
4 2255411 Clip
5 489491 Screw
6 Door Gasket,
Magnetic
2221303 Mist Beige
2221314 Black
2326339 Apollo Grey
7 2304895 Safety Barrier
8 2223752 Door Closer,
Upper Cam
9 489420 Screw
10 Bracket, Door Stop
2303113 Chrome
2303113B Black
11 8533920 Screw
12 2304309 Basket,
Tilt−Out (2)
13 3400012 Screw
14 2223334 Trivet,
Tilt−Out (2)
Following Parts Not Illustrated
2310084 Wire Assembly,
Freezer Door
2305228 Tube,
Water Dispenser

DISPENSER FRONT PARTS
13
For Models:
(White) (Biscuit) (Black) (Stainless Steel) (Stainless VCM) (Monochromatic (Monochromatic
GS6NBEXRQ04, GS6NBEXRT04, GS6NBEXRB04, GS6NBEXRS04, GS6NBEXRL04, GS6NBEXRY04, GS6NBEXRA04
Satina) Stainless)
W10197275

DISPENSER FRONT PARTS
14
For Models:
(White) (Biscuit) (Black) (Stainless Steel) (Stainless VCM) (Monochromatic (Monochromatic
GS6NBEXRQ04, GS6NBEXRT04, GS6NBEXRB04, GS6NBEXRS04, GS6NBEXRL04, GS6NBEXRY04, GS6NBEXRA04
Satina) Stainless)
W10197275
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 Housing, Dispenser
(Not Serviced)
2 939101 Screw (4)
3 2305202 Bracket, Motor
4 2305242 Connector, Door
Bracket
5 2305262 Motor, Ice Door
6 2305258 Door, Ice
7 2305204 Support, Ice Door
8 4449745 Screw (2)
9 Grille, Slide
2305213W White
2305213T Biscuit
2305213B Black
2305213AP Apollo Gray
10 2305236 Spigot
11 Separator Assembly
2305458W White
2305458T Biscuit
2305458B Black
2305458AP Apollo Gray
12 2303843 Electronic
Control (Core)
13 2308165 Ferrite Bead
14 2305447 Clip, Wiring
16 2304171 Electronic
Control
(User Interface)
17 Pad, Ice & Water
2305247CG For White Model
2305247WL For Biscuit
Model
2305247GM For Black,
Stainless, and
Stainless VCM
Models
2305247MG For Monochromatic
Stainless and
Monochromatic
Satina Models
18 2305219 Cover, Electronic
Control
19 2303853W Overlay, Front
Cover
(Not Available
Order #23)
20 2303841 LED Assembly
21 2305252W Front Cover,
Housing
(Not Available,
Order #23)
22 Tray, Housing
2305253W White
2305253T Biscuit
2305253B Black
2305253US Universal Silver
23 Front Cover
Assembly
(Includes Items
16, 17, 18,
19, 20, & 21)
2321769W White
2321769T Biscuit
2321769B Black
2321769US Universal Silver
24
W10178851 Wire Assembly,
User Interface

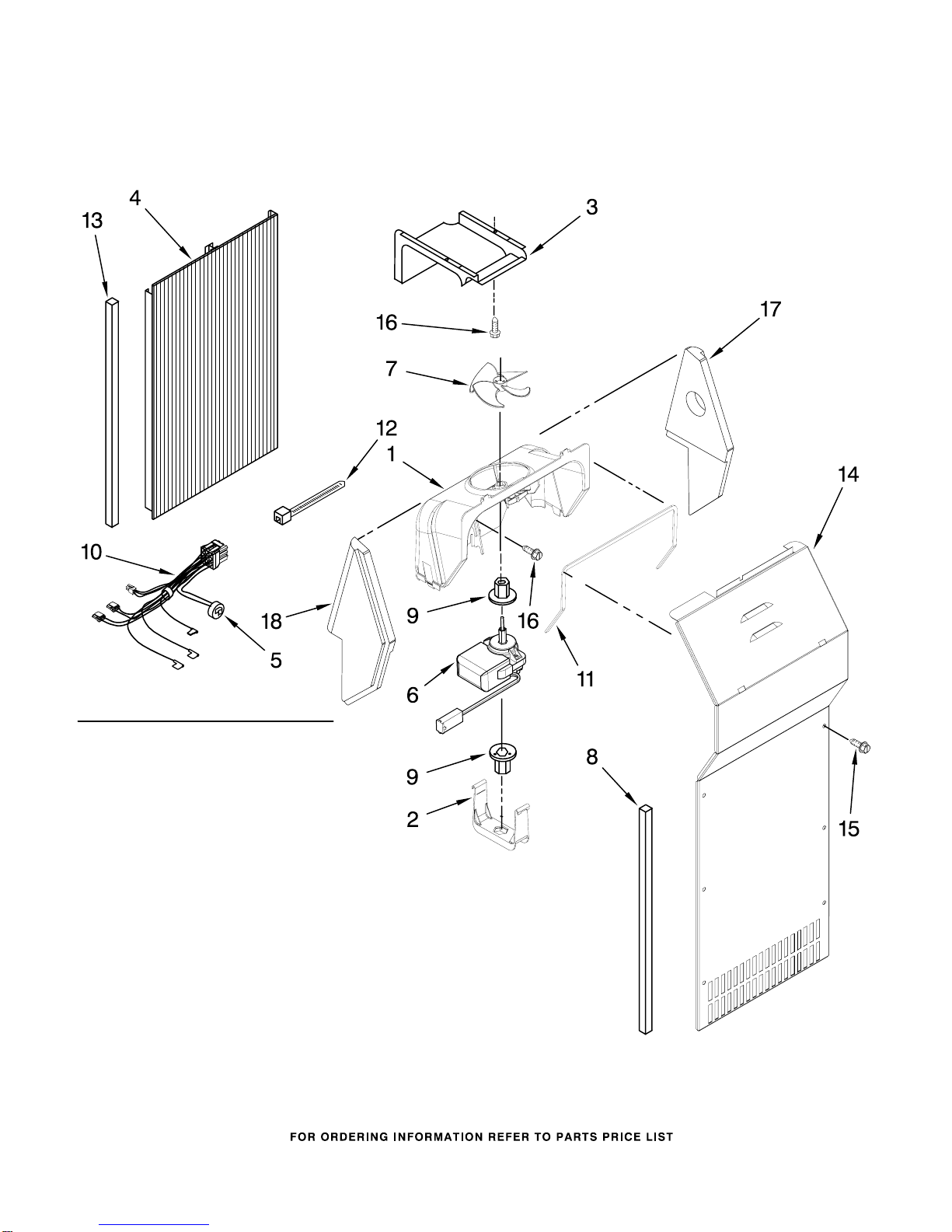

AIR FLOW PARTS
15
For Models:
(White) (Biscuit) (Black) (Stainless Steel) (Stainless VCM) (Monochromatic (Monochromatic
GS6NBEXRQ04, GS6NBEXRT04, GS6NBEXRB04, GS6NBEXRS04, GS6NBEXRL04, GS6NBEXRY04, GS6NBEXRA04
Satina) Stainless)
W10197275
Illus. Part
No. No. DESCRIPTION
1 2182120 Fan Scroll
2 2155590 Retainer
Fan Motor
3 2313359 Air Duct, Upper
4 2198580 Air Duct Freezer
5 2321799 Bi−metal, Defrost
6 2315549 Fan Motor
7 2169142 Fan Blade
8 2304241 Gasket, Evaporator
Cover (2)
9 2176759 Fan Grommet (2)
10
W10129815 Harness, Fan
Evaporator
(Includes # 5)
11 2155789 Gasket, Fan Scroll
12 2172840 Strap
13 2203876 Gasket
14 2206314 Cover, Evaporator
(Includes #8)
15 8281159 Screw (6)
16 489478 Screw
17 2203595 Support, R.S.
18 2203596 Support, L.S.

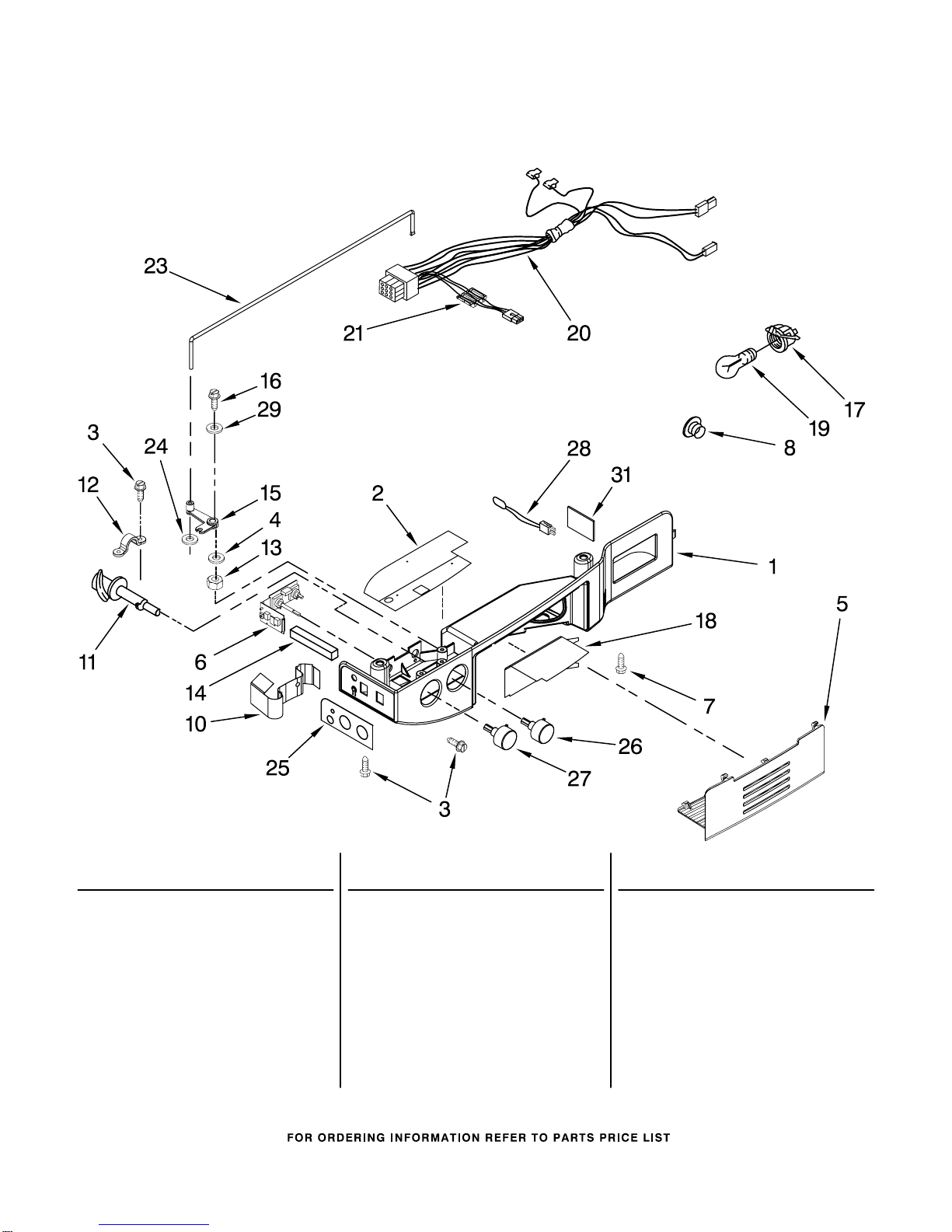

CONTROL PARTS
16
For Models:
(White) (Biscuit) (Black) (Stainless Steel) (Stainless VCM) (Monochromatic (Monochromatic
GS6NBEXRQ04, GS6NBEXRT04, GS6NBEXRB04, GS6NBEXRS04, GS6NBEXRL04, GS6NBEXRY04, GS6NBEXRA04
Satina) Stainless)
W10197275
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 2255222 Control Box
2 2261773 Shield
3 3196537 Screw (4)
4 3400972 Washer
5 2255225 Lens, Light
6 2304103 Electronic
Control
7 489084 Screw (2)
8 940014 Hole Plug
10 2305538 Shield, Electrical
(Internal)
11 2255226 Cam Assembly
12 2255413 Bearing Body
13 3400971 Nut, Hex
14 2188928 Foam, Shield
15 2255227 Pivot Arm
16 627068 Screw
17 2162085 Light Socket
18 2255666 Shield, Heat
19 2255743 Light Bulb
20 2187965 Control Box
Harness
(Includes # 21)
21 2308165 Ferrite Bead
23 2255228 Connecting Rod
24 489285 Fastener, Push−On
25 2255611 Escutcheon,
Control Box
26 2255232 Knob, RC
27 2255992 Knob, FC
28 2188819 Thermistor
29 489203 Spring Washer
31 2261265 Air Seal,
Thermistor

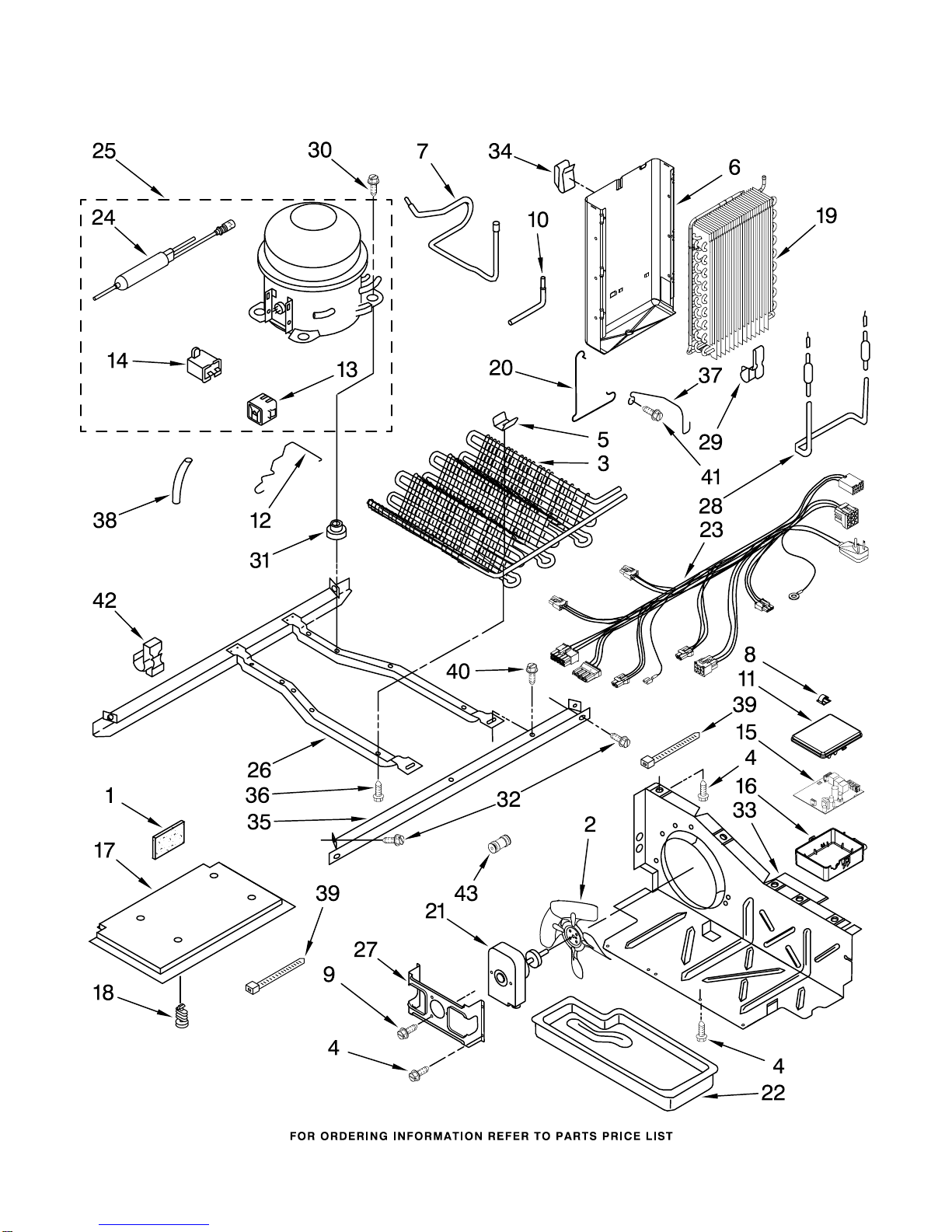

UNIT PARTS
17
For Models:
(White) (Biscuit) (Black) (Stainless Steel) (Stainless VCM) (Monochromatic (Monochromatic
GS6NBEXRQ04, GS6NBEXRT04, GS6NBEXRB04, GS6NBEXRS04, GS6NBEXRL04, GS6NBEXRY04, GS6NBEXRA04
Satina) Stainless)
W10197275

UNIT PARTS
18
For Models:
(White) (Biscuit) (Black) (Stainless Steel) (Stainless VCM) (Monochromatic (Monochromatic
GS6NBEXRQ04, GS6NBEXRT04, GS6NBEXRB04, GS6NBEXRS04, GS6NBEXRL04, GS6NBEXRY04, GS6NBEXRA04
Satina) Stainless)
W10197275
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 2169104 Insulation, Sound
2 2225834 Fan, Blade
3
W10121484 Condenser Assembly
4 489464 Screw
5 2216914 Clip, Condenser
6 2217194 Heat Shield
And Drain Pan
7 2205765 Tube, Suction
8 1115374 Clip, Wiring
9 8533993 Screw
10 2325479 Process Tube
11
W10133000 Cover
12 2223314 Clip, Retaining
13 2304885 Start−Device,
Combination
(Start Relay and
Overload)
14 2264017 Capacitor
15 2304078 Electronic Control
16 2255623 Control Box
17 2304899 Unit Cover, Bottom
18 489396 Clip
19 2188823 Evaporator
20 2161324 Clip
21 2188874 Motor, Fan
22 1105523 Tray, Evaporator
23 2187817 Harness, Unit
24 Drier
W10177049 Production
W10143759 Service
25
W10120460 Compressor
(Includes Items
13, 14, 24, &
31)
(Also Order
876765 Tube Kit)
26 2304904 Unit Mounting
Frame
27 2181929 Bracket, Fan Motor
28 2323198 Heater, Defrost
29 2304287 Clip, Heater
30 489373 Screw
31 Grommet (4)
1100826 Production
4387558 Service
32 489340 Screw
33 2196202 Air Baffle
34 2155547 Clip, Heat
35 2305374 Unit Mounting
Rail
36 8281232 Screw
37 2260517 Guard, Fan
38 2161302 Sleeve
39 2172840 Wire Tie
40 489427 Screw
41 489478 Screw
42
W10169512 Clip, Wire & Tube
43 2320323 Union
Following Parts Not Illustrated
and Optional Parts Not Included
978025 Valve, Access
(1/4")
978026 Valve, Access
(5/16")
978027 Valve, Access
(3/8")
978028 Valve, Access
(1/2")
978029 Valve, Access
(5/8")
978030 Valve, Access
(3/4")
876764 Valve, Access
(3/16")
REFRIGERANT CHARGE
5.0 oz.
(R−134A)

ICEMAKER PARTS
19
For Models:
(White) (Biscuit) (Black) (Stainless Steel) (Stainless VCM) (Monochromatic (Monochromatic
GS6NBEXRQ04, GS6NBEXRT04, GS6NBEXRB04, GS6NBEXRS04, GS6NBEXRL04, GS6NBEXRY04, GS6NBEXRA04
Satina) Stainless)
W10197275

ICEMAKER PARTS
20
For Models:
(White) (Biscuit) (Black) (Stainless Steel) (Stainless VCM) (Monochromatic (Monochromatic
GS6NBEXRQ04, GS6NBEXRT04, GS6NBEXRB04, GS6NBEXRS04, GS6NBEXRL04, GS6NBEXRY04, GS6NBEXRA04
Satina) Stainless)
W10197275
Illus. Part
No. No. DESCRIPTION
1 489084 Screw
2 2303216 Fitting, Water
Tube
3 628379 Clip, Fuse
4
W10159839 Smart Valve
5 2208136 Clip, Tube
6 2174358 Cover
7 488649 Screw
8
W10122527 Mold & Heater
Assembly (Also
Order 542638
Silicone Grease)
9 2304969 Cup−Fill
10 627843 Ejector
11 2198598 Ice Stripper
12 2194712 Support
13 2315522 Retainer,
Thermostat
14 627985 Thermostat (Also
Order 542369
Cement
Alumilastic)
15 8533917 Screw
16 2303583 Bracket, Ice Maker
Mounting
17 489276 Screw
18 2187467 Harness, Wiring
19 626691 Module Assembly
(Includes Items
20 & 21)
20 626683 Motor
21 489136 Screw
100
W10122502 Icemaker Assembly
