Whirlpool WRIT41W User manual

1
Rev..00 Whirlpool Of India Ltd.
NOV -10
Service Manual
Top Mount
No Frost Refrigerator

2
INDEX
Sno. Detail Page No.
1.0 Model Range 3

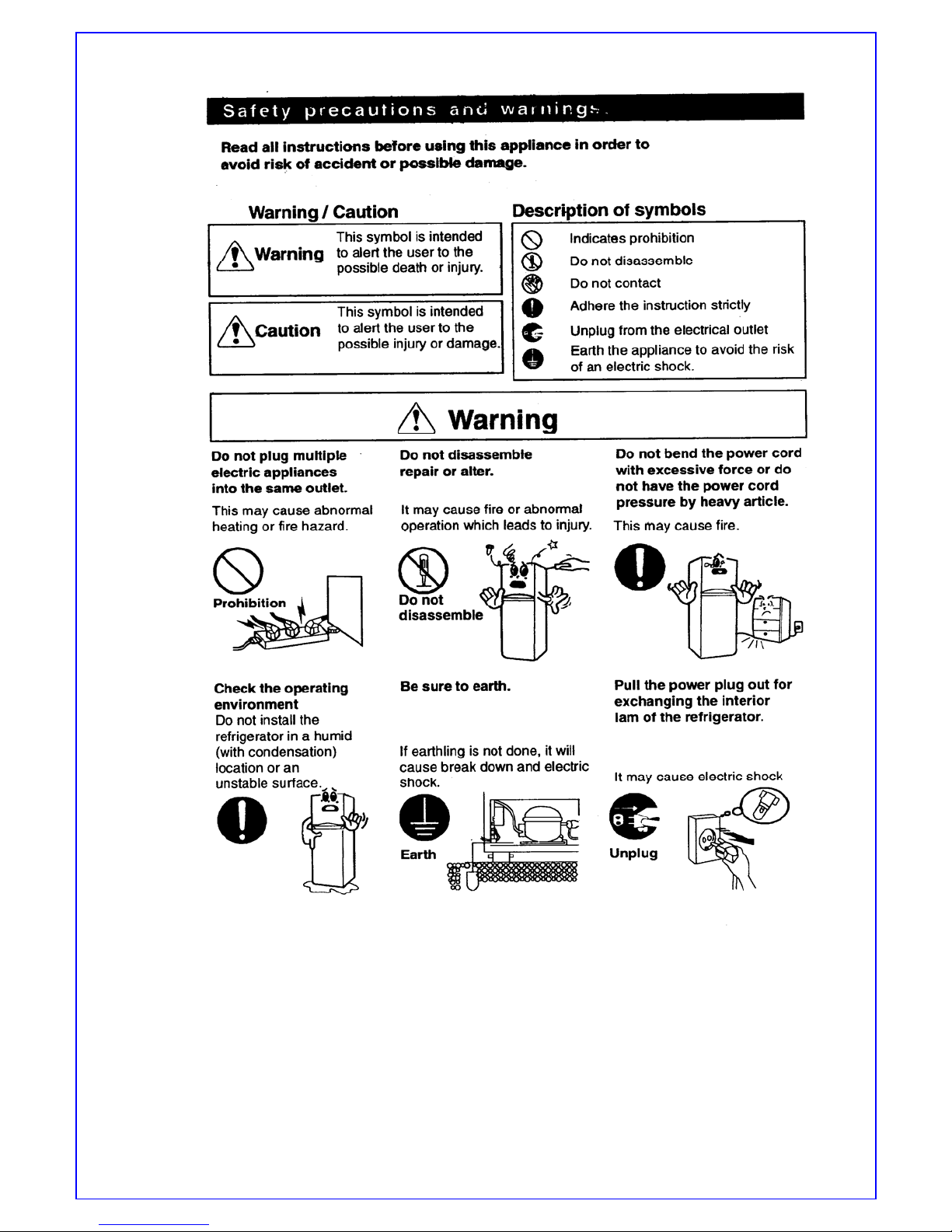

2.0 Safety Precuations 4
3.0 Feature /Technical specification 6
4.0 Controls & Electronic configuration 7
5.0 Wiring Diagram 9
6.0 Assembly/Dissembly 11
7.0 Controlling the refrigerator temperature 14
8.0 Error indications & Trigger 15

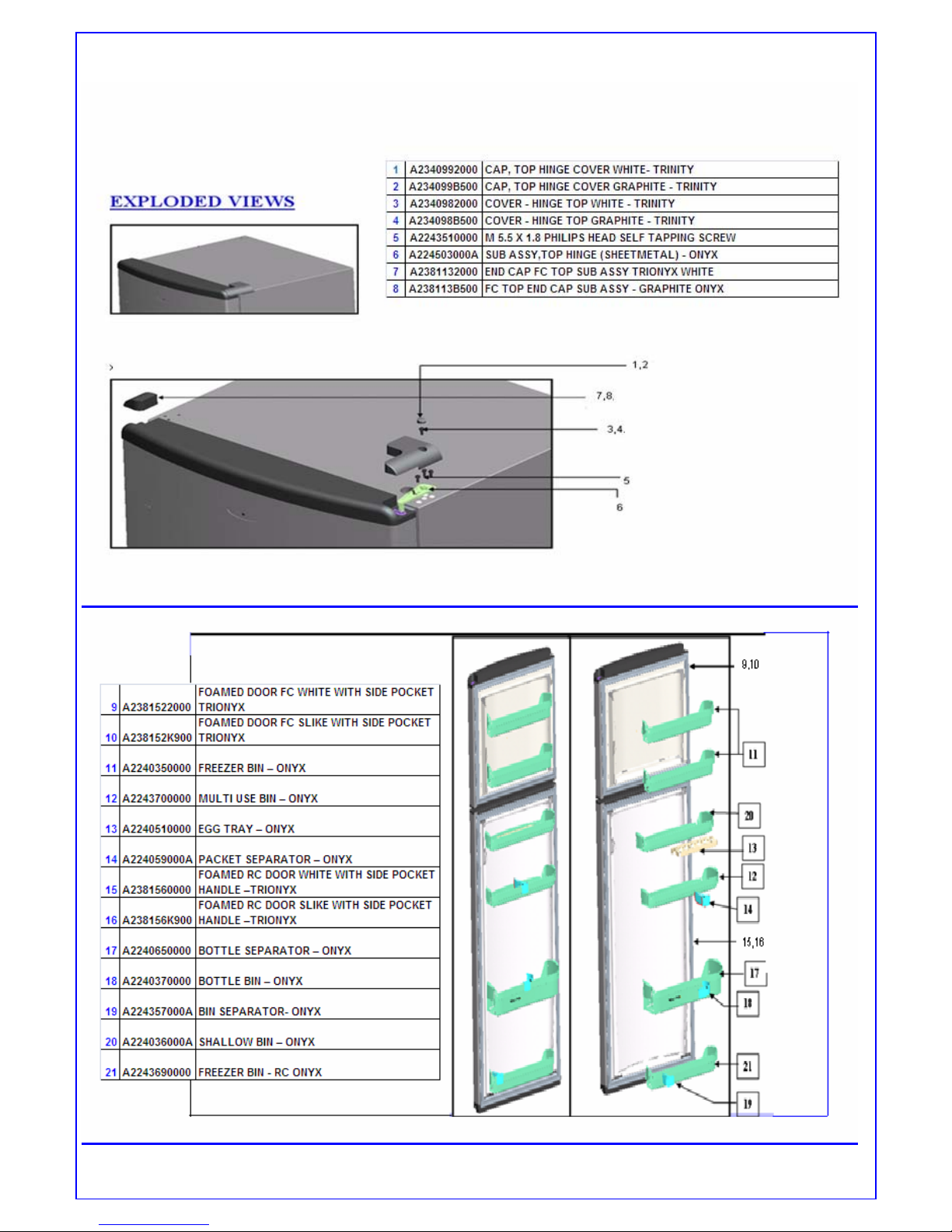

9.0 Exploded Views 17
10.0 Part List 23

3
NO FROST REFRIGERATOR: MODEL RANGE
410L Dlx - WRIT41W
410L Dlx – WRIT41N

4

5

6
TECHNICAL /FEATURE SPECIFICATION
MODEL 410 L Dlx
Type Frost Free
Capacities (L) total net 410L
Product Dimensions (mm)
Width 700
Height 1652
Depth 695
Gross Weight (kg) 85
Voltage / Hz 220-240V/50-60Hz
Compressor EMY65HLC
Oil Capacity ISO 22 (280 ml)
Comp. Run Capacitor XS351505XLUB
5 microF/350VAC
PTC Relay PTH7M220MD3
Resistance : 17.6 TO 26.4 @
25°C
Motor Protector 4TM283KFBYY-53
opening temp – 105°C
Closing temp. – 61°C
Trip current – 9.4 A@25°C
Fan motor MI – AE2
2680 rpm , 230V , 50 Hz , 10.5W
Split Diffuser NO
Deodorizer Yes
Number of Shelves 2
Type of Shelves Glass
Humidity Control Yes
RC Illumination ( 8 LED Bank ) Illumination by LED’s
FC Illumination ( 2 LED Bank ) Illumination by LED’s
Bottle Separator YES
Packet Separator YES
Can Rack NO
Egg tray 1 No.
Ice Twister Assembly YES –Plastic
Ice Collector YES
Collapsible Shelf YES
Freezer Door Bins 2
Refrigerator Door Bins 4
Quick Chill Compartment YES
Door lock NO
Handle RECESSED
Roof Rail NO
Cabinet Stopper YES
POT Control in RC compartment YES,8 SETTINGS
Fast Forward Cool Operation NO
Door Alarm YES
Auto Power save mode NO

7
CONTROLS & ELECTRONICS
CONFIGURATION
Product Configuration No frost Dlx
Product Control RC Controlled
Software BEE/Pot based Professional
User interface No
Auto cool mode No
Ice accelerator No
Auto Power save mode No
Door Alarm Yes
Power supply for illumination DC (Linear 220mA)
RC Illumination (8 LED) Yes
FC Illumination (2 LED) Yes
Control Board Yes(Nilgiri BEE)
Defrost heater Yes (Integrated Al tube
275W)
Fan motor 10.5W MI Shaded Pole AC
fan motor
FC Door grounding No
Compressor EMY65HLC
Run Capacitor No
Door Reversibility YES
RATED VOLTAGE : 220-240V,50-60Hz, IPH
VOLTAGE RANGE : 198V – 255V
INPUT WATTAGE : 112W
DEFROST WATTAGE : 275W
FULL LOAD AMPS : 0.5A

8
Top Mount : Deluxe models: -------------------
This refrigerator is managed by an Electronic System, mainly consisting of the components:
•Electronic Control Board (Nilgiri- Dlx (BEE))
•POT (Potentiometer) in case of Dlx (BEE) models only.
•Temperature Sensors {refrigerator, Defrost & POT(Dlx)}
•Compressor ( With Run capacitor)
•Freezer Fan Motor (AC)
•Defrost Heater ( Integrated Al tube 245W)
•Door Open Sensing
These components are described as shown below.
– Electronic Control
The complete operation of this product is done by the Electronic Control, Functions of this models are
fully controlled by the Micro-controller IC which executes the functions according to the needs, turning
the components On or Off through received/managed signals, such as:
- Compressor On/Off
- Defrost Heater On/Off
-Temp setting in refrigerator Compartment, through received signals by the POT along with the RC &
FC Sensors Temp. Feedback.
-Door open sensing / Alarm
- Among many other functions controlled by its software.
The Electronic Control is located at the rear of the refrigerator, next to the cabinet and besides the
Compressor, inside a plastic box. Cables going inside the product, using connectors that do not permit an
assembling failure do its connection to the mains and its components.
Note: For more details see Wiring Diagram.

9
Wiring Diagram : Top Mount – No Frost Dlx

10

11
Refrigerant Charging Qty:
Model Refrigerant R134a(gms)
410L Dlx 146

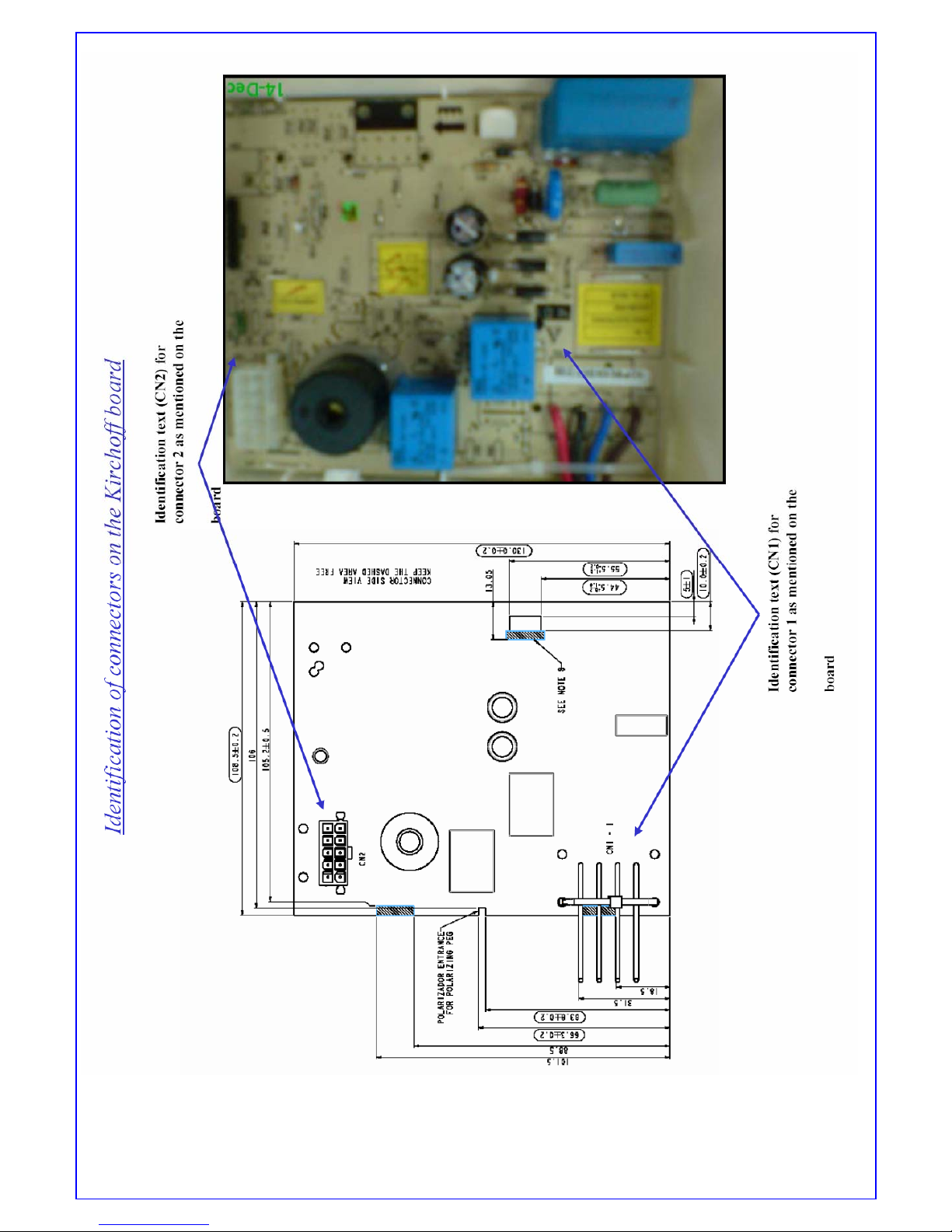

CN1 (Connector 1) – Compressor, Heater and Power Cord
CN2 (Connector 2) – RC/FC LED, Load component and Temperature Sensors/POT
CN3 (Connector 3) – User Interface board (Used only for Elite models)
Assembly &Disassembly Procedure
Disassembly Procedure:
A) Core Board Box
1. Disconnect the Power cord from the Mains supply.
2. Remove the Mounting Screws.
WARNING
Electrostatic Discharge Risk
Do not touch the Circuit components, because you can damage fuse/burned or weaken the
board.
Always handle the Boards by the sides/plastic holder.
Spare parts/stock boards if outside the BOX must be kept in anti-static packaging.

12
3. Release the Cover tabs.
4. Releasing the On board Connectors.
IMPORTANT
# Be careful when using the Multimeter measuring probes, as they may damage the
Connector terminals.
# Be careful when removing the electronic board connectors, as they are latched.
Remove them at right angles with no side movements

13

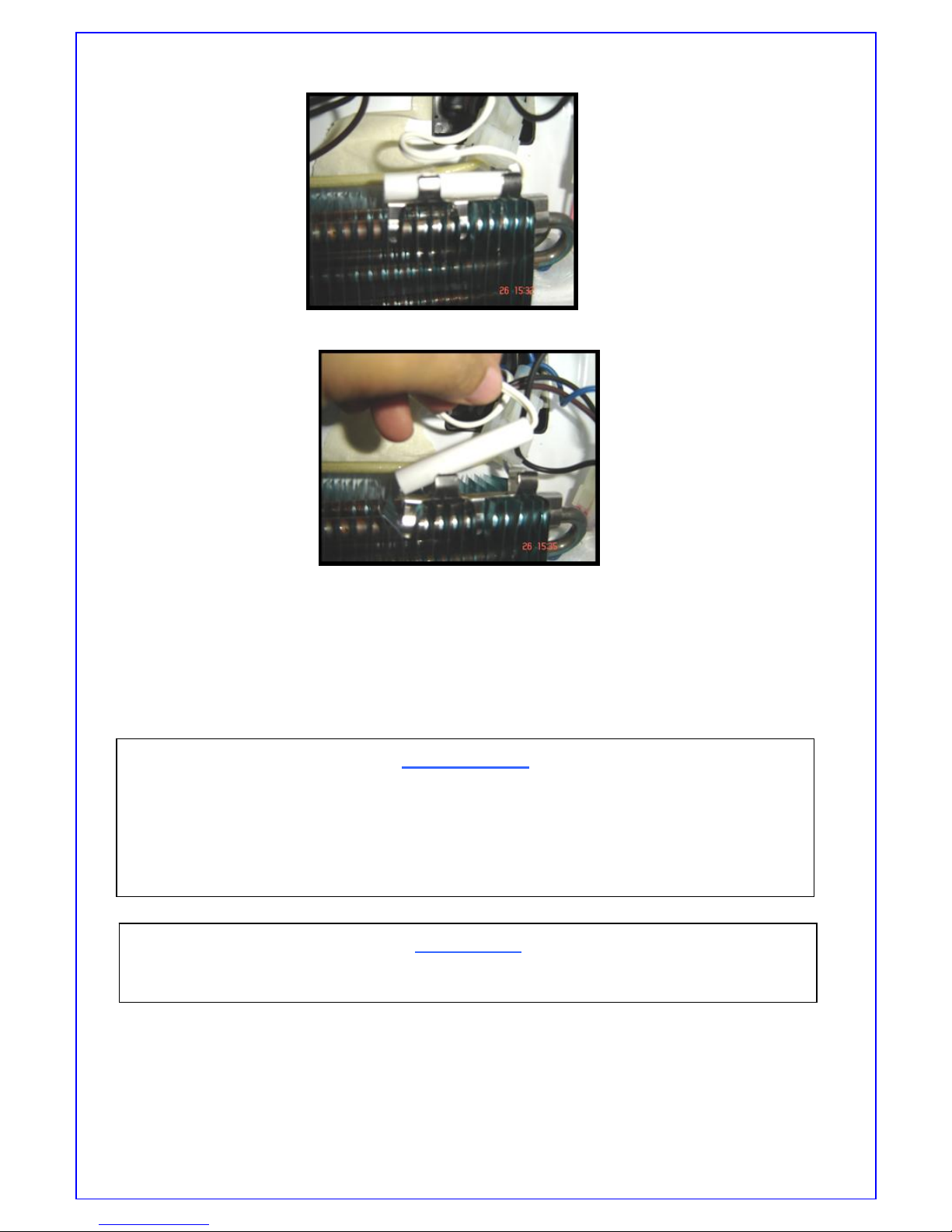

1. Defrost Sensor mounted on the Evaporator tube.
2. Removing/Replacing the Defrost Sensor
Defrost Temperature Sensor – NTC
It’s located at the freezer compartment, along with the Evaporator. The Defrost Sensor is responsible
for sending signals to the electronic control, which will command the ending of the defrost, turning off
the Defrost Heater,
This does a similar function to the well-known Defrost Bimetal
NEVER replace these Sensors with the Sensor Kit used in the Symphony model.
In the need of replacing one of the Temperature Sensors, Replace the full RC/FC Sensor harness (In
these model FC Sensor harness is replaceable). Directly replace the relevant RC or FC Sensor
harness. Do not try to repair the harness for the faulty Thermistor.
IMPORTANT
Never change the position of such Sensors, as their functional characteristics can be
modified. This sensor also informs the temperature conditions of the Evaporator when
the product is activated (plugged in electricity) indicating to the Electronic Control the
correct start up to be followed, for instance, manufacturing ,default or the previous
programming done by the user, compressor delay , etc.
WARNING
These Sensors (refrigerator & Defrost) Are Compatible with Each Other, but
Are not compatible with the Sensors of the previous Model (SYMPHONY)

14
Dlx models:-
Adaptive Defrost Control
The defrost cycle shall be started after the Defrost timer has expired. According to the following defrost procedure:
Defrost must be executed every time one of the following event occurs:
1. After 8 hours (+/-10 minutes) of compressor running, calculated considering just the thermostat
function.
2. When the compressor stops (in thermostatic mode) and a time period of 20 min (+/-1 minute) is
allowed to complete the time to defrost.
3. If the door open time > 10 min, within first 5 hrs of cumulative compressor run time, defrost is
initiated at 5hrs.
4. If door open time > 10 min between 5 to 8 hours of cumulative compressor run time, defrost will
happen instantaneously.
5. If the door open time < 10 min or If there is at least one door opening up to 8 hrs of compressor
running then defrost time is as per point 1.
6. If there is no door opening up to 8 hrs of compressor running than defrost time will be 18hrs
7. If there is no door opening for 8 hrs, & there is door opening between 8 to 18 hrs of compressor
running, defrost will take place immediately.
The 5th, 8th or 18th hr of compressor running (defrost timer) consist of the sum of all the compressor’s ON
time, independently of the number of compressor cycles and how many time the compressor was ON.
8

15
Door Open Sensing Alarm
Door open sensing alarm activates or gives beep if the door is kept open for more than 2 min.
During the Door opening beep alarm if the door is closed then the alarm gets deactivated.
Alarm Codes, Priority, Retention and Trigger
Alarm code for Deluxe models: -
•In event of any Fault accurring for RC/FC or Pot sensors then immediately after 2 min’s of the
fault occurrence a Buzzer Beep for 1 Sec will be activated indicating the Sensor fault condition in
Dlx models only.
•To understand where there is any Sensor or Pot failure indication in the Dlx model, Service Person
should Switch On the Product & wait for the any buzzer Beep if any after 5 sec of Product switch
ON. This will indicate the Error status in the Dlx models.
Check Point:
- Poor contact between terminals/ connectors – CN2 (Temperature Sensors) at Electronic Control
(main board)
-The Sensor/Pot itself that might be open or in short circuit and has to be replaced (see Sensor/Pot
replacement).
Safe mode routine
During Constant fault condition, the Electronic Control will assume a safety routine, as in normal
cycle, trying to keep food conservation, however will work as follows:
• Compressor and Fan Motors will be on for 25 minutes and then will turn off for 20 minutes.
• Interval set between defrosts will be fixed in every 5 hours of the Compressor activity
• Every defrost time is fixed for 20 minutes. No dependency on defrost sensor for Cut Off temp of
15°C
Normal
Compressor
/Product
running
Mode
Sensor
Failed??
(Open/Shor
t Mode)
{RC, FC or
Ambient
Sensor)
Start Safe mode
routine
after 2 min of
error
Event in sensor
Yes
Normal
Compressor
/Product
running
Mode
No
Whether
sensor/POT
is
repaired/correc
ted??
No
Yes

16
Note: -
•There is no Service routine provided in this model.
•In Dlx models Diagnosis of the Error / Sensor / Pot failure is not of continuous nature. Service person
needs to restart the Product to listen to the Buzzer Beep for error indications if any.
•To check whether Heater is working fine or not, service person can use the Power up initialization
function of the model, where Product need to be switched Off & need to be ensured that the temp at the
FC sensor is >0°c, then after making the product ON product goes into the Power up initialization mode
where after product switch ON, heater gets activated for the first 5 seconds & then it goes to the
compressor mode. Service person can make the use of this 5 seconds where by putting the Tong tester one
can easily identify the healthy/faulty condition of the heater through the driving current displayed on the
tong tester it self at the Electronic core board box location without opening the FC Plenum.
•In case of any Aluminum foil wrapping found over the Wiring harness either in FC compartment, RC
Compartment or in the Compressor deck area, the same Al foil should be carefully replaces in same
fashion after servicing
•In case of any detailed technical information please check with the Dlx technical specification.
Board Level Diagnostics for :
* Thermistor Failure FC/RC
* Potentiometer Failure
1 First Turn Off the Product & disconnect the Plug.
2 Remove the Control Board from Box.
3 Disconnect the 10-Pin connector from Board.
4 For Thermistor Failure FC/RC
* Check resistance on pin no. 8 & 9 of CN2 ( 10 pin connec) for RC Thermistor.
* Check resistance on pin no. 5 & 7 of CN2 ( 10 pin connec) for FC Thermistor.
* IF thermistor is open then the resistance is zero.
* IF thermistor is short then the resistance is above 22 KOhms
* IF resistance lie between 0-22 KOhms the themistor is OK.
5 Potentiometer Failure
* Check resistance on pin no. 1 & 8 of CN2 ( 10 pin connec) for Potentiometer.
* It should lie between 0 to 22 K ohms

17

18
22
23
24
25 26 27 28
SL.NO. PART NO. DESCRIPTION QTY.
22 A208168000D ICE TWISTER BRACKET 1
23 A2084290000 ICE TWISTER SUB ASSY 1
24 A208171000A ICE COLLECTOR 1
25 A2240800000 QUICK FREEZE COVER - ONYX 1
26 A2240810000 QUICK FREEZE SHELF, FRONT -ONYX 1
27 A2240820000 QUICK FREEZE SHELF, BACK -ONYX 1
28
A2242620000
SUB ASSY,CENTRE HINGE LH-ONYX
1
SL.NO. PART NO. DESCRIPTION QTY.
22 A208168000D ICE TWISTER BRACKET 1
23 A2084290000 ICE TWISTER SUB ASSY 1
24 A208171000A ICE COLLECTOR 1
25 A2240800000 QUICK FREEZE COVER - ONYX 1
26 A2240810000 QUICK FREEZE SHELF, FRONT -ONYX 1
27 A2240820000 QUICK FREEZE SHELF, BACK -ONYX 1
28
A2242620000
SUB ASSY,CENTRE HINGE LH-ONYX
1

19
38
39
40
41
42
43
45
44
46
47
48
49
50 51
SL.NO. PART NO. DESCRIPTION QTY.
38 A2243490000 M 4.8X 13 SELF TAPPING SCREW(LINER TO PLENUM) 4
39 A2242690000 SUB ASSY PLENUM FRONT -ONYX 1
40 A2241810000 PLENUM CAP-ONYX 4
41 A201495000C KNOB - FREEZER CONTROL 1
42 A2244120000 FC DAMPER , AUS-ONYX 1
43 A2240730000 COMPLEMENT EPS, PLENUM BACK- ONYX 1
44 A2221170000 FAN MOTOR MI-(DUO) 1
45 A224268000A SUB ASSY PLENUM BACK -ONYX 1
46 A201356000B SCREW FOR FIXING BRACKET AND HOUSING 4
47 A2243500000 M 4.2X 16 SELF TAPPING SCREW( FRONT TO BACK) 4
48 A2223740000 SCREW FOR FIXING FAN MOTOR 1
49 A2222710000 SOUND DAMPER 1
50 A2242540000 COMPLEMENT PLENUM FRONT-ONYX 1
51 A2221180000 FAN BLADE 110MM, DUO 1
52
53
54
55
56
57
58
59
SL.NO. PART NO. DESCRIPTION QTY.
52 A2241650000 LED PCB, FC-ONYX 1
53 A224153000A LENS, FC LED-ONYX 1
54 A2241010000 RC LED PCB-ONYX 1
55 A2241080000 LENS, RC LED-ONYX 1
56 A224102000A HOUSING RC LED, DEODERISER-ONYX 1
57 A2242770000 COVER - DEODERISER-ONYX 1
58 A2253030000
SWITCH ROCKER ARM, NC- ESBEE W welded
2
59 A2087000000 DEODERISOR 1
SL.NO. PART NO. DESCRIPTION QTY.
52 A2241650000 LED PCB, FC-ONYX 1
53 A224153000A LENS, FC LED-ONYX 1
54 A2241010000 RC LED PCB-ONYX 1
55 A2241080000 LENS, RC LED-ONYX 1
56 A224102000A HOUSING RC LED, DEODERISER-ONYX 1
57 A2242770000 COVER - DEODERISER-ONYX 1
58 A2253030000
SWITCH ROCKER ARM, NC- ESBEE W welded
2
59 A2087000000 DEODERISOR 1
36,37,131 A224110A700 COVER,CENTRE RAIL NON HINGE BLACK - 1

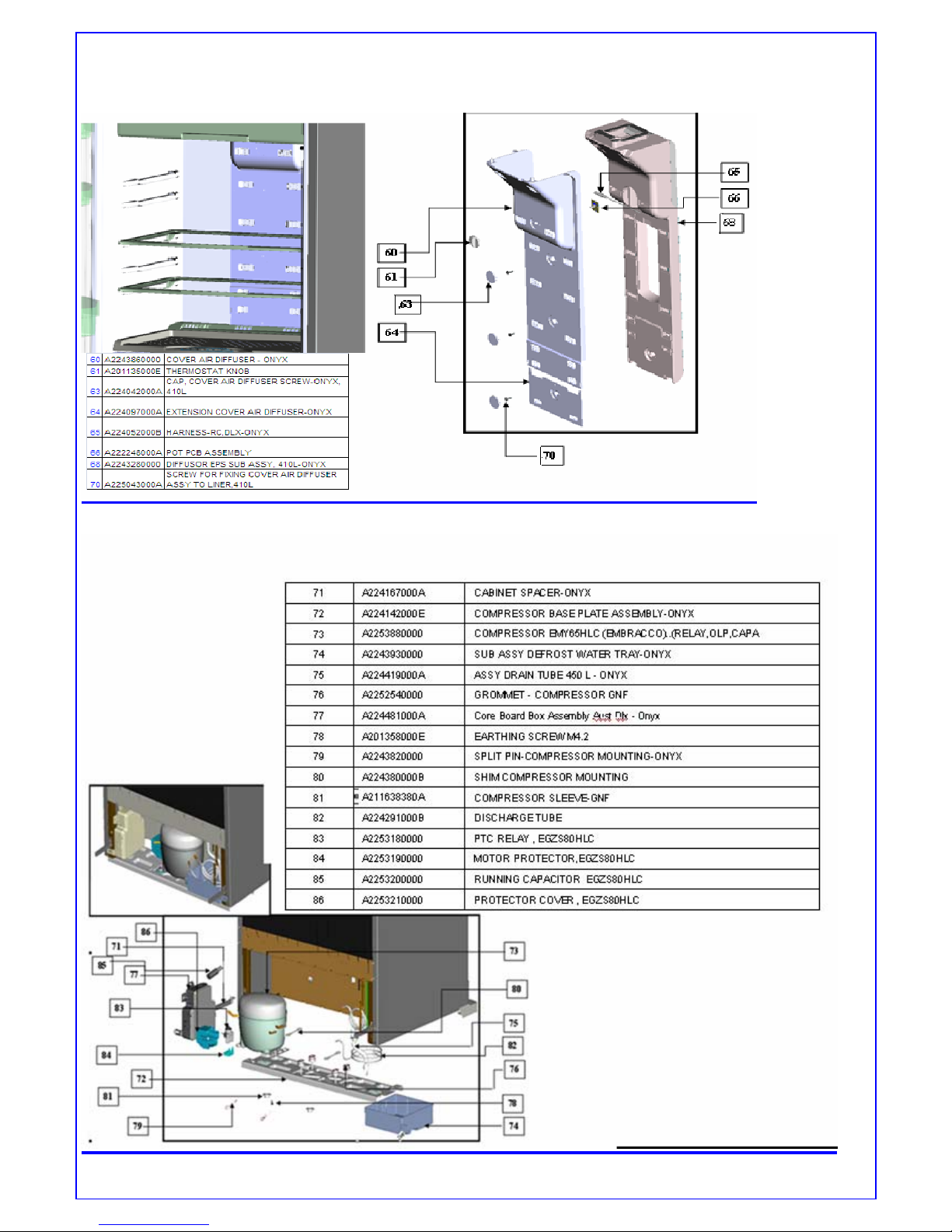

20
