Whirlpool W10376238C - SP User manual

W10343071C
W10376238C - SP
WASHER/DRYER
USE AND CARE GUIDE
Table of Contents
WASHER/DRYER SAFETY ...........................................2
ACCESSORIES..............................................................4
USING LESS WATER AND ENERGY ...........................4
CHECK YOUR VENT SYSTEM
FOR GOOD AIR FLOW ................................................5
CONTROL PANEL AND FEATURES ............................6
WASHER CYCLE GUIDE ..............................................7
DRYER CYCLE GUIDE .................................................8
USING YOUR WASHER................................................9
USING YOUR DRYER .................................................12
ADDITIONAL FEATURES............................................13
WASHER/DRYER MAINTENANCE ............................14
TROUBLESHOOTING.................................................18
WARRANTY.................................................................24
ASSISTANCE OR SERVICE........................Back Cover
Table des matières
SÉCURITÉ DE LA LAVEUSE/SÉCHEUSE .................25
ACCESSOIRES............................................................28
RÉDUCTION DE LA CONSOMMATION D’EAU
ET D’ÉNERGIE. ...........................................................28
VÉRIFICATION D’UNE CIRCULATION
D’AIR ADÉQUATE POUR LE SYSTÈME
D’ÉVACUATION ..........................................................29
TABLEAU DE COMMANDE ET
CARACTÉRISTIQUES.................................................30
GUIDE DE PROGRAMMES DE LA LAVEUSE ...........31
GUIDE DE PROGRAMMES DE LA SÉCHEUSE ........32
UTILISATION DE LA LAVEUSE ..................................33
UTILISATION DE LA SÉCHEUSE...............................36
CARACTÉRISTIQUES SUPPLÉMENTAIRES.............38
ENTRETIEN DE LA LAVEUSE/SÉCHEUSE ...............39
DÉPANNAGE ...............................................................43
GARANTIE...................................................................51
ASSISTANCE OU SERVICE............ Couverture arrière
LAVEUSE/SÉCHEUSE
GUIDE D’UTILISATION
ET D’ENTRETIEN

2
WASHER/DRYER SAFETY

3

4
ACCESSORIES
This washer does not include inlet water hoses. See Installation Instructions for installation accessories.
Enhance your dryer with these premium accessories.
For more high-quality items or to order, call 1-800-901-2042, or visit us at www.whirlpool.com/accessories.
In Canada call 1-800-807-6777, or visit us at www.whirlpoolparts.ca.
Part Number Accessory: Part Number Accessory
3404351
8212614
Drying rack – ts 29" (737 mm)
Super Capacity, 6.5 cu. ft (0.18 cu. m) –
side swing or hamper door
Dryer vent lint brush
All-purpose appliance cleaner
Compact dryer stand – white
31682
49971
3406839 Drying rack – ts 29" (737 mm)
Super Capacity Plus, 7.0 cu. ft
(0.20 cu. m) – side swing door only
Laundry supply storage cart
1903WH
USING LESS WATER AND ENERGY
This washer is designed to use less water and energy, and
complies with all 2011 energy standards. Wash cycles with
controlled temperatures are designed to maintain cleaning
performance while using less water and energy compared to
older traditional washers. As a result, water levels will be lower,
and hot and warm wash temperatures may not be as warm as
you are used to.
Traditional washer Reduced water washer

5
CHECK YOUR VENT SYSTEM FOR GOOD AIRFLOW
Good airow
Along with heat, dryers require good airow to efciently dry
laundry. Proper venting will reduce your drying times and
improve your energy savings. See Installation Instructions.
The venting system attached to the dryer plays a big role in
good airow.
Service calls caused by improper venting are not covered
by the warranty and will be paid by the customer, regardless
of who installed the dryer.
Maintain good airow by:
Good Better
n Cleaning your lint screen before each load.
n Replace plastic or foil vent material with 4" (102 mm)
diameter heavy, rigid vent material.
n Use the shortest length of vent possible.
n Use no more than four 90° elbows in a vent system;
each bend and curve reduces airow.
n Remove lint and debris from the exhaust hood.
n Remove lint from the entire length of the vent system at
least every 2 years. When cleaning is complete, be sure
to follow the Installation Instructions supplied with your
dryer for nal product check.
n Clear away items from the front the dryer.
4"
(102 mm)
Use Automatic cycles for better fabric care and energy savings
Use the Automatic Dry cycles to provide the most energy savings and enhanced fabric care from the dryer. During Automatic Dry
cycles, drying air temperature or moisture level are sensed in the load. This sensing occurs throughout the drying cycle and the
dryer shuts off when the load reaches the selected dryness. The Energy Preferred cycle will provide optimal energy savings.
With Timed Dry, the dryer runs the amount of time set and sometimes results in shrinkage, wrinkling, and static due to
over-drying. Use Timed Dry for the occasional damp load that needs a little more drying time or when using the drying rack.

6
341
CONTROL PANEL AND FEATURES
2
WASH CYCLE KNOB
Use the Wash Cycle knob to select available cycles on your
washer. Turn the knob to select a cycle for your laundry load.
See “Cycle Guide” for detailed descriptions of cycles.
WASH TEMP
You may select a Wash Temperature based on the type of
fabric and soils being washed. Use the warmest wash water
safe for the fabric. Follow garment label instructions.
LOAD SIZE
Use this option to adjust the amount of water used with
your load size. Use enough water to allow the load to
move freely.
NOTE: The highest water level will be lower than that
of pre-2011 washers.
FABRIC SOFTENER
This option must be selected if using fabric softener
during a cycle. It ensures that fabric softener is added
at the correct time in the rinse for even distribution.
2
3
4
15
Not all features and options are available on all models.
Appearance may vary.
56
PUSH TO START/END OF CYCLE SIGNAL
The End of Cycle Signal produces an audible sound when
the drying cycle is nished. Promptly removing clothes at
the end of the cycle reduces wrinkling.
Turn the END OF CYCLE SIGNAL knob to select the
desired setting (On or Off). Press the PUSH TO START
knob to start the dryer.
DRYER CYCLE KNOB
Use your Dryer Cycle knob to select available cycles on
your dryer. Turn the knob to select a cycle for your laundry
load. See “Cycle Guide” for detailed descriptions of cycles.
TIMED DRYING
Will run the dryer for the specied time on the control.
Drying time and temperature will depend on your dryer
model.
AUTOMATIC DRY
Senses moisture in the load or air temperature and shuts
off when the load reaches the selected dryness level.
Gives the best drying in the shortest time. Drying time will
vary based on fabric type, load size, and dryness setting.
6
WASHER DRYER

7
* You should use the amount of detergent or presoak additive recommended by the manufacturer. After the cycle ends, you may add
detergent and start a new wash cycle.
**Approximate time in minutes.
IMPORTANT: Do not presoak items in your washer by lifting the lid or stopping the cycle. Failure to follow this instruction can result in
property damage. If needed, presoak items in a small wash basin prior to loading the washer.
WASHER CYCLE GUIDE
Items to wash: Cycle: Wash Times**: Wash/Spin
Speed: Cycle Details:
Light to moderately
soiled delicate items
and washable knits
Delicates Low/Low
Permanent press
blends and
synthetic fabrics
that are lightly to
moderately soiled
Cottons and
linens; loads that
are moderately or
heavily soiled
Heavily soiled
or stained
items that need
pretreatment
Casual/
Perm
Press
Normal
Prewash*
Gently removes soils and minimizes wrinkling.
Features a cool down, rinse and low-speed nal
spin to reduce wrinkling.
You may select a wash time based on the soil level
of your load.
Brief periods of agitation and soak followed by a
4-minute pre-wash featuring high-speed agitation.
6–10
10–14
4
High and
Low/Low
High and
Low/High
High/High
6–10
Not all cycles or options are available on all models.
Refer to the cycle control knob on your washer.
Wash temperatures are selected using the Wash Temperature
control knob.
For best performance:
• Choosethecyclethatbesttstheloadbeingwashed.
• UsePrewashforheavilysoiledclothing.
• Donotleavethewasherlidopenunattendedoncethewasher
has started to ll.

8
Not all cycles and settings are available on all models.
AUTOMATIC DRY – Automatic cycles give the best drying
in the shortest time. They sense moisture in the load or air
temperature and shut off when the load reaches the selected
dryness level. Drying time varies based on fabric type, load size,
and dryness setting.
Select a drying temperature based on the fabrics in your load.
If you are unsure of the temperature to select for a load, select
the lower setting rather than the higher setting.
Items to dry: Available
Options: Cycle Details:
End of Cycle Signal
DRYER CYCLE GUIDE — AUTOMATIC DRY CYCLES
NOTE: If loads do not seem as dry as you would like, select Very Dry next time you dry a similar load. If loads seem drier than you
like, select Less Dry next time you dry a similar load.
AUTOMATIC
DRY (Low Heat)
AUTOMATIC
DRY (High Heat) End of Cycle Signal Automatic cycles include a cool down cycle to make the load easier to handle.
An ENERGY PREFERRED cycle (*) is available for optimal
energy savings.
Cycle:
DRYER CYCLE GUIDE — TIMED DRYING
Items to dry: Temperature:Cycle: Available
Options: Cycle Details:
Not all cycles and settings are available on all models.
Will run the dryer for the selected time.
Heavy, bulky, or
lightweight items
Any load
Timed Drying
Damp Dry High
Time Adjustment
End of Cycle Signal
Time Adjustment
End of Cycle Signal
Completes drying if items are still damp.
Dries items to a damp level or for items
that do not require an entire drying
cycle.
High
Rubber, plastic,
heat-sensitive fabrics Fluff Air No Heat Time Adjustment
End of Cycle Signal
No-heat drying.
Any load Tumble Press®High Time Adjustment
End of Cycle Signal
Helps remove wrinkles, such as those
found in clothes packed in a suitcase
or in items wrinkled from being left in
the dryer too long.
Most loads, including
jeans, heavy work
clothes, towels
Medium to lightweight
synthetics, permanent
press, no-iron items
or smaller, lighter
loads, including work
clothes, medium
weight fabrics, sheets,
casual, shirts, pants,
lightweight items,
synthetics, delicates,
athletic wear

9
• Emptypockets.Loosechange,buttons,oranysmallobject
can pass under the agitator and become trapped, causing
unexpected sounds.
• Sortitemsbyrecommendedcycle,watertemperature,
and colorfastness.
• Separateheavilysoileditemsfromlightlysoiled.
• Separatedelicateitemsfromsturdyfabrics.
• Donotdrygarmentsifstainsremainafterwashing,because
heat can set stains into fabric.
• Treatstainspromptly.
• Closezippers,fastenhooks,tiestringsandsashes,and
remove non-washable trim and ornaments.
• Mendripsandtearstoavoidfurtherdamagetoitems
during washing.
Helpful Tips:
• Whenwashingwater-prooforwater-resistantitems,load
evenly.
• Usemeshgarmentbagstohelpavoidtanglingwhenwashing
delicate or small items.
• Turnknitsinsideouttoavoidpilling.Separatelint-takersfrom
lint-givers. Synthetics, knits, and corduroy fabrics will pick up
lint from towels, rugs, and chenille fabrics.
NOTE: Always read and follow fabric care label instructions to
avoid damage to your garments.
1. Sort and prepare your laundry
USING YOUR WASHER
Add a measured amount of detergent or single-dose laundry
packet into the basket before adding clothes. If using Oxi-type
boosters, color-safe bleach, or fabric softener crystals, add to
the bottom of the washer basket as well.
IMPORTANT: Follow the manufacturer’s instructions to
determine the amount of laundry products to use.
2. Add laundry products

10
5. Add fabric softener to dispenser
(on some models)
Pour a measured amount of liquid fabric
softener into dispenser, always follow
manufacturer’s directions for correct amount
of fabric softener based on your load size.
Dilute liquid fabric softener by lling the dispenser with warm
water until liquid reaches the underside of the rim. See max ll
line arrows. Do not overll.
IMPORTANT: Fabric Softener option must be selected to “On”
to ensure proper distribution at correct time in cycle.

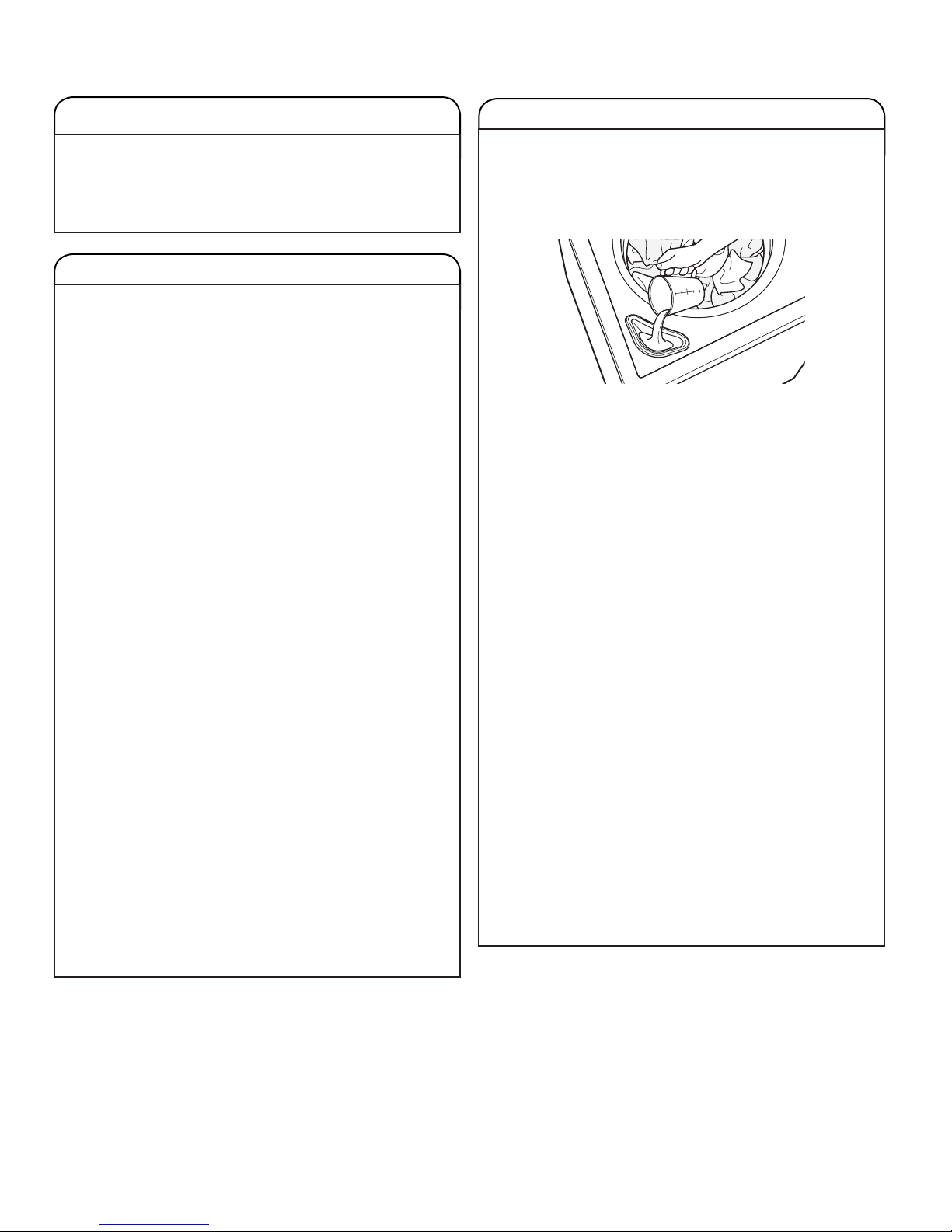

Adding Liquid Fabric Softener Manually to Wash Load
During the nal rinse, wait until the washer has completed lling,
push in the Cycle knob to pause the washer. Lift the lid and add
the measured recommended amount of liquid fabric softener
(diluted with 1/2 to 1 cup [125 to 250 mL] warm water). Do not
allow liquid fabric softener to spill, splash, drip, or run into the
basket or on load. Do not use more than the recommended
amount. Close the lid and pull out the Cycle knob to start the
washer.
IMPORTANT: Fabric Softener option must be selected to “On”
to ensure proper distribution of the fabric softener during the
rinse portion of the cycle.
Do not overll, dilute, or use more than 1 cup (250 mL).
Do not use color-safe bleach or Oxi products in the same
cycle with liquid chlorine bleach.
Load garments in loose heaps evenly around basket wall.
For best results, do not pack the load tightly. Do not wrap large
items such as sheets around the agitator; load them in loose
piles around the sides of the basket. Try mixing different sized
items to reduce tangling.
3. Load laundry into washer
MAX FILL
IMPORTANT: Do not tightly pack or force items into washer.
Items need to move freely for best cleaning and to reduce
wrinkling and tangling.
Turn Cycle knob clockwise to choose your wash cycle.
For more information, see “Cycle Guide.”
6. Select cycle
Liquid
Chlorine Bleach
4. Add liquid chlorine bleach
to dispenser
