Whirlpool Thin Twin LT5000XV User manual

®
Appliances
Use&CareGuide
Model and serial
number plate
Lint screen
Dryer drum
Washer controls
Optional exhaust
outlet
Agitator
_Dryer controls
Washer lid latch
i Tub
Basket
Manual clean
lint filter
(inside agitator)
THINTWIN®
AUTOMATICWASHERDRYER
LT5OOOXVLT5OO4XV LT511DOXV

Contents Page
Important Safety
Instructions .................... 3
Additional safety instructions
and your responsibilities ...... 4
Loading Suggestions
Loading ...................... 5
Load sizes and water levels ..... 5
Washer Operating
Instructions
Starting your washer ........... 6
What happens in each cycle ..... 7
Other Operating Instructions
Rinse and spin ................ 11
Drain and spin ................. 11
Soak cycle .................... 11
Pre-wash cycle ................ 12
Manual clean lint filter .......... 12
Dryer Operating Instructions
Starting your dryer ............. 13
The automatic cycles ........... 14
Timed drying cycle ............. 15
Using TUMBLE PRESS ® ....... 15
Fluff air cycle .................. 15
End-of-cycle signal ............. 15
Gentle heat system ............ 15
Selecting a cycle ............... 16
Lint Removal ................... 16
If You Need Service Or
Assistance ..................... 18
Whirlpool Thin Twin ®
Warranty ....................... 20
© 1990 Whirlpool Corporation
If your Thin Twin has a Consumer
Buy Guide label, remove it. It will be
easier to remove before the washer is
used. To remove any remaining glue:
•Rub briskly with thumb to make a ball,
then remove.
or
• Soak area with liquid hand dishwash-
inn detergent before removing glue as
described above.
Do not use sharp instruments,
rubbing alcohol, flammable fluids or
abrasive cleaners. These can damage
the finish. See "Important Safety
Instructions" on page 3.
NOTE: Do not remove any permanent
instruction labels inside the dryer.
You should wipe out the dryer drum
with a damp cloth before using to
remove dust from storing or shipping.
2
Thank you for buying a Whirlpool
appliance. Please complete and mail
the Owner Registration Card provided
with this product. Then complete the
form below. Have this information ready
if you need service or call with a
question.
• Copy model and serial numbers from
plate (next to dryer drum opening)
and the purchase date from the
sales slip.
•Keep this book, the Laundry Guide
and the sales slip together in a
handy place.
Model Number
Serial Number
Purchase Date
Service Company Phone Number
FOR YOUR SAFETY
If you smell gas:
1. Open windows.
2. Don't touch electrical
switches.
3. Extinguish any open
flame.
4. Immediately call your
gas supplier.
FOR YOUR SAFETY
Do not store or use gas-
oline or other flammable
vapors and liquids in the
vicinity of this or any
other appliance. The
fumes can create a fire
hazard or explosion.

ImportantSafetyInstructions
To reduce the risk of fire, electric shock, or in-
jury to persons when using your Thin Twin, fol-
low basic precautions, including the following:
•Read all instructions before
using the Thin Twin.
•NEVER wash or dry items cleaned,
washed, soaked in or spotted with
wax, paint, gasoline or flammable
fluids in the Thin Twin. The fumes
can create aFIRE HAZARD or EX-
PLOSlON. ALWAYS hand launder
and air dry fabrics containing these
materials.
•NEVER allow children to operate,
play with, or crawl inside the Thin
Twin. Close supervision of children is
necessary when the Thin Twin is
used near children.
•When discarding an old Thin Twin,
ALWAYS remove the lid and door to
prevent accidental entrapment.
•NEVER reach into the Thin Twin
until all the motion stops. If the lid is
opened while the washer basket is
spinning, the basket will automati-
cally stop in a few seconds.
•DO NOT install or store Thin Twin
where it will be exposed to the
weather.
•DO NOT tamper with the controls.
•You are responsible for making
sure that your Thin Twin is
installed, repaired, and has parts
replaced by a qualified person.
• NEVER use or store flammable
fluids (dry-cleaning solvents,
gasoline, kerosene) in or near your
Thin Twin. Do not add flammable
fluids to the wash water. These
substances give off vapors that
can create a FIRE HAZARD or
EXPLOSION.
• Use only dryer fabric softeners
specifically labeled as not being
harmful tothe dryer.
•FIRE HAZARD and DAMAGE to
materials can resultfrom:
-drying rubber, rubber-like and
heat sensitive materials with heat.
-allowing lintto build-up inside
the dryer or exhaust system -
cleaning should be done by a
qualified person.
• Clean lint screen before or after
each load.
• If hot water has not been used
recently (usually 2 weeks or longer),
hydrogen gases may build up in
the water heater and the hot water
pipes. HYDROGEN GAS IS
EXPLOSIVE. Toprevent injury or
damage, before using your washer,
turn on all hot water faucets and al-
low water to run for several minutes.
This willallow gases to escape. DO
NOT smoke or use any open flame
near the faucet while it isopen.
•DO NOT let dust, paper, rags, lint,
chemicals, etc. pile up, around or
under the Thin Twin.
• The Thin Twin must be electrically
grounded. See the Installation
Instructions.
- SAVE THESE INSTRUCTIONS -

ImportantSafetyInstructions
Continued
Additionalsafetyinstructions
andyourresponsibilities
•ALWAYS shut off the gas valve
before leaving on vacation.
•ALWAYS unplug the power supply
cord before attempting to service the
Thin Twin.®Shut off GAS VALVE if
yours isa gas dryer.
•DO NOT machine wash or dry glass
fiber materials. Small particles can
stick to fabrics laundered in following
loads and cause skin irritation.
•HAZARDOUS FUMES can be
formed if chlorine bleach isused in
the same wash as ammonia or acids
such as vinegar or rust remover.
•ALWAYS store detergent, laundry
aids and other materials ina cool, dry
place where children can't reach them
- in alocked cabinet if possible.
•ALWAYS read and follow instructions
on packages of detergent and laundry
aids -especially warnings and
precautions.
• NEVER operate the Thin Twin if...
- it is not working right.
- it is damaged.
- parts are missing.
- all panels are not in place.
•You are responsible for making
sure that your Thin Twin:
-is properly maintained.
- is properly installed and
leveled in a well ventilated room on
a floor that can support the weight.*
-is located in an area where the
temperature is above 45°F (7.2°C)
because the dryer will not operate
properly at cold temperatures and
freezing temperatures can damage
the washer.
- is connected to the proper electrical
supply, outlet, water supply, plumbing
fixtures, drain and dryer exhausting
system.*
- is not installed against drapes or
curtains.*
- is used only for jobs normally
expected of home automatic Thin
Twins.
*Refer to the Installation Instructions for
complete information.
When not washing, keep both water
faucets turned off. This takes the pres-
sure off the water inlet valve and hoses.

LoadingSuggestions
Loading
MIXED LOAD
1pair slacks
2 pillowcases
2 shirts
2 T-shirts
HEAVY WORK
CLOTHES
3 work shirts
2 pair pants
PERMANENT
PRESS
6 shirts
-or-
2double sheets
2 pillowcases
-or-
2single sheets
2 pillowcases
KNITS
2 slacks
2 shirts
-or-
3dresses
TOWELS DELICATES
9 bath towels 1 camisole
-or- 2 slips
6 bath towels 2 panties
3 hand towels 2 bras
6 wash cloths 1 nightie
1 half slip
13
II /%II
I" _/. 1L
Loadsizesandwaterlevels
For best cleaning results, the load must
be able to move freely in the water. Too
big a load or too little water can cause
wear or tearing of load items.
LARGE
(11.3 gals./42.7 L)*
MEDIUM
(8.5 gals./32.1 L)*
EX SMALL
(5.6 gals.i21.2 L)*
*Approximate fill with load.
NOTE: Do not overload washer.

WasherOperatingInstructions
The drawings in this book may vary slightly from your washer model. They are
designed to show the different features of all the models covered by this book.
NOTE: Your model may not include all the features shown.
Startingyourwasher
Be sure to measure and add detergent, then place a sorted load in the washer before
starting it.
1. Select a load size
• Turn the knob to point at asetting that
describes the size of load you want
to wash.
• Set the knob on EX SMALL (a few
small items), MEDIUM or LARGE
(a full load).
NOTE" For best washing results, items
should move freely in the washer. Do
not overload the washer or choose a
water level that is too low for your wash
load. For best results with permanent
press clothes, use the LARGE water
level. Reduce wash time when using EX
SMALL or SMALL water level settings.
2. Select water temperature
•Match the water temperature to the
type of fabric and soils being washed.
• The top temperature isthe wash
selection and the bottom temperature
is the rinse selection.
NOTE: Use warm wash water with
the PERMANENT PRESS or KNITS
GENTLE Cycles.
For heavily soiled permanent press
or knit clothes, pre-wash or pre-soak
before washing in warm water.
ALWAYS use cold rinse water for
permanent press fabrics.
3. Select cycle and wash time
Start the washer
• Push in the Cycle Control Knob and
turn it clockwise.
• Stop when the indicator on the knob's
outer ring points to the number in the
wash cycle you want. The numbers
are minutes of wash time.

•Start the washer by pulling out the
Cycle Control Knob. The washer will
fill to the selected water level with the
selected wash water temperature.
After filling, the washer will agitate for
the selected number of minutes.
• Tostop the washer at any time,
push in the Cycle Control Knob. To
restart the washer, pull out the
Cycle Control Knob.
Whathappensineachcycle
Each cycle has different agitation and
spin speeds designed for different kinds
of fabrics.
Numbers on the dial in each cycle are
the minutes of wash agitation time.
When the Cycle Contro_ Knob is set
to a number and pulled out, the washer
fills before agitation and timing starts.
After agitation starts, the knob turns
clockwise until it points to OFF and the
cycle ends.
The washer will pause briefly
throughout each cycle. These pauses
are normal. They allow for the reversing
of the motor, normal washer operation
and the cool-down portion of the
PERMANENT PRESS Cycle.
NOTE: You may hear the sound of
water spraying during the spin parts of
some cycles. In some cycles, water is
sprayed on the spinning load to help
with the rinsing.
Gentle Wash System
For better fabric care in the REGULAR
and PERMANENT PRESS Cycles, the
agitation speed is reduced during the
last few minutes of wash agitation time.
Washer lid latch
Tohold the washer lid up, lift the lid until
it snaps past the latch under the control
panel. (See front cover.)
Torelease the lid, push the lid latch up.

Washer Operating Instructions
Continued
Regular/Heavy Cycle
A cycle for sturdily constructed fabrics
that are heavily soiled. Regular/Normal Cycle
A cycle for regular loads of fabrics that
are moderately soiled.
lected Level j
o.,0eoo]
for Deep Rinse 1
_S_eo0 1
ii
elected Level
nutes Low Speed j
_gilatioo ]
_ Speed, 3 'Spray Rinsesj
_eep'Rinse j
Speed
gitation
_ Speed, 3 Spray Rinses]

Permanent Press Cycle
A cycle designed for lightly to moder-
ately soiled permanent press and some
synthetic fabrics. The cool-down rinse
helps keep wrinkles from setting into
these items.
Knits Gentle Cycle
Acycle that gently washes and spins
lightly to moderately soiled delicate
items and washable knits.
lect_
WA$_inutes_
_nutes LowSpeed ._ I
J
_S pee_._,._J
_Spe_
_eep _._.._J
_Speed ._l
1'"'" Lo_S0oe0__1
NOTE: Always use cold rinse water
for permanent press fabrics.
FILL_elected Level
nutesLow Speed
_nutes No_
inutesLow Speed
SPINL._._°w Speed'_
SPINL._N__ow Speed
Deep Rinse
_ Speed _/
_g itatio___._._._..._._..
SPIN Low Speed,3 SprayRinses
Alndicates that machine is pausing for
a brief soak period.

Washer Operating Instructions
Continued

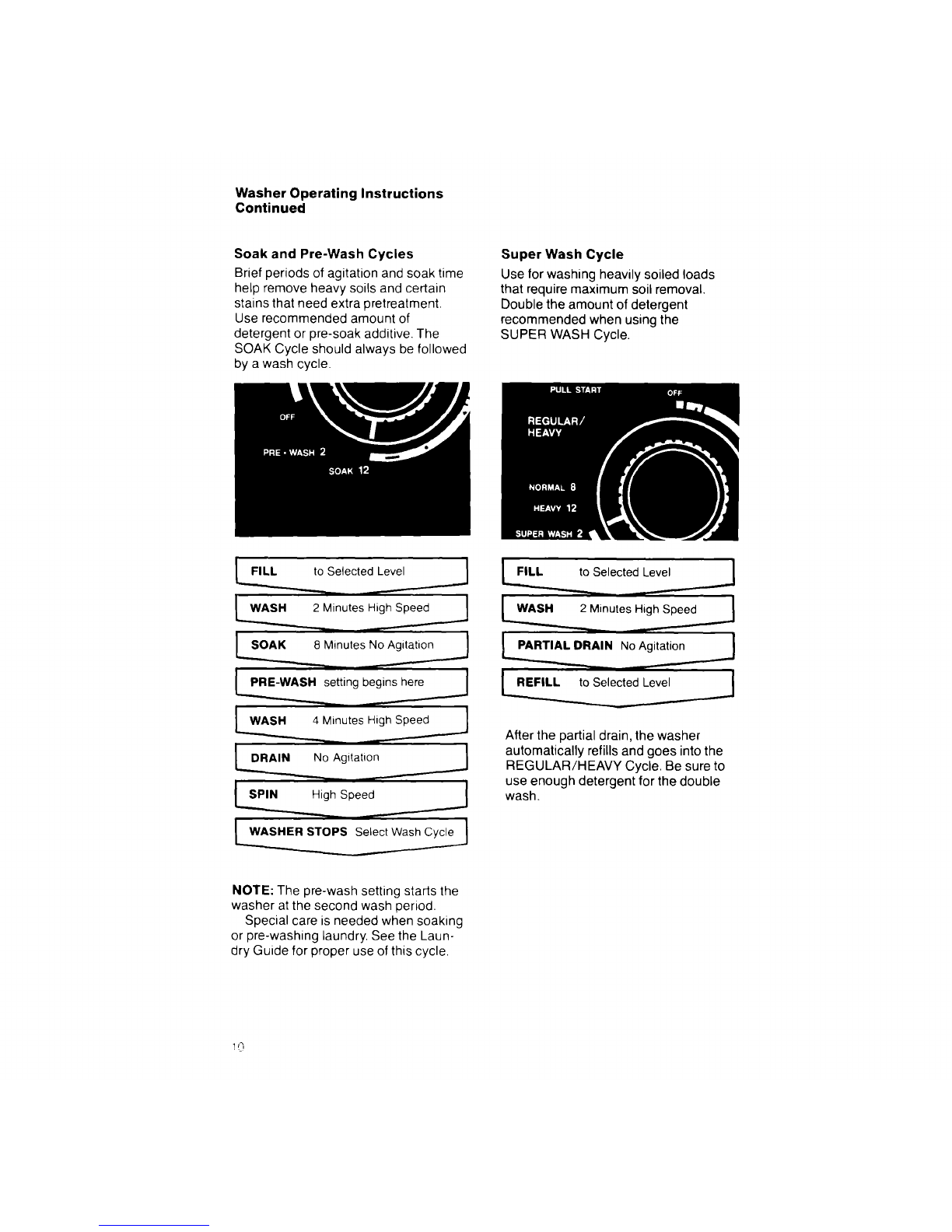

Soak and Pre-Wash Cycles
Brief periods of agitation and soak time
help remove heavy soils and certain
stains that need extra pretreatment.
Use recommended amount of
detergent or pre-soak additive. The
SOAK Cycle should always be followed
by a wash cycle.
Super Wash Cycle
Use for washing heavily soiled loads
that require maximum soil removal.
Double the amount of detergent
recommended when using the
SUPER WASH Cycle.
lected__i__._
_nutes HighSpeed .._
nutes High Speed .._.J
_S pee_,...,._l
[WASHER STOPS Select Wash Cycle )
FILLL_.L _Selected Level__]
wAsL_._.._Min ut es High Spee._
[REFILL to Selected Level ]
After the partial drain, the washer
automatically refills and goes into the
REGULAR/HEAVY Cycle, Be sure to
use enough detergent for the double
wash.
NOTE: The pre-wash setting starts the
washer at the second wash period.
Special care is needed when soaking
or pre-washing laundry, See the Laun-
dry Guide for proper use of this cycle.
!0

OtherOperatingInstructions
Rinseandspin
When using extra detergent for heavily
soiled clothes, or washing special-care
items, you may want an extra rinse
and spin.
1. Push Cycle Control Knob in.
2. Turn clockwise to one of the dots on
the dial, as illustrated.
3. Pull Cycle Control Knob out. The
washer will fill to selected level, agi-
tate 2 minutes, drain and spin.
Drainandspin
A drain and spin may help shorten
drying times for some heavy fabrics or
special-care items by removing excess
water.
1. Push Cycle Control Knob in.
2. Turn clockwise to any bar just before
an OFF area on the dial, as illustrated.
3. Pull Cycle Control Knob out. The
washer will drain and spin.
SoakCycle
For best results, use warm water for
soaking stained laundry Hot water can
set stains.
1. Use recommended amount of
pre-soak product or detergent.
2. Push Cycle Control Knob in.
3. Turn clockwise to point to the
number next to SOAK.
4. Pull the Cycle Control Knob out.
The washer will start.
5. When the cycle is over, add
detergent for the next selected
wash cycle. The SOAK Cycle should
always be followed by a wash cycle.
NOTE: See the Laundry Guide for
additional soaking information.
11

Other Operating Instructions
Continued

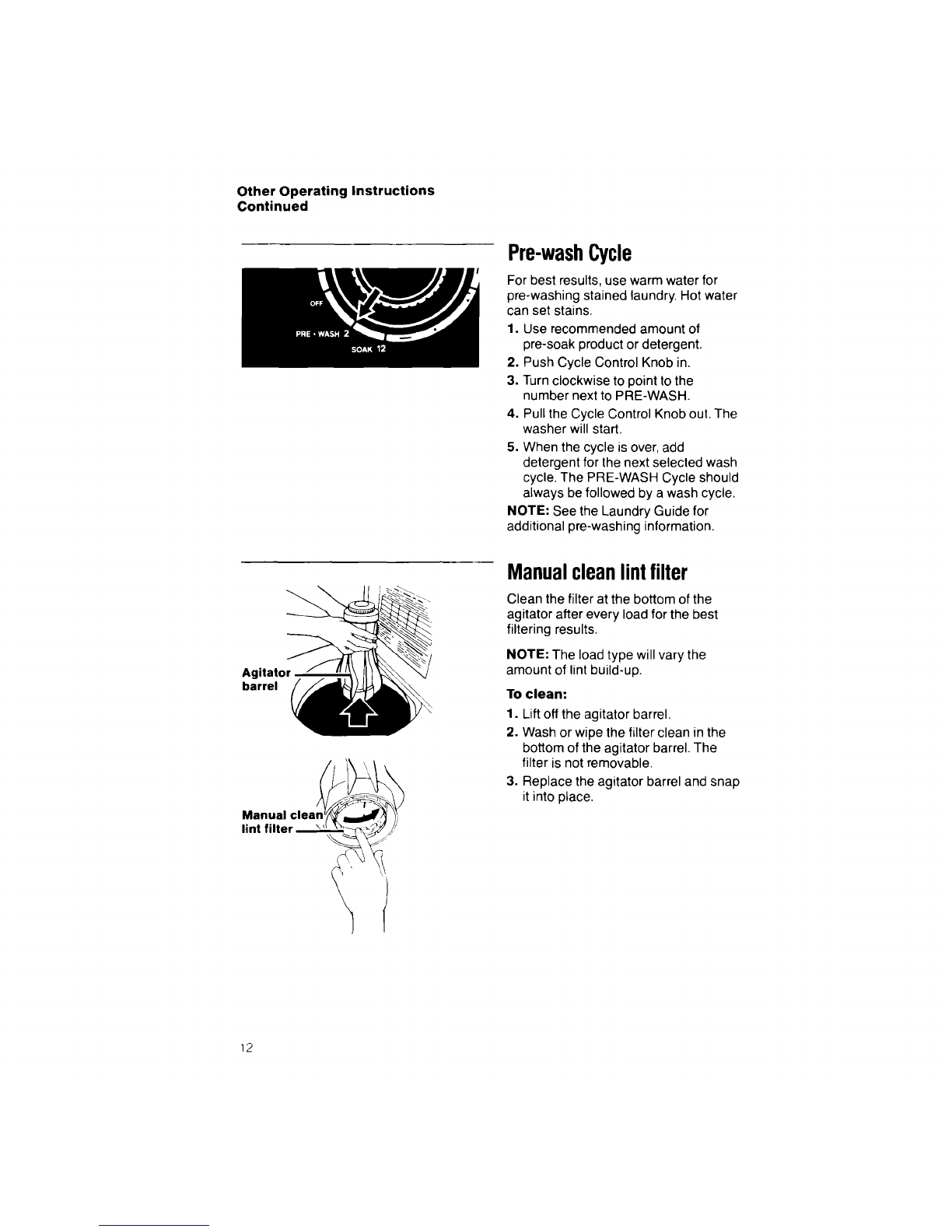

Pre-washCycle
For best results, use warm water for
preowashing stained laundry. Hot water
can set stains.
1. Use recommended amount of
pre-soak product or detergent.
2. Push Cycle Control Knob in.
3. Turn clockwise to point to the
number next to PRE-WASH.
4. Pull the Cycle Control Knob out. The
washer will start.
5. When the cycle is over, add
detergent for the next selected wash
cycle. The PRE-WASH Cycle should
always be followed by a wash cycle.
NOTE: See the Laundry Guide for
additional pre-washing information.
Agitatc
barrel
Manual clea_
lint filter ___
Manualcleanlintfilter
Clean the filter at the bottom of the
agitator after every load for the best
filtering results.
NOTE: The load type will vary the
amount of lint build-up.
To clean:
1. Lift off the agitator barrel.
2. Wash or wipe the filter clean in the
bottom of the agitator barrel. The
filter is not removable.
3. Replace the agitator barrel and snap
it into place.
12

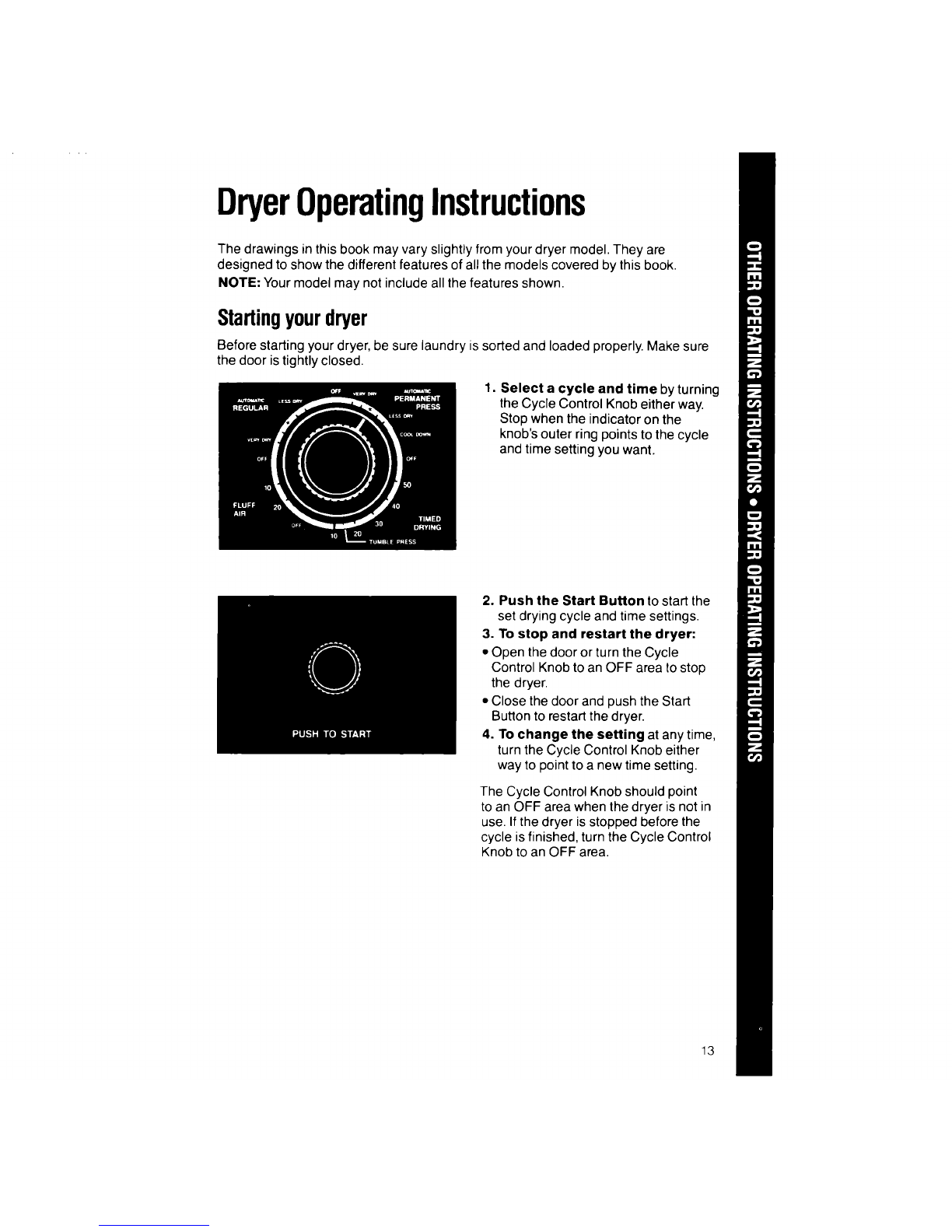

DryerOperatingInstructions
The drawings inthis book may vary slightly from your dryer model. They are
designed to show the different features of all the models covered by this book.
NOTE: Your model may not include all the features shown.
Startingyourdryer
Before starting your dryer, be sure laundry is sorted and loaded properly. Make sure
the door is tightly closed.
1. Select a cycle and time by turning
the Cycle Control Knob either way.
Stop when the indicator on the
knob's outer ring points to the cycle
and time setting you want.
2. Push the Start Button tostart the
set drying cycle and time settings.
3. To stop and restart the dryer:
•Open the door or turn the Cycle
Control Knob to an OFF area to stop
the dryer.
• Close the door and push the Start
Button to restart the dryer.
4. To change the setting at any time,
turn the Cycle Control Knob either
way to point to a new time setting.
The Cycle Control Knob should point
to an OFF area when the dryer is not in
use. Ifthe dryer is stopped before the
cycle is finished, turn the Cycle Control
Knob to an OFF area.
13

Dryer Operating Instructions
Continued

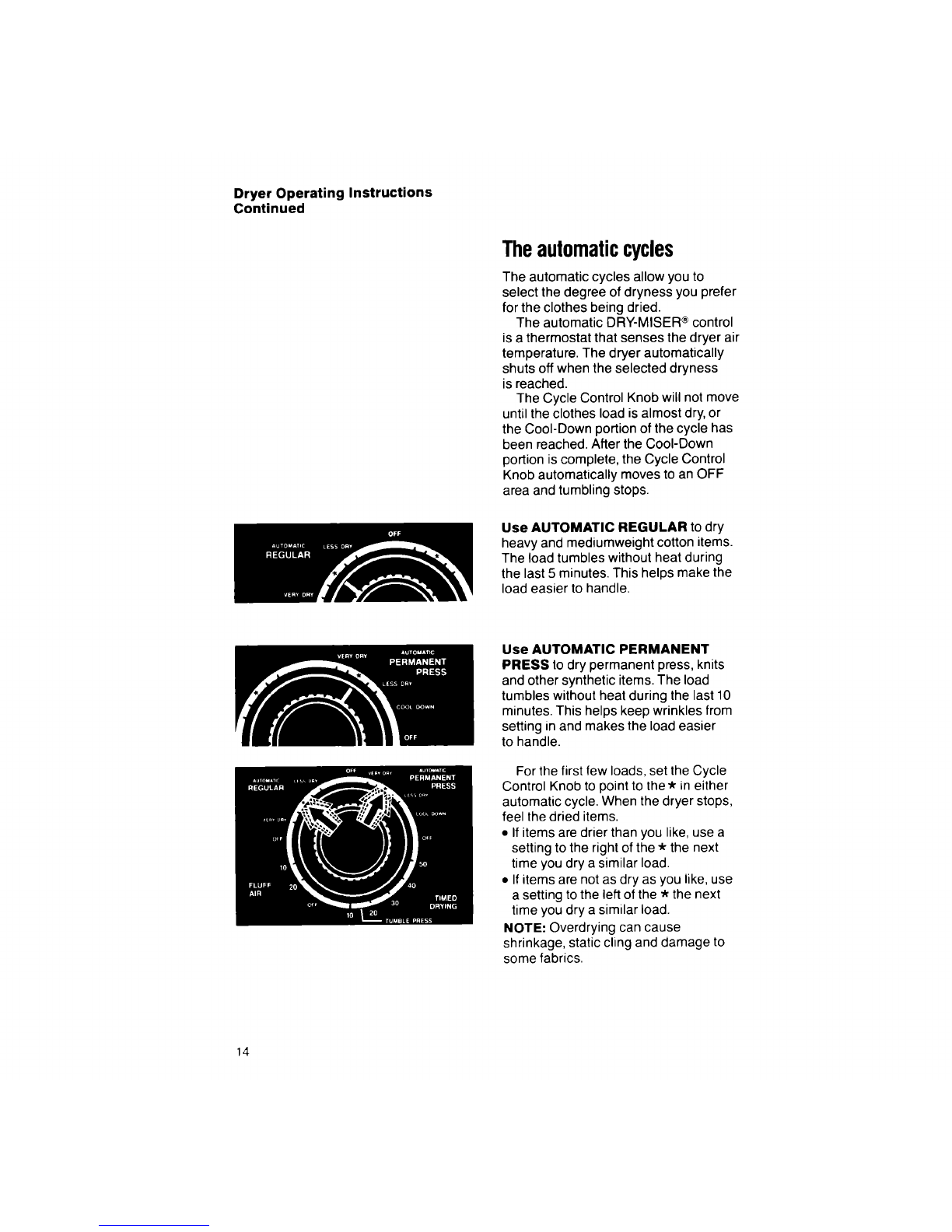

Theautomaticcycles
The automatic cycles allow you to
select the degree of dryness you prefer
for the clothes being dried.
The automatic DRY-MISER ®control
is athermostat that senses the dryer air
temperature. The dryer automatically
shuts off when the selected dryness
is reached.
The Cycle Control Knob will not move
until the clothes load is almost dry, or
the Cool-Down portion of the cycle has
been reached. After the Cool-Down
portion is complete, the Cycle Control
Knob automatically moves to an OFF
area and tumbling stops.
Use AUTOMATIC REGULAR to dry
heavy and mediumweight cotton items.
The load tumbles without heat during
the last 5 minutes. This helps make the
load easier to handle.
Use AUTOMATIC PERMANENT
PRESS todry permanent press, knits
and other synthetic items. The load
tumbles without heat during the last10
minutes. This helps keep wrinkles from
setting in and makes the load easier
to handle.
For the first few loads, set the Cycle
Control Knob to point to the* in either
automatic cycle. When the dryer stops,
feel the dried items.
•Ifitems are drier than you like, use a
setting to the right of the *the next
time you dry a similar load.
• Ifitems are not as dry as you like, use
a setting to the left of the *the next
time you dry a similar load.
NOTE: Overdrying can cause
shrinkage, static cling and damage to
some fabrics.
14

TIMEDDRYINGcycle
Use the TIMED DRYING Cycle for any
load you want to dry by time.
•Turn the Cycle Control Knob to the
number of minutes you want.
• The last 5 minutes of this cycle are
without heat. This helps make the
load easier to handle.
UsingTUMBLEPRESS
The TUMBLE PRESS setting removes
wrinkles from clothing that has been
packed in a suitcase or closet, and from
items not removed from the dryer at the
end of a cycle.
The load will tumble in heated air for
10 minutes. The heat shuts off and the
dryer continues to tumble for 5 minutes.
For best results, put only a few items
at a time in this cycle. As soon as the
dryer stops, put items on hangers or
fold them.
FLUFFAIRcycle
Fire Hazard
Do not dry plastic or rubber items
with heat. Use FLUFF AIR setting,
or line dry. Failure to do so could
result in fire or damaged items.
The dryer does not heat when the Cycle
Control Knob is set in FLUFF AIR. This
cycle can be used to fluff or air dry bed-
ding, plastic tablecloths, foam rubber
pillows, stuffed toys, sneakers, etc.
1. Turn the Cycle Control Knob to the
number of minutes you want in
FLUFF AIR.
2. Push the Start Button.
End-of-cyclesignal
The dryer sounds a signal to let you
know when the cycle is finished. The
signal cannot be turned off and is not
adjustable.
The signal is helpful when you are
drying permanent press, synthetic and
other items that should be taken out as
soon as the dryer stops.
GentleHeatsystem
The dryer automatically reduces the
heat during the last few minutes of each
drying cycle, before cool-down. This
helps prevent overdrying.
15

Dryer Operating Instructions
Continued
Selectinga cycle
TYPE OF LOAD
Cottons and linens
EXTRA HEAVY - Bedspreads, mattress pads, quilts
HEAVYWEIGHT - Towels, jeans, corduroys, work clothes
MEDIUMWEIGHT- Sheets, pillowcases, cotton, underwear, diapers
LIGHTWEIGHT - Batistes, organdies, lingerie
SUGGESTED
CYCLE
AUTOMATIC REGULAR
Permanent press, synthetics and blends AUTOMATIC
PERMANENT PRESS
HEAVYWEIGHT - Work clothes, jackets, raincoats
MEDIUMWEIGHT - Shirts, play clothes, sheets, slacks
LIGHTWEIGHT - Lingerie, blouses, dresses
Knits AUTOMATIC
PERMANENT PRESS
HEAVYWEIGHT - Cottons, rayons, blends, T-shirts, slacks, shirts
LIGHTWEIGHT - Synthetic (polyester, acrylic, etc.) and blends,
lingerie, blouses, dresses
Delicate fabrics AUTOMATIC
PERMANENT PRESS
Sheer curtains (2 or 3 panels), gauze, lace, etc.
Fire Hazard
Drying rubber, plastic and other heat-sensitive
materials with heat can damage them or be a
FIRE HAZARD.
Rubber, plastic, heat-sensitive fabrics
FOAM RUBBER -Pillows, bras, stuffed toys
PLASTIC - Shower curtains, tablecloths
RUBBER-BACKED RUGS
OLEFIN, POLYPROPYLENE, SHEER NYLON
FLUFF AIR
20 minutes
20 minutes
20 minutes
15-20 minutes
LintRemoval Clean the lint screen before
each load.
Pull straight
out,
16
Squeeze bod_
pull cover off.
Fire Hazard
Do not run the dryer with the lint
screen loose, damaged, blocked
or missing. Doing so can cause
overheating, damage fabrics and
be a fire hazard.
The lint screen is located inside the
dryer drum, on the back wall. To clean:
1. Use the finger holes to pull the lint
screen straight out.
2. Lightly squeeze the body, as shown,
while pulling the cover off.

Thermostats
Exhaust duct outlet
Heater box
l;!!!:l
Heat element terminals
Electric dryer
Thermostats
Heater box
Exhaust duct outlet
Gas dryer
3. ROLL lint off the screen with your
fingers. Do not rinse or wash the
screen.
4. Replace the cover on the body of the
lint screen.
5. Before replacing the lint screen, re-
move any lint from the wire mesh on
the back wall (behind the lint screen).
6. Push the lint screen straight back
until it snaps into place.
Clean lint from inside the dryer.
Lint can gather inside the dryer and
create a FIRE HAZARD. This lint
should be removed at least every
2 to 3 years, or more often,
depending on dryer usage.
Electrical Shock and
Personal Injury Hazard
•Unplug the power supply cord
or turn off the electrical power.
•Do not put hands inside the
cabinet.
•Make sure the dryer is cool.
* More than one person is
required to lift, tilt or move the
washer/dryer because of its
weight and size.
Failure to do so could result in
electrical shock, injury or
damage,
Cleaning should be done only by a
qualified person.
1. Unplug unit from electrical supply or
turn off electrical power.
2. Remove back panel from dryer.
(See Installation Instructions.)
3. Avoid touching wires and thermostats.
4. Remove lint from boxed-in area with
a soft brush or vacuum cleaner.
5. Replace back panel, reconnect and
level the Thin Twin._,_
17

IfYouNeedServiceOrAssistance
Wesuggestyoufollow
thesesteps:
1. Before calling for assistance...
Performance problems often result from
little things you can find and fix yourself
without tools of any kind.
If your washer does not fill:
•Is the power supply cord plugged into
a live circuit with the proper voltage?
•Are both water faucets open?
• Have you checked your home's main
fuses or circuit breaker box?
• Are the water supply hoses kinked?
• Is the Cycle Control Knob set and
pulled out?
If your washer does not spin:
• Is the lid closed?
• Is the power supply cord plugged into
a live circuit with the proper voltage?
• Have you checked your home's main
fuses or circuit breaker box?
If your washer drains at the
wrong time:
•The drain hose should be at least 28
inches above the floor and secured.
• The drain hose should not fit tightly in
the drain pipe.
• Make sure that the Cycle Control
Knob is pointing to a number in the
cycle.
Make sure the drain hose is higher
than the water level in the washer.
If it isn't:
• The washer may seem to be draining
during wash and rinse cycles.
• Water can siphon out.
(See Installation Instructions )
If your washer stops during
a cycle:
• Remember, the washer pauses briefly
at different times in each cycle. These
pauses are normal.
If your dryer does not run:
•Is the power supply plugged into a live
circuit with the proper voltage?
•Is the door closed tightly?
• Did you push the START Button?
• Have you checked your home's main
fuses or circuit breaker box?
If your dryer does not heat:
• The FLUFF AIR setting is without
heat.
• The last 5 minutes of the heated cycle
settings are without heat.
• An e_ectric dryer circuit uses 2 break-
ers or 2 fuses. If one breaker is tripped
or one fuse is blown, the dryer may
run, but not heat.
If drying time seems too long:
• Is the gas turned on? If not, turn the
Control Knob to OFE Turn on gas.
Wait 5 minutes. Reset controls and
start.
• Is the lint screen clean? See pages
16-17 of this book for cleaning
instructions.
• Is exhaust system clean? Cleaning
should be done by aqualified person.
2. If you need assistance*...
Call Whirlpool C00L-LINE"
service assistance telephone
number. Dial free from anywhere
in the U.S.:1-800-253-1301
and talk with one of our trained consul-
tants. The consultant can instruct you in
how to obtain satisfactory operation
from your appliance or,if service is nec-
essary, recommend a qualified service
company in your area.
Ifyou prefer, write to:
Mr. Donald Skinner
Director of Consumer Relations
Whirlpool Corporation
2000 M-63
Benton Harbor, M149022
Please include a daytime phone
number in your correspondence.
18

3. If you need service*...
h.. OiDO/Whirlpool has a
_, nationwide network
1of authorized
._ SERVICEWhirlpooPMservice
companies.
Whirlpool service technicians are trained
tofulfillthe productwarranty and provide
after-warranty service, anywhere in the
United States. Tolocate the authorized
Whirlpool service company in your area,
call our COOL-LINE ®service assistance
telephone number (see Step 2) or look in
your telephone directory Yellow Pages
under:
APPLIANCES - HOUSEHOLD - ELECTRICAL APPLIANCES -
MAJOR - SERVICE & REPAIR MAJOR - REPAIRING & PARTS
0R
WASHING MACHINES, DRYERS
& IRONERS - SERVICING
WHIRLPOOL APPLIANCES
AUTHORIZED WHIRLPOOL SERVICE
SERVICE COMPANIES
XYZ SERVICE CO
!23 MAPLE 999-9999
4. If you need FSP"
replacement parts*...
FSP is a registered trademark of
Whirlpool Corporation for quality parts.
Look for this symbol of qualitywhen-
ever you need areplacement part for
your Whirlpool appliance. FSP replace-
ment parts willfit right and work right,
because they are made to the same
exacting specifications used to build
every new Whirlpool appliance.
Tolocate FSP replacement parts
in your area, refer to Step 3 or call the
Whirlpool COOL-LINE service
assistance number in Step 2.
5. If you are not satisfied with
how the problem was solved*...
•Contact the Major Appliance
Consumer Action Panel (MACAP).
MACAP is a group of independent
consumer experts that voices con-
sumer views at the highest levels of
the major appliance industry.
• Contact MACAP only when the
dealer, authorized servicer or
Whirlpool have failed to resolve
your problem.
Major Appliance Consumer
Action Panel
20 North Wacker Drive
Chicago, IL 60606
• MACAP will in turn inform us of
your action.
*When requesting assistance, please
provide: model number, serial number,
date of purchase, and a complete
description of the problem. This infor-
mation is needed in order to better
respond to your request.
19

WhirlpoolThinTwinWarrantyTT002
LENGTH OF WARRANTY WHIRLPOOL WILL PAY FOR
FULL ONE-YEAR FSP_ replacement parts and repair labor to
WARRANTY correct defects in materials (including top and lid
From Date of Purchase rust) or workmanship. Service must be provided
by an authorized Whirlpool sMservice company.
LIMITED FIVE-YEAR
WARRANTY
From Date of Purchase
FSP replacement parts for any part of
gearcase assembly if defective in materials
or workmanship. The gearcase assembly
is shown below.
FSP replacement parts for any top and lid rust.
LIMITED TEN-YEAR FSP replacement of outer tub should it crack, or
WARRANTY fail to contain water, due to defective materials
From Date of Purchase or workmanship.
WHIRLPOOL WILL NOT PAY FOR
A. Service calls to:
1. Correct the installation of the washer/dryer.
2. Instruct you how to use the washer/dryer.
3. Replace house fuses or correct house wiring or plumbing.
4. Replace light bulbs.
B. Repairs when washer/dryer is used in other than normal, single-family
household use.
C. Pick up and delivery. This product is designed to be repaired in
the home.
D. Damage to washer/dryer caused by accident, misuse, fire, flood, acts of
God or use of products not approved by Whirlpool.
E. Any labor costs during the limited warranties.
WHIRLPOOL CORPORATION SHALL NOT BE LIABLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES. Some states do not allow the exclusion or limitation
of incidental or consequential damages so this limitation or exclusion may not
apply to you. This warranty gives you specific legal rights, and you may also have
other rights which vary from state to state.
Outside the United States, a different warranty may apply. For details, please
contact your franchised Whirlpool distributor or military exchange.
Ifyou need service, first see the "Service and Assistance" section of this book.
After checking "Service and Assistance," additional help can be found by calling
our COOL-LINE _ service assistance telephone number, 1-800-253-1301, from
anywhere in the U.S.
®Registered Trademark/
SM Service Mark of
Whirlpool Corporation
Part No. 3391356 Rev. A
©1990 Whirlpool Corporation
Gearcase assembly
covered by your
warranty
Printed in U.S.A.
