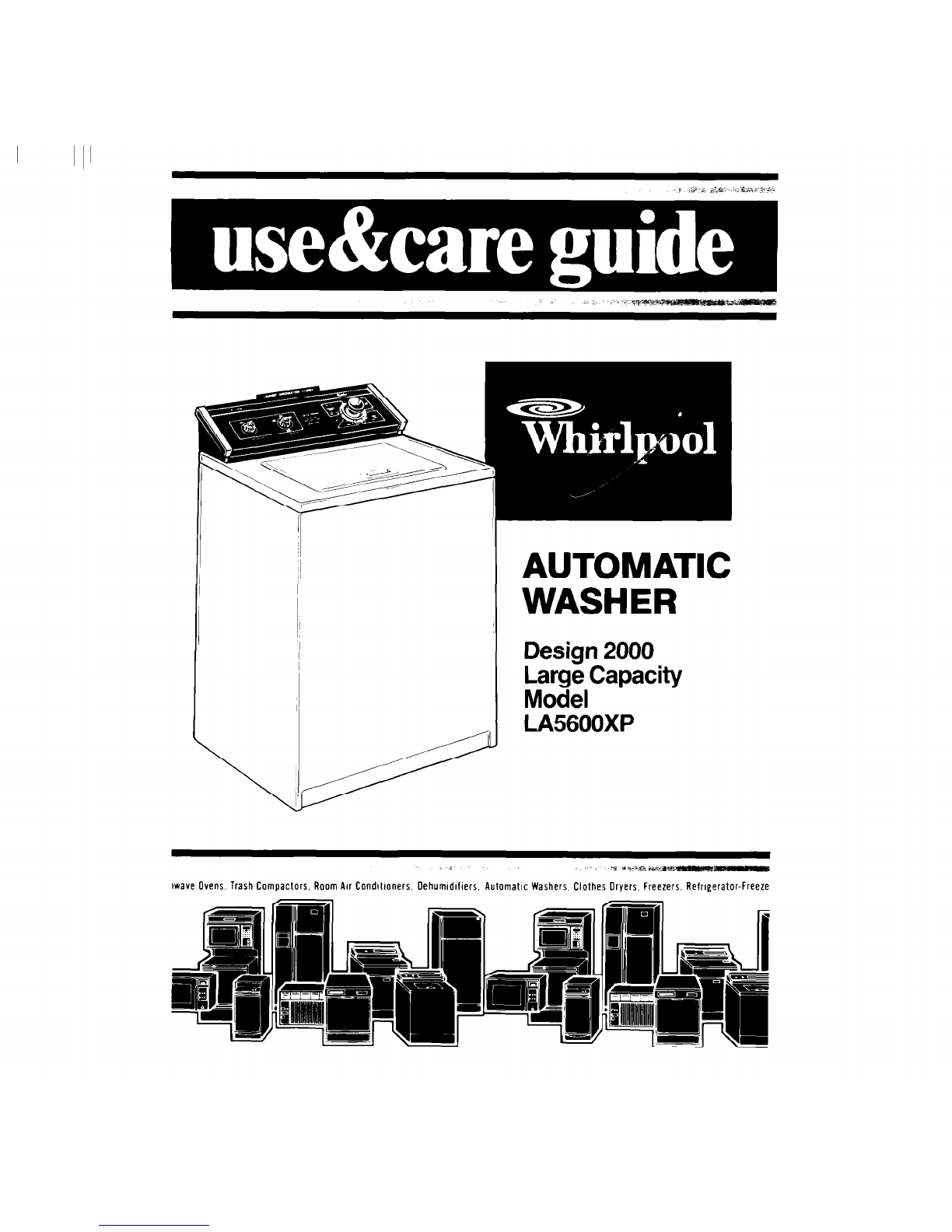

Whirlpool LA5600XP User manual

AUTOMATIC
WASHER
Design 2000
k;m&apacity
LA56OOXP
i *2 L 4 d i:--,s *k&Q
wave Ovens. Trash Compactors. Room Air Condltloners. Dehumldlflers. Automatic Washers. Clothes Dryers, Freezers. Retrqerator-Freeze

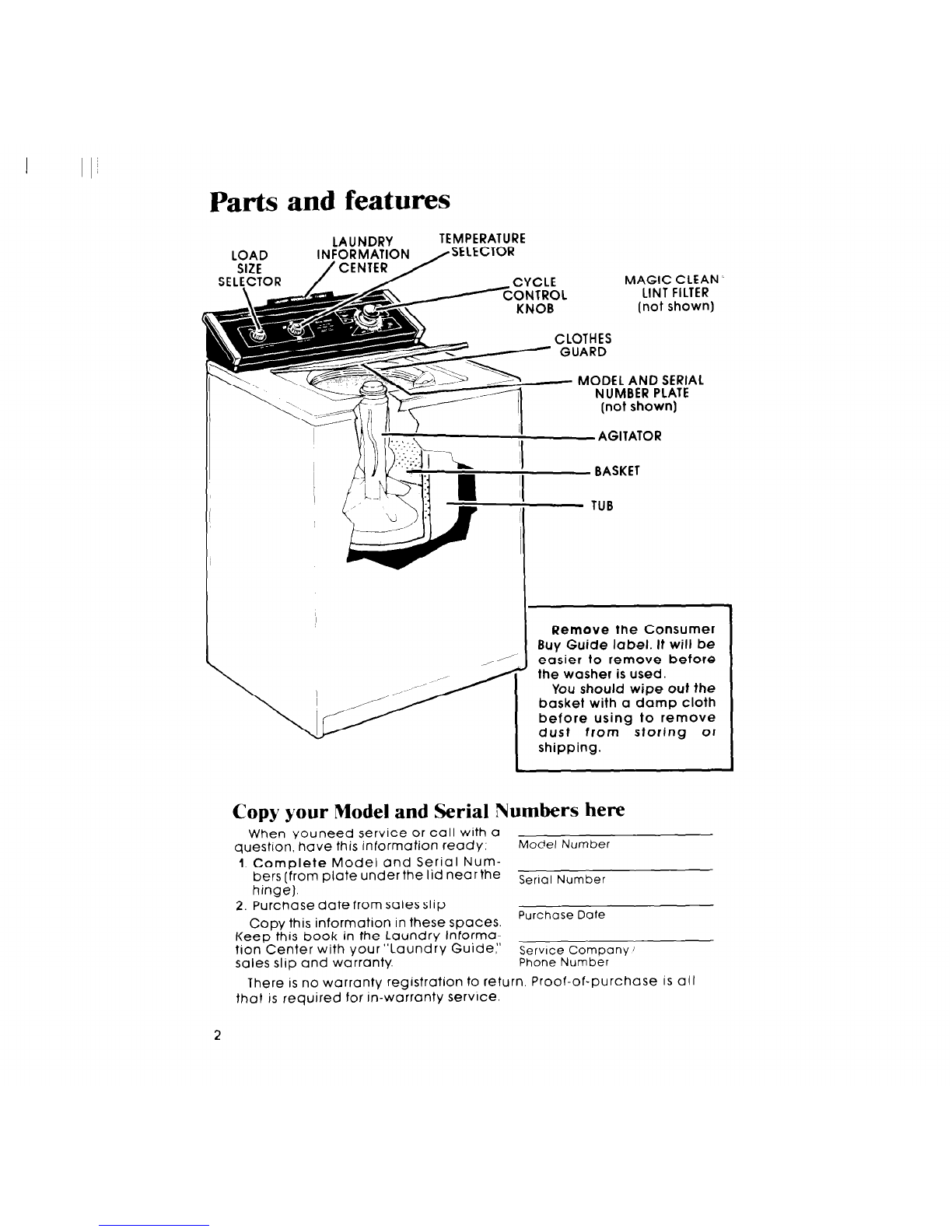

Parts and features
LAUNDRY TEMPERATURE
m;; I-A~~~-
SELECTOR MAGIC CLEAN
LINT FILTER
(not shown)
MODEL AND SERIAL
NUMBER PLATE
(not shown)
BASKET
TUB
Remove the Consumer
Buy Guide label. It will be
/. easier to remove before
I
before using to remove
dust from storing or
shipping.
Copy your Model and Serial Numbers here
When youneed service or call with a
question, have this information ready: Model Number
I. Complete Model and Serial Num-
bers (from plate under the lid near the Serral Number
hinge).
2. Purchase date from sales slip
Copy this information in these spaces. Purchose Dofe
Keep this book in the Laundry Informa-
tion Center with your”Laundry Guide:’
Serwce Company’
sales slip and warranty. Phone Number
There is no warranty registration to return. Proof-of-purchase is a11
that is required for in-warranty service.
2

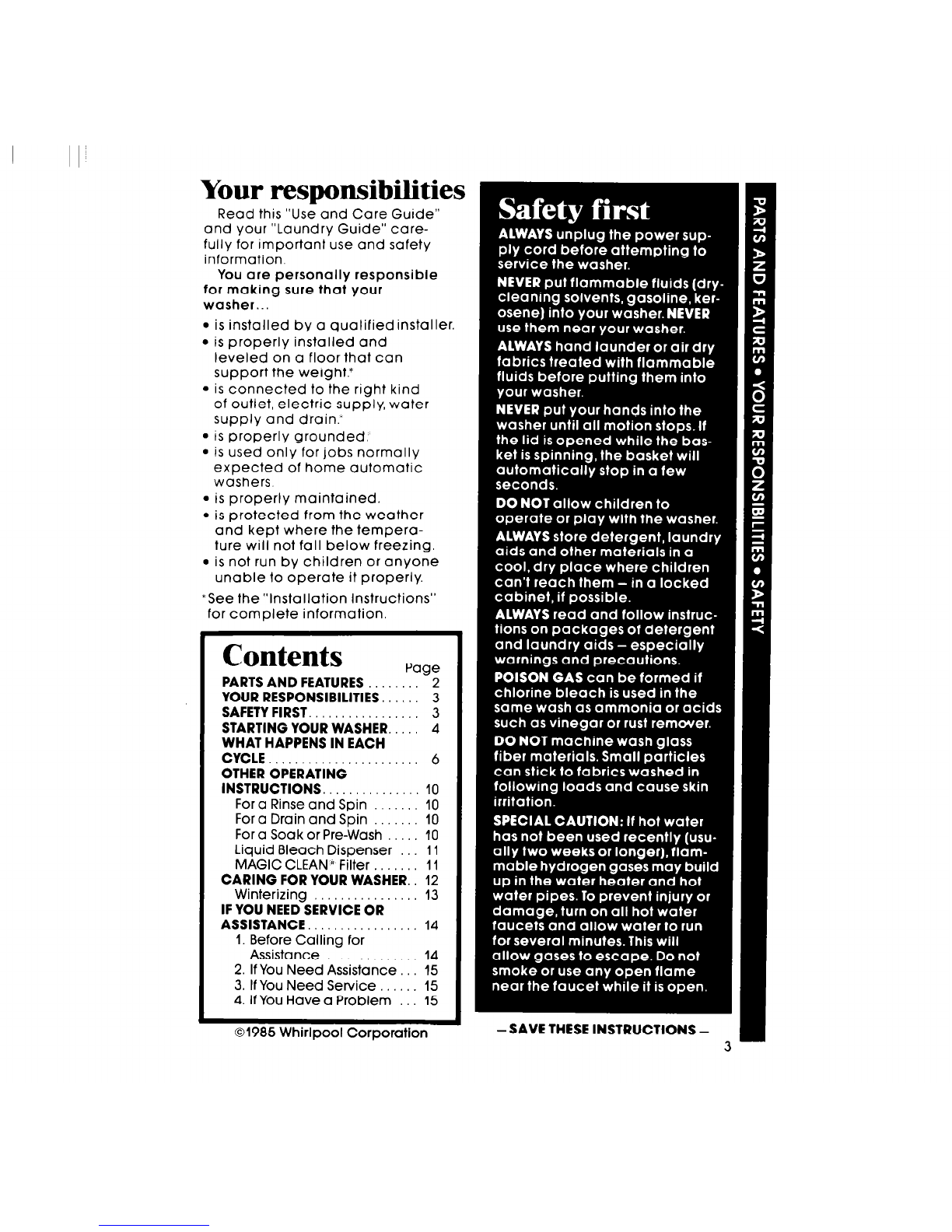

Your responsibilities
Read this “Use and Care Guide”
and your “Laundry Guide” care-
fully for important use and safety
information.
You are personally responsible
for making sure that your
washer...
l is installed by a qualifiedinstaller.
l is properly installed and
leveled on a floor that can
support the weight.*
l is connected to the right kind
of outlet, electric supply, water
supply and drain.-
. is properly grounded.
l is used only for jobs normally
expected of home automatic
washers.
l is properly maintained.
l is protected from the weather
and kept where the tempera-
ture will not fall below freezing.
l is not run by children or anyone
unable to operate it properly.
-See the “Installation Instructions”
for complete information.
Contents
Page
PARTS AND FEATURES 2
YOUR RESPONSIBILITIES. 3
SAFETY FIRST. 3
STARTING YOUR WASHER. 4
WHAT HAPPENS IN EACH
CYCLE. 6
OTHER OPERATING
INSTRUCTIONS.. 10
For a Rinse and Spin 10
For a Drain and Spin 10
For a Soak or Pre-Wash 10
Liquid Bleach Dispenser 11
MAGIC CLEAN RFilter 11
CARING FOR YOUR WASHER. 12
Winterizing 13
IF YOU NEED SERVICE OR
ASSISTANCE.. 14
1. Before Calling for
Assistance 14
2. If You Need Assistance. 15
3. IfYou Need Service 15
4. If You Have a Problem 15
01985 Whirlpool Corporation

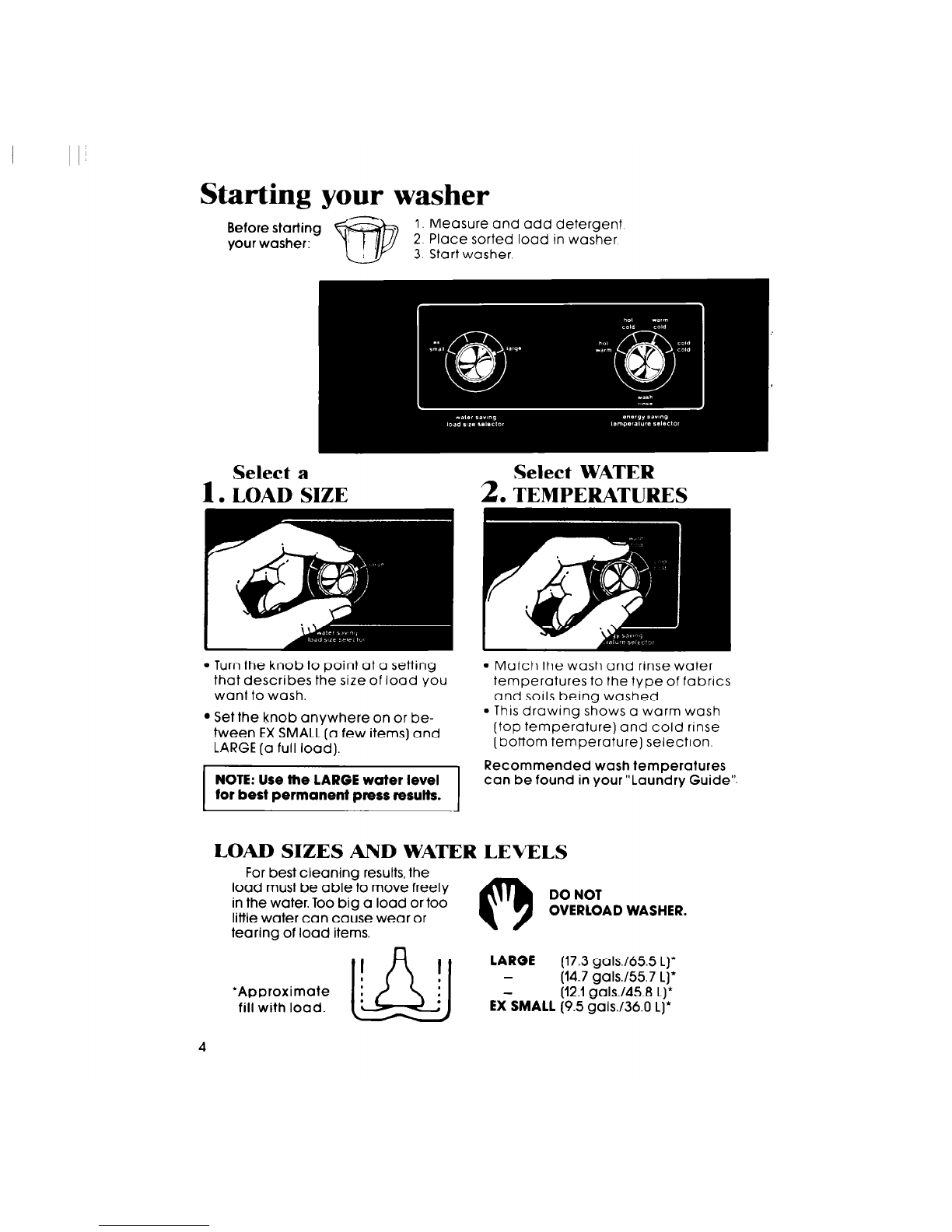

Starting your washer
Before starting
your washer: I. Measure and add detergent
2 Place sorted load in washer
3. Start washer
Select a Select WATER
1. LOAD SIZE
2. TEMPERATURES
l Turn the knob to point at a setting
that describes the size of load you
want to wash.
l Set the knob anywhere on or be-
tween EX SMALL (a few items) and
LARGE (a full load).
NOTE: Use the LARGE water level
for best permanent press results.
. Match the wash and rinse water
temperatures to the type of fabrics
and solIs being washed
l This drawing shows a warm wash
(top temperature) and cold rinse
[bottom temperature) selection.
Recommended wash temperatures
can be found in your”Laundry Guide”
LOAD SIZES AND WATER LEVELS
For best cleaning results, the
load must be able to move freely
in the water. Too big a load or too
little water can cause wear or
DO NOT
OVERLOAD WASHER.
tearing of load items.
‘Approximate
fill with load.
4
L&
I I
. .
LARGE (17.3 gals./655 L)’
(14.7 gals./557 L)’
(12.1gaW45.8 L)’
EiSMALL (9.5 gaW36.0 L)*

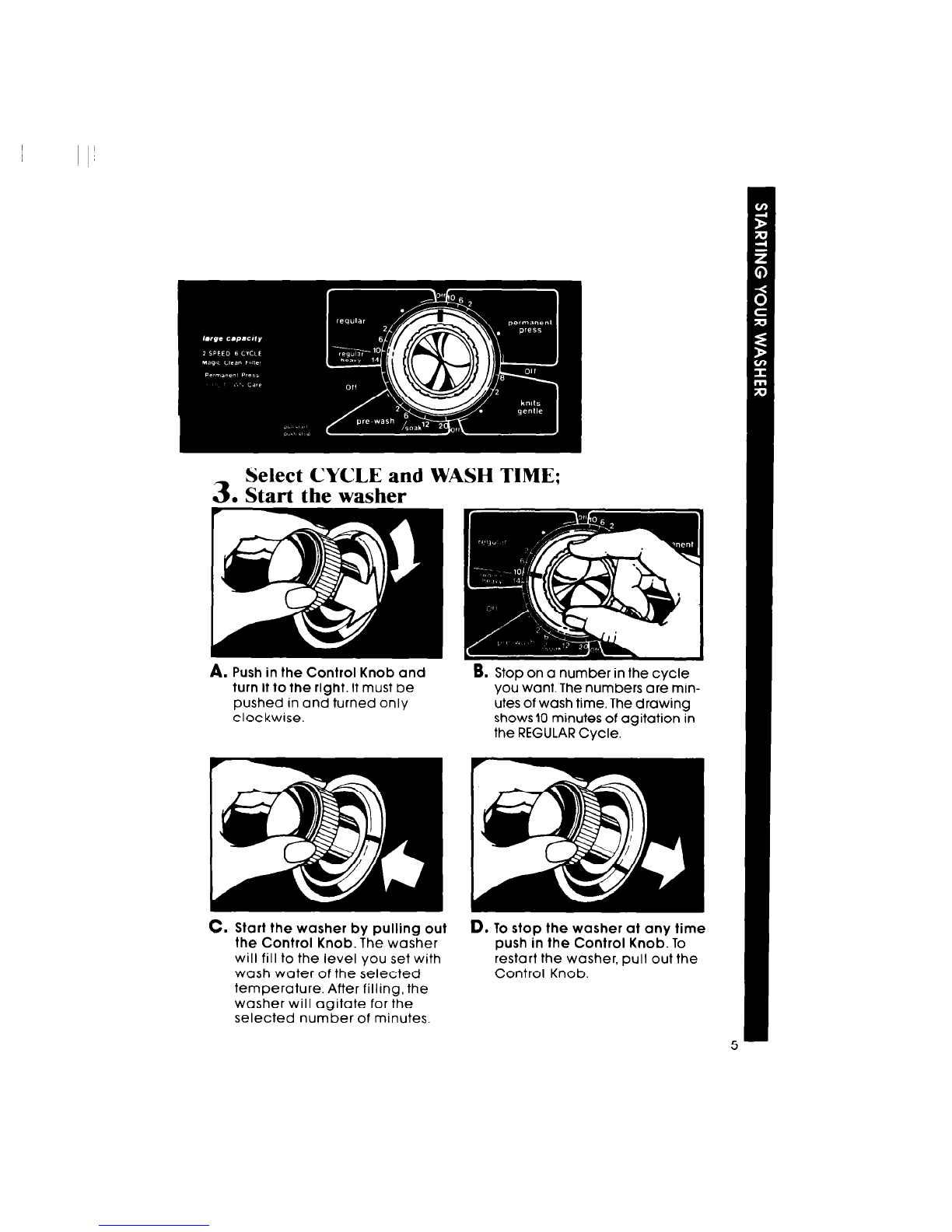

3. Start the washer
A. Push in the Control Knob and
turn it to the right. It must be
pushed in and turned only
clockwise.
6. Stop on a number in the cycle
you want. The numbers are min-
utes of wash time. The drawing
shows10 minutes of agitation in
the REGULAR Cycle.
C. Start the washer by pulling out
the Control Knob. The washer
will fill to the level you set with
wash water of the selected
temperature. After filling, the
washer will agitate for the
selected number of minutes.
D. To stop the washer at any time
push in the Control Knob. To
restart the washer, pull out the
Control Knob.

I
I
I’

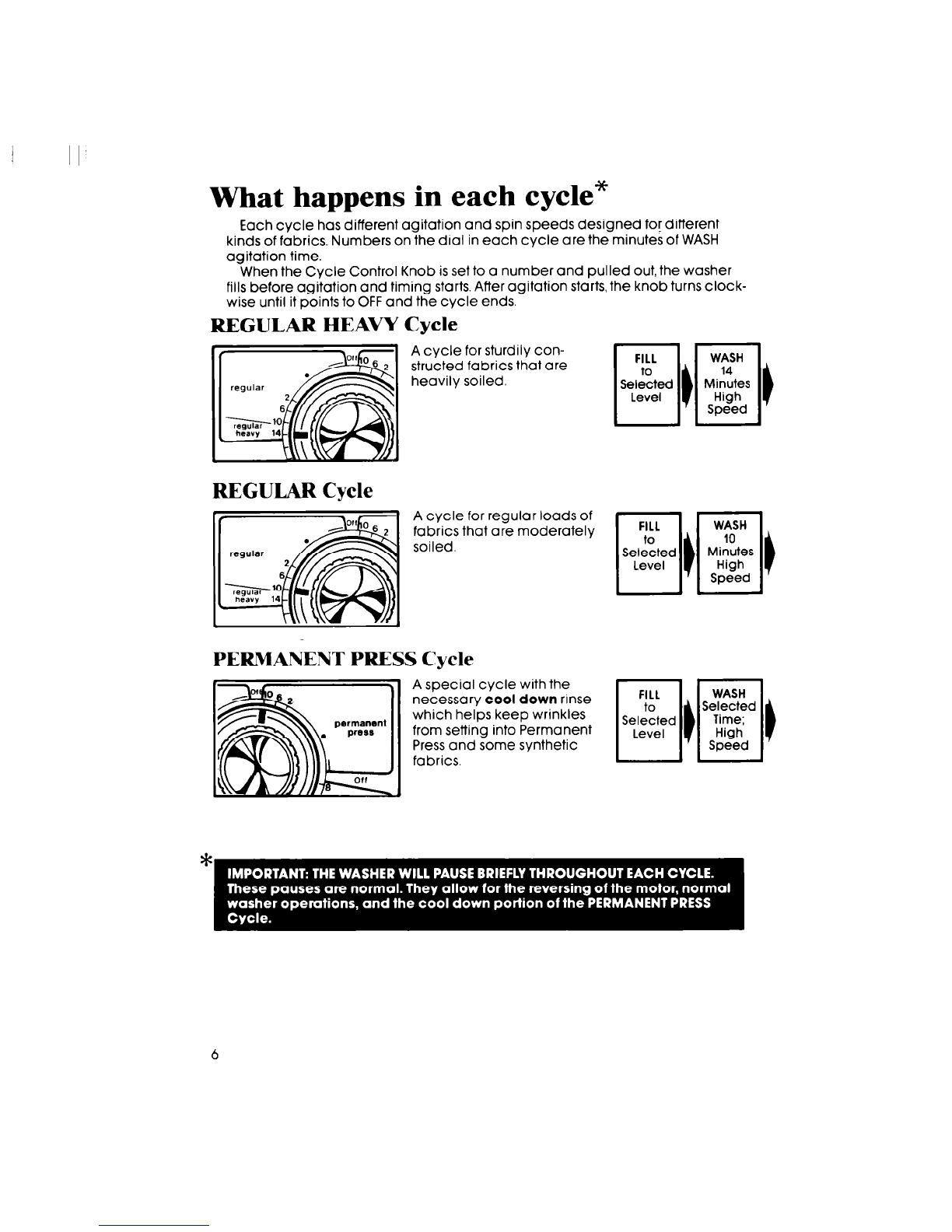

What happens in each cycle*
Each cycle has different agitation and spin speeds designed for different
kinds of fabrics, Numbers on the dral in each cycle are the minutes of WASH
agitation time.
When the Cycle Control Knob is set to a number and pulled out, the washer
fills before agitation and timing starts. After agitation starts, the knob turns clock-
wise until it points to OFF and the cycle ends.
REGULAR HEAVY Cycle
A cycle for sturdily con-
structed fabrics that are
heavily soiled.
REGULAR Cycle A cycle for regular loads of
fabrics that are moderately
PERMANENT PRESS Cycle
A special cycle with the
necessary cool down rinse
which helps keep wrinkles
from setting into Permanent
Press and some synthetic
fabrics.

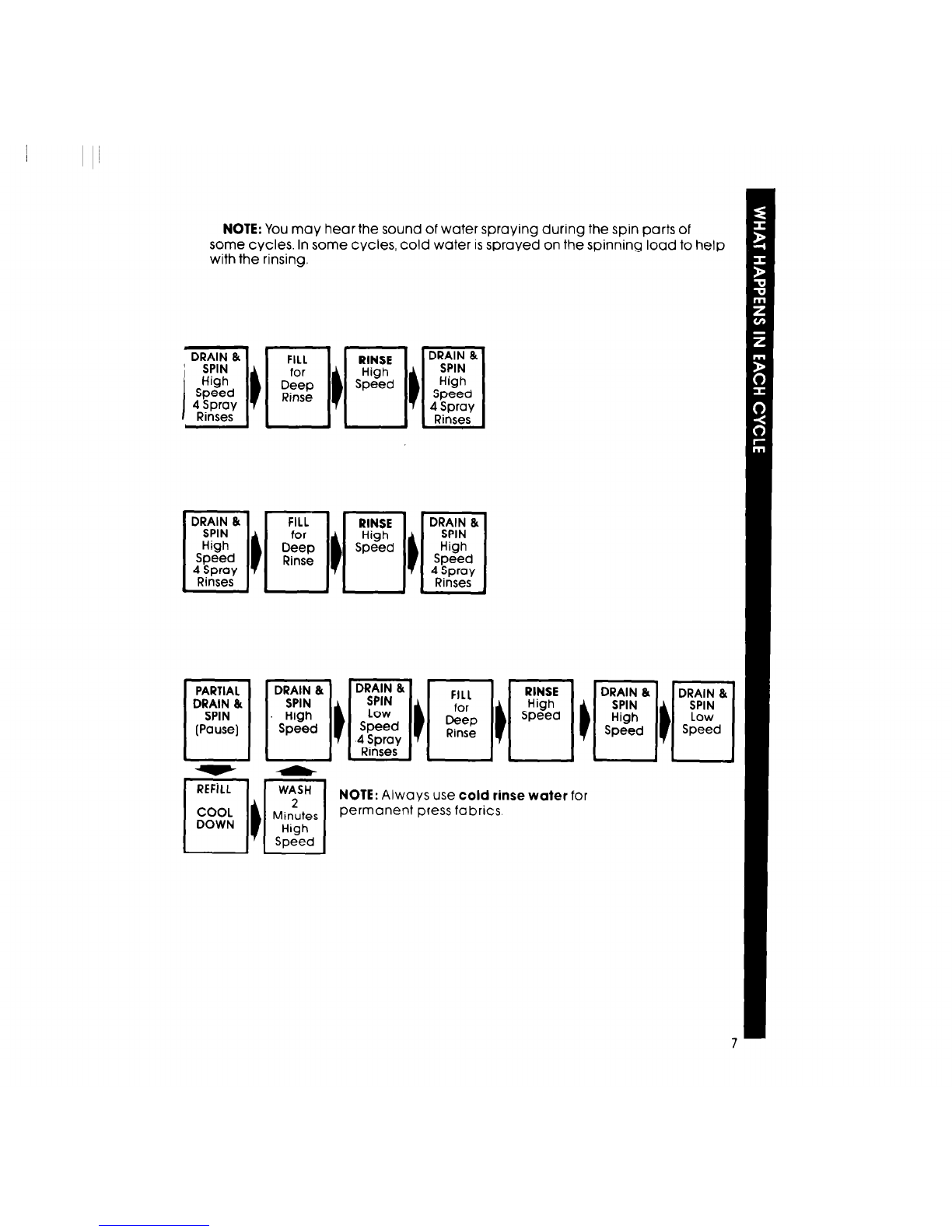

NOTE: You may hear the sound of water spraying during the spin parts of
some cvcles. In some cvcles. cold water is soraved on the spinning load to help
with the’rinsing.
,
NOTE: Always use cold rinse water for
permanent press fabrics.
1
I
DRAIN &
SPIN
High
Speed
DRAIN &
SPIN
Low
Speed

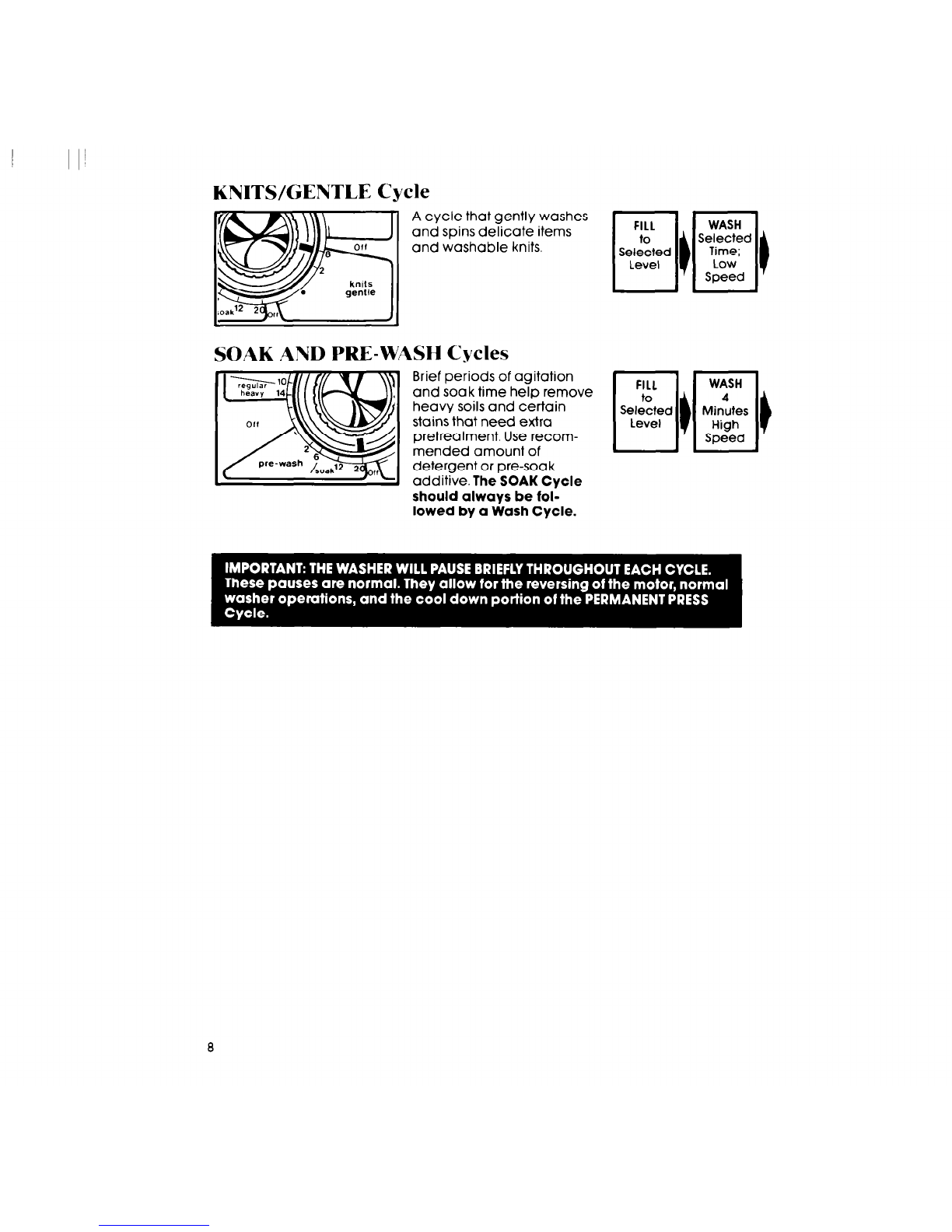

KNITS/GENTLE Cycle
A cycle that gently washes
and spins delicate items
and washable knits.

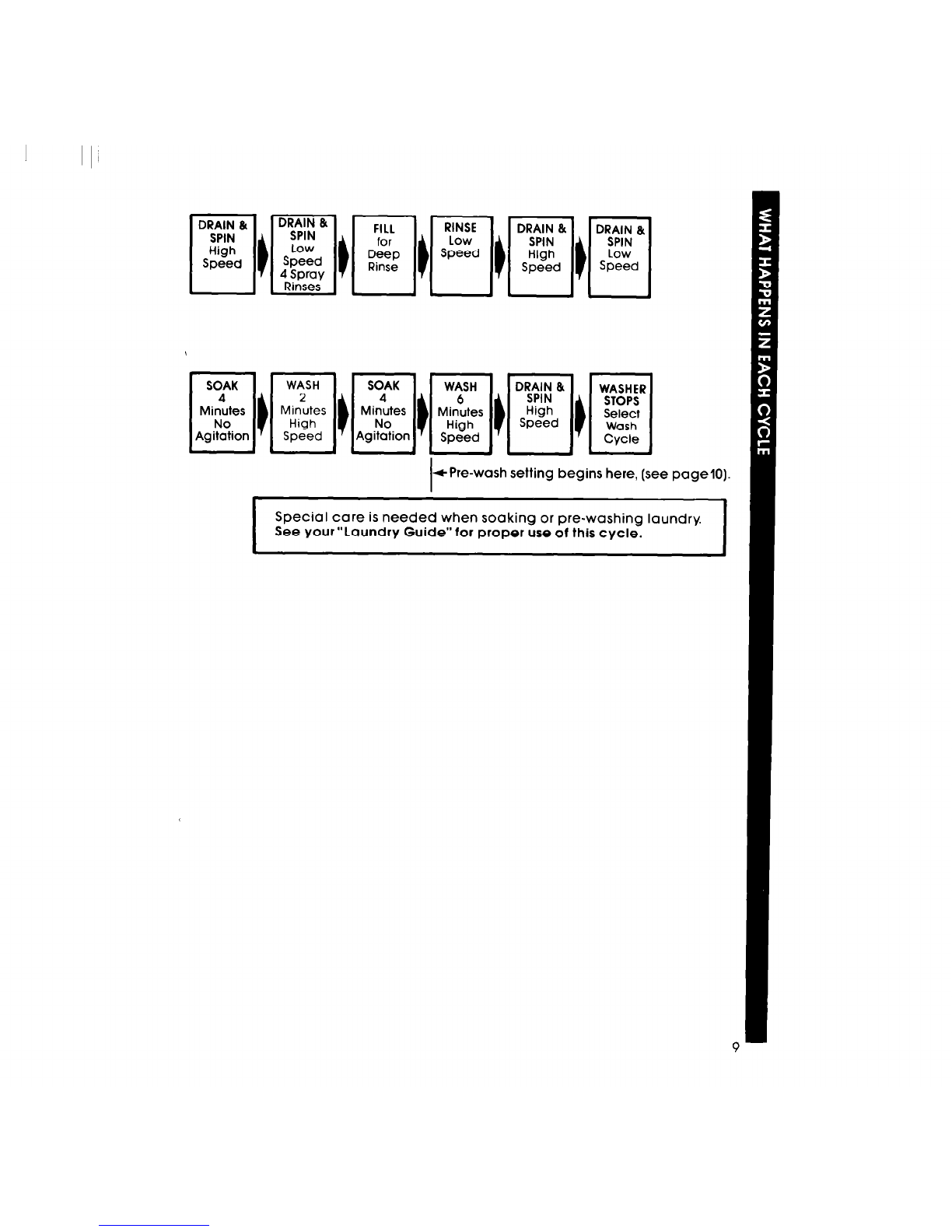

SOAK AND PRE-WASH Cycles
Brief periods of agitation
and soak time help remove
heavy soils and certain
stains that need extra
pretreatment. Use recom-
mended amount of
detergent or pre-soa k
additive. The SOAK Cycle
should always be fol-
lowed by a Wash Cycle.

--
SOAK WASH
DRAIN &
SPIN
Low
Speed
I
+Pre-wash setting begins here, (see pagelo).
I
Special care is needed when soaking or pre-washing laundry,
See your”Laundry Guide”for proper use of this cycle. I

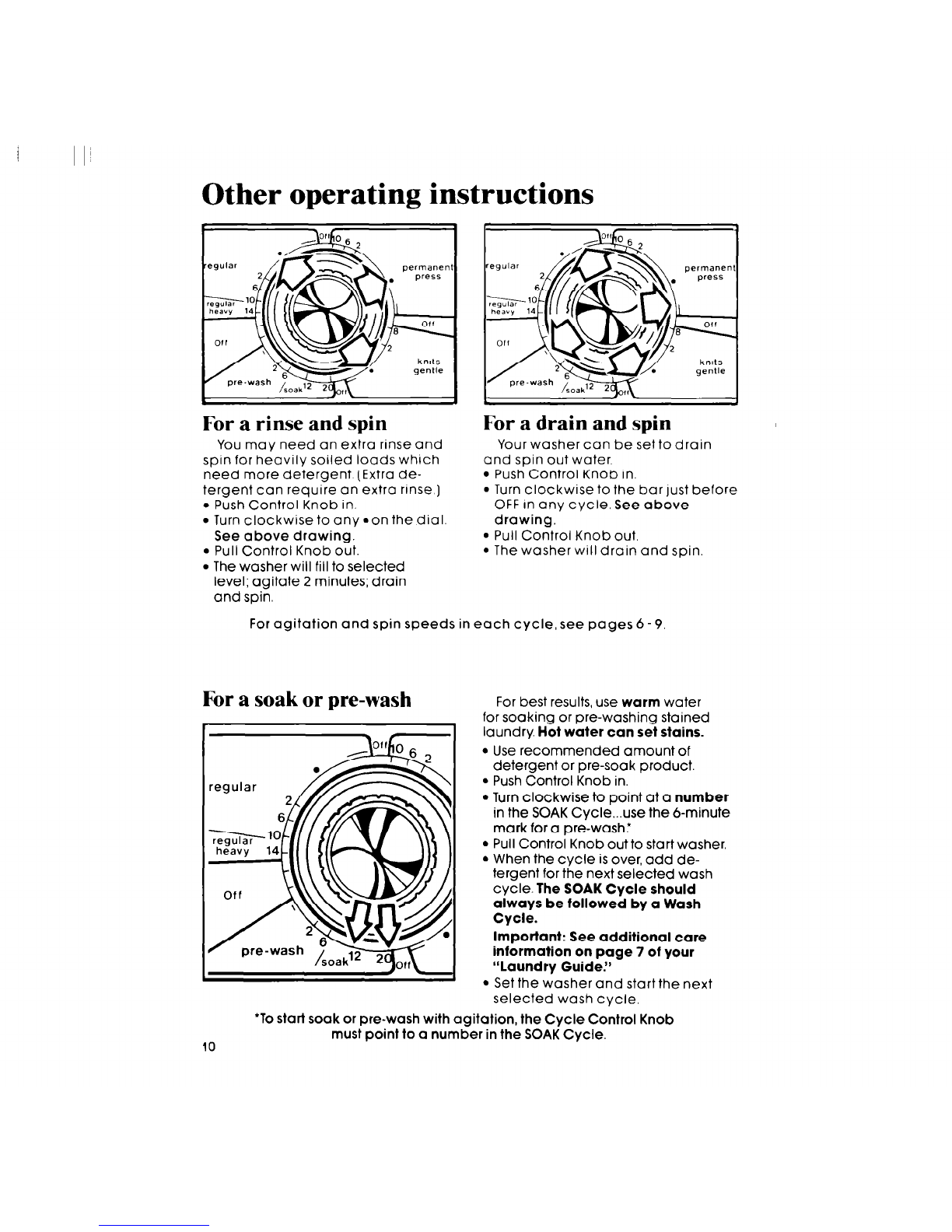

Other operating instructions
t
For a rinse and spin
You may need an extra rinse and
spin for heavily soiled loads which
need more detergent. (Extra de-
tergent can require an extra rinse ]
l Push Control Knob in.
l Turn clockwise to any -on the dial
See above drawing.
l Pull Control Knob out.
l The washer will fill to selected
level; agitate 2 minutes; drain
and spin.
For a drain and spin
Your washer can be set to drain
and spin out water.
l Push Control Knob in.
l Turn clockwise to the bar just before
OFF In any cycle. See above
drawing.
l Pull Control Knob out.
l The washer will drain and spin.
For agitation and spin speeds in each cycle, see pages 6 - 9
For a soak or pre-wash
10
For best results, use warm water
for soaking or pre-washing stained
laundry. Hot water can set stains.
l Use recommended amount of
detergent or pre-soak product
l Push Control Knob in.
l Turn clockwise to point at a number
in the SOAK Cycle...use the 6-minute
mark for a pre-wash.’
l Pull Control Knob out to start washer.
l When the cycle is over, add de-
tergent for the next selected wash
cycle. The SOAK Cycle should
always be followed by a Wash
Cycle.
Important: See additional care
information on page 7 of your
“Laundry Guide!’
l Set the washer and start the next
selected wash cycle.
‘To start soak or pre-wash with agitation, the Cycle Control Knob
must point to a number in the SOAK Cycle.

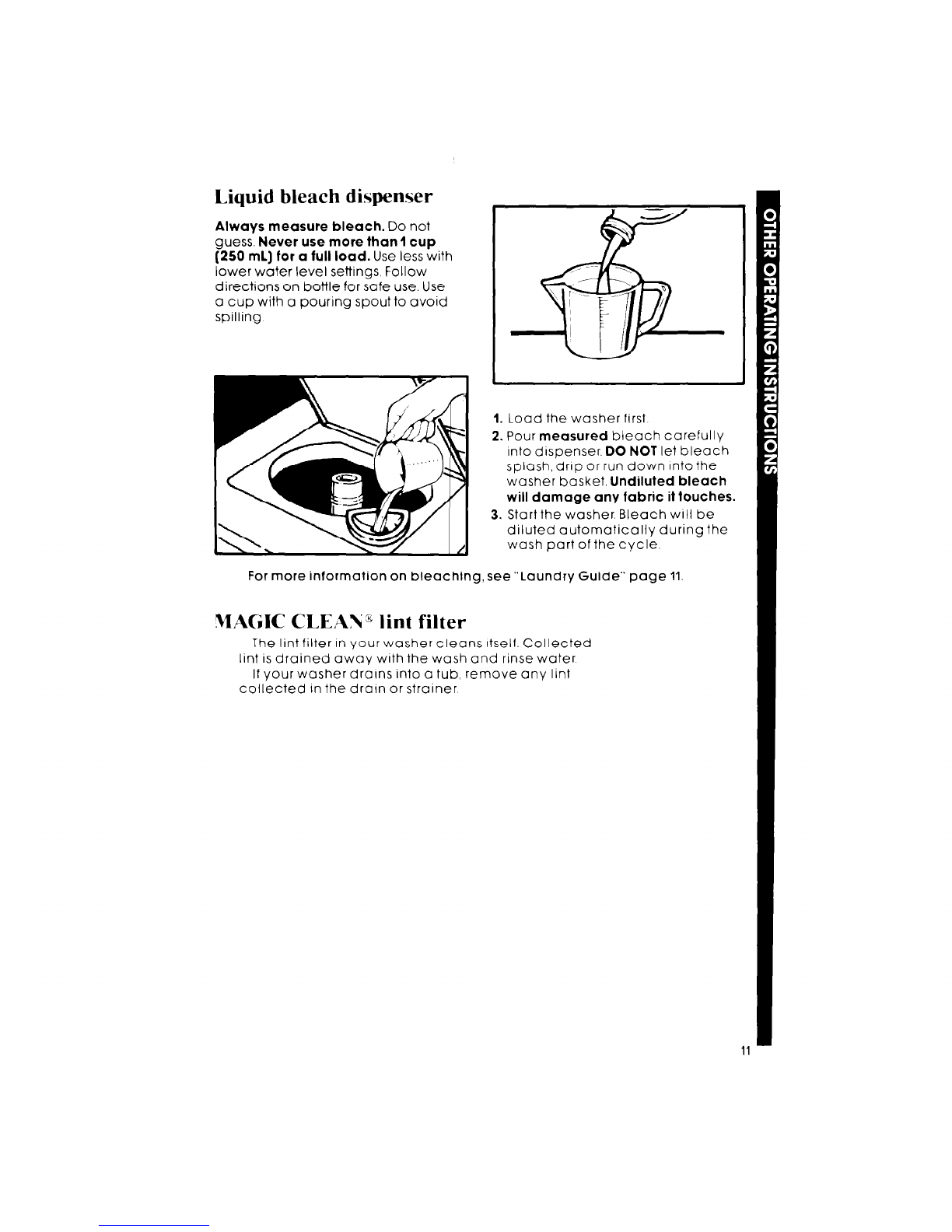

Liquid bleach dispenser
Always measure bleach. Do not
guess. Never use more than 1 cup
(250 mL) for a full load. Use less with
lower water level settings Follow
directions on bottle for safe use. Use
a cup with a pouring spout to avoid
spilling
,I
1. Load the washer frrst
2. Pour measured bleach carefully
Into dispenser. DO NOT let bleach
splash, drop or run down Into the
washer basket. Undiluted bleach
will damage any fabric it touches.
3. Start the washer. Bleach WIII be
diluted automatically during the
wash part of the cycle.
For more information on bleaching, see”Laundry Guide” page 11
MAGIC CLEANS lint filter
The lint filter In your washer cleans Itself. Collected
lint ISdrained away wrth the wash and rinse water
If your washer drams into a tub, remove any lint
collected In the dram or strainer

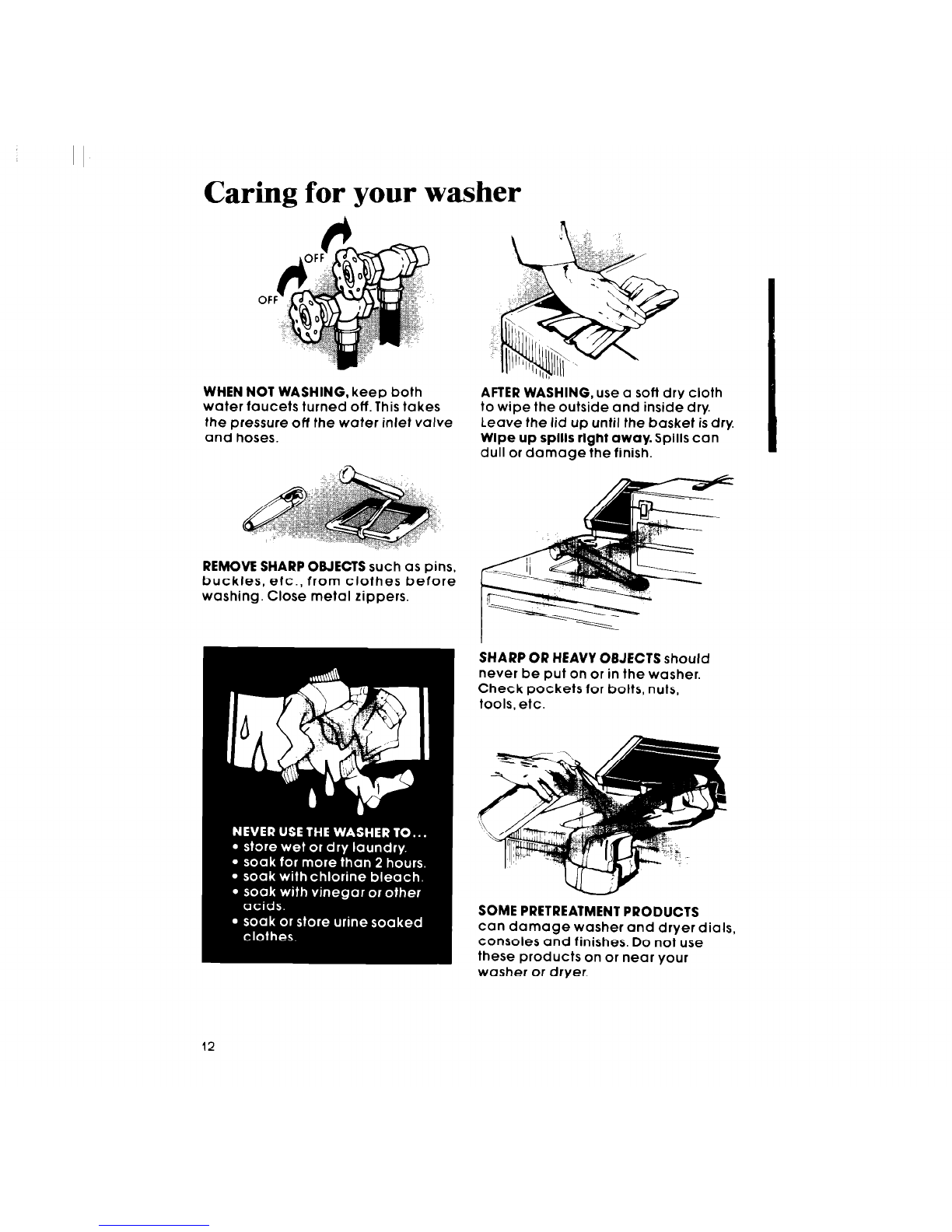

Caring for your washer
WHEN NOT WASHING, keep both
water faucets turned off. This takes
the pressure off the water inlet valve
and hoses.
AFTER WASHING, use a sofl dry cloth
to wipe the outside and inside dry.
Leave the lid up until the basket is dry.
Wipe up spills right away. Spills can
dull or damage the finish.
REMOVE SHARP OBJECTS such as pins,
buckles, etc., from clothes before
washing. Close metal zippers.
SHARP OR HEAVY OBJECTS should
never be put on or in the washer.
Check pockets for bolts, nuts,
tools, etc.
SOME PRETREATMENT PRODUCTS
can damage washer and dryer dials,
consoles and finishes. Do not use
these products on or near your
washer or dryer.
12

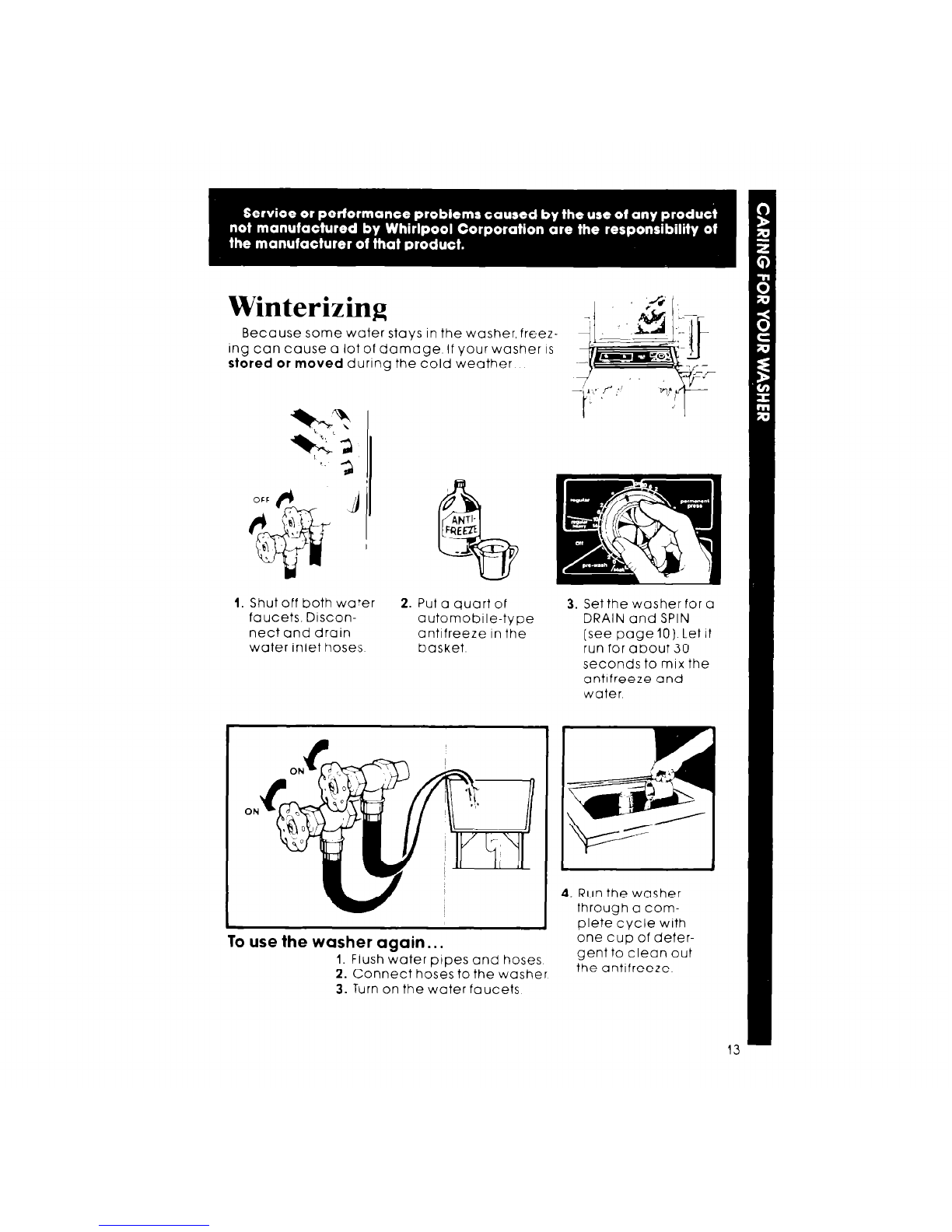

Winterizing
Because some water stays in the washer, freez-
Inq can cause a lot of damaqe If your washer IS
stored or moved during the cold weather
1. Shut off both water 2. Put a quart of
faucets. Dlscon- automoblle-type
nect and drain antlfreeze in the
water inlet hoses basket
ON
3. Set the washer for a
DRAIN and SPIN
(see pagelO) Let it
run for about 30
seconds to mix the
antifreeze and
water
To use the washer again.. .
4. Run the washer
through a com-
plete cycle with
one cup of deter-
gent to clean out
1. Flush water pipes and hoses
2. Connect hoses to the washer the antifreeze
3. Turn on the water faucets

II

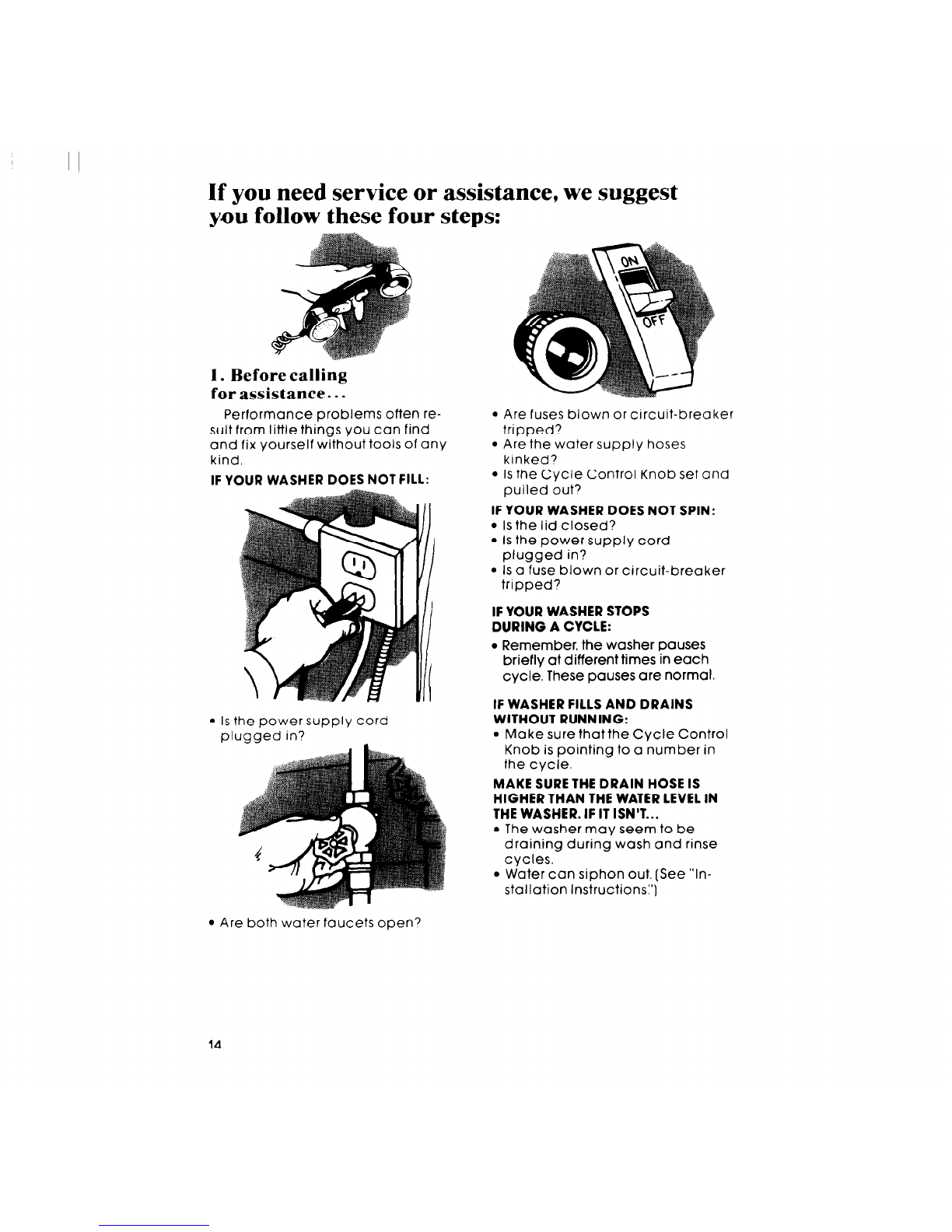

If you need service or assistance, we suggest
you follow these four steps:
1. Before calling
for assistance.. .
Performance problems often re-
sult from little things you can find
and fix yourself without tools of any
kind.
IF YOUR WASHER DOES NOT FILL:
l Is the power supply cord
plugged in?
l Are fuses blown or circuit-breaker
tripped?
l Are the water supply hoses
kinked?
l Is the Cycle Control Knob set and
pulled out?
IF YOUR WASHER DOES NOT SPIN:
l Is the lid closed?
l Is the power supply cord
plugged in?
l Is a fuse blown or circuit-breaker
tripped?
IF YOUR WASHER STOPS
DURING A CYCLE:
l Remember, the washer pauses
briefly at different times in each
cycle. These pauses are normal.
IF WASHER FILLS AND DRAINS
WITHOUT RUNNING:
. Make sure that the Cycle Control
Knob is pointing to a number in
the cycle.
MAKE SURE THE DRAIN HOSE IS
HIGHER THAN THE WATER LEVEL IN
THE WASHER. IF IT ISN’T...
l The washer may seem to be
draining during wash and rinse
cycles.
l Water can siphon out. [See “ln-
stallation Instructions:‘]
l Are both water faucets open?
14

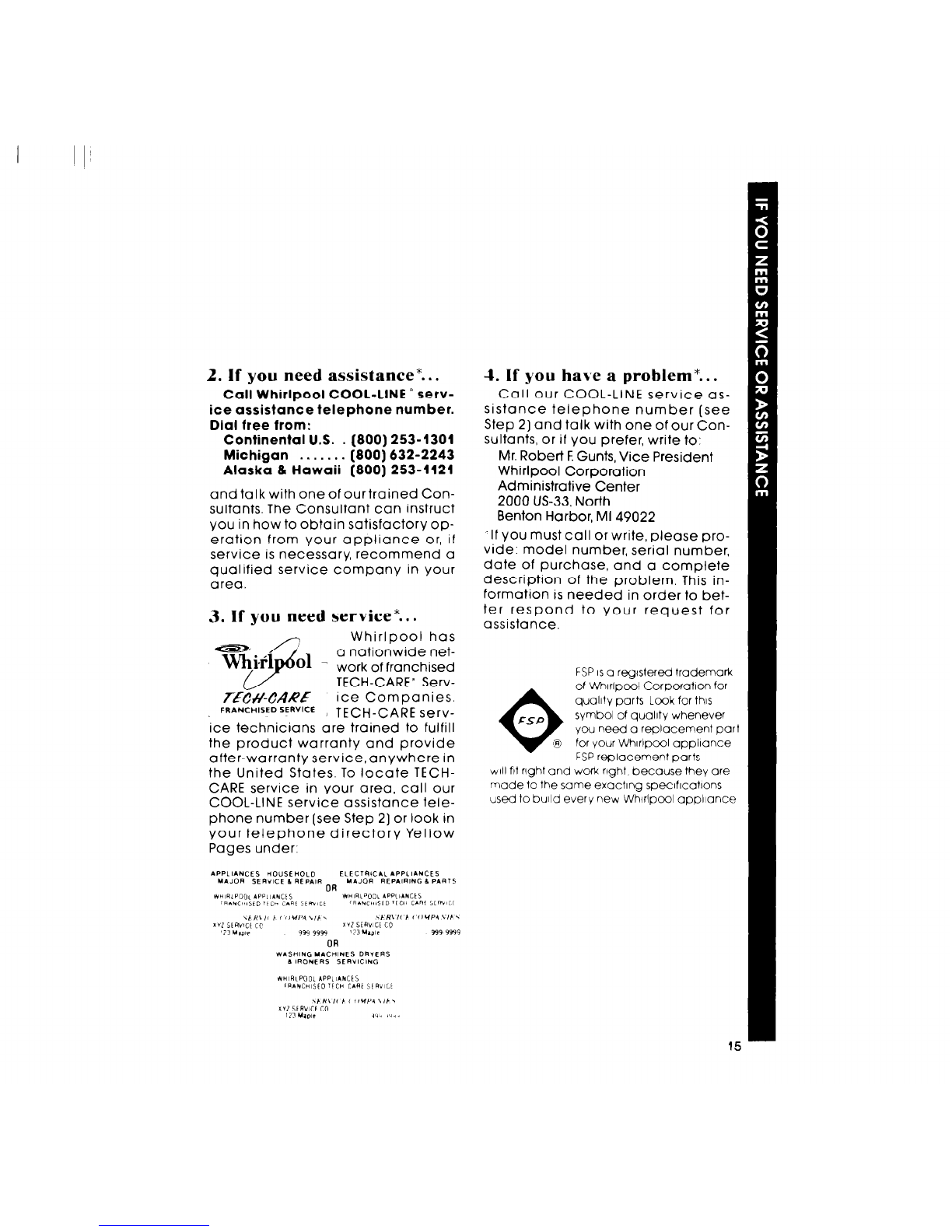

2. If you need assistance*...
Call Whirlpool COOL-LINE ’ serv-
ice assistance telephone number.
Dial free from:
Continental U.S. . [phone]
Michigan . . . . . . . [phone]
Alaska & Hawaii [phone]
and talk with one of ourtrained Con-
sultants. The Consultant can instruct
you in how to obtain satisfactory op-
eration from your appliance or, if
service is necessary, recommend a
qualified service company in your
area.
3. If you need service*. . .
A Whirlbool has
a nationwide net-
_ work of franchised
TECH-CARE’ Serv-
TZ%u-CARE ice Companies.
FRANCHlSEDSERVICE
1 TECH-CARE serv-
ice technicians are trained to fulfill
the product warranty and provide
after-warranty service,anywhere in
the United States. To locate TECH-
CARE service in your area, call our
COOL-LINE service assistance tele-
phone number (see Step 2) or look in
your telephone directory Yellow
Pages under:
1. If you have a problem*. . .
Call our COOL-LINE service as-
sistance telephone number (see
Step 21 and talk with one of our Con-
sultants, or if you prefer, write to:
Mr. Robert F.Gunts, Vice President
Whirlpool Corporation
Administrative Center
2000 US-33, North
Benton Harbor, Ml 49022
.If you must call or write, please pro-
vide: model number, serial number,
date of purchase, and a complete
description of the problem. This in-
formation is needed in order to bet-
ter respond to your request for
assistance.
FSP ISa reglslered trademark
of Whirlpool Corporotlon for
quollty parts Look for this
symbol of quollty whenever
you need 0 replacement pa
for your Whlrlpoo oppllonce
FSP rmlacement parts
WIII fit right and work right because they are
made to the same exoctlng speclflcotlons
used to build every new WhApcx3 appl~onc~
0
FSP
8

TKirlpool
Home A /Appliances
Maklng your world a little easier
Part No. 306902
01985 Whirlpool Corporation Printed in U.S.A.
nat~c Washers. Clothes Dryers. Freezers Relr~gerator-freezers. Ice Makers DIshwashers. Built-In Ovens and Surface Units. Ranges. Mlcrr
