2004 is the first year for the ZT. There are two models
ZT17 and ZT22. New for the ‘05 model year is a Kohler
Command 19 HP model with a 50” cutting deck.
This series of riders has the unique feature of not hav-
ing to reset the PTO switch if the end user tries to mow
in reverse. Once one lapbar is moved in to neutral or
forward the PTO will turn back on.
The “ZT 17” has a 17 HP Briggs & Stratton Intek which
is a single cylinder engine with full pressure lubrication.
The engine drives the dual Hydro-gear Hydrostatic
transmissions and the electric PTO. The PTO runs the
3-in-1blades on the 42” twin blade stamped deck. On
the front of the stamped frame is a large pivoting front
axle.
The “ZT 22” is very similar to the ZT 17 except for the
twin cylinder, 22 HP Briggs & Stratton Intek. There are
also 4 wheels, instead of 2, on the 50” triple blade
stamped deck.
1. DECK LEVELING
1.1. To adjust the deck pitch, front to back, loosen or
tighten the jam nuts located on the front stabi-
lizer bracket using a 15/16” socket and a 15/16”
wrench. The correct deck pitch should be 1/8” to
1/4” lower in the front than in the back, as mea-
sured from the blade tips. See Figure 1.1.
1.2. To level the deck, side to side, loosen the screw
on the left side adjustment gear using a 1/2”
socket. Using a 3/4” wrench, run the gear up or
down as necessary until each outside blade tip
is the same distance from the ground.
See Figure 1.2.

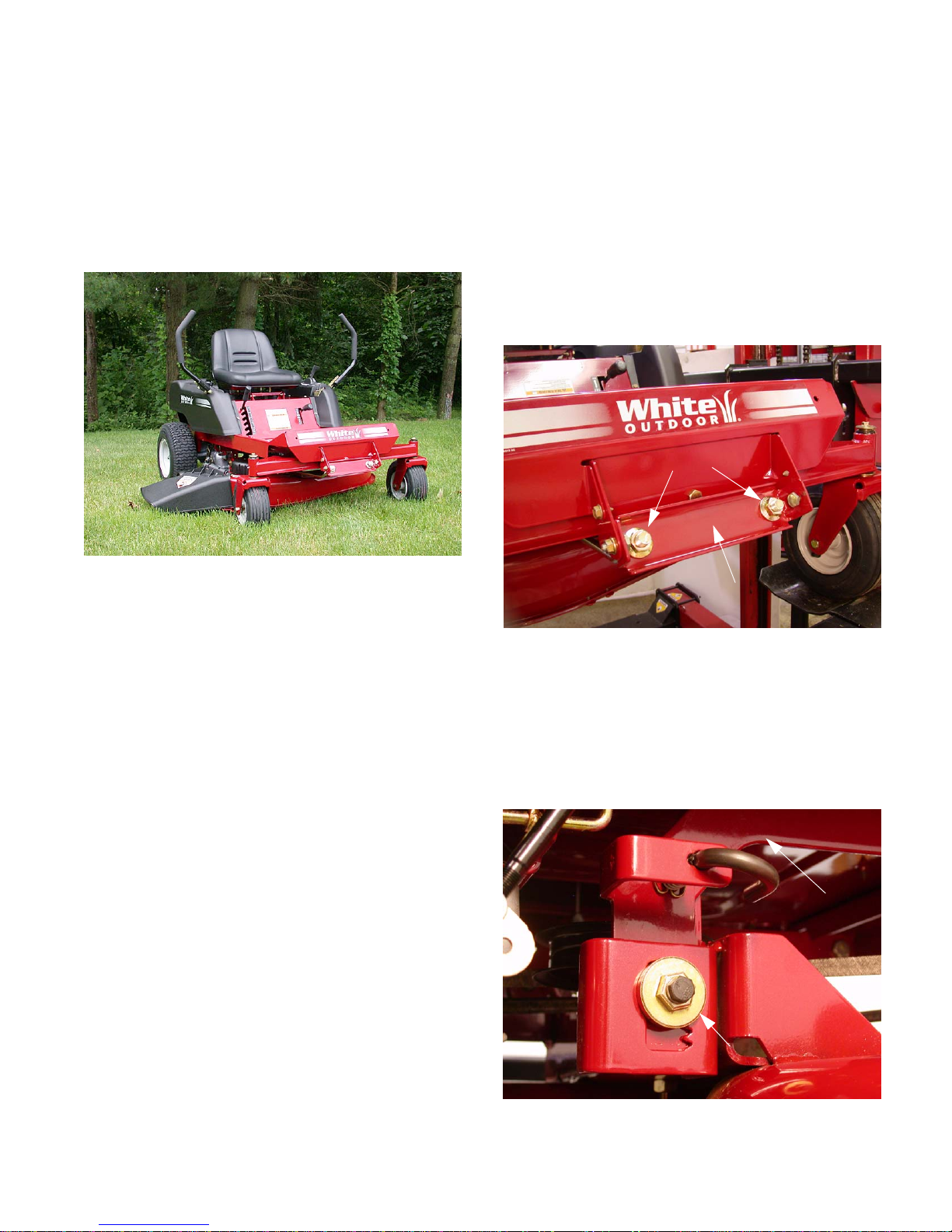

Figure 1.1
Front deck stabilizer bracket
Jam Nuts
Figure 1.2
Deck adjustment gear
Deck hanger rod
White Outdoor ZT 17
www.mymowerparts.com
For Discount White Outdoor Parts Call 606-678-9623 or 606-561-4983

2
2. PTO / DECK BELT REPLACEMENT
2.1. Insert a 1/2” breaker bar into the square hole in
the tensioner arm located on top of the deck.
See Figure 2.1.
2.2. Pivot the tensioner arm and pulley to slacken the
belt.
2.3. Remove the belt from the two stationary idler
pulleys and spindle pulleys.
NOTE: The spindle covers do not need to be
removed.
2.4. Remove the belt from the clutch.
3. DECK REMOVAL
3.1. Release the deck J pins from the rear hanger
arms. See Figure 3.1.
3.2. Slide the deck forward until the front stabilizer
bar can be lifted away from the front mounting
bracket.
3.3. Slide the deck out from underneath the unit.
4. BLADE DRIVE BELT REMOVAL
4.1. Remove the deck from the unit.
4.2. Remove both belt covers. These belt covers are
identical and interchangeable. See Figure 4.2.
4.3. Remove the belt from around the pulleys.
4.4. Install the new belt. A belt routing diagram label
is adhered to the deck housing.
5. IDLER ARM REMOVAL

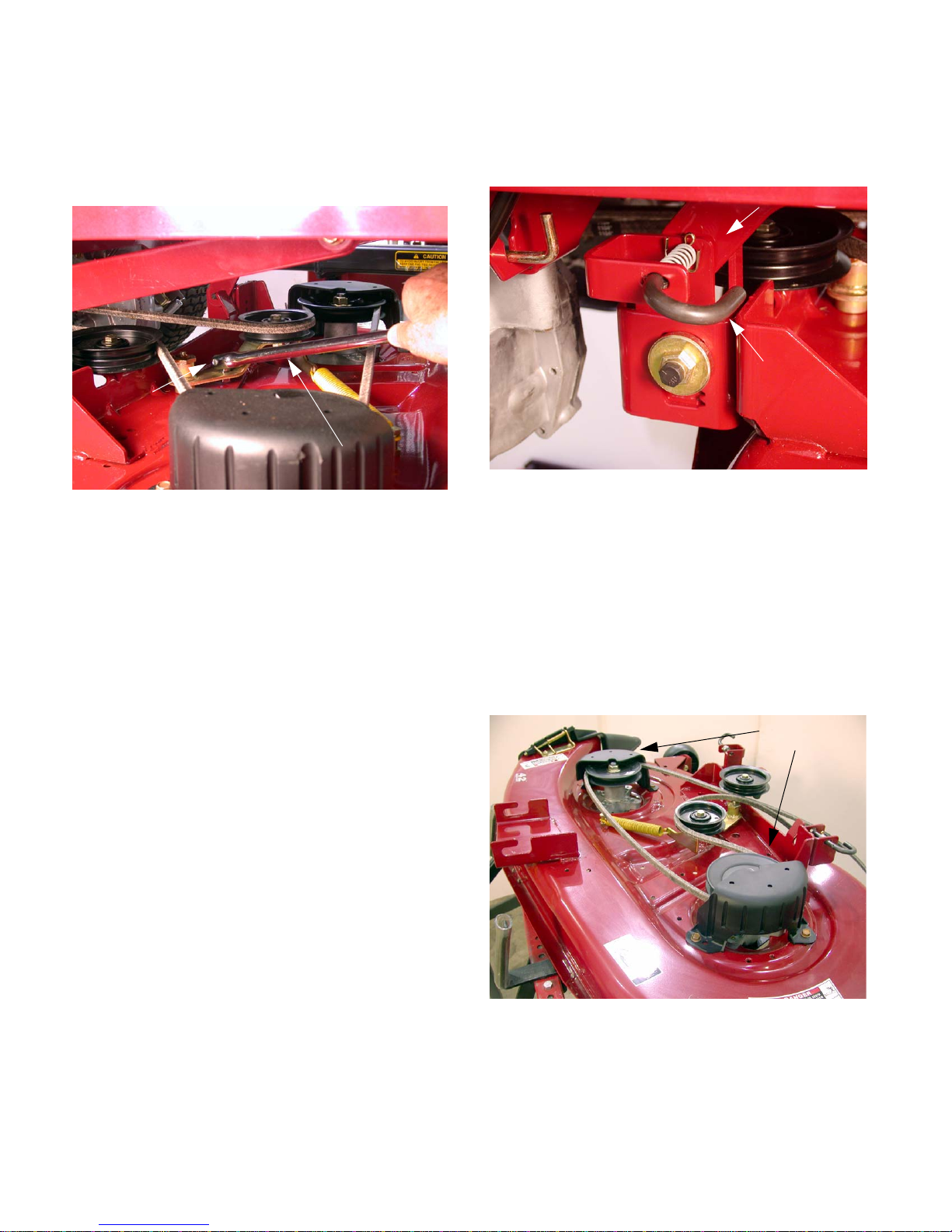

Figure 2.1
1/2” Breaker bar
Idler arm
Figure 3.1
“J” Pin
Deck hanger rod
Figure 4.2
Belt Covers
www.mymowerparts.com
For Discount White Outdoor Parts Call 606-678-9623 or 606-561-4983

3

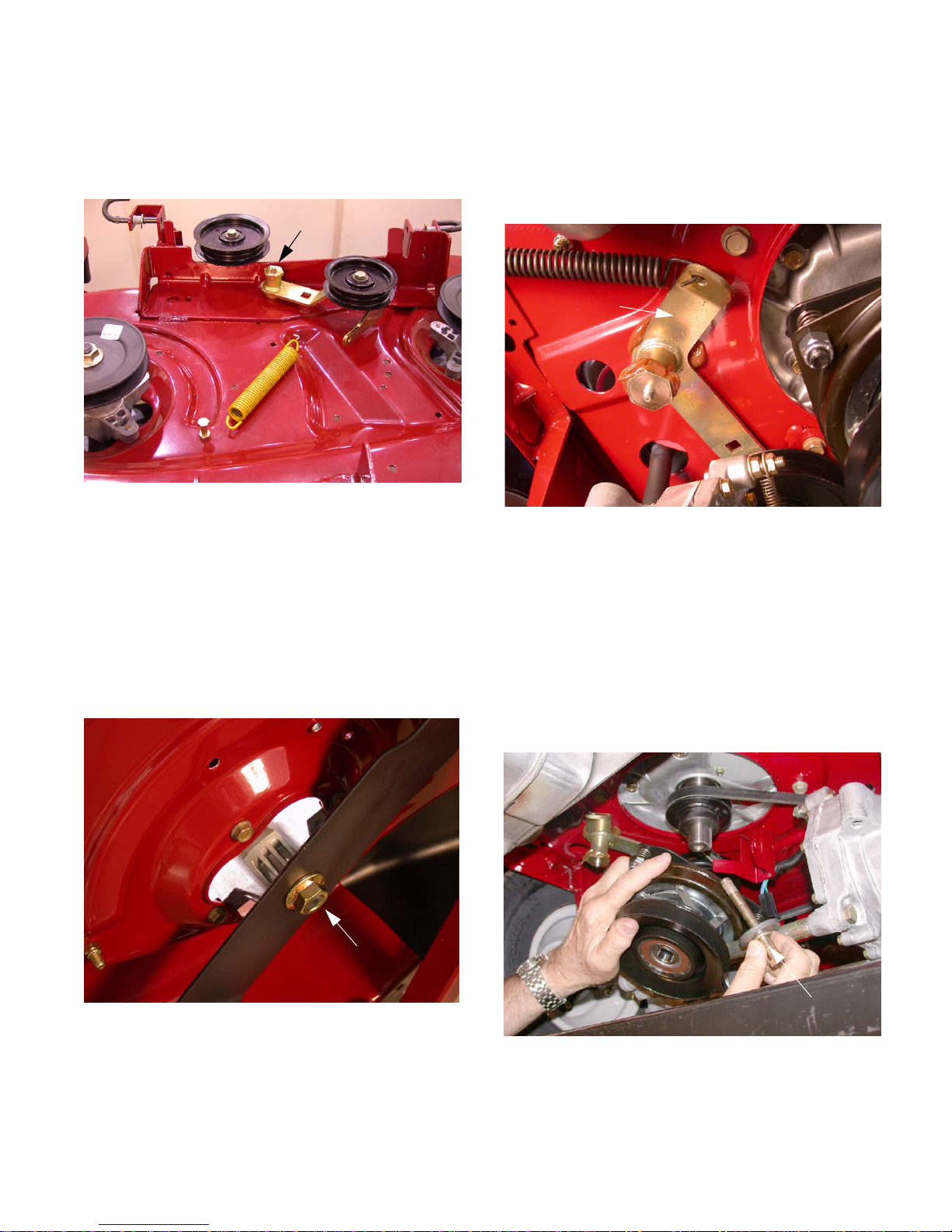

5.1. Remove the cutting deck from the unit.
5.2. Remove the shoulder screw and hex lock nut
securing the idler to the deck housing. See Fig-
ure 5.2.
5.3. Remove the idler and inspect for wear or dam-
age.
6. BLADE SPINDLE REMOVAL
6.1. Remove the deck from the unit.
6.2. Remove the spindle covers and blade drive belt.
6.3. Using an impact wrench, remove the hex flange
nut securing the blade to the spindle assembly.
See Figure 6.3.
6.4. Remove the four hex washer head tapp screws
securing the spindle assembly to the deck hous-
ing.
7. DRIVE BELT REPLACEMENT
Figure 5.2
Idler
Figure 6.3
Hex Flange Lock Nut
7.1. Insert a 3/8” breaker bar into the square hole on
the tensioner arm.
7.2. Pull the breaker bar to the right until it can be
braced in position at the pivot point of the ten-
sioner arm. See Figure 7.2.
7.3. Remove the belt from the transmission pulleys,
tensioner pulley and the crankshaft pulley. Belt
is part number 754-04043
8. SERVICING ELECTRIC PTO CLUTCH
8.1. Using a small flat blade screwdriver, unplug the
electrical connector on the PTO clutch.
8.2. Using a 5/8” socket and an impact wrench,
remove the clutch bolt. See Figure 8.2.
8.3. Lower the clutch off of the crankshaft.
8.4. Remove the crankshaft key.

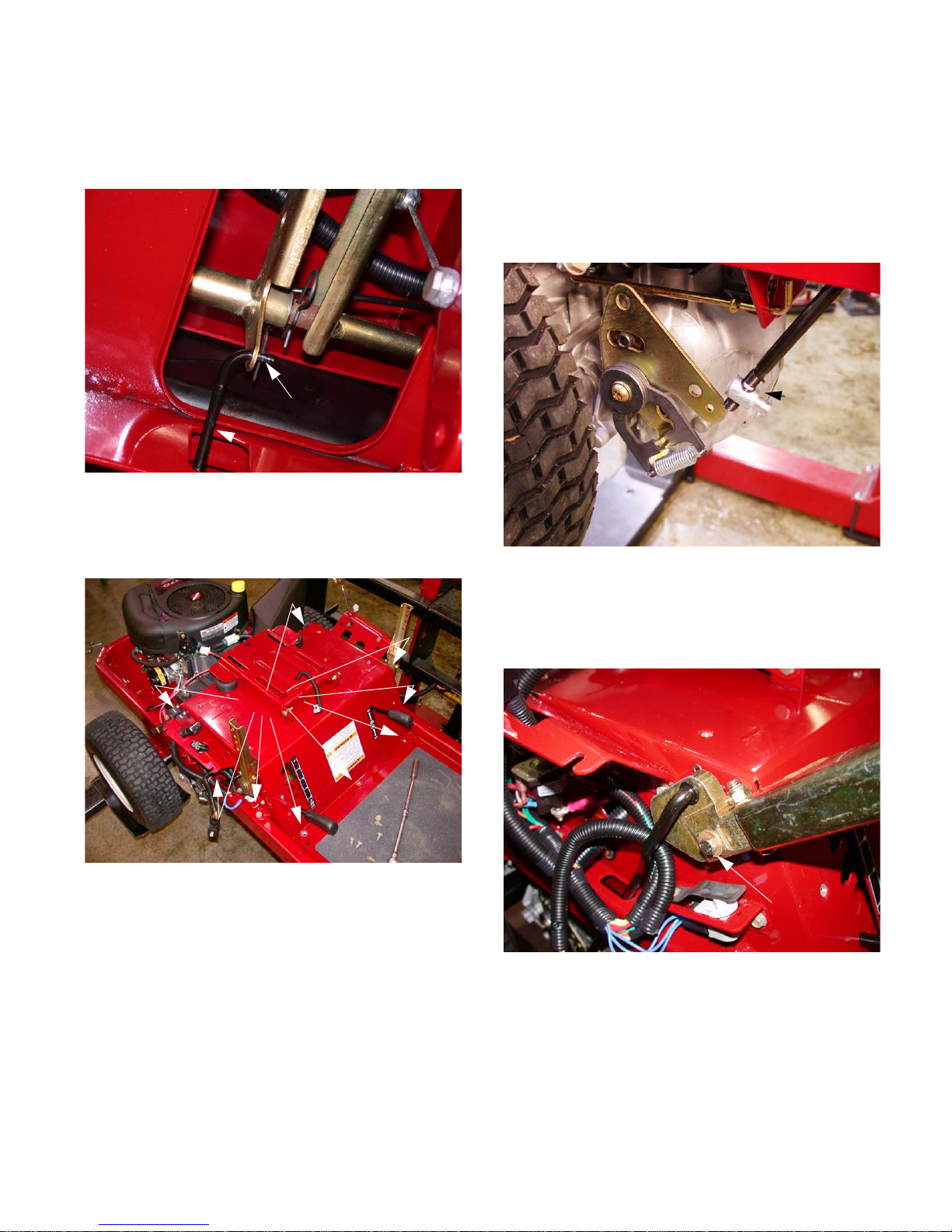

Figure 7.2
Idler arm
Figure 8.2
Clutch Bolt
www.mymowerparts.com
For Discount White Outdoor Parts Call 606-678-9623 or 606-561-4983

4
8.5. Remove the crankshaft pulley. See Figure 8.5.
8.6. Use a 9/16” socket to adjust the air gap on the
clutch to between.010” and.015”.
See Figure 8.6.
NOTE: Clutch adjustment can be done with the
clutch in the unit. If a new clutch is being put in
the adjustment can be done on the bench.
9. TRANSMISSION REPLACEMENT
9.1. Insert a 1/2” breaker bar into the square hole on
the tensioner arm.
9.2. Pull the breaker bar to the right until it can be
braced in position at the pivot point of the ten-
sioner arm.
9.3. Remove the belt from the transmission pulleys,
tensioner pulley and the crankshaft pulley.
9.4. Using a 3/4” socket and impact wrench, remove
the four lug nuts securing the rear wheel to the
axle hub.
NOTE: Insure the lap bar control rods and brake
rods are not rubbing against the frame.
9.5. Remove the cotter pin securing the bypass rod
to the transmission bypass arm. Remove the
bypass rod. See Figure 9.5.
9.6. Mark the lap bar control rod threads near the fer-
rule. See Figure 9.6.

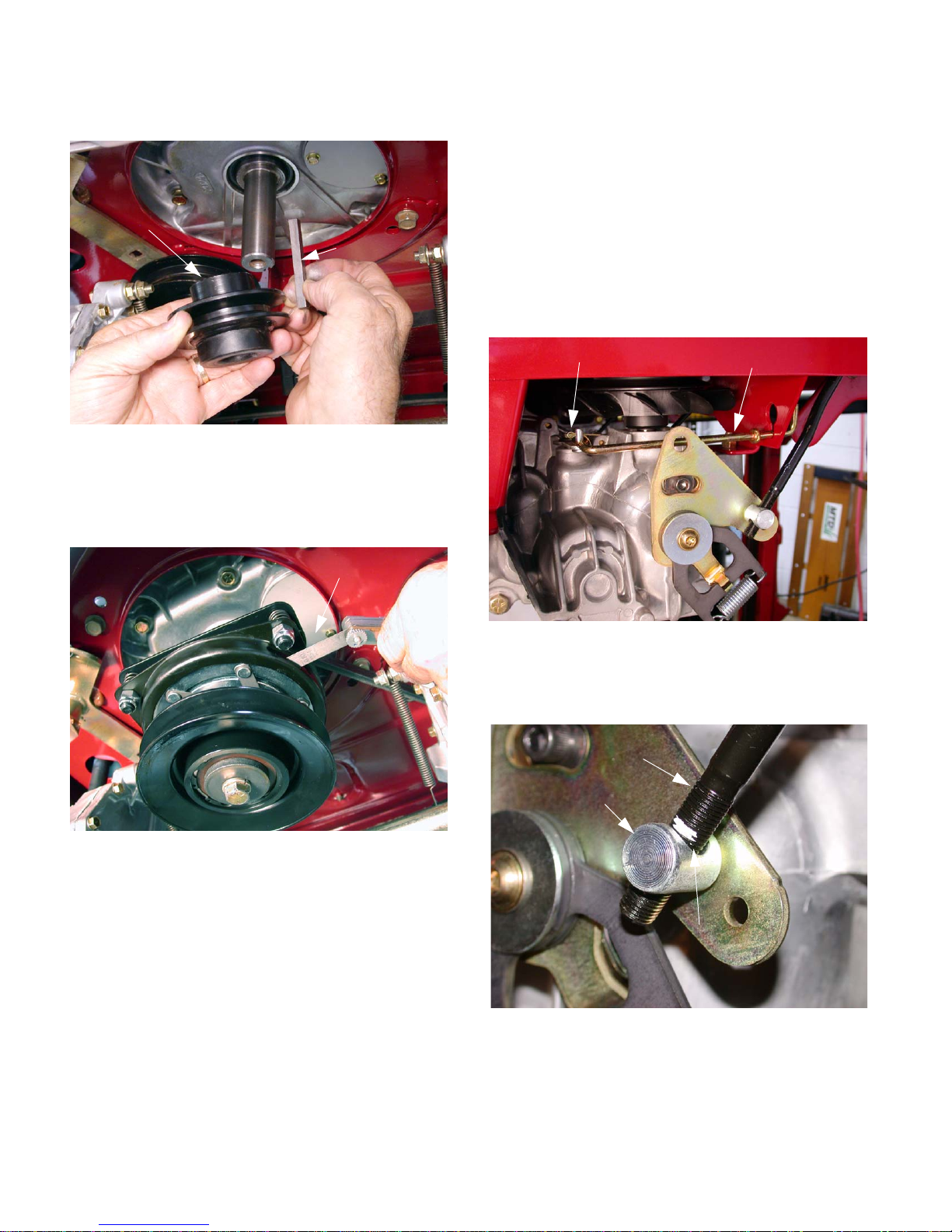

Figure 8.5
Key
Crankshaft pulley
Figure 8.6
.012 Feeler gage
Figure 9.5
Bypass rod
Cotter Pin
Figure 9.6
Control Rod
Ferrule
Marking Paint
www.mymowerparts.com
For Discount White Outdoor Parts Call 606-678-9623 or 606-561-4983

5

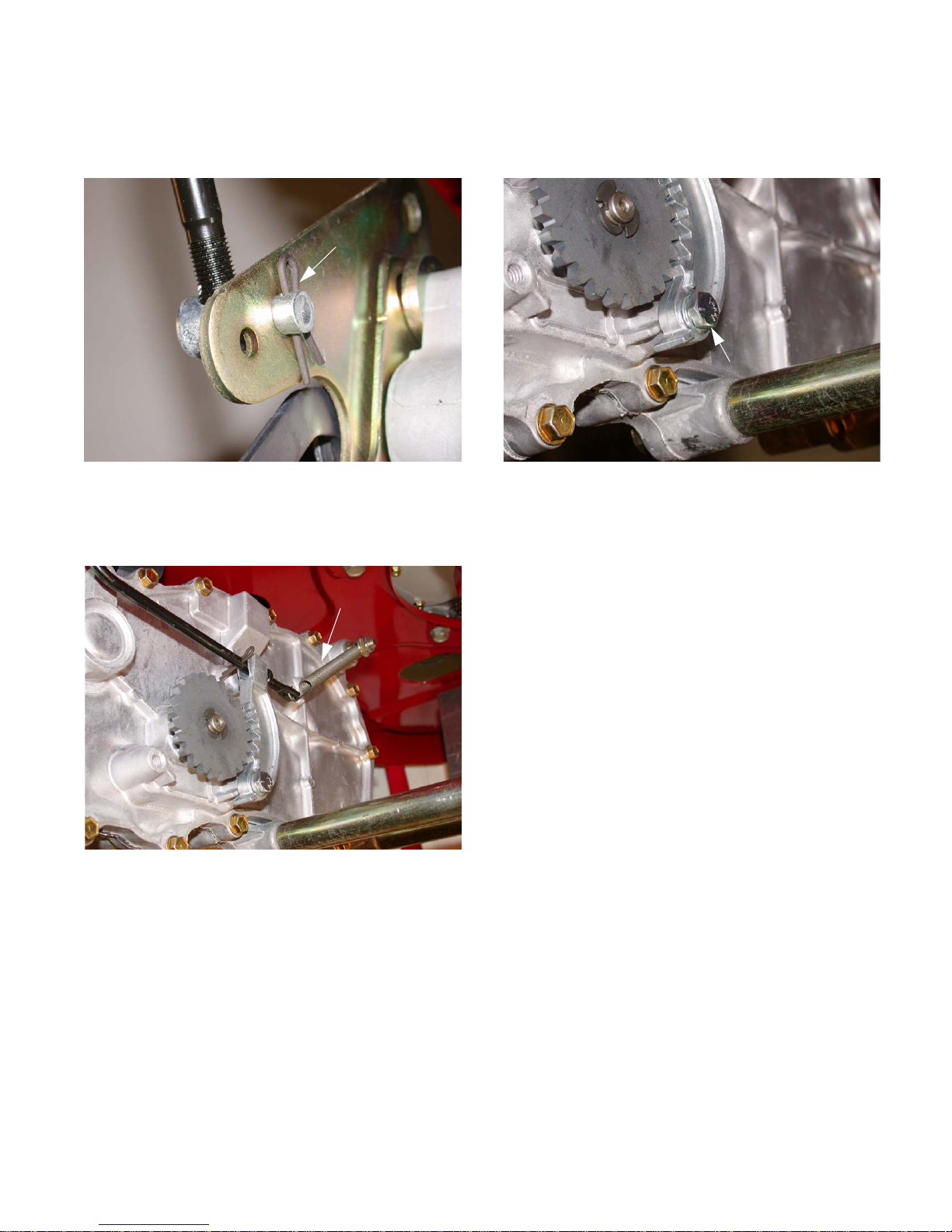

9.7. Remove the hairpin securing the lap bar control
rod ferrule to the transmission return assem-
bly. See Figure 9.7.
9.8. Disconnect the brake return spring from the
brake arm. See Figure 9.8.
Figure 9.7
Hairpin
Figure 9.8
Brake Return Spring
9.9. Remove the bolt securing the brake arm to the
transmission using a 7/16” socket.
See Figure 9.9.
NOTE: A spacer is located between the brake
arm and transmission housing.
NOTE: During installation, the bottom ridge of
the brake arm needs to be below the emboss-
ment on the transmission housing. Improper
installation will prevent the brake from engaging.
9.10. Remove both bolts securing the tubular trans-
mission brace using a 5/8” socket.
NOTE: When installing the brace bolts use loc-
tite 242.
9.11. Remove the front transmission mounting bolt
using a 1/2” wrench and a 1/2” socket.
NOTE: Secure the transmission or use another
technician to support the transmission while per-
forming the next step.
Figure 9.9
Brake Arm Bolt
www.mymowerparts.com
For Discount White Outdoor Parts Call 606-678-9623 or 606-561-4983

6
9.12. Remove both transmission mounting bolts
securing the transmission to the mounting
bracket using two 1/2” wrenches.
See Figure 9.12.
9.13. Rotate the transmission out and down until the
fan is clear of the front transmission mounting
bracket, and remove it from the frame.
9.14. Installation notes:
• Lift transmission into place and start all threaded
fasteners before tightening any individual fasten-
ers.
• Install the axle horn bolts from the top down,
tighten nuts to a torque of 90-120 in-lbs.
• Install the torque bracket bolt from the bottom
up, and tighten the nut to a torque of 90-120 in-
lbs.
• Install the bolts in the tubular transmission
braces and tighten them to a torque of 90-120 in-
lbs.
• The remainder of the installation process con-
sists of reversing the removal process.
• Tighten the lug nuts to a torque of 350-500 in-
lbs.
• Tighten the center wheel hub nut to 100-160 Ft.
Lbs.
10. STEERING LINKAGE: ADJUSTMENT
10.1. Begin to adjust the steering by confirming that
both hydros are correctly adjusted for neutral
control. See Figure 10.1.
10.2. Lift and safely support the rear of the mower.
10.3. Disconnect the ferrule at the hydro end of each
lap bar control rod from the neutral return
assembly on each of the hydros. The ferrules
are secured to the neutral return assemblies with
hairpin clips. See Figure 10.3.
NOTE: In the course of normal service, it is very
unusual for the neutral return assemblies to
require adjustment unless someone has previ-
ously tampered with it. It is necessary to check
the adjustment because the rest of the proce-
Figure 9.12
Transmission Mounting Bolts

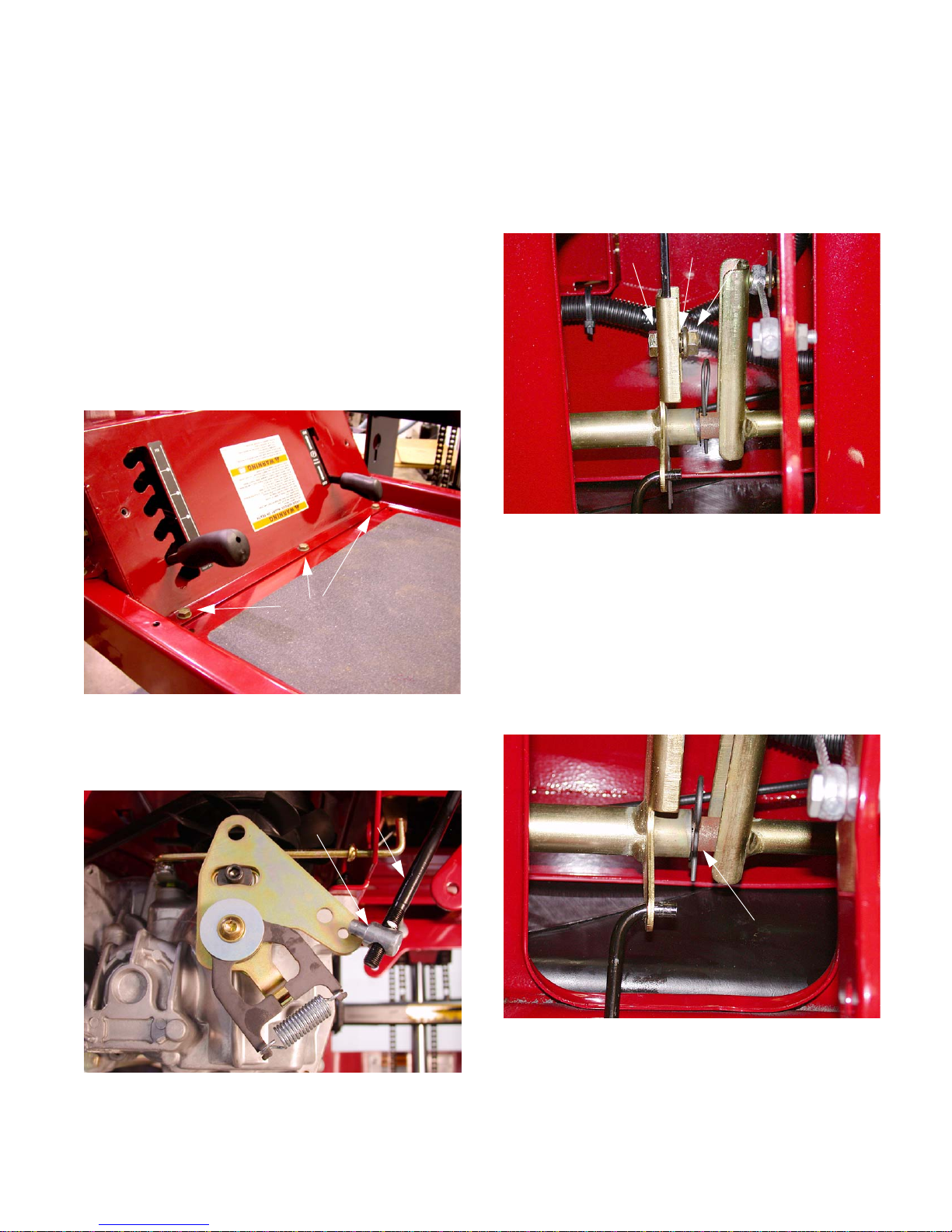

Figure 10.1
Neutral Return Assembly
Figure 10.3
Ferrule
www.mymowerparts.com
For Discount White Outdoor Parts Call 606-678-9623 or 606-561-4983

7
dure counts on the neutral control being cor-
rectly adjusted.
10.4. Start the engine. With the control rods discon-
nected, the hydro should self-center to neutral.
The wheels should not rotate. If either wheel
rotates, the neutral return assembly on the hydro
that drives that wheel needs to be adjusted.
10.5. To adjust the neutral return assembly, loosen
the socket head cap screw that holds the center-
ing bracket in position on the housing using a
1/4” allen wrench. See Figure 10.5.
10.6. Rotate the assembly in whichever direction
causes the wheels to stop rotating. The point
where the wheels do not rotate with the engine
at full throttle is true neutral. Tighten the socket
head cap screw at true neutral. When making
this adjustment, the transmission should be
warm.

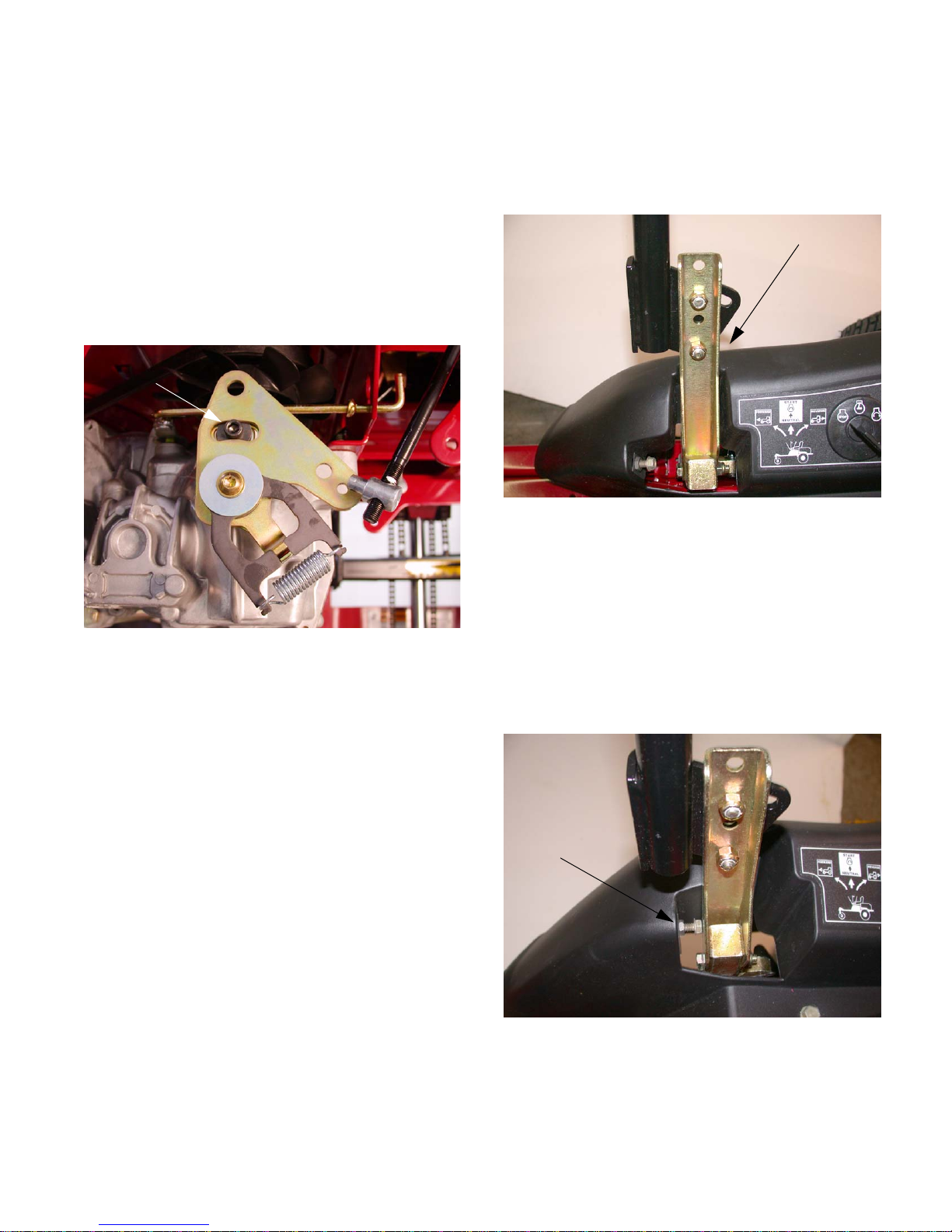

Figure 10.5
Socket Head Cap Screw
10.7. Align the post on the ferrule with the hole that it
seats into on the neutral return assembly.
Thread the ferrule up or down the length of the
control rod to center the lap bar in the neutral
recess in the control console. See Figure 10.7.
10.8. When each ferrule is in the correct position,
secure it to the neutral control assembly with a
hairpin clip.
10.9. Lower the machine to the ground. Test the oper-
ation of the hydros in a safe space.
10.10.Adjust the stop bolts so that it tracks as straight
as possible with both lap bars pushed to the full
forward position. See Figure 10.10.
Figure 10.7
Lap bar centered in console
Figure 10.10
Stop Bolt
www.mymowerparts.com
For Discount White Outdoor Parts Call 606-678-9623 or 606-561-4983

8
10.11.The socket head cap screws that secure the
neutral return assemblies to the hydros act as a
travel stop at the hydro end of the linkage. The
lap bar pivot brackets should contact the stop
screws before the socket head cap screw con-
tacts the end of the slot on the neutral bracket.
See Figure 10.11.
10.12.If the lap bars are not aligned with each-other,
they may be adjusted using the slotted mounting
where they connect to the lap bar pivot brackets.
See Figure 10.12
10.13.After final adjustment, test the operation of the
reverse safety switches. They should turn the
PTO clutch off whenever both lap bars are in the
reverse position.
NOTE: With one lap bar in the reverse position,
and the PTO turned on, the PTO clutch should
turn off as soon as the second lap bar crosses
the threshold from neutral into reverse. Repeat
test for each side.
NOTE: When at least one lap bar is in the neu-
tral or forward position, the PTO clutch will oper-
ate. There is not a relay to re-set by cycling the
PTO switch off and on again, as is the case with
MTD front engine residential equipment.
10.14.If the reverse safety switch adjustment is not
correct, loosen the reverse safety switch bracket
using a 3/8” wrench. Pivot the bracket and
switch to a position that results in correct opera-
tion, then tighten the bracket. See Figure 10.14.
NOTE: It is not necessary to remove either con-
trol console to reach the reversesafety switches,
but it may be necessary to temporarily discon-
nect the blue wires in order to reach the mount-
ing screws for the brackets.
Figure 10.11
Travel Stop
Figure 10.12
Figure 10.14
Reverse Safety Switch Bracket
www.mymowerparts.com
For Discount White Outdoor Parts Call 606-678-9623 or 606-561-4983

9
11. PIVOT BAR
11.1. Safely lift and support the front of unit.
11.2. Disconnect the - (negative) lead to the battery.
11.3. Using two 3/4” wrenches remove wheel assem-
bly from caster bracket. See Figure 11.3.
NOTE: Be careful not to drop spacers on both
sides of wheel assembly.
11.4. Remove center wheel spacer and inspect all
spacers for damage. See Figure 11.4.
NOTE: Be sure to use a good quality grease
during reassembly.
NOTE: There is a non replaceable 3/4” roller
bearing in the wheel hub.

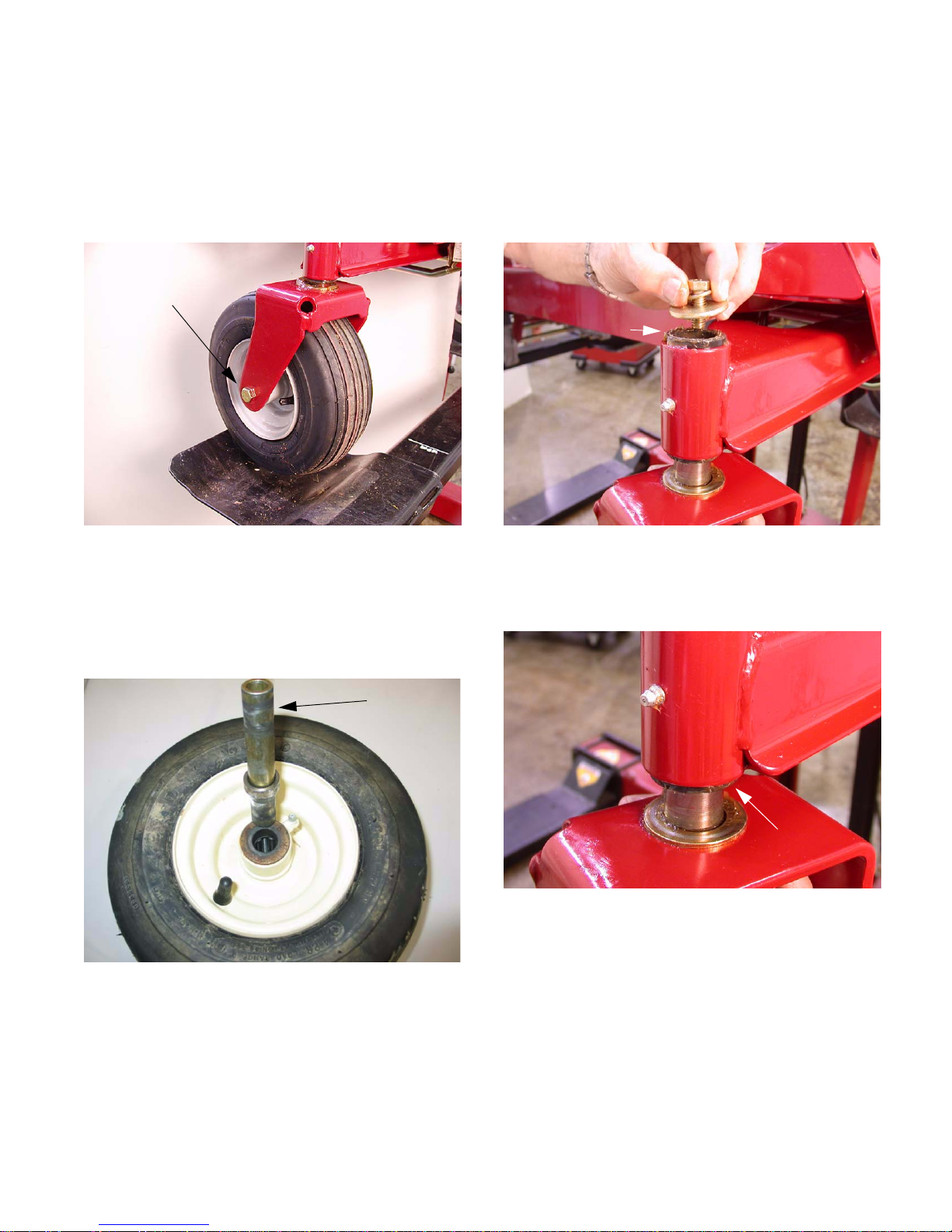

Figure 11.3
Wheel Assembly
Figure 11.4
Spacer
11.5. Lightly grease the wheel spacers during re
assembly. Using a grease gun fill the rest of the
cavity AFTER the wheel assembly has been
mounted.
11.6. Remove both caster wheel assemblies using a
9/16” wrench. See Figure 11.6.
11.7. Inspect flange bearing on top and bottom of
pivot axle. Replace if damaged. See Figure 11.7.
NOTE: Assure proper order during reassembly.
From the top down in this order: hex head cap
screw, lock washer, flat washer, flange bearing,
pivot axle, flange bearing, flat washer, and
caster bracket.
NOTE: Be sure to use a good quality grease
during reassembly.
Figure 11.6
Caster Wheel
Components
Figure 11.7
Flange Bearing
www.mymowerparts.com
For Discount White Outdoor Parts Call 606-678-9623 or 606-561-4983

10
11.8. Using a grease gun, fill the rest of the cavity
AFTER final assembly. Filling before final
assembly will allow the flange bearings to be
pushed out.
11.9. Remove both hex cap screws securing the axle
shaft to the frame. This will be done with a 3/4”
wrench. See Figure 11.9.
NOTE: Use removable threadlocking compound
such as “Loctite 242” during reassembly.
11.10.The axle shaft may be removed and inspected
for wear.
11.11. Inspect the flange bearing on each side of the
pivot axle for wear. Replace as needed.
See Figure 11.11.
11.12.AFTER reassembly use a good quality grease to
fill the axle shaft chamber.
12. SEAT REMOVAL
12.1. Disconnect the - (negative) lead to the battery.
12.2. Flip the seat forward. Keep one hand on back of
seat to prevent seat from trying to fall back. See
Figure 12.2.
12.3. Remove both wing knobs from under seat. Keep
track of washers and spacers. See Figure 12.3.
12.4. Slide seat forward to align seat spacers with
large hole in seat mounting bracket. Carefully lift
the seat out.
Figure 11.9
Front View
Rear View
Hex Cap Screw
Hex Cap Screw
Figure 11.11
Axle Shaft Flange Bearing
Figure 12.2
Figure 12.3
Spacer
Washer
Wing Knob
www.mymowerparts.com
For Discount White Outdoor Parts Call 606-678-9623 or 606-561-4983

11
12.5. Disconnect wires from the seat safety switch.
See Figure 12.5.
NOTE: Failure to reconnect seat safety switch
will cause unit not to run.
13. CONSOLE REMOVAL
The console needs to be removed to do many of the
following procedures. Removing the right and left con-
sole are very similar.
The right console has the Key Switch, PTO switch,
Neutral Switch, Three Relays, Solenoid and a 20Amp
Fuse.
The left console has the Throttle, Choke Control, Hour
Meter and Neutral Switch.
Figure 12.5
Seat Safety Switch
LEFT SIDE CONSOLE
13.1. Disconnect the - (negative) lead to the battery.
13.2. Using a 1/2” wrench, remove the three screws
securing the console to the seat frame.
See Figure 13.2.
13.3. From underneath remove the four #12-16 self-
tapping hex head screws. This can be accom-
plished by using a 5/16” socket with an exten-
sion.
RIGHT SIDE CONSOLE
Figure 13.2
Screws
www.mymowerparts.com
For Discount White Outdoor Parts Call 606-678-9623 or 606-561-4983

12
13.4. There are two screws hidden in the tubular
frame at the front end of the console and the
rear of the console. See Figure 13.4.
13.5. The two other screws are located under the con-
sole mounting bracket. See Figure 13.5.
NOTE: If the console mounting bracket is slot-
ted, where it is attached to the seat frame box, it
may be easier to loosen the mounting screws
from the seat frame and leave bracket mounted
to the console.
13.6. Using a 1/2” socket and box end wrench,
remove the four hex screws connecting the lap-
bar levers to the pivot bracket. See Figure 13.6.
13.7. Remove the lapbars and set them aside.
NOTE: Before loosening the hex screws, mark
their position to facilitate reassembly.
13.8. Carefully remove console from unit.
NOTE: Unscrew fuel cap when removing the left
side console.
13.9. If any electrical connections are present discon-
nect or remove switch from console. See Figure
13.9.
Figure 13.4
Figure 13.5
Console Mounting Screws
Figure 13.6
Hex Screws
Figure 13.9
www.mymowerparts.com
For Discount White Outdoor Parts Call 606-678-9623 or 606-561-4983

13
13.10.The throttle cable and choke knob does not
need to be removed. The console can be flipped
up on the unit and secured safely.
NOTE: There is different throttle and choke
cable routing for the different models.
NOTE: Not all models have a choke knob.
14. BATTERY REMOVAL
The battery can be removed two different ways.
Depending on the final out come of the work that needs
to be preformed is which technique you will use.
When just replacing a battery the fuel pump needs to
be removed.
If for any reason the right side control console has to
be removed in conjunction with removal of the battery,
the fuel pump will NOT have to be removed.
NOTE: THE FOLLOWING STEPS ARE FOR
BATTERY REMOVAL WITHOUT REMOVING
THE RIGHT SIDE CONSOLE.
14.1. Disconnect the - (negative) lead to the battery.
14.2. Disconnect the + (positive) lead to the battery.
14.3. Disconnect the battery strap from frame.
14.4. Using a 3/8” wrench remove the two screws
securing the fuel pump to the engine. The hoses
don’t need to be removed. See Figure 14.4.
NOTE: When reinstalling the battery make sure
strap is hooked under the seat box before plac-
ing battery in the unit.
Figure 14.4
Fuel Pump Mounting Screws
14.5. Battery can be pulled up and to the side to
remove.
NOTE: THE FOLLOWING STEPS ARE FOR
BATTERY REMOVAL WITH THE REMOVAL
OF THE RIGHT SIDE CONSOLE.
14.6. Disconnect the - (negative) lead to the battery.
14.7. Disconnect the + (positive) lead to the battery.
14.8. Disconnect the battery strap from frame.
14.9. Remove right side console as per “CONSOLE
REMOVAL” of this manual.
14.10.With the right side console removed the battery
will slip out the side easily. See Figure 14.10.
Figure 14.10
www.mymowerparts.com
For Discount White Outdoor Parts Call 606-678-9623 or 606-561-4983

14
15. FUEL TANK REMOVAL
15.1. Perform the “SEAT REMOVAL” section of this
manual.
15.2. Disconnect the negative battery cable from the
battery.
15.3. Remove the two screws securing the fuel tank
mounting wire to the frame using a 1/2” socket.
See Figure 15.3.
NOTE: Removing the battery may make this
procedure easier.
15.4. Remove fuel tank mounting wire and set off to
the side.
15.5. Disconnect electrical connector between the
tank and the engine to allow room for the tank to
slide out. See Figure 15.5.
15.6. Remove the left console as described in the
“CONSOLE REMOVAL” section of this manual.
15.7. Rotate tank upward and slide out toward the
side. See Figure 15.7.
NOTE: If the type of engine used on the unit
does not allow the removal of the fuel tank, you
must loosen the seat box frame to remove the
tank. Follow these steps to loosen the seat box
frame.

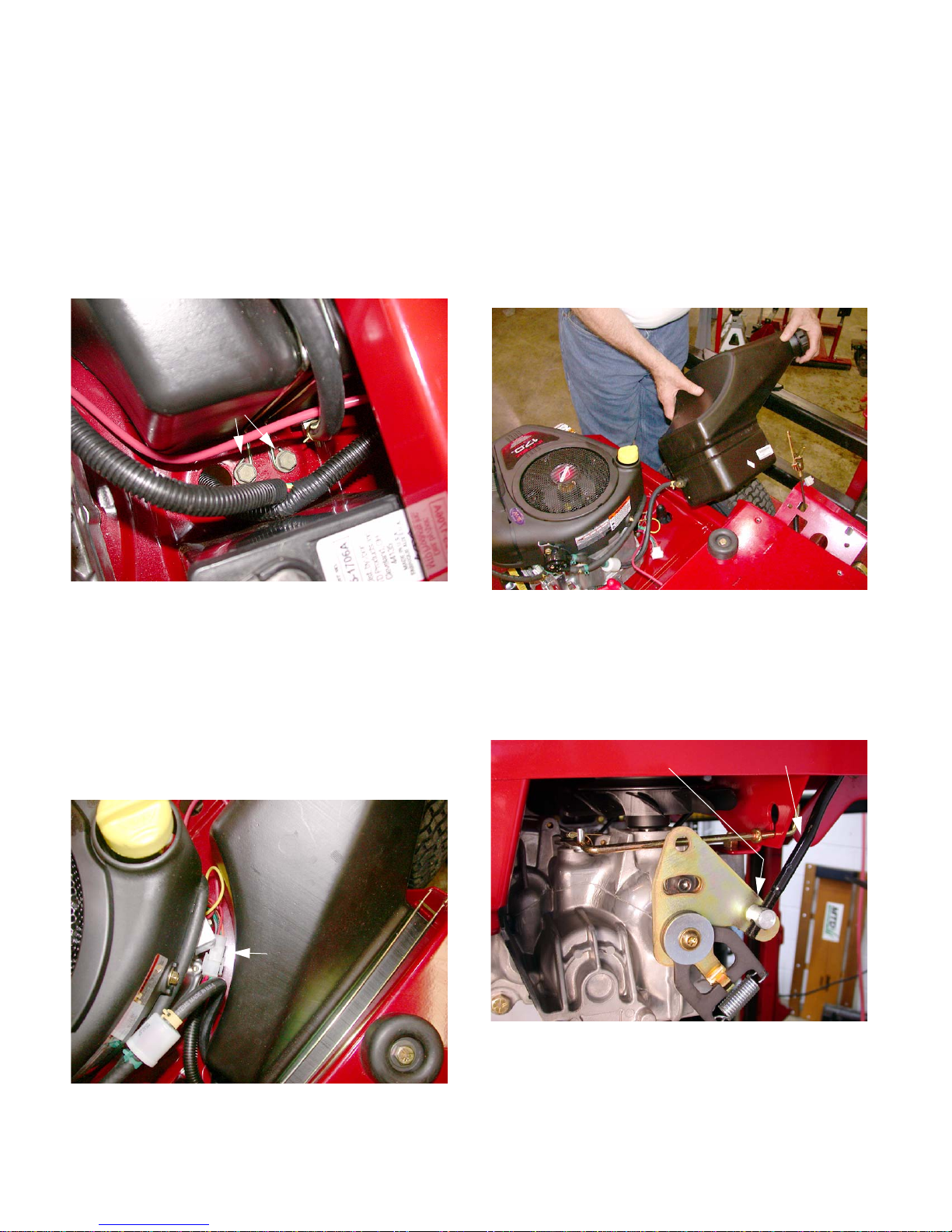

15.8. From under the unit, remove the hairpin clip
securing the lap bar control rod to the hydro
return assembly. Disconnect the ferrule from the
assembly. Do this for both hydros. See Figure
15.8.

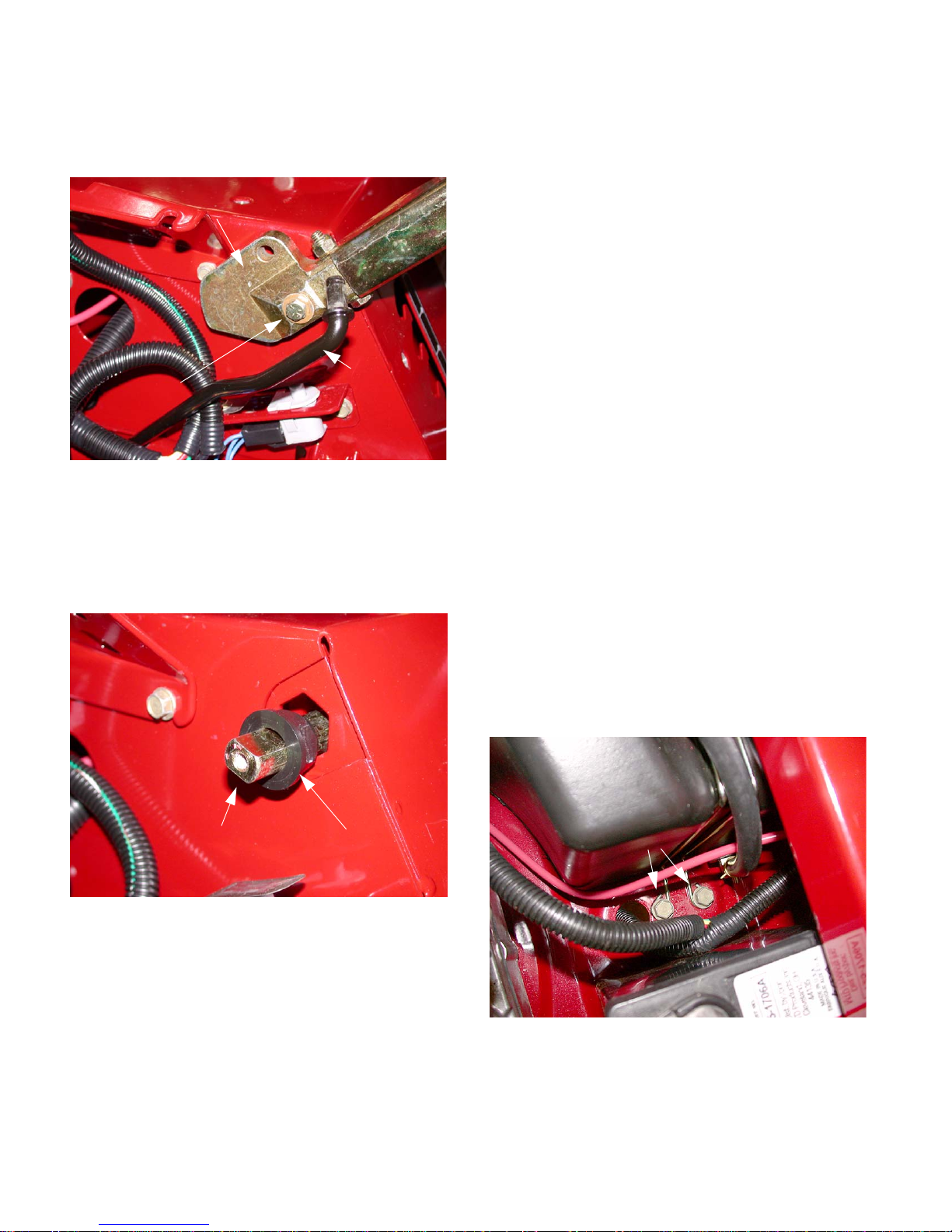

Figure 15.3
Fuel Tank Mounting Screws
Figure 15.5
Electrical Connector
Figure 15.7
Figure 15.8
Hairpin Clip Lab Bar Control Rod
www.mymowerparts.com
For Discount White Outdoor Parts Call 606-678-9623 or 606-561-4983

15
15.9. Remove the hairpin clip from the brake rod at the
deck lift shaft. Remove the rod from the shaft
bracket. Do this for both brake rods. See Figure
15.9.
15.10.Remove the nine hex washer head tapp screws
securing the seat box frame to the frame of the
unit. See Figure 15.10.
15.11.Slide the seat box frame forward to allow
removal of the fuel tank.
15.12.Once the fuel tank is removed from the unit, dis-
connect the fuel line from the fuel pump and
carefully remove fuel tank from unit.
NOTE: Make sure to clean up any spilled fuel.
NOTE: During reassembly be certain to recon-
nect electrical connector and fuel line.
NOTE: This would be a good time to change the
fuel filter.
Figure 15.9
Brake Rod
Hairpin Clip
Figure 15.10
Screws
16. CONTROL SHAFT REPLACEMENT
16.1. Disconnect the - (negative) lead to the battery.
16.2. Remove appropriate side console. Refer to
“CONSOLE REMOVAL” section of this manual.
16.3. Disconnect the ferrule from the return to neutral
assembly. See Figure 16.3.
16.4. Remove hex head cap screw and flat washer
securing the control hub to the control shaft.
See Figure 16.4.
16.5. Remove hair pin securing the lapbar control rod
to the control hub.
Figure 16.3
Ferrule
Figure 16.4
Cap Screw
www.mymowerparts.com
For Discount White Outdoor Parts Call 606-678-9623 or 606-561-4983

16
16.6. While rotating the control hub forward the lapbar
control rod can be disconnected and removed.
See Figure 16.6.
16.7. Using a socket, remove the hex bolt securing the
control hub to the control shaft. See Figure 16.6.
16.8. Pull the control hub off the control shaft. See
Figure 16.8.
16.9. Remove outboard hex flange bearing. Inspect
and replace as needed.
16.10.The control rod can be removed from under-
neath the seat frame box.
16.11.Inspect hex flange bearing and control shaft.
Replace as needed.
NOTE: Applying anti-seize compound to the
double “D” end of the control shaft will aid in
future removal of the shaft.
NOTE: Undertaking the “DECK REMOVAL”
section of this manual will make this procedure a
little less painful but, is not necessary.
17. DECK LIFT SHAFT REPLACEMENT
17.1. The following sections of this manual need to be
accomplished:
DECK REMOVAL
SEAT REMOVAL
CONSOLE REMOVAL, RIGHT AND LEFT SIDE
BATTERY REMOVAL
NOTE: THE DECK LIFT SHAFT ALSO DOU-
BLES AS THE FLUCRUM POINT FOR THE
PARKING BRAKE ROD AND HANDLE.
17.2. Remove the two screws securing the fuel tank
mounting wire to the frame using a 1/2” socket.
See Figure 17.2.
17.3. Remove fuel tank mounting wire and set off to
the side.
Figure 16.6
Lap Bar
Control
Rod
Control Hub
Hex Bolt
Figure 16.8
Control Shaft Hex Flange Bearing
Figure 17.2
Fuel Tank Mounting Screws
www.mymowerparts.com
For Discount White Outdoor Parts Call 606-678-9623 or 606-561-4983

17
17.4. Disconnect the electrical connection between
the fuel tank and the engine. This will allow room
for the fuel tank to be moved to get a wrench
underneath.
17.5. Carefully lift the fuel tank and remove the hex
head cap screw under the rear of the fuel tank
securing the seat box frame to the frame.
NOTE: The fuel tank does NOT need to be
taken out.
17.6. Using the same 1/2” socket, remove the other
eight screws securing the seat box frame. There
are a total of two in the rear, two on each side
and three in the front for a total of nine. See
Figure 17.6.
17.7. Disconnect the lapbar control rods from the
return to neutral brackets. See Figure 17.7.
Figure 17.6
Screws (3 of 9)
Figure 17.7
Ferrule Control Rod
17.8. Using two 9/16” wrenches remove the bolt, nut,
and spring on the brake handle on the left han-
dle side of the deck lift shaft. See Figure 17.8.
NOTE: When reassembling tighten screw.030
past flush to end of screw.
17.9. Remove the hairpins securing the deck lift
cables to the deck lift shaft. See Figure 17.8.
17.10.Remove the large hairpin going through the cen-
ter of the deck lift shaft on the left side of the
shaft. See Figure 17.10.
NOTE: By removing this hairpin it will allow the
concentric brake cross shaft to slide to the right
to disconnecting the brake rods.
Figure 17.8
Bolt Spring Nut

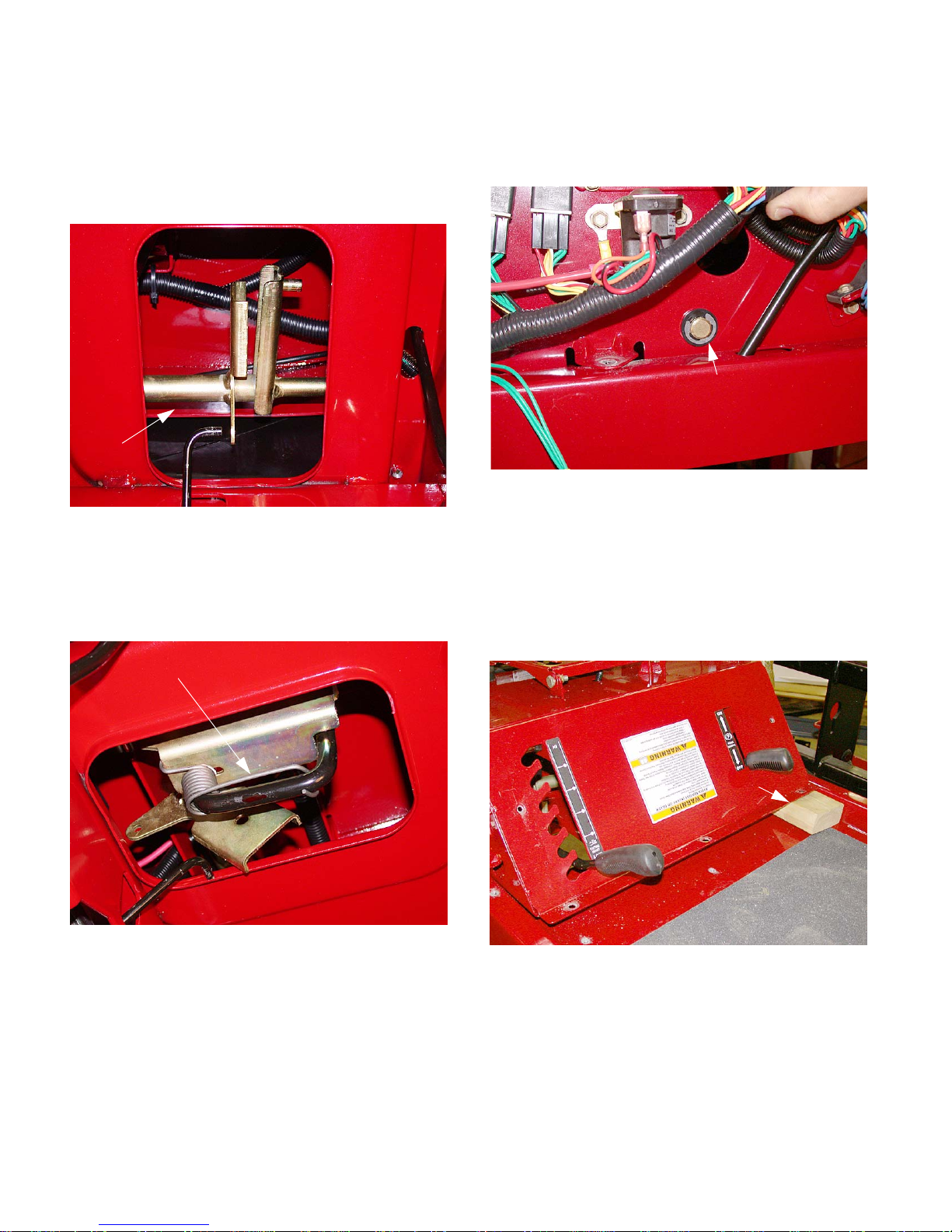

Figure 17.10
Large Hairpin Clip
www.mymowerparts.com
For Discount White Outdoor Parts Call 606-678-9623 or 606-561-4983

18
17.11.Remove the hairpin keeping the brake rods con-
nected to the concentric brake cross shaft.
17.12.Slide the concentric brake cross shaft to the right
allowing the brake rods to come out of the hole
in the shaft. See Figure 17.12.
17.13.Remove rubber handle from the deck lift rod.
17.14.Carefully release the tension on the deck lift
handle torsion spring. See Figure 17.14.
NOTE: Putting the deck lift handle in the lowest
cutting position will make this task much easier.
17.15.Remove the E-clips on the ends of the deck lift
shaft. See Figure 17.15.
17.16.Remove both hex flange bearings.
17.17.Place a piece of 2 x 4 or something equivalent
under the front, left side of the seat box frame.
This will allow enough clearance for deck lift
assembly to slip out the back easily.
See Figure 17.17.
17.18.Shuffle the deck lift assembly to the left till the
right side falls out of the seat box.
Figure 17.12
Concentric Brake Shaft
Figure 17.14
Deck Lift Handle Torsion Spring
Figure 17.15
“E” Clip
Figure 17.17
2x4
www.mymowerparts.com
For Discount White Outdoor Parts Call 606-678-9623 or 606-561-4983
