White Rodgers 1F95-80 User manual

OPERATION GUIDE
7 Day Multi-stage Electronic Digital
Thermostat with Programmable Fan
1F95-80
Operator: Save this booklet for future use!
WHITE-RODGERS

2
Please read this manual thoroughly before operating or programming your thermostat. If you
have questions, you may write to our Technical Service Department at the address shown on
the back cover of this booklet.
Your new Digital COMFORT SET II Multi-stage Thermostat uses the technology of a solid-state
microcomputertoprovideprecisetime/temperaturecontrol. TheCOMFORTSETIIThermostat
offers you the flexibility to design heating and cooling programs that fit your needs.
About Your New Thermostat . . .

3
In This Guide . . .
Operator: Save this
booklet for future use!
YOUR NEW THERMOSTAT'S
FEATURES ........................................... 4
OPERATING YOUR THERMOSTAT ........ 5
PARTS OF THE THERMOSTAT
The Back Of the Thermostat Body
The Display
The Thermostat Buttons
OPERATING FEATURES
PROGRAMMING YOUR
THERMOSTAT ................................... 18
PLANNING FOR YOUR NEEDS
ENTERING YOUR PROGRAM
Set Current Time and Day
Program Heating and Cooling
Temperatures
Enter Heating Program
Enter Cooling Program
Using the COPY Button
CHECK YOUR PROGRAMMING
QUESTIONS AND ANSWERS................ 32

4
YOUR NEW THERMOSTAT’S FEATURES
• ComputedEnergyManagementRecovery
(EMR)
• Automatic changeover
• Two hour temperature override
• Manualprogramoverride(HOLDtempera-
ture)
•°F/°C convertibility
• Keypad lockout (optional)
• Simultaneousheatandcoolprogramstor-
age
• Two separate time and two separate tem-
perature settings per 24-hour period
• Backlit LCD displays continuous set point,
time, and room temperature
• Adjustable cycle times
• 9 volt Energizer®alkaline battery backup
• Compressor short cycle protection
• Blower delay in the cooling cycle
• Up to 2 stages of heat and up to 2 stages
of cool
• Initial total system checkout
• Preprogrammed temperature control
• Separatesetbackprogrammingfor7inde-
pendent days
• Electric heat (optional)
• Audio and visual prompting for program-
ming
• Armchair programming capability
• Programmable blower control
• Temperature range 40°to 99°F
• CompatiblewithRemoteSensor(optional)

5
Before you begin programming your thermo-
stat,youshouldbefamiliarwithitsfeaturesand
withthedisplayandthelocationandoperation
of the thermostat buttons. The information in
this section will help you become familiar with
your new thermostat so that you can easily
program it.
Yourthermostatconsistsoftwoparts:thether-
mostat body and the subbase.
Use
SYSTEM
SWITCH
to turn thermostat to OFF
mode before removing or attaching the
thermostat body. Failure to do so may
resultinequipmentdamageand/orper-
sonal injury.
OPERATING YOUR THERMOSTAT
The subbase is attached to the wall, but you
can remove the thermostat body for easy pro-
gramming. To remove the thermostat body
from the subbase, grasp the thermostat body
andgentlypullitstraightoutfromthesubbase.
To attach the thermostat body, line up the four
terminal pins on the upper section of the ther-
mostat back with the matching connector on
thesubbase.Insertthese,thengentlypivotthe
thermostat body down to connect the eight pin
connectors on the lower portion of the thermo-
stat back. Gently push until the snap connec-
tors engage. DO NOT FORCE OR PRY THE
THERMOSTAT as this may damage the unit.
CAUTION
!

6
PARTS OF THE THERMOSTAT
The Back of The Thermostat Body
Turnthethermostatbodyover.Onthebackare
the 9 volt Energizer®alkaline battery and the
option switches.
1. The 9 volt Energizer®alkaline battery pro-
vides power to the thermostat when the
24VAC power is interrupted (for example,
when you remove the thermostat from the
wall for programming) A fresh battery will
maintain the stored program for approxi-
matelyaweek.Ifpowerlossislongenough
for the program to be lost, the thermostat
will automatically return to the factory pro-
grammedtemperatures(64°Fheatingand
82°Fcooling)whenpowerisrestored.You
must reprogram the thermostat if this hap-
pens.
If the word BATTERY is flashing in the
display window, the battery is low and
should be replaced with a fresh 9 volt
Energizer® alkaline battery. The battery
will provide power for all functions except
thedisplaylightandaudiopromptingbeep,
which work only on 24VAC power.
Use
SYSTEM
SWITCH
to turn thermostat to OFF
modebeforeremovingthermostatfrom
the wall to replace the battery.
CAUTION
!

7
2. You may adjust the option switches for
keypad lockout (see OPERATING FEA-
TURES).
The buttons (other than and ) are
located behind the thermostat door. To open
the door, use your fingernail in the indentation
at the top center of the door. Pull the door out,
then swing the door down on its hinges.
Following are brief descriptions of the display
and the thermostat buttons.
Option switches 9-pin connector
4-pin connector Battery
BACK OF THERMOSTAT BODY

8

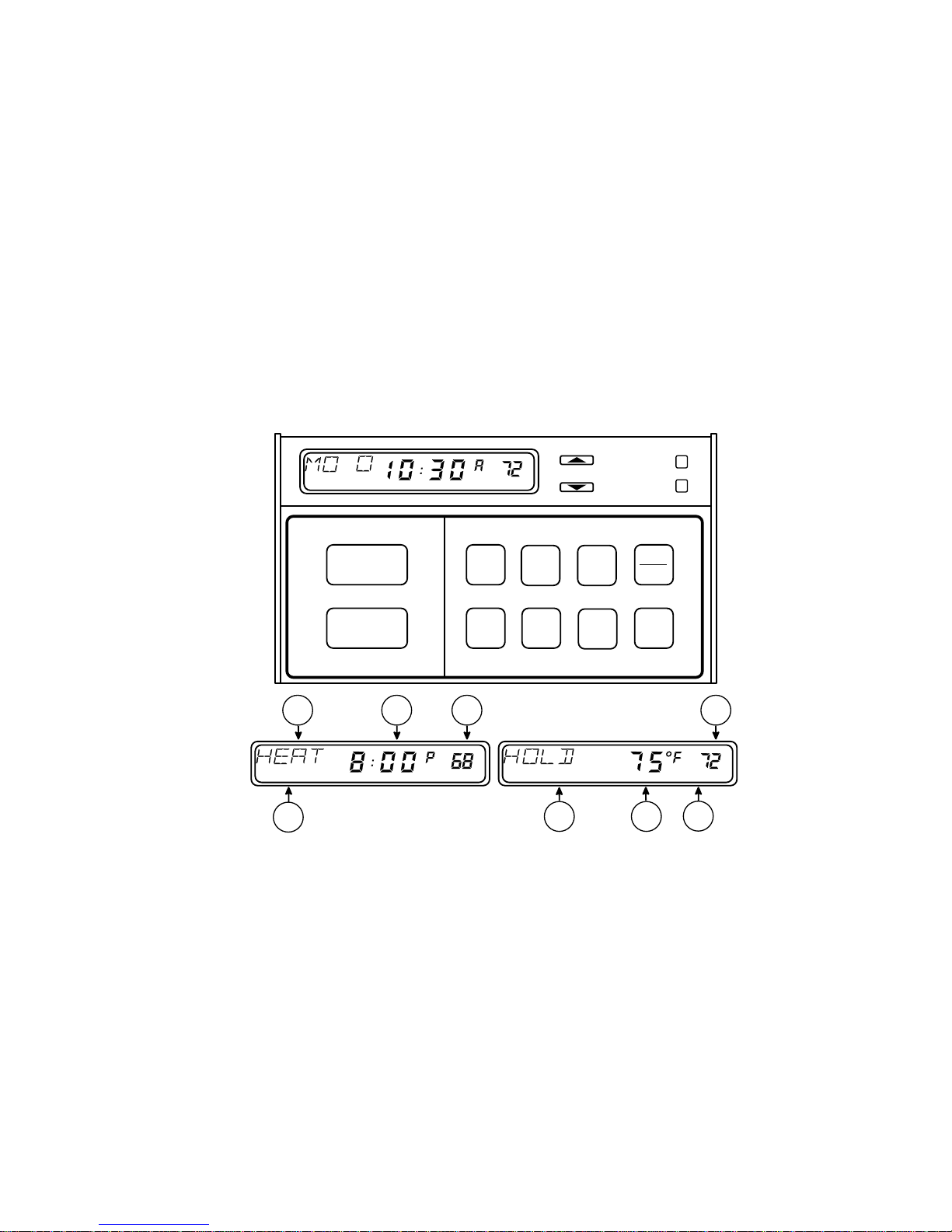

The Display
Continuously displays system mode
(HEAT,OFF,COOL, AUTO,HOLD).Dur-
ing programming, the day of the week is
displayed (MO, TU, WE, etc.).
Alternately displays room temperature (F
denotes degrees Fahrenheit and Cde-
notes degrees Celsius) and time of day (A
denotesAMtimeandPdenotesPM time).
Displays the setpoint temperature.
WhenVIEW TEMP button is pressed, Ois
displayed when the setpoint temperature
displayed (at the far right) is the occupied
heating or cooling temperature (depend-
ing on mode). Uis displayed when the
unoccupied heating or cooling tempera-
ture is being displayed.
FAN AUTO is displayed during automatic
fanoperation(whentheblowercycleswith
the heating or cooling system). PRG FAN
is displayed when the fan has been pro-
grammed to run continuously during the
program period.
ThewordBATTERYflashesonthedisplay
when the 9 volt alkaline battery power is
weak and the battery should be replaced.
2
1
3
4
5
6

9
SYSTEM
SWITCH
FAN
SWITCH
HEAT-OFF-COOL-AUTO
ON-AUTO
TIME
FWD
TIME
BACK
SET
CLOCK
ADV
DAY
VIEW
PRGM
VIEW
TEMP
HOLD
COPY
RUN
PRGM
SEVEN DAY DIGITAL COMFORT-SET II W H I T E - R O D G E R S
1 2 3
45
BATTERY
2
3
4
FAN AUTOPRG FAN
PRG FAN

10
The Thermostat Buttons
Sets the system mode (HEATing, OFF,
COOLing, or AUTOmatic changeover).
Selectsfanoperation(see#5,above).This
button is also used to program the fan to
run continuously during a program period.
Runsdisplayforwardorbackwardthrough
time, day, or anticipation settings during
programming.
Used in conjunction with
TIME
FWD
and
TIME
BACK
to
set current time and day of the week.
Usedduringprogrammingtosetthedayof
the week to be programmed.
Used to initiate programming or to review
programming for a given day (program
viewingautomaticallybeginswithMonday’s
program; use ADV DAY button to view
programming for following days).
Usedinconjunctionwith and to
select setpoint temperatures.
Usedtomanuallyoverrideprogrammingto
holdataselectedtemperature(whenHOLD
is displayed). Also used to copy one day’s
programmingtoanother day(whenCOPY
is displayed).
Used to start program operation after pro-
gramming. Also used to return thermostat
to program operation after being in HOLD
mode.
(Red arrow) Raises temperature setting
(99°F or 37°C maximum).
(Blue arrow) Lowers temperature setting
(40°F or 4°C minimum).
9
8
7
10
11
12
13
14
15
16
17

11
Red indicator is lit whenever heating or
coolingisinoperation.Yellowindicatorislit whenever the second stage of heating or cooling is in operation.
18
SYSTEM
SWITCH
FAN
SWITCH
HEAT-OFF-COOL-AUTO
ON-AUTO
TIME
FWD
TIME
BACK
SET
CLOCK
ADV
DAY
VIEW
PRGM
VIEW
TEMP
HOLD
COPY
RUN
PRGM
SEVEN DAY DIGITAL COMFORT-SET II W H I T E - R O D G E R S
FAN AUTO
10 11 12 13 14 15
16 17 18
9
7
8

12
OPERATING FEATURES
Now that you are familiar with the thermostat
display and buttons, read the following infor-
mation to learn about the many features of the
thermostat.
•COMPUTED ENERGY MANAGEMENT
RECOVERY (EMR) — The thermostat’s
microcomputerautomaticallycalculatesthe
time it will take to change the temperature
to the next program setting. Then the ther-
mostat will activate the heating or cooling
system to change the temperature so that
the desired temperature is reached at the
beginning of the next program period. As
an example of this feature, assume that
you have programmed your thermostat to
provide an overnight heating temperature
of 62°F, and that during the next program
period, beginning at 6:00 AM, you have
programmed a temperature of 70°F. The
thermostat will automatically activate the
heating system at about 5:00 AM, so that
the programmed 70°F temperature is
reached by about 6:00 AM.
Thisfeatureisenabledbyoptionswitch#3.
To enable the EMR function, you must
moveoptionswitch#3(locatedontheback
ofthethermostatbody)totheONposition.
To do this, press
SYSTEM
SWITCH
until OFF is
displayed on the thermostat. Remove the
thermostat body from the wall, turn it over,
andcheckthepositionofoption switch #3.
If the switch is ON (up), simply put the
thermostat back on the wall and press
SYSTEM
SWITCH
untilthedesiredoperatingmodeis

13
displayed.Ifthe switchisOFF (down),use
a pencil or small screwdriver to move the
switch to the ON position (see figure be-
low). Remove the battery for at least two
minutes, to allow the thermostat to reset
itself.Replacethebatteryandputthether-
mostat back on the wall. Press
SYSTEM
SWITCH
until the desired operating mode is dis-
played.

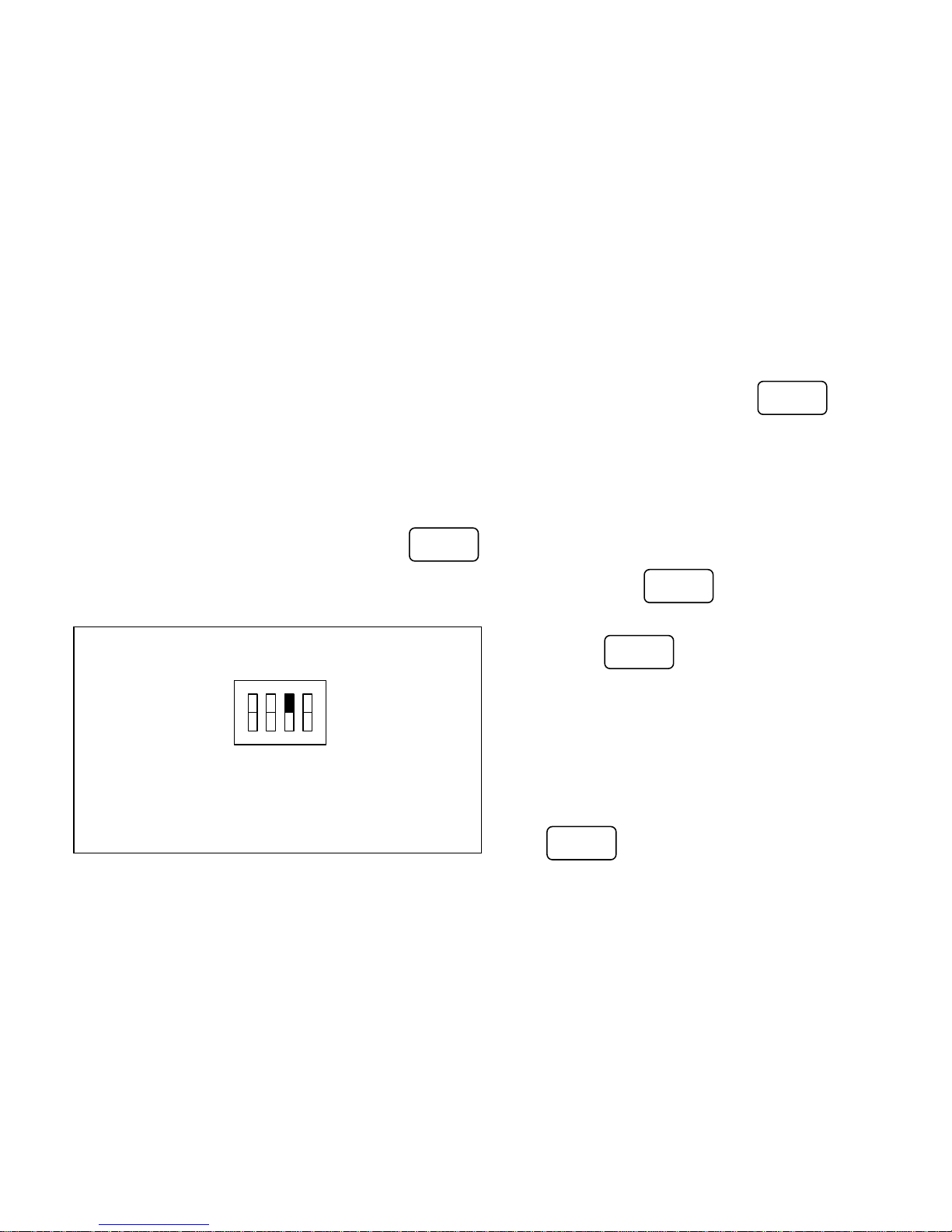

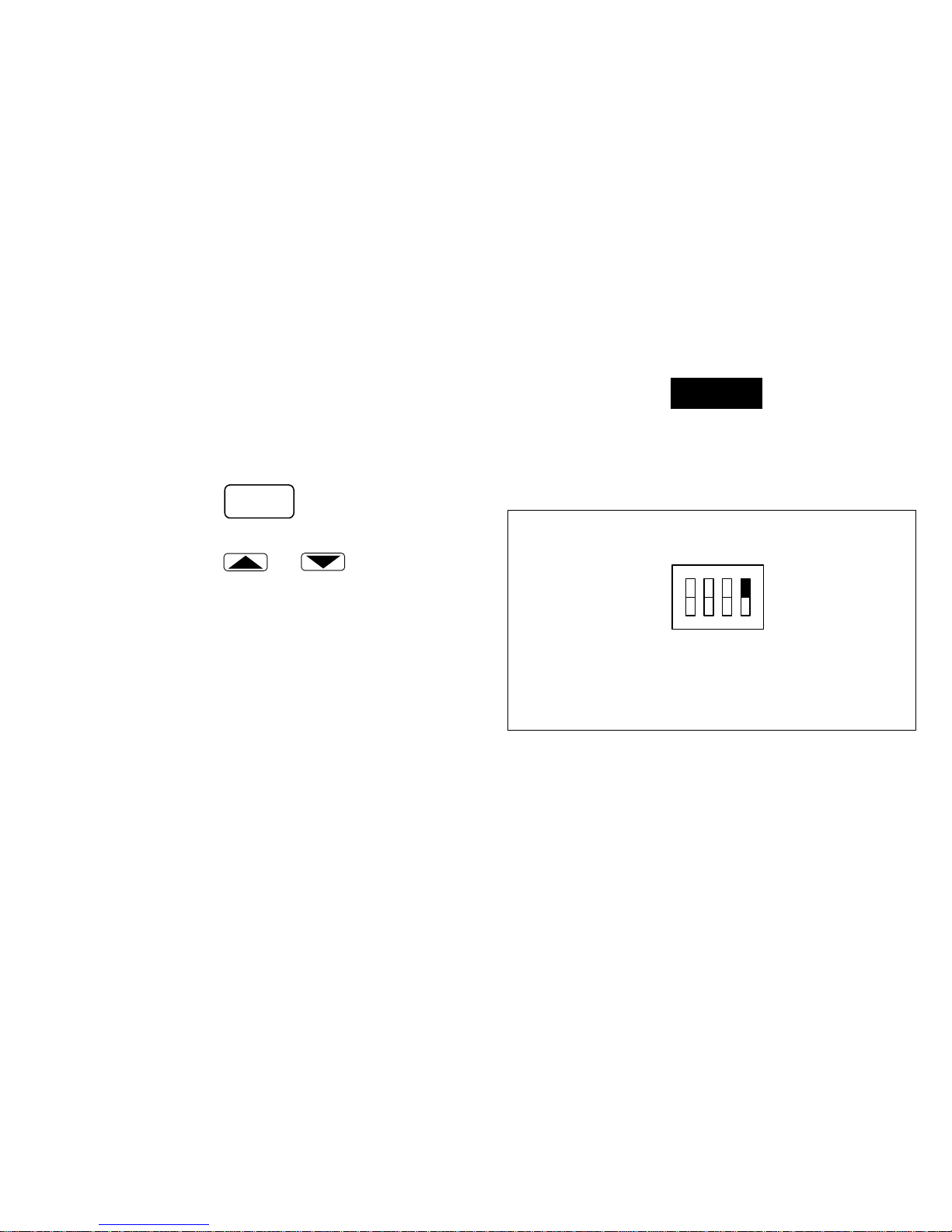

EMR (ON)
Switch #1 set at installation (DO NOT CHANGE)
Switch #2 set at installation (DO NOT CHANGE)
Switch #3 ON
Switch #4 (see TOTAL KEYPAD LOCKOUT)
TodisableEMR, press
SYSTEM
SWITCH
untilOFF
isdisplayed.Removethethermostatbody
from the wall and use a pencil or small
screwdrivertomoveoptionswitch#3tothe
OFF (down) position. Remove the battery
and allow at least two minutes for the
thermostat to reset itself. Replace the bat-
tery,press
SYSTEM
SWITCH
untilOFFisdisplayed,
then replace the thermostat on the wall.
Press
SYSTEM
SWITCH
until the desired operating
mode is displayed.
•AUTOMATIC CHANGEOVER — If your
thermostat was configured for this option
at installation, you can set the thermostat
to automatically switch the system from
heating to cooling as needed. Press
SYSTEM
SWITCH tosetthethermostattoAUTO(the
ON
1234

14
setpointdisplayisblankintheAUTOmode).
The system will now automatically switch
between heating and cooling depending
on the actual room temperature.
If the thermostat is configured for automatic
changeover, the thermostat will not allow the
temperature separation between the highest
heat setting and the lowest cool setting to be
less that 1°F. For example, if the highest heat
setting is 76°F, the lowest cool setting cannot
be below 77°F (see diagram below).
•TWO HOUR TEMPERATURE OVER-
RIDE — Press or until the
display shows the temperature you want.
The thermostat will override current pro-
grammingandkeeptheroomtemperature
at the selected temperature for two hours.
After two hours, the thermostat will auto-
matically revert to the program.
This feature will not work in the AUTO mode.
Therefore, we do not recommend using the
temperatureoverridefeaturewhenthethermo-
stat is in the AUTO mode. Pressing or
intheAUTOmodewillcausethethermo-
stattoreverttothemode(heatorcool)inwhich
itwaslastcycledbeforeswitchingtotheAUTO
mode and will prevent automatic switching for
NOTE
NOTE
79
78
77
76
75
74
73
COOLING TEMPERATURES
HEATING TEMPERATURES
DEAD BAND 1°F

15
two hours. If you do press or in the
AUTO mode, you may press
RUN
PRGM
to return to
programmed operation in the AUTO mode.
•HOLD TEMPERATURE — The thermo-
stat can hold any temperature within its
range for an indefinite period, without re-
vertingtotheprogram.Press
HOLD
COPY
.HOLD
willbedisplayed.Thenchoosethedesired
hold temperature by pressing or
. The thermostat will hold the room
temperature at the selected setting until
you press
RUN
PRGM
to start program operation
again. This feature is ideal for energy
conservation when the building is unoccu-
pied for an extended period of time.
•°F/°C CONVERTIBILITY — Press
TIME
FWD
and
TIME
BACK
at the same time until the tem-
perature display is in °C(Celsius). To dis-
play °F, repeat the process.
•ADJUSTABLE HEATING AND COOL-
INGCYCLETIMES(ANTICIPATION)—If
the heating/cooling system is turning on
and off too often (short cycles) or not often
enough (long cycles), you may want to
adjust the anticipation setting.
A cooling anticipation setting of less
than10maycausedecreasedcompres-
sor life.
CAUTION
!

16
To adjust anticipation, press
SET
CLOCK
and
ADV
DAY
atthesametime.Thedisplaywillshow
HEAT5(thisisthefactorypreprogrammed
heating anticipation setting). You may se-
lect any anticipation setting from 4 to 40. If
theheatcyclesaretooshort,press
TIME
FWD
to
increase the cycle time. If the heat cycles
are too long, press
TIME
BACK
to decrease the
cycletime.Tosetcoolinganticipation,press
SET
CLOCK
and
ADV
DAY
atthesametimeagain.The
display will show COOL 14 (factory
preprogrammed cooling anticipation).
Press
TIME
FWD
or
TIME
BACK
to adjust anticipation.
Press
RUN
PRGM
to return to your program.
•LOWBATTERYINDICATOR—Theword
BATTERY will flash on the display if the 9
volt alkaline battery is low and should be
replaced.
•AUDIO PROMPTING — Each time you
press a button, the thermostat will beep
(this feature works only when the thermo-
stat is attached to the wall and 24VAC
power is present to the thermostat).
•BACKLIT DISPLAY — When you press
anybuttononthethermostat,thedisplayis
lit for approximately eight seconds (this
feature works only when the thermostat is
attached to the wall and 24VAC power is
present to the thermostat).
•COMPRESSOR SHORT CYCLE PRO-
TECTION — To protect your compressor
from potential damage due to rapid cy-
cling,thisthermostathasabuilt-indelayof

17
5 minutes between cooling cycles. The
followingmaycauseatimedelayinCOOL:
a) Return of power after a power outage.
b) Pressing
SYSTEM
SWITCH to change operating
modes.
c) Pressing or , creating a call
forCOOLtoosoonafterapreviouscall.
•SYSTEMINDICATORLIGHTS—Thered
indicatorlightcomesonwhenevertheheat-
ing or cooling system is operating. The
yellow indicator light comes on when the
secondstageofheatingorcoolingisoper-
ating.
•TOTAL KEYPAD LOCKOUT — When
option switch #4 is in the total keypad
lockoutposition(ON),programscannotbe
altered and all buttons are disabled.
Programming should be completed and bat-
teryshouldbeinstalledbeforechangingoption
switch #4.
TOTAL KEYPAD LOCKOUT (ON)
Switch #1 set at installation (DO NOT CHANGE)
Switch #2 set at installation (DO NOT CHANGE)
Switch #3 (see EMR)
Switch #4 ON
Switches #1 and #2 are set at installation
andshouldnotbechanged.Toenabletotal
keypad lockout, move option switch #4 to
ON.Todisabletotalkeypadlockout,move
option switch #4 to OFF.
NOTE
ON
1234

18
•PROGRAMMABLE BLOWER CON-
TROL —Youmayprogramthefan blower
to run continuously during any given pro-
gram period, regardless of the cycling of
the heating or cooling system. During pro-
gramming,afterenteringthetimeandtem-
peratureforthetimeperiod,press
FAN
SWITCH
until PRG FAN appears. To override con-
stant fan, press
FAN
SWITCH until FAN AUTO
appears.
PROGRAMMING YOUR THERMOSTAT
Nowyouarereadytoprogramyourthermostat.
This section will help you plan and program
yourthermostattomeetyourneeds.Formaxi-
mumcomfortandefficiency,keepthefollowing
guidelines in mind when planning your pro-
gram.
• When heating (cooling) your building, pro-
gram the temperatures to be cooler
(warmer) when the building is vacant or
during periods of low activity.
• During early morning hours, the need for
cooling is usually minimal.
PLANNING FOR YOUR NEEDS
First, answer the following questions to help
you decide what your needs are.
1a. What time does the first person arrive at
the building in the morning?

19
b. What temperature should the building be
at this time? (heating? cooling?)
2a. What time does the building become va-
cant?
b. What temperature should the building be
at this time?
Now look at the factory preprogrammed times
andtemperaturesshownbelow.Ifthisprogram
willsuityourneeds,simplypress
RUN
PRGM
tobegin
running the factory preset program.
If you want to change the preprogrammed
times and temperatures, do the following.
Determine the heating and cooling times and
temperatures you want to use. Use the follow-
ingtabletoplanyourprogramtimeperiodsand
temperatures.Youmayalsowanttolookatthe
sampleprogramtabletogetanideaofhowthe
thermostat can be programmed. You may se-
lect up to two heating temperatures (HEAT O
for occupied temperature and HEAT U for
unoccupied temperature), and up to two cool-
ing temperatures (COOL O and COOL U).
To operate properly in the AUTO mode, there
must be a minimum 1°F separation between
the highest heat temperature and the lowest
cool temperature.
Heating Program for ALL days of the Week:
PERIOD TIME TEMP
Occupied (O)
Unoccupied (U) 8:00 AM 5:00 PM 70
64
FAN
PRG
AUTO
DAMPER
Open
Closed
FACTORY PREPROGRAMMING
Cooling Program for ALL days of the Week:
PERIOD TIME TEMP
Occupied (O)
Unoccupied (U) 8:00 AM 5:00 PM 78
82
FAN
PRG
AUTO
DAMPER
Open
Closed
NOTE

20
Heating Program
Occupied
Period
Start Time
Monday
Tuesday
Wednesday
Thursday
Friday
Saturday
Sunday
Heating/Cooling Schedule Plan
Occupied
Heating
Temp.
Unoccupied
Period
Start Time
Unoccupied
Heating
Temp.
Occupied
Period
Start Time
Occupied
Cooling
Temp.
Unoccupied
Period
Start Time
Unoccupied
Cooling
Temp.
Cooling Program
NOTE: Damper operation is linked to occupied or unoccupied temperature settings, not time periods. If you
program an unoccupied temperature during an occupied time period, the damper will not operate during
that occupied period. We suggest programming occupied temperatures only during occupied time periods,
and unoccupied temperatures during unoccupied time periods.
