Whyte WATS-517 User manual

Launch Amplifier
INSTRUCTION MANUAL
WATS-517 | WATS-530
www.whytetechnologies.com
In the interest of connuous improvement,
all specicaons of products within this brochure are
subject to change without noce.

SAFETY
The Mulswitches are intended for indoor use only.
Do not install the Mulswitch in damp, humid, hot or dusty areas.
Switch o and remove the power supply when making connecons to the
Mulswitch to avoid damaging the unit.
Always earth bond the Mulswitch using the Earth Bonding Lug and/or the
Earth Terminal Bars to a suitable earth bonding point using minimum 4mm²
diameter earth cable.
PRECAUTIONS
To ensure trouble free operaon:
Do not remove the cover of the Mulswitch or disassemble it as this will
invalidate the guarantee.
The female F connectors on this unit were designed for use with '100' type
coaxial cable with a centre core diameter of 1mm². When using larger CT125
or CT167 cables, you must ensure that suitable F connectors with reducing
pins are used otherwise damage to the unit will occur which will invalidate the
guarantee.
Do not over ghten the F connectors (nger ght only).
GUARANTEE
All Whyte products are guaranteed for a period of 4 years from the date of
purchase against defects. Within this guarantee period, Whyte Technologies
will repair or replace the faulty product. In the unlikely event, please return
any faulty products to your dealer.
The Guarantee will be deemed as void if the serial number on the product
is removed, damaged or illegible. The Guarantee excludes defects caused by
incorrect use, accidental damage, disassembly, water/re/lightning damage or
lack of venlaon.
GENERAL DESCRIPTION
The Whyte Series 5 Launch Amplier range are compact and designed to be
universally exible. They can be used in small, medium and large Integrated
Recepon Systems (IRS).
All Whyte Series 5 Launch Ampliers may be ulised as Launch Ampliers or
Line Ampliers depending on the specic IRS system design requirements.
TECHNICAL DESCRIPTION
Whyte Series 5 Launch Ampliers can be powered directly via the 18V
Auxiliary Input or may be line powered via the SAT input or output trunk lines.
A Whyte Power Supply Unit may be connected to the 18V Auxiliary Input
which will pass power upwards and downwards via the HL and HH lines.
All IF trunk lines are DC passing. The IF inputs provide power to the LNB
irrespecve of whether they are powered locally or line powered.
A switchable 12V supply is provided to power a Mast Amplier if required.
If a Mast Amplier is not present this should be le in the o posion.
There are 2 models available in the Whyte Series 5 Launch Amplier
Range; WATS-530 and WATS-517 are summarised as follows (see technical
specicaons for further details).
WATS-530
SAT Gain 30dB TERR Gain 24dB
SAT & TERR Gain Controls
SAT & TERR Slope Controls
WATS-517
SAT Gain 17dB TERR Gain 13dB
SAT & TERR Gain Controls
SAT & TERR Slope Controls
2 3

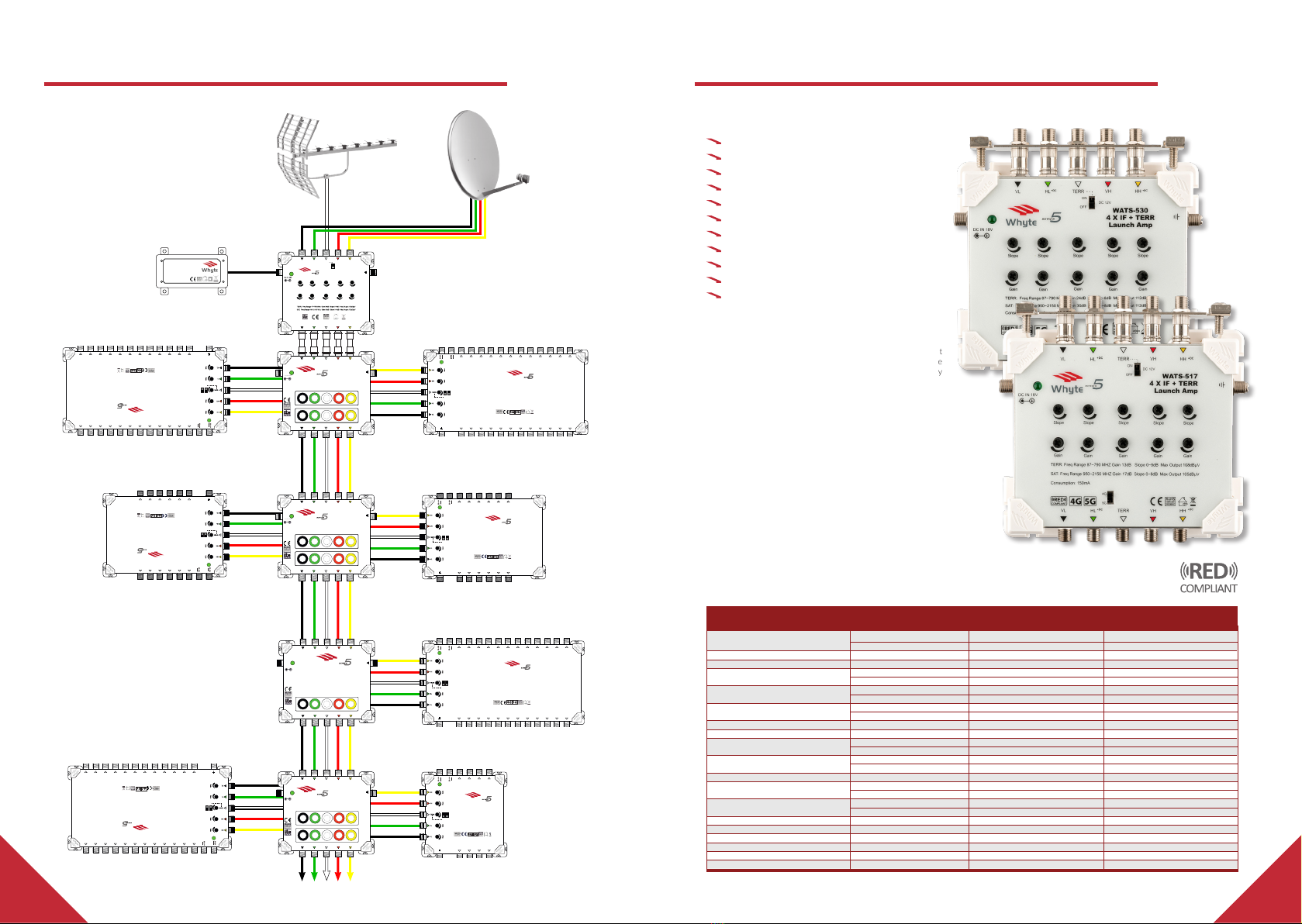

EXAMPLE CONFIGURATION
2.5A Power Supply Unit
Short Circuit & Overload Protection
Model: WPSU - 2.5A
Input: 110- 240VAC 50/60Hz
Output: 18V 2.5A
Gain Gain Gain Gain Gain
Slope Slope Slope Slope Slope
VL HL VH HH
TERR
DC 12V
OFF
ON
VL HL VH HH
TERR
WATS-530
4 X IF + TERR
Launch Amp
Whyte
ON
OFF
DC12V
4G 5G
Multiswitch WM512
Freq Range TERR
Freq Range SAT
Gain TERR
Gain SAT
Max Output TERR
Max Output SAT
Current Consumption
47~790 MHz
950~2150 MHz
9dB
10dB
85dBµV
100dBµV
210mAMax
Whyte
REC6
REC2 REC4 REC8 REC10 REC12
REC5
REC1 REC3 REC7 REC9 REC11
+DC
+DC
DC IN 18V DCOUT 18V
AUXILIARY
ON
OFF
DC12V
4G 5G
Multiswitch WM512
Freq Range TERR
Freq Range SAT
Gain TERR
Gain SAT
Max Output TERR
Max Output SAT
Current Consumption
47~790 MHz
950~2150 MHz
9dB
10dB
85dBµV
100dBµV
210mAMax
Whyte
REC6
REC2 REC4 REC8 REC10 REC12
REC5
REC1 REC3 REC7 REC9 REC11
+DC
+DC
DC IN 18V DCOUT 18V
AUXILIARY
TERR: FreqRange 87~790 MHz TrunkLoss 2dB TapLoss 20dB
SAT: Freq Range 950~2150 MHz Trunk Loss 3dB TapLoss 20dB
T
A
P
2
T
A
P
1
WT52-20
5 Wire 2 Way
Tap - 20dB
DC IN 18V
T
A
P
2
T
A
P
1
Whyte
HL VH HH
TERR
VL
HHVH
HL
VL TERR
HL VH HH
TERR
VL
WT51-10
5 Wire 1 Way Tap - 10dB
TERR: FreqRange 87~790 MHz TrunkLoss 2dB TapLoss 10dB
SAT: Freq Range 950~2150 MHz Trunk Loss 2dB TapLoss 10dB
T
A
P
DC IN 18V
Whyte
HHVH
HL
VL TERR
ON
OFF
DC12V
4G 5G
Multiswitch WM524
Whyte
Freq Range TERR
Freq Range SAT
Gain TERR
Gain SAT
Max Output TERR
Max Output SAT
Current Consumption
47~790 MHz
950~2150 MHz
9dB
10dB
85dBµV
100dBµV
230mAMax
+DC
+DC
REC6
REC2 REC4 REC8 REC10 REC12 REC14 REC16 REC18 REC20 REC22 REC24
REC5
REC1 REC3 REC7 REC9 REC11 REC13 REC15 REC17 REC19 REC21 REC23
DC IN 18V DCOUT 18V
AUXILIARY
ON
OFF
DC12V
4G 5G
Multiswitch WM524
Whyte
Freq Range TERR
Freq Range SAT
Gain TERR
Gain SAT
Max Output TERR
Max Output SAT
Current Consumption
47~790 MHz
950~2150 MHz
9dB
10dB
85dBµV
100dBµV
230mAMax
+DC
+DC
REC6
REC2 REC4 REC8 REC10 REC12 REC14 REC16 REC18 REC20 REC22 REC24
REC5
REC1 REC3 REC7 REC9 REC11 REC13 REC15 REC17 REC19 REC21 REC23
DC IN 18V DCOUT 18V
AUXILIARY
DC IN 18V
ON
OFF
DC12V
4G 5G
Multiswitch WM508
Freq Range TERR
Freq Range SAT
Gain TERR
Gain SAT
Max Output TERR
Max Output SAT
Current Consumption
87~790 MHz
950~2150 MHz
9dB
10dB
85dBµV
100dBµV
210mA Max
Whyte
+DC
+DC
REC6
REC2 REC4 REC8
REC5
REC1 REC3 REC7
DC OUT 18V
AUXILIARY
WT52-10
5 Wire 2 Way
Tap - 10dB
TERR: FreqRange 47~790 MHz Trunk Loss 2dB Tap Loss 10dB
SAT: Freq Range 950~2150 MHz Trunk Loss 3dB TapLoss 10dB
T
A
P
2
T
A
P
1
DC IN 18V
Whyte
HL VH HH
TERR
VL
HHVH
HL
VL TERR
TERR: Freq Range 87~790 MHz TrunkLoss 2dB Tap Loss 20dB
SAT: Freq Range 950~2150 MHz Trunk Loss 3dB TapLoss 20dB
T
A
P
2
T
A
P
1
WT52-20
5 Wire 2 Way
Tap - 20dB
DC IN 18V
T
A
P
2
T
A
P
1
Whyte
HL VH HH
TERR
VL
HHVH
HL
VL TERR
ON
OFF
DC12V
4G 5G
Multiswitch WM524
Whyte
Freq Range TERR
Freq Range SAT
Gain TERR
Gain SAT
Max Output TERR
Max Output SAT
Current Consumption
47~790 MHz
950~2150 MHz
9dB
10dB
85dBµV
100dBµV
230mA Max
+DC
+DC
REC6
REC2 REC4 REC8 REC10 REC12 REC14 REC16 REC18 REC20 REC22 REC24
REC5
REC1 REC3 REC7 REC9 REC11 REC13 REC15 REC17 REC19 REC21 REC23
DC IN 18V DCOUT 18V
AUXILIARY
ON
OFF
DC12V
4G 5G
Multiswitch WM524
Whyte
Freq Range TERR
Freq Range SAT
Gain TERR
Gain SAT
Max Output TERR
Max Output SAT
Current Consumption
47~790 MHz
950~2150 MHz
9dB
10dB
85dBµV
100dBµV
230mA Max
+DC
+DC
REC6
REC2 REC4 REC8 REC10 REC12 REC14 REC16 REC18 REC20 REC22 REC24
REC5
REC1 REC3 REC7 REC9 REC11 REC13 REC15 REC17 REC19 REC21 REC23
DC IN 18V DCOUT 18V
AUXILIARY
WPSU -2.5A
WATS-530
WM524
WM524
WM524
WM512
WM524
WM508
WM512
WT52-20
WT52-20
WT51-10
WT52-10
Series 5 Launch Ampliers
WATS-517 | WATS-530
4 Years Warranty
RED Compliant
Gain Control on all inputs
Slope Control to all inputs
Comes with input Earth Bar
4G/5G Selectable lters
Colour coded inputs & outputs
Switchable 12V DC Supply to Terrestrial input
SAT GAIN 30dB TERR GAIN 24dB (WATS-530)
SAT GAIN 17dB TERR GAIN 13dB (WATS-517)
18V Auxiliary Input injects power to the HL & HH
trunk lines
The RED Compliant Whyte Series 5 Launch Ampliers are compact
and powerful and may be ulised as Launch Ampliers or Line
Ampliers. They can be powered directly via the 18V Auxiliary
Input or line powered via the HH and HL trunk lines.
This range of RED Compliant Launch Ampliers come complete
with a selectable 4G/5G lter, whilst gain and slope control all
inputs makes commissioning easy.
950-2150MHz
87-790MHz
4 SAT + 1 TERR
4 SAT + 1 TERR
>17dB
>13dB
10dB±2dB
10dB±2dB
8dB±1dB
8dB±1dB
YES
100mA
>8dB
>8dB
105dBµV
108dBµV
2A
YES 2A Max
NO
YES
YES (HL + HH)
YES
Up to 6mm² core
LED
150mA Max
158 x 154 x 43
470g
950-2150MHz
87-790MHz
4 SAT + 1 TERR
4 SAT + 1 TERR
>30dB
>24dB
15dB±2dB
10dB±2dB
8dB±2dB
8dB±2dB
YES
100mA
>8dB
>8dB
112dBµV
112dBµV
2A
YES 2A Max
NO
YES
YES (HL + HH)
YES
Up to 6mm² core
LED
290mA Max
158 x 154 x 43
470g
SAT
TERR
SAT
TERR
SAT
TERR
SAT
TERR
SAT
TERR
SAT (IMA³ -35dB) EN50083-3
TERR (IMA³ -60dB) EN50083-5
SAT (per trunk)
TERR
Via DC In
Via SAT Trunks (HL + HH)
Frequency
Inputs (F-Type Connector)
Outputs (F-Type Connector)
Gain
Gain Control
Slope Control
4G/5G Filter (switchable)
TERR 12V DC Supply (switchable)
Input/Output Return Loss
Max Output Level
LNB Power Supply Max
Trunk DC Pass
Powering
Input Earth Terminal Bar
Earth Lug (F-Type connector with clamp)
Power Indicaon
Power Consumpon
Dimensions including Earth Bars W x L x H (mm)
Weight
MODEL WATS-517 WATS-530
Whyte Technologies - Unit 13 Watermill Business Centre, Edison Road, Eneld, EN3 7XF | Tel: [phone] | www.whytetechnologies.com
SPECIFICATION
4 5
In the interest of connuous improvement, all specicaons of products are subject to change without noce.

Unit 13, Watermill Business Centre. Edison Road, Eneld. EN3 7XF
Tel: [phone] | [email protected] | www.whytetechnologies.com
Copyright © Whyte Technologies June 2020
