Wickes PDH32DS.2 User manual

PDH32DS.2
223724
ROTARY HAMMER
1500W

2
CONTENTS
GENERAL POWER TOOL SAFETY WARNINGS 3
5
6
6
6
7
8
12
12
12
12
13
14
COMPONENT LIST
ACCESSORIES
TECHNICAL DATA
SYMBOLS
NOISE INFORMATION
OPERATING INSTRUCTIONS
MAINTENANCE
WORKING HINTS FOR YOUR ROTARY HAMMER DRILL
TROUBLESHOOTING
ENVIRONMENTAL PROTECTION

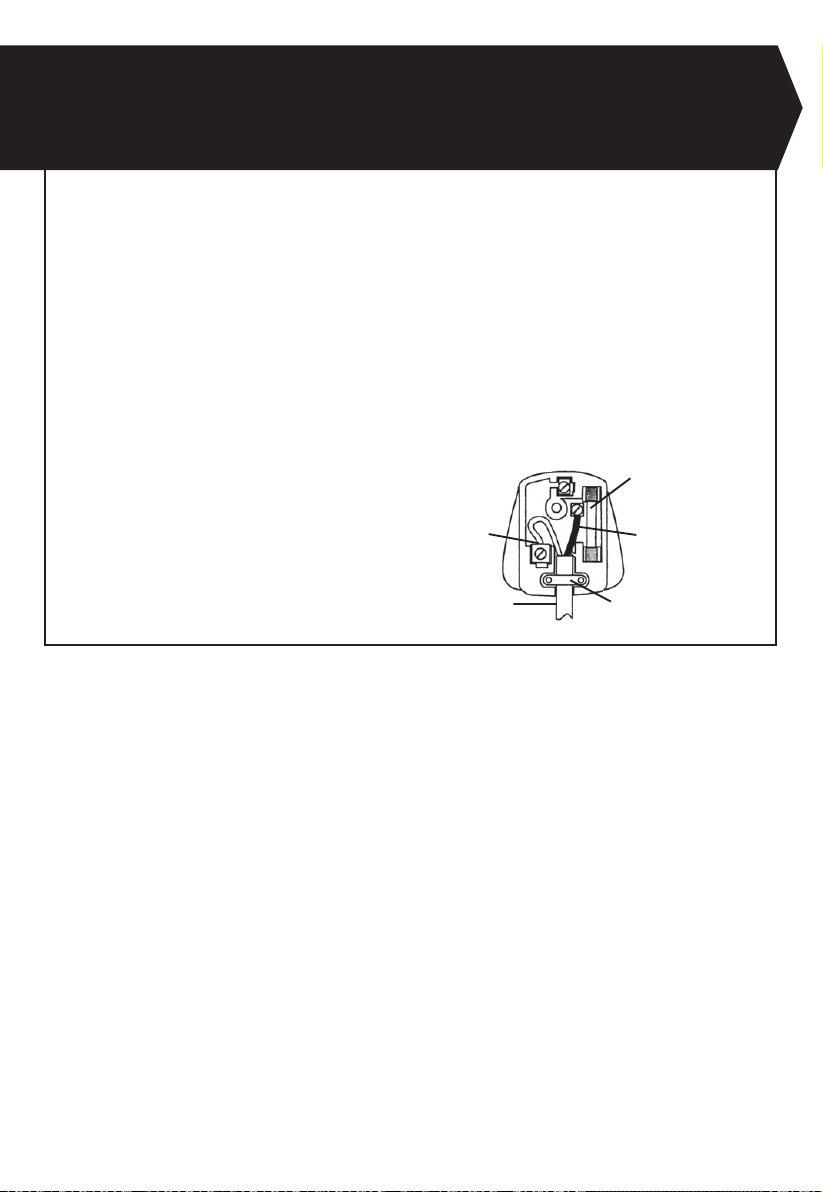

PLUG REPLACEMENT (ONLY FOR REWIRABLE PLUG OF UK & IRELAND)
DECLARATION OF CONFORMITY

3
GENERAL POWER TOOL SAFETY WARNINGS
WARNING! Read all safety warnings and all
instructions. Failure to follow the warnings and
instructions may result in electric shock, re and/or serious
injury.
CAUTION: This machine is capable of generating considerable
torque and misuse can result in signicant injury.
SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE
REFERENCE.
The term “power tool” in the warnings refers to your mains-
operated (corded) power tool or battery-operated (cordless)
power tool.
1. WORK AREA SAFETY
a) Keep work area clean and well lit. Cluttered or dark
areas invite accidents.
b) Do not operate power tools in explosive atmospheres,
such as in the presence of ammable liquids, gases or
dust. Power tools create sparks which may ignite the dust
or fumes.
c) Keep children and bystanders away while operating a
power tool. Distractions can cause you to lose control.
2. ELECTRICAL SAFETY
a) Power tool plugs must match the outlet. Never modify
the plug in any way. Do not use any adapter plugs with
earthed (grounded) power tools. Unmodied plugs and
matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces,
such as pipes, radiators, ranges and refrigerators.
There is an increased risk of electric shock if your body is
earthed or grounded.
c) Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of electric
shock.
d) Do not abuse the cord. Never use the cord for carrying,
pulling or unplugging the power tool. Keep cord away
from heat, oil, sharp edges or moving parts. Damaged
or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a cord
suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is
unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of
electric shock.
3. PERSONAL SAFETY
a) Stay alert, watch what you are doing and use common
sense when operating a power tool. Do not use a
power tool while you are tired or under the inuence
of drugs, alcohol or medication. A moment of inattention
while operating power tools may result in serious personal
injury.
b) Use personal protective equipment. Always wear eye
protection. Protective equipment such as dust mask, non-
skid safety shoes, hard hat, or hearing protection used for
appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is
in the off-position before connecting to power source
and/or battery pack, picking up or carrying the tool.
Carrying power tools with your nger on the switch or
energising power tools that have the switch on invites
accidents.
d) Remove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached to a
rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at
all times. This enables better control of the power tool in
unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery.
Keep your hair, clothing and gloves away from moving
parts. Loose clothes, jewellery or long hair can be caught
in moving parts.
g) If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection can
reduce dust-related hazards.
4. POWER TOOL USE AND CARE
a) Do not force the power tool. Use the correct power
tool for your application. The correct power tool will
do the job better and safer at the rate for which it was
designed.
b) Do not use the power tool if the switch does not turn
it on and off. Any power tool that cannot be controlled
with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or
the battery pack from the power tool before making
any adjustments, changing accessories, or storing
power tools. Such preventive safety measures reduce the
risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the power
tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and any
other condition that may affect the power tool’s
operation. If damaged, have the power tool repaired
before use. Many accidents are caused by poorly
maintained power tools.
f) Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges are less
likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in

4
HAMMER SAFETY WARNINGS
1. Wear ear protectors. Exposure to noise can cause hearing loss.
2. Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury.
3. Always wear a dust mask.
4. Hold power tool by insulated gripping surfaces, when performing an operation where the cutting
accessory may contact hidden wiring or its own cord. Cutting accessory contacting a “live” wire may make
exposed metal parts of the power tool “live” and could give the operator an electric shock.
accordance with these instructions, taking into account
the working conditions and the work to be performed.
Use of the power tool for operations different from those
intended could result in a hazardous situation.
5. SERVICE
a) Have your power tool serviced by a qualied repair
person using only identical replacement parts. This will
ensure that the safety of the power tool is maintained.

5
COMPONENT LIST
Locking sleeve
Hammer or chisel action selector switch
Grease box cover
Anti-vibration handle
On / Off switch
Variable speed control
Auxiliary handle
Depth gauge
SDS Chisel(at & pointed)
SDS Drill bit
Spanner
Dust cover
Hammer or drilling action selector switch
1
3
2
4
6
5
7
9
8
10
11
12
13
1
8
2 3 4
5
13
7
10
9
11
12
2
6
3

6
SYMBOLS
TECHNICAL DATA
To reduce the risk of injury, read all of this
instruction manual
Warning
Wear ear protection
Wear eye protection
Wear dust mask
Double insulated
Waste electrical products must not be
disposed of with household waste. Please
recycle where facilities exist. Check with
your local authorities or retailer for recycling
advice.
Voltage
Power input
No load speed
Impact rate
Impact energy
Max drilling capacity
Steel
Masonry
Wood
Protection class
Machine weight
230-240V~50Hz
1500W
200~850/min
1700~4200/min
5.5J
13mm
32mm
40mm
/II
4.88kg
ACCESSORIES
Auxiliary handle 1
Depth gauge 1
Dust cover 1
Spanner 1
SDS drill bits (8/10/12 x 150mm) 3
SDS chisels (at & pointed 250mm) 2
We recommend that you purchase your accessories from the same store that sold you the tool. Use good quality
accessories marked with a well-known brand name. Choose the type according to the work you intend to undertake.
Refer to the accessory packaging for further details. Store personnel can assist you and offer advice.

7
NOISE INFORMATION
A weighted sound pressure LpA: 96.4dB(A)
A weighted sound power LwA: 107.4dB(A)
KpA & KwA 3.0dB(A)
Wear ear protection when sound pressure is over: 80dB(A)
Vibration total values (triax vector sum) determined according to EN60745:
Hammer drilling into concrete Hammer drill into concrete ah,HD = 19.372m/s2
Uncertainty K=1.5m/s2
Chiseling Chiselling ah,Cheq =17.879m/s2
Uncertainty K=1.5m/s2
The declared vibration total value may be used for comparing one tool with another, and may also be used in a
preliminary assessment of exposure.
WARNING! The vibration emission value during actual use of the power tool can differ from the declared value
depending on the ways in which the tool is used dependant on the following examples and other variations on
how the tool is used:
How the tool is used and the materials being drilled.
The tool being in good condition and well maintained.
The use the correct accessory for the tool and ensuring it is sharp and in good condition.
The tightness of the grip on the handles and if any anti vibration accessories are used.
And the tool is being used as intended by its design and these instructions.
This tool may cause hand-arm vibration syndrome if its use is not adequately managed.
WARNING! To be accurate, an estimation of exposure level in the actual conditions of use should also take
account of all parts of the operating cycle such as the times when the tool is switched off and when it is running
idle but not actually doing the job. This may signicantly reduce the exposure level over the total working period, helping
to minimize your vibration exposure risk.
ALWAYS use sharp chisels, drills.
Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate).
If the tool is to be used regularly then invest in anti vibration accessories.
Plan your work schedule to spread any high vibration tool use across a number of days.
VIBRATION INFORMATION

8
OPERATING INSTRUCTIONS
NOTE: Before using the tool, read the instruction book carefully.
Intended Use
The machine is intended for hammer drilling in concrete, brick and stone as well as for light chiseling work. It is also
suitable for drilling without impact in wood, metal, ceramic and plastic.
Rotate the handgrip counter-clockwise to loosen the
auxiliary handle.
Slide the auxiliary handle (7) onto the drill and rotate
to the desired working position. Rotate the handgrip
clockwise to clamp the auxiliary handle. Always use
the auxiliary handle in operation.
CAUTION: Always check and rotate the handle
tightly before using to avoid any accident.
2. Clamping the Auxiliary Handle (See Fig. B)
Fig. A2
Fig. B
INSERTING
Clean the bit shank and apply grease before installing
the bit. Hold the rotary grip, pull back the locking sleeve
(1) and insert the bits into the chuck. Turn the SDS tool
and push it in until resistance is felt, and shaft is inserted
completely into the chuck. Once you are satised it has
seated, release the black locking sleeve. The SDS tool
should be locked in position.
After installing always make sure that the tool is securely
held in the chuck by trying to pull it out.
If the SDS tool is not correctly located, repeat the
installation operation
REMOVING
To remove the bit, pull back the locking sleeve (1), hold
and pull the bit out.
The Anti-vibration handle reduces the vibration, making operation more comfortable and secure.
1. INSERTING AND REMOVING DRILL BIT/ CHISEL (See Fig. A1,A2)
3. ANTI-VIBRATION HANDLE
Fig. A1
1
1
2
2
chuck
chuck

9
The depth gauge (8) can be used to set a constant depth
to the drill.
Rotate the locking screw on the top of the handle anti-
clockwise to loosen, insert the depth gauge (8) into the
handle.
Adjust it to the desired depth. Rotate the locking screw
clockwise to tighten.
Depress the On/Off switch (5) to start and release it to
stop your tool.
1. Adjust the hammer or chisel action selector (2) to
position “ “ . (See Fig. E1)
2. Adjust the hammer or drilling action selector (13) to
position “ “ .(See Fig. E2)
3. You are now set up for hammer drilling into masonry.
NOTE: Press the selector switch lock button before
adjusting the dial selector everytime.
1. Adjust the hammer or chisel action selector (2) to
position “ “. (See Fig. F1)
2. Adjust the hammer and drilling action selector (13) to
position “ “ . (See Fig. F2)
3. You are now set up for drilling without hammer..
NOTE: Press the selector switch lock button before
adjusting the dial selector everytime.
4. USING THE DEPTH GAUGE (See Fig. C)
5. ON/OFF SWITCH (See Fig. D)
6. HAMMER DRILL FUNCTION (See Fig. E1, E2)
7. DRILLING FUNCTION (See Fig. F1, F2)
Fig. C
Fig. D
Fig. E1
Fig. F1
Fig. E2
Fig. F2
lock button
lock button
locking screw

10
The gearbox is lubricated with grease. Relling is required
when the hammer efciency is low. Open the cover using
the spanner (11) provided and add general purpose lithium
based grease.
CAUTION: Keep the container of grease away
from children.
10. LUBRICATION (See Fig. I)
Fig. I
This tool will generate high forces when use. Always hold the tool with both hands and adopt a secure posture.
If the drill bit or chisel becomes jammed in the workpiece, the clutch will activate stopping the tool spindle. This is normal.
Switch the machine off, loosen and remove the drill bit or chisel from the work piece.
CAUTION: Switching the machine on with the drill bit or chisel jammed in the work piece will generate high reaction
torque and can result in injury.
11. SAFETY CLUTCH PROTECTION
Before drilling, t the dust cover (12) over the drill bit.
CAUTION: Always wear eye protection with this
tool.
9. DUST COVER (See Fig. H)
Fig. H
1. Adjust the hammer and chisel action selector (2) to
position “ “ .(See Fig. G1)
2. Adjust the hammer and drilling action selector (13) to
position “ “ .(See Fig. G2)
3. You are now set to chisel without rotation..
NOTE: Press the selector switch lock button before
adjusting the dial selector everytime.
WARNING: You must make sure that the
selector switch is positively locked in chisel
mode position. If not, it could cause a hazard.
8. CHISEL FUNCTION (See Fig. G1, G2)
Fig. G1 Fig.G2
lock button

11

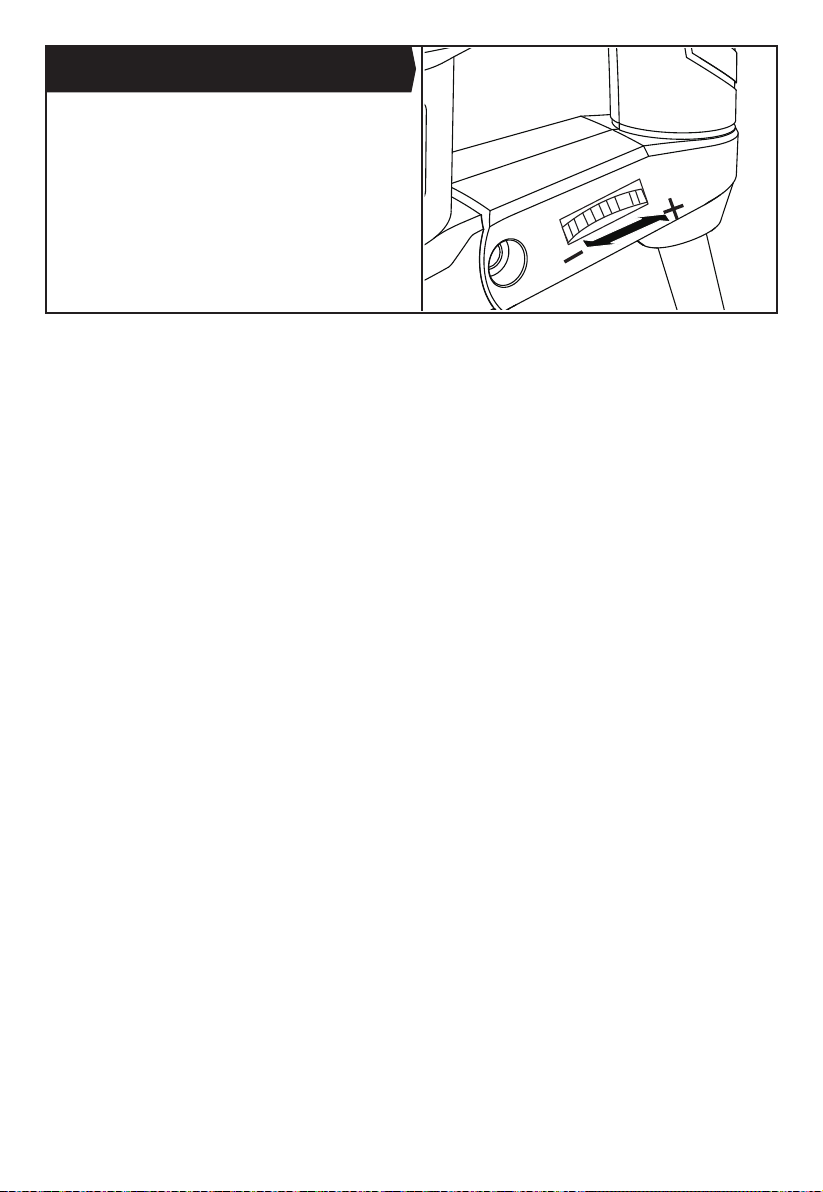

The speed increases as you adjust the thumb-wheel (6)
towards the higher number and decreases on the lower
number.
Avoid prolonged use at very low speed as this may cause
damage.
12. VARIABLE SPEED CONTROL (See Fig. J)
2
3
Fig. J

12
1. Reduce the pressure on the drill bit when it is about to break through. This will prevent the drill from jamming.
2. When drilling a large hole, rst drill a pilot hole using a smaller drill bit.
3. Always apply pressure to your drill bit in a straight line, and if possible at right angles to the workpiece.
4. Never change the operating mode whilst the drill is running.
5. Do not apply excessive pressure to the tool when chiseling. Excessive force does not speed up the work.
Remove the plug from the socket before carrying out any adjustment, servicing or maintenance.
There are no user serviceable parts in your power tool. Never use water or chemical cleaners to clean your power tool.
Wipe clean with a dry cloth. Always store your power tool in a dry place. Keep the motor ventilation slots clean. Keep all
working controls free of dust. Occasionally you may see sparks through the ventilation slots. This is normal and will not
damage your power tool.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualied persons in
order to avoid a hazard.
WORKING HINTS FOR YOUR ROTARY HAMMER DRILL
MAINTENANCE
TROUBLESHOOTING
ENVIRONMENTAL PROTECTION
1. If your power tool does not start, check the plug on the power supply rst.
2. If your drill becomes too hot in use, set the hammer switch to the drill mode and allow your drill to operate at maximum
speed without load for 2 minutes.
3. If your hammer work efciency is too low, please add sufcient grease in the grease box.
4. If work efciency is too low please check drill bit or chisel and make sure it is not blunt or worn.
5. If a fault can not be rectied, return the tool to an authorized dealer for repair.
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.
Check with your Local Authority or retailer for recycling advice.

13
PLUG REPLACEMENT (ONLY FOR REWIRABLE PLUG OF UK &
IRELAND)
If you need to replace the tted plug then follow the instructions below.
IMPORTANT
The wires in the mains lead are colored in accordance with the following code:
Blue = Neutral
Brown = Live
As the colors of the wires in the mains lead of this appliance may not correspond with the colored markings identifying
the terminals in your plug, proceed as follows. The wire which is colored blue must be connected to the terminal which is
marked with N. The wire which is colored brown must be connected to the terminal which is marked with L.
Warning!
Never connect live or neutral wires to the earth terminal of the plug. Only t an approved 13A BS1363/A plug and the correct
rated fuse.
Note: If a moulded plug is tted and has to be removed take great care in disposing of the plug and severed cable, it must
be destroyed to prevent engaging into a socket.
13 Amp fuse approved
to BS1362
Connect
Blue to N
(neutral)
Outer sleeve
rmly clamped
Brown L(live)
Cable grip

14
DECLARATION OF CONFORMITY
We,
Wickes Building Supplies Limited
Declare that this product: HAMMER DRILL
Description and SKU code: 223724
Complies with the following Directives and Regulations:
2006/42/EC, Machinery Directive
2014/30/EU, Electromagnetic Compatibility Directive
2011/65/EU & (EU)2015/863, Restriction of Hazardous Substances Directive
and conforms to the following standards:
Standards specic to this product:
EN 60745-1
EN 60745-2-6
EN 55014-1
EN 55014-2
EN 61000-3-2
EN 61000-3-3
28th January, 2021
Philip Ansell
Category Technical Manager
Wickes
Vision House
19 Colonial Way
Watford
WD24 4JL”

Customer Helpline 0345 2005409
