Wido WD011330030 User manual

Rotary hammer
WD011330030
WD011320036
1250W/1500W

WD011330030/WD011320036
Thank you for purchasing a WIDO product. We are confident that you will appreciate the
quality of the product and you will be entirely satisfied with your purchase. Please read
carefully the user safety and operating instruction on how to operate this product correctly
within safety norms and regulations.
2

WD0113
WD011330030/WD011320036
134
2
6
7
8
9
12
13
10 11
5
3

t
321
654
98
7
12
10 11
4
WD0113
WD011330030/WD011320036

5
WD0113
WD011330030/WD011320036
13 14

1250W/1500W ROTARY HAMMER ENG

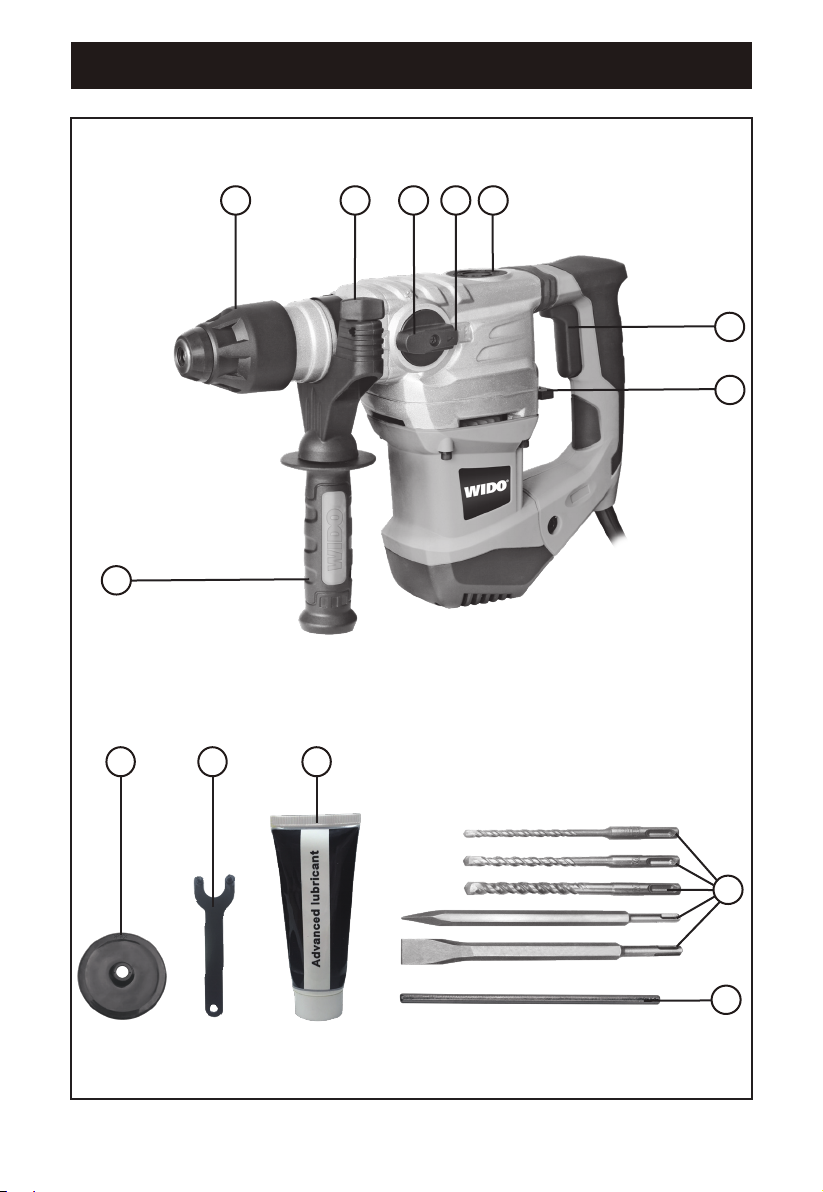

COMPONENT LIST
1)
Depth gauge lock knob
Fastening sleeve
2)
Mode selector knob
3)
Selector lock button
4)
Oil cover
5)
On/Off switch
6)
Mode selector lever
7)
8) Auxiliary handle
9) Dust cover
10)
Chisel bits / Masonry drill bits
11)
Depth gauge
12)
Grease tube
13)
Spanner for oil cover
NORMAL ACCESSORIES
1) Auxiliary handle: 1pc
2) Depth gauge: 1pc
3) Spanner for oil cover: 1pc
4) Dust cover: 1pc
5) Grease tube: 1pc
6) Drill bits: 3pcs
7) Chisel bits: 2pcs
8) Spare carbon brushes: 1set
We recommend that you purchase your accessories from the same store that sold you the tool.
Use good quality accessories marked with a well- known brand name.Choose the type according to
the work you intend to undertake. Refer to the accessory packaging for further details. Store
personnel can assist you and offer advice.
6

1250W/1500W ROTARY HAMMER
ENG
GENERAL POWER TOOL SAFETY WARNINGS:
Warning: Read all safety warnings and all instructions. Failure to follow the warnings and
instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructionsfor future reference.
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or
battery-operated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit.Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause
you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will
reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges
and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will
increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power
tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords
increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool.
Do not use a power tool while you are tired or under the influence of drugs, alcohol or
medication.A moment of inattention while operating power tools may result in serious personal
injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such
as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions
will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting
to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with
your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key
left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control
7

1250W/1500W ROTARY HAMMER ENG
of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and
gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving
parts.
g) If devices are provided for the connection of dust extraction and collection facilities,
ensure these are connected and properly used. Use of dust collection can reduce dust-related
hazards.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application.The correct
power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off.Any power tool that
cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool
before making any adjustments, changing accessories, or storing power tools. Such
preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar
with the power tool or these instructions to operate the power tool. Power tools are dangerous
in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of
parts and any other condition that may affect the power tool’s operation. If damaged, have the
power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions,
taking into account the working conditions and the work to be performed. Use of the power tool
for operations different from those intended could result in a hazardous situation.
5) Service
a) Have your power tool serviced by a qualified repair person using only identical replacement
parts. This will ensure that the safety of the power tool is maintained.
ADDITIONAL SAFETY INSTRUCTIONS FOR YOUR POWER TOOL:
1) Wear ear protectors. Exposure to noise can cause hearing loss.
2) Wear safety goggles or eye protection when using this power tool.
3) Use a dust mask or respirator for applications which generate dust.
4) Safety boots are recommended at all times especially when using the chisel action.
5) Proper safety gloves are also recommended.
6) Always check walls and ceilings to avoid hidden power cables and pipes. Contact with electric
lines can lead to fire and electric shock. Damaging a gas line can lead to explosion. Penetrating a
water line causes property damage.
7) Hold power tool by insulated gripping surfaces, when performing an operation where the cutting
tool may contact hidden wiring or its own cord. Cutting tool contacting a ‘live’ wire will make exposed
metal parts of the tool ‘live’ and could give the operator an electric shock.
8) Always use the auxiliary handles provided with the power tool. The loss of control can cause
8

1250W/1500W ROTARY HAMMER ENG
personal injury.
9) Hold the power tool firmly with both hands while working and provide for secure footing. The
power tool is more securely guided with both hands.
10) Always be sure no one is below when using the power tool in high locations.
11) This heavy duty high torque power tool should not be used, while standing on a ladder.
12) Wait until the power tool has come to a standstill before placing it down. The insertion tool can
become caught and lead to loss of control over the machine.
13) Do not touch the drill bit or parts close to the bit immediately after operation. They may be
extremely hot and could burn your skin.
14) When an extension cord is required you must ensure it has the correct ampere rating for your
power tool and that it is in a safe electrical condition. Fully unwind extension cords to avoid potential
overheating.
OVERLOAD CLUTCH
If the insertion tool becomes caught or jammed, the drive to the drill spindle is interrupted. As a result
of the forces that occur, always hold the power tool firmly with both hands and provide for secure
footing.
DOUBLE INSULATION
The power tool is double insulated. This means that all the external metal parts are electrically
insulated from the main power supply. This is done by placing insulation barriers between the
electrical and mechanical components making it unnecessary for the power tool to be earthed.
IMPORTANT NOTE
Be sure the supply is the same as the voltage given on the rating plate. The power tool is fitted with a
two-core cable and plug.
Remove the main plug from socket before carrying out any adjustment or servicing.

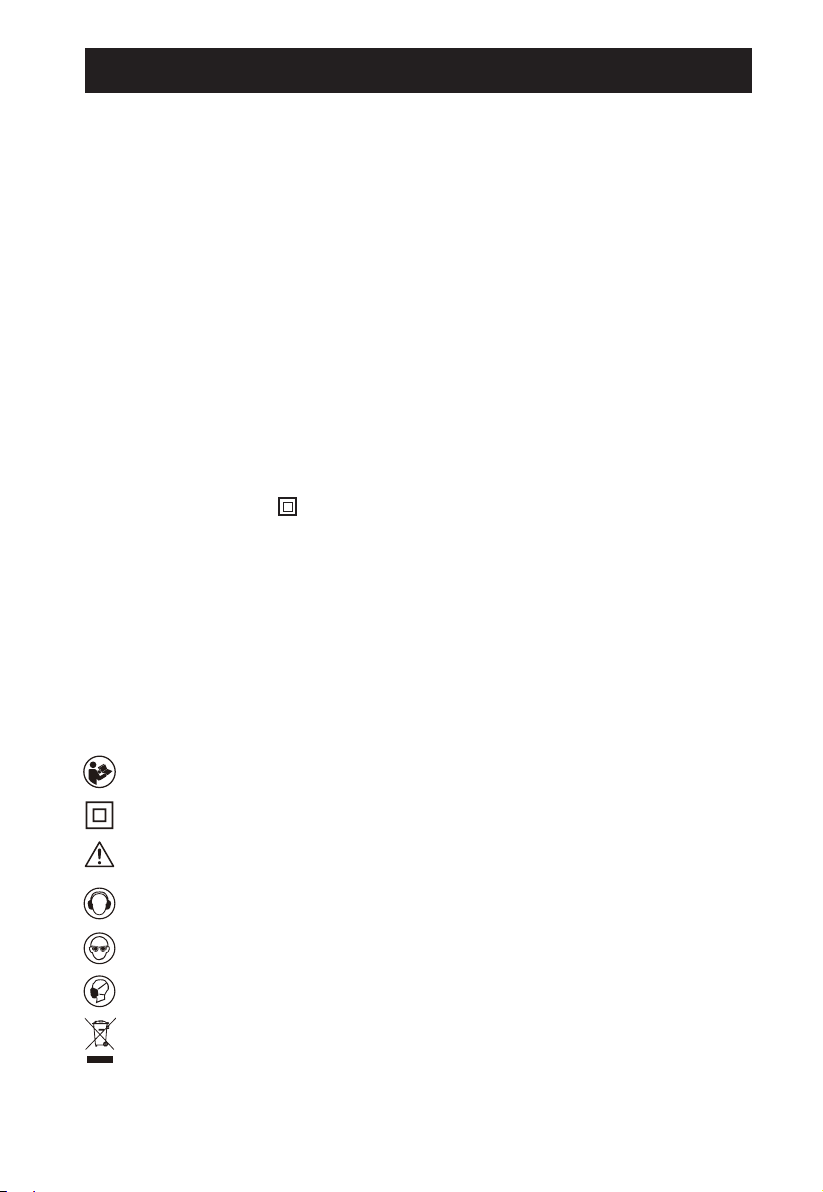

SYMBOLS
To reduce the risk of injury, user must read instruction manual
Double insulation
Warning
Wear ear protection
Wear eye protection
Wear dust mask
Waste electrical products should not be disposed of with household waste. Please recycle
where facilities exist. Check with your Local Authority or retailer for recycling advice
9

1250W/1500W ROTARY HAMMER ENG
TECHNICAL DATA:
Note: For power tool specifications refer to the nameplate on your power tool.
OPERATING INSTRUCTIONS
Note: Before using the power tool, readthe instruction manual carefully.
1. Intended use
The machine is intended for hammer drilling in concrete, brick and stone as well as for light chiseling
work. It is also suitable for drilling without impact in wood, metal, ceramic and plastic.
2. Before using your power tool
1) Be careful of hidden electrical lines or gas and water pipes. Check the working area, e.g., with a
metal detector.
2) The voltage of the power source must agree with the value given on the nameplate of the power
tool.
3. Auxiliary handle
Loosen the auxiliary handle by turning the hand grip anti-clockwise. Swing it to the desired position
andthen tighten it by turning the hand grip clockwise. Always use the auxiliary handle (See Fig 1).
4. Inserting SDS tools
The power tool is equipped with an SDS-plus attachment system. Clean and grease the SDS tool
shank before installing the SDS tools. Grip and pull back the fastening sleeve and insert the SDS tool
(See Fig 2). Push inwards until a resistance is felt. It may be necessary to spin the SDS tool until the
shaft drops completely into place. Once you are satisfied it has seated release the black fastening
sleeve. Pull on the SDS tool to check if it is properly locked.
5. Remove SDS tool
Pull back fastening sleeve, hold and remove tool (See Fig 2).
Model
WD011330030
WD011320036
Voltage
110 -120V AC
220 -240V AC
110 -120V AC
220 -240V AC
Frequency 50/60Hz 50/60Hz 50/60Hz 50/60Hz
Power input
1250W
1250W
1500W
1500W
No load speed 850/min 850/min 850/min 850/min
Hammer rate
4300/min
4300/min
4300/min
4300/min
Tool holder SDS-plus SDS-plus SDS-plus SDS-plus
Drilling capacity
SteelΦ1/2” Φ13mm Φ1/2” Φ13mm
Concrete
Φ1
-
3/16’’ Φ30mm Φ1
-
3/8
’’
Φ36mm
WoodΦ1-9/16’’ Φ40mm Φ1-3/4’’ Φ45mm
Double insulation /II / II / II
Machine weight 5.0Kg 5.0Kg 5.8Kg 5.8Kg
/ II
10

1250W/1500W ROTARY HAMMER ENG
6. Switch On and Off
To start the power tool, simply pull the switch trigger. Release the switch trigger to stop your power
tool(See Fig 3).
Warning: Before operating, select required mode by aligning symbol on switch with
arrow. And ensure selector is positioned. It could cause a hazard if the selector switch is not
positioned firmly.
7. Hammer drill function
1) Adjust the mode selector lever to position “ ” to provide the hammer action (See Fig 4).
2) Press the release lock button on the mode selector knob and adjust the knob to position “ ” to
provide rotation of the chuck (See Fig 5).
3) You are now set up for drilling into masonry.
8. Chisel function
1) Adjust the mode selector lever to position “ ” to provide the hammer action (See Fig 6).
2) Press the release lock button on the mode selector knob and adjust the knob to position “ ” to
stop rotation of the chuck (See Fig 7).
3) You are now set up for chisel work using hammer action.
9. Drilling function
1) Adjust the mode selector lever to position “ ” to provide the drill action (See Fig 8).
2) Press the release lock button on the mode selector knob and adjust the knob to position “ ” to
provide rotation of the chuck (See Fig 9).
3) You are now set up for drill work using drill action.
10. Chisel Adjustment (only for WD011320036)
1) The chiselling tool can be turned in the tool holder to an optimum, fatigue-free working position.
For adjusting chisel, Insert the chisel, press the unlocking button and rotate the operational mode
selection switch to position “ ” to provide the chisel adjustment action (See Fig 10).
3) Turn the chisel to the desired position and then adjust the operational mode selection switch to
position “ ” to provide the chisel action.
11. Using the depth gauge:
1) Rotate the hand grip or lock knob for depth gauge anti-clockwise, insert depth gauge into the hole
on auxiliary handle (See Fig 11.12).
2) Adjust the depth gauge to desired depth.
3) Rotate the hand grip or lock knob clockwise totighten the depth gauge.
12. Safety when using the rotary hammer
This is a powerful tool. Caution needs to be observed when operating. Dress in suitable overalls.
Safety boots are recommended at all times especially when using the chisel actions. Proper safety
gloves are also recommended. When using chisel mode, a dust mask is necessary because of the
cement dust created by the action.
Note: Do not use the rotary hammer when standing on a ladder.
11

1250W/1500W ROTARY HAMMER ENG
13. Operation your power tool
1) Position the bit at the desired location for the hole, then to pull the switch trigger. Do not force the
tool. Light pressure gives best results. Keep the tool in position and prevent it from slipping away
from the hole (See Fig 13).
2) Do not apply more pressure when the hole becomes clogged with chips or particles. Instead, run
the tool at an idle, and then remove the bit partially from the hole. By repeating this several times, the
hole will be cleaned out and normal drilling may be resumed.
14. Lubrication
This tool requires no hourly or daily lubrication because it has a grease-packed lubrication system.
Lubricate the power tool when impact energy is weak. To lubricate remove the oil cover at the top of
the power tool using the spanner provided (See Fig 14). Wipe out the old grease inside and replace
with fresh grease (approx. 25g). Use only the grease provided with your power tool. The grease
specification is general purpose lithium based. Reinstall the oil cove and tighten with the spanner.
Run the power toolfor several minutes to warm it up. Switch off and unplug the tool.
Note: Do not tighten the oil cove excessively. It is made of plastic and is subject to breakage.
WORKING HINTS FOR YOUR POWER TOOL
1. Always use sharp good quality drill bits and chisels. The performance of the drill is dependent on
the quality of the bits used.
2. Reduce the pressure on the drill bit when it is about to break through. This will prevent the drill bit
from jamming.
3. When drilling a large hole in tough material (i.e. steel), we recommend drilling a small pilot hole first
before using a large drill bit.
4. When drilling tiles, select the drill position to drill the tile. When tile has been penetrated, select
hammer drill position.
5. Always apply pressure to your drill bit in a straight line, and if possible at right angles to the
workpiece.
6. Do not apply excessive pressure to the power tool when hammering or chiseling. Expressive force
does not speed up the work.
7. If your power tool becomes too hot, set the mode selector lever to position “ ”, set the mode
selector knob to position “ ”, run no load for 2-3 minutes to cool the motor.
MAINTENANCE
Warning: Remove the plug from the socket before carrying out any adjustment,
servicing or maintenance.
1. Never use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth.
2. Always store your power tool in a dry place.
3. Keep the motor ventilation slots clean.
4. If you see some sparks flashing in the ventilation slots, this is normal and will not damage your
power tool.
5. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
12

1250W/1500W ROTARY HAMMER ENG
TROUBLESHOOTING
1. If your power tool will not operate, check the power at the mains plug, or check the carbon
brushes.
2. If the power tool doesn’t work properly, check the drill bit for sharpness, replace drill bit if worn.
3. If the power tool doesn’t hammer action, allow power tool to run at hammer position for 1-2 minutes
to lubricate the grease in cylinder.
4. If the impact energy of your power tool is week, check the grease, lubricate your power tool if need.
5. If the drill bit doesn’t rotate, may be mode selector switch not engaged, after rotation has stopped,
move the function selector switch until it engages.
6. If afault can’t be rectified,return the power tool to an authorized dealer for repair.
ENVIRONMENT PROTECTION
Waste electrical products should not be disposed of with household waste. Please recycle
where facilities exist. Check with your Local Authority or retailer for recycling advice.
13

1250W/1500W ROTARY HAMMER ENG
EXPLOSIVE VIEW OF WD011330030
14

1250W/1500W ROTARY HAMMER ENG
PART LIST OF WD011330030
NO
DESCRIPTION
Q’TY
NO
DESCRIPTION
Q’TY
1 Front cover 1 42 Small bevel gear 1
2 Clip ring 1 43 Washer 1
3 Fastening sleeve 1 44 Bearing 1
4 Spring 1 45 Washer 1
5 Screw 4 46 Big gear 1
6 Spring washer 10 47 Steel ball 8
7 Washer 10 48 Clutch fixed seat 1
8 Cylinder case 1 49 Clip ring 1
9 Oil seal 1 50 Washer 1
10 Circlip 1 51 Bellevillespring 2
11 Washer 1 52 Lock nut 1
12 Bearing 1 53 Bearing 1
13 Steel ball 5 54 Crank shaft 1
14 Rotary sleeve 1 55 Bearing 1
15 Oil seal 1 56 Circlip 1
16 O ring 2 57 Washer 1
17 Impact hammer 1 58 Circlip 1
18 Steel ball 3 59 Small gear 1
19 Cylinder 1 60 Spring 1
20 Flat key 2 61 Flat key 1
21 Distance sleeve 1 62 Shore 1
22 Plastic sleeve 1 63 Oil bearing 1
23 Spring 1 64 Support sleeve 1
24 Big bevel gear 1 65 Middle cover 1
25 Clip ring 2 66 Mode selector lever 1
26 O ring 2 67 Bearing 1
27 Air hammer 1 68 Rotor 1
28 Circlip 1 69 Bearing 1
29 Seal washer 1 70 Screw 2
30 Oil bearing 1 71 Fan guide 1
31 Piston 1 72 Stator 1
32 Piston pin 1 73 Housing of motor 1
33 Connecting rod 1 74 Screw 4
34 Steel sleeve 1 75 Brush holder cap 2
35 Knob 1 76 Brush holder 2
36 Screw 3 77 Carbon brush 2
37 O ring 2 78 Back cover 1
38 Crank case 1 79 Screw 7
39 Oil cover 1 80 Left handle 1
40 O ring 1 81 Right handle 1
41 Seal ring 1 82 Screw 2
15

1250W/1500W ROTARY HAMMER ENG
NO DESCRIPTION Q’TY NO DESCRIPTION Q’TY
83 Screw 1 89 Band 1
84 Switch 1 90 Screw 1
85 Screw 2 91 Depth gauge holder 1
86 Cable clamp 1 92 Handle holder 1
87 Cable protector 1 93 Handle grip 1
88
Cable and plug
1
16

1250W/1500W ROTARY HAMMER ENG
EXPLOSIVE VIEW OF WD011320036
17

1250W/1500W ROTARY HAMMER ENG
PART LIST OF WD011320036
NO
DESCRIPTION
Q’TY
NO
DESCRIPTION
Q’TY
1 Front cover 1 42 O ring 1
2 Clip ring 1 43 Damping rubber sleeve 1
3 Fastening sleeve 1 44 Spring 2
4
Spring
1
45
Damping plate
1
5 Screw 4 46 Screw 2
6 Spring washer 8 47 Knob shaft 1
7 Washer 8 48 Washer 1
8 Cylinder case 1 49 Circlip 1
9 Oil seal 1 50 Lock button 1
10 Washer 1 51 Spring 1
11 Rotary sleeve 1 52 Knob 1
12 Steel ball 5 53 Washer 3
13 Oil seal 1 54 Spring washer 3
14 O ring 3 55 Screw 1
15 Impact hammer 1 56 Crank shaft 1
16 Circlip 1 57 Bearing 1
17 Bearing 1 58 Washer 1
18
Steel ball
3
59
Circlip
1
19 Cylinder 1 60 Circlip 1
20 Flat key 2 61 Small gear 1
21 Distance sleeve 1 62 Spring 1
22 Washer 1 63 Flat key 1
23 Spring 1 64 Shore 1
24 Plastic slipping sleeve 1 65 Oil bearing 1
25 Lock sleeve 1 66 Support sleeve 1
26 Spring 1 67 Seal ring 1
27 Clutch 1 68 Small bevel gear 1
28
Big bevel gear
1
69
Washer
1
29 O ring 1 70 Bearing 1
30 Clip ring 1 71 Washer 1
31 Air hammer 1 72 Big gear 1
32 O ring 2 73 Steel ball 8
33 Piston pin 1 74 Clutch fixed seat 1
34 Piston 1 75 Clip ring 1
35 Connecting rod 1 76 Clutch active seat 1
36 Oil bearing 1 77 Bellevillespring 2
37 Circlip 1 78 Lock nut 1
38 Oil baffle 1 79 Bearing 1
39 Oil bearing 1 80 Screw 1
40 Crank case 1 81 Middle cover 1
41 Oil cover 1 82 O ring 1
18

1250W/1500W ROTARY HAMMER ENG
NO
DESCRIPTION
Q’TY
NO
DESCRIPTION
Q’TY
83 Mode selector lever 1 99 Screw 6
84 Bearing 1 100 Screw 1
85 Press plate of bearing 1 101Left handle 1
86 Screw 2 102 Right handle 1
87 Rotor 1 103 Screw 5
88 Bearing 1 104 Nut 1
89 Fan guide 1 105 Switch 1
90 Screw 2 106 Cable clamp 1
91 Stator 1 107 Cable protector 1
92 Housing of motor 1 108 Cable and plug 1
93 Screw 4 109 Band 1
94 Brush holder 2 110 Screw 1
95 Carbon brush 2 111 Depth gauge lock knob 1
96
Sleeve of brush holder
2
112
Handle holder
1
97 Rubber column 2 113 Handle grip 1
98 Back cover 1
19

MADE IN CHINA
Copyright @ WIDO Machinery Co., Ltd. All rights reserved. www.widopt.com
