Wiesheu Euromat b4 ts 300 User manual

Euromat B4 / B8 / B15

TS 300

Convection Oven

Euromat B4 / B8 / B15

TS 300

Operating Manual

1234567890123456789012345678901212345678901234567890123456789012123456789012345678901234

customer service address

This Oven was manufactured by the producer to the

latest available technology. All Ovens leaving the plant

consist of high quality material and were

comprehensively tested.

Product - Information

Operating Manual Euromat TS 300

Page 3

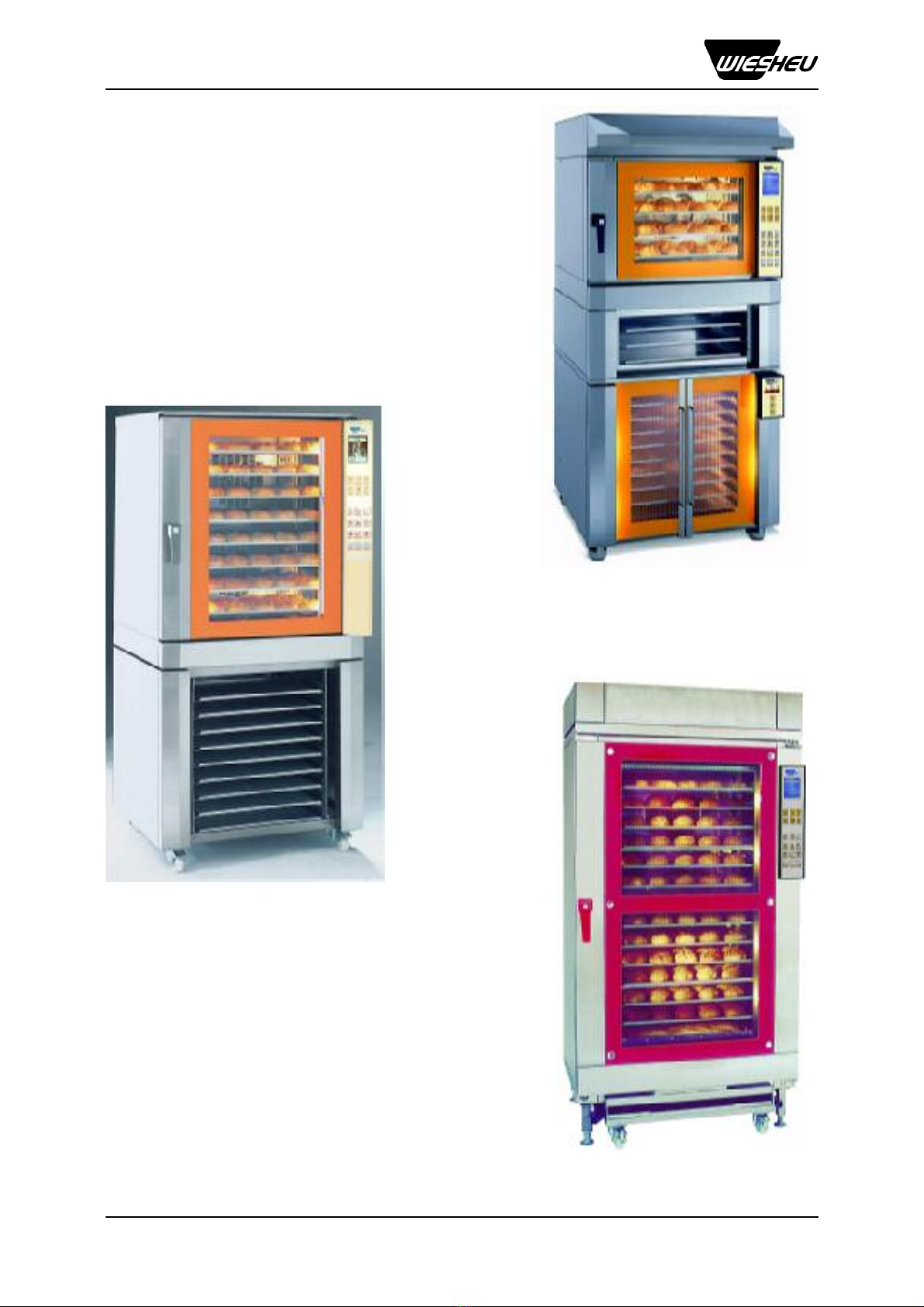

B4 TS 300 with Storage

Rack and standard Prover

B15 TS 300

B8 TS 300 with Stand

Operating Manual Euromat TS 300

Page 4

Contents

TS 300 Operating Panel ........................................................................ 5

Stand By - Mode / On and Off Switch ................................................. 7

Program Symbols TS 300 ..................................................................... 7

Set-up ....................................................................................................... 7

TS 300 Operating Levels....................................................................... 8

Brightness Control LC-Screen............................................................. 8

The Pictogram - Mode ........................................................................... 9

Starting the Programm .......................................................................... 9

The Computer - Mode.......................................................................... 11

Starting the Computer Mode ............................................................. 11

Programing ........................................................................................... 14

Changes while the Program is running ............................................ 14

Changing existing Programs ............................................................. 15

Writing a new Program ........................................................................ 19

Service Programs ................................................................................ 21

Wiesheu Service Hotline ..................................................................... 24

Cleaning ................................................................................................ 24

Cleaning Materials for manual cleaning and care .......................... 25

Conventional Cleaning Program ....................................................... 26

De-calcifying ......................................................................................... 28

Replacing the Door Seal...................................................................... 30

Lighting .................................................................................................. 33

PRO CLEAN Cleaning Program.......................................................... 32

Autostart ................................................................................................ 36

Data Transfer ........................................................................................ 38

Setting the Clock .................................................................................. 39

Saving Values ....................................................................................... 40

Setting the Date ................................................................................... 40

Pre-heating Time .................................................................................. 41

TS 300 Error Indicators ....................................................................... 43

Standard Data Sheet for B4 with Pipe Steamer ............................ 45

Standard Data Sheet for B4 with Cascade Steamer..................... 46

Standard Data Sheet for B8 with Pipe Steamer ............................ 47

Standard Data Sheet for B4 with Cascade Steamer..................... 48

Blanc Standard Data Sheet................................................................. 49

Recipes .................................................................................................. 50

Guarantee / Ownership ....................................................................... 52

Operating Manual Euromat TS 300

Page 5

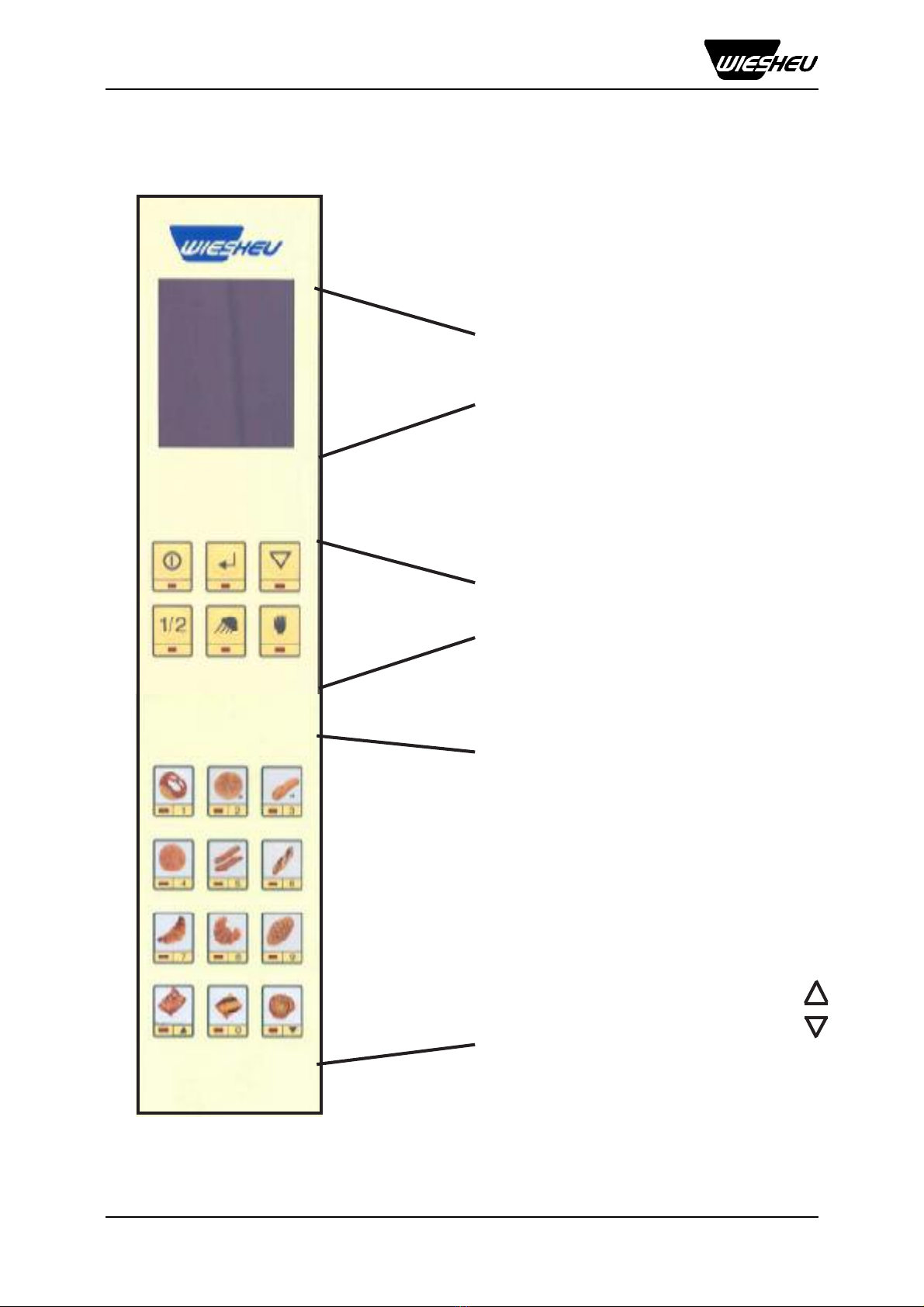

TS 300 Operating Panel

The detachable Operating Panel of the

Door Control 300 (TS 300) consists of the

following parts:

LC  Screen:

Shows Program Parameters and

Menu Pages.

Function Key Pad:

To select Functions

Product Key Pad:

1. To save standard programs which can be

easily selected with the pictures on the

Pictogram.

2. When programming, the Product Keys

serve as Numbers.

Product Key 1 to 9 = Digits 1 to 9

Product Key 1 to 9 = Digits 0

Product Key 10 = Arrow Up

Product Key 12 = Arrow Down

Operating Manual Euromat TS 300

Page 6

LC - Screen

Confirmation Key / Enter Key ( 2 )

Stop Key ( 3 )

On / Off Main Key ( 1 )

Manual Input Key ( 6 )

Steamer ( 5 )

Half-load Key ( 4 )

Product Keys ( 7 )

Product Key P10: Arrow Up

Product Key P11: Number Key 0

Product Key P12: Arrow Down u

t

Operating Manual Euromat TS 300

Page 7

Program Symbols TS 300

Chamber Temperature

Pre-heating

Product Key Numbers

Time

Steam Volume

Number of Steamings

P

X

Exhaust Closed

Exhaust Open

Motor Stop Time

Interval to next

Steaming

Steamer active

Conventional Cleaning

Start-up

The oven should be thoroughly cleaned before the first operation for hygienic and health

reasons.

When you are operating the oven for the first time, we recommend running a baking program

without any product so that the clening materials residues can burn off completly

( this may cause odours or some smoking ).

Stand By - Mode / Switching the Oven On and Off

When the oven power is on, it automatically goes into Stand By - Mode. This means that the

oven is connected to electric power. The LED on the On / Off key lights up.

The LC - Screen shows the selected screen saver.

In order to operate the oven, select the various operating levels with the On / Off key.

pressing the On / Off key once,

selects the Picto Operation

pressing the On / Off key twice,

+selects the Computer Operation

Motor Speed

Operating Manual Euromat TS 300

Page 8

Turning the Oven Off

To turn the oven Off, press the On / Off key (1) about 5 seconds until the screen saver

appears. The oven is then back in Stand By - Mode

Brightness Control LC-Screen

You can set the brightness of the LC-Screen individually by pressing and

holding down the Half-load key 4 and changing the value with the Arrow key

10tand 12u.

When reaching the required brightness, release both keys. The selected

values remain.

1

4

TS 300 Operating Levels

The Door Control TS 300 has two different Operating Levels which you can select in the

following sequence by pressing the On / Off key 1 .

The Operating Levels are divided into

Pictogram - Mode and

⇒To select programs

directly with the Product Key Pads

tu

Computer  Mode

⇒The Computer-Mode has 99

programs with 9 possible steps.

01 Pretzel

02 Bread Rolls

03 Milk Rolls

04 Sesamie Rolls

05 Baguette Rolls

06 Pretzel Stick

07 Pretzel Croissant

08 Butter Croissant

09 Filled Pizza

10 Pizza

11 Butter Cake

12 Filled Pastry

Operating Manual Euromat TS 300

Page 9

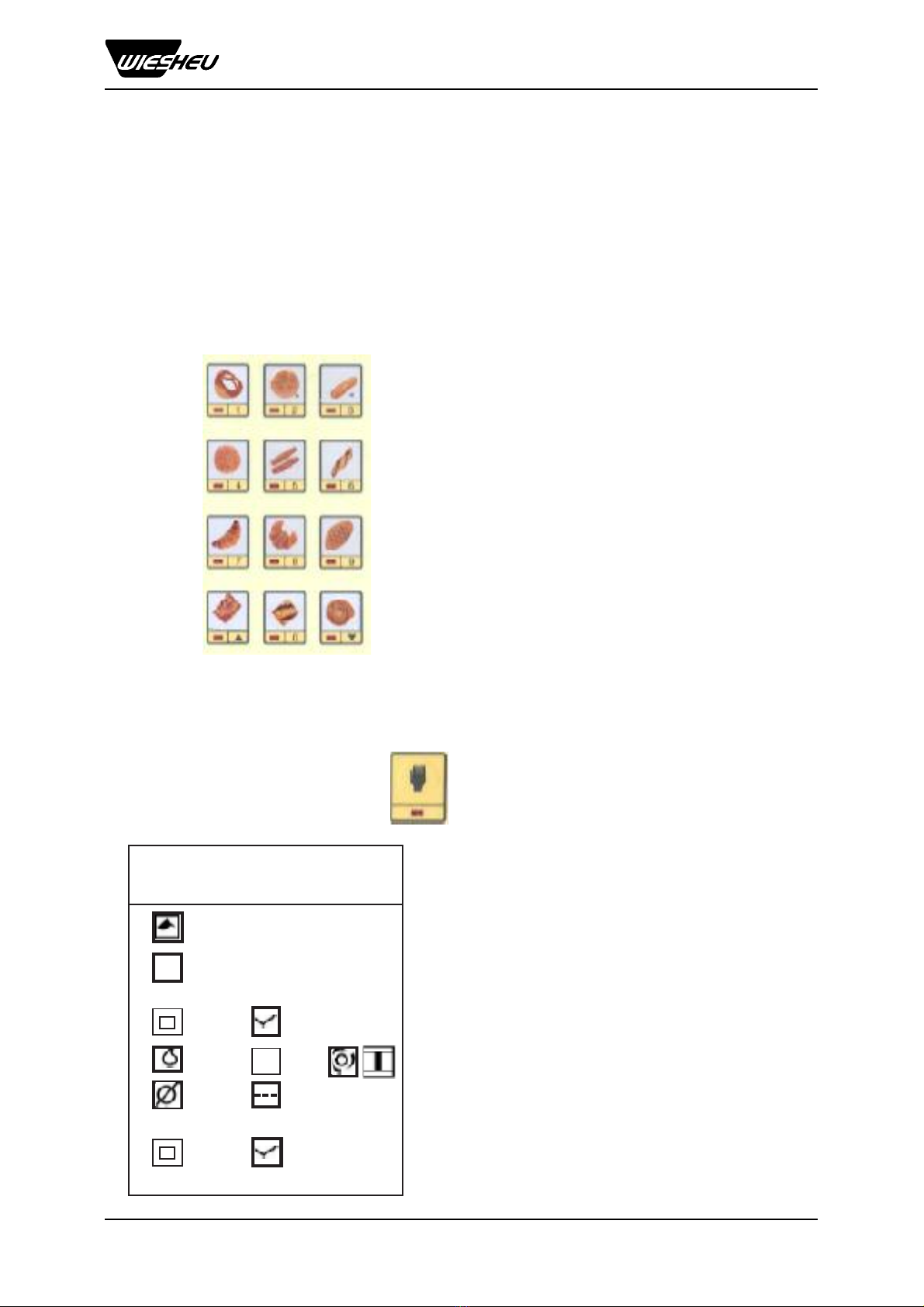

The Pictogram - Mode

Press the On / Off Key once. The oven is then in the Pictogram - Mode.

Program Selection

Select the required program with the Product

Key.

The selected program appears on the LC -

Screen.

e. g. Product Key 1 : Pretzel

Pre-heating starts automatically when the

Product Key is pressed.

The LED on the program key and stop key

blink while the pogram is running.

RequiredActual

180 35 °C

01

Pretzel 10:00

RequiredActual

0 180 °C

01

Pretzel 10:00

Loading the Oven:

-An acoustic signal tones when the pre-

heating temperature is reached.

-The acoustic signal goes off when the door

has been opened or the Stop Key 3 is

pressed.

-The required temperature now shows 0°C

You can now place the products into the

oven.

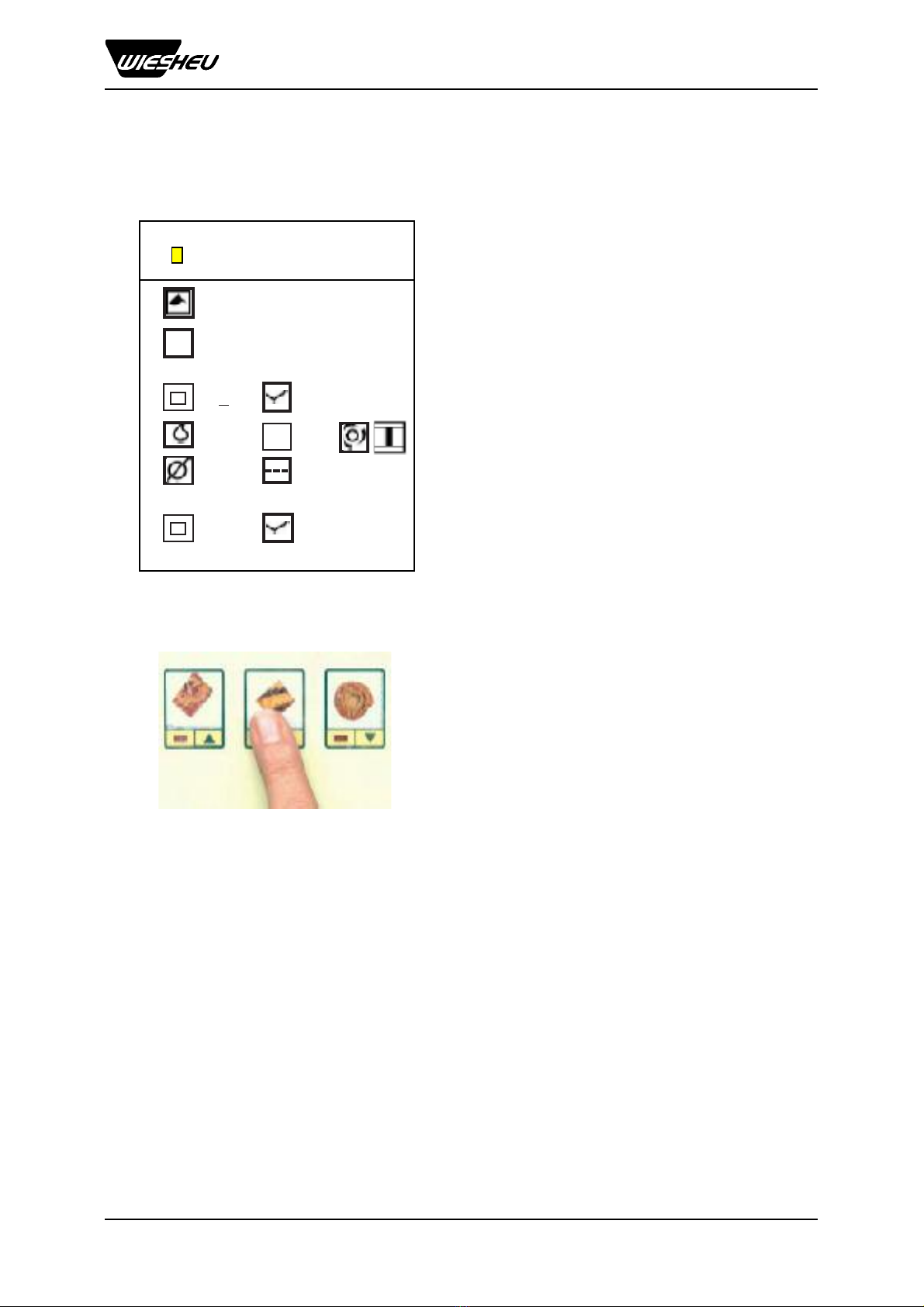

Starting the Program

RequiredActual

01

Bretzel 10:00

0 180 °C

10 8 min

00200 001500

·Starting the Baking Program with the Product

Key:

·The LED on the program key and the stop

key blink while the program is running.

The LC - Screen shows the Program

Parameters:

Program Number, Name, Actual Temperature,

Required Temperature, Required Time,

Remaining Time, Steam Volume, Exhaust Flap

and Motor Speed.

Operating Manual Euromat TS 300

Page 10

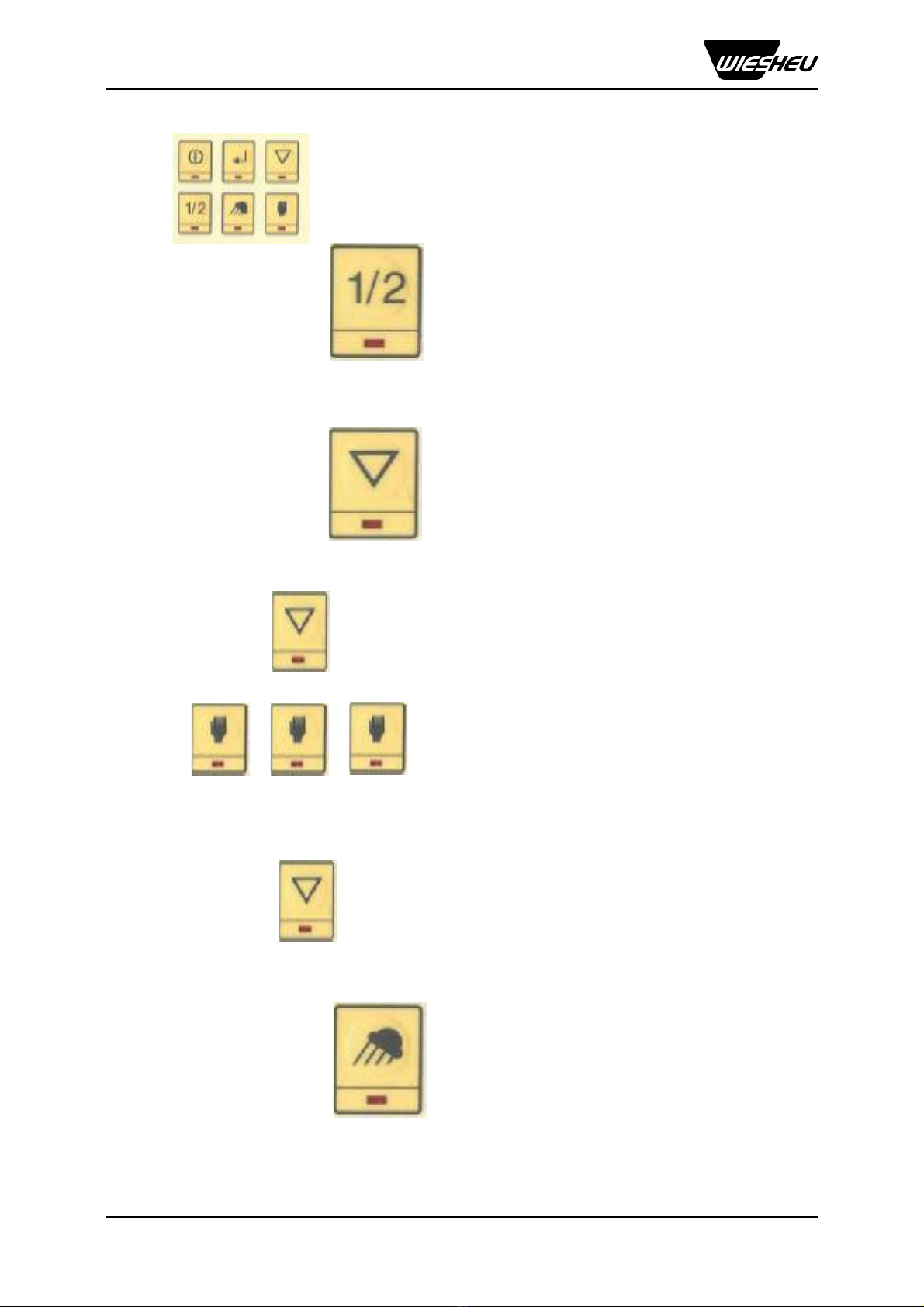

Half-load

Select Half-load when the oven is only half

full.

·When the program has started, the LED on

the Half-load Key blinks for about 5 seconds

and can be pressed during this time.

The program values will then be

automatically adapted i.e. the energie input

will be reduced.

Stopping the Program

·If you want to stop a program, press the

Stop Key (it blinks during the entire pro-

gram). The program will stop without

recourse.

After Baking

·When the baking program is completed, you

can also After Bake:

·Press the Stop Key or open the oven door

and close it again.

·Press the Manual Input Key.

Press the key once for every minute of After

Baking time. Up to 10 minutes are possible.

Press x 1 = 1 Minute

Press x 2 = 2 Minutes

Press x 3 = 3 Minutes

Press x 10 = 10 Minutes

The After Baking can be stopped by pressing

the Stop Key or by opening the door.

It is possible to add steam during the running

of a program by pressing the Steam Key.

Press the Steam Key for as long as steam is

required.

Do not steam for too long. So called Cold

Nests can develop which will reduce the

temperature causing uneven baking results.

= 3 Minutes After Baking

+

Operating Manual Euromat TS 300

Page 11

The Computer - Mode has 99 programs with 9 program steps.

The Program Steps consist of Pre-heating and 8 baking steps.

Yo get into the Computer - Mode press the On / Off Key twice.

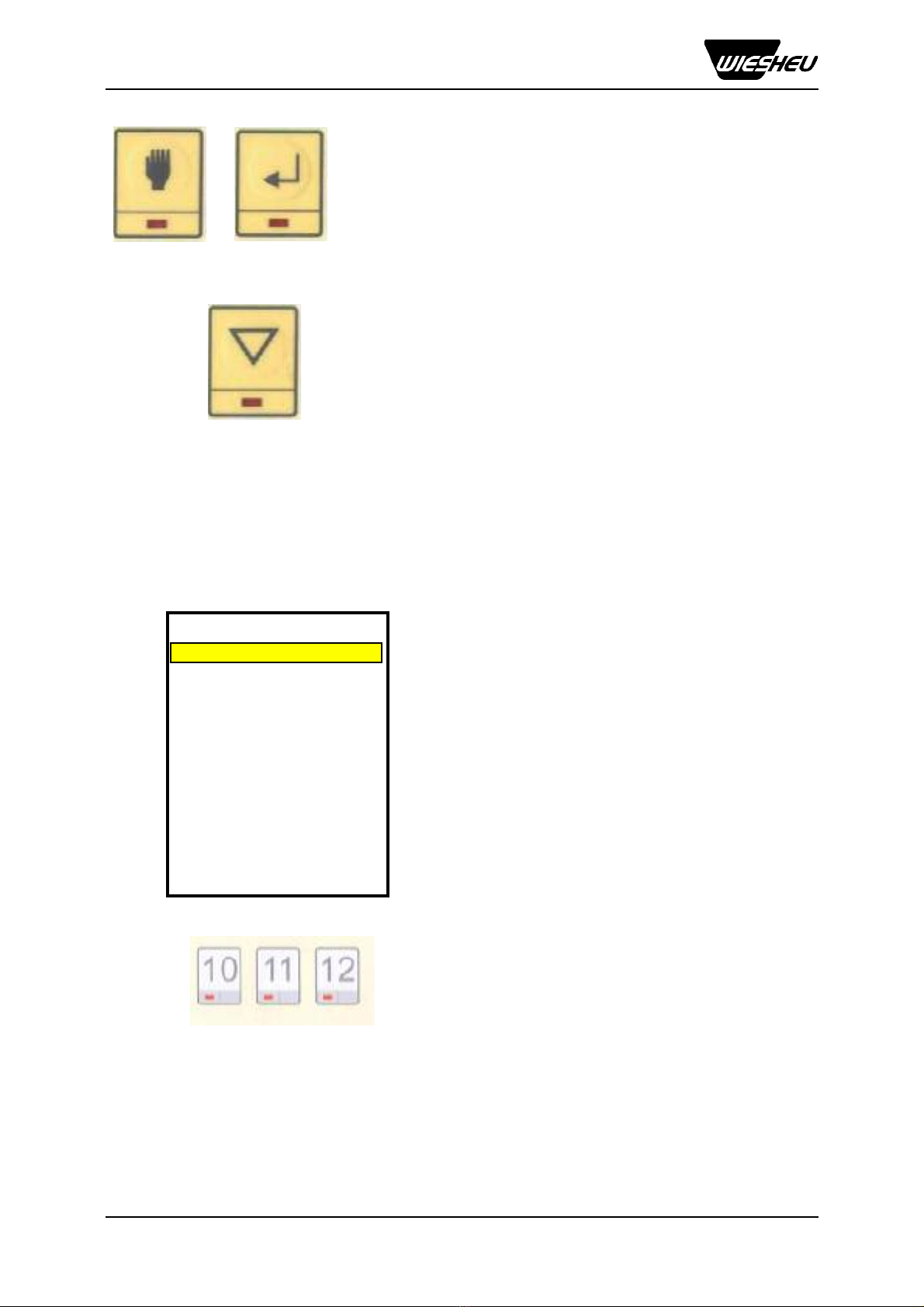

The Computer - Mode

The Product Key Pad has different

settings in the Computer - Mode:

The Product Keys 1 - 9 become the

digits 1 - 9.

Key 11 is the digit 0

Key 10 is Arrow Up

Key 12 is Arrow Down

Starting the Computer - Mode

·In the Stand By - Mode, press the

On / Off Key 1 twice :

The oven is now in the

Computer - Mode.

The Product Selection List appears. The

Scrollbar ( the highlighted selection ) is on the

1. program

( e.g. Pretzel ).

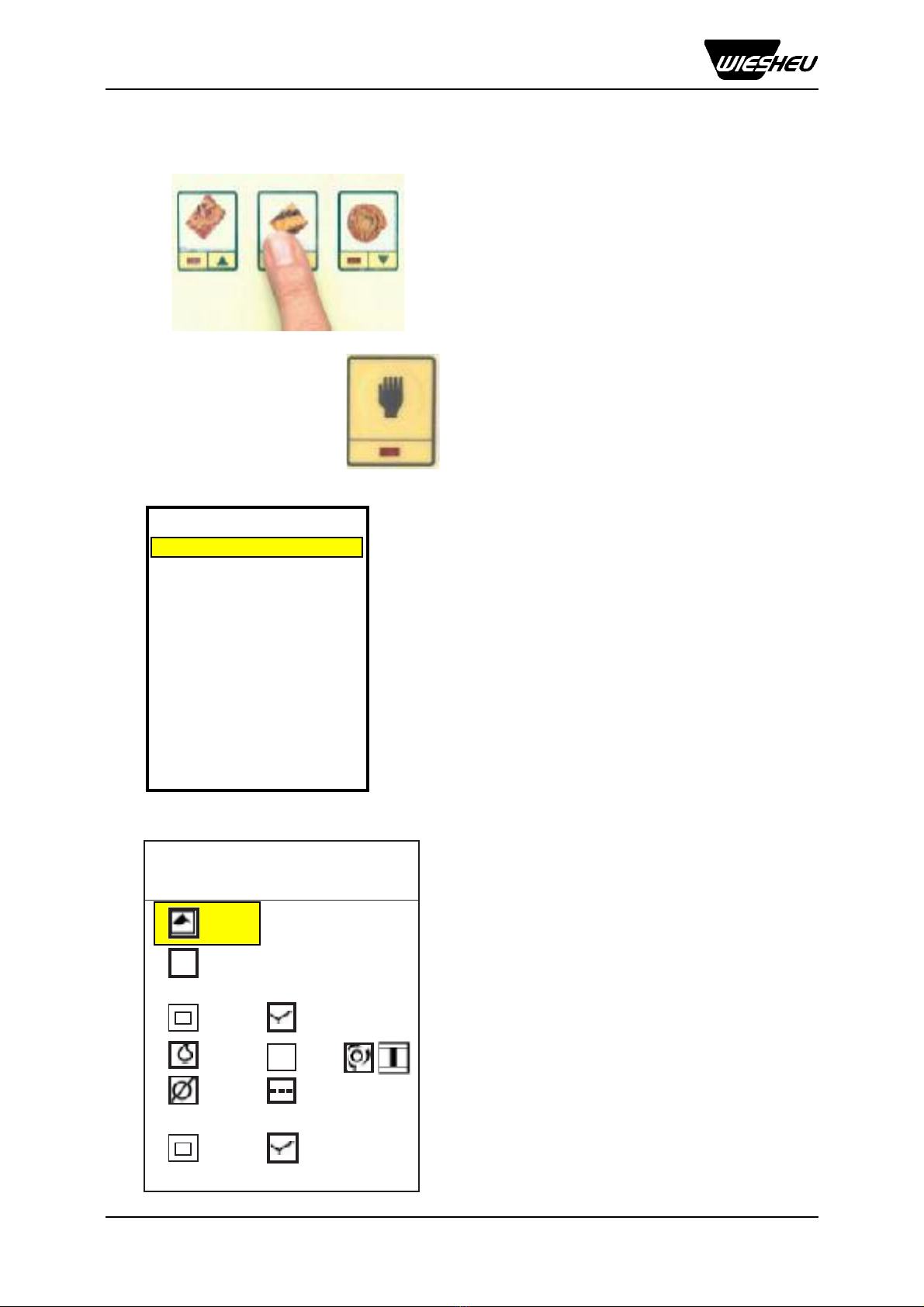

Program Selection

You can input a two digit program number

with the digit keys or use the scrollbar with

the arrow key to select the program.

The program content is displayed when

pressing the Confirmation Key.

t

u

01 Prezeln

02 Bread Rolls

03 Milck Rolls

04 Sesamie Rolls

05 Baguette Rolls

06 Pretzel Sticks

07 Pretzel Croissant

08 Butter Croissant

09 Filled Pizza

10 Pizza

11 Butter Cake

12 Filled Pastry

Operating Manual Euromat TS 300

Page 12

02 10:10

Bread Rolls

P

210

02

1

2

X

180

200 ml

045

180

010 min

01

000 sec

005 min

Required Actual

180 35 °C

02

Bread Rolls 10:10

Required Actual

02

Bread Rolls 10:10

0 180 °C

10 8 min

00200 001500

If you have selected a program with the

Confirmation Key, the TS 300 display shows

the complete program content, as shown in

the picture.

Pre-heating

·Press the Confirmation Key again.

·The oven will start Pre-heating.

The LED on the Stop Key blinks.

Loading the Oven

·When the Pre-heating time has been

reached, an acoustic signal sounds and the

door light blinks.

·The acoustic signal stops when the door is

opened.

·The required temperature is now at 0°C.

You can now load the oven.

Program Start

·Press the Confirmation Key again.

·The program starts.

The LED on the Stop Key blinks.

The LC - Screen shows the program

parameters:

Program Number, Name, Required

Temperature, Actual Temperature, Required

Time, Remaining Time, Steam Volume, Motor

Speed, Exhaust Flap.

Operating Manual Euromat TS 300

Page 13

Half-load

Select Half-load when the oven is only half

full:

·When the program has started, the LED on

the Half-load Key blinks for about 5 seconds

and can be pressed during this time.

The program values will then be

automatically adapted i.e. the energie input

will be reduced.

Stopping the Program

If you want to stop a program, press the Stop

Key (it blinks during the entire program).

The program will stop without recourse.

After Baking

·When the baking program is complete, you

can also After Bake:

·Press the Stop Key or open the oven door

and close it again.

·Press the Manual Input Key.

Press the key once for every minute of After

Baking time. Up to 10 minutes are possible.

Press x 1 = 1 Minute

Press x 2 = 2 Minutes

Press x 3 = 3 Minutes

Press x 10 = 10 Minutes

The After Baking can be stopped by pressing

the Stop Key or by opening the door.

Additional Steaming

It is possible to add steam during the running

of a program by pressing the Steam Key.

Press the Steam Key for as long as steam is

required.

Do not steam for too long. So called Cold

Nests can develop which will reduce the

temperature causing uneven baking results.

+

Operating Manual Euromat TS 300

Page 14

Programming with the TS Control is only possible in the Computer-Mode.

You have the following programming possibilities with the TS 300:

1. You can make changes while a program is running.

2. You can change existing programs as required.

3. In the Computer you can save your own programs in unoccupied program numbers.

4. You have 12 Product Keys for settings.

Programming

Product Key Pad = Digits

In the Programming Mode, the Product Key

Pad serves as numerical Digit Keys.

It contains the digit keys 1-9 and 0.

In addition, there are two Arrow Keys, left and

right, in the lowest row.

( 10 and 12 Cursor Key).

tu

1

46

8

5

23

9

0

7

tu

Changes while a Program is

running.

You can make changes with the Manual Input

Key while a program is running.

These are once-off changes which are not

saved when the program is finished.

1.) Press the Manual Input Key while the pro-

gram is running.

The LED lights up.

2.) The screen shows the actual parameters.

The actual program continues unaffected.

If you do not press a key for 30 seconds, the

Change Mode will stop.

Changes in an already completed step have no

affect on the running of the program.

3.) The Cursor points to the actul step.

02 10:10

Bread Rolls

P

210

02

1

2

X

180

200 ml

045

180

010 min

01

000 sec

005 min

Operating Manual Euromat TS 300

Page 15

4.) Select the position to be changed with the

arrow key. The selected position appears

highlighted.

5.) New numeric values can be entered with

the Digit keys 1-9 and 0.

6.) To change selected fields ( Motor slow /

medium / fast, Exhaust Flap position Open /

Closed ) hold down the digit key 0 and

move one of the arrow keys.

0

tu

Save the new values by pressing the

manual Input Key again.

The oven will now work with the new

values.

Changing Existing Programs

Select Program

You are in the Program Selection List. You

can input a two digit program number with

the digit keys or use the scrollbar with the

arrow key to select the program.

Program Content

By pressing the Confirmation Key, the pro-

gram content is displayed.

Select Programming Mode

Confirm with the Manual Input Key.

The actul field appears highlighted.

02 10:10

Bread Rolls

P

210

02

1

2

X

180

200 ml

045

180

010 min

01

000 sec

005 min

01 Pretzel

02 Bread Rolls

03 Milk Rolls

04 Sesamie Rolls

05 Baguette Rolls

06 Pretzel Stick

07 Pretzel Croissant

08 Butter Croissant

09 Filled Pizza

10 Pizza

11 Butter Cake

12 Filled Pastry

Changing Values

Select the position to be changed with the

arrow key.

forward = Arrow down

back = Arrow up

The highlighted field can be over written.

New numeric values can be entered with the

Digit Keys 1 - 9 and 0.

To change selected fields ( Motor slow /

medium / fast, Exhaust Flap position open /

closed ) hold down the digit key 0 and move

one of the arrow keys.

Operating Manual Euromat TS 300

Page 16

Example:

The Cursor points to Pre-heating

Temperature.

Enter Pre-heating Temperature

Enter the required value.

e.g. 200

Setting the Pictogram Number

When pressing the arrow key down, the

cursor moves to the Pictogram Number.

If you want to save a new program on a

Pictogram Number, enter a number.

If you dont want a Pictogram, leave the

existing number unchanged.

02 10:10

Bread Rolls

P

20_

02

1

2

X

180

200 ml

045

180

010 min

01

000 sec

005 min

02 10:10

Bread Rolls

P

200

02

1

2

X

180

200 ml

045

180

010 min

01

000 sec

005 min

Entering Baking Temperature

By pressing the arrow key again, the cursor

moves to the Baking Temperature.

Enter a value.

e.g. 190

02 10:10

Bread Rolls

P

200

02

1

2

X

190

200 ml

045

180

010 min

01

000 sec

005 min

P

Operating Manual Euromat TS 300

Page 17

Enter Baking Time

By pressing the arrow key again, the Cursor

moves to Baking Time.

Enter a value

e.g. 012

Enter Steam Volume

By pressing the arrow key again, the Cursor

moves to Steam Volume.

Enter a value

e.g. 190

Enter Number of Steamings

By pressing the arrow key again, the Cursor

moves to the Number of Steamings.

Enter a value.

e.g. 02

Select Motor Speed

By pressing the arrow key again, the Cursor

moves to the Motor Speed position.

slow

medium

fast

X

Hold the zero key down and select with the

arrow key e.g.:

When the required speed has been

selected, release both keys:

02 10:10

Bread Rolls

P

200

02

1

2

X

190

200 ml

045

180

010 min

01

000 sec

005 min

02 10:10

Bread Rolls

P

200

02

1

2

X

190

200 ml

045

180

010 min

01

000 sec

005 min

02 10:10

Bread Rolls

P

200

02

1

2

X

190

200 ml

045

180

010 min

01

000 sec

005 min

Operating Manual Euromat TS 300

Page 18

Select Exhaust Flap

Position

By pressing the arrow key again, the Cursor

moves to Exhaust Flap position.

Hold the zero key down and select with the

arrow key e.g.:

Exhaust Flap closed

Exhaust Flap open

Release the keys when the selection is

made.

Enter Motor Stop Time

By pressing the arrow key again, the Cursor

moves to Motor Stop Time.

Enter a value.

e.g. 030

(Time for the steam to set-in

ventilation stops )

Time to next

Steaming

By pressing the arrow key again, the Cursor

moves the symbol  Time to next Steaming

Enter a value.

e.g. 130

02 10:10

Bread Rolls

P

200

02

1

X

190

200 ml

045

000

010 min

01

000 sec

000 min

Insert new Baking Script

After the last step, an X is displayed instead

of a program number.

By pressing the digit key 0 and the arrow key

down at the same time, the X changes to

the next baking step. The number sequence

is automatic.

Now you can enter the values for the new

Baking step.

Proceed as described above.

0u

+

02 10:10

Bread Rolls

P

200

02

1

X

190

200 ml

045

000

010 min

01

000 sec

000 min

Operating Manual Euromat TS 300

Page 19

Saving new Values

To save the new values, press the Manual

Input Key again.

The question appears: Save?

If you want to save, press the Enter Key

If you dont want to save, cancel the process

with the Stop Key.

Writing a new Program

Change an existing program and save it

under a new name and new number .

or

Save your own, new program under an

empty program number.

Open Programing Mode

Go to the required program position

Press the Manual Input Key.

The actual position appears highlighted.

Change Values / New Input

Select the required position with the arrow

key.

Every highlighted position can be over

written.

Proceed as described in the previous section

Changing existing programs.

tu

01 c

02 Bread Rolls

03 Milk Rolls

04 Sesamie Rolls

05 Baguette Rolls

06 Pretzel Stick

07 Pretzel Croissant

08 Butter Croissant

09 Filled Pizza

10 Pizza

11 Butter Cake

12 Filled Pastry

+= save

= cancel

Operating Manual Euromat TS 300

Page 20

Assign Program Name from provided

list.

When all baking steps are entered, exit the X

position with the arrow key.

Entering the Program Name is activated.

The complete name appears highlighted.

You can select a name from the provided list

by holding down the 0 key and move the

arrow key

= forward

= back continue.

Important Tip: There is an empty line in the

name list which can be used to help inputting

names with individual letters. Not required

letters therefor dont have to be deleted

individually.

Assign Program Names individualy

If the program name appears highlighted,

move the arrow key down.

Now the letters are highlighted individually and

can be changed.

Hold down the 0 key and move an arrow

key

= forward

= back continue

One after the other, all letters appear small

and in capitals, numbers and special symbols.

There is also an empty symbol for deleting

unwanted letters.

When the required symbol has been reached,

release the 0 key and go down to the next

symbol with the arrow key.

Proceed in the same way until the entire name

is entered.

u

t

u

t

02 10:10

Bread

P

200

02

1

X

190

200 ml

045

000

010 min

01

000 sec

000 min

0u

+

WIESHEU Euromat B4 TS 300 User manual

Popular Convection Oven manuals by other brands
