Programming unit model PU-548 with magWIK
Programming unit for temperature transmitter
and resistance thermometer, model PU-548
Programmiereinheit für Temperaturtransmitter
und Widerstandsthermometer, Typ PU-548
Unité de programmation pour transmetteur de
température et sonde à résistance, type PU-548
Unidad de programación para transmisor de
temperatura y termorresistencia, modelo PU-548
Operating instructions
Betriebsanleitung
Mode d'emploi
Manual de instrucciones
14232051.01 12/2017 EN/DE/FR/ES
ES
FR
DE
EN
WIKA operating instructions programming unit PU-548
2
© 12/2017 WIKA Alexander Wiegand SE & Co. KG
All rights reserved. / Alle Rechte vorbehalten.
WIKA®is a registered trademark in various countries.
WIKA®ist eine geschützte Marke in verschiedenen Ländern.
Prior to starting any work, read the operating instructions!
Keep for later use!
Vor Beginn aller Arbeiten Betriebsanleitung lesen!
Zum späteren Gebrauch aufbewahren!
Lire le mode d'emploi avant de commencer toute opération !
A conserver pour une utilisation ultérieure !
¡Leer el manual de instrucciones antes de comenzar cualquier trabajo!
¡Guardar el manual para una eventual consulta!
Operating instructions model PU-548
Page
3 - 18
Betriebsanleitung Typ PU-548
Seite
19 - 34
Mode d'emploi type PU-548
Page
35 - 50
Manual de instrucciones modelo PU-548
Página
51 - 65
EN
Declarations of conformity can be found online at www.wika.com.
WIKA operating instructions programming unit PU-548
3
14232051.01 12/2017 EN/DE/FR/ES
Contents
Contents
1. General information 4
2. Design and function 5
3. Safety 6
4. Transport, packaging and storage 8
5. Commissioning, operation 8
6. Connecting the PU-548 programming unit 9
7. Virtual COM ports of the PU-548 11
8. LED diagnostics 15
9. Conguration of the temperature transmitters or
resistance thermometers models T15, T16, T24,
TR21, TR30, TR31, TR33, TR34 16
10. Maintenance 16
11. Disposal 17
12. Specications 17
EN
4
WIKA operating instructions programming unit PU-548
14232051.01 12/2017 EN/DE/FR/ES
1. General information
■
The programming unit described in the operating instructions has
been designed and manufactured using state-of-the-art technology.
All components are subject to stringent quality and environmental
criteria during production. Our management systems are certied to
ISO 9001 and ISO 14001.
■
These operating instructions contain important information on
handling the instrument. Working safely requires that all safety
instructions and work instructions are observed.
■
Observe the relevant local accident prevention regulations and
general safety regulations for the instrument’s range of use.
■
The operating instructions are part of the product and must be kept
in the immediate vicinity of the instrument and readily accessible to
skilled personnel at any time. Pass the operating instructions on to the
next operator or owner of the instrument.
■
Skilled personnel must have carefully read and understood the
operating instructions prior to beginning any work.
■
The general terms and conditions contained in the sales
documentation shall apply.
■
Subject to technical modications.
■
Further information:
- Internet address: www.wika.de / www.wika.com
- Relevant data sheet: AC 80.18
- Application consultant: Tel.: +49 9372 132-0
Fax: +49 9372 132-406
1. General information
EN
WIKA operating instructions programming unit PU-548
5
14232051.01 12/2017 EN/DE/FR/ES
2. Design and function
2. Design and function
2.1 Description
The programming unit provides a clear status/diagnostic display and
checks the connection from programming unit to PC and the transmitter.
A bright LED in the transparent case indicates to the user the current
status of the connection.This ensures that faulty connections are
recognised immediately. The programming unit needs no additional
voltage supply.The required voltage is taken entirely from the USB
interface.
Together with the WIKAsoft-TT conguration software, a perfect tool
is available, with which one can congure temperature transmitters or
compact thermometers very easily and outstandingly quickly.
The electrical connection of the terminals for the conguration of the
head-mounted temperature transmitter version is achieved using the
patented magWIK quick connector.
For connection to models TR21, TR30, TR31, TR33 and TR34 resistance
thermometers with coupler connectors, suitable adapter cables are
available.
2.2 Scope of delivery
Cross-check scope of delivery with delivery note.
EN
6
WIKA operating instructions programming unit PU-548
14232051.01 12/2017 EN/DE/FR/ES
3. Safety
3.1 Explanation of symbols
WARNING!
... indicates a potentially dangerous situation that can result
in serious injury or death, if not avoided.
Information
... points out useful tips, recommendations and information
for ecient and trouble-free operation.
3.2 Intended use
This programming unit has been designed for use in the production
facilities of electronic temperature probe and sensor manufacturers.The
PU-548 and the corresponding software (WIKAsoft TT) are exclusively
suitable for conguring the model T15 and T16 temperature transmitters
and the resistance thermometers of the TR21, TR30, TR31, TR33 and
TR34 series.
This instrument is not permitted to be used in hazardous areas!
The instrument has been designed and built solely for the intended use
described here, and may only be used accordingly.
The manufacturer shall not be liable for claims of any type based on
operation contrary to the intended use.
3. Safety
EN
WIKA operating instructions programming unit PU-548
7
14232051.01 12/2017 EN/DE/FR/ES
3.3 Personnel qualication
WARNING!
Risk of injury should qualication be insucient
Improper handling can result in considerable injury and
damage to equipment.
▶
The activities described in these operating instructions
may only be carried out by skilled personnel who have
the qualifications described below.
Skilled personnel
Skilled personnel, authorised by the operator, are understood to
be personnel who, based on their technical training, knowledge
of measurement and control technology and on their experience
and knowledge of country-specic regulations, current standards
and directives, are capable of carrying out the work described and
independently recognising potential hazards.
3.4 Labelling, safety marks
Product label
3. Safety
Model
Date of manufacture (month/year)
Serial number
Before mounting and commissioning the instrument,
ensure you read the operating instructions!
EN
8
WIKA operating instructions programming unit PU-548
14232051.01 12/2017 EN/DE/FR/ES
4. Transport ... / 5. Commissioning, operation
4. Transport, packaging and storage
4.1 Transport
Check the programming unit for any damage that may have been caused
by transport. Obvious damage must be reported immediately.
4.2 Packaging and storage
Do not remove packaging until just before mounting.
Permissible conditions at the place of storage:
■
Storage temperature: -20 ... +70 °C
■
Humidity: 10 ... 90 % relative humidity (absolutely avoid
condensation!)
Avoid exposure to the following factors:
■
Direct sunlight or proximity to hot objects
■
Mechanical vibration, mechanical shock (putting it down hard)
■
Soot, vapour, dust and corrosive gases
■
Hazardous environments, ammable atmospheres
■
All types of liquids
5. Commissioning, operation
If the instrument has visible external damage (e.g. on the
case), it must not be used or must be taken out of operation
immediately.
For the installation of the WIKAsoft-TT software,
administrator rights are required. Alternatively, you can
download a drop-in version of WIKAsoft-TT, which does not
require any installation.
Software installation for WIKAsoft-TT
Free download of the current version of the WIKAsoft-TT software at
www.wika.de/download.
EN
WIKA operating instructions programming unit PU-548
9
14232051.01 12/2017 EN/DE/FR/ES
6. Connecting the PU-548 programming unit
6.1 Quick connector magWIK
(models T15, T16 temperature transmitters)
3214338.06
Connection PU-548 ↔ temperature transmitter
(option: magWIK quick connector)
Transmitter
6. Connecting the PU-548 programming unit
EN
10
WIKA operating instructions programming unit PU-548
14232051.01 12/2017 EN/DE/FR/ES

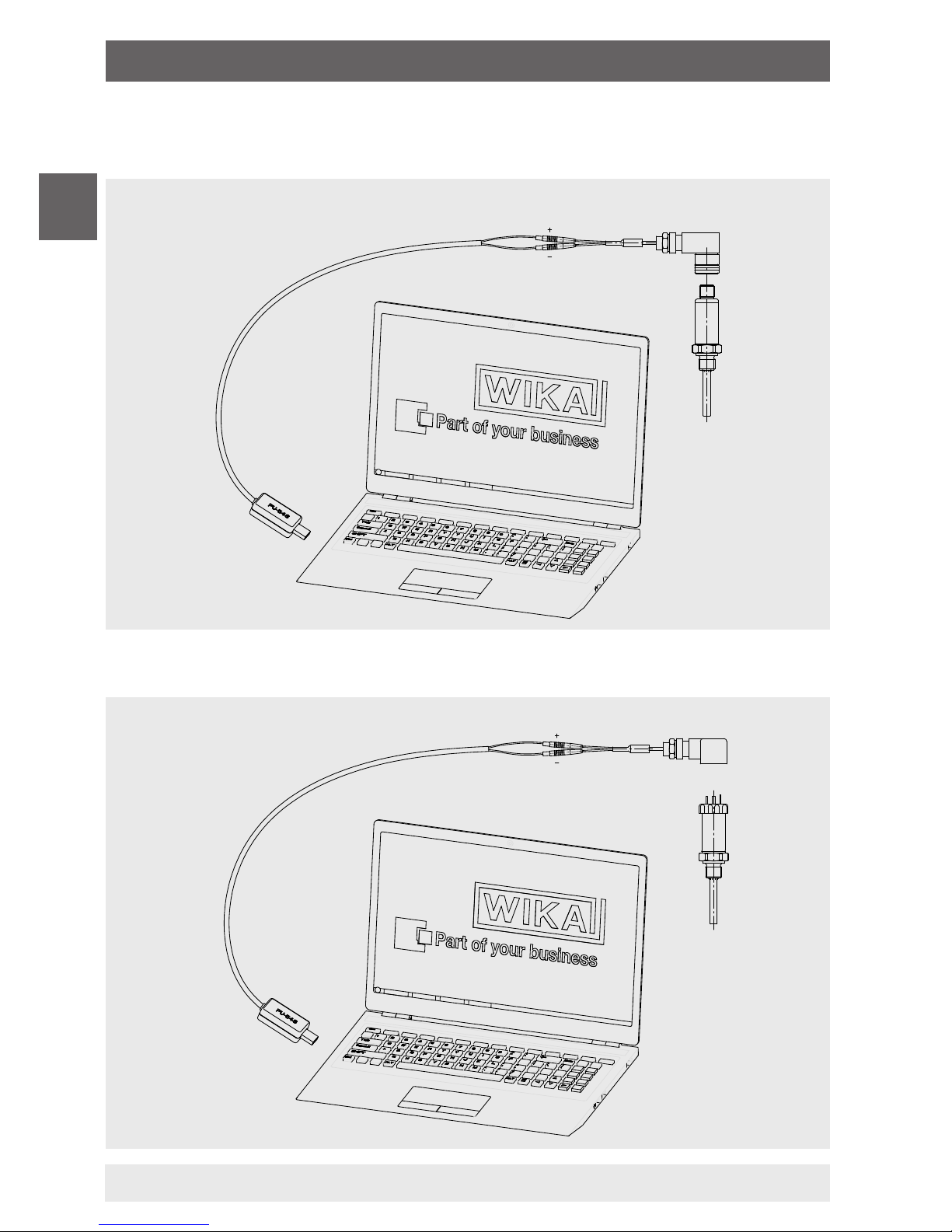

6.2 Adapter cable for M12 connector
(models TR21, TR31, TR33 and TR34 resistance thermometers)
6.3 Adapter cable for angular DIN connector, form A
(model TR30 resistance thermometer)
14004919.01
Connection PU-548 ↔ adapter cable with M12 connector
TR21
TR31
TR33
TR34
14005537.01
Connection PU-548 ↔ adapter cable with angular DIN connector, form A
TR30
6. Connecting the PU-548 programming unit
EN
WIKA operating instructions programming unit PU-548
11
14232051.01 12/2017 EN/DE/FR/ES
7. Virtual COM ports of the PU-548
7. Virtual COM ports of the PU-548
The PU-548 forms a virtual COM port on your PC.
The WIKA conguration software, WIKAsoft-TT lists the allocated COM
port automatically under the “Interface” heading.To continue, simply click
on “Start”.
Manual adjustment of the COM ports:
1. Click on “Start”
2. Search for the term “Control Panel” and open it via the “Browse
programs/les” box.
EN
12
WIKA operating instructions programming unit PU-548
14232051.01 12/2017 EN/DE/FR/ES
7. Virtual COM ports of the PU-548
Alternatively:
Press the Windows key + Pause/Interrupt key
→ now select “Device Manager”
3. Select “System and safety”
EN
WIKA operating instructions programming unit PU-548
13
14232051.01 12/2017 EN/DE/FR/ES
4. Click on the “Device Manager” button.
A selection list opens.
7. Virtual COM ports of the PU-548
5. Select the communication connection
in the “Connections (COM und LPT)”
directory with the left mouse button.
6. Select “Properties” with the right mouse button.
EN
14
WIKA operating instructions programming unit PU-548
14232051.01 12/2017 EN/DE/FR/ES

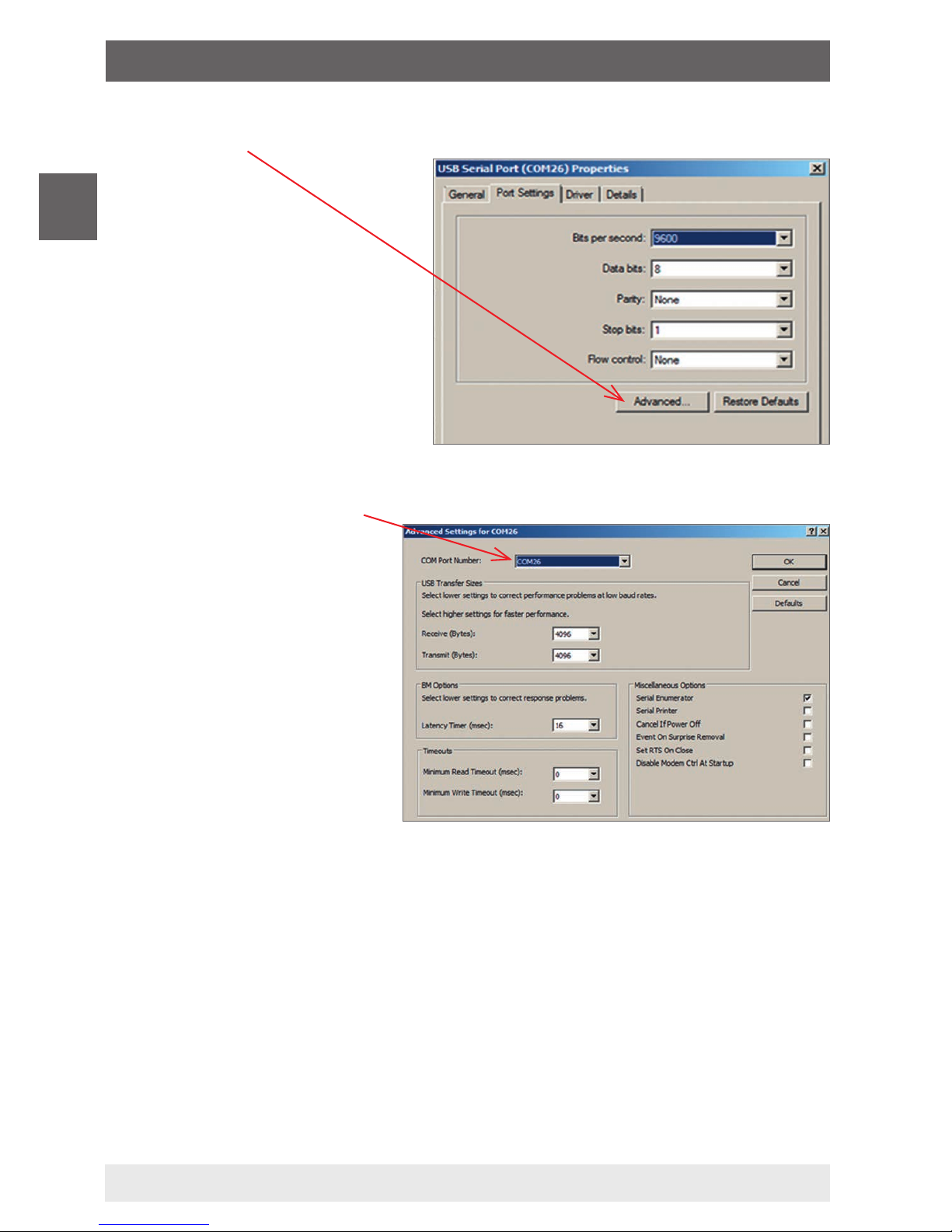

7. Open “Advanced Settings”.
7. Virtual COM ports of the PU-548
8. Now the COM port number can be changed.
Do not make any
further changes in this
selection list!
EN
WIKA operating instructions programming unit PU-548
15
14232051.01 12/2017 EN/DE/FR/ES
9.The COM port is chosen automatically when starting the software.
→ Only if the right port is chosen, are the connection to the instrument
and starting of the program possible.
8. LED diagnostics
The model PU-548 programming unit is tted with an LED for clear status
display. Through dierent light and ashing behaviour, detailed status
diagnostics are enabled.
LED behaviour Status
O On Flashing
x Current loop not active
x Current loop active
x (fast) Data transfer
x (slowly) Connection to the PC and instrument is
ready for operation
From PC
to the
temperature transmitter
LED
7. Virtual COM ports / 8. LED diagnostics
EN
16
WIKA operating instructions programming unit PU-548
14232051.01 12/2017 EN/DE/FR/ES
9. Conguration of the ... / 10. Maintenance
9. Conguration of the temperature transmitters or
resistance thermometers models T15, T16, T24,
TR21, TR30, TR31, TR33, TR34
Do not congure the transmitter, nor the resistance
thermometer with the PU-548 programming adapter and
PC in hazardous areas!
Through proper tightening the connection terminals,
communication errors can be avoided.
Isolate the transmitter from the external/additional power
supply before connection of the PU-548.
For further information and advice see the appropriate
operating instructions.
For installation please follow the instructions of the
installation routine. Free download of the current version
of the WIKAsoft-TT software at www.wika.com. It can only
ever be used in connection with a single instrument. Start
the software by double-clicking on the WIKAsoft-TT icon.
During data transfer, do not break the connection with the
transmitter, since the data may not be correctly read as a
result of this.
10. Maintenance
The programming unit described here is maintenance-free!
The electronics incorporate no components which could be repaired or
replaced.
EN
WIKA operating instructions programming unit PU-548
17
14232051.01 12/2017 EN/DE/FR/ES
11. Disposal / 12. Specications
11. Disposal
Incorrect disposal can put the environment at risk.
Dispose of instrument components and packaging materials in an
environmentally compatible way and in accordance with the country-
specic waste disposal regulations.
12. Specications
Specications Programming unit model PU-548
USB interface USB connector type A
Voltage supply The PU-548 and therefore also the connected
transmitters/thermometers are powered through
the USB port. Thus no additional voltage supply is
needed.
Power supply max. 160 mA at +5 V, via USB port
Connection to computer USB connector
Connection to transmitter
■
2 x Ø 2 mm banana plugs
■
(with magWIK quick connector)
■
Adapter cable for M12 connector
■
Adapter cable for angular DIN connector, form A
Output voltage Max. 30 V
Operating temperature 5 ... 50 °C
Storage temperature -20 ... +70 °C
Relative humidity 10 ... 90 % r. h.
Dimensions
■
Case
■
Test clip cable
50 x 25 x 15.5 mm, ABS industrial case
approx. 80 cm (2-wire)
Electromagnetic
compatibility (EMC)
EN 61326 emission (group 1, class B) and
immunity (industrial application)
For further specications see WIKA data sheet AC 80.18 and the order
documentation.
EN
18
WIKA operating instructions programming unit PU-548
14232051.01 12/2017 EN/DE/FR/ES
DE
Konformitätserklärungen nden Sie online unter www.wika.de.
WIKA Betriebsanleitung Programmiereinheit PU-548
14232051.01 12/2017 EN/DE/FR/ES
19
Inhalt
Inhalt
1. Allgemeines 20
2. Aufbau und Funktion 21
3. Sicherheit 22
4. Transport, Verpackung und Lagerung 24
5. Inbetriebnahme, Betrieb 24
6. Programmiereinheit PU-548 anschließen 25
7. Virtuelle COM-Ports der PU-548 27
8. LED-Diagnose 31
9. Konguration der Temperaturtransmitter bzw.
Widerstandsthermometer Typen T15, T16, T24,
TR21, TR30, TR31, TR33, TR34 32
10. Wartung 32
11. Entsorgung 33
12. Technische Daten 33
DE
14232051.01 12/2017 EN/DE/FR/ES
20
WIKA Betriebsanleitung Programmiereinheit PU-548
1. Allgemeines
■
Die in der Betriebsanleitung beschriebene Programmiereinheit wird
nach dem aktuellen Stand der Technik konstruiert und gefertigt. Alle
Komponenten unterliegen während der Fertigung strengen Quali-
täts- und Umweltkriterien. Unsere Managementsysteme sind nach
ISO 9001 und ISO 14001 zertiziert.
■
Diese Betriebsanleitung gibt wichtige Hinweise zum Umgang mit dem
Gerät.Voraussetzung für sicheres Arbeiten ist die Einhaltung aller
angegebenen Sicherheitshinweise und Handlungsanweisungen.
■
Die für den Einsatzbereich des Gerätes geltenden örtlichen Unfall-
verhütungsvorschriften und allgemeinen Sicherheitsbestimmungen
einhalten.
■
Die Betriebsanleitung ist Produktbestandteil und muss in unmittel-
barer Nähe des Gerätes für das Fachpersonal jederzeit zugänglich
aufbewahrt werden. Betriebsanleitung an nachfolgende Benutzer
oder Besitzer des Gerätes weitergeben.
■
Das Fachpersonal muss die Betriebsanleitung vor Beginn aller Arbei-
ten sorgfältig durchgelesen und verstanden haben.
■
Es gelten die allgemeinen Geschäftsbedingungen in den Verkaufsun-
terlagen.
■
Technische Änderungen vorbehalten.
■
Weitere Informationen:
- Internet-Adresse: www.wika.de / www.wika.com
- Zugehöriges Datenblatt: AC 80.18
- Anwendungsberater: Tel.: +49 9372 132-0
Fax: +49 9372 132-406
1. Allgemeines
Table of contents
Languages:
Other WIKA Motherboard manuals
