Williams Sound SORIN User manual

user manual

2
Contents
System Components 3
System Features & Benets 4
Safety Information 5
Operating Instructions
Battery Installation 6
Turning power on/off 7
Charging the speaker 8
Checking the Battery 9
Using the Microphone 10
Connecting External Devices 11
Using the Stand 12
Belt Clip 13
Using the Shoulder Strap 14
Using the Microphone 15
Troubleshooting 16
Recycling Instructions 17
Limited Warranty 18
System Specications 19

3
System components
(1) SORIN amplied speaker (SPK 025)
(1) Button microphone (MIC 043)
(1) Headset microphone (MIC 042)
(1) Control cable with USB connector. (WCA 044)
(1) Li-ion Battery pack (BAT 040)
(1) Power supply, switcher US plug (TFP 040)
(1) Auxiliary input cable, 3.5mm-3.5mm, 120 cm (WCA 042)
(1) Speaker stand, black (STD 006)
(1) Belt Clip, black (CLP 024)
(1) System carry case (CCS 040)
(1) Speaker pouch, black (BAG 030)
(1) Shoulder strap/lanyard, 150 cm (RCS 006)
(2) Lanyard connectors (LCC 001)
(1) Manual (MAN 141)
800.843.3544 • williamssound.com

4
  Systemfeatures&benets
· Powerful digital amplier with 12V, 20W DC/DC converter technology
· Main speaker has an output of 5W (max 10W) and mini woofer of 1W (Max 2W)
· Connects to external devices such as an MP3 player through the AUX input
· Durable, unique design with high gloss nish
· Convenient one-touch on/off button
· Easy to read display provides important battery information and on/off indicator
· Includes stand for placing on a table or desk and belt clip for handsfree operation
· Lightweight design (270g)
· Siren/alert button on top of unit. Makes distinctive “beep” sound to alert a party in the event
of an emergency.
· Ideal for school teachers, tour groups, churches, workshops, public speaking, speech
therapy, sports events, gatherings and much more.

5
Safety information
· Keep out of reach of children and pets
· If the product becomes wet: do not use. Call Wil-
liams Sound customer service: 800-843-3544
· Do not handle charging cable with wet hands
· Prior to using, set the volume on the microphone to
the lowest level. Once on, adjust the volume only to
the minimum level needed
· Do not position the speaker too close to the ears
· Do not attempt to disassemble or repair the
product
· Do not drop, shake, or expose to impacts
· Do not set heavy objects on top of the unit
· Do not use the system in high humidity environ-
ments
· Do not expose the product to dirt and grime
· Avoid using the product in direct sunlight or high
temperatures
· Do not clean the product with chemicals
· Do not push multiple buttons at one time
· If the product is not used for a long period, discon-
nect the battery from the speaker. Charge the
battery every three months to maintain normal
operation.
· Store battery at room temperature only (between
40° to 80° F).
· Do not expose battery to temperatures above
140° F for any extended period
· Do not charge the battery for extended periods of
time. This may overheat and damage the unit
· Do not use a charger or auxiliary input cord not
included with this system or it may damage the unit
· If you experience feedback (a squealing or howling
sound), reduce the volume setting and move the
microphone away from the earphone or headphone
· This product is designed for domestic use. There-
fore, if using overseas, a charger adapter will be
required
800.843.3544 • williamssound.com

6

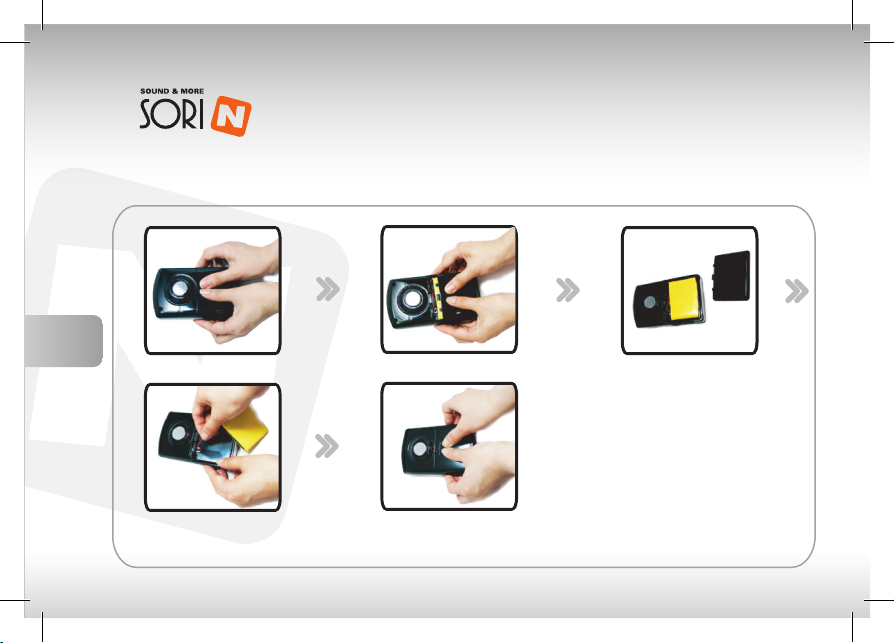

Battery installation
IMPORTANT The battery shipped with this unit was disconnected at the factory.
Prior to using the Sorin product, connect the battery as shown:
1. Pull down the battery cover 2. The battery will be visible after opening the cover.
3. Connect the battery to the product. 4. Close the case.
WARNING: Use only the
battery pack sold with this
unit. Never charge the battery
with a substitute battery char-
ger. Do not allow the battery
to become short circuited.

7
Turning power on/off
Speaker Power
· Individual power buttons located on speaker, and microphone control cable
· Speaker turns ON after pushing the button for 1 second
· Speaker turns OFF after pushing the button for 1 second
800.843.3544 • williamssound.com

8
Charging the speaker
Charging terminal
· Prior to use, charge the unit for at least 3 hours. Note: Charger can be used to power the
speaker provided the battery is fully charged.
· If the product is not used frequently, disconnect the battery in the battery compartment
Charge the battery every 3 months to maintain proper function IMPORTANT: Only charge
the battery at temperatures between 32° to 110° F.
1. Open the rubber cap on the
left side of the speaker
2. Connect charging cable to
the lower slot

9
Checking the battery
· Users can verify if the battery is charged, charging, and if the power is on/off.
· If the indicator shows “GGGR,” the battery is full charged and ready for use.
· If the indicator shows “R,” the unit needs charged.
BATTERY INDICATOR CHART
80% 60% 40% 20%
Green Green Green Red (FULL)
Green Green Red
Green Red
Red (LOW)
Battery indicator
Power (red)
Charging (yellow)
Charged (green)
800.843.3544 • williamssound.com

Using the microphone
Mic connection terminal
· Connect control cable with microphone to the microphone terminal.
· Turn the power on by pressing the power button for 1 second
· Adjust the volume control on the microphone
If you experience feedback, lower the speaker volume and/or move the microphone away
from the speaker.
10 1. Open the rubber cap on
top-left side of the speaker
2. Connect microphone
cable to the speaker

11
Connecting external devices
· Users may connect external audio devices such as an MP3 or CD player to the AUX input
on the speaker.
MP3 Player
CD Player
Computer
AUX Input
1. Connect MP3 player or CD player
with AUX cable and to the AUX input
on the left side of the speaker
800.843.3544 • williamssound.com

12

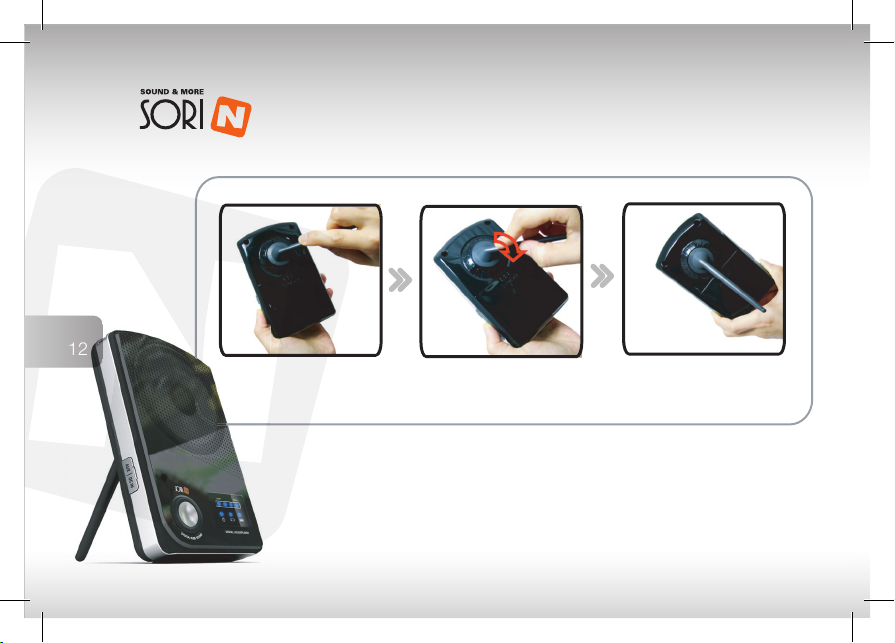

Using the stand
Set the Sorin on a at surface such as a table or desk.
1. Set the stand on the three o’clock position on the back side of the
speaker and turn 90 degrees to lock into place

13

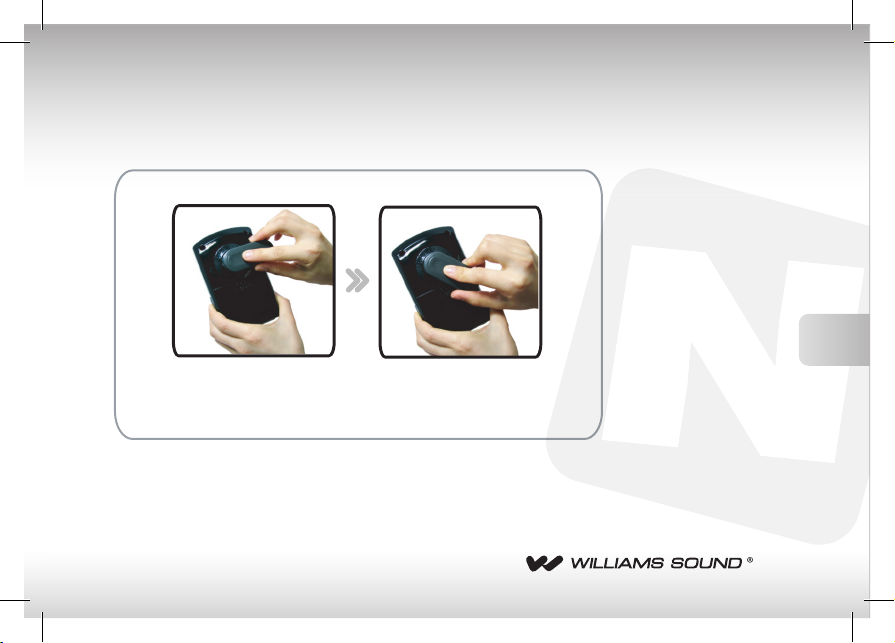

Using the belt clip
1. Place the belt clip at a three o’clock position on top of the metal
plate on the back of the speaker. Turn the belt clip 90 degrees to
lock into place.
800.843.3544 • williamssound.com

14

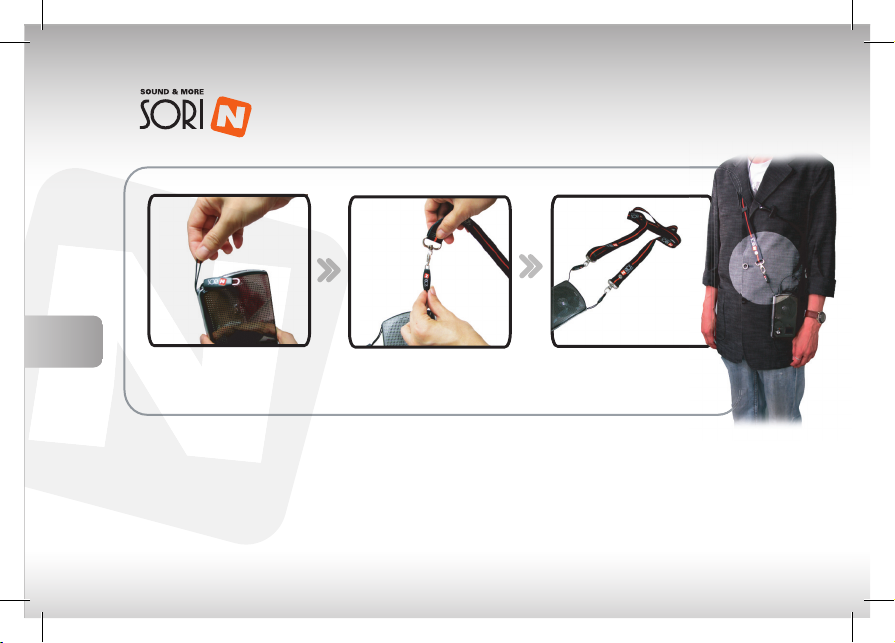

Using the shoulder strap
· The shoulder strap can also be used with the carry case.
1. Install strap clips on both
sides of the speaker
2. Connect the shoulder
strap to the strap clip

15
Using the microphone (MIC 042)
· Place the rear wear microphone over ears
800.843.3544 • williamssound.com

16
Troubleshooting
Q: The power indicator light is not on.
A: The rechargeable battery may be depleted. Charge the battery for at
least 3 hours.
Q: The product is not working properly, or does not work at all.
A: Disconnect the battery, reinstall and turn on the power. If the product still
isn’t working, contact Williams Sound customer service: 800-843-3544 or
1-952-943-2252.
Q: There is no sound from microphone.
A: Check microphone connection and that volume control is turned up.
Q: The battery runs for only a short time, despite charging it completely.
A: Disconnect the battery, then reinstall and charge again.
If you have used the battery for more than a year, the battery may need to be
replaced. Call Williams Sound customer service to order a replacement battery
(part no.: BAT 040): 800-843-3544 or 1-952-943-2252.

17
Recycling instructions
Battery Safety and Disposal
Help Williams Sound protect the environment! Please take the time to dispose
of your equipment properly.
Product Recycling for Customers in the European Union:
Please do NOT dispose of your Williams Sound equipment in the
household trash. Please take the equipment to a electronics
recycling center; OR return the product to the factory for proper
disposal.
Battery Recycling for Customers in the European Union:
Please do NOT dispose of used batteries in the household trash.
Please take the batteries to a retail or community collection
point for recycling.
08 / 05 / 10
800.843.3544 • williamssound.com

18
Limited warranty
Williams Sound products are engineered, designed, and manufactured under carefully controlled conditions to
provide you with many years of reliable service. Williams Sound warrants the Sorin system against defects in ma-
terials and workmanship for TWO (2) years. During the rst two years from the purchase date, we will promptly
repair or replace the Sorin.
Microphones, earphones, headphones, batteries, cables, carry cases, and all other accessory products carry a
90-day warranty.
If you experience difculty with your system, call Toll-Free for U.S. customer Assistance: 1-800-843- 3544
(U.S.A.) or [phone] (Outside the U.S.A.). If it is necessary to return the system for service, your Cus-
tomer Service Representative will give you a Return Authorization Number (RA) and shipping instructions. Pack
the system carefully and send it to:
Williams Sound Corp.
Attn: Repair Dept.
10300 Valley View Road
Eden Prairie, MN 55344 USA
Your warranty becomes effective the date you purchase your system. Your returned warranty card is our way
of knowing when your warranty begins. Please take a moment to ll it out and mail the enclosed card. You may
also register your product online:
www.williamssound.com/registration.aspx. This information will help us serve you better in the future. Thank you!

19
Specications
Dimensions: 3.25” W x 5.4” H x 1.02” D.
Weight: 9.7 oz (with battery)
Color: Black with silver sides
Battery Power: Type: 7.4 V, rechargeable, 1800 mAHr (custom) Lithium ion
Life: Up to 30 hours (contingent upon speaker output level)
Current drain: 1.5 amps (at nominal listen level), 2.5 amps maximum
Battery Charger: Type: Switcher, input 110 to 220 VAC at 50 to 60 Hz., output 9 VDC at 1.5 amps with a 2.5 mm DC plug
Charge time: 2 hours (typical)
Acoustic Performance: Gain: (HF Ave full on gain, 60 dB SPL in): Handheld microphone: 15.0 dB
Head worn microphone: 21.0 dB
Frequency response: 200 to 10 kHz
Hum and Noise: less than 62 dB SPL
Distortion: less than 2.8% total harmonic distortion
SPL Output (Max SSPL90): Handheld microphone: 110.9 dB SPL = 20.9 dB gain
Head worn microphone: 119.6 dB SPL = 29.6 dB gain
(Volume at maximum at 3” from speaker)
Alert SPL Output: (maximum) 124 dB SPL
Controls/ Indicators: ON/OFF pushbutton switch on top bezel
Alert/ Siren: two push buttons on top bezel activates different siren tones
LEDs on front of unit indicate, ON/OFF and low battery
Power Output: 5W
Accessories (included): Head worn microphone (noise canceling)
Control cable with a mini USB plug.
Auxiliary input cable, 48” long, with a 3.5 mm plug on each end
Zippered carry case, belt clip, stand clip, carry pouch, belt strap, shoulder strap
Button microphone for mic cable
Approvals: CE, RoHS, WEEE
Warranty: 2 years parts and labor (90 days on accessories)
800.843.3544 • williamssound.com

With SORIN, your voice will never get tired.
©2010, Williams Sound Corp. MAN 141C
