WILLIAMSWARN Generation 2 User manual

THE WILLIAMSWARN
PERSoNAL BREWERy
USER MANUAL
© Copyright 2013 Personal Brewing limited
INTRODUCTION 2
PART ONE: YOUR PERSONAL BREWERY
BREWERY OVERVIEW 4
THE CONTROL PANEL 5
SAFETY INFORMATION 6
SETTING UP YOUR PERSONAL BREWERY 10
PART TWO: MAKING YOUR BEVERAGE
WITH THE STANDARD BREWING METHOD
BREWING CYCLE OVERVIEW 15
THE BREWING PROCESS:
WHAT YOU NEED 16
THE BREWING STAGES 19
SHORT INSTRUCTIONS 36
PART THREE: MAKING BEVERAGES
WITH THE ADVANCED METHOD
INTRODUCTION 38
ADDING EXTRA HOP FLAVOUR AND BITTERNESS 39
ADDING EXTRA MALT FLAVOURS 41
PART FOUR: APPENDICES
APPENDIX ONE: CLEANING & SANITISING 44
APPENDIX TWO: ADDING INGREDIENTS 46
APPENDIX THREE: TAKING S.G. SAMPLES
AND CALCULATING ALCOHOL %'S 48
APPENDIX FOUR: THE LID SEAL 51
APPENDIX FIVE: THE VPRV AND CARBONATION 52
APPENDIX SIX: SETTING THE TEMPERATURE
WITH THE DIGITAL CONTROLLER 55
APPENDIX SEVEN: TYPICAL FERMENTATION
CHARTS & WHEN TO COOL THE BEVERAGE 56
APPENDIX EIGHT: CLARIFYING THE BEVERAGE 59
APPENDIX NINE: DISPENSING THE BEVERAGE 62
APPENDIX TEN: DESCRIPTIONS OF OUR
STANDARD KITS & THE BJCP STYLE GUIDELINES 63
APPENDIX ELEVEN:
CONVERSION TABLES & BREW RECORD SHEET 69
APPENDIX TWELVE: TASTE TESTING 73
TROUBLE SHOOTING THE WILLIAMSWARN
PERSONAL BREWERY 75

2
INTRoDUCTIoN
Your personal brewery can deliver 23 Litres (6 US Gallons) of
cold, clear, perfectly carbonated, commercial quality alcoholic
beverages in 7 days, just like a modern brewery. It requires only
about 1 hour of your time. The quality of the products produced
was well and truly proven when a brewer on his 3rd brew in his
WilliamsWarn, beat 45 of the world’s biggest and brightest
breweries to win a Gold Medal for his Pilsner at the Asia Beer
Awards in 2012.
This User Manual is divided into four parts:
• PartOnedescribesyourPersonalBrewery,howtosetitup
and some important safety information.
• PartTwodescribeshowtomakebeveragesusingour
Standard Method with our Standard Ingredient Kits. The
nal page contains our Short Instructions, which is all you
will need once you have made several brews and the process
becomes more intuitive.
• PartThreeexplainssometechniquesdescribedasour
Advanced Methods, which will enable you to produce
unlimitedbeveragestylesusingsomeextraingredients
along with the Standard Kits.
• PartFourcontainstheAppendicesanda
Trouble-Shooting Guide.
We suggest you read this User Manual from cover to cover before
you start to make your rst brew, so that you are familiar with the
process and timings involved. The Appendices are very important
toreadbeforeyoubrew,becausetheyexplaintheprinciples
behind the Standard Method that you will use in Part Two.
Never has making a commercial quality beverage at home or
the workplace been so easy. We promise that after using your
Personal Brewery you will be as passionate about making beer,
cider and other beverages as we are.
Thank you very much for your purchase and we sincerely hope
you will love your WilliamsWarn from the very rst brew.
Cheers.
We are very proud to bring you the Generation 2 WilliamsWarn® Personal Brewery.
The development of the rst model that we launched with in April of 2011 took over 6
years of effort and determination. In the following 12 months after launch, we sold out
of the rst batch of 70 that we had produced. We learnt much from this rst model
and we had a rapidly growing international demand, so we decided to seek investment
to improve the brewery and meet this response.
We received the investment we required in mid-2012 and then proceeded to develop
the Gen2 WilliamsWarn, a new set of ingredients and this new User Manual.
Ian Williams Anders Warn

PART oNE:
yoUR PERSoNAL
BREWERy

4

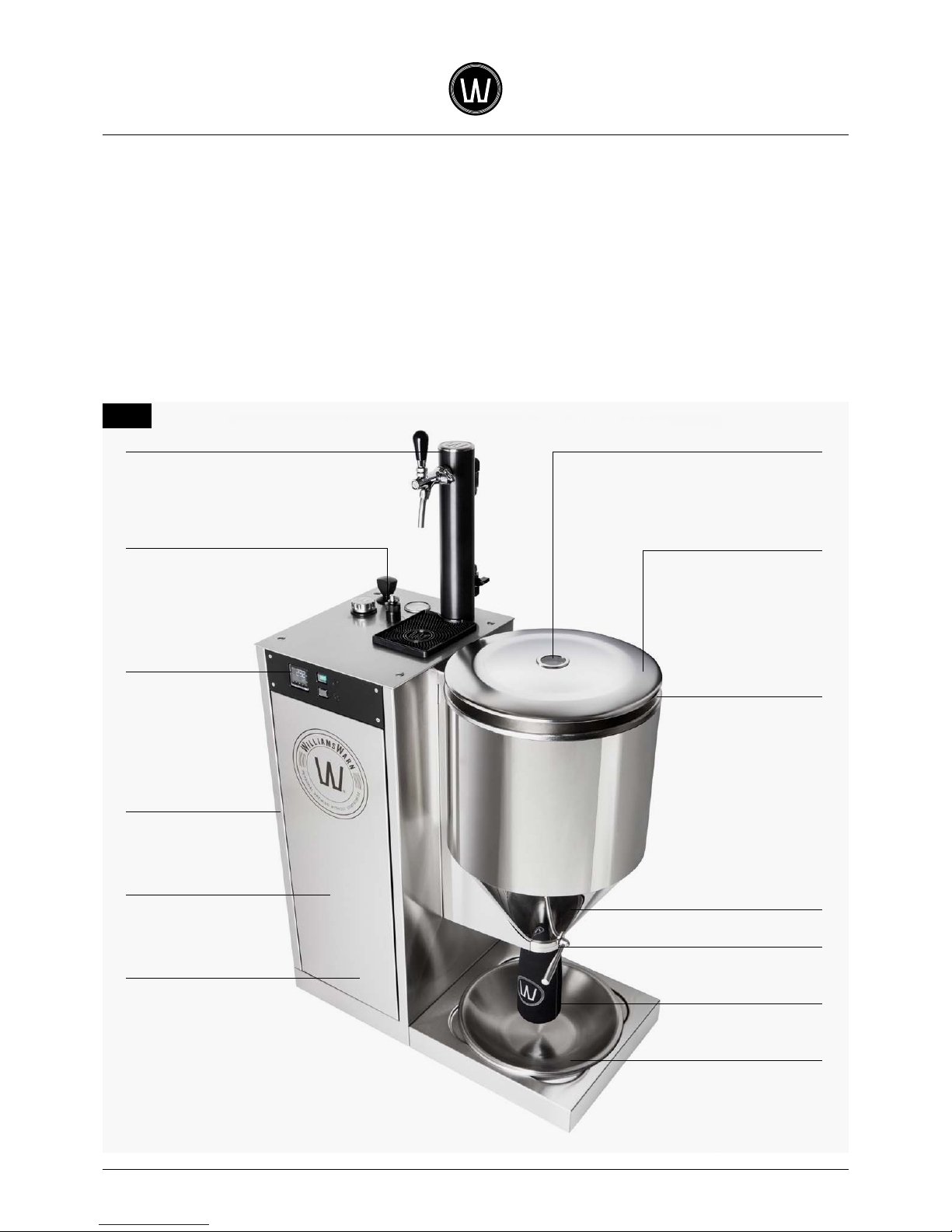

The following diagram shows an overview of the main components of your personal
brewery. The unit comprises of two main parts: The Brewery Tower and The Brewing
Vessel. The components of the tower and the brewing vessel are described in the
following diagram. You will need to refer to this diagram whilst you are following the
beer making instructions in Part Two.
BREWERy oVERVIEW
VESSEL LID SIGHT GLASS
VESSEL LID
VESSEL RIM
VESSEL CONE
VESSEL VALVE
SEDIMENT BOTTLE
STAINLESS STEEL BOWL
CONTROL PANEL
DRAFT TAP FONT
GAS CYLINDER BEHIND
BREWERY TOWER DOOR
(SEE FIGURE 4C)
BREWERY TOWER DOOR
BREWERY TOWER
DIGITAL
TEMPERATURE
CONTROLLER
Fig. 1

Fig. 2
5

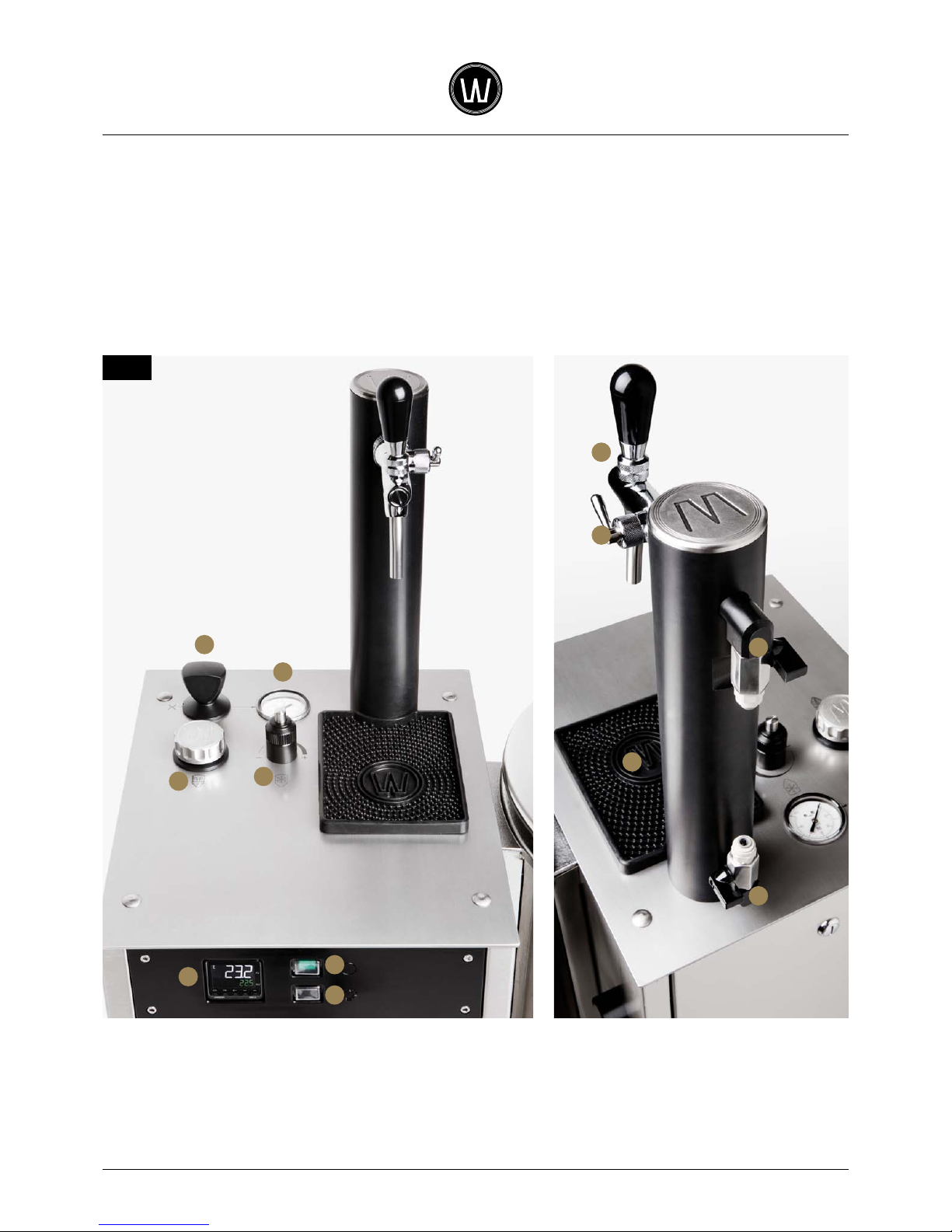

The control panel is where you control
the brewing process from cleaning to
dispensing the beer. The components
on the control panel are described in the
following diagram. You will need to refer
to this diagram whilst you are following
the beer making instructions in Part Two.
1. 3-WAY VALVE
2. VESSEL PRESSURE GAUGE
3. CLARIFICATION POT
4. VARIABLE PRESSURE RELIEF VALVE
(VPRV)
5. DIGITAL TEMPERATURE CONTROLLER
6. ON/OFF BUTTON
7. VESSEL LIGHT BUTTON
8. DRAFT TAP
9. DRAFT TAP FLOW CONTROL LEVER
10. BREWERY FILLING LINE VALVE
11. BREWERY CO2LINE VALVE
12. DRIP TRAY
THE CoNTRoL PANEL
1
2
3
6
7
8
9
10
12
11
5
4

6
SAFETy INFoRMATIoN
These instructions for use outline general safety guidelines for the correct operation
of the WilliamsWarn Personal Brewery System
F. Two stainless steel wheel chocks to prevent
movement of the unit once positioned.
This user manual and a set of ingredients will be
delivered separately to the brewery.
1.3 INSTALLATION, STORAGE AND OPERATING
CONDITIONS
The WilliamsWarn Personal Brewery is suitable for
operating in temperatures of 5°C to 40°C (41°F to
104°F)withamaximumallowablehumidityof90%
(within the prescribed temperature range).
The WilliamsWarn Personal Brewery wheel chocks
must be engaged to keep the appliance stable while
in use. Do not move the appliance while it is in
operation and only operate on a level surface.
The WilliamsWarn Personal Brewery shall only
be used for human consumption. Do not use for
storing animal product or other potential hazardous
substances that will affect the performance and
hygiene of the product.
1.4 CLEANING
Before cleaning the WilliamsWarn Personal Brewery
make sure that the device is turned off.
Always clean following the instructions in this
manual. Cleaning Instructions are described in Part
Two, Stage 1.
We recommend the use of WilliamsWarn Brewery
Detergent and WilliamsWarn Sodium Percarbonate
as the detergent and sanitising agents respectively.
If other products are used they should be approved
brands of dishwashing detergent and approved
brands of homebrewing sanitizer that are available
commercially for these purposes.
Always use a non-scratch sponge so that the internal
stainless steel of the vessel does not get scratched.
2.0 WARRANTY
WilliamsWarn provides a 1 year warranty on all parts
and sundry equipment.
Warranty Disclaimer
The WilliamsWarn Personal Brewery is to be used
only for human consumption only in accordance
with the intended purpose 1.1. Use of the appliance
not in accordance with these instructions will void
the warranty and could cause potential harm and
potentially severe health related issues.
Carefully read and understand this user manual before
attempting to operate.
Never use the WilliamsWarn Personal Brewery for any
purpose other than the Intended Purpose. Do not misuse,
modify or force the appliance in any way as damage
may occur that may create potential hazardous risks or
situations.
Refer to the Part Two, Stage 1 instructions in this User
Manual for the approved cleaning instructions of product
before use.
Should the WilliamsWarn Personal Brewery appear to
malfunction or observe failure of operation, contact your
local approved service agent to arrange for repair. All
repairs must be carried out by an approved and qualied
service technician.
Do not use the brewery if there is damage to the product,
power lead, gas bottle and regulator valve or the system
has changed in performance.
Ensure the correct attachments and CO2regulator valve
are used with the product.
1.1 INTENDED PURPOSE AND PERFORMANCE
The intended purpose of the WilliamsWarn Personal
Brewery system is to deliver cold, clear, perfectly
carbonated, commercial quality beer in 7 days, as
in a modern brewery, requiring just over 1 hour of
setup time. The Personal Brewery process involves the
operator performing various tasks at specic times to
produce a commercial quality beer in a domestic home
environment or other establishment. Please note, the
WilliamsWarn is not designed to be used in an outdoor
environment and should be protected from rain and
moisture ingress at all times.
1.2 COMPONENTS AND ACCESSORIES
The complete WilliamsWarn Personal Brewery includes:
A. The Personal Brewery

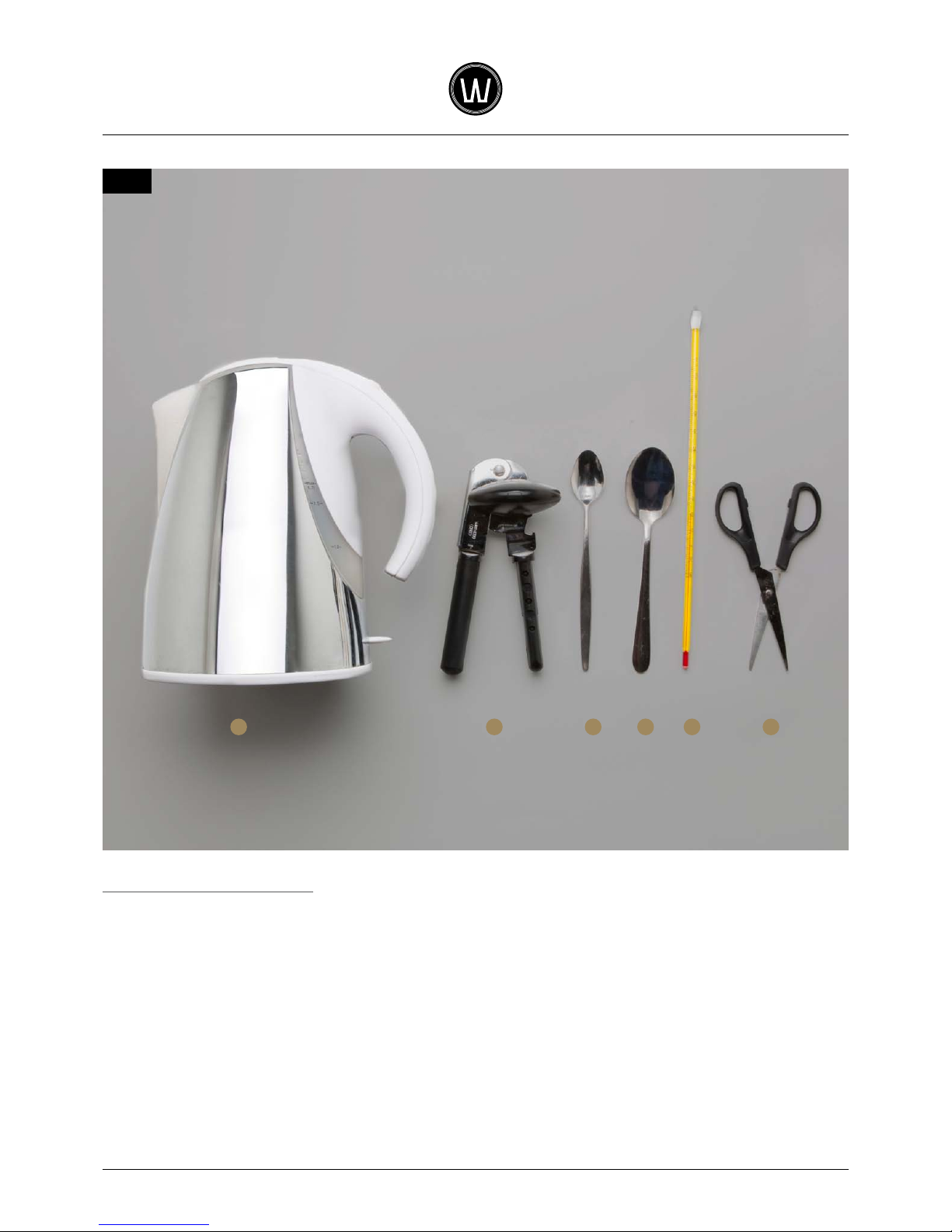

B. A bag of Sundry Equipment as laid out in Figure 6
in Part Two.
C. 3ofM8x20mmstainlesssteelsetscrews,to
attach the beer font.
D. Afunneltoenabletheadditionofaglycolmixtureto
the heating/cooling unit before use.
E. 4Litresof5%foodgradeglycolmixturetoaddto
the heating/cooling unit before use.

7
3.0 MANUFACTURER DETAILS
The WilliamsWarn Personal Brewery is manufactured by:
Nanobrewing Ltd
1414, Omahu Road
Hastings 4175,
New Zealand.
www.williamswarn.com
4.0 APPROVALS
C-Tick marked as supplier’s declaration of conformity to
the Radio telecommunications Act 1992 Section 182.
Importer Client Code: 4023 5041 F
Compliance:
AS/NZS 60335.1: 2011-A1:2012
IEC 60335.1:2011
Household and similar electrical appliances -
Safety - Part 1: General requirements.
AS/NZS 60335.2.24: 2010
IEC 60335-2-24:2010 A1:2012
Household and similar electrical appliances - Safety -
Particular requirements for refrigerating appliances,
ice-cream appliances and ice-makers.
AS/NZS 60335.2.21:2002
IEC 60335-2-21 ed6.0
Household and similar electrical appliances - Safety -
Particular requirements for storage water heaters
AS/NZS 60335.2.34: 2003 A2
IEC 60335.2.34:2012: 2012
Household and similar electrical appliances - Safety -
Part 2-34: Particular requirements for motor-compressors.
AS/NZS 3350.2.41:1997
IEC 60335-2-41 Ed 3.2
Safety of household and similar electrical appliances -
Particular requirements – Pumps
RoHS 2011/65/EU
Restriction of the use of Hazardous Substances Directive
in electrical and electronic equipment
WEEE 2002/96/EC
Waste Electrical and Electronic Equipment Directive
Food Safety Regulations
Food hygiene Regulations 1974 AS/NZ
AS/NZS 4020 Products for use in contact with
Drinking Water
AS 2070-1999 Plastic materials food contact use
5.0 ANNEX I - ELECTROMAGNETIC EMISSIONS
For electromagnetic emissions the WilliamsWarn Brewery
has been tested for compliance to AS/NZS CISPR14-1
Ed.5.1 (2009) Class B.
5.1 WARNINGS:
Use of accessories, cables and ingredients other
than those specied and sold by the manufacturer
as replacement, may result in increased emissions
or decreased immunity of the WilliamsWarn Brewery.
Check if the voltage indicated on the appliance
corresponds to the local mains voltage before you
connect the appliance.
Do not use the appliance if the plug, the mains cord
or the appliance itself is damaged.
This appliance is not intended for use by persons
(including children) with reduced physical, sensory
ormentalcapabilitiesorlackofexperienceand
knowledge unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.
Children should be supervised to ensure that they do
not play with the appliance.
5.2 CAUTION
This appliance is intended for household use only. If
the appliance is used improperly or for professional
or semi-professional purposes or if it is not used
according to the instructions in the user manual, the
guarantee becomes invalid and WilliamsWarn refuses
any liability for damage caused.
5.3 ADJACENT EQUIPMENT
The WilliamsWarn Brewery should not be used adja-
cent to, or stacked with, other equipment. If adjacent
or stacked use is necessary, the WilliamsWarn Brewery
should be observed to verify normal operation in the
conguration in which it will be used.
5.4 OPERATION IN WET AREAS
Keep the WilliamsWarn Brewery clear from wet areas
when it is placed and connected to the mains supply.
Do not attempt to use WilliamsWarn Brewery for other
purposes or move the appliance while operating. Keep
the WilliamsWarn Brewery clear from wet areas.
6.0 TECHNICAL INFORMATION
1. Product Title / Trademark
WilliamsWarn® Personal Brewery
2. Model No. / NB23-1
3. Vessel Volume (V)
23 Litres (5 Imp. Gallons/6 US. Gallons)
4. Mains Input voltage
220~240Vac
5. Mains Frequency
50-60Hz
6. Supply Current
0.8 Amps
7. Power Loading
180 Watts
8. Heating Element
240Vac, 80 Watts, 0.36Amps
Z1696

8
9. Refrigeration compressor
240Vac, 180 Watts, 0.75 Amps
10. Insulation classication
Class I
11. Nett Weight
87 kg
12. Enclosure IP rating
IP22
13. Humidity
10% - 90%
14. CO2MaxGasPressurePS
300kPa – 3Bar
15. CO2Regulated Pressure
50kPa – 300kPa / 0.5 –3Bar
16. Operating Temperature TS
5°C – 40°C (41°F to 104°F)
17. Refrigerant
R134a
18. Refrigerant mass
131g
19. Refrigerator Climate Class
SN - T
20. Atmospheric pressure
86kPa – 106kPa
21. Fermentation Temperature
10-26°C (50-79°F), 50kPa – 300kPa, 0.5 – 3Bar
22. Refrigeration Temperature
2°C (35.6°F)
23. LED Lamp
12Vdc, 20mA
7.0 OTHER INFORMATION
These instructions for use outline general safety
guidelines for the correct operation of the WilliamsWarn
Personal Brewery System
Place the WilliamsWarn Personal Brewery upright on a
at, even and stable surface. Make sure it doesn’t block
a passage.
Take care when moving the brewery. The wheels on the
base allow the user to move the brewery on a at surface
in a straight line. Take care when moving the machine in
another direction.
The refrigeration system will emit warm air from the
ventilation ducts on the Brewery Tower. Ensure adequate
air ow for the ventilation system so that air is not
blocked or looped back.
Clear all spills from the surrounding oor in order to
maintain hygiene. Clean the drip tray regularly.
The brewery tower panels may be removed for maintenance.
Ensure only an approved service agent has access to the
internal parts in the brewery tower.
Do not try to open the tank lid or valve (or take sediment
bottle off without closing the tank valve) while under
pressure. Always relieve pressure before opening the
tank. Check the variable pressure relief valve (VPRV)
regularly to ensure that it is not blocked.

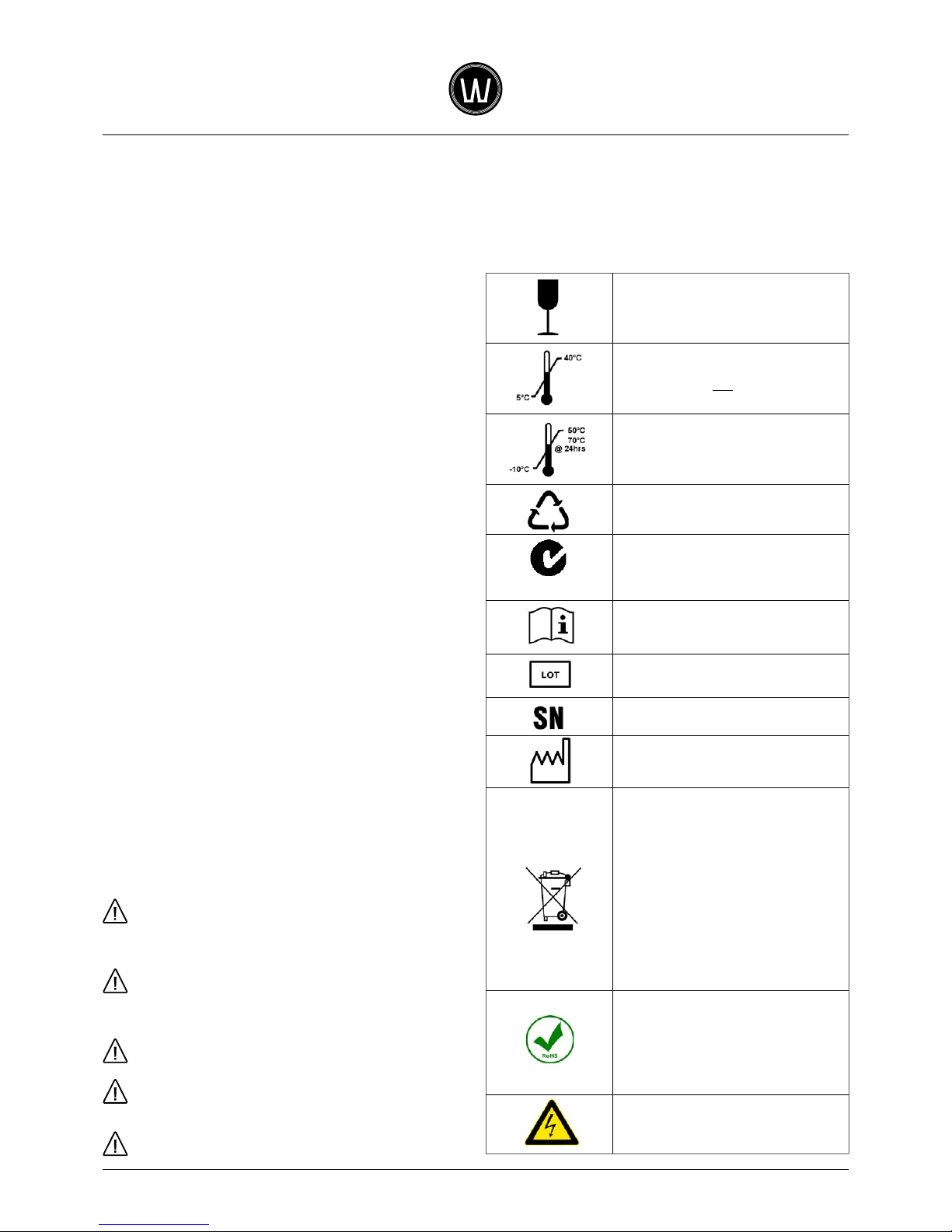

8.0 SYMBOLS AND DEFINITIONS
Fragile. Handle with care.
Operate within 5°C to 40°C with a maximum
allowable humidity of 90%
Store and transport within the temperature range
of 10°C (50°F) to 50°C (122°F) and 70°C (158°F)
for 24 hours.
Material can be recycled.
C-Tick marked as supplier’s declaration of
conformity to the Radio telecommunications Act
1992 Section 182
Read instructions before use
Lot number
Product Serial number
Date of manufacture
This appliance is compliant to Restriction
Hazardous Substances Directive RoHS 2011/65/
EU in electrical and electronic equipment with
the WEEE Directive.
Under the European Directive 2002/96/EC this
electrical appliance must not be disposed of to
normal waste.
Disposal: Extreme care must be taken when
disposing of your old appliances to avoid
hazards. The refrigerant gas must be safely
removed. Your authorised repairer will be able to
give advice on environmentally friendly methods
of disposing of your old appliance.
This appliance is compliant to Restriction
Hazardous Substances Directive RoHS
2011/65/EU in electrical and electronic
equipment Ingress protection IP22: Note:
Protected against solid objects greater than
12.5mm, Protected against dripping water from
15° from vertical: limited ingress may occur.
Electrical Hazard, entry by qualied service
personnel is required.
Z1696
IP22

9
COPYRIGHT 2013 © WILLIAMSWARN BREWERY
ALL RIGHTS RESERVED
NO PART OF THIS PUBLICATION MAY BE REPRODUCED OR TRANSMITTED, IN ANY FORM OR
BY ANY MEANS, ELECTRONIC, MECHANICAL, PHOTOCOPYING, RECORDING OR OTHERWISE,
OR STORED IN A RETRIEVAL SYSTEM OF ANY NATURE WITHOUT THE WRITTEN PERMISSION
OF WILLIAMSWARN BREWERY LIMITED.

10
THE INGREDIENTS AND THEIR STORAGE
You will receive a set of ingredients and this user manual in
a separate delivery to the brewery. You must use this set of
ingredientsforyourrstbrew.AnexampleisshowninFigure5
(Part 2 of this manual).
LiquidMaltExtract(LME)agesovertimeandthiscanaffect
the beer avour. We keep all our LME cold until shipment to
you and ask that you continue this refrigerated storage policy
until the evening before use. So any LME you have needs to be
refrigerated until the evening before brewing, after which time
it should be put on a bench overnight, so that it can warm up to
roomtemperaturebeforeopeningthenextday.Thiswillmakeit
easier to pour. You can also warm the can up in hot water for 10
minutes prior to use if you forget to take it out of the fridge.
DryMaltExtract(DME)doesnotneedrefrigerationsocanbe
kept at room temperature indenitely. Keep it preferably in a
cool and dry area.
The clarication agent should not be kept below 5°C (41°F).
UNPACK THE BREWERY
Remove the protective cardboard packaging when you receive
your brewery.
Unscrew the four screws that attach the brewery to the pallet
and remove the brackets from their internal slots.
IMPORTANT: Keep the protective packaging, the pallet, the
screws and brackets in a safe place for possible future use if the
brewery needs to be shipped to a service agent for maintenance.
REMOVE THE EQUIPMENT STORED IN THE VESSEL
As well as your Personal Brewery, you have received some
equipment which has been placed inside the vessel during
transportation. This includes:
A. The Sundry Equipment to help you brew as shown in
Figure 6 (Part 2 of this Manual)
B. The Sediment Bottle and its neoprene cover
C. The Draft Tap Font as shown in Figure 3A
D. 2xU-shapedstainlesssteelwheelchocksasseenin
Figure 4A.
E. An electrical cord to connect to your brewery and your
electrical power source.
F. The drip tray.
Undo the vessel lid and unpack all these items.
POSITION THE BREWERY
Position your Personal Brewery in a place where it can remain
for the duration of the brewing process and beer dispensing
period. IMPORTANT: this will need to be on a at level surface.
The brewery is on four wheels which will enable you to push the
brewery unit in a straight line. They are not castors so in order
to change direction you will need to lift or drag the front or back
around to suit the direction that you require.
Toxthebreweryintoposition,pleaseslidethewheelchocks
around the two front wheels, see Figure 4A.
This will prevent the brewery from being pushed around.
It is preferable to keep the unit away from direct sunlight.
For electrical safety reasons the unit must be kept out of the
rain or wet area’s so is not suitable for positioning outside in an
uncovered area.
It is preferable that the unit is maintained in an ambient
environment between 5°C and 40°C (41°F to 104°F) and less
than 90% humidity.
Remove the white protective wrap from the stainless steel by
pulling it off with your hands. It should peel off easily and reveal
clean stainless steel.
Position the unit so that there is adequate air-ow through the
air ducts at the base of the brewery tower. This is to enable the
refrigeration system to work properly. It is important that the
ducts are not blocked in some way or that the air ow does not
loop back on itself. The area around the ducts may become
warm at times.

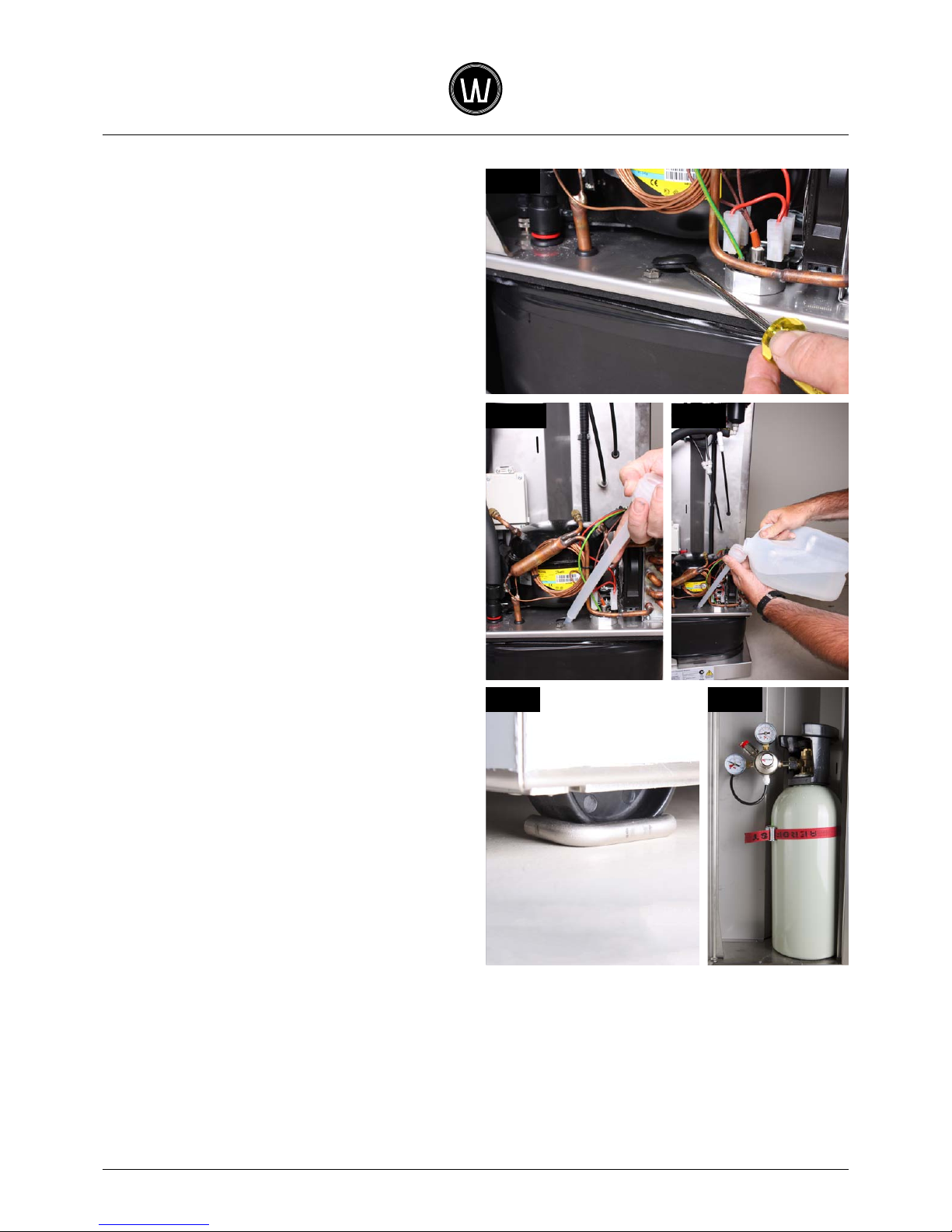

ACCESS TO MACHINE INTERNAL PARTS AND SERVICING
IMPORTANT: READ THIS SECTION CAREFULLY
We have carefully designed and constructed this machine so
that if necessary the user can access the internal parts of the
brewery if required. On initial set up of the brewery you will be
required to access this area.
Before accessing the rear protective panel you must ensure that
the brewery is not connected to the mains power supply.
In the future, should you need to access this area after the
gas cylinder is connected, you should also ensure that the CO2
cylinder is turned off at the cylinder and the pressure in the
tubing on the low pressure side has been released.

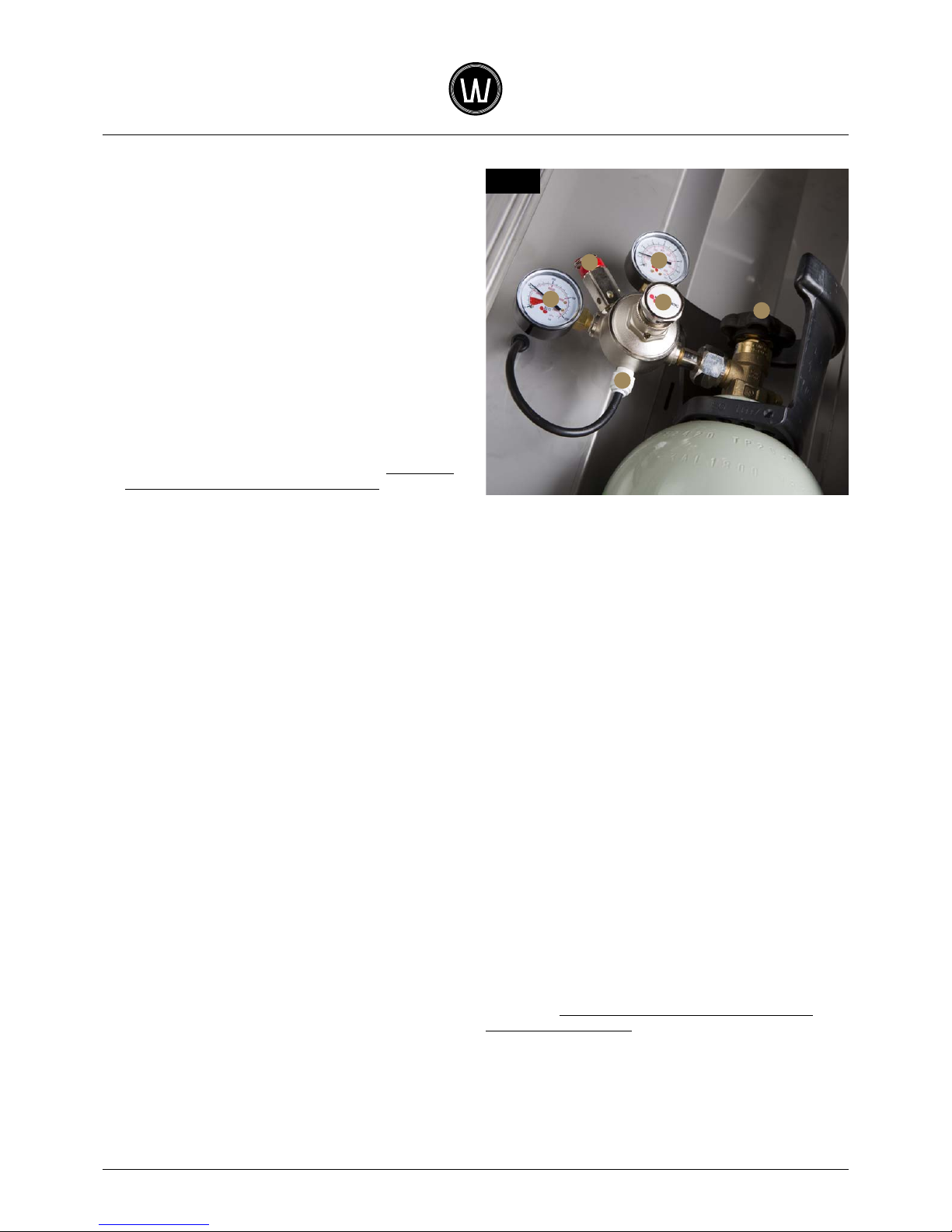

For the regulators supplied by WilliamsWarn to release pressure
on the low pressure side, wind the regulator knob out anti-
clockiwse to its closed position and the low pressure gas will
release itself.
SETTING UP yoUR
PERSoNAL BREWERy
Please follow the instructions below carefully to set up your Personal Brewery.
