WIN Enterprises, Inc. MB-73360 User’s Manual
1
User’s Manual
MB-73360
Mini-ITX with MD G-series SOC (Steppe Eagle), 2 x HDMI, 1 x VG , 2 x GL N, 6 x
COM, 9 x USB, 2 x S T , Mini-PCIe x 16, DC 8V ~ 32V input

WIN Enterprises, Inc. MB-73360 User’s Manual
2
Ver. Release Date Update
1.0 2015.01 Release

WIN Enterprises, Inc. MB-73360 User’s Manual
3
Copyright
Trademark
Limitation of liability
The content of this document and software with this product are copyrighted by WIN
Enterprises, Inc. This document contains proprietary information protected by
copyright. All rights are reserved; no part of this manual may be reproduced, copied,
translated or transmitted in any form or by any means without prior written permission
of the manufacturer.
The content of this document is intended to be accurate and reliable; the original
manufacturer assumes no responsibility for any inaccuracies that may be contained in
this manual. The original manufacturer reserves the right to make improvements to the
products described in this manual at any time without prior notice.
All other product names mentioned herein are used for identification purpose only and
may be trademarks and/or registered trademarks of their respective companies.
While reasonable efforts have been made to ensure the accuracy of this document,
the manufacturer and distributor assume no liability resulting from errors or omissions
in this document, or from the use of the information contained herein.
For more information on other WIN products visit our website at:
http://www.win-ent.com.
For technical support send your inquiry to s[email protected].

WIN Enterprises, Inc. MB-73360 User’s Manual
4
Packing list
Before using this product make sure that the following materials have been shipped:
1 x MB-73360 motherboard
1 x CPU cooler ( For 15W thermal solution )
1 x SATA cable, L/ 200mm
1 x 12V/5V SATA power cable , L/ 150mm
1 x CD Utility
( P/N: CB-F00056-00 )
( P/N: CB-SATA11-00 )
( P/N: CB-IPOW41-00 )
* If any of those items are missing or damaged, please contact with sales representative or distributor.
Model Name Description
MB-7336A Mini-ITX with MD GX-424CC SOC, DDR3 1866 up to 8GB, HDMI, VG ,
2GL N,6 x COM, 2 x S T , Mini-PCIe, PLIe x 16, DC 8V ~ 32V input
MB-7336B Mini-ITX with MD GX-412HC SOC, DDR3 1333 up to 8GB, HDMI, VG ,
2GL N,6 x COM, 2 x S T , Mini-PCIe, PCIe x 16, DC 8V ~ 32V input
MB-7336C Mini-ITX with MD GX-212JC SOC, DDR3 1333 up to 8GB, HDMI, VG ,2
GL N, 6 x COM, 2 x S T , Mini-PCIe, PCIe X16, DC 8V ~ 32V input
*CB-F0056-00 CB-SATA11-00 CB-IPOW41-00
※ Please replace CPU cooler from CB-F0056-00 to CB-F00076-00 when use MB-7336A.
※ CB-F00076-00 CPU cooler is optional and not included in the standard packing

WIN Enterprises, Inc. MB-73360 User’s Manual
5
Optional ccessory :
Photo Model Name
P/N:
CB-F00076-00
CPU Cooler for high performance thermal solution
P/N:
IP-S01
PCI-express riser card support 1 x PCIe X16 & 1 x PCI slots
P/N:
IP-S02
PCI-express riser card support 2 x PCI slots
P/N:
IP-S03
PCI-express riser card support 1 x PCIe X16 & PCIe X1 slots
P/N:
CB-SATA11-00
SATA cable, L/ 200mm
P/N:
CB-IPOW41-00
12V/5V SATA power cable , L/ 150mm
P/N:
CB-ICOM38-00
Dual D-Sub 9-pin COM port card, L/ 250mm, with bracket
P/N:
CB-IUSB07-AA
Dual USB cable, L/ 250mm, with bracket

WIN Enterprises, Inc. MB-73360 User’s Manual
6
Safety Information
Operation Safety
To prevent electrical shock hazard, disconnect the power cable from the electrical
outlet before relocating the system.
When adding or removing devices to or from the system, ensure that the power
cables for the devices are unplugged before the signal cables are connected. If
possible, disconnect all power cables from the existing system before you add a
device.
Before connecting or removing signal cables from the motherboard, ensure that all
power cables are unplugged.
Seek professional assistance before using an adapter or extension cord. These
devices could interrupt the grounding circuit.
Make sure that your power supply is set to the correct voltage in your area.
If you are not sure about the voltage of the electrical outlet you are using, contact
your local power company.
If the power supply is broken, do not try to fix it by yourself. Contact a qualified
service technician or your retailer.
Before installing the motherboard and adding devices on it, carefully read all the
manuals that came with the package.
Before using the product, make sure all cables are correctly connected and the
power cables are not damaged. If you detect any damage, contact your dealer
immediately.
To avoid short circuits, keep paper clips, screws, and staples away from connectors,
slots, sockets and circuitry.
Avoid dust, humidity, and temperature extremes. Do not place the product in any
area where it may become wet.
Place the product on a stable surface.
If you encounter technical problems with the product, contact a qualified service
technician or your retailer.

WIN Enterprises, Inc. MB-73360 User’s Manual
7
Contents
1. GE ERAL I FORMATIO .............................................................................................................................................................. 9
1.1 I NTRODUCTION ................................................................................................................................................................................... 9
1.2 S PECIFICATIONS OF BOARD .................................................................................................................................................................. 10
1.3 B LOCK D IAGRAM ............................................................................................................................................................................... 12

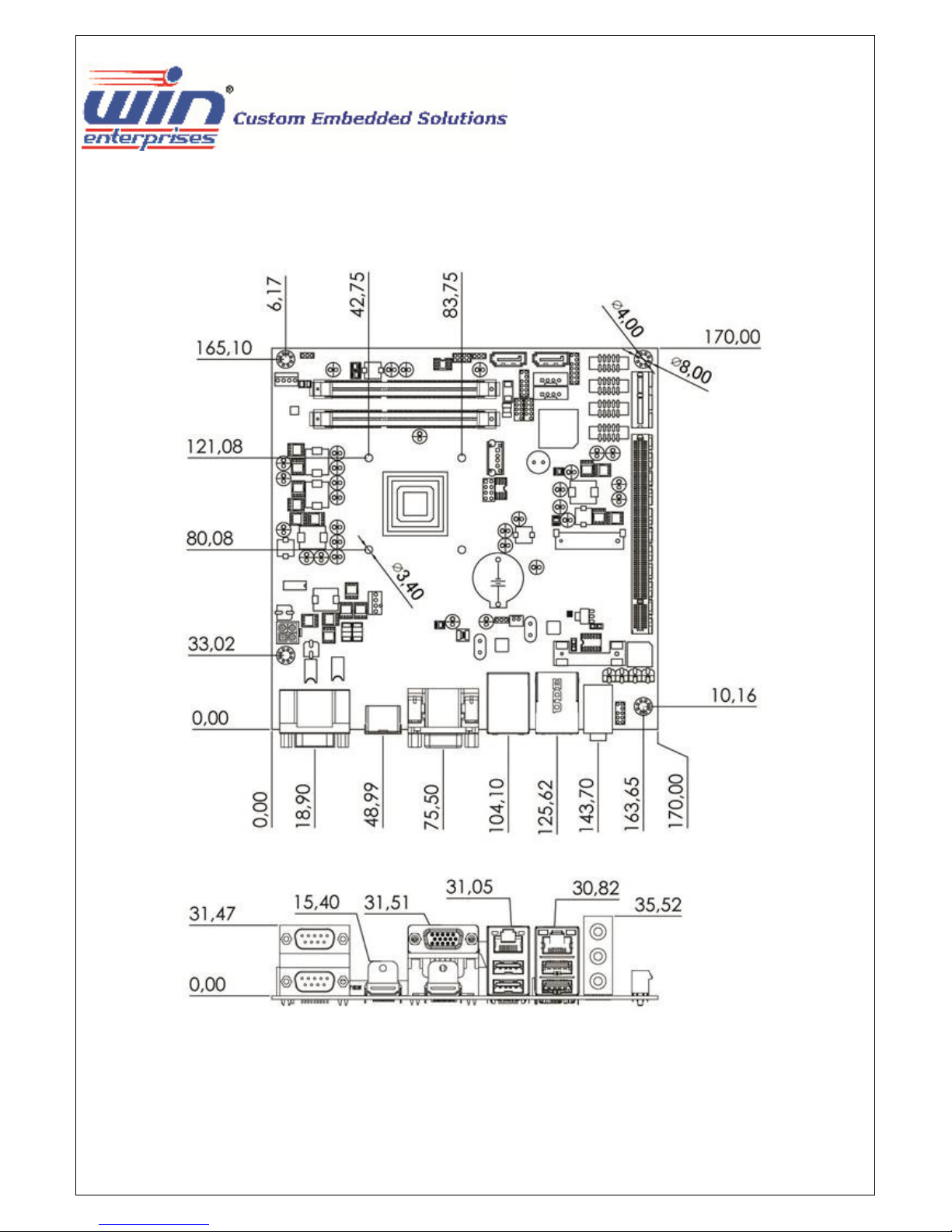

1.4 B OARD L AYOUT D IMENSIONS ............................................................................................................................................................... 13
1.5 IO PORTS ......................................................................................................................................................................................... 14
2. HARDWARE I STALLATIO ......................................................................................................................................................... 16

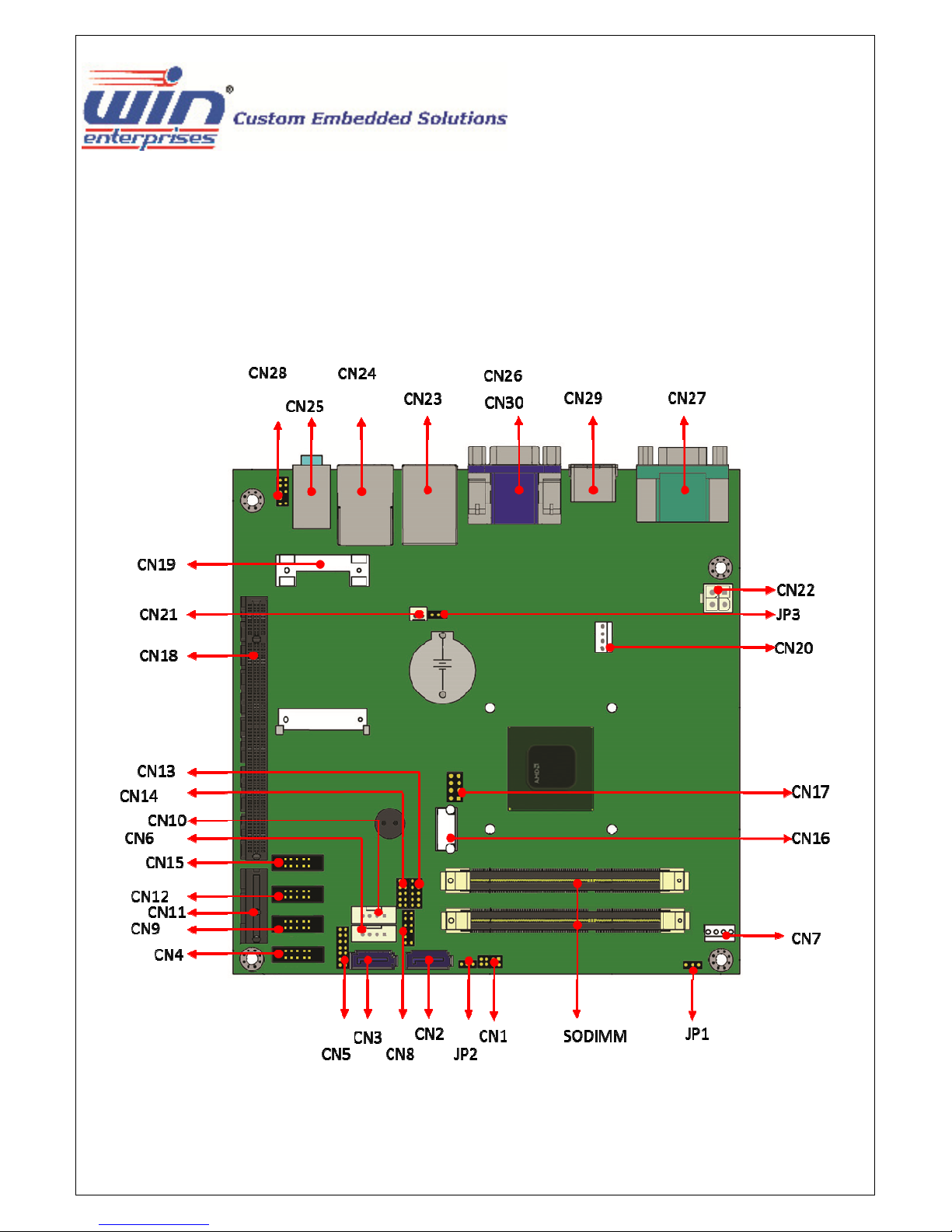

2.1 T HE LOCATION OF ONBOARD CONNECTORS .............................................................................................................................................. 16
2.2 T HE LOCATION OF ONBOARD JUMPERS SETTING ....................................................................................................................................... 1
2.3 T HE FUNCTION LIST OF ONBOARD JUMPERS SETTING ................................................................................................................................. 19
2.3.1 JP1 : DRAM VOLTAGE SELECT................................................................................................................................................ 20
2.3.2 JP2 : ATX & AT Power SELECT ................................................................................................................................................ 21
2.3.3 JP3 : CLEAR CMOS................................................................................................................................................................. 22
2.4 T HE FUNCTION LIST OF ONBOARD CONNECTORS ....................................................................................................................................... 23
2.4.1 : CN1 for fron Panel pin header ............................................................................................................................................. 1
2.4.2 : CN4, 9, 12, 15 for COM por pin header ............................................................................................................................. 24
2.4.3 : CN5 for Low Pin Coun pin-header...................................................................................................................................... 25
2.4.4 : CN6 & CN10 for 4-pin HDD power ...................................................................................................................................... 26
2.4.5 : CN7 for Sys em Fan connec or ............................................................................................................................................ 27
2.4.6 : CN8 for 8-bi GPIO .............................................................................................................................................................. 28
2.4.7 : CN11 for PCI-Express X1 slo ............................................................................................................................................... 29
2.4.8 : CN13 & CN14 for USB ......................................................................................................................................................... 30
2.4.9 : CN17 for SPI pin header ...................................................................................................................................................... 31
2.4.10 : CN19 for Full-size Mini-PCIe socke ................................................................................................................................... 32
2.4.11 : CN20 for CPU Fan connec or............................................................................................................................................. 33
2.4.12 : CN21 for WLAN LED.......................................................................................................................................................... 34
2.4.13 : CN22 for 4-pin 12V power inpu ....................................................................................................................................... 35
2.4.14 : CN28 for Audio pin header................................................................................................................................................ 36
3. BIOS ME U SETTI G .................................................................................................................................................................. 37
3.1 M AIN M ENU .................................................................................................................................................................................... 37
3.2 A DVANCED M ENU ............................................................................................................................................................................. 3
3.2.1 PCI Subsys em Se ings ........................................................................................................................................................... 1
3.2.2 ACPI Se ings........................................................................................................................................................................... 1

WIN Enterprises, Inc. MB-73360 User’s Manual
8
3.2.3 Trus ed Compu ing ............................................................................................................................................................... 42
3.2.4 CPU Configura ion ................................................................................................................................................................ 43
3.2.4.1 CPU Informa ion ................................................................................................................................................................ 44
3.2.5 IDE Configura ion.................................................................................................................................................................... 1
3.2.6 USB Configura ion .................................................................................................................................................................. 1
3.2.7 Pla form Func ion ................................................................................................................................................................... 1
3.2.8 F81866 Super IO Configura ion............................................................................................................................................... 1
3.2.8.1 Serial Por 0, 1, 2, 3, 4, 5 Configura ion ............................................................................................................................. 49
3.2.9 F81866 H/W Moni or............................................................................................................................................................ 50
3.2.9.1 Smar Fan Mode Configura ion ......................................................................................................................................... 51
3.2.10 Serial Por Console Redirec ion ........................................................................................................................................... 52
3.2.10.1 COM0, COM1 Se ing....................................................................................................................................................... 53
3.3 C HIPSET M ENU ................................................................................................................................................................................. 54
3.3.1 Sou h Bridge ......................................................................................................................................................................... 55
3.3.1.1 SB SATA Configura ion ......................................................................................................................................................... 1
3.3.1.2 SB USB Configura ion........................................................................................................................................................... 1
3.3.2 Nor h Bridge Configura ion .................................................................................................................................................. 58
3.4 B OOT M ENU .................................................................................................................................................................................... 59
3.4.1 CSM16 Parame ers ................................................................................................................................................................. 1
3.5 S ECURITY M ENU ............................................................................................................................................................................... 62
3.6 S AVE & E XIT M ENU ............................................................................................................................................................................. 1
4. DESIG RESOURCES ................................................................................................................................................................. 64
4.1 S YSTEM R ESOURCES ........................................................................................................................................................................... 64

WIN Enterprises, Inc. MB-73360 User’s Manual
9
1. General Information
1.1 Introduction
About WIN Enteprises. Inc.
MB-73360 is a Mini-ITX motherboard support AMD® Embedded G-series SOC (Steppe Eagle) with
AMD Radeon™ HD series Graphics. Integrated graphics include 2 x HDMI + 1 x VGA port, Two DDR3
SO-DIMM supports a maximum of 16GB DDR3 1600 of system memory.
On the I/O ports, the MB-73360 provides plenty of connectivity with 2 x Intel® i211AT GbE LAN
controller, 6 x RS232, 2 x USB3.0 + 7 x USB2.0, HD Audio, 2 x SATA, 8-bit GPIO, optional TPM 1.2
function. The MB-73360 accepts a wide range 8V ~ 32V DC input suitable for a variety of applications
in digital signage, POS, kiosks and gaming.
Besides standard PCIe X16 and Mini-PCIe socket, WIN’s Mini-ITX delivers flexible PCIe X1 expansion
slot allowing customers to install WIN’s riser card for an additional 1 ~ 3 PCIe + PCI slots for various
application.
WIN has its own firmware team that could provide customize BIOS service, such as security boot
function for gaming application……..
WIN offers reliable and solid products which are produced under Management System Standards:
ISO9001-2000 Certificate. The certificate keeps us focused on our quality objectives of management
and environmental production. Its willingness to customize standard products for meet unique customer
needs makes WIN different. All ODM projects are welcome. Years of experiences enables WIN to fulfill
the customer’s vision, by delivering products to exact specifications. WIN R&D team is proud of its
strong engineering background. R&D professionals account for 25% of the AEWIN workforce. We
focus on developing new products for both emerging and established markets.
For more information about an OEM/ODM relationship contact us at:
Email: [e-mail] TEL: [phone]

WIN Enterprises, Inc. MB-73360 User’s Manual
10
1.2 Specifications
System
From Factor Mini-ITX
CPU AMD Embedded G-series SOC / STEPPE EAGLE
MB-7336A: AMD GX-424CC, Quad Core 2.4GHz , 25W TDP ( DDR3-1 66 )
MB-7336B: AMD GX-412HC, Quad Core 1.2GHz , 7W TDP ( DDR3-1333 )
MB-7336C : AMD GX-212JC, Dual Core 1.2GHz , 6W TDP ( DDR3-1333 )
Chipset Integrated
Memory 2 x DDR3 SO-DIMM / 1 66 MHz up to GB, w/o ECC support
BIOS AMI SPI BIOS
SSD None
Watchdog timer 255 levels, 1 ~ 255 sec
Expansion 1 x Full-size Mini-PCIe socket With PCIe X1 & USB signal.
1 x PCI Express X16 slot ( Support PCIe X4 signal )
1 x PCI Express X1 slot ( Optional )
Board Size 170mm x 170mm
Operating Temp. 0°C~60°C (32°F~140°F)
Storage Temp. .-20°C~ 0°C (-4°F~176°F)
Operating Hum. 10%~90% (non-condensing)
Display
Chipset AMD G-series SoC integrated
Display interface 1 x external VGA
2 x external HDMI 1.4 w/ lockable connector. ( Support up to 4k*2k )
I/O
Series Port Internal : 4 x RS232 , External 2 x RS232
SATA 2 x SATAIII-600
USB
External : 2 x USB3.0 ( compatible with USB 2.0 ) + 2 x USB2.0
Internal : 4 x USB2.0 ( Pin header ) , 1 x USB2.0 connector
Ethernet External : 2 x Intel I211AT Gigabit Ethernet ( Support Wake On LAN )
Audio External : Line-in/out , Mic-in
Digital I/O Internal : -bit GPIO interface
LPC 1 x LPC header for Optional TPM module

WIN Enterprises, Inc. MB-73360 User’s Manual
11
Others 1 x C
PU cooling Fan header, 1 x System cooling Fan header
1 x Front Panel header for power on/off, reset, HDD/power LED indicator
2 x 4-pin 12V/5V D
C out for SATA HDD
1 x 2-pin for Mini-PCIe LED indicator
Power
Power in DC V ~ 32V input ( AT/ATX mode jumper selectable )
Power connector 1 x 4-pin internal header ( Molex 4-pin )
Certification
Certification CE , FCC Class B
Note : ll specifications and photos are subject to change without notice.

WIN Enterprises, Inc. MB-73360 User’s Manual
12
1.3 Block Diagram
DP1
1 x DB15 VG
PCIe
2 x Intel i211 T GL N
Full-Size Mini-PCIe socket
USB2.0
2 x Internal USB 2.0
( Pin header )
2 x External USB 2.0
PCI Express X16 slot
(Support PCIe X4 signal )
2 x S T III
S T
2 x External USB 3.0/2.0
USB3.0
BIOS
SPI
udio
HD
PCIe X4
PCIe
2 x DP
1 x VG
1 x PCIe X4
4 x PCIe X1
2 x S T
2 x USB3.0
8 x USB2.0
1 x SD
1 x LPC
1 x SPI
GX424 / QC 2.4G
GX412 / QC 1.2G
GX212 / DC 1.2G
HDMI 1.4a
LPC header (TPM)
F81866
6 x RS232
( 2x External
4x Internal )
8-bit GPIO
WDT, H/W Monitor
VG
HDMI 1.4a
1 x Internal USB 2.0
(Connector)
USB 2.0

WIN Enterprises, Inc. MB-73360 User’s Manual
13
1.4 Board Layout Dimensions

WIN Enterprises, Inc. MB-73360 User’s Manual
14
1.5 IO ports
AMD® G-series SOC
S T 3
S T power
DDR3 SO-DIMM
USB pin header
Audio
GLAN + USB2.0
GLAN + USB3.0
VGA + HDMI
HDMI
Dual COM
DC 8V ~ 32V In
PCI-E X16 slot
Full-size Mini-PCIe
PCI-E X1 slot
(Optional)
SPI connector
4 x COM
CPU Fan
System Fan
GPIO
LPC
Front Panel

WIN Enterprises, Inc. MB-73360 User’s Manual
15
Dual COM VG GL N GL N udio
HDMI HDMI USB3.0 USB2.0

WIN Enterprises, Inc. MB-73360 User’s Manual
16
2. Hardware installation
2.1 The location of onboard connectors

WIN Enterprises, Inc. MB-73360 User’s Manual
17
CN1 FRONT PANEL
CN2 SATA1
CN3 SATA0
CN4 COM4
CN5 LPC
CN6 HDD POWER CONN.
CN7 SYSTEM FAN
CN GPIO
CN9 COM3
CN10 HDD POWER CONN.
CN11 PCIE X1 SLOT
CN12 COM5
CN13 USB 3,4
CN14 USB 1,2
CN15 COM6
CN16 USB 5
CN17 SPI
CN1 PCIE X16 SLOT
CN19 MINI PCIE
CN20 CPU FAN
CN21 WLAN LED
CN22 DC IN
CN23 LAN0 + USB 3.0
CN24 LAN1 + USB 2.0
CN25 AUDIO
CN26 VGA
CN27 COM 1/2
CN2 AUDIO FRONT HEADER
CN29 HDMI 1
CN32 HDMI 0

WIN Enterprises, Inc. MB-73360 User’s Manual
18
2.2 Location of onboard jumper settings

WIN Enterprises, Inc. MB-73360 User’s Manual
19
2.3 Function list of onboard jumpers setting
JP1 DRAM VOLTAGE SELECT
(1-2: 1.5V ; 2-3: 1.35V)
JP2 ATX & AT Power SELECT
(1-2: AT ; 2-3: ATX)
JP3 CLEAR CMOS
(1-2 FOR NORMAL ; 2-3 FOR CLEAR CMOS)

WIN Enterprises, Inc. MB-73360 User’s Manual
20
2.3.1 JP1: DRAM VOLTAGE SELECT
3 1
JP1
Closed Pin Result
1-2 1.5V
2-3 * 1.35V
* Default setting
