Winbook SI User manual

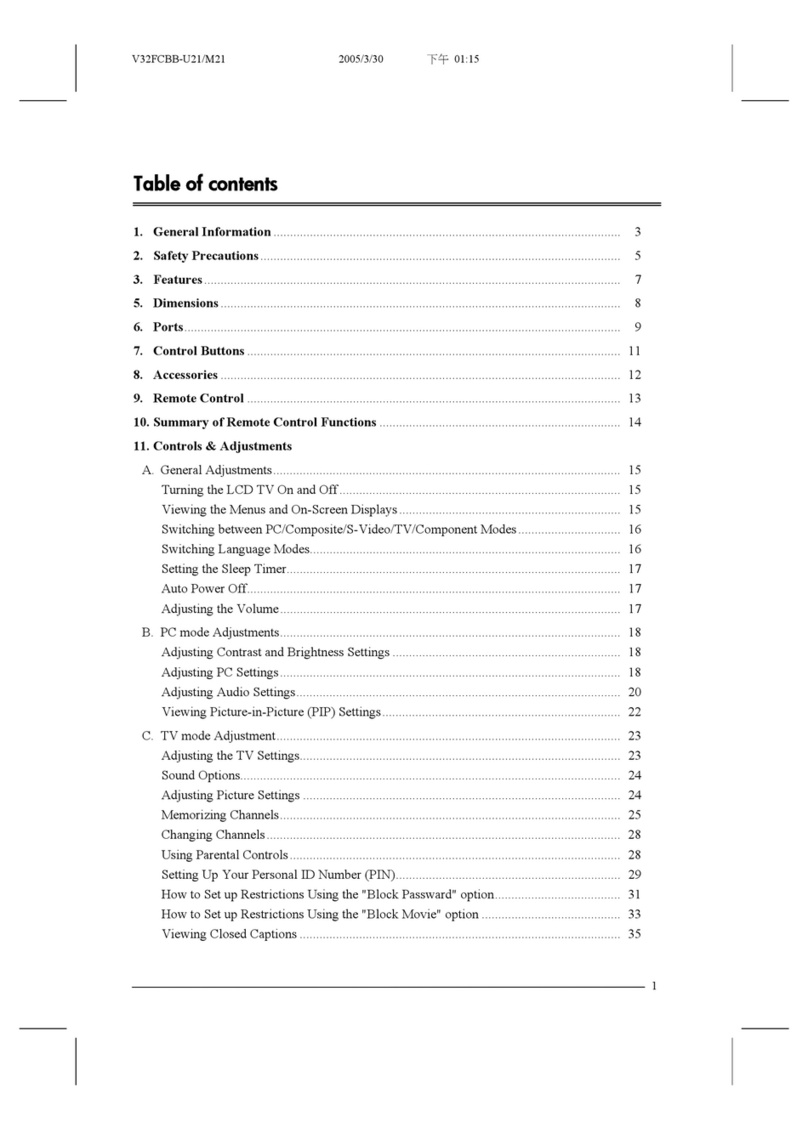

Table of contents
1. General Information ....................................................................................3
2. Safety Precautions .......................................................................................5
3. Features ......................................................................................................7
4. Dimensions .................................................................................................8
5. Ports ...........................................................................................................9
6. Control Buttons .........................................................................................11
7. Accessories ...............................................................................................12
8. Remote Control .........................................................................................13
9. Summary of Remote Control Functions .................................................................14
10. Controls & Adjustment
A. General
Adjustment ............................................................................................15
Turning the LCD TV On and Off ................................................................15
Viewing the Menus and On-Screen Displays .................................................15
Switching PC/Composite/S-Video/TV/Component Modes ...........................16
Switching Language Modes ........................................................................16
Setting the Sleep Timer ..............................................................................17
Auto Power Off ......................................................................................17
How to enter Menu Items .......................................................................18
Adjusting the Volume ..................................................................................18
B. PC mode Adjustment ..............................................................................19
Adjusting Contrast and Brightness Settings .................................................19
Adjusting Picture Settings ......................................................................20
Adjusting Image Settings .......................................................................21
Adjusting Audio Settings .......................................................................23
Viewing Picture-in-Picture (PIP) ..................................................................26
C. TV mode Adjustment ...............................................................................28
Adjusting the TV Settings ........................................................................28
Sound Options .........................................................................................29
Adjusting the Picture Settings ..................................................................30
Memorizing Channels ..............................................................................31
Changing Channels ..................................................................................35
Using Parental Controls .........................................................................35
Setting Up Your Personal ID Number (PIN) ...............................................36
How to Set up Restrictions Using the "TV Rating" ......................................38
How to Set up Restrictions Using the "MPAA" .........................................40
1

Viewing Closed Captions ........................................................................42
D. Other functions ..........................................................................................43
11. Troubleshooting .......................................................................................45
12. Specifications ..........................................................................................49
2

General Information
This 27” and 30” wide active matrix TFT (thin film transistor) liquid crystal
display is designed for use as a stand alone TV as well as a display device for
video electronics appliances and personal computers.
Warning: To reduce the risk of fire or electric shock, do not expose this product to
rain or moisture.
Caution: To reduce the risk of electric shock, do not attempt to disassemble or
modify this device. There are no user-serviceable parts inside. Refer
any service issues to qualified service personnel.
Caution: FCC/CSA regulations state that any unauthorized changes or modifications to
this equipment may void the user's authority to operate it.
Important: One Federal Court has held that unauthorized recording of copyrighted
TV programs is an infringement of U.S. copyright laws. Certain Canadian programs
may also be copyrighted and any unauthorized recording in whole or in part may be in
violation of these rights.
CAUTION
Important Information
Risk of electric
shock. Do not open.
3

WARNING:
Do not leave stationary images, patterns, PIP windows, or letterbox images on the
screen for prolonged periods of time as this may result in permanent damage to the
LCD panel. This type of damage is not covered under warranty. The following are
examples of, but not limited to, potentially hazardous display output: side bar images,
video game patterns, closed captioning, channel logos and letterbox black bars. To
p
revent this type of damage, it is recommended to display constantly moving images
that fill the screen as often as possible.
According to industrial standards for LCD display technology; there are a certain number o
f
allowable defective pixels. Although we produce panels with more than 99.9% active
cells, there still may be some cells that do not produce light or remain constantly lit. For
further information, please contact sales or technical support.
Thank You for Choosing This Product
Your new LCD TV was built utilizing the latest advancements in television technology.
We are proud to offer you a product that will provide convenient, dependable service and
enjoyment for years to come.
4

Safety Precautions
1. Cleaning: Unplug the power cord from the AC outlet before cleaning the product.
Use a damp cloth to clean the product. Do not use liquid cleaners or aerosol
cleaners.
2. Water and moisture: Do not use the product near water or areas of high moisture
content such as swimming pools, bathtubs or wet basements.
3. Heat sources: Keep the product away from heat sources such as radiators,
heaters, stoves and other heat-generating products (including amplifiers).
4. For added protection during a lightning storm or for extended periods of non-
use, unplug the power cord from the wall outlet and disconnect the antenna (if
used). This will prevent damage to the product due to power line surges.
5. If an outside antenna is connected to the product, make sure the antenna is
properly grounded so as to provide some protection against voltage surges.
Example of antenna grounding
As per national electrical code
Antenna lead in wire
Antenna discharge
unit
Grounding conductors
Ground clamps
Power service
grounding
Electrode system
5

6. Stand: Do not place the product on an unstable
cart, stand, tripod or table. Placing the product
on an unstable base can cause the product to fall,
resulting in serious personal injuries as well as
damage to the product. Use only a cart, stand,
tripod, bracket or table recommended by the
manufacturer or sold with the product. Only use
mounting hardware recommended by the
manufacturer.
7. Use care when moving the product on a rolling cart. Sudden stops, excessive
force and uneven floor surfaces can cause the product to fall from the cart.
8. Ventilation: The vents and other openings in the cabinet are designed for ventilation.
Do not cover or block these vents and openings as insufficient ventilation can cause
overheating and/or shorten the life of the product. Do not place the product on a bed,
sofa, rug or other similar surfaces since they can block ventilation openings. This
product was not designed to operate in an enclosed environment. Don't place the
product in an enclosed space such as a bookcase or rack, unless proper ventilation is
provided or the manufacturer's instructions are followed.
9. The LCD panel used in this product is made of glass. Therefore, it can break if
the product is dropped or struck.
10.During the LCD panel lifespan it is normal for a few pixels to become defective.
Non-active pixels may appear on the screen as fixed points of red, blue or green.
Refer pixel policy questions to the reseller for further clarfication on acceptable loss.
11.An outside antenna system should not be located in the vicinity of overhead power
lines or other electrical conduits. When installing an outside antenna, use extreme
caution to prevent the antenna from coming into contact with said items as contact
with them may be fatal.
6

List of Features
Your TV is designed with the latest technology and is a high-performance display
device that includes the following features:
•Multiple input sources including antenna terminal, D-sub (15pin VGA),
composite, S-Video and component ports.
•Easy-to-use remote control and on-screen-display (OSD) menu system.
•PIP (picture in picture) mode for displaying multiple sources at the same time
on the same screen.
•Built-in 10W dual channel speakers plus a headphone out jack for
private listening.
•Fine tuning control for the sharpest picture possible. (OTA TV viewing
only)
•Built-in multi-channel sound decoder for stereo and bilingual broadcasts.
•Automatic channel program for up to 125 channels.
•Automatic sleep timer controls from 30 to 90 minutes in 30 minute
increments.
•Automatic power off feature after 10 minutes without a signal.
•Adjustable picture and sound settings that are stored in the TV's
memory.
•Component video input for high definition TV programming (HDTV
ready), resolution up to 720P, 1080i.
•5 preset stereo equalizer modes; 1 mode for end user settings.
•Automatic Picture Control (APC) and Aspect Ratio Control (ARC) functions
for end user customization of viewing preferences.
•Built-in 3D comb filter and 3D de-interlacing for best possible picture quality.
Features
7

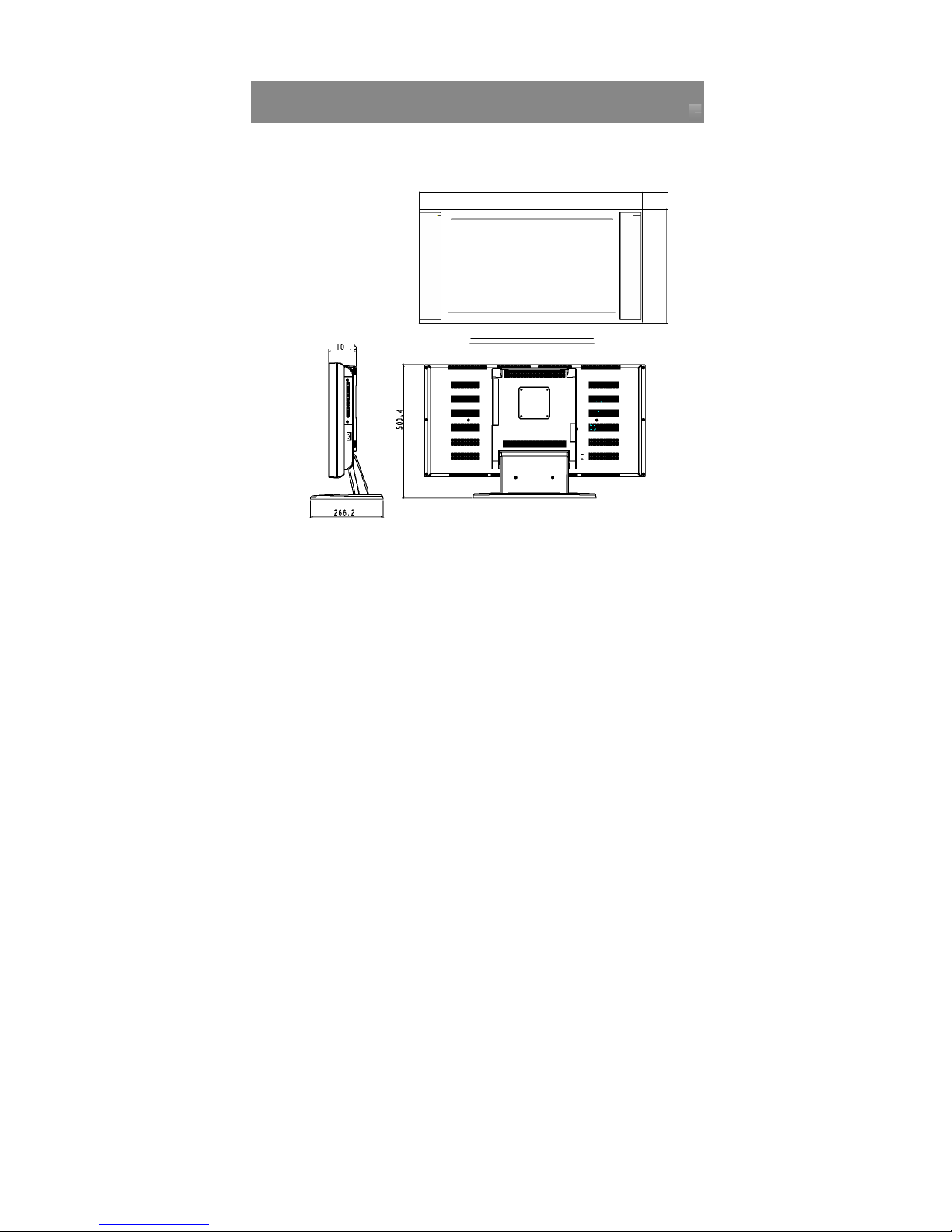

Dimensions
Unit: mm
8

Ports
Video Input device
DVD player
Satellite receiver
Set top box
VIDEO Input device
Digital Camera
Satellite receiver
Set top box

10
