Windhager FireWIN User manual

Operating Manual
FireWIN
windhager.com
Fully automatic pellet central heating boiler
for the living room and entire apartment
Performance range: 4,7 to 12 kW
Pellets
07/2012 092121/04

2
Table of contents
Table of contents
1. Important information for system operators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.1 General information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
1.1.1 Manufacturer’s obligations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.1.2 Installer’s obligations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.1.3 Operator’s obligations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.2 Safety precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
1.3 Sources of danger. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
1.3.1 Fire protection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.3.2 Power failure (or if the blower is not running) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.3.3 Burner pot. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.3.4 Entering the pellet storage room, storage container. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.4 Fuel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
1.5 Start-up and maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
1.6 Functional test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
1.7 Filling the pellet store . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
1.8 Operating noises. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
2. Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

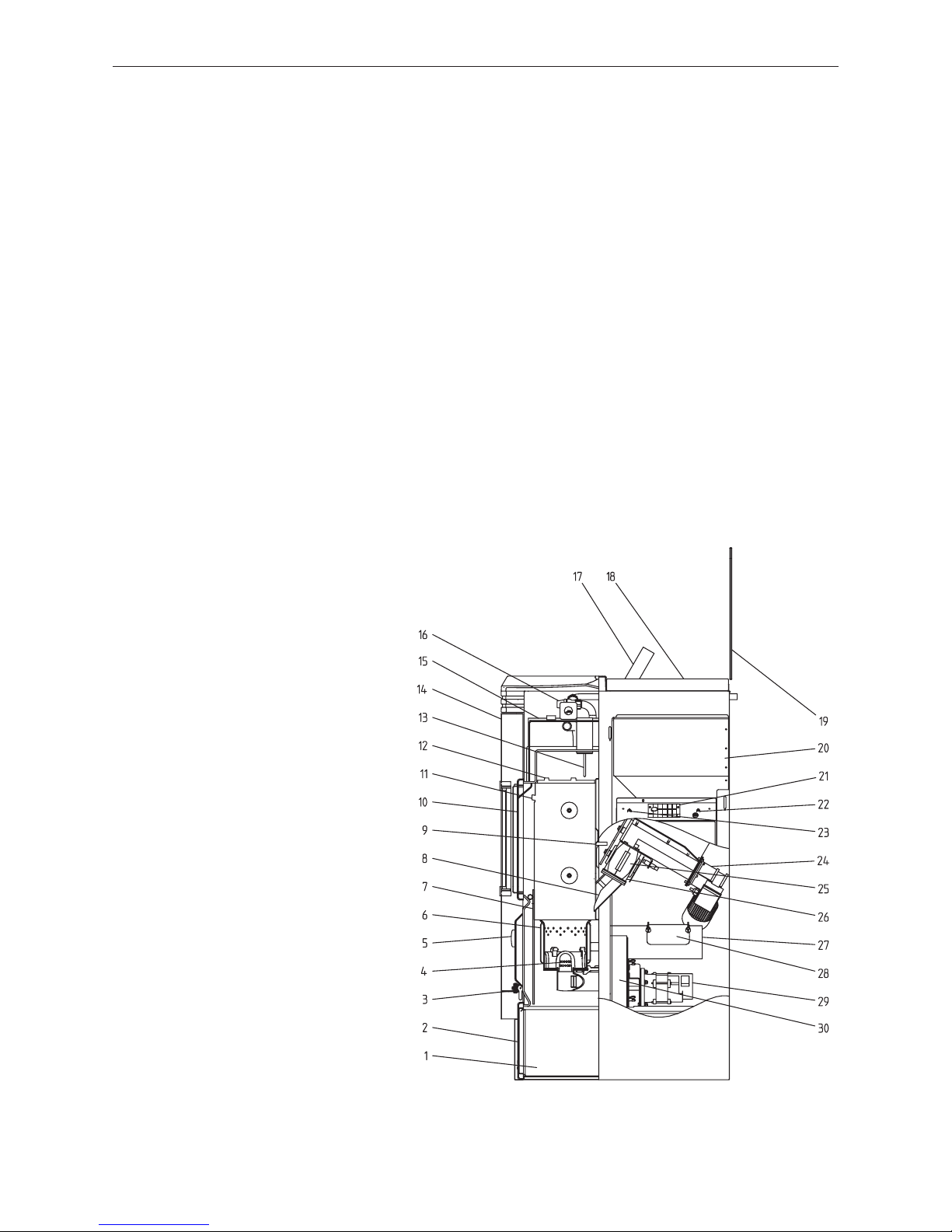

2.1 Functional description, function elements and operating controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
2.1.1 FireWIN Klassik . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.1.2 FireWIN Premium. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.1.3 FireWIN Exklusiv. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2.1.4 Heat shield (accessory FIRE 023) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
2.2 Check before initial start-up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
2.3 Filling the reserve supply container. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
2.3.1 FireWIN Klassik – Manual filling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2.3.2 FireWIN Premium and Exklusiv – fully automatic filling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

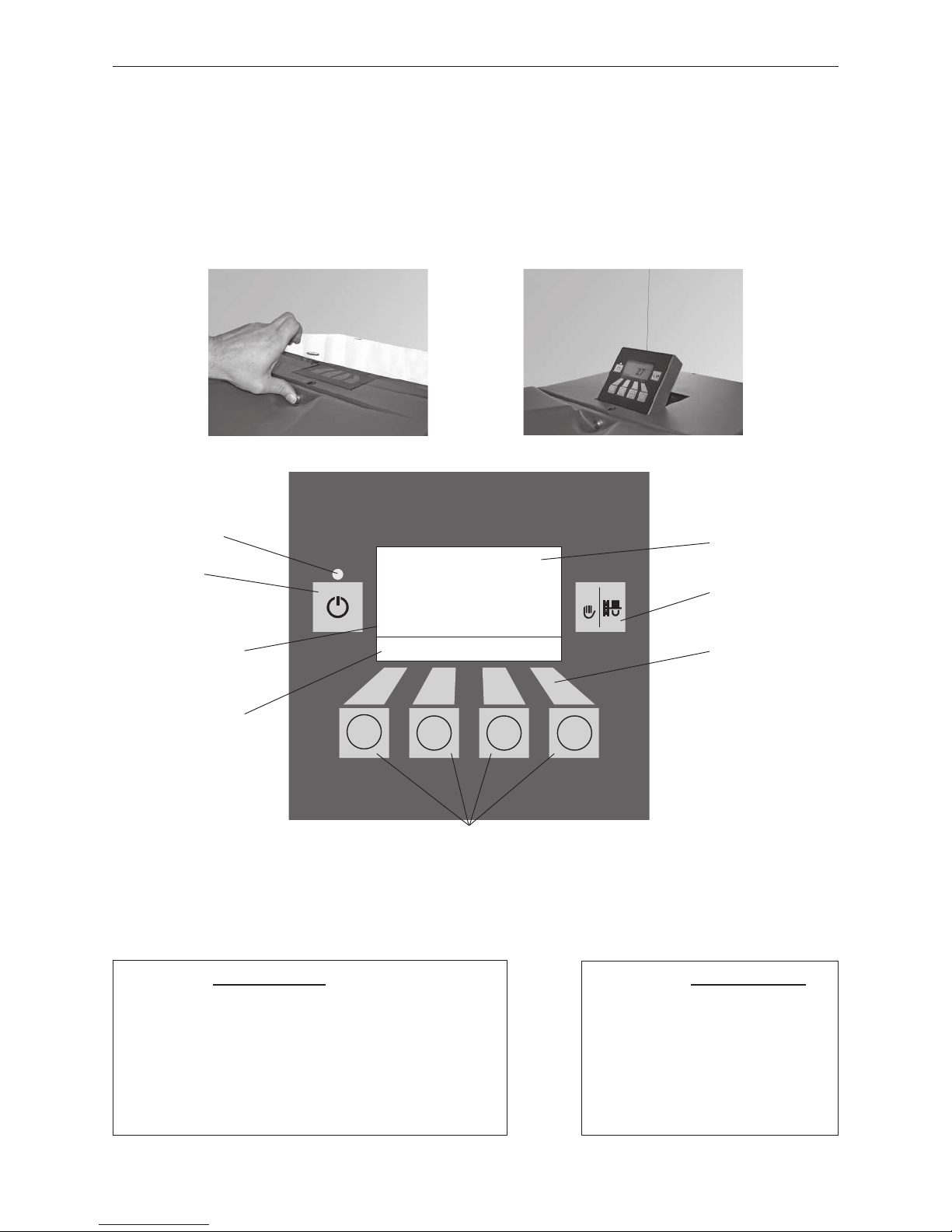

2.4 InfoWINplus. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
2.5 Operating modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
2.5.1 OFF mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
2.5.2 ON mode, lighting ON,
self-test, lighting OFF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
2.5.3 Pellet feed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
2.5.4 Solid fuel/buffer mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
2.5.5 Manual operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
2.5.6 Chimney sweeper function. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
2.5.7 Shut-down procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
2.6 Operating phases . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
2.6.1 Standby . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
2.6.2 Purging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
2.6.3 Ignition phase . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
2.6.4 Flame stabilisation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
2.6.5 Modulation mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
2.6.6 Burnout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
2.6.7 Burner OFF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

3
Table of contents
2.7 Information text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
2.7.1 Next boiler cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
2.7.2 Operating hours . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
2.7.3 Pellet consumption total . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
2.7.4 Flue gas temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
2.7.5 Boiler temperature setpoint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
2.7.6 Current boiler output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
2.7.7 Display module software version. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
2.7.8 Firing automate software version . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
2.7.9 Boiler model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
2.8 Menu guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
2.8.1 Operator level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
2.8.2 Service level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
2.9 Heating system operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43
2.9.1 FireWIN with MESplus system control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
2.9.2 FireWIN with REG standard control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
3. Care, cleaning and maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
3.1 Overview of intervals between cleaning (maintenance). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
3.2 Cleaning and operating implements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
3.3 Care of the front window, cladding and keyboard foil. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
3.4 Heating surfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
3.5 Ash pan, ash on heating surface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
3.6 Combustion chamber . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49
3.6.1 Baffle plate, thermocontrol sensor, down chute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
3.6.2 Burner pot. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
3.7 FireWIN reserve supply container . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52
3.8 Top heating surfaces and linkage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54
3.9 Pressure measuring nipple, rotary feeder, blower wheel, blower box and exhaust pipe . . . . . . . . . . .56
3.9.1 Pressure measuring nipple for combustion chamber pressure switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
3.9.2 Rotary feeder. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
3.9.3 Blower wheel, blower box and exhaust pipe to flue. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
3.10 Pellet storage room or storage container (FireWIN Premium and Exklusiv) . . . . . . . . . . . . . . . . . . . . .58
4. Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
4.1 No display on InfoWINplus. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61
4.2 IN- messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61
4.3 FE- messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62
4.4 AL – messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63
5. EG-Declaration of conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Guarantee and warranty limitations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

4
1. Important information for system operators
1. Important information for system operators
Dear Heating System Owners,
We would like to congratulate you on your new environmentally friendly boiler system. With the purchase of this
high-quality product by Windhager, you have selected a system that provides more comfort and optimised fuel
consumption while utilising an environmentally friendly means of saving resources. Your boiler was manufactured
under strict ISO 9001 certified standards, was subjected to extensive tests and all its components are recyclable.
On the following pages we have provided specific information and important tips regarding system operation, unit
functions and cleaning. Please pay close attention to these instructions. Familiarity with the material in this docu-
ment will allow you to enjoy long-term operation of the unit. We wish you all the best with your Windhager boiler!
1.1 General information
1.1.1 Manufacturer’s obligations
Our products are manufactured in accordance with the essential requirements of the various applicable guideli-
nes. They therefore carry the -label and are supplied with all the required documentation.
Technical details subject to change.
We as the manufacturer cannot be held liable in the following cases:
– Incorrect use of the unit
– Failure to perform proper maintenance
– Incorrect installation of the unit
1.1.2 Installer’s obligations
The installer is the person responsible for installing the unit. The installer must comply with the following
instructions:
– Read and follow all instructions supplied with the unit.
– Carry out installation in accordance with the applicable standards and specifications.
– Explain to the operator how the system works.
– Make the operator aware of his obligation to inspect and maintain the unit.
– Hand over all operating instructions to the operator.
1.1.3 Operator’s obligations
To ensure that the unit gives optimum service, the operator must follow these instructions:
– Read and follow the instructions in the operating manual.
– Installation and commissioning must be performed by appropriately qualified technicians.
– Make sure the installer explains how the system works.
– Perform all the necessary checks and maintenance.
– Keep the manuals in good condition and store them near the unit.
This unit is not intended for use by persons (including children) who have physical or mental disabilities or sensory
impairment or who have no experience or knowledge of the correct use of the unit, unless supervised or trained
by a person responsible for their safety. Children should be supervised to ensure they do not play with the unit.

5
1. Important information for system operators
1.3 Sources of danger
1.3.1 Fire protection
The entire system must comply with technical fire protection requirements in accordance with the applicable
regulations, standards and guidelines.
All flammable materials in the close vicinity of the pellet central heating boiler for living areas must be protected
against the effects of heat, in particular in the area of the front window.
Attention!
Do not drape clothing or other items over the FireWIN for drying them.
Do not touch the front window – danger of burns.
1.2 Safety precautions
The boiler and related accessories are state of the art and meet all applicable safety regulations and operate
using 230 V AC electrical current. Improper installation or repair can pose the danger of life-threatening electrical
shock. Installation may be performed only by appropriately qualified technicians.
Caution symbols
Please take careful note of the following symbols in this Operating Manual.
Attention!
Ignoring the warnings identified can lead to personal injury.
Information!
Ignoring the warnings identified can lead to malfunction of, or damage to the boiler or heating system.
Note!
The blocks of text highlighted provide information and tips for operation.
1.3.2 Power failure (or if the blower is not running)
Attention!
Do not open the combustion chamber door, there is an increased risk of deflagration when opening
the combustion chamber door. A self-test is performed following a power failure during combustion
and then operation is continued automatically.
1.3.3 Burner pot
Attention!
Never fill the burner pot with pellets by hand. Excessive combustion material in the burner pot means
that the pellets will not be ignited optimally. Too much low temperature carburisation gas will be gene-
rated and this can lead to deflagration.

6
1. Important information for system operators
1.3.4 Entering the pellet storage room, storage container
All energy sources are subject to safety regulations which must be observed when working with fuels, heating
systems and storage rooms. This also applies to the storage of pellets.
After the storage room is filled, odourless carbon monoxide (CO) may be produced and there may be insuffici-
entoxygen. For this reason, do not enter the pellet storage room for 6 weeks after it has been filled. Only trained
persons may enter the storage room for the purpose of measuring gas levels.
Please also follow the instructions on the sticker:
– No access to unauthorised persons, keep children away from the pellet store!
– Ensure sufficient ventilation before entering. Keep the door open while inside.
– Only enter the storage room under the supervision of a second person standing outside.
– No smoking, flames or other sources of ignition are permitted.
– Risk of injury from moving parts.
– Pellet boilers must be switched off at least 15 minutes before filling.
– Fill in accordance with the instructions of the boiler and pellet suppliers.
– Protect pellets from damp.
If you feel unwell, leave the storage room immediately and seek medical advice.
Attention!
Do not attempt to enter an unaired storage room (particularly buried tanks).
1.4 Fuel
To ensure that your new heating system provides long-term reliable service, the following must be observed:
Quality of pellets must be in accordance with EN 14961-2 A1:
The quality of the pellets is an important factor in achieving optimum operation of the heating system. When
buying pellets, make sure that they meet the quality standards of EN 14961-2 A1 (or ÖNORM M7135 / DINplus).
For maximum reliability, source pellets from manufacturers with EN-Plus certification (or DIN-Plus, ÖNORM
M7135 or UZ38), as they are required to perform ongoing internal quality control.
Make your pellet supplier aware of these quality requirements before ordering and seek confirmation upon de-
livery.
Consequences of quality fluctuations:
Pellets are 100% unprocessed wood, so minor fluctuations in fuel quality are normal and reflect the natural ori-
gins of the material. These quality fluctuations affect the level of dirt, the ash content and therefore the cleaning
intervals.
A reduction in cleaning intervals due to fluctuations in pellet quality cannot be remedied as part of a repair under
guarantee!

7
1. Important information for system operators
1.5 Start-up and maintenance
Please permit Windhager Customer Service or have one of our customer service Partners put your new boiler into
service. In this way, all functions of the new unit will be thoroughly checked; you will also benefit from the detailed
information provided by the system installer. Installation by a qualified technician as well as the maintenance
required by the guarantee limitations and undertaken by Windhager Customer Service or a customer service
partner will guarantee the optimal use and service life of your boiler system. This is the only way to assure the
benefits of this technologically advanced boiler and guarantee safe, environmentally friendly and energy-saving
system operation.
The following preconditions must be met before you order the initial start-up:
1.) Boiler installed correctly.
2.) System fully wired up electrically.
3.) System rinsed, filled and vented – heat consumption must be possible.
4.) Boiler connected to domestic water and filled.
5.) Sufficient quantity of fuel available (pellets, split logs, oil or gas).
6.) The customer must be present during start-up.
The initial start-up cannot be carried out if any of these points are neglected. The customer will be charged for
any unnecessary costs arising as a result.
Start-up and maintenance by Windhager Customer Service or a customer service partner are part of the gua-
rantee requirements of the enclosed “guarantee limitations”.
Note!
During the first few weeks after start-up, condensation can occur in the combustion chamber, ash pan
and on the heating surfaces. This has no effect on the function and service life of the boiler.
1.6 Functional test
EN 12828 and ÖNORM B8131 require that the function of the system and related safety equipment be checked
and certified yearly by a qualified technician (installer, heating system contractor).
At two-year intervals, the heating water condition must be checked (ÖNORM H 5195-1 Expenditure 2010) by a
heating expert (installer) (see FireWIN installation instructions – Heating water); this is to prevent corrosion and
sediment accumulation in the heating system and boiler.
In the event of repair work requiring a change of water in the heating system, the heating water is to be checked
within 4 to 6 weeks after such work.
Corrosion and sediment resulting from improper heating water are not covered by the guarantee and warranty.

8
1. Important information for system operators

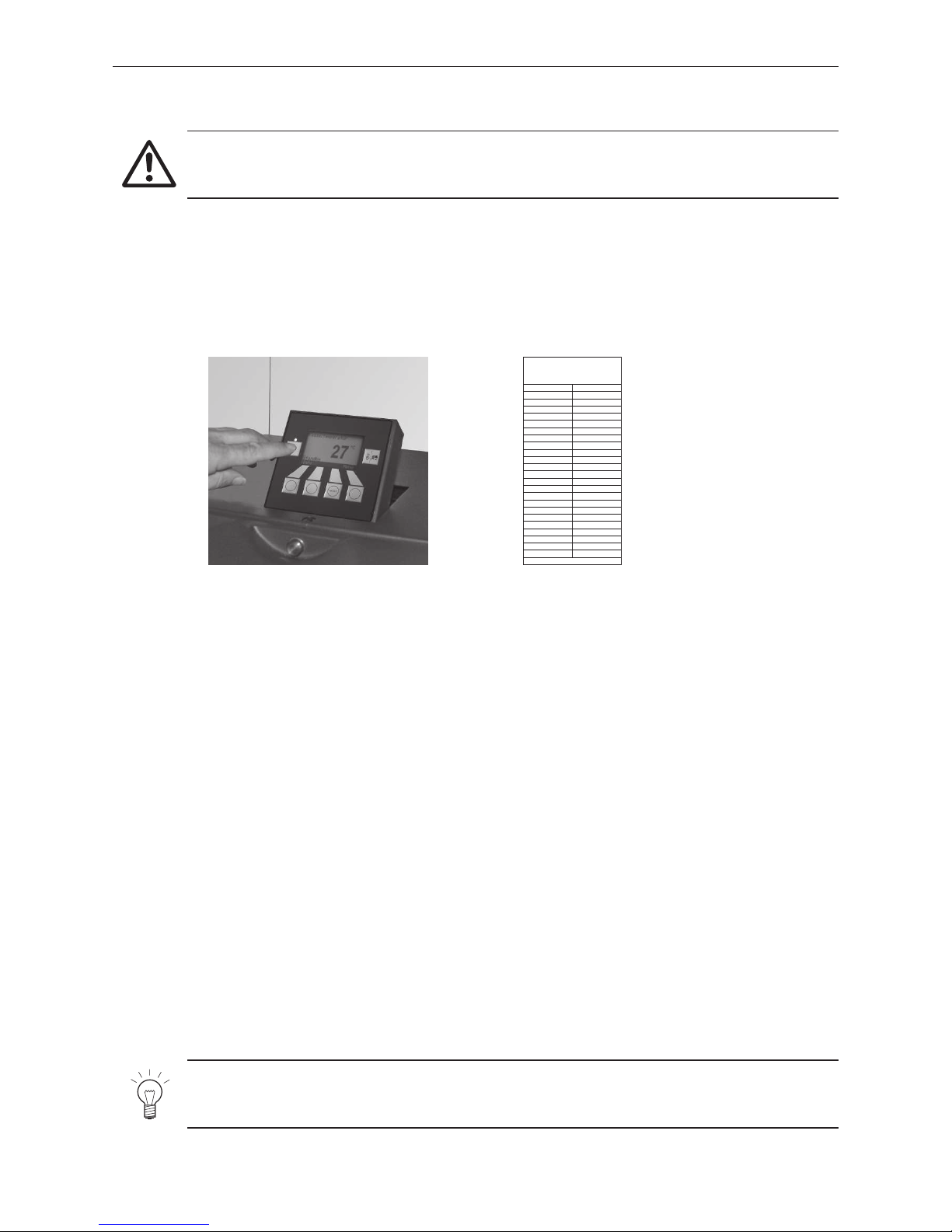

Fig. 2 Switching off FireWIN
002357/00 01/2010
Befüllung Lagerraum
Filling date and volume
Remplissage du silo de stockage
Datum/Date/Date Menge/Volume/Quantité
kg
kg
kg
kg
kg
kg
kg
kg
kg
kg
kg
kg
kg
kg
kg
kg
kg
kg
kg
kg
kg
kg
kg
Fig. 3 „Storage room fill“ sticker on the
storage room door
Pressing one of the six buttons firstly switches just the lighting and display on. The boiler is only switched off
when the button is pressed for the 2nd time. Wait until burnout mode has finished (not indicated on the display)
and open the combustion chamber doors.
During filling, negative pressure is created in the pellet store and this can cause burn-back in the pellet boiler.
Therefore, the boiler must be stopped from operating during the filling procedure.
Every storage room fill should be documented by adding the date and volume to the „Storage room fill“ sticker –
Fig. 3.
Attention!
The pellet boiler must be switched off correctly at least 15 minutes before the store is filled –
Fig.2. Press the ON/OFF button. Never switch off using the emergency OFF switch!
1.7 Filling the pellet store
1.8 Operating noises
The FireWIN is a modern, fully automated pellet central heating boiler for living areas with a high level of con-
venience in terms of operation and cleaning. This automation means that operating noises may occur during
normal operation.
Normal operating noises are:
Flame noises – Natural flame noise can be heard depending on the size of the flames.
Light scratching and scraping noises – Depending on the level of contamination, cleaning noises may occur
during automated cleaning or shake-out. If these become louder over time èClean the pellet central heating
boiler, especially the burner pot.
Trickling of pellets and vacuum cleaner noise – Fully automated pellet supply involves pellets being sucked
from the storage room into the reserve supply container. During filling, the suction turbine generates a „vacuum
cleaner noise“ in the storage room and the feed hose, and the trickling of the pellets can be heard in the reserve
supply container.
Clicking noises – The relays switch on or off when the control unit is installed.
Liquid noise, gurgling – This is caused by air in the heating water èBleed the system.
Air induction noises – Air induction noise occurs at the air supply induction point for combustion (air opening in
the device) èFor information on routing the induction point through air supply pipes and into an adjacent room
or about a form of operation that is independent of the room air, see the FireWIN assembly instructions.
Auger conveyor noise – During operation, the drive motor for the auger conveyor may emit low-level intermittent noises.
Note!
Due to these operating and flame noises, we do not recommend installing the device in bedrooms or
quiet rooms – see also the information in the FireWIN „Assembly instructions“.

9
2. Operation
Fig. 4 FireWIN Klassik – view from right
2. Operation
2.1 Functional description, function elements and operating
controls
The FireWIN pellet central heating boiler for living areas and the Modular Energy System MES or the REG stan-
dard control combine to form a perfect unit. The FireWIN automatically fires when the control system signals a
heating requirement. Following „purging“ (safety function), ignition starts and the pellet metering auger switches
on. The burner pot is automatically filled with pellets. When flame formation has been detected (by the thermo-
control sensor), the boiler enters flame stabilisation mode and then control mode (modulation mode) and keeps to
the specified boiler temperature setpoint (between 60 °C and 75 °C). The boiler enters burnout mode if the output
drops below the minimum nominal thermal output or no heating requirement is signalled by the control system.
The blower continues to run until the burner pot has cooled down. Therefore, do not switch off the electricity sup-
ply to the device too soon.
2.1.1 FireWIN Klassik
The reserve supply container is loaded by hand. The heating surfaces are cleaned manually using the cleaning
lever. The cleaning residues from the heating surfaces and the combustion residues from the burner pot drop into
the ash pan or ash pan space.
1...........Ash pan
2...........Ash door
3...........Filling and evacuation cock
4...........Primary air pin
5...........Pressure gauge
6...........Burner pot
7...........Heat shield
8...........Down chute
9...........Pressure measuring nipple
10......... Combustion chamber door
11......... Lug for hanging in the heat shield
12......... Baffle plate
13......... Thermocontrol sensor
14......... Cladding door
15......... Heating surface cover
16......... Safety valve
17......... InfoWINplus operating unit
18......... Reserve supply container cover
19......... Glass cover
20......... Pellet reserve supply container
21......... 1 MESplus module or with 2 or more modules
in the wall-mount casing
22......... Boiler temperature safety thermostat B7
23......... Rotary feeder safety thermostat B7a
24......... Auger and motor
25......... Rotary feeder
26......... Rotary feeder cleaning opening
27......... Exhaust pipe
28......... Exhaust pipe cleaning opening
29......... Blower motor
30......... Blower box

10
2. Operation
2.1.2 FireWIN Premium
Version as FireWIN Klassik, but in addition with fully automated pellet feed
The pellet feed uses a maintenance-free suction turbine to fill the FireWIN reserve supply container fully automa-
tically with pellets from a pellet storage room or storage container. The pellet feed is switched on by the lower fill
level switch (proximity switch) in the reserve supply container or at the end of the enable time or the beginning of
the start time, and runs for as long as the reserve supply container is full. Filling is not started if the boiler is in
heating operation or the feed has been blocked by the control unit (outside the enable time, e.g. at night). If the
boiler is operating when filling is necessary, the boiler switches to burnout mode.
Switching between suction probes 1, 2 and 3 is a fully automatic process. The system changes to the next suction
probe after the reserve supply container has been filled a certain number of times. This means the storage room
is emptied as evenly as possible.
Fig. 5 FireWIN Premium – view from right
1...........Ash pan
2...........Ash door
3...........Filling and evacuation cock
4...........Primary air pin
5...........Pressure gauge
6...........Burner pot
7...........Heat shield
8...........Down chute
9...........Pressure measuring nipple
10......... Combustion chamber door
11......... Lug for hanging in the heat shield
12......... Baffle plate
13......... Thermocontrol sensor
14......... Cladding door
15......... Heating surface cover
16......... Safety valve
17......... InfoWINplus operating unit
18......... Reserve supply container cover
19......... Glass cover
20......... Inspection cover
21......... Coarse filter
22......... Pellet reserve supply container
23......... 1 MESplus module or with 2 or more modules
in the wall-mount casing
24......... Boiler temperature safety thermostat B7
25......... Rotary feeder safety thermostat B7a
26......... Auger and motor
27......... Rotary feeder
28......... Rotary feeder cleaning opening
29......... Exhaust pipe
30......... Exhaust pipe cleaning opening
31......... Blower motor
32......... Blower box

11
2. Operation
2.1.3 FireWIN Exklusiv
Version as FireWIN Premium, but in addition with fully automatic heating surface cleaning and ash compactor
Fully automatic heating surface cleaning:
A motor moves the heating surface cleaning system vertically and the heating surfaces remain clean.
Fully automatic ash compactor:
The fully automatic ash compactor uses a motor and pressure plate to compress the ash in the ash container.
This makes the emptying intervals up to 3 times longer.
Fig. 6 FireWIN Exklusiv – view from right
1...........Ash pan
2...........Ash door
3...........Ash compactor
4...........Filling and evacuation cock
5...........Primary air pin
6...........Pressure gauge
7...........Burner pot
8...........Heat shield
9...........Down chute
10......... Pressure measuring nipple
11......... Combustion chamber door
12......... Lug for hanging in the heat shield
13......... Baffle plate
14......... Thermocontrol sensor
15......... Cladding door
16......... Heating surface cover
17......... Safety valve
18......... InfoWINplus operating unit
19......... Reserve supply container cover
20......... Glass cover
21......... Inspection cover
22......... Coarse filter
23......... Pellet reserve supply container
24......... 1 MESplus module or with 2 or more modules
in the wall-mount casing
25......... Boiler temperature safety thermostat B7
26......... Rotary feeder safety thermostat B7a
27......... Auger and motor
28......... Rotary feeder
29......... Rotary feeder cleaning opening
30......... Exhaust pipe
31......... Exhaust pipe cleaning opening
32......... Blower motor
33......... Blower box
34......... Motor for ash compression

12
2. Operation
b) Ventilation:
Please make sure the boiler room is well ventilated. The air supply must be as free of dust as possible.
c) Flue:
Please have the chimney sweep check the flue, and, if necessary, clean it.
2.2 Check before initial start-up
a) System pressure (heating water pressure):
The system must be filled and vented. With the system cold, pressure should be at least 1.0 bar (maximum 1.8
bar) – Fig. 9 If you have any questions, your installer will gladly answer them.
Fig. 9 Filling the system
Pressure gauge (system pressure)
Filling and evacuation cock
2.1.4 Heat shield (accessory FIRE 023)
Heat radiated from the front window can lead to unwanted heating of the room where the unit has been set up
when domestic hot water is being heated during the summer. If you do not want the room to be heated, you can
significantly reduce the amount of heat radiated using the patented heat shield (accessory Fire 023).
The air-to-water ratio without a heat shield is approx. 15 : 85 % and with a raised heat shield approx. 9 : 91 %.
The heat shield is located in the combustion chamber. This can be pulled up using the supplied Allen key and
hooked into the lugs on the sides of the combustion chamber cover plates, Figs. 7, 8.
Fig. 7 Hooking in the Allen key Fig. 8 Pulling up the heat shield and hoo-
king it into the lugs on the sides

13
2. Operation
Information!
Do not open the reserve supply container cover unless the glass cover is closed, in order to avoid
damaging the glass cover.
When filling, make sure no extraneous materials (e.g. shreds of the pellet bags resulting from cutting
open the bags) enter the reserve supply container – they could block the rotary feeder!
Tip!
The reserve supply container should always be completely filled with pellets. This allows the inco-
ming pellets to drop into the container better, reduces the size of the conical part of the pile and
means that the container empties better.
Fold open the cover of the reserve supply container (Fig. 10) and fill the reserve supply container up to max. 1 cm
below the edge. Close the cover.
Fig. 10 Folding open the cover
2.3 Filling the reserve supply container
2.3.1 FireWIN Klassik – Manual filling
2.3.2 FireWIN Premium and Exklusiv – fully automatic filling
The reserve supply container is filled by the fully automatic pellet feed. Windhager Customer Service or the cus-
tomer service Partner will perform the first fill (start-up), take the boiler and its pellet supply into service and
familiarise the customer with the operation and cleaning of the boiler, with reference to the Operating Manual.

14
2. Operation
2.4 InfoWINplus
The InfoWINplus is a central operating and display unit for boilers and for modules of the MESplus system control
(see separate instructions).
The InfoWINplus is located at the top under the glass cover. Press the locking button at the front and fold the glass
cover open, the InfoWINplus pops up automatically – Figs. 11, 12. It consists of a large full text display, an ON/OFF
button with an LED signal lamp indicating Operation (green) or Malfunction (red), a button for manual operation /
flue cleaning function as well as four individual menu buttons. The function of each menu button is displayed on
the Menu line.
Fig. 11 Press the locking button Fig. 12 InfoWINplus pops up
The various operating modes are displayed on InfoWINplus together with the corresponding operating phases.
The following operating modes exist:
– OFF
– ON (with self-test, lighting ON, lighting OFF)
– Pellet feed
– Solid fuel / buffer mode
– Manual operation
– Chimney sweeper function
– Shut-down procedure
Corresponding operating phases:
– Standby, display OFF
– Purging
– Ignition phase
– Flame stabilisation
– Modulation mode
– Burnout
– Burner OFF
– Switch off heat generator
è
5s
RESET
Boiler temperature
Standby
Info Menu
38°C
Operating phases are
displayed here, inclu-
ding Standby, modula-
tion mode, etc.
Menu line
Signal lamp (LED)
„Operation“ – green Full-text display
(illuminated display)
Assignment of buttons
to their specific function
Manual operation /
chimney sweeper
function
ON/OFF button
Menu buttons
Fig. 13 InfoWINplus
Colours of backlit display:
– White: Normal operation
– Pink: Information and fault messages
– Red: Alarm message

15
2. Operation
5s
RESET
Fig. 14 OFF mode
5s
RESET
Fig. 15 Self-test
Self-test active
5s
RESET
Fig. 16 Standard display
Boiler temperature
(Operating phases)
Info Menu
42°C
5s
RESET
Fig. 17 Display lighting ON
Boiler temperature
(Operating phases)
Display lighting ON
42°C
(Animated symbol)
2.5 Operating modes
2.5.1 OFF mode
The boiler is switched off when in OFF mode. The display
and all buttons, with the exception of the ON/OFF button,
do not function. The LED on the InfoWIN is not illuminated
– Fig.14.
2.5.2 ON mode, lighting ON,
self-test, lighting OFF
Press the ON/OFF button, lighting and display are switched
on and the self-test starts automatically – Fig.15.
Self-test:
Sensors, switches and motors are checked during the self-
test.
After a successful self-test, the display shows an operating
phase and the boiler water temperature (standard display).
The LED signal lamp lights green and the desired functions
can be selected using the buttons – Fig. 16.
If the self-test was unsuccessful, an information message
(e.g. information, fault, alarm) is displayed (see section4).
Lighting ON/OFF
The display lighting switches off automatically after 10 min.
(Fig. 17). Pressing one of the six buttons switches the ligh-
ting on again for 10 min.
InfoWIN identifies and stores the various operating modes
and states. Once the system is switched on, other operating
modes may also be displayed instead of the standard dis-
play, such as manual operation or solid fuel/buffer mode;
malfunctions are also displayed. These operating modes
and states are described later in these instructions.

16
2. Operation
2.5.4 Solid fuel/buffer mode
If the FireWIN pellet central heating boiler for living areas is combined with a
solid fuel boiler or an buffer tank, the WVF or B-PLM automatically switches
over between pellet and solid fuel/buffer mode.
Combustion of the FireWIN is stopped when the WVF or B-PLM module sends
the request to switch over to solid fuel/buffer mode – Fig. 20.
Following this, the system switches over to solid fuel/buffer mode and the
FireWIN burner is locked – Fig. 21
If the pellet central heating boiler for living areas is switched off using the ON/
OFF button on the InfoWINplus, an automatic switchover to solid fuel/buffer
mode is performed in conjunction with a WVF module. Once the InfoWINplus
unit is switched on, the pellet central heating boiler may be locked for a maxi-
mum of 15 minutes due to the switch-over delay. This is displayed by InfoWIN-
plus – Fig. 21.
After an hour in solid fuel/buffer mode, the display is shut down fully, only the
green LED is lit up. The display is switched back on by pressing a button or when
there is a heating requirement.
Fig. 18
Pellet feed
Burnout
Info Menu
42°C
Fig. 19
Pellet feed
in operation
Burner locked
Info Menu
42°C
Fig. 20
Solid fuel/ buffer mode
Burnout
Info Menu
42°C
Fig. 21
Solid fuel/buffer mode
Burner locked
Info Menu
42°C
2.5.3 Pellet feed
Pellet feed – burnout
Pellet feed from the storage room into the reserve supply container has been
requested. Combustion is stopped.
Pellet transport into the burner pot is stopped, the Induced draught fan conti-
nues to run until all the remaining pellets have been burned and the burner pot
has cooled down – Fig. 18.
Pellet feed in operation
The pellet feed is in operation. Pellets are supplied from the storage room into
the reserve supply container. The burner is locked – Fig. 19.

17
2. Operation
5s
RESET
Fig. 22
Manual operation
Boiler temperature
(Operating phases)
– Cancel +
42°C
(Symbol flashes)
Press for
5 seconds
5s
RESET
Fig. 23
Manual operation
Boiler temperature
(Operating phases)
– Cancel +
42°C
(Symbol flashes)
5s
RESET
Fig. 24
Manual operation
Boiler temperature
– Back +
70°C
(Symbol flashes)
5s
RESET
Fig. 25
Manual operation
Boiler temperature
– Back +
70°C
(Symbol flashes)
The various operating phases are displayed here, inclu- 5
seconds ding Burner in operation, Burner OFF, etc.
2.5.5 Manual operation
Note!
Manual operation cannot be started in “solid fuel/buffer
mode”. Manual operation must not be started if an installed
solid fuel boiler is operating (heated up). Manual operation
may be started if there is no solid fuel boiler installed or if this
is not operating but only the accumulator tank is active. In this
case, first set the operating mode switch on the WVF to relay
test 2 or on the B-PLM to relay test 1 (see WVF or B-PLM ope-
rating manual).
Pressing one of the six buttons switches the lighting and
display on. Manual operation starts if the Manual operati-
on / chimney sweeper function button is pressed for more
than five seconds – Fig. 22. This sets the boiler tempera-
ture to the setpoint fixed for manual operation (standard
value 60 °C). The current automatic setting is not affected
by this. The lighting is switched off after the lighting timer
has counted down (10 min.); the function or display remains
unchanged.
Pressing the Cancel button or Manual operation / chimney
sweeper function button terminates the function – Fig. 23.
The boiler returns to automatic operation.
Setpoint adjustment for manual operation
By pressing the +or –button the display switches to the
setpoint adjustment mode – Fig. 24. Using the +or –button
can change the setpoint in 1 K steps. The temperature set
in this mode is not permanently saved. The original set tem-
perature is used once manual operation ends.
After pushing the Back button (Fig. 25) or after waiting 45
seconds, the screen returns to its previous display.

18
2. Operation
5s
RESET
Fig. 26
Chimney sweeper function
Power 100% 45 min
(Operating phases)
30% Cancel 100%
42°C
(Symbol flashes)
The various operating phases are displayed here, inclu-
ding Burner in operation, Burner OFF, etc.
5s
RESET
Fig. 27
Chimney sweeper function
Power 30% 45 min
(Operating phases)
30% Cancel 100%
42°C
(Symbol flashes)
5s
RESET
Fig. 28
Chimney sweeper function
Power 30% 45 min
(Operating phases)
30% Cancel 100%
42°C
(Symbol flashes)
5s
RESET
Fig. 29
Shutdown procedure
Burnout
Info Menu
42°C
The green LED flashes
2.5.6 Chimney sweeper function
This function aids the performance of legally-required
emissions testing.
Note!
The chimney sweeper function cannot be started in “solid
fuel/buffer mode”. The chimney sweeper function must
not be started if an installed solid fuel boiler is operating
(heated up). The chimney sweeper function may be started
if there is no solid fuel boiler installed or if this is not ope-
rating but only the accumulator tank is active. In this case,
first set the operating mode switch on the WVF to relay test
2 or on the B-PLM to relay test 1 (see WVF or B-PLM ope-
rating manual).
A short press of the Manual operation / chimney sweeper
function button switches on the lighting and display. Pres-
sing the button again starts the chimney sweeper function
– Fig. 26. The boiler temperature is set to approx. 60 °C for
45 min.
Pressing the corresponding menu button enables the boi-
ler to be operated with 30 % or 100 % output – Fig. 27. The
lighting is switched off after the lighting timer has counted
down (10 min.); the function or display remains unchanged.
Only the lighting is switched on when the button is first
pressed.
The operating time is reset to 45 min. when the Manual ope-
ration / chimney sweeper function button is pressed again.
The chimney sweeper function ends
– when the Cancel button is pressed – Fig. 28.
– automatically after about 45 minutes.
2.5.7 Shut-down procedure
The boiler is switched off - Fig 29.

19
2. Operation
2.6.5 Modulation mode
The burner is in modulation mode. The output is infinitely varied between 30 %
and 100 %.
Note: In modulation mode, the flame may briefly not be visible after automatic
removal of ash from the burner.
2.6 Operating phases
2.6.1 Standby
During this operating phase, the controls do not transmit requests for heat. The
burner is switched off and the boiler temperature setpoint is 0 °C.
After an hour in standby mode, the display is shut down fully, only the green LED
is lit up. The display is switched back on by pressing a button or when there is
a heating requirement. Fig. 30
Boiler temperature
Standby
Info Menu
42°C
Fig. 31
Boiler temperature
Purging
Info Menu
42°C
2.6.2 Purging
The Induced draught fan runs, the combustion chamber of the boiler is flushed
through with fresh air. This phase can last several minutes before the burner
fires.
2.6.3 Ignition phase
The Induced draught fan runs, pellets are transported into the burner pot and
are ignited. When flame formation is detected, the system switches over to fla-
me stabilisation.
2.6.4 Flame stabilisation
Following the ignition procedure, even combustion is established and then the
system switches over to modulation mode.
Fig. 32
Boiler temperature
Ignition phase
Info Menu
42°C
Fig. 33
Boiler temperature
Flame stabilisation
Info Menu
42°C
2.6.6 Burnout
Combustion is stopped. Pellet transport into the burner pot is stopped, the In-
duced draught fan continues to run until all the remaining pellets have been
burned and the burner pot has cooled down.
2.6.7 Burner OFF
There is a heating requirement from the control system, but the boiler tempe-
rature (actual value) is higher than the boiler temperature setpoint. This means
combustion is stopped and the burner is switched off.
Fig. 34
Boiler temperature
Modulation mode
Info Menu
42°C
Fig. 35
Boiler temperature
Burnout
Info Menu
42°C
Fig. 36
Boiler temperature
Burner OFF
Info Menu
42°C

20
2. Operation
5s
RESET
Fig. 37
Boiler temperature
(Operating phases)
Info Menu
42°C
5s
RESET
Fig. 38
Next boiler cleaning in about
Back
300h
5s
RESET
Fig. 39
Next boiler cleaning in about
Back
300h
Fig. 40
Next boiler cleaning in about
Back
300h
2.7 Information text
Pressing the Info button or going to the Information level
menu calls up the most important boiler information –
Fig.37.
The arrow buttons select and display sub-menus – Fig. 38.
Pressing the Back button (Fig. 39) or waiting 45 seconds
returns to the standard display.
The following information texts exist:
– Next boiler cleaning in about [h]
– Operating hours [h]
– Total pellet consumption [t]
– Flue gas temperature [°C]
– Boiler temperature setpoint [°C]
– Current boiler output [%]
– Display module software version
– Firing automate software version
– Boiler model
2.7.1 Next boiler cleaning
Display of the operating time in hours remaining until the next boiler cleaning.
Note!
The operating time remaining until the next boiler cleaning de-
pends on the operating method and is constantly recalculated.
Therefore, there may be deviations from the normal operating
hours.
