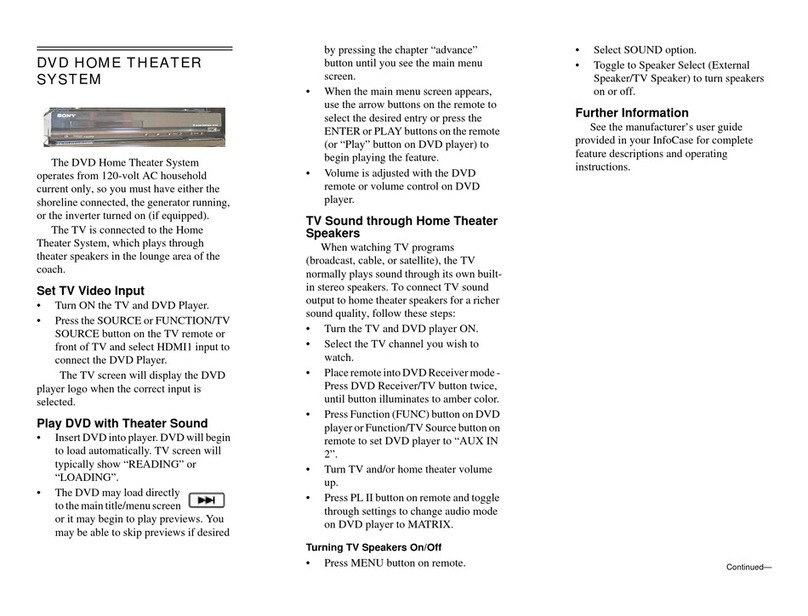

DVD HOME THEATER
SYSTEM
(Front TV only)
–If Equipped
The available DVD home theater
system operates from 120-volt AC
household current only, so you must
have either the shoreline connected, the
generator running, or the inverter turned
on (if equipped).
The TV is connected to the home
theater system, which plays through
theaterspeakersintheloungeareaofthe
coach.
Set TV Video Input
• Turn TV and DVD player ON.
• Press INPUT/
SOURCE
button on front
of TV or
remote and
select“VIDEO
1” input.
TV screen will
display DVD player logo when
correct input is selected.
Play DVD with Theater
Sound
• Insert DVD into player. DVD will
begin to load automatically. TV
screen will typically show
“READING” or “LOADING”.
• DVDmayloaddirectly
to main title/menu
screen or it may begin
to play previews. You
may be able to skip
previews if desired by pressing the
NEXT (CH+ / CH-) button until you
see the main menu screen.
• When main menu
screen appears, use
arrow buttons on
remote to select
desiredentryorpress
OK or PLAY buttons on remote (or
“Play” button on DVD player) to
begin playing feature.
• Volume is adjusted with remote (or
volume buttons on DVD player).
TV Sound Through Home
Theater Speakers
When watching TV programs alone,
the TV normally playssound through its
ownbuilt-instereospeakers.Ifyouwish
to connect TV stereo soundoutput to the
home theater speakers for a richer sound
quality, follow these steps:
• Follow DVD home theater steps for
power and TV input setup.
• Turn TV and DVD player ON.
• Press FUNCTION button on DVD
playerorremotetosetDVDplayerto
“AV IN”.
• UseTV Menubuttonto setTVaudio
output to “Variable Audio Output”
(see TV owner’s manual.) This
routes TV stereo sound output
through home theater system.
• Select TV channels and adjust
volumewithremoteforeithertheTV
or DVD.
NOTE: Turn the volume level up
significantly on the DVD player
when using the home theater as
an amp for the TV through the
stereo system.
DVD PLAYER, SIDE – 12V
(Side TV only)
–If Equipped
The 12-volt slot-load DVD player is
connected to the TV, which plays
through the TV stereo speakers.
Provide 12V Power
The TV and DVD player both run on
12-volt DC current.
Continued—

Audio-Video System
Basic Operation
Guide
Part No. 161501-10-002
Rev. 1003090831
Copyright 2009 Winnebago Industries, Inc.
All rights reserved.
NOTE: See your InfoCase for specific
operating guides for audio and
video components.
• Turn on 12-volt master power
switch (located on the underside of
the video cabinet).
NOTE: When TV or DVD
are not in use,
power switch
should be turned
off to avoid drain
on 12-volt house
battery..
Set TV Video Input
• Turn TV and DVD player On.
• Press TV/
VIDEO or
INPUT
button on the
TV remote to
select
“INPUT 1”.
The TV
screen will display the DVD player
logo when the correct input is
selected.
Play DVD
• Insert DVD into player. DVD will
begin to load automatically. TV
screen will typically show
“READING” or “LOADING”.
• The DVD may load directly to the
main title/menu screen or it may
begin to play previews. You may be
able to skip previews if desired by
pressing the “Next Track” button
until you see the main menu screen.
• When the
main menu
screen
appears, use
the arrow
buttons on the
remote to
select the desired entry or press the
ENTER or PLAY buttons on the
remote or DVD player to begin
playing the feature.
• Volumeisadjustedusing theremote
for either the TV or DVD.
