Wirepath Surveillance WPS-500-PTZ-IP User manual

WPS-500-PTZ-IP
IP PTZ
Camera
Installation and User’s Manual
Review manual thoroughly before installation.
Retain for future reference.

WPS-500-PTZ-IP Installation Manual
Pg. 3
www.snapav.com Support: 866.838.5052
1- Safety Instructions
1. Read and follow all instructions and warnings in this manual. Keep for future reference.
2. Install according to manufacturer’s instructions.
3. Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including
amplifiers) that produce heat.
4. Only use attachments/accessories specified by the manufacturer.
5. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any
way, such as when the power-supply cord or plug is damaged, does not operate normally, or has been dropped.
6. THE MAINS PLUG OF THE POWER SUPPLY CORD SHALL REMAIN READILY OPERABLE.
CAUTION
CAUTION: TO REDUCE THE RISK OF
ELECTRICAL SHOCK.
DO NOT REMOVE COVER. NO USER
SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle, is
intended to alert the user to the presence of un-insulated dangerous voltage
within the product’s enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.

WPS-500-PTZ-IP Installation Manual
Pg. 4
© 2013 Wirepath™ Surveillance
Table of Contents
1-Safety Instructions .......................................................................................................................3
2-Manual Overview ..........................................................................................................................7
3-Required Items for Installation ....................................................................................................8
4-Package Contents.........................................................................................................................8
5-Camera Overview..........................................................................................................................9
5.1-Features...............................................................................................................................9
5.2-Camera Connections..........................................................................................................10
6-Main Camera Interface .................................................................................................................11
6.1-Accessing the Camera .......................................................................................................11
6.1.1-Recommendations for Best Performance.................................................................................................12
6.2-Live View Controls..............................................................................................................12
6.2.1-Top of Screen ...........................................................................................................................................12
6.2.2-Bottom of Screen......................................................................................................................................13
6.3-PTZ Controls......................................................................................................................14
6.3.1-Patrol Presets ...........................................................................................................................................15
6.3.2-Preset Points.............................................................................................................................................16
6.3.3-Auto Pan ...................................................................................................................................................17
7-System Diagram Considerations.................................................................................................18
7.1-Recommended Equipment.................................................................................................18
7.1.1-Power Supplies.........................................................................................................................................18
7.1.2-Networking Devices..................................................................................................................................18
7.2-Basic System Diagram.......................................................................................................18
8-Camera Installation.......................................................................................................................19
1-Remove the Mounting Plate..................................................................................................19
2-Install the Mounting Plate......................................................................................................19
3-Connect The Camera to the System .....................................................................................20
4-Install the microSD Card (optional)........................................................................................21
5-Mount the Camera to the Mounting Plate..............................................................................21
9-IP Installer Software .....................................................................................................................22
9.1-IP Installer Operation..........................................................................................................22
10-Initial Configuration....................................................................................................................23
1-Assign a Static IP address.....................................................................................................23
2-Enter a Port to uniquely identify and remotely access the Camera.......................................23
3-Verify Access through the Main Camera Interface ................................................................23
4-Update to the Latest Firmware ..............................................................................................23

WPS-500-PTZ-IP Installation Manual
Pg. 5
www.snapav.com Support: 866.838.5052
5-Configure the Date and Time ................................................................................................23
6-Change the Administrator Password.....................................................................................24
7-Configure User Accounts to Access the Camera ..................................................................24
8-Set the Video Orientation ......................................................................................................24
11-Additional Configuration............................................................................................................25
1-Upgrade the Firmware...........................................................................................................25
2-Configure a Privacy Mask......................................................................................................25
3-Configure Motion Detection Area ..........................................................................................26
4-Setup a Schedule..................................................................................................................26
5-Configure Camera for Remote Access..................................................................................26
12-Advanced Menu Configuration..................................................................................................28
12.1-System Information...........................................................................................................28
12.1.1-Server Information ..................................................................................................................................28
12.1.2-OSD Setting............................................................................................................................................28
12.1.3-Time Settings..........................................................................................................................................29
12.2-User Management............................................................................................................29
12.3-System Update.................................................................................................................30
12.4-IP Settings........................................................................................................................31
12.4.1-IP Assignment.........................................................................................................................................31
12.4.2-Port Assignment......................................................................................................................................31
12.4.3-UPnP Settings.........................................................................................................................................32
12.4.4-RTSP Settings ........................................................................................................................................32
12.4.5-Multicast Setting......................................................................................................................................32
12.4.6-ONVIF.....................................................................................................................................................32
12.4.7-Bonjour....................................................................................................................................................32
12.4.8-LLTD (Link Layer Topology Discovery) ..................................................................................................33
12.5-Advanced IP Settings.......................................................................................................34
12.5.1-HTTPS Settings......................................................................................................................................34
12.5.2-SNMP Settings........................................................................................................................................34
12.5.3-Access List..............................................................................................................................................34
12.5.4-QoS/DSCP..............................................................................................................................................34
12.6-PPPoE & DDNS Settings .................................................................................................35
12.6.1-PPPoE Settings ......................................................................................................................................35
12.6.2-DDNS Settings........................................................................................................................................35
12.7-Server Settings.................................................................................................................36
12.7.1-Mail Settings ...........................................................................................................................................36
12.7.2-FTP Settings ...........................................................................................................................................37
12.7.3-Network Share Settings..........................................................................................................................37
12.8-Image Settings .................................................................................................................38
12.9-Video Settings ..................................................................................................................40
12.9.1-Streaming 1 & Streaming 2.....................................................................................................................40
12.9.2-Streaming 3.............................................................................................................................................41
12.9.3-Streaming 4.............................................................................................................................................41

WPS-500-PTZ-IP Installation Manual
Pg. 6
© 2013 Wirepath™ Surveillance
12.10-Audio Settings ................................................................................................................42
12.11-Event Settings ................................................................................................................43
12.11.1-Motion Detection...................................................................................................................................43
12.11.2-Record File............................................................................................................................................43
12.11.3-Record Time Setting.............................................................................................................................44
12.11.4-Network Disconnected..........................................................................................................................44
12.11.5-Network IP Check.................................................................................................................................44
12.12-Schedule ........................................................................................................................44
12.13-I/O Settings.....................................................................................................................45
12.13.1-Input Settings........................................................................................................................................45
12.13.2-Output Settings .....................................................................................................................................45
12.14-Log List...........................................................................................................................45
12.15-SD Card..........................................................................................................................46
13-Mobile Apps Access...................................................................................................................47
14-Specifications .............................................................................................................................48
15-Dimensions.................................................................................................................................52
16-Warranty......................................................................................................................................53
17-Contacting Technical Support...................................................................................................53
18-Technical Information Glossary................................................................................................54
18.1-Constant vs. Variable Bit Rate..........................................................................................54
18.2-RTSP (Real Time Streaming Protocol).............................................................................54
18.3-ONVIF (Open Network Video Interface)...........................................................................54
18.4-LLTD (Link Layer Topology Discovery) ............................................................................55
18.5-HTTP vs. HTTPS..............................................................................................................55

WPS-500-PTZ-IP Installation Manual
Pg. 7
www.snapav.com Support: 866.838.5052
2- Manual Overview
We recommend that this document is read in its entirety before proceeding with system design, installation, or operation of the WPS-
500-PTZ-IP camera. When viewing this document electronically, the content identified within references can be quickly located by
clicking on the reference. These references have been formatted as a standard hyperlink so that they can be easily identified with
exception to the TOC which can also be used to link to sections.

WPS-500-PTZ-IP Installation Manual
Pg. 8
© 2013 Wirepath™ Surveillance
3- Required Items for Installation
The following items are required during the installation of a Wirepath™ IP Camera. It is recommended that these items are prepared
in advance to ensure that the installation can be performed smoothly.
All Cameras to be installed in the system
Network Connection near the location of the Camera
Administrator rights to the computer that will be used to configure the Camera(s)
oRouter / Switch Details –Contact the network admin to obtain
oAdmin Rights –Required to setup the network and port forwarding for remote access.
oStatic IP to assign to the Camera
oDefault gateway
oSubnet Mask
oDNS Address
Installation Manual for all the Wirepath™ Surveillance IP Cameras being installed
CD-ROM supplied with the Camera
4- Package Contents
(1)
WPS-500-PTZ-IP
(1)
12V DC 3A Power Supply
(4)
Screws
(4)
Wall Fasteners
(1)
Quick Start Guide
(1)
CD-ROM containing documents and setup software
NOTE: A POWER SUPPLY IS NOT INCLUDED WITH THIS CAMERA. The PS-12DC-1A, WPS-PS multiple output power supply or
a Power over Ethernet (PoE) switch is recommended.

WPS-500-PTZ-IP Installation Manual
Pg. 9
www.snapav.com Support: 866.838.5052
5- Camera Overview
5.1-Features
1.3 MegaPixel 16x9 CMOS sensor
This camera sports a 1.3MP 16x9 CMOS sensor that provides improved picture quality over a typical CCD sensor.
22x Zoom
PTZ Controls
H.264/ MJPEG/MPEG4 Quadruple Stream Optimization
Supports up to 4 simultaneously streams of compression compressed video typically used for the following situations:
oHigh Res stream optimized for NVR Record or Local Network viewing
oLower Res stream optimized for Remote viewing
oLower Res stream optimized for Control Systems (same res as Stream 2)
oLow Res stream for Mobile Viewing
True Day/Night (IR Cut Filter)
For more accurate, vivid color reproduction during daytime use, an IR Cut filter is automatically moved over the lens to block
unwanted IR. At night, the filter is removed to deliver maximum visibility and clear IR illumination.
Advanced Image Processing
Advanced DSP (Digital Signal Processor) to improve image quality including:
oSense Up: Automatically slows the shutter speed to improve image quality in low light.
oWDR (Wide Dynamic Range): Provides clearer images and even lighting in applications that are simultaneously bright and
dark. This is particularly useful in areas with windows and lots of natural light.
oDigital Noise Reduction (DNR): Intelligently scans the image and reduces noise in low-lux conditions for a cleaner, crisper
image.
Privacy Mask
Block out sensitive or privileged areas by placing rectangular blocks or "masks" over up to three installer-defined areas.
Power Over Ethernet (PoE IEEE 802.3af)
Camera can be powered by PoE using the same Cat5e/Cat6 cable that connects to the network. No need to pull a 2nd power
cable to the location. Compatible with all PoE network switches that support PoE IEEE 802.3af and PoE power injectors.
Edge Storage
The camera supports microSD cards (up to 32GB, card NOT included). Images, short recordings and logs can be stored on a
microSD installed into the camera. This is useful as a backup if the network connection to the NVR is lost.
Alarm input and outputs
1 In / 1 Out, transistor contact closures
ONVIF

WPS-500-PTZ-IP Installation Manual
Pg. 10
© 2013 Wirepath™ Surveillance

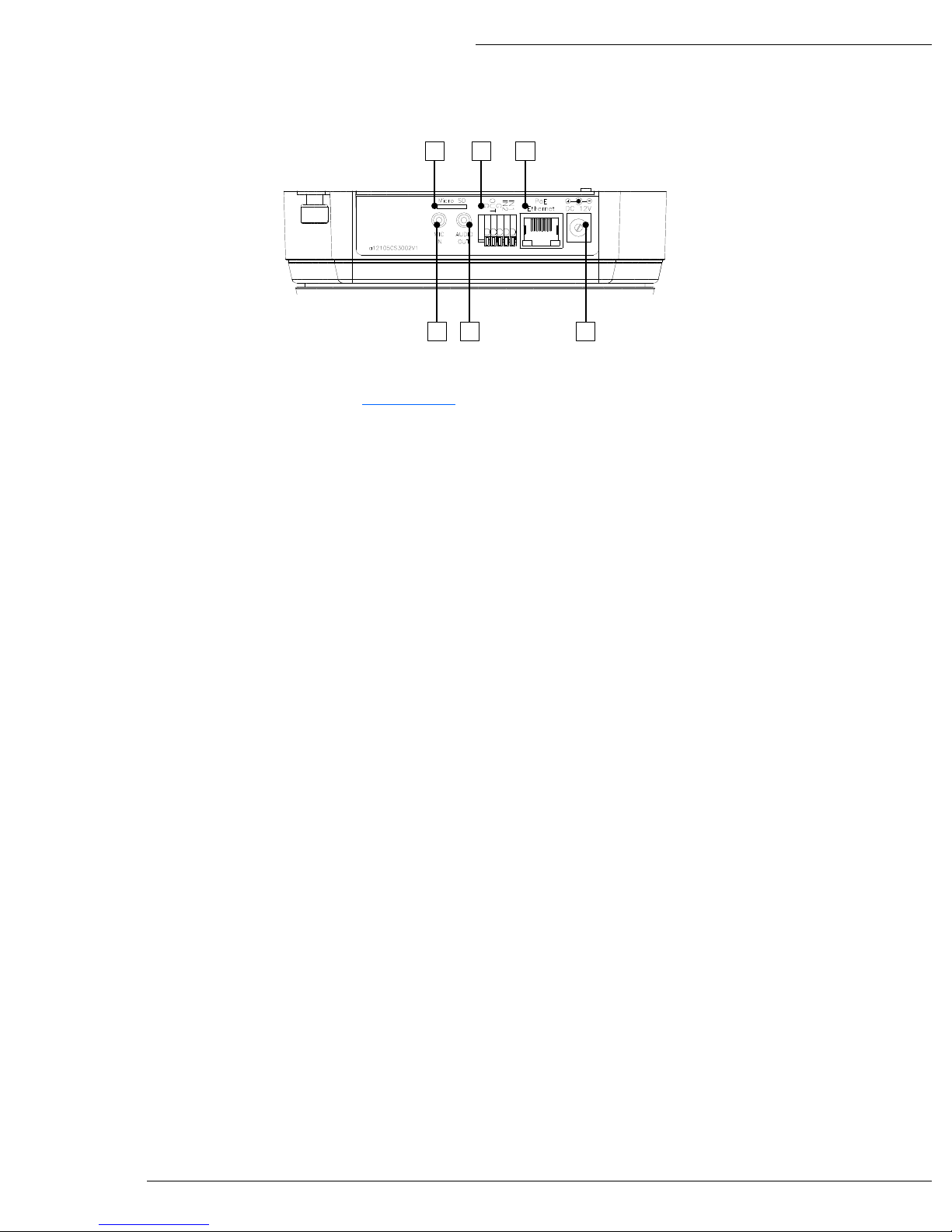

5.2-Camera Connections
1 2 3
4 5 6
1. microSD Card Slot
Insert a microSD card to record when network connection is interrupted.
Requires configuration, see section 12.15-SD Card.
2. Contact & Relay (Spring Loaded Terminal)
Connect to devices with contact closure activation to trigger recording from the camera, or activate devices such as sirens
at the cameras location.
3. Ethernet Connection (RJ45)
Connect to network switch for communication to and from the camera. Pin out follows EIA standard 568-B
4. Audio In (1/8” -3.5mm Mono)
Connect to a powered microphone such as the WPS-ACC-MIC to allow for listening to audio at the cameras location.
Note: A 3.5mm 1/8” Mono male to RCA male adapter is required (not included) for use with WPS-ACC-MIC.
5. Audio Out(1/8” - 3.5mm Mono)
Connect to an amplifier and speakers to allow for communication between the viewer and the cameras location.
6. 12V DC Power In (Barrel Connector)
Connect to the supplied 12V DC 33A power supply.
Note: No power supply is needed if PoE is being used to power the camera via the Ethernet connection.
