Wirepath WPS-500-BUL-A-WH User manual

WPS-500-BUL-A-WH
CAMERA
BULLET
INSTALLATION MANUAL
Review manual thoroughly before installation.
Retain for future reference.

2
WPS-500-BUL-A Installation Manual
CONTENTS
Safety Instructions...............................................................................3
Features............................................................................................... 4
Package Contents............................................................................. 5
Installation Instructions....................................................................... 6
Set-Up...................................................................................................8
1. Operating The OSD Menu..................................................... 8
2. OSD Menu Structure...............................................................8
3. OSD Menu Settings................................................................. 12
3.1 Lens.................................................................................12
3.2 Exposure.........................................................................12
3.3 White Balance...............................................................13
3.4 Backlight.........................................................................14
3.5 Day & Night....................................................................15
3.6 DPC.................................................................................16
3.7 Special............................................................................16
3.8 Comm Adj......................................................................20
3.9 Reset............................................................................... 21
3.10 Exit.................................................................................21
RS485 System Diagram.......................................................................22
Troubleshooting...................................................................................23
Specications......................................................................................25
Dimensions...........................................................................................26
Warranty.............................................................................................. 27

3
WPS-500-BUL-A Installation Manual
© 2012 Wirepath Surveillance
SAFETY INSTRUCTIONS
This information is provided to ensure your safety and to prevent
physicalornancialloss.Pleasereadthisdocumentcarefullybefore
installing and operating the camera.
1. Handle with care.
Use caution when handling to avoid damage to sensitive internal
components.
2. Do not install camera under extreme temperatures.
This camera only operates under temperature conditions between
14˚F~140˚F.
3. Do not mount the camera directly facing bright light sources.
Exposing the camera to strong light over long periods of time will
damage the camera’s sensor.
4. Do not supply voltage other than 12~30V DC or 24V AC.
This camera regulates power within this range. Higher voltages will
damage the camera’s electronic components.
5. Do not install camera in environments with extreme humidity.
Installing camera in environments with extreme humidity may cause
moisture to condense on the surface of the lens or dome cover,
which can affect picture quality.

4
WPS-500-BUL-A Installation Manual
FEATURES
• 1/3” Sony Super-HAD II CCD
The Sony Super HAD II CCD is ideal for low lux illumination, resulting
in a clear and crisp image.
• Varifocal Auto-Iris Lens
This camera features a varifocal lens with a focal length of 3.7-12
mm. The auto-iris function intuitively manages the amount of
light passing through the lens for consistent image brightness.
• DWDR (Digital Wide Dynamic Range)
DWDR is ideal for high contrast environments, improving the
contrast between very dark and very bright areas in a scene
and producing a more balanced image.
• 2D Digital Noise Reduction
Digital noise reduction produces clear images in low light
conditions. Not only does it help to reduce image noise,
but it also minimizes objects from becoming blurred when
in motion, producing extremely clear picture quality even
under low-light conditions.
• RS-485 Connection and OSD
This camera features an OSD (on-screen display) for initial setup
and settings adjustment. Remote control is possible us-
ing a
compatible DVR or PTZ controller connected to the camera’s
RS485 wire leads.
• Weatherproof Housing
The IP66-rated weatherproof housing makes this camera ideal for
outdoor surveillance.

5
WPS-500-BUL-A Installation Manual
© 2012 Wirepath Surveillance
PACKAGE CONTENTS
(1) Camera
(1) AC/DC Plug
(1) OSD Joystick / BNC Test Adapter
(3) Screws
(3) Wall Fasteners
(1) 2.5mm Allen key
(1) Foam gasket
(1) Installation Manual
(1) Spare Silica Pack in Vacuum sealed bag
NOTE: A POWER SUPPLY IS NOT INCLUDED WITH THIS CAMERA.
The PS-12DC-1A or WPS-PS multiple output power supplies are recommended.
NOTE: The spare Silica pack is in a vacuum sealed bag, DO NOT remove
from this bag until it is needed for use.

6
WPS-500-BUL-A Installation Manual
3. Use the provided template on
page 27 to pre-mark mounting
hole locations. Position the camera
base at the desired location and
use the provided screws to attach
the camera base to the wall
or ceiling.
4. Using the supplied AC/DC plug,
connect the power supply jack
to 12-30V DC or 24V AC
and the BNC Video Output to
the desired video line.

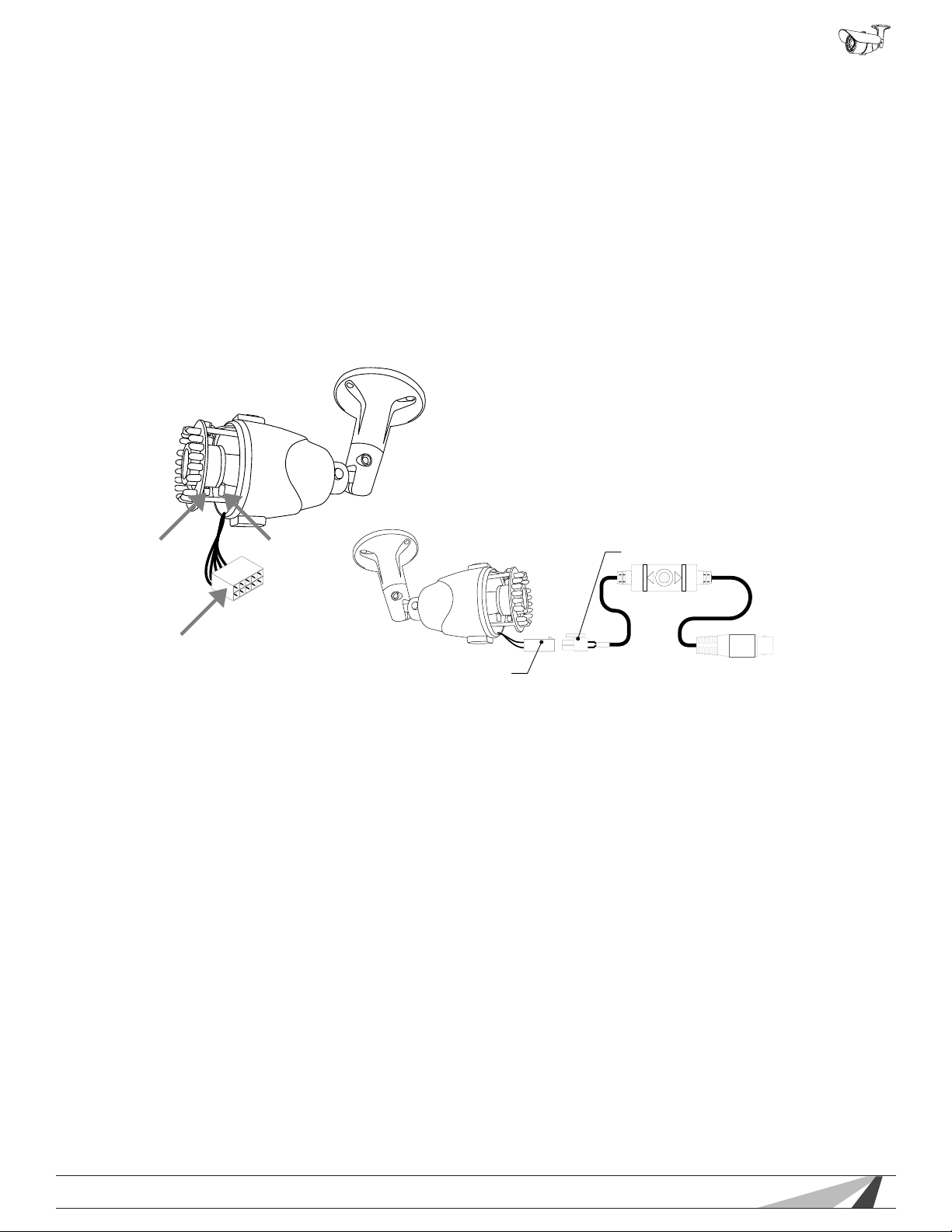

INSTALLATION INSTRUCTIONS
SET-SCREWS
12-30V DC
or 24V AC Power
BNC Video Output
RS485 Leads
White (+), Green(─)
AC/DC Plug
1. Recommended cabling includes solid copper RG59 or RG6 for
video, 18AWG two-conductor for power, and a CAT5 for RS485
control of the OSD.
2. Prior to installation, it is recommended to pre-adjust the camera’s
bracket angle so the lens points in the desired direction. It is also
recommended to connect the camera to a display and pre-
adjust the zoom and focus (see step 5). If the RS485 function will be
utilized,congureandtestthesettingspriortocameraplacement.
Taking these steps will speed installation time.

7
WPS-500-BUL-A Installation Manual
© 2012 Wirepath Surveillance
WARNING – DO NOT CONNECT POWER TO THE RS485 LEADS.
5. Once the camera is installed, check the viewing angle, zoom and
focus settings.
The camera is supplied with an OSD Joystick / BNC Test Adapter that
allows for viewing the output of the camera on a monitor or the WPS-
CCTV-TESTER (not included). Use this connection to adjust the camera
directly from the installed location.
A. Remove the lens cap.
B. Remove the Silica pack from the camera housing located inside
the lens cap and place aside. You will need to replace this pack
once the installation is complete.
C. Connect the OSD Joystick / BNC Test Adapter to a Monitor or
WPS-CCTV-TESTER (not included).
D. Loosen, but do not remove the zoom and focus set screws on
the lens.
E. Rotate the lens until you achieve the desired setting.
F. Once you have correctly set the zoom and focus, tighten the set
screws.
6. With the OSD Joystick / BNC Test Adapter connected, continue to
setup the camera using the OSD.
Zoom
(Tele-Wide)
Focus
(Near-Far)
OSD Joystick / BNC
Test Port
OSD Joystick / BNC Test Port
Dn
Up
OSD Joystick / BNC Test Adapter

8
WPS-500-BUL-A Installation Manual
SET-UP
OSD Menu Structure
Settingshavebeenpreconguredforoptimalperformanceinmost
applications. If adjusting the settings produces a poor picture,
factory reset the camera to restore the original settings (see p.21)
Bold indicates factory preset
LENS
EXPOSURE
DC, MANUAL
SHUTTER
BRIGHTNESS
AGC
DWDR
RETURN
ON, OFF LEVEL
RETURN
0~63(29)
AUTO, 1/60(1/50), FLK, 1/250, 1/500, 1/1000, 1/2000,
1/4000, 1/5000, 1/10000, 1/100000
000~255 (40)
OFF, LOW, MIDDLE, HIGH
OSD Menu
Button
Operating the OSD Menu
•ToviewtheOSD,theOSD
Joystick / BNC Test Adapter
must be connected to a
display monitor or WPS-
CCTV-TESTER (not included).
•Thebuttonfoundonthe
pigtailprovidesveseparate
actions: UP, DOWN, EXIT,
ENTER and MENU.
•Pressthebuttontoenterinto
the OSD MENU page.
•PressUP,DOWN,EXIT(Left)or
ENTER (Right) to select items
on the menu and begin
conguration.

9
WPS-500-BUL-A Installation Manual
© 2012 Wirepath Surveillance
OSD Menu Structure cont. (bold indicates factory preset)
DAY/NIGHT
DPC
COLOR
AUTO
EXT
B/W
See Page 16 for instructions
DN LEVEL
DN DELAY
ND LEVEL
ND DELAY
RETURN
BURST
IR SMART
IR LEVEL
RETURN
ON, OFF
ON, OFF
LOW, HIGH
100
1 SEC
35
5 SEC
BACKLIGHT BLC
HLC
OFF
AREA SEL
AREA STATE
GAIN
HEIGHT
WIDTH
LEFT/RIGHT
TOP/BOTTOM
RETURN
LEVEL
MODE
RETURN
0-255
All Day, Night Only
Area1, Area2
ON, OFF
0-255 (138)
0-15 (10)
0-15 (3)
0-15 (6)
0-15 (5)
WHITE BAL ATW1
ATW2
AWCSET
MANUAL COLOR TEMP
BLUE
RED
RETURN
INDOOR, OUTDOOR
-100~100(0)
-100~100(0)

10
WPS-500-BUL-A Installation Manual
OSD Menu Structure cont. (bold indicates factory preset)
SPECIAL CAM TITLE
MOTION
PRIVACY
PARK. LINE
IMAGE ADJ.
ON, OFF
LENS SHAD
2DNR
MIRROR
FONT COLOR
CONTRAST
SHARPNESS
ON, OFF
ON, OFF
ON, OFF
AREA SEL
AREA STATE
HEIGHT
WIDTH
LEFT/RIGHT
TOP/BOTTOM
DEGREE
VIEW
RETURN
AREA SEL
AREA STATE
HEIGHT
WIDTH
LEFT/RIGHT
TOP/BOTTOM
COLOR
RETURN
ON, OFF
ON, OFF
ON, OFF
FONT
ID & TITLE
RETURN
0-255 (119)
0-31 (26)
0~15
0~15
AREA 1, 2, 3, 4
ON, OFF
0-15 (4)
0-15 (4)
0-15 (2)
0-15 (2)
0-255 (38)
ON, OFF
AREA 1, 2, 3, 4,
5, 6, 7 , 8
ON, OFF
0-255 (32)
0-255 (32)
0-255 (20)
0-255 (16)
0-15 (0)

11
WPS-500-BUL-A Installation Manual
© 2012 Wirepath Surveillance
OSD Menu Structure cont. (bold indicates factory preset)
SPECIAL
RESET
EXIT
IMAGE ADJ.
COMM ADJ.
LANGUAGE
VERSION
RETURN
FACTORY
RETURN
DISPLAY
NEG IMAGE
CAM ID
ID DISPLAY
BAUD RATE
PROTOCOL
ID POS
RETURN
ENGLISH
RESET
CRT
LCD
USER
ON, OFF
1~255(1)
ON, OFF
2400, 4800, 9600,
19200, 38400, 57600
PELCO-D, PELCO-P
PED LEVEL
COLOR
GAIN
RETURN
GAMMA
PED LEVEL
COLOR
GAIN
RETURN
GAMMA
PED LEVEL
COLOR
GAIN
RETURN
0~63(4)
0~255
(112)
0.05~1
(0.45)
0~63(12)
0~255
(144)
0.05~1
(0.45)
0~63(17)
0~255
(160)

12
WPS-500-BUL-A Installation Manual
OSD MENU SETTINGS
The camera menu allows for
the adjustment of settings to
obtain optimal image clarity
and color realism.
Note : If there is a “ ” symbol
after the option, enter into the
subdirectory to adjust more settings.
LENS
 •SelectDC(Auto-IRIS),or MANUAL mode.
 •InDCmode,thecameraadjuststheaperture of the lens
automatically based on the lighting conditions of the environment.
DC mode is the recommended setting, especially for outdoor
locations and environments with varying lighting conditions.
 •InMANUAL mode, the aperture is set fully open. This setting is only
recommended for an environment with consistent lighting conditions.
EXPOSURE
SHUTTER Setup
Shutter setup allows for control of
the electronic shutter speed. Select
a shutter speed to match the
lighting condition of the environment
and the goal of the camera location.
 •ChoosefromAUTO,1/60(1/50),
FLK, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/5000, 1/10000, 1/100000.
 •Forenvironmentswithunstablelightingconditions,the
AUTO setting is recommended.
 •Fordarkerenvironmentswithxedlightingconditions,select
a slower shutter speed.
 •Forbrighterenvironmentswithxedlightingconditions,or
scenarios in which fast-moving objects must be captured,
select a faster shutter speed, such as 1/1000 seconds.
SETUP
LENS MANUAL
EXPOSURE
WHITE BAL. ATW1
BACKLIGHT OFF
DAY&NIGHT AUTO
DPC
SPECIAL
RESET
EXIT
EXPOSURE
SHUTTER AUTO
BRIGHTNESS --------|--------- 50
AGC ---
DWDR OFF
RETURN RET

13
WPS-500-BUL-A Installation Manual
© 2012 Wirepath Surveillance
•FLKcontrolstheickeringeffectonthescreenresultingfrom
different video refresh rates, e.g. NTSC (50 Hz, 60 Hz). In such
cases, set the shutter to FLK to accommodate the different
refresh rates.
BRIGHTNESS SETUP
Adjust the image brightness by selecting a brightness level from
1 to 255. The higher the setting, the brighter the image.
AGC (Auto Gain Control) Setup
 AGCmodeautomaticallyampliesthe
video signal during low light conditions.
•Adjust the AGC by selecting OFF, LOW,
MIDDLE, or HIGH. Please note that signal
noise is slightly higher when AGC is enabled.
DWDR(Digital Wide Dynamic Range) SETUP
DWDR improves the contrast between very dark and very
bright areas in a scene and producing a more balanced
image. Adjust the level from 1 to 63 based on the environment.
 •ChooseOFFtodeactivatetheDWDRfunction.
WHITE BALANCE
White Balance is the process of balancing
the color of an image so that the picture is
as accurate as possible. White balance
adjusts the image color according to the
lighting conditions of the scene. Select
one of following white balance modes:
• ATW1: Auto Tracking White Balance,
color temperature is set to 2000° K.
• ATW2: Auto Tracking White Balance, color temperature is set to
2500° K.
• AWCSET: Set the white balance to the scene.
• MANUAL: Manually set the white based by adjusting Red and
Blue color settings.
SETUP
LENS MANUAL
EXPOSURE
WHITE BAL. ATW1
BACKLIGHT OFF
DAY&NIGHT AUTO
DPC
SPECIAL
RESET
EXIT

14
WPS-500-BUL-A Installation Manual
AWCSET Setting
This function is ideal for an environment
with the predominance of a single color.
For example, when used in a casino and
the camera is pointed to a green table,
the color would be inaccurate and the
overall tone of the picture would be too
red. This mode compensates the white
balance and offers a more accurate color.
 •Tosetthewhitebalancefortheenvironment,selectAWCSET and
point the camera towards the scene. Press and hold the
MENU
button for 3 seconds. The camera will automatically set the white
balance value based on the scene.
Manual Setting
 •SelectthecolortemperatureINDOOR
or OUTDOOR based on the environment
and adjust the value of BLUE and RED to
a user-preferred white balance image.
BACKLIGHT
BLC (Back light compensation) Setting
This function corrects the exposure of
subjects or objects in front of a bright
light source. Choose ON to activate
the BLC function or enter into subdirectory
for more settings.
• AREA SEL: Select AREA1 or AREA2 to
adjust values for the corresponding area.
• AREA STATE: Set to OFF to deactivate
the BLC function. Set to ON to activate
the BLC function.
• GAIN:adjustthelevelofBLCfrom0~255
 •CustomizethesizeofBLCareaby
adjusting HEIGHT, WIDTH, LEFT/RIGHT,
TOP/BOTTOM values.
SETUP
LENS MANUAL
EXPOSURE
WHITE BAL. AWCSET
BACKLIGHT OFF
DAY&NIGHT AUTO
DPC
SPECIAL
RESET
EXIT
SETUP
LENS MANUAL
EXPOSURE
WHITE BAL. AWCSET
BACKLIGHT OFF
DAY&NIGHT AUTO
DPC
SPECIAL
RESET
EXIT
WB MANUAL
COLOR TEMP WHITE BAL
BLUE -----
RED -----
RETURN RET
BLC
AREA SEL. AREA1
AREA STATE ON
GAIN -----|--------106
HEIGHT ---------|----010
WIDTH ---|----------003
LEFT/RIGHT ------|-------006
TOP/BOTTOM -----|--------005
RETURN RET

15
WPS-500-BUL-A Installation Manual
© 2012 Wirepath Surveillance
HLC (High Light Compensation) Setting
The HLC function is used to cut off exceptionally bright light, such as
vehicle headlights. Sensitivity can be adjusted based on the scene.
• LEVEL: Adjust the HLC LEVEL from
0 to 255. The larger the value,
the more sensitive the camera
will be to bright lights.
• MODE: HLC can be set to operate
ALL DAY or only when the camera
is in Black and White (B/W) mode
(NIGHT ONLY).
DAY & NIGHT
ThecameraallowsfordifferentcongurationsforDay
and Night surveillance. Set DAY&NIGHT value to COLOR,
EXT, AUTO, or B/W based on the installation application.
• AUTO: The camera uses the lens to
determine color or B/W. When in
AUTO mode, the camera automatically
switches to B/W when lighting levels are
low, and back to color when they
increase.
• COLOR: The camera remains in color all
of the time.
• B/W: The camera remains in black and white (B/W) all of
the time.
• EXT: This mode uses the external IR sensor in the camera to
switch to color or B/W. This is the recommended setting.
AUTO Setting
When setting the DAY/NIGHT mode to
AUTO, the camera uses the lens to detect
the Lux rating of the picture and switches to
color or B/W automatically.
HLC
LEVEL --------|-------200
MODE ALL DAY
RETURN RET
DAY NIGHT AUTO
DN LEVEL --------|--------091
DN DELAY 1 SEC
ND LEVEL ---|-------------046
ND DELAY 5 SEC
RETURN RET
SETUP
LENS MANUAL
EXPOSURE
WHITE BAL. AWCSET
BACKLIGHT OFF
DAY&NIGHT AUTO
DPC
SPECIAL
RESET
EXIT

16
WPS-500-BUL-A Installation Manual
 •D  N LEVEL: Set the level that the camera switches from color
mode to B/W mode. The larger the value, the quicker the camera
will switch to B/W mode.
• D  N DELAY: Set the delay time before the camera switches
from color mode to B/W mode. The delay time can be set from
0 to 30 seconds.
• N  D LEVEL: Set the level that the camera switches from B/W
mode to color mode. The larger the value, the longer it takes
for the camera to switches to color mode.
• N  D DELAY: Set the delay time before the camera switches
from B/W mode to color mode. The delay time can be set from
0 to 30 seconds.
B/W Setting
• BURST:
- ON: The B/W image is actually a grey
image and contains the color signal.
- OFF: This is a true B/W image containing
no color signal.
• IR SMART: When an image is too close
to the camera, IR Smart prevents
over-exposure by adjusting the output
intensity of the IR LEDs
• IR LEVEL: The IR output level can be
adjusted by selecting HIGH or LOW.
DPC
DPC (Dead Pixel Compensation) automatically removes defective pixels
and“llsin”theimage.UsetheUParrowfunctiontoexitthismenuwithout
performing DPC.
SPECIAL
CAM TITLE Setting
The CAM TITLE provides the ability
to set a camera name and have
it appear on the screen.
DAY NIGHT B/W
BURST OFF
IR SMART OFF
IR LEVEL HIGH
RETURN RET
SPECIAL
CAM TITLE ON
MOTION OFF
PRIVACY OFF
PARK LINE OFF
IMAGE ADJ
COMM ADJ
LANGUAGE ENGLISH
VERSIONS 10 09 09
RETURN RET

17
WPS-500-BUL-A Installation Manual
© 2012 Wirepath Surveillance
 •Todisplaythecameranameon
the screen, set the CAM TITLE
to ON.
 •Selectacameranamebyselecting
one letter/number at a time using the
menu at the bottom of the screen.
Consider assigning a Camera Name
that highlights the location of the
camera such as Lobby, Main Hall,
Entrance 1, etc.
 •PressCLRtoclearallletters,pressPOStochoosetheposition
of CAM NAME on the screen, and press END to exit the menu.
MOTION Setting
Motion Detection allows for up to 4 zones
of motion detection. When an object in
one of the zones moves, the camera will
highlight motion in magenta rectangles.
This allows for monitoring motion more
 efciently.SetMOTIONDETtoONto
enter into the Motion subdirectory
for settings.
 •Selectzones1~4under“AREA SEL”toadjustthesettingsofthearea
(zone) for motion to be detected.
• AREA STATE: Set to ON to display the detection zone on the
screen, set to OFF to hide the detection zone on the screen.
 •Customizethesizeandthepositionofeachdetectionzoneby
adjusting HEIGHT, WIDTH, LEFT/RIGHT, TOP/BOTTOM values.
• DEGREE: Increase motion detection sensitivity by increasing this
setting.
• VIEW: When set to ON, the screen will highlight motion of the
moving object with magenta rectangles.
CAM TITLE
0 1 2 3 4 5 6
7 8 9 A B C D E
F G H I J K L M
N O P Q R S T U
R W X Y Z → ←
↑↓（（~_（/=&’（
.
← → CLR POS END
------------------------------
MOTION
AREA SEL. AREA 1
AREA STATE ON
HEIGHT -----|-------------- 8
WIDTH -------------|----- 32
LEFT/RIGHT ---|---------------- 4
TOP/BOTTOM --------|---------- 24
DEGREE ------------------| 40
VIEW ON
RETURN RET

18
WPS-500-BUL-A Installation Manual
PRIVACY Setting
 PrivacyMaskcongurationallowsthe
 maskingofupto8“surveillance-free”
zones of the picture. For example, this
may be used for a camera that has a
neighbor’s window in part of the scene.
Set PRIVACY MASK to ON to enter into
the subdirectory.
 •Selectzones1~8underAREA SEL to adjust the settings of the area
to be masked.
• AREA STATE: Set to ON to show the privacy zone mask on the
screen. Set to OFF to hide the privacy zone mask.
 •Customizethesizeandthepositionofprivacyzonebyadjusting
HEIGHT, WIDTH, LEFT/RIGHT, TOP/BOTTOM values.
• COLOR: Options for mask color include 16 different colors for each
privacy zone. Change the color by selecting a value from 0 to 15.
PARK LINE Setting
The PARK LINE function may be useful if the camera is used in a mobile
 application.Theparkinglinecanbealignedwithobjectsintheeld
of view.
• LT: Adjust the top left area on screen,
from 0 to 195 steps.
• LB: Adjust the bottom left area on screen,
from 0 to 194 steps.
• RT: Adjust the top right area on screen,
from 0 to 194 steps.
• RB: Adjust the bottom right area on screen,
from 0 to 194 steps.
• F: Adjust the front area on screen, from 0 to 68 steps.
• N: Adjust the near area on screen, from 0 to 68 steps.
• T: Adjust the parking line thickness, from 0 to 15 steps.
PRIVACY
AREA SEL. AREA 1
AREA STATE ON
HEIGHT -----|--------------32
WIDTH -------------|----- 32
LEFT/RIGHT ---|----------------20
TOP/BOTTOM --------|---------- 16
COLOR --------|---------- 7
RETURN RET
PARK LINE
LT 075
LB 027
RT 113
RB 170
F 013
N 069
T 009
RET

19
WPS-500-BUL-A Installation Manual
© 2012 Wirepath Surveillance
IMAGE ADJ. SETTING
• LENS SHAD: This feature brightens the
corners of the image when using a
wide angle view.
• 2DNR: Digital noise reduction produces
clear images in low light conditions.
Not only does it help to reduce image
noise, but it also minimizes the object
from becoming blurred when in motion.
Select ON to activate the DNR function,
OFF to deactivate the function.
• MIRROR: Allows the image to be mirror
reversed. Typically used in vehicles or
mobile applications. Select ON to
activate the MIRROR function, OFF
to deactivate the function.
• FONT: There are 16 options for the
OSD Font Color and CAM TITLE color.
Change colors by selecting a value
from 0 to 15 steps.
• CONTRAST: When increasing the
contrast value, dark colors become
darker and light colors become lighter.
The value ranges from 0 to 255.
• SHARPNESS: When increasing the
contrast value, dark colors become
darker and light colors become lighter.
The value ranges from 0 to 31.
• DISPLAY: Depending on the type of
monitor used to view the camera,
select the CRT, LCD, or USER. USER
adjustments include:
- PED LEVEL: The higher the value, the brighter the image.
- COLOR GAIN: The higher the value, the darker the image.
- GAMMA: Standard GAMMIA value is 0.55. Adjust the value
between
0.05~1.00.
IMAGE ADJ.
LENS SHAD OFF
2DNR ON
MIRROR OFF
FONT COLOR
CONTRAST -------|----- 119
SHARPNESS --------|---- 24
DISPLAY CRT
NEG.IMAGE OFF
RETURN RET
FONT COLOR
FONT --------|-------008
ID&TITLE ---|------------004
RETURN RET
USER ADJ
GAMMA 0.40
PED LEVEL ---|------------017
COLOR GAIN -----------|----176
RETURN END
DISPLAY

20
WPS-500-BUL-A Installation Manual
• NEG. IMAGE: The Negative Image View offers a wider dynamic
range and preserves most detail as it displays data exactly as
the CCD sees it. Select ON for the Negative Image View
mode to reproduce images with the most light intensity and
color information.
COMM ADJ
The communication adjustments can be
used to remotely control the camera’s OSD
(On Screen Display) from a PTZ controller or
DVR through RS-485. This is helpful for adjusting
camera settings after installation without
having to be next to the camera.
CAM ID
Select a unique ID number from 0 to 225.
Warning: If multiple cameras and devices are being used in the
 surveillancesystem,conrmthatnootherdeviceisusing
the same ID. If two or more devices share the same ID number,
the PTZ controller or DVR will not be able to control or
 congureanyofthedevices.
BAUD RATE
Choose a baud rate for RS-485 communication between the camera
and controller. Baud rate options include 4800, 9600, 19200, 38400, and
57600, and must be set to the same rate in all of the devices.
 Warning:ConrmthatalldevicesinthesystemusethesameBaudRate
PROTOCOL
Select a communication protocol of PELCO-D or PELCO-P.
 Warning:Conrmthatalldevicesinthesystemusethesameprotocol.
DISPLAY ID
 •SetDISPLAYIDtoONtoshowtheCAMERAIDonthescreen.
This feature is useful when needing to know the ID of a camera
simply by viewing a picture.
COMM ADJ
CAMERA ID 001
BAUDRATE 4800
PROTOCOL PELCO-D
DISPLAY ID OFF
ID POS
RETURN RET
