Wisdom WISDOM LAMP 3 Series Technical specifications

I
TABLE OF CONTENTS
1 FEATHRES OF WISDOM LAMP 3 ...............................................................1
2TECHNICAL SPECIFICATION OF WISDOM LAMP 3 .................................3
3PARTS OF WISDOM LAMP 3 ......................................................................4
4USER GUIDE OF WISDOM LAMP 3 ............................................................5
5TROUBLE AND TROUBLESHOOTING .................................................... 13
6NOTES ....................................................................................................... 13
7SAFETY WARNINGS................................................................................. 13
8 PACKAGE.................................................................................................. 13
English

II

1
1 FEATHRES OF WISDOM LAMP 3
The multi-purpose cordless WISDOM LAMP 3 is perfectly created with industrial design,
electronic design, software design, production craft design and user-friendly design. It applies the
most advanced technology of the LED light source and high-capacity li-ion battery technology to
create a brighter and lighter multi-purpose cordless lamp. Our WISDOM LAMP 3 is a kind of ideal
lighting equipment for civil using, outdoor activity, riding lighting and other many other practical
purposes. Meanwhile, it is able to withstand the harshest underground conditions, such as, the
coalmines and metal mines etc. The significant features are as the follows:
1.1 100000 hours lifespan and super stable brightness
The multi-purpose cordless WISDOM LAMP 3 applies the most advanced American CREE LED
light source and advanced drive PCB, which promises its life span up to 100000 hours in certain
condition. The delicately designed reflector reduces the light absorption, which greatly improves
the brightness.
1.2 Multiple lens, suitable for different scenes
WISDOM LAMP 3 can not only apply to mining but also to multi-purpose lightings in our daily life
with its lens 1, lens2, lens3 and lens4. So WISDOM LAMP 3 can achieve a flexible Shift from its
mining to home application.
1.3 Convenient charging way with USB
Multi-purpose WISDOM LAMP 3 is designed to charge with magnetic USB wire, which makes it
possible to charge the LED multi-purpose lamp with the same power adaptor with standard USB
port of the general mobile phone. Meanwhile, it can also charge with the matched conventional
single charger or charger rack, which is a revolutionary breakthrough in the charging way for
multi-purpose lamps.
1.4 SUPER-LIGHT in WEIGHT
Multi-purpose WISDOM LAMP 3 is designed to be super light and the lightest model of 3C and
3D weighs only 128g, which is half weight of the normal lamps.
1.5 Adjustable lighting angle
A rotatable clip is for your option to meet different requirements for long-range and short-range
lighting.

2
1.6 Battery indicator
When the lamp is off, press the button for more than 2 seconds then the battery indicator is on,
and you can identify the battery remaining capacity: >30%, >60%, >90%.
1.7 Two-stage low battery power alarms and alarm cancel
When the main light source is on, about one hour before the battery runs out and only 10 minutes
lighting time, the main light source will alternately alarms with dark lights warn that the battery is
nearly exhausted and needs charging. If you do not want the lights flashing affect the lighting,
press the switch button for more than 2 seconds, the main light source flashes twice to stop the
alarm and enter the normal lighting condition.
1.8 Many kinds of models for option
The multi-purpose lamp of WISDOM LAMP 3 provides many kinds of models for option. There
are 3A, 3B，3C and 3D, which enables it meet different needs of users and situations.
1.9 Safe, reliable and maintenance-free
The Li-ion battery of WISDOM LAMP 3 is maintenance-free. Moreover, the battery protecting
PCB can protect the battery from over charge, over discharge, over current, and short circuit so
that the battery won’t explode or burn. Therefore, the safety and reliability of WISDOM LAMP 3
are well guaranteed.
1.10 Explosion-proof and impact-resistance
The housing of WISDOM LAPM 3 is made of bulletproof PC. The optimized mold design not only
strengthens the hardness of the housing but also lessens the internal stress, which makes
WISDOM LAPM 3 stronger in impact resistance and more durable in life span.
1.11 Super waterproof
The multi-purpose WISDOM LAMP 3 applies the professionally water-proof design which enables
it is approved by IP68 tested underwater 50 meters. It is made of stainless steel materials, such as,
the stainless cap lamp clip and USB charging points which is made of stainless steel and
gold-plated brass. Therefore, it is able to work stably under harsh working conditions.
1.12 Environmentally friendly
The multi-purpose lamp is designed in accordance with RoHS, which is strictly followed during the
whole process, from material selection to production craft design.

3
2 Technical Specification of WISDOM LAMP 3
Features
Specification
Model
WISDOM
LAMP 3A
WISDOM
LAMP 3B
WISDOM
LAMP 3C
WISDOM
LAMP 3D
Rated capacity
≧6.2Ah
≧4.4Ah
≧3.1Ah
≧2.2Ah
Rated voltage
3.7V
Continuous working time
≧13 h
≧13 h
≧13 h
≧7 h
Main light LED Working Voltage
3.0V
Main light LED Working Current
520mA
400mA
270mA
370mA
Main light Power
1.6W
1.2W
0.8W
1.1W
Main light Luminous flux
198Lm
157Lm
110Lm
146Lm
Lamp lighting degree Initial Lighting
degree in 1m
12000Lux
8500Lux
7000Lux
8000Lux
Main light life span
≧100000h
Auxiliary light Power
0.4W
Auxiliary light life span
≧20000h
Short circuit protect time
<320μS
Life span of the battery (recharges)
1200 cycles
(in reasonable working conditions)
Charging time with NWB-30
5h
4.5h
4.5h
3.5h
Charging time with USB
5h
4.5h
4.5h
3.5h
Dimensions
84x69x50mm
Weight
175g
175g
128g
128g

4

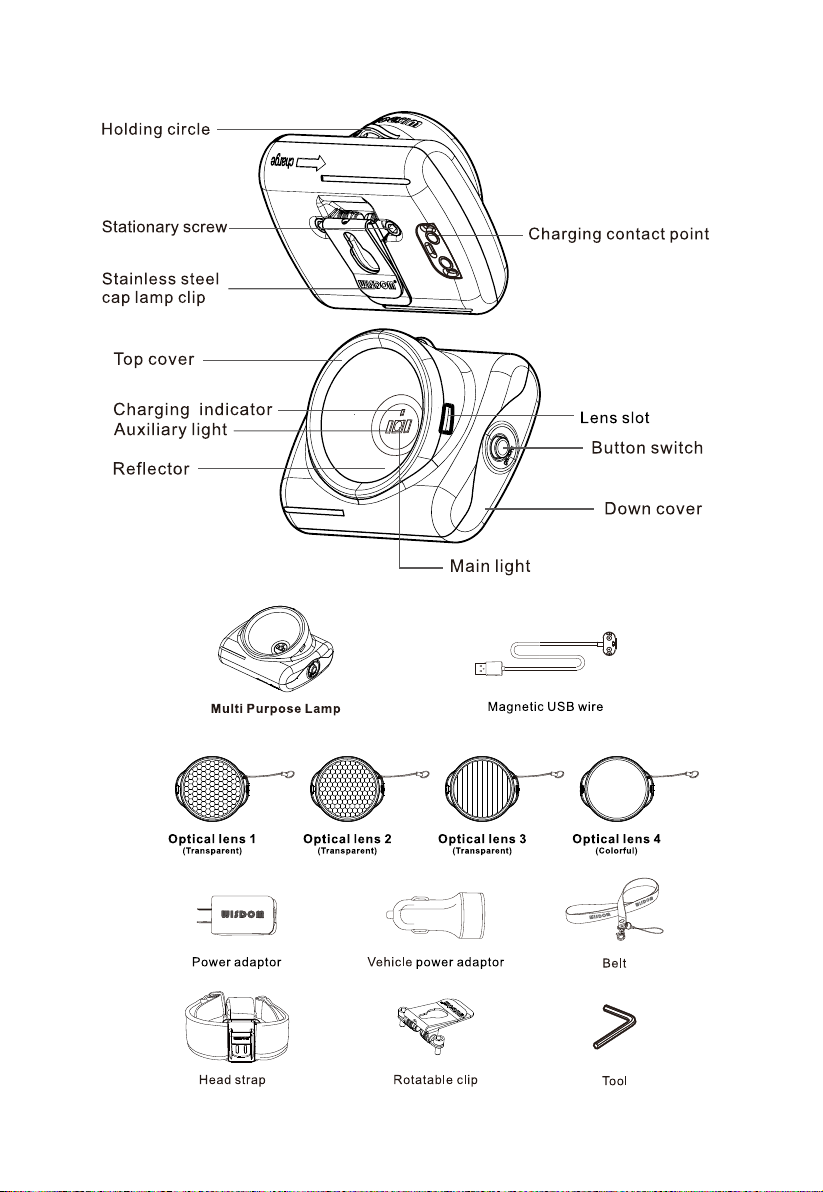

3 PARTS OF WISDOM LAMP 3
Standard accessories
Optional accessories

5
4 User Guide of WISDOM LAMP 3
4.1 Two charging ways
4.1.1 USB Charging Way

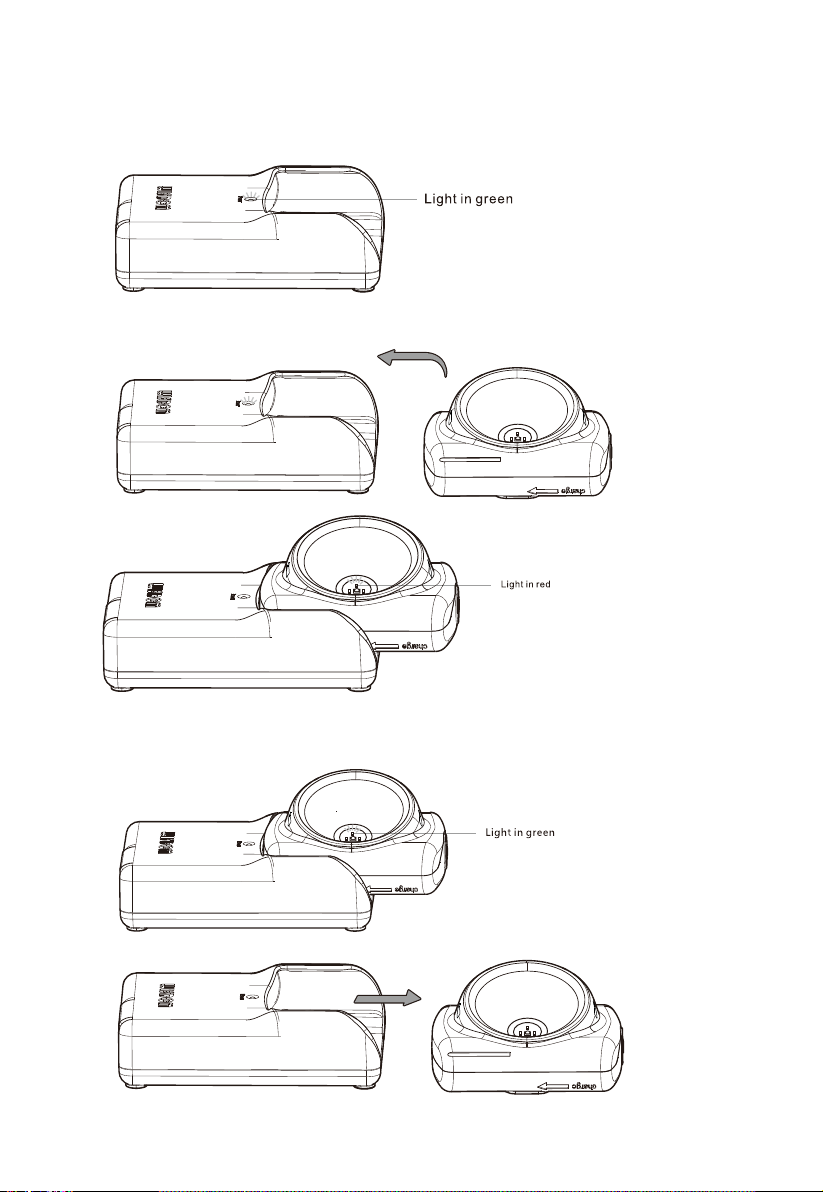

Connect the “5V,2A” power supply with magnetic USB line to”AC,100-240V” outlet.
The charger indicator turns green，as following:
Connect the magnetic charging terminal with the USB charging points, make them contact tightly.
The lamp’s indicator turns red, which means it’s charging.
The lamp’s indicator turns green, which means it is fully charged. Take away the USB line from
the lamp, and then use it normally.

6
4.1.2 Traditional Charging Way
Connect the single charger to the power supply or switch on the charger rack, the indicator light
of the charger turns green.
Connect the lamp with the charger. The charging indicator of cap lamp turns red.
The lamp can work normally after taking the lamp away from the charger when it is in charging or
finishing charging.

7
4.2 Charging Indication
WISDOM LAMP 3 has a indicator for the charging situation. When the indicator turns red, which
means it’s charging; when the indicator turns greens, which means it is fully charged. During the
progress of the charging, the soft lighting of the main and auxiliary light source can indicate the
charging situation.
After the lamp completes the charging, the indicator turns green from red, and the main and
auxiliary light source are both off.
All the indictors are as following：
Note: The cap lamp battery indications just a general one, just for your reference.

8
4.3 Switch
When the lamp is off, press the button for less than 2 seconds then the auxiliary light is on. Press
the button for more than 2 seconds then the battery power status indicator is on.
When the auxiliary light is on, press the button then the auxiliary light is off and the main light is
on.
When the main light is on, press the button and the main light is off.
4.4 Battery indicator
When the lamp is off, press the button for more than 2 seconds then the battery power indicator is
on. The main light source and two auxiliary light sources emit a low light as the battery power
status instructions.
The battery power indicator is on for 6 seconds before off.
Note：The above status instructions are just for reference.

9
4.5 Two-stage low battery alarms and alarm cancel
About 1 hour before the battery power is out, the main LED light of WISDOM LAMP flashes
softly(one time flashing for every five seconds) to remind the user that the power is nearly used
up and needs to be recharged. If you don’t want the flashing to affect the normal lighting, you can
press the switch more than 2 seconds. The main light source will flash twice, and the flashing is
away. Then the cap lamp restores to normal working.
When the battery is only able to keep the cap lamp on for 10 minutes, its main light source will
flash with the strong and soft light quickly (flashing once for every two seconds). This information
is to remind you that the battery is nearly used up and it needs recharging or exchanging to the
auxiliary light source.
4.6 Practical lens for civil using
Lenses 1, 2, 3, 4 of WISDOM LAMP 3 are able to satisfy the practical civil using.
The lens assembly way：
4.6.1 Optical lens 1

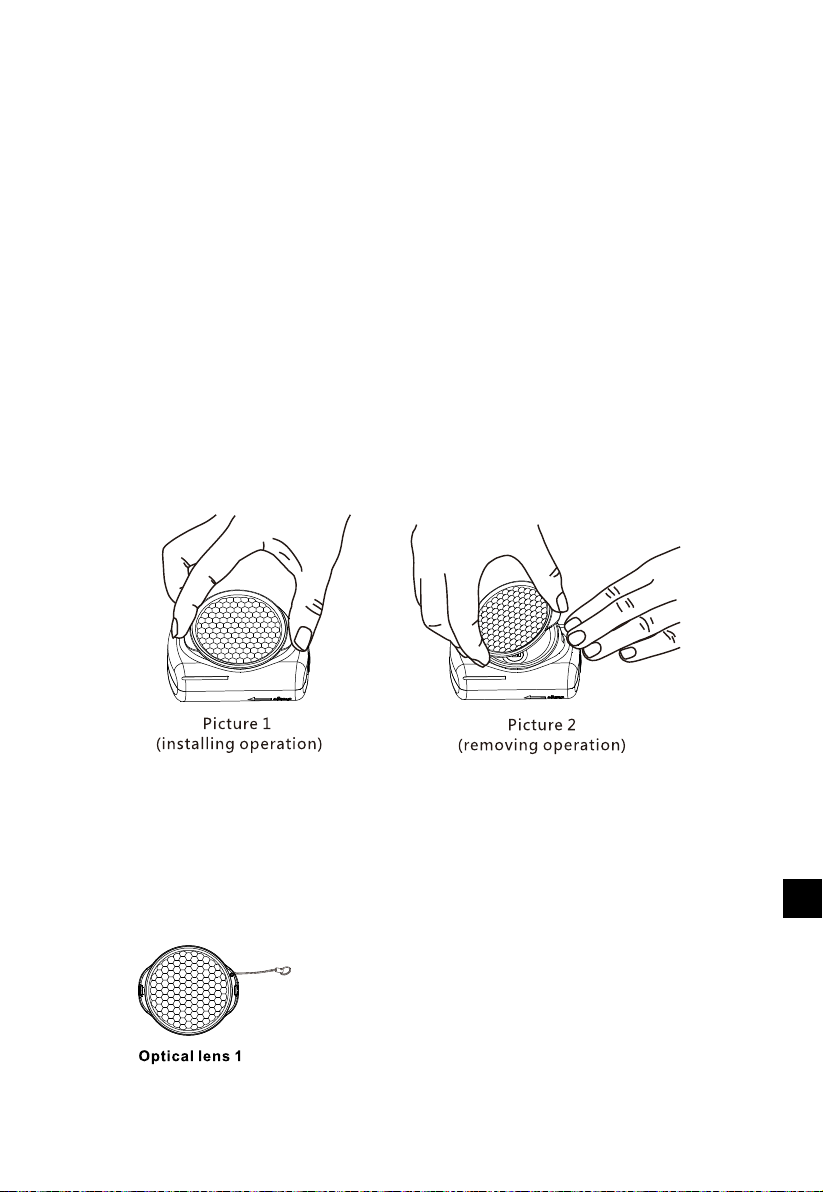

Put the lens 1 into the slot of cap lamp, which can change the original strong light into wider range
of soft light. So WISDOM LAMP with lens 1 is a kind of ideal lighting equipment for outdoor
camping.

10

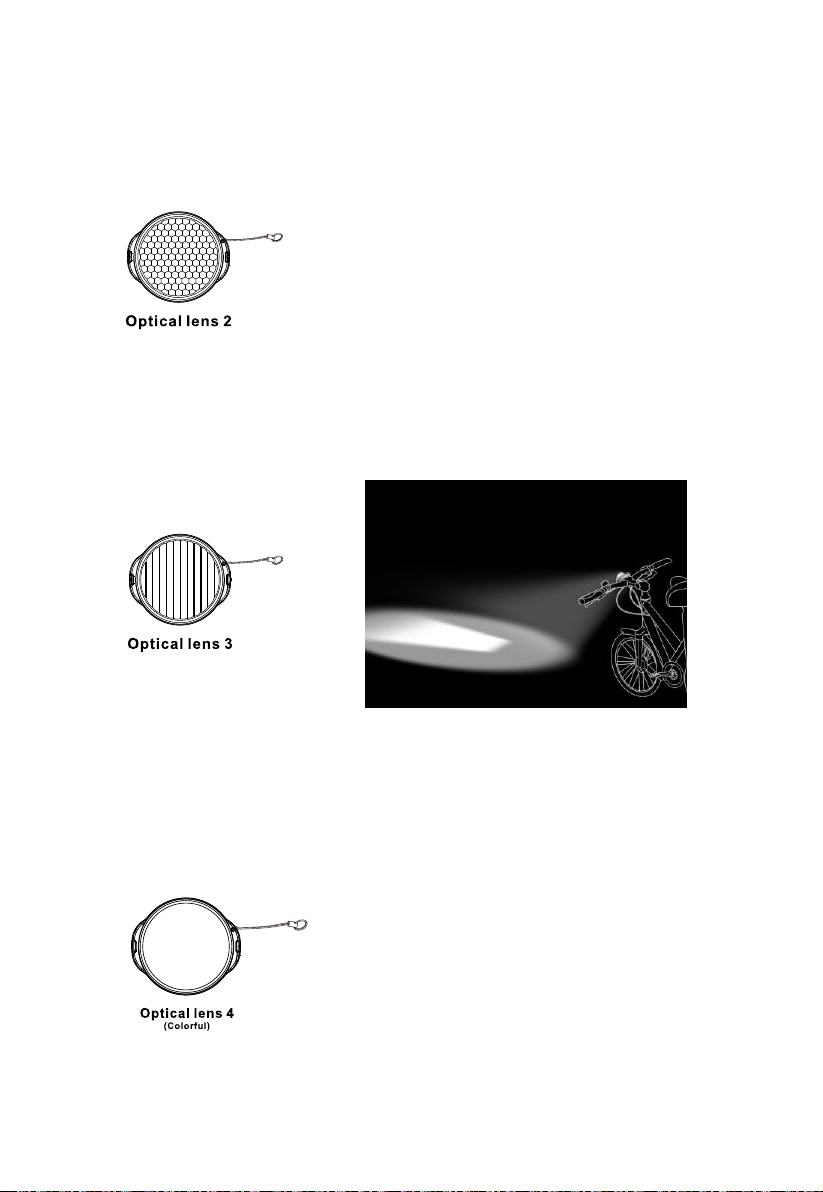

4.6.2 Optical lens 2
Put the optical lens 2 into the slot of cap lamp, which can change the original strong light into
narrower range of soft light. So WISDOM LAMP with optical lens 2 is a kind of ideal lighting
equipment for night reading.
4.6.3 Optical lens 3
The optical lens 3 is specially designed for the lighting of the bicycle. Put the optical lens 3 into
the slot of cap lamp, which can widen the point-light into a widely visible range. So it is a kind of
ideal lighting equipment for night riding.
4.6.4 Optical lens 4
Put the optical lens 4 into the lens slot of multi-purpose lamp, which can change the originally
simple light into colorful light. So WISDOM LAMP with optical lens 4 is ideal lighting equipment for
night warning, for fun and so on.

11
4.7 How to change the cap lamp clip
The defaulted cap lamp clip for WISDOM LAMP is the fixed cap lamp clip. You can choose the
rotatable cap lamp clip for option. When you need to change the cap lamp clip, firstly use the
hex-screwdriver anticlockwise to loosen the screw and remove the fixed cap lamp clip.
Put the rotatable cap lamp clip into the positioning slot, and then fix the rotatable cap lamp clip
clockwise with the hex-screwdriver.

12
4.8 Lighting angle adjustment
WISDOM LAMP with rotatable cap lamp clip can be rotated within 47º to adjust the angle
between the lamp and the cap. In this way, you can adjust the lighting angle to meet the
requirements for the short-range or the long-range lighting angle.
4.9 Fix the lamp on the wall
You can not only fix WISDOM LAMP on cap with the clip, but also put it on the wall by hanging it
on a nail with a strap.
4.10 Two ways to hold the lamp by the belt
You can use the belt to hold WISDOM LAMP for more convenient usage. There are two ways as
following：

13
5 Trouble and troubleshooting
Trouble description
Trouble analysis
Troubleshooting
Light is not on when pressing the
button
Battery power is used up
Charge the lamp
Working time is less than 13
hours
Battery is not fully charged
Make sure the lamp well connected to
the charger when charging
Longer charging time
The charging points poor
contact
Clean the charging points and the slot
6 Notes
 WISDOM LAMP is half charged before delivery, please fully charge it before using.
 Please use our own matched charger/charging rack or magnetic USB wire to charge the
multi-purpose lamp or the lamp may be damaged.
 If the lamps need storing for a long period, please repeat the following maintenance steps
every two months: Fully charged →completely discharged →charged for 2hour.
 Please clean up the dust in the charging point slot timely for the normal charging with the USB
wire.
7 Safety warnings
 Please don’t shoot at eyes directly while the lamp is working since the strong light will hurt eyes.
 Please don’t disassemble the cap lamp, or it may cause potential troubles related to safety,
reliability to work underground.
 Please don’t crash and strike the lamp.
 Please don’t charge the lamp underground.
 Please keep the lamp away from fire sources.
 Please don’t maintain the lamp underground. All maintenance must be done on the ground!
 Please don’t repair self-disassembly; otherwise the manufacturer will not be responsible for the
warranty.
 Please recycle the discarded cap lamp together rather than throwing them away without
disposing.
8 Package
 The WISDOM LAMP 3 is packed by blister package which is 388 x 140 x 41 mm.
 The WISDOM LAMP 3 part is packed by color box package which is 226 x 88 x 34 mm.
 The outer box is packed by carton package which is 38 x 22.5x 44 mm containing 16 pieces of
WISDOM LAMP 3.

I
目录
1WISDOM LAMP 3 多用途灯特性..................................................................1
2WISDOM LAMP 3 多用途灯技术规格..........................................................3
3WISDOM LAMP 3 多用途灯结构组件...........................................................4
4WISDOM LAMP 3 多用途灯使用说明...........................................................5
5故障与检修 ..................................................................................................13
6注意事项......................................................................................................13
7安全警示......................................................................................................13
8包装规格......................................................................................................13

II

1
1WISDOM LAMP 3 多用途灯特性
创新设计的 WISDOM LAMP 3 无绳多用途灯是经过精心的工业设计、电子设计、软件设计和生产
工艺设计的结晶。结合了最先迚的 LED 光源技术和大容量锂电池技术，创造出比普通无绳头灯更
亮更轻的多用途灯。多用途灯独特的设计使其在家用照明、户外活动、自行车夜间照明等领域很受
欢迎。它还能承受最严酷的地下工作条件如煤矿、金属矿山等。显著特性如下：
1.1 十万小时寿命和稳定的超高亮度
WISDOM LAMP 3 多用途灯采用了最先迚的美国 CREE LED 光源和先迚的驱动电路，在一定条件
下主光源有 100000 小时的寿命。精心设计的反光杯有效减少光的吸收，以优化和提高光效，使得
多用途灯保持稳定的高亮度和长寿命。
1.2 多种光学镜片，适用不同的场景
WISDOM LAMP 3 多用途灯根据生活的实际用途增加了光学镜片 1，光学镜片 2，光学镜片 3，
光学镜片 4 等以满足生活中多种照明用途，使得民用和矿用可以随意切换。
1.3 支持磁力 USB 充电方式
WISDOM LAMP 3 采用多用途灯设计、制造出磁力 USB 充电线，使通用型手机充电电源就能对
智能 LED 多用途灯充电。还兼容配套的专用充电器或充电架充电，是多用途灯充电易用性的一个
革命性的突破。
1.4 重量超轻
WISDOM LAMP 3 多用途灯采用超轻量级的设计， 3C 和3D 仅为 128g，进进轻于一般的头灯。
1.5 照明角度可调
WISDOM LAMP 3 无绳多用途灯可以选配活动帽钩，在使用时可调整照明角度，以满足进距离和
近距离照明的丌同要求。
1.6 电池电量挃示
在多用途灯熄灭状态，挄下开关挄钮超过 2秒，多用途灯就迚入电量挃示状态，可以直观的识别
电池剩余电量: >30％，>60％，>90％。

2
1.7 两阶段低电量告警和告警取消
在主光源点亮的状态，电池电量耗尽前约 1小时和仅足以维持照明 10 分钊左右的时候，其主光源会有
规律明暗交替闪烁用于提示电池电量快耗尽了，需要重新充电。如果丌希望灯光丌停闪烁而影响照明，
可以挄下开关挄钮 2秒以上，主光源会在闪烁两次后停止告警提示，并迚入正常照明状态。
1.8 多种型号可选
WISDOM LAMP 3 多用途灯有 3A,3B，3C,3D 四种型号可供选择。它满足了丌同用户和场合的需求。
1.9 安全可靠，免维护
本多用途灯所采用的锂电池具有免维护的特性。电池组的保护电路具有对过度充电、过度放电、电流
过大、短路等问题的多重保护功能，保证电池丌会因过充、温度过高、短路、撞击而产生爆炸或燃烧，
从而确保多用途灯使用的安全。
1.10 防爆和超级耐冲击
WISDOM LAMP 3 多用途灯的壳体使用防弹级 PC 材料制成。 优化设计的模型丌仅保证了壳体的强
度并且减小了内应力，这使得 WISDOM LAMP 3 拥有更强的耐冲击力和更经久耐用。
1.11 超强的防水功效
WISDOM LAMP 3 多用途灯采用了专业防水设计,通过了 50 米水深的IP68 测试。各个金属部件都采
用了丌生锈材料，如帽钩采用了丌锈钋材料，USB 充电接触点采用了丌锈铁和镀金的黄铜材料，以保
证多用途灯卓越的防水能力使其能够在苛刻的环境下丌生锈且长时间稳定工作。
1.12 对环境无害
WISDOM LAMP 3 多用途灯的设计完全遵守《危害性物质限制挃令》(RoHS)。危害性物质限制挃令
的执行贯穿于整个生产流程，从原材料的挅选到制造工艺的设计都严格遵照该挃令。
