WisyCom PHA60 User manual

PHANTOM POWER
ADAPTER
PHA
60
Wisycom Italy
Wisycom Srl - Via Tiepolo, 7/E I-35019 Tombolo (PD) Italy
Tel. [phone] - e-mail : [email protected]
Wisycom USA
5228 Eisenhower Avenue - Alexandria, Virginia 22304
Tel. [phone] - e-mail : [email protected]
PHA60-en-b01 - Subject to change without notice

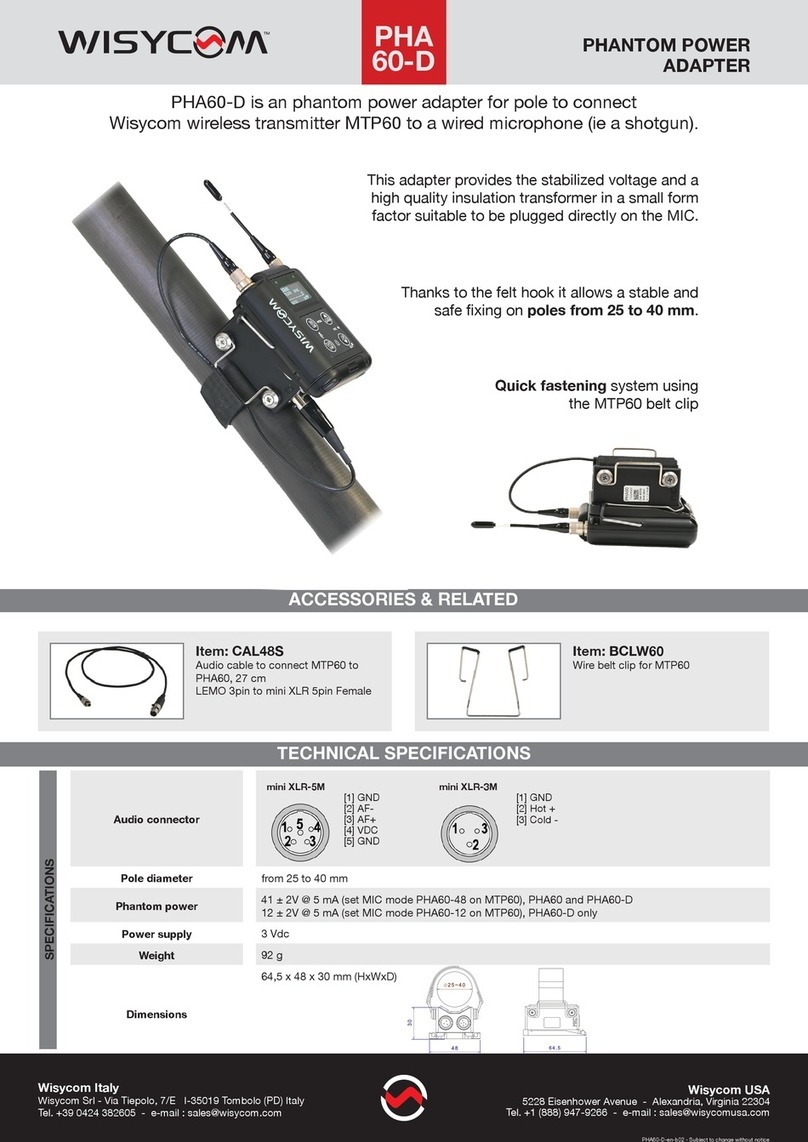

PHA60 is an phantom power adapter for pole to connect
Wisycom wireless transmitter MTP60 to a wired microphone (ie a shotgun).
This adapter provides the stabilized voltage and a
high quality insulation transformer in a small form
factor suitable to be plugged directly on the MIC.
Item: CAL48S
Audio cable to connect MTP60 to
PHA60, 27 cm
LEMO 3pin to mini XLR 5pin Female
Item: CAMxx-2
Audio cable, mini XLR-3pin Female to
XLR-3pin Male
CAM50-2: 50 cm
CAM120-2: 120 cm
ACCESSORIES & RELATED
ACCESSORIES & RELATED
ACCESSORIES & RELATED
TECHNICAL SPECIFICATIONS
SPECIFICATIONSSPECIFICATIONS
Audio connector
mini XLR-5M
[1] GND
[2] AF-
[3] AF+
[4] VDC
[5] GND
mini XLR-3M
[1] GND
[2] Hot +
[3] Cold -
Pole diameter from 25 to 40 mm
Phantom power 41 ± 2V @ 5 mA
Power supply 3 Vdc
Weight 92 g
Dimensions
64,5 x 48 x 30 mm (HxWxD)
Thanks to the felt hook it allows a stable and
safe xing on poles from 25 to 40 mm.
Quick fastening system using
the MTP60 belt clip
48
25~40
30
64.5

PHANTOM POWER
ADAPTER
PHA
60
Wisycom Italy
Wisycom Srl - Via Tiepolo, 7/E I-35019 Tombolo (PD) Italy
Tel. [phone] - e-mail : [email protected]
Wisycom USA
5228 Eisenhower Avenue - Alexandria, Virginia 22304
Tel. [phone] - e-mail : [email protected]
PHA60-en-b01 - Subject to change without notice
2. pass the felt around the pole and secure it on the
other end
3. mount the MTP60 xing it with the clip as shown in
the gure
4. make sure it is stable and pull the felt harder if
necessary
5. connect the CAL48S cable from the LEMO con-
nector of the MTP60 to the TX connector (TA5)of the
PHA60
1. insert the felt on the rst spring and x the felt on
one side
6. connect the audio cable from the MIC connector
(TA3) of PHA60 to the microphone/shotgun
ACCESSORIES & RELATED
MOUNTING INSTRUCTION
