Wolf 808331 User manual

Page 1
IN-LINE BLOWER
WARNING
TO REDUCETHE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY
TO PERSONS, OBSERVE THE FOLLOWING:
1. Use this unit only in the manner intended by the manufacturer. If
you have questions, contact the manufacturer or your distributor.
2. Before servicing or cleaning unit, switch power off at service panel
and lock the service disconnecting means to prevent power from
being switched on accidentally. When the service disconnecting
means cannot be locked, securely fasten a prominent warning
device, such as a tag, to the service panel.
3. Installation work and electrical wiring must be done by a qualified
person(s) in accordance with all applicable codes and standards,
including fire-rated construction codes and standards.
4. Sufficient air is needed for proper combustion and exhausting of
gases through the flue (chimney) of fuel burning equipment to pre-
vent backdrafting. Follow the heating equipment manufacturer’s
guideline and safety standards such as those published by the
National Fire Protection Association (NFPA), and the American
Society for Heating, Refrigeration and Air Conditioning Engineers
(ASHRAE), and the local code authorities.
5. When cutting or drilling into wall or ceiling, do not damage electri-
cal wiring and other hidden utilities.
6. Ducted fans must always be vented to the outdoors.
7. To reduce the risk of fire, use only steel ductwork.
8. If this unit is to be installed over a tub or shower, it must be marked
as appropriate for the application and be connected to a GFCI
(Ground Fault Interrupter) - protected branch circuit.
9. Never place a switch where it can be reached from a tub or
shower.
10. This unit must be grounded.
TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
1. Never leave surface units unattended at high settings. Boilovers
cause smoking and greasy spillovers that may ignite. Heat oils
slowly on low or medium settings.
2. Always turn hood ON when cooking at high heat or when flambe-
ing food (i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef
Flambe’).
3. Clean ventilating fans frequently. Grease should not be allowed
to accumulate on fan or filter.
4. Use proper pan size. Always use cookware appropriate for the
size of the surface element.
TO REDUCETHE RISK OF INJURYTO PERSONS INTHE EVENT
OF A RANGETOP GREASE FIRE, OBSERVETHE FOLLOWING:*
1. SMOTHER FLAMES with a close-fitting lid, cookie sheet, or
metal tray, then turn off the burner. BE CAREFUL TO PREVENT
BURNS. If the flames do not go out immediately, EVACUATEAND
CALL THE FIRE DEPARTMENT.
2. NEVER PICK UP A FLAMING PAN - You may be burned.
3. DO NOT USE WATER, including wet dishcloths or towels - violent
steam explosion will result.
READ AND SAVE THESE INSTRUCTIONS
Installer: Leave this manual with
the homeowner.
Homeowner: Use and Care
information on page 4.
!
FOR DOMESTIC COOKING ONLY
!
WARNING
4. Use an extinguisher ONLY if:
A. You know you have a Class ABC extinguisher and you already
know how to operate it.
B. The fire is small and contained in the area where it started.
C. The fire department is being called.
D. You can fight the fire with your back to an exit.
* Based on “Kitchen Fire Safety Tips” published by NFPA.
CAUTION
!
1. For general ventilating use only.Do not use to exhaust hazardous
or explosive materials and vapors.
2. To avoid motor bearing damage and noisy and/or unbalanced
impellers, keep drywall spray, construction dust, etc. off power
unit.
3. If ventilator is installed in an unconditioned space (such
as an attic): Surround the ventilator with thermal insulation - to
minimize possible condensation.
4. Please read specification label on product for further information
and requirements.
TABLE OF CONTENTS
This manual is divided into sections as follows:
“TYPICAL INSTALLATION”
This section shows a common installation.
- Mounting (New Frame Construction)
- Mounting (Existing Frame Construction)
- Mounting Using Hanger Kit (included)
- Ducting (Horizontal blower discharge)
- Wiring
“MOUNTING OPTIONS”
“WIRING PLATE POSITION”
“DUCTING OPTIONS”
- Blower Discharge Positions
- Ducting (Vertical blower discharge)
“ATTACH POWER CORD TO HOOD”
“USE AND CARE”
For use with models CTWH30, CTWH36, IH4227,
W302418, W302718, W362210-482210
MODEL 808331

Page 2
10” ROUND
DUCT
CEILING JOIST
(24” centers
shown)
2 X 4 FRAMING
(wide side down)
MOUNTING
BRACKETS
(Attached to
opposite sides
of housing &
upside-down,
so housing is
flush with
finished ceiling)
DUCTING (Horizontal blower discharge)
Two ways to connect ductwork to a factory-shipped unit.
ROOF CAP
10”
ROUND
ELBOW
10”
ROUND
DUCT
WALL
CAP
MOUNTING
SCREW
4½” X 18½”
TO 10” ROUND
TRANSITION
4½” X 18½”
TO 10” ROUND
TRANSITION
10” ROUND
DUCT
4½” X 18½” TO 10”
ROUND TRANSITION
10”
ROUND
DUCT
MOUNTING USING HANGER KIT (included)
Blower factory-shipped in straight-through
discharge position.
TYPICAL INSTALLATION
Blower factory-shipped in straight-through
discharge position. IMPORTANT: Remove shipping tape from damper
Remove the shipping tape from the damper flap and make sure that
damper flap opens and closes freely inside the ductwork. Use duct
tape to make ductwork connections secure and air-tight.
ACCESS
PANEL
ACCESS
PANEL SCREW
GRILLE NUT
(Install into
square holes in
housing)
MOUNTING
BRACKET
10” ROUND
DUCT
(OUTLET)
10” ROUND
DUCT (INTAKE)
HANGER
KIT NUT &
WASHER
HANGER
KIT BOLT
& WASHER
HANGER
KIT
EYE-BOLT
HANGER
KIT CHAIN
TYPICAL INSTALLATION
MOUNTING (New Frame Construction)
CEILING
JOIST
(24” centers
shown)
10” ROUND DUCT
Factory-shipped unit installed in new construction.
MOUNTING
SCREW
Blower factory-shipped
in horizontal
discharge position.
Mounting brackets
factory-shipped in
position for ½” ceil-
ing material.
MOUNTING (Existing Frame Construction)
4½” X 18½”
TO 10” ROUND
TRANSITION
10” ROUND
DUCT
4½” X 18½”
TO 10” ROUND
TRANSITION
EXTENSION
SPRING
4½” X 18½”
TO 10”
ROUND
TRANSI-
TION

Page 3
BLOWER
DUCT CONNECTOR
DUCTING OPTIONS
BLOWER DISCHARGE POSITIONS
Blower and duct connec-
tor in horizontal discharge
position. (Factory shipped)
DUCT CONNECTOR
Blower and duct connec-
tor in vertical discharge
position.
BLOWER
Change
blower
& duct
connector
positions
for vertical
discharge.
DUCTING (Vertical blower discharge)
Typical ductwork connection to a ventilator converted to
vertical discharge.
ROOF CAP
10”
ROUND
DUCT
4½” X 18½”
TO 10” ROUND
TRANSITION

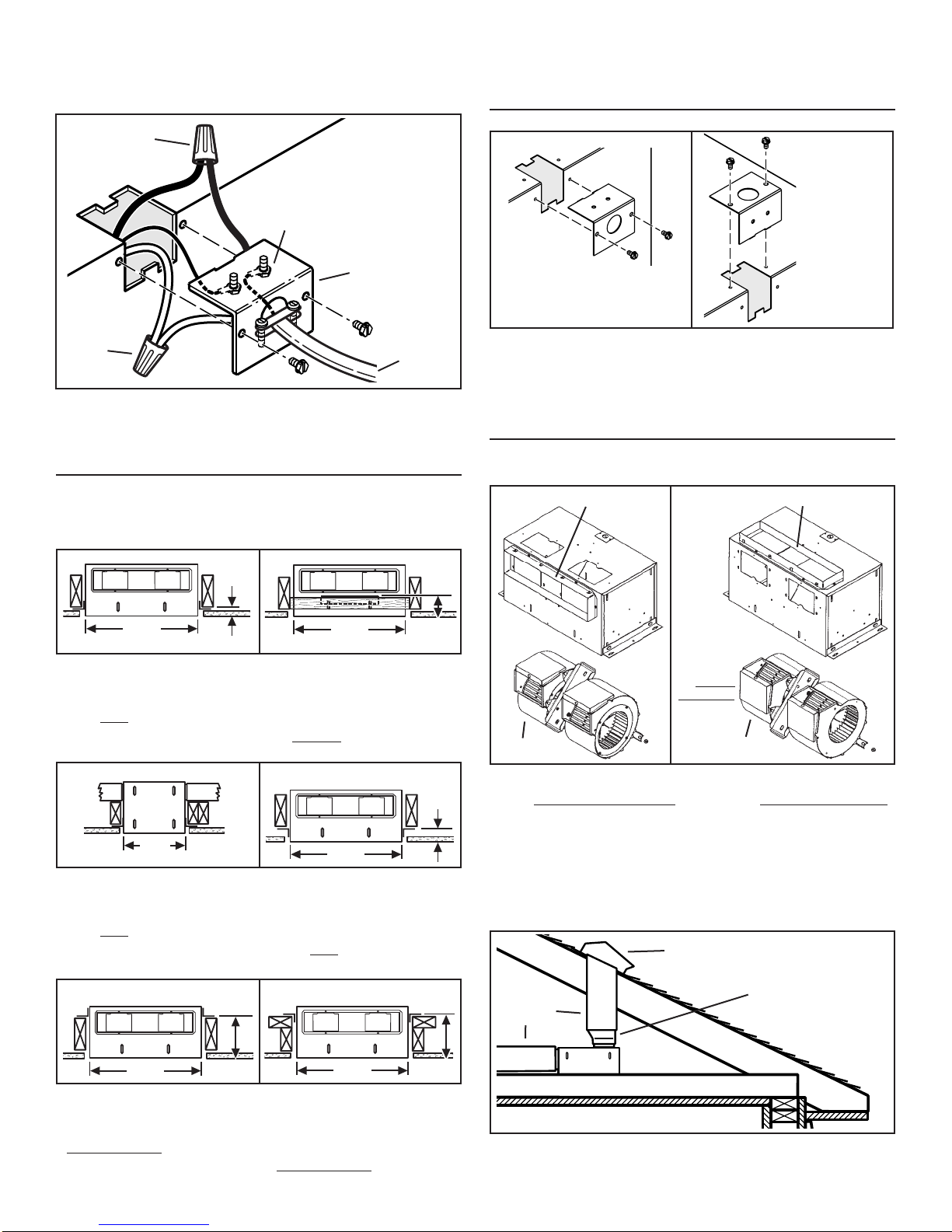

WIRING PLATE POSITION
Wiring plate mounts to side or top of housing.
HORIZONTAL POWER
CABLE CONNECTION
VERTICAL
POWER CABLE
CONNECTION
WIRING
WIRING
PLATE
WHITE
TO
WHITE
BLACK
TO
BLACK TOP / BACK
OF HOUSING
120 VAC
LINE IN
(from
range
hood)
GROUND TO
WIRING PLATE
Ventilator can be wired from outside of housing.
Use UL approved connectors to wire per local codes.
ADUSTABLE FOR VARIOUS CEILING THICKNESSES
21½"
9
1
/ 2 " to
10
1
/
2
"
21½"
ADUSTABLE FOR VARIOUS CEILING THICKNESSES
10 3 / 4" to
11 3
/ 4"
MOUNTING OPTIONS
21½"
1
1
/
8
"
MAX.
ADUSTABLE FOR VARIOUS CEILING THICKNESSES
Mounting brackets in
factory-shipped position.
(Outlet parallel to joists.)
(New construction)
12¼"
INSTALLATION WITH DUCTWORK
RUNNING ACROSS JOISTS
¼-20 hex nuts secure mounting brackets to housing. Loosen and
re-tighten or remove and replace nuts as necessary for desired
mounting bracket position.
Mounting brackets mounted
to outlet sides of housing.
(Outlet perpendicular to joists.)
(New construction)
Mounting brackets ipped
over and mounted to top of
sides of housing.
(Outlet parallel to joists.)
(New or existing construction)
1
1
/ 2 "
to
2
1
/ 2 "
21½"
ADUSTABLE FOR VARIOUS CEILING THICKNESSES
Mounting brackets ipped
over to give approx. 1”
more clearance.
(Outlet parallel to joists.)
(New construction)
Mounting brackets mounted
to top of sides of housing.
(Outlet parallel to joists.)
(New or existing construction)
INSTALLATION FROM ABOVE FINISHED CEILING
21½"
1½"
to
2½"
Mounting brackets ipped
over and mounted to outlet
sides of housing.
(Outlet parallel to joists.)
(Existing construction)

Page 4
99043889B
WARNING: To reduce the risk of electric shock,
disconnect from power supply before servicing.
To clean blower assembly: Remove access panel, unplug blower
from housing, remove blower mounting nuts, and carefully remove
blower from housing. Use appropriate vacuum attachment or a soft
cloth and mild soap or detergent to clean blower discharge area and
wheel. DO NOT ALLOW WATER TO ENTER MOTOR. Make sure
blower assembly is completely dry before reinstalling.
Motor is permanently lubricated. Do not oil or disassemble motor.
USE AND CARE
Follow wiring instructions packed with range hood, and adhere to
all local and state codes, and the National Electrical Code.
ATTACH POWER CORD TO
HOOD
Some hoods require the use of a separate power cord and strain
relief bushing (included), for proper wiring of in-line blowers.Please
refer to the hood manual for proper installation instructions.

Page 1
WARNING
TO REDUCETHE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY
TO PERSONS, OBSERVE THE FOLLOWING:
1. Use this unit only in the manner intended by the manufacturer. If
you have questions, contact the manufacturer or your distributor.
2. Before servicing or cleaning unit, switch power off at service panel
and lock the service disconnecting means to prevent power from
being switched on accidentally. When the service disconnecting
means cannot be locked, securely fasten a prominent warning
device, such as a tag, to the service panel.
3. Installation work and electrical wiring must be done by a qualified
person(s) in accordance with all applicable codes and standards,
including fire-rated construction codes and standards.
4. Sufficient air is needed for proper combustion and exhausting of
gases through the flue (chimney) of fuel burning equipment to pre-
vent backdrafting. Follow the heating equipment manufacturer’s
guideline and safety standards such as those published by the
National Fire Protection Association (NFPA), and the American
Society for Heating, Refrigeration and Air Conditioning Engineers
(ASHRAE), and the local code authorities.
5. When cutting or drilling into wall or ceiling, do not damage electri-
cal wiring and other hidden utilities.
6. Ducted fans must always be vented to the outdoors.
7. To reduce the risk of fire, use only steel ductwork.
8. If this unit is to be installed over a tub or shower, it must be marked
as appropriate for the application and be connected to a GFCI
(Ground Fault Interrupter) - protected branch circuit.
9. Never place a switch where it can be reached from a tub or
shower.
10. This unit must be grounded.
TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
1. Never leave surface units unattended at high settings. Boilovers
cause smoking and greasy spillovers that may ignite. Heat oils
slowly on low or medium settings.
2. Always turn hood ON when cooking at high heat or when flambe-
ing food (i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef
Flambe’).
3. Clean ventilating fans frequently. Grease should not be allowed
to accumulate on fan or filter.
4. Use proper pan size. Always use cookware appropriate for the
size of the surface element.
TO REDUCETHE RISK OF INJURYTO PERSONS INTHE EVENT
OF A RANGETOP GREASE FIRE, OBSERVETHE FOLLOWING:*
1. SMOTHER FLAMES with a close-fitting lid, cookie sheet, or
metal tray, then turn off the burner. BE CAREFUL TO PREVENT
BURNS. If the flames do not go out immediately, EVACUATE AND
CALL THE FIRE DEPARTMENT.
2. NEVER PICK UP A FLAMING PAN - You may be burned.
3. DO NOT USE WATER, including wet dishcloths or towels - violent
steam explosion will result.
READ AND SAVE THESE INSTRUCTIONS
Installer: Leave this manual with
the homeowner.
Homeowner: Use and Care
information on page 4.
!
FOR DOMESTIC COOKING ONLY
!
WARNING
4. Use an extinguisher ONLY if:
A. You know you have a Class ABC extinguisher and you already
know how to operate it.
B. The fire is small and contained in the area where it started.
C. The fire department is being called.
D. You can fight the fire with your back to an exit.
* Based on “Kitchen Fire Safety Tips” published by NFPA.
CAUTION
!
1. For general ventilating use only. Do not use to exhaust hazardous
or explosive materials and vapors.
2. To avoid motor bearing damage and noisy and/or unbalanced
impellers, keep drywall spray, construction dust, etc. off power
unit.
3. If ventilator is installed in an unconditioned space (such
as an attic): Surround the ventilator with thermal insulation - to
minimize possible condensation.
4. Please read specification label on product for further information
and requirements.
TABLE OF CONTENTS
This manual is divided into sections as follows:
“TYPICAL INSTALLATION”
This section shows a common installation.
- Mounting (New Frame Construction)
- Mounting (Existing Frame Construction)
- Mounting Using Hanger Kit (included)
- Ducting (Horizontal blower discharge)
- Wiring
“MOUNTING OPTIONS”
“WIRING PLATE POSITION”
“DUCTING OPTIONS”
- Blower Discharge Positions
- Ducting (Vertical blower discharge)
“ATTACH POWER CORD TO HOOD”
“USE AND CARE”
IN-LINE BLOWER
For use with models CTWH30, CTWH36, IH4227, DD30R, DD36R, DD45R,
W30-662418, W30-662718, L28-582212, I36-663418
MODEL 808332

Page 2
MOUNTING USING HANGER KIT (included)
Blower factory-shipped in straight-through
discharge position.
TYPICAL INSTALLATION
DUCTING (Horizontal blower discharge)
Two ways to connect ductwork to a factory-shipped unit.
ROOF CAP
10” ROUND
ELBOW
10”
ROUND
DUCT
WALL
CAP
10”
ROUND
DUCT
ACCESS
PANEL
ACCESS
PANEL SCREW
GRILLE NUT
(Install into
square holes in
housing)
MOUNTING
BRACKET
HANGER
KIT NUT &
WASHER
HANGER
KIT BOLT
& WASHER
HANGER
KIT CHAIN
HANGER KIT
EYE-BOLT
TYPICAL INSTALLATION
MOUNTING (New Frame Construction)
CEILING
JOIST
(24” cen-
ters
shown)
ACCESS
PANEL
Factory-shipped unit installed in new construction.
MOUNTING
SCREWS
ACCESS
PANEL SCREW
Ventilator factory-shipped
in straight-through
discharge position.
MOUNTING
BRACKETS
MOUNTING (Existing Frame Construction)
Factory-shipped unit installed in existing construction.
ACCESS
PANEL
SCREW
Ventilator
factory-shipped
in straight-through
discharge position.
MOUNTING
BRACKETS
CEILING
JOIST
(24” centers
shown)
ACCESS PANEL
GRILLE NUT
(Install into square
holes in housing)
GRILLE NUT
(Install into
square
holes in hous-
ing)
IMPORTANT: Remove shipping tape from damper
Remove the shipping tape from the damper flap and make sure that
damper flap opens and closes freely inside the ductwork. Use duct
tape to make ductwork connections secure and air-tight.
EXTENSION
SPRING
10” ROUND DUCT
(OUTLET) 8” X 12” TO
10” ROUND
TRANSITION
(FEMALE)
8” X 12” TO
10” ROUND
TRANSITION
(MALE)
10” ROUND
DUCT
(INTAKE)
10” ROUND
DUCT
(OUTLET)
10” ROUND
DUCT (INTAKE)
8” X 12” TO 10” ROUND
TRANSITION (FEMALE)
8” X 12” TO
10” ROUND
TRANSITION
(MALE)
10” ROUND
DUCT
(OUTLET)
10” ROUND
DUCT (INTAKE)
8” X 12” TO
10” ROUND
TRANSITION
(FEMALE)
8” X 12” TO
10” ROUND
TRANSITION
(MALE)
8” X 12” TO
10” ROUND
TRANSITION
(MALE)
8” X 12” TO 10” ROUND
TRANSITION (FEMALE)

Page 3
WIRING PLATE POSITION
DUCTING OPTIONS
BLOWER DISCHARGE POSITIONS
Wiring plate mounts to side or top of housing.
HORIZONTAL POWER
CABLE CONNECTION
VERTICAL
POWER CABLE
CONNECTION
Ventilator shown in
straight-through discharge
position. (Factory shipped)
DUCT
CONNECTOR
(intake)
Ventilator shown in right-
angle discharge position.
(Change movable panel to
new location as shown.)
MOVABLE
PANEL
DUCTING (Vertical blower discharge)
Typical ductwork connection to a ventilator converted to
right-angle discharge.
ROOF CAP
10” ROUND
DUCT
MOVABLE
PANEL
(Change to this
location)
DUCT
CONNECTOR
(outlet)
DUCT
CONNECTOR
(intake)
DUCT
CONNECTOR
(outlet)
Housing
rotated & mov-
able panel cov-
ers previous
open side.
WIRING
PLATE
WHITE
TO
WHITE
BLACK
TO
BLACK EDGE
OF HOUSING
120 VAC LINE IN
(from range hood)
GROUND TO
WIRING PLATE
Ventilator can be wired from outside of housing.
Use UL approved connectors to wire per local codes.
18"
1½"
to
2½"
18"
1½"
to
2½"
22"
ADUSTABLE FOR VARIOUS CEILING THICKNESSES
22"
11
/
8"
MAX.
ADUSTABLE FOR VARIOUS CEILING THICKNESSES
MOUNTING OPTIONS
Mounting brackets in
factory-shipped position -
mounted directly to joists.
(Outlet parallel to joists.)
(New construction)
¼-20 hex nuts secure mounting brackets to housing. Loosen and
re-tighten or remove and replace nuts as necessary for desired
mounting bracket position.
Mounting brackets ipped
over and mounted to ad-
ditional framing.
(Outlet perpendicular to joists.)
(New or Existing construction)
Factory-Shipped
Straight-Through
Discharge
Factory-Shipped
Straight-Through
Discharge
Housing Con-
verted to Right-
Angle Discharge
Mounting brackets ipped
over and mounted to ad-
ditional framing.
(Outlet vertical.)
(New or Existing construction)
Mounting brackets ipped
over and mounted to top of
housing. Housing secured
with cables.
(Outlet parallel to joists.)
(New or Existing construction)
Factory-Shipped
Straight-Through
Discharge
WIRING
10” ROUND
DUCT
8” X 12” TO
10” ROUND
TRANSITION
(MALE)
8” X 12” TO 10”
ROUND
TRANSITION
(FEMALE)

Page 4
99043890C
WARNING: To reduce the risk of electric shock,
disconnect from power supply before servicing.
To clean blower assembly: Remove access panel, unplug blower
from housing, remove blower mounting nuts, and carefully remove
blower from housing. Use appropriate vacuum attachment or a soft
cloth and mild soap or detergent to clean blower discharge area and
wheel. DO NOT ALLOW WATER TO ENTER MOTOR. Make sure
blower assembly is completely dry before reinstalling.
Motor is permanently lubricated. Do not oil or disassemble motor.
USE AND CARE
Follow wiring instructions packed with range hood, and adhere to
all local and state codes, and the National Electrical Code.
ATTACH POWER CORD TO
HOOD
Some hoods require the use of a separate power cord and strain
relief bushing (included), for proper wiring of in-line blowers.Please
refer to the hood manual for proper installation instructions.
