Model MWC24
Convection Microwave Oven
The Wolf convection microwave oven
with optional trim can be used in combi-
nation with a Wolf built-in oven and/or
warming drawer to finish off your
cooking tower with an integrated look.
You can choose from two different trim
styles to match our L Series and E Series
ovens. Whether you use it freestanding
or in a combination installation, Model
MWC24 offers you the convection
performance you would expect from Wolf.
Features
Built-in or freestanding convection
microwave oven with 1.5 cu ft capacity
and 900 watts of power
Classic, platinum or carbon stainless
steel finishes for L Series trim kits—
classic stainless steel finish for E Series
trim kits
Sensor cooking
Slow cook mode for up to four hours
Easy-to-operate control panel and
programmable power options
Interactive display—99 minutes,
99 seconds
Menu label and food guide
Multi-language—English, French and
Spanish
Removable turntable and turntable
support
Microwave tray for popcorn and meat
Multiple-rack baking
Safety door latches—oven will not
operate unless the door is closed
Oven light comes on when oven is
operating or door is open
Tight door seals with one-touch door
open pad
Accessories
The optional trim kits listed above are available as
sales accessories through your Wolf dealer. To
obtain local dealer information, visit the Showroom
Locator section of our website, wolfappliance.com.
Control Panel
Classic CarbonPlatinum

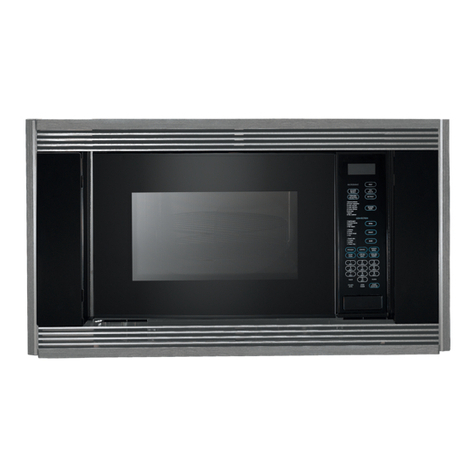

Model MWC24 shown with 36" L Series trim in classic stainless steel
finish installed above Model SO36U/S 36" built-in oven.
L Series Trim Options Classic Platinum Carbon
30" Stainless Steel Trim MWCTRIM30/S MWCTRIM30/P MWCTRIM30/B
36" Stainless Steel Trim MWCTRIM36/S MWCTRIM36/P MWCTRIM36/B
E Series Trim Options Classic
27" Stainless Steel Trim MWCTRIM27-2/S
30" Stainless Steel Trim MWCTRIM30-2/S

Installation Notes
If the microwave oven is built in, a trim kit is
required for proper ventilation.
Specifications will vary with L Series and
E Series trim kits. Refer to installation
instructions provided with the trim kit for
detailed specifications.
Complete installation specifications can be
found on our website, wolfappliance.com.
Specifications
Overall Width (freestanding) 243/4"
Overall Width
with 30" L Series or E Series Trim 297/8"
Overall Width
with 27" E Series Trim 267/8"
Overall Width
with 36" L Series Trim 355/8"
Overall Height (freestanding) 147/8"
Overall Height with Trim 197/8"
Overall Depth 201/8"
Interior Capacity 1.5 cu ft
Interior Dimensions
161/8"Wx9
5/8"Hx16 1/8"D
Power 900 W
Electrical Rating (with convection) 1.6 kW
Electrical Requirements 110/120 V AC
60 Hz, 15 amp circuit
Power Cord 31/2' cord with grounded plug
Shipping Weight 68 lbs
Installation Specifications
Installation with 30" L Series trim
Installation with 36" L Series trim
Overall Dimensions
Model MWC24
Convection Microwave Oven
Dimensions in parentheses are in
millimeters unless otherwise specified.
297/8" (759)
30" (762) TRIM WIDTH
243/4" (629)
FREE-STANDING
WIDTH
147/8"
(378)
FREE-STANDING
HEIGHT
355/8" (905)
36" (914) TRIM WIDTH
201/8" (511)
BEHIND FRAME
197/8"
(505)
TRIM
HEIGHT
11/4" (32) 11/4" (32) 211/16"
(68)
211/16"
(68)
297/8" (759)
30" (762) TRIM WIDTH
243/4" (629)
FREE-STANDING
WIDTH
147/8"
(378)
FREE-STANDING
HEIGHT
267/8" (683)
27" (686) TRIM WIDTH
201/8" (511)
BEHIND FRAME
197/8"
(505)
TRIM
HEIGHT
211/16"
(68)
211/16"
(68)
Model MWC24 with E Series trim
Model MWC24 with L Series trim
24"min
(610)
273/16"
(691)
281/2" (724)
5"
(127)
4"
(102)
E
33" (838)
RECOMMENDED CABINET WIDTH
30"min (762)
271/2" (699)
OPENING WIDTH
201/8"min
(511)
OPENING DEPTH
1811/16"
(475)
OPENING
HEIGHT
1"min
(25)
30-INCH OVEN
ROUGH OPENING
201/8"min
(511)
36" (914)
STANDARD
FLOOR TO
COUNTER
HEIGHT
1811/16"
(475)
333/8" (854)
ROUGH OPENING WIDTH
39" (991)
RECOMMENDED CABINET WIDTH
36"min (914)
5"
(127)
4"
(102)
E
Unit dimensions may vary by ±
1
/ 8 ".
