Wood Stone BISTRO 3030 User manual

BISTRO SERIES
Stone Hearth Cooking Appliance
Revised July 2010
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
Toll Free [phone]
Tel [phone]
Fax [phone]
www.woodstonehome.com
BISTRO 3030
WS-BH-3030-RFG
BISTRO 4343
WS-BH-4343-RFG
WS-BH-4343-RFG-W
BISTRO 4355
WS-BH-4355-RFG
WS-BH-4355-RFG-W
Installation and
Operation Manual
Jet Style Burner
Gas-Fired Residential Models

This page intentionally left blank >

3
An ongoing program of product improvement may require us to change
specifications without notice. BH-RFG, BH-RFG-W. Revised July 2010
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
Toll Free [phone]
Tel [phone]
Fax [phone]
[email protected] or visit www.woodstonehome.com
Bistro Installation and Operation Manual
TABLE OF CONTENTS
TABLE OF CONTENTS
INTERLOCK DIAGRAM 36

INSTALLATION AND OPERATION MANUAL FOR
THE WOOD STONE RESIDENTIAL BISTRO
STONE HEARTH COOKING APPLIANCE
WS-BH-3030-RFG-(NG OR LP), WS-BH-4343-RFG-(NG OR LP),
WS-BH-4343-RFG-W-(NG OR LP), WS-BH-4355-RFG-(NG OR LP),
WS-BH-4355-RFG-W-(NG OR LP),
RESIDENTIAL INTERNAL TRANSITION MODELS
!
WARNING: If the information in this manual is not followed exactly, a fire or explosion
may result causing property damage, personal injury or death.
Do not store gasoline or other flammable vapors and liquids in the vicinity of this or any
other appliance.
Keep the area under and around this appliance free and clear of any and all combustible
materials.
ADDITIONAL COPIES AVAILABLE UPON REQUEST
!
WARNING: Installation and servicing of this product could expose you to glasswool/
ceramic fibers as well as Calcium Silicate dust. ALWAYS WEAR RESPIRATORY AND
EYE PROTECTION WHEN INSTALLING OR SERVICING THIS APPLIANCE. Please read this
entire manual before you install the appliance . Failure to follow instructions may
result in property damage, bodily injury or even death. Contact your local building or
fire officials about restrictions and installation inspection in your area.
!WARNING: Do Not pack required air space (clearance) with insulation or other materials.
When non-combustible building materials contact the body of the oven, the clearances
to combustibles are transferred to those non-combustibles.
4
An ongoing program of product improvement may require us to change
specifications without notice. BH-RFG, BH-RFG-W. Revised July 2010
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
Toll Free [phone]
Tel [phone]
Fax [phone]
[email protected] or visit www.woodstonehome.com
Bistro Installation and Operation Manual
BISTRO LINE

WOOD STONE RESIDENTIAL BISTRO GAS COOKING APPLIANCE
INSTALLATION AND OPERATING INSTRUCTIONS
DO NOT THROW THIS MANUAL AWAY
RETAIN THIS MANUAL FOR FUTURE REFERENCE
Additional copies of this manual and prompt responses to service/maintenance
questions are available from Wood Stone @ 1-800-578-6836.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch.
• Do not use any phone in your building.
• Immediately call your gas supplier from a neighbor's phone.
• Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire department.
INSTALLATION AND SERVICE MUST BE PERFORMED BY A QUALIFIED INSTALLER, SERVICE
AGENCY, OR THE GAS SUPPLIER.
This appliance has been tested and approved by
Intertek Testing Services, and are ETL Listed to ANSI Z21.1b - 2008
WARNING: Improper installation, adjustment, alteration, service or maintenance can result in property
damage, injury or death. Read the installation, operation and maintenance instructions thoroughly before
installing or servicing this equipment.
Please read this entire manual before you install the appliance. Failure to follow instructions may result in
property damage, bodily injury or even death. Contact your local building or fire officials about restrictions
and installation inspection in your area.
WARNING: This product must be installed by a Licensed Plumber or Gas Fitter when installed within the
Commonwealth Of Massachusetts.
5
An ongoing program of product improvement may require us to change
specifications without notice. BH-RFG, BH-RFG-W. Revised July 2010
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
Toll Free [phone]
Tel [phone]
Fax [phone]
[email protected] or visit www.woodstonehome.com
Bistro Installation and Operation Manual
BISTRO LINE

Actual Weight: 850 lbs.
Shipping Weight: 1100 lbs.
[e-mail] or visit www.woodstone-corp.com
UTILITIES SPECIFICATIONS
Gas-3/4 inch FNPT gas inlet (female
threaded)
55,000 BTU Natural Gas Supply OR
48,000 BTU Propane (LP) Supply
Electrical
120 VAC, 2 amp, 50/60 Hz
All utility connections made on
the back of the appliance control
box. Remove front or rear panel
for access, use utility knockouts
(provided) to route gas and electrical
supplies.
VENTING INFORMATION
The Bistro appliance can be direct connected to a power-
ventilated, grease-rated chimney or can be vented with a
Listed Type 1 exhaust hood, or one constructed in accordance
with NFPA 96 and all relevant local and national codes. The
appliance must be vented in accordance with all relevant
local and national codes, and in a manner acceptable to the
authority having jurisdiction.
KNOCKOUTS PROVIDED
FOR GAS/ELECTRICAL
Top View
Side View
Rear View
7 1/2" mantle
KNOCKOUTS
PROVIDED FOR
GAS/ELECTRICAL
Front View
DIGITAL CONTROLLER
MANTLE
MANUAL CONTROL
KNOB FOR
RADIANT BURNER
SERVICE/AIR INTAKE
PANEL. MUST BE LEFT
REMOVABLE FOR SERVICE
FLUE COLLAR
6 1/4"
[160mm]
O8"
[ 200mm]
29 1/4"
[ 740mm] 36 3/4"
[930mm]
7 1/2"
[190mm]Door Swing
to oven side
R11"
[280mm ]
Door Swing
Door Swing Arc 180°
29 1/4"
[ 740mm]
20"
[510mm]
11 1/4"
[290mm]
4"
[100mm]
G
7 1/2"
[190mm]
18 1/2"
[470mm]
68"
[1720mm]
6"
[150mm]
20"
[510mm]
8"
[200mm]
9 3/4"
[250mm] 7 3/4"
[200mm]
4"
[100mm] 37"
[940mm]
46 1/2"
[1 180mm]
2 1/4"
[60mm]
1"
[20mm]
6 1/4"
[160mm] 6 1/4"
[160mm]
9 1/4"
[240mm]
27 3/4"
[710mm]
6 1/2"
[160mm]
6 1/2"
[160mm]
9 1/2"
[240mm]
6
An ongoing program of product improvement may require us to change
specifications without notice. BH-RFG, BH-RFG-W. Revised July 2010
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
Toll Free [phone]
Tel [phone]
Fax [phone]
[email protected] or visit www.woodstonehome.com
Bistro Installation and Operation Manual
BISTRO 3030 SPECIFICATIONS

Actual Weight: 1650 lbs.
Shipping Weight: 2100 lbs.
UTILITIES SPECIFICATIONS
Gas-3/4 inch gas inlet (female threaded)
80,500 BTU Natural Gas Supply OR
68,000 BTU Propane (LP) Supply
Electrical
120 VAC, 2 amp, 50/60 Hz
All utility connections made on
the back of the appliance control
box. Remove front or rear panel
for access, use utility knockouts
(provided) to route gas and
electrical supplies.
VENTING INFORMATION
The Bistro appliance can be direct connected to a power-
ventilated, grease-rated chimney or can be vented with a
ListedType 1 exhaust hood,or one constructed in accordance
with NFPA 96 and all relevant local and national codes. The
appliance must be vented in accordance with all relevant
local and national codes and in a manner
acceptable to the authority having jurisdiction.
KNOCKOUTS PROVIDED
FOR GAS/ELECTRICAL
KNOCKOUTS PROVIDED
FOR GAS/ELECTRICAL
Top View
Front View Side View
DIGITAL CONTROLLER
MANTLE
MANUAL CONTROL
KNOB FOR
RADIANT BURNER
SERVICE/AIR INTAKE
PANEL. MUST BE LEFT
REMOVABLE FOR SERVICE
FLUE COLLAR
Rear View
6"
[150mm]
7 1/2"
[190mm]
24 1/2"
[620mm]
70"
[1780mm]
20"
[510mm]
7 3/4"
[200mm]
4"
[100mm]
10 1/2"
[270mm] 7 3/4"
[200mm]
29 3/4"
[760mm]
9 1/2"
[240mm]
6 1/4"
[160mm] 6 1/4"
[160mm]
47 1/4"
[1200mm]
36 3/4"
[940mm]
1 1/2"
[40mm]
2 3/4"
[70mm]
G
42 1/2"
[1080mm]
6"
[150mm]
Door Swing
To Oven Side
R13 1/2"
[340mm]
Door Swing
Door Swing Arc 180°
42 1/4"
[1070mm]
O10"
[250mm]
7 1/2"
[190mm]
49 3/4"
1270mm
18 1/4"
[460mm]
9 1/2"
[240mm]
32 1/2"
[830mm]
[ ]
6 1/2"
[160mm] 6 1/2"
[160mm]
9 1/2"
[240mm]
10 1/2"
[270mm] 7 3/4"
[200mm]
4"
[100mm]
7
An ongoing program of product improvement may require us to change
specifications without notice. BH-RFG, BH-RFG-W. Revised July 2010
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
Toll Free [phone]
Tel [phone]
Fax [phone]
[email protected] or visit www.woodstonehome.com
Bistro Installation and Operation Manual
BISTRO 4343 SPECIFICATIONS

Electrical
120 VAC, 2 amp, 50/60 Hz
All utility connections made on the back
of the appliance control box. Remove
front or rear panel for access, use utility
knockouts (provided) to route gas and
electrical supplies.
UTILITIES SPECIFICATIONS
Gas-3/4 inch gas inlet (female threaded)
80,500 BTU Natural Gas Supply OR
68,000 BTU Propane (LP) Supply
Actual Weight: 2200 lbs.
Shipping Weight: 2500 lbs.
VENTING INFORMATION
The appliance can be direct connected to a power-
ventilated, grease-rated chimney or can be vented with
a Listed Type 1 exhaust hood, or one constructed in
accordance with NFPA 96 and all relevant local and national
codes. The appliance must be vented in accordance with
all local and national codes and in a manner acceptable
to the authority having jurisdiction.
Top View
Front View Side View
Rear View
KNOCKOUTS PROVIDED
FOR GAS/ELECTRICAL
KNOCKOUTS PROVIDED
FOR GAS/ELECTRICAL
DIGITAL CONTROLLER
MANTLE
MANUAL CONTROL
KNOB FOR
RADIANT BURNER
SERVICE/AIR INTAKE
PANEL. MUST BE
LEFT REMOVABLE
FOR SERVICE
FLUE COLLAR
G
42 1/2"
[1080mm]
54 1/4"
[1380mm]
7 1/2"
[190mm]
61 1/4"
[1550mm]
2 1/2"
[60mm]
O10"
[250mm] R13 1/2"
[340mm]
Door Swing
Door Swing Arc 180 °
18 1/4"
[460mm]
9 1/2"
[ 240mm]
45 1/2"
[1 160mm]
6"
[150mm]
70"
[1780mm]
20"
[ 510mm]
8 1/2"
[220mm]
7 3/4"
[200mm]
24 1/2"
[620mm]
10 1/2"
[270MM] 7 1/2"
[190MM]
4"
[100MM]
9 1/2"
[240mm]
6 1/2"
[160mm]
6 1/2"
[160mm]
4"
[100mm]
10 1/2"
[270mm]7 3/4"
[200mm]
9 1/2"
[240mm]
6 1/4"
[160mm]
6 1/4"
[160mm]
29 3/4"
[760mm]
2 1/2"
[60mm]
1 1/2"
[40mm]
37"
[940mm]
46"
[1170mm]
8
An ongoing program of product improvement may require us to change
specifications without notice. BH-RFG, BH-RFG-W. Revised July 2010
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
Toll Free [phone]
Tel [phone]
Fax [phone]
[email protected] or visit www.woodstonehome.com
Bistro Installation and Operation Manual
BISTRO 4355 SPECIFICATIONS

IF THIS APPLIANCE IS NOT PROPERLY INSTALLED A FIRE MAY RESULT. TO REDUCE THE RISK OF FIRE,
FOLLOW THESE INSTALLATION INSTRUCTIONS. A MAJOR CAUSE OF APPLIANCE RELATED FIRES IS FAILURE
TO MAINTAIN REQUIRED CLEARANCES (AIR SPACES) TO COMBUSTIBLE MATERIALS. IT IS OF THE UTMOST
IMPORTANCE THAT THIS APPLIANCE BE INSTALLED ONLY IN ACCORDANCE WITH THESE INSTRUCTIONS.
1. This appliance must have a minimum 1-inch clearance to combustibles from all sides, 6-inch clearance
to combustibles from the top, and 6-inch clearance from the exhaust transition and flue collar. If building
a facade that will contact the appliance, use completely non-combustible materials. Any facade wall built above
and or 6 inches to either side of the doorway must be of non-combustible construction. Please note that standard
drywall (or sheet rock) is considered a combustible.
2. This appliance should be installed on a non-combustible floor surface. As with any cooking equipment, we suggest
that care be taken when choosing the surfaces in front of the appliance to protect them from potential damage
from hot, heavy items that may be removed from the cooking chamber. Models burning solid fuel must be
installed on a non-combustible floor surface.
CLEARANCES
NOTICE: FOR STUCCO COVERED APPLIANCES (MODEL NUMBERS ENDING IN 'S'), 36” TOP AND SIDE
CLEARANCE TO COMBUSTIBLE BUILDING MATERIALS IS REQUIRED. STUCCO IS NOT AN OPTION FOR
THE BH-3030 MODEL APPLIANCE. NON-COMBUSTIBLE STUCCO MIX MUST BE USED AND APPLIED TO
A MINIMUM THICKNESS OF 1". *When non-combustible building materials contact the body of the appliance, the
clearances to combustibles are transferred to those non-combustibles.
Hatched area must
be left accessible and
unobstructed after
installation for air intake
and routine service of
the gas burner.
6 inches
6 inches
1-inch minimum
side clearance
to combustible
construction
Maintain 6-inch
clearance from the
exhaust transition on
External Transition
models (not shown).
SEE FOLLOWING PAGE FOR EXAMPLES OF NON-COMBUSTIBLE AND COMBUSTIBLE
WALL CONSTRUCTION.
10
An ongoing program of product improvement may require us to change
specifications without notice. BH-RFG, BH-RFG-W. Revised July 2010
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
Toll Free [phone]
Tel [phone]
Fax [phone]
[email protected] or visit www.woodstonehome.com
Bistro Installation and Operation Manual
INSTALLATION CLEARANCES

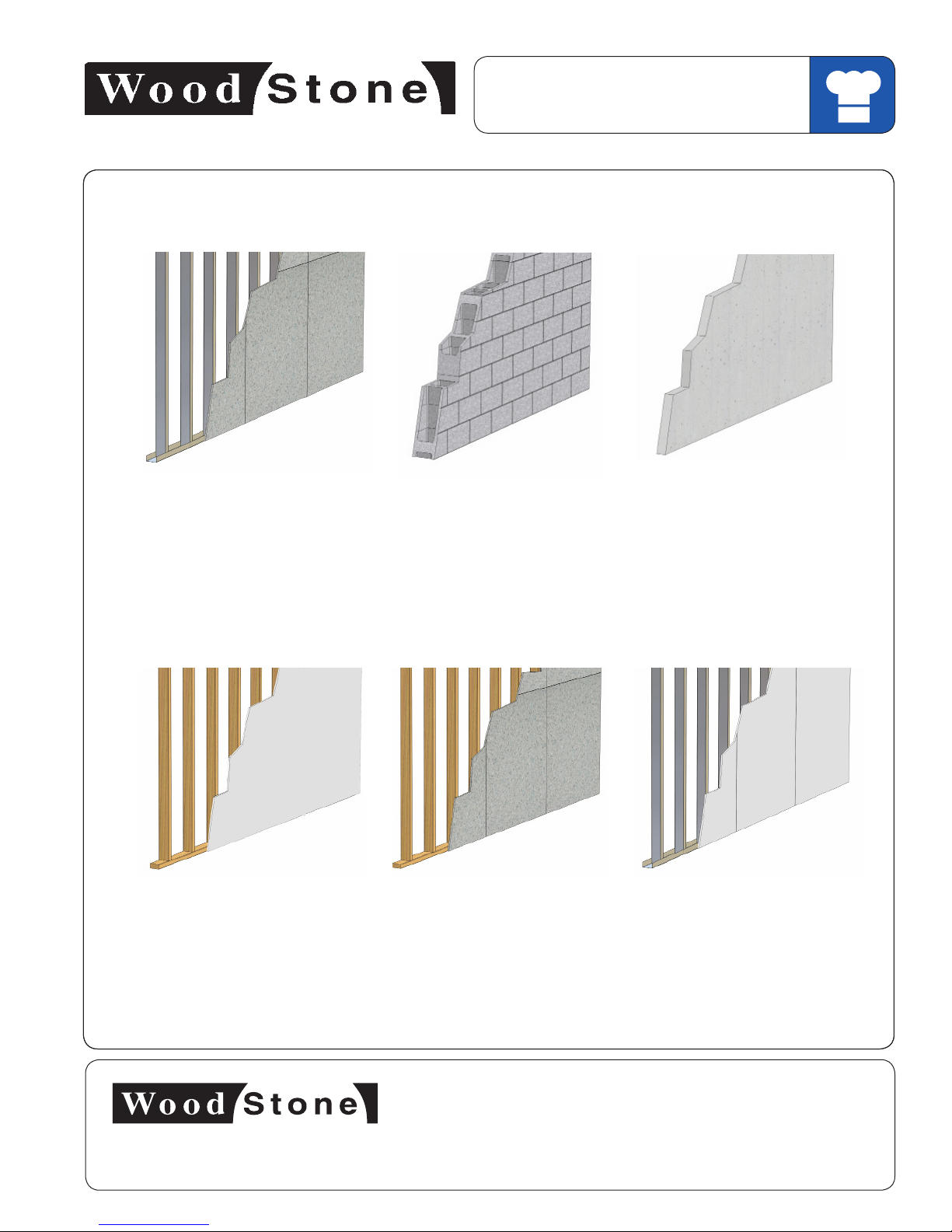

EXAMPLES OF NON-COMBUSTIBLE WALL CONSTRUCTION
Metal Studs faced with Cement Board Concrete Block Wall Poured Concrete Wall
EXAMPLES OF COMBUSTIBLE WALL CONSTRUCTION.
REQUIRES 1 INCH SIDE CLEARANCE
Wood Studs faced with Drywall or
Fire-Rated Drywall
Wood Studs faced with Cement Board Metal Studs faced with Drywall or
Fire-Rated Drywall
10 10
An ongoing program of product improvement may require us to change
specifications without notice. BH-RFG, BH-RFG-W. Revised July 2010
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
Toll Free [phone]
Tel [phone]
Fax [phone]
[email protected] or visit www.woodstonehome.com
Bistro Installation and Operation Manual
INSTALLATION CLEARANCES

Once you have moved the appliance to where it will be installed, go to Step 11 on page 20 for instructions
regarding electrical and gas connections.
CAUTION: The 3030 model Bistro weighs approximately 850 lbs.The 4343 model Bistro weighs approximately 1700 lbs.
The 4355 model Bistro weighs approximately 2200 lbs. The appliances are very top-heavy. IF THE APPLIANCE TIPS IT
CAN CAUSE SEVERE INJURY OR DEATH! NEVER ATTEMPT TO USE A HAND TRUCK TO MOVE THE APPLIANCE! The
appliance should only be moved using a Pallet Jack on a LEVEL FLOOR. If the appliance must be moved over an inclined
surface, a forklift or other suitable means should be employed. If the installer does not have the equipment or experience
required to move the appliance safely, we recommend you secure the services of a qualified rigging company.
Make sure the pallet jack wheels do not contact the underside of the fork pocket when lifting to avoid damaging the
stand.
Make sure the pallet jack wheels do not contact the underside of the fork pocket when lifting to avoid
damaging the stand.
CAUTION
11
An ongoing program of product improvement may require us to change
specifications without notice. BH-RFG, BH-RFG-W. Revised July 2010
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
Toll Free [phone]
Tel [phone]
Fax [phone]
[email protected] or visit www.woodstonehome.com
Bistro Installation and Operation Manual
MOVING THE BISTRO
IF YOU NEED TO DISASSEMBLE THE OVEN TO MOVE IT THROUGH A NARROW DOOR OR PASSAGEWAY,
SEE DISASSEMBLY SECTION.
Bistro models are shipped fully assembled. The oven can be moved into place with a pallet jack using the LOWER forklift
pockets. If the oven is to be installed against a wall, you may need to leave access to the back of the oven to complete
the utility connections. Note: Rear panel must be installed.

IF YOU NEED TO DISASSEMBLE THE APPLIANCE TO MOVE IT THROUGH A NARROW DOOR OR
PASSAGEWAY...
Unplug thermocouple wire and
coil it to prevent damage while
moving the main body.
Unplug igniter wires
and coil them up and
tuck them into the
burner. Disconnect pilot tube at the gas valve and at the
union. Carefully bend the remaining length of
tube from the pilot up inside the burner assembly
to protect it.
Remove the flexible gas
connector.
1.
Interlock connection
to relay will need to
be disconnected.
12
An ongoing program of product improvement may require us to change
specifications without notice. BH-RFG, BH-RFG-W. Revised July 2010
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
Toll Free [phone]
Tel [phone]
Fax [phone]
[email protected] or visit www.woodstonehome.com
Bistro Installation and Operation Manual
DISASSEMBLY

2. Remove the (3) cap nuts that hold
the mantle in place, and remove the
mantle. It may be necessary to cut
the silicone at the joint between the
mantle and the appliance.
3. Remove the control box from the
appliance.
cap nut
13
An ongoing program of product improvement may require us to change
specifications without notice. BH-RFG, BH-RFG-W. Revised July 2010
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
Toll Free [phone]
Tel [phone]
Fax [phone]
[email protected] or visit www.woodstonehome.com
Bistro Installation and Operation Manual
DISASSEMBLY

Using the upper forklift pockets support the appliance
with a forklift or other suitable device. Remove the
bolts that attach the appliance body to the stand. Lift
the appliance off of the stand and place it on blocks
as shown in Step 1 on page 14.
For Bistro 3030 models - forklift pockets are on the
front only and do not extend all the way through the
appliance. Disassemble the stand if necessary. Follow
the instructions on page 10 for tilting and moving
the appliance body. Follow the assembly instructions
on page 17 to reassemble the appliance.
14
An ongoing program of product improvement may require us to change
specifications without notice. BH-RFG, BH-RFG-W. Revised July 2010
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
Toll Free [phone]
Tel [phone]
Fax [phone]
[email protected] or visit www.woodstonehome.com
Bistro Installation and Operation Manual
DISASSEMBLY

1. Use a forklift or other suitable lifting
means to set the appliance body onto
blocks as shown. If the appliance has
the optional decorative logset, remove
it before tipping the appliance.
2. Install the side pieces of the tipping
assembly.
3. Bolt the side piece to the appliance as shown,
and attach the cross-piece using the hardware
provided.
4. Install a clevis in the top hole of each side piece
of the tipping assembly. Use these for attachment
of a lifting strap or chain.
Cut away view
If your appliance was originally shipped assembled, the optional lifting system is available from Wood Stone.
bolt
An optional lifting system is available from Wood Stone to facilitate tipping the oven body onto its back or side (as shown
below).
15
An ongoing program of product improvement may require us to change
specifications without notice. BH-RFG, BH-RFG-W. Revised July 2010
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
Toll Free [phone]
Tel [phone]
Fax [phone]
[email protected] or visit www.woodstonehome.com
Bistro Installation and Operation Manual
LIFTING THE BISTRO

5.Using an appropriate hoist or lift, the appliance
may now be tilted (on its back) onto a pallet jack
or suitable dolly. The appliance can now be
moved through a narrow doorway etc.
DANGER:
Never attempt to move the appliance in this
manner on any type of incline or sloped floor.
16
An ongoing program of product improvement may require us to change
specifications without notice. BH-RFG, BH-RFG-W. Revised July 2010
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
Toll Free [phone]
Tel [phone]
Fax [phone]
[email protected] or visit www.woodstonehome.com
Bistro Installation and Operation Manual
MOVING THE BISTRO
CONTINUE TO THE EXPLODED DIAGRAM AND RE-ASSEMBLY INSTRUCTIONS

All parts shown above and provided with the appliance (except the shipping panel) MUST be installed to ensure the safety
and proper operation of the appliance.
appliance body
control module
flame guard
burner tray
front panel
perforated toe kick rear panel
side panels
mantle
heat shield doors
door posts
17
An ongoing program of product improvement may require us to change
specifications without notice. BH-RFG, BH-RFG-W. Revised July 2010
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
Toll Free [phone]
Tel [phone]
Fax [phone]
[email protected] or visit www.woodstonehome.com
Bistro Installation and Operation Manual
EXPLODED PARTS VIEW

Use the 3/8" x 1"carriage bolts to assemble the stand on a level surface. Be sure to use the washers provided and to
tighten nuts and bolts securely.
FOLLOW THESE INSTRUCTIONS ONLY IF THE BISTRO WAS SHIPPED DISASSEMBLED
1.
2.
On 3030 Models only: Use 3/8"x 3/4" long carriage bolts to attach the sides instead of the 3/8"x 1" long carriage
bolts.
insert long carriage bolts here
18
An ongoing program of product improvement may require us to change
specifications without notice. BH-RFG, BH-RFG-W. Revised July 2010
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
Toll Free [phone]
Tel [phone]
Fax [phone]
[email protected] or visit www.woodstonehome.com
Bistro Installation and Operation Manual
ASSEMBLY

3. Using a forklift, carefully lower the body of the appliance
on to the stand so that the bolt holes line up. While
supporting the appliance with the lift, install the 3/8" x 1"
carriage bolts. Use the washers provided and tighten all
nuts securely. Be sure to use the forklift pockets when lifting
the body of the appliance. Bistro 3030 models - forklift
pockets are on the front only and do not extend all the way
through the appliance.
CAUTION: The appliance is very top-heavy. IF THE APPLIANCE TIPS IT CAN CAUSE SEVERE INJURY OR DEATH! The
appliance should only be moved using a Pallet Jack on a LEVEL FLOOR. Do not attempt to move the appliance
with a hand truck. If the appliance must be moved over an inclined surface, a forklift or other suitable means
should be employed. If the installer does not have the equipment or experience required to move the appliance
safely, we recommend you secure the services of a qualified rigging company.
Make sure the pallet jack wheels do not contact the underside of the fork pocket when lifting to avoid
damaging the stand.
Make sure the pallet jack wheels do not contact the underside of the fork pocket when lifting to avoid damaging the
stand.
4.After the appliance body is bolted to the stand, the appliance can be moved into place with a pallet jack using the
LOWER forklift pockets. If the Bistro is to be installed against a wall, leave access to the back of the appliance until the
assembly is completed.
19
An ongoing program of product improvement may require us to change
specifications without notice. BH-RFG, BH-RFG-W. Revised July 2010
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
Toll Free [phone]
Tel [phone]
Fax [phone]
[email protected] or visit www.woodstonehome.com
Bistro Installation and Operation Manual
ASSEMBLY

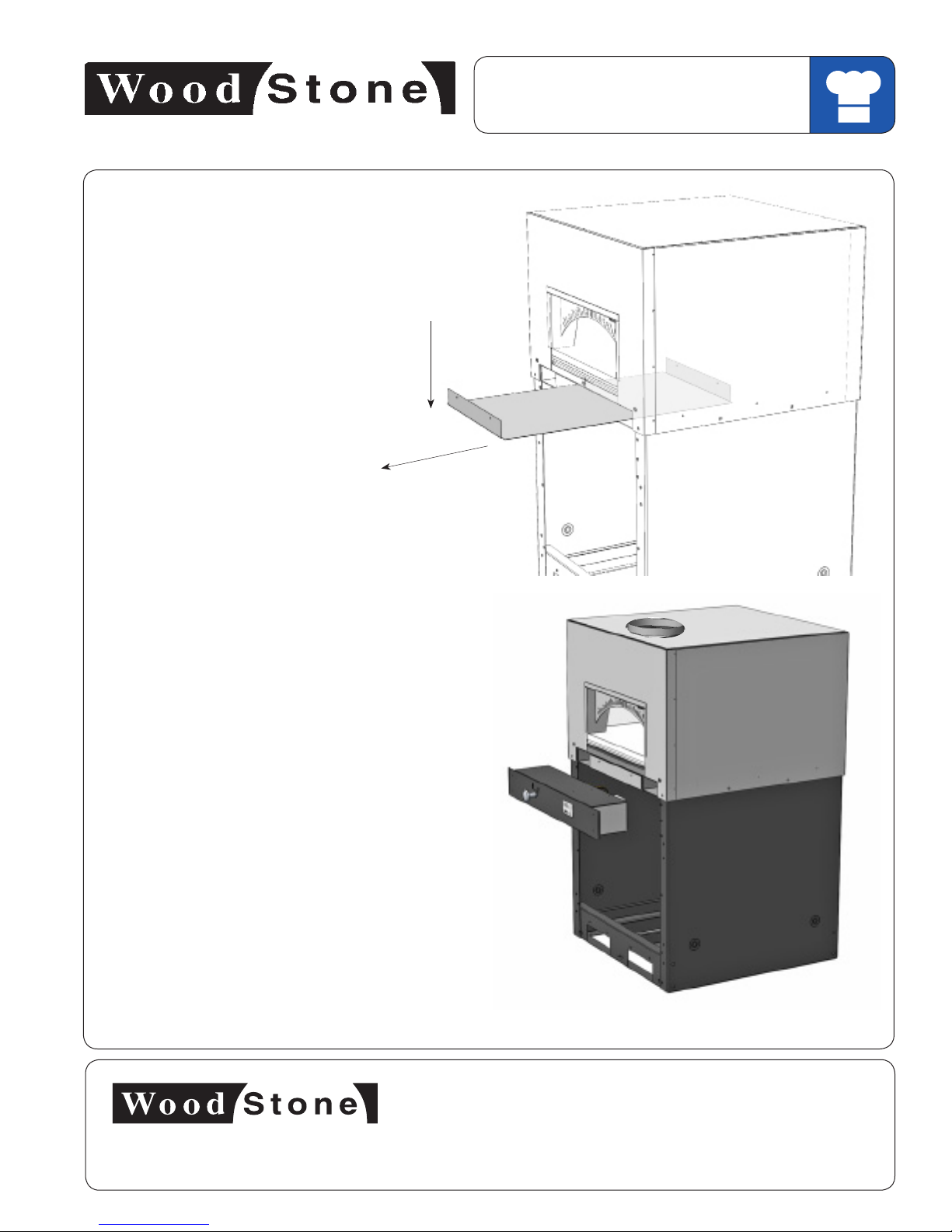

5. Remove the Shipping Panel from beneath
the appliance. The Shipping Panel is secured
with (2) screws in the front, and (2) screws in
the back. Discard the Shipping Panel.
6. Attach the Control Box to the appliance
using (4) 1/4-20 screws. The Control Box
should be oriented so the knob is on the left
side of the Control Box.
20
An ongoing program of product improvement may require us to change
specifications without notice. BH-RFG, BH-RFG-W. Revised July 2010
WOOD STONE CORPORATION
1801 W. Bakerview Rd.
Bellingham, WA 98226 USA
Toll Free [phone]
Tel [phone]
Fax [phone]
[email protected] or visit www.woodstonehome.com
Bistro Installation and Operation Manual
ASSEMBLY
