Woodfold 3300 Series User manual

Opening
Width Opening
Height
Right/Left
Hand Stack
Latch Style Single/Double End
Door Series
Number and Length
of Track Pieces
Order Number

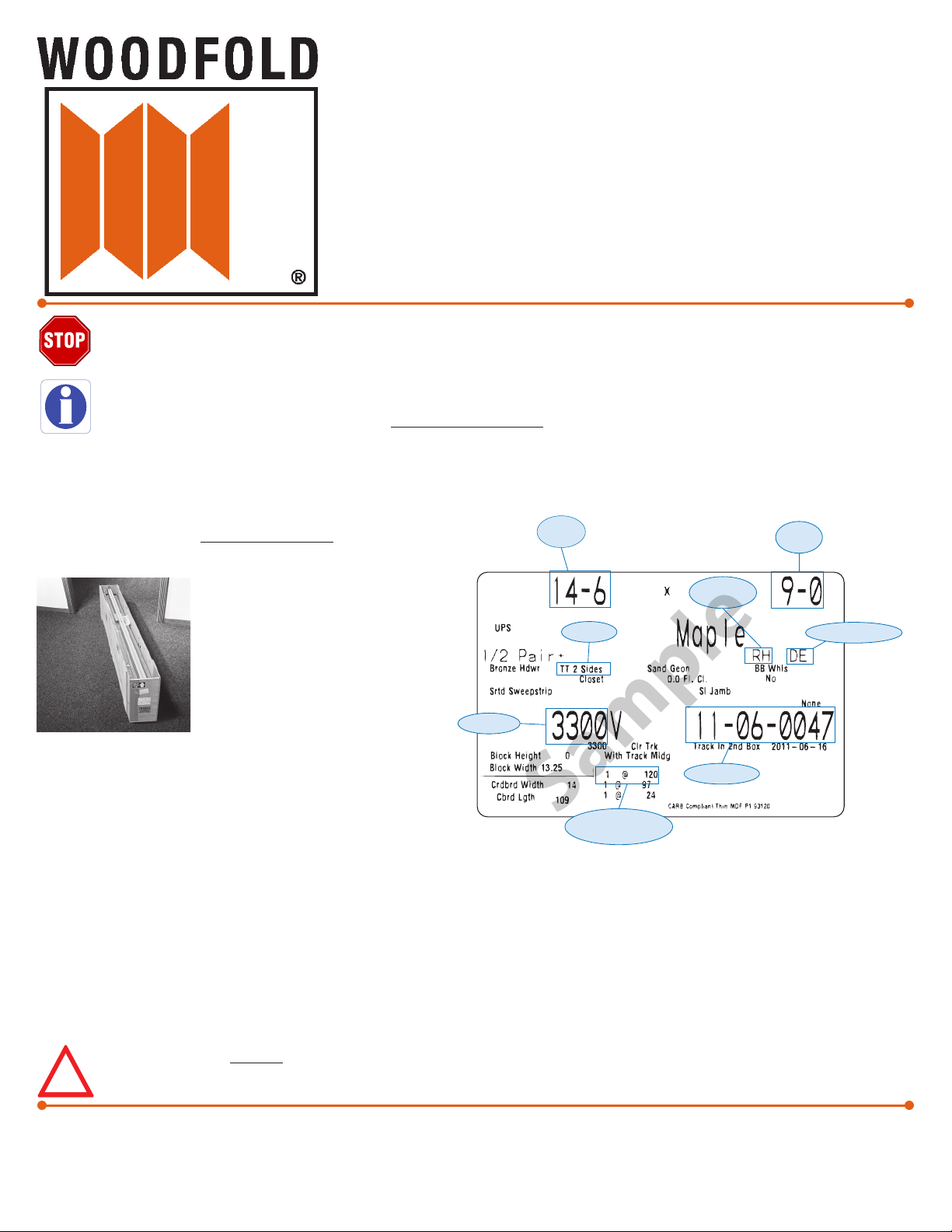

Example Label
Your label will look similar but have your unique information
Sample
Woodfold Mfg., Inc
P.O. Box 346
Forest Grove, OR 97116
Voice [503] 357-7181
Fax: [503] 357-7185
www.woodfold.com
Door InstallatIon
Door serIes: 3300
Bulletin install-3300-120423
Read and understand these instructions before proceeding!
It saves frustration!
Beginning installation before checking things out is discouraged!
Measure Twice - Cut Once so to speak
Lay out the contents on a at surface near the opening
where the door is to be installed.
The package(s) contents should include
;Door
;Track Section(s)
;Interlocking Jamb Molding (Aluminum extrusion a little less than the height of the door. See Page 5 for description.)
;Hardware packet (Screws etc.)
;These instructions (Yes, yes, we know you had to nd them if you’re reading them, but we like to be complete.)
;A copy of the shipping label and packing list with all the information you need if you have to call Woodfold for any reason.
Hold on to it for future reference.
Caution! The factory greased the track for smooth operation! Hands and tools can spread
the grease all over, so please be careful.
Conrm the match of the packaged
door to the intended opening. The
example label to the right shows the
location of the critical information.
Inspect the packaging. If the package was damaged when
it arrived, contact the shipping carrier rst, then notify
Woodfold.
1 PreParatIon
Preliminary Examination

Optional Ceiling Guard & Track
#8 x 1½ Pan or
Truss Head Screw
Aluminum Ceiling
Guard
Alignment Pins
Standard Track
8d (2”)
Finishing Nails
Track
Wood Sweep
Molding
OR
Pair with Flush
Mount (below)
Double End
Single End with
Post Mount
2
Install-3300-120423
The next few steps are much easier if you have assistance

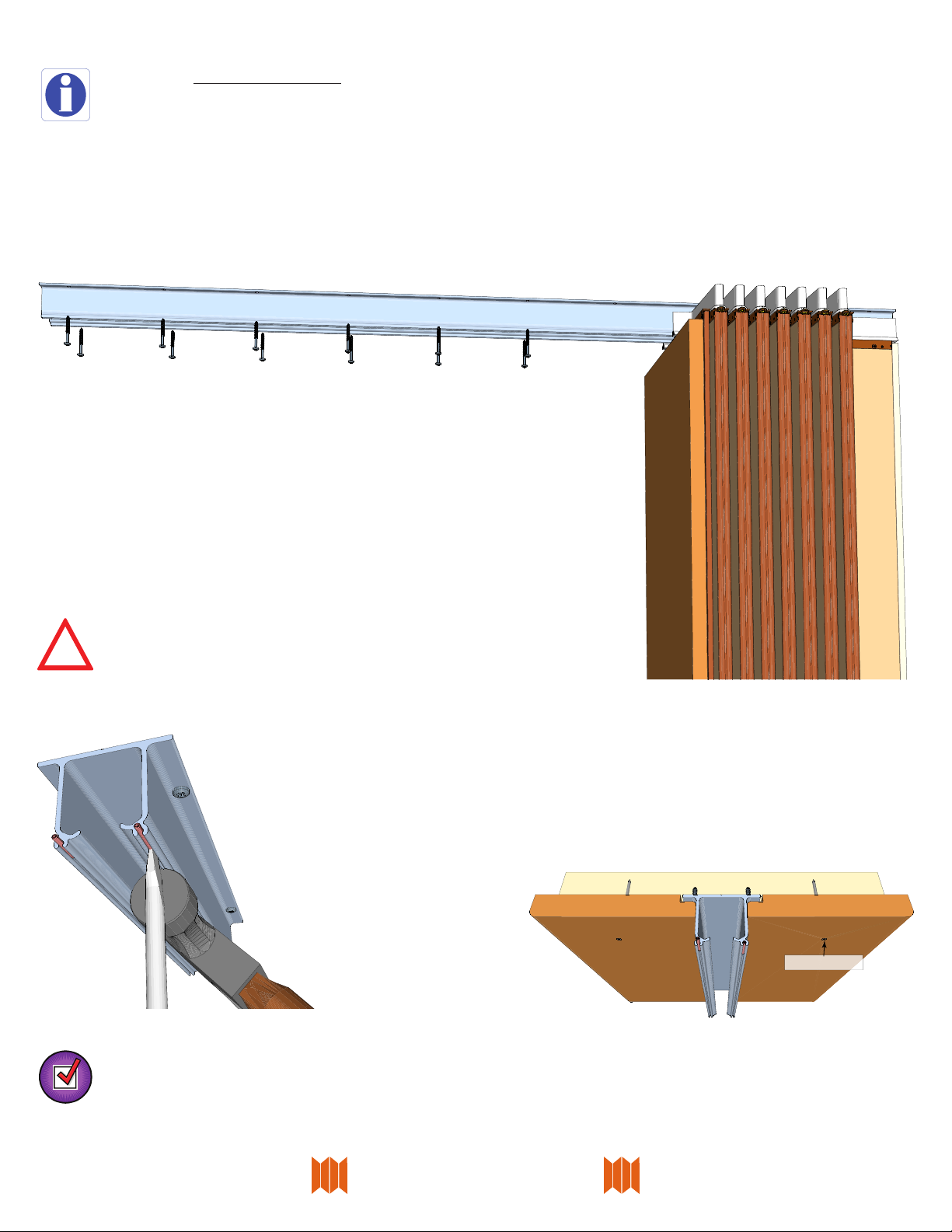

2 track InstallatIon
Need for alignment pins depends on the number of track sections. Short tracks with a single section will not have align-
ment pins.
Note: Some Pairs may have two track sections that butt together without alignment pins. Not to worry! It’s OK
Door Stacking: Double Ended (DE), Single Ended (SE), or Pair
For the purpose of these instructions, doors come in three basic congurations: Double
Ended (DE), Single ended (SE) or a Pair. DE doors have Lead Posts at each end of the
Panel set. SE doors have a Lead Post on one end and a Mounting system on the other
end. Pairs are a set of SE that meet in the middle.
Verify that the track length is correct.
Dry t the track in the opening. The correct length will just t. If needed, trim the track with a hacksaw. Try to keep the metal lings
from mixing with grease inside the track.
If the track is too short by more than ½”, contact your dealer or Woodfold.
Thread the track onto wheels; lineup the wheels properly in the track grooves. Be careful not to
insert the wheels sideways. You won’t like the result.
Insert the alignment pins into the groove of the track at the end that will mate to the next sec-
tion. The split in the pin MUST BE AWAY (perpendicular, see illustration) from the slot in the track.
Drive the spring pins completely into one track using a hammer

Set Nail Heads
3Install-3300-120423
Caution! Firmly attach the track to the structural header!
Sheetrock and many decorative materials do not provide adequate sup-
port
Important: Power Screw Drivers: Check the length of your #2 Phillips Bit. It needs to extend at least 1¼” past the chuck.
Any shorter and the chuck may tear up the track or the screw won’t seat. It falls into the frustrating category when you
have to order a new track.
Conrm the proper orientation of the door. See the door stacking illustrations at the top of Page 2. Position the track to ensure: it
can be securely attached to the header and the Mounting system can be securely attached to the wall or doorjamb.
Check it out! Move the door back and forth along the track looking for smooth operation. Most frequent problems in-
clude wheels sideways or debris in the track.
After the track has been secured, drive the alignment pins across the joints with a hammer and the edge of
a screwdriver.
Stack the door to one end of the track (either side of the opening is OK) and attach the
other end of the track to the header. Use #8 x 1½” pan or truss head screws through the
exposed holes at the end of the track. Seat the head of the screw rmly against the track.
If the screws didn’t go into a solid part of the header (soft stu like sheetrock or acousti-
cal tile doesn’t count) at least ¾”, now would be a good time to go to the hardware store
and get longer #8 pan or truss head screws.
Transfer the door to the attached end of the track. Finish attaching the track with #8 x
1½” pan or truss head screws.
Attach the Sweep Moldings snugly against the Track with 8d (2½”) nish nails. Set the nail heads
slightly below the surface.

Wall/Jamb
Mark Wall/Jamb at the
plywood’s edge near the
top and bottom of the door
Flush Mount
Post Mount
Oset screws
Mounting Panel
Flaps
(1 each side)
L
C
1”
Wall/Jamb Surface
4
Install-3300-120423
This next section is most critical. Improperly installing the wall/jamb Mount results in the majority of trouble calls to Woodfold.
Repeat after me: I will read this section. I will read this section.

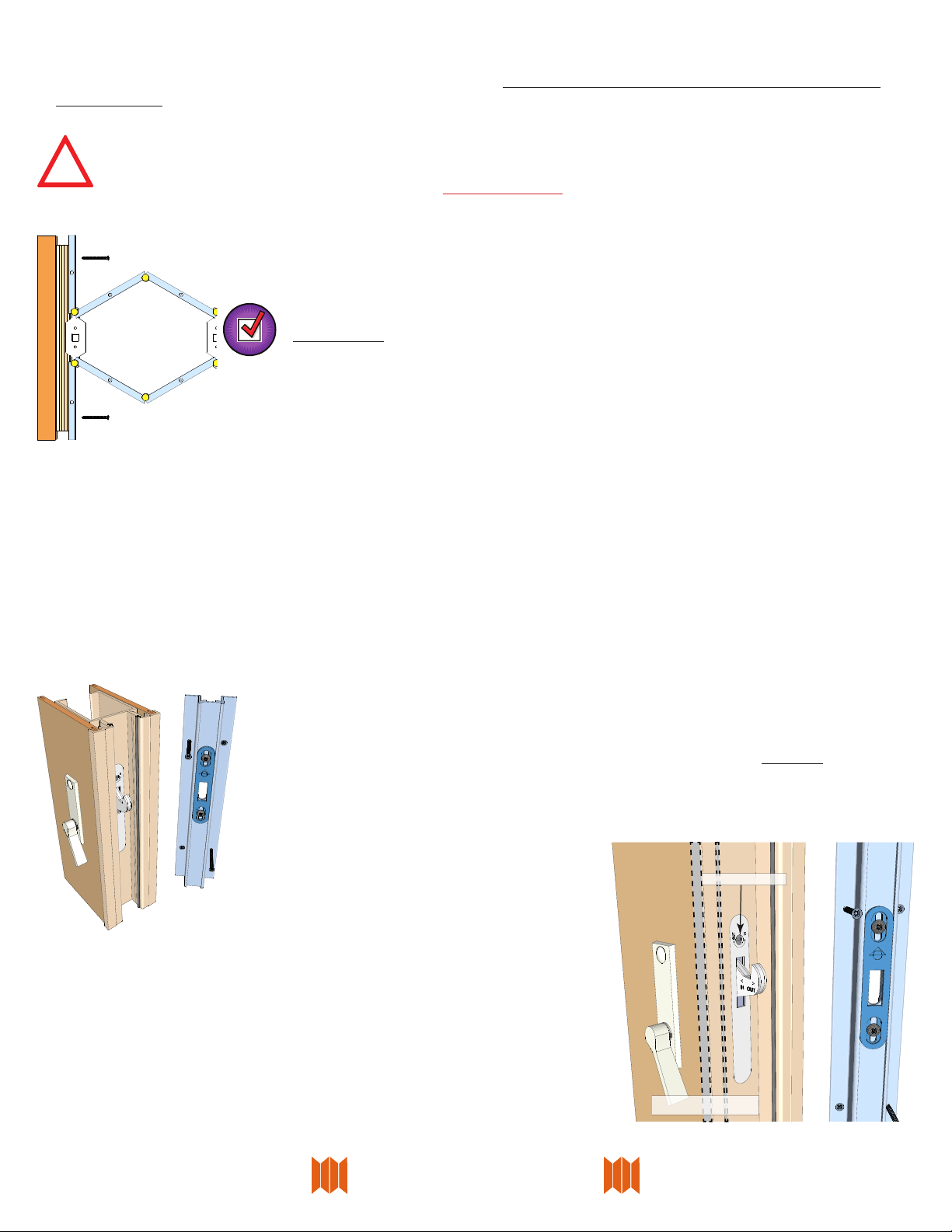

3. Wall or Jamb mountIng systems
If your door is single ended (SE) or a pair (see the top of Page 2) you need to read this Section.
If yours is a double ended (DE) door, forget the warning above and skip ahead to Section 4.
It is important! Make the marks while the door is in its stacked position or the door will
not close properly.
The door mounting panel comes from the factory pre-attached to a piece of plywood. Do Not Remove
the plywood.
Push the door to the side that will be fastened permanently to the wall. Let the door form its own
plumb (hang free) and carefully mark the wall with a pencil at the edge of the mounting panel/plywood
near the top and bottom of the door.
Flush Mounting
Find the 21⁄” x 1¼” post in the shipping package. Attach it to the wall/
jamb surface 1”below and centered on the track. Use the provided
#8 x 2½” at head screws through the pre-drilled holes in the post.
Ensure the post is plumb!
Post Mounting
Push the door over the post. The post will snugly t between the mounting panel aps. Screw
the mounting panel aps to the post using the provided #6 x 1½ at head screws. Place a screw
about 6” from the top and bottom of the post and 2 additional screws equal distances between
the rst 2 screws. Repeat anchoring the 2nd ap being sure to slightly oset the screws so they
won’ t meet in the middle of the post.

Adjustment Screw
Portions of Lead Post and Panel
cutaway for clarity
5Install-3300-120423
Check it out! Can you see the pencil marks? If not, the door has shifted. If there is a gap
between the edge and your marks, the door has shifted the other way. Stack the door against
the Mounting Panel; it should form a neat, tight stack. DON’T Force it. If it binds, you missed
your marks!
When the door stacks properly, re-extend it and install 2 more screws on each side between the rst 2, about equal distances
apart.
OK! Here comes the critical step. You just marked the wall at the top and bottom of the mounting panel edge with the door
stacked. Now, extend the door to have access to the Mounting Panel. Hold the Mounting Panel edge at the pencil marks at both
top and bottom!
Insert #6 x 1½”at head screws about 8”up from the oor and 8”down from the track on both sides.
4 InterlockIng Jamb molDIng
The Interlocking Jamb Molding is the extruded aluminum piece into which the door latches.
If your door is a Pair, and slides from each end to meet in the middle, your Interlocking Jamb Molding is already installed on a lead
post of the door and you may disregard this section.
Hook style catch
Dry t the Interlocking Jamb Molding against the wall, directly under the track. It should t snugly
against the wall and the track at the top. If it needs to be trimmed, trim it at the BOTTOM. The arrow
sticker on the back pointing up can easily determine top and bottom. The latch slot should corre-
spond to the hook of the latch.
Attach the interlocking jamb molding with #6 x 1½” at head screws, through the pre-drilled holes
and into the wall behind.
Shut the door, latch it and wiggle the handle a bit. The Latch should swing fully up
with the Lead Post pulled snuggly against the Interlocking Jamb Molding.
If the t is too loose, or too tight, open the door and adjust the mechanism with a
screwdriver.
Turn the Adjusting Screw clockwise to loosen the t, counterclockwise to
tighten.
Caution! Take care when attaching the Mounting Panel to the wall. As you unfold the door to insert the screws, the posi-
tion of the Mounting Panel may move away from your marks. Sometimes, the marks look “o” when the door is extended.
Trust your marks!

Portions of Lead Post and Panel
cutaway for clarity
6
Install-3300-120423
Thank you for purchasing a Woodfold door.
5 uPkeeP anD care suggestIons
OK! Now the door is installed, let’s review it’s love and care.
Operation/Maintenance
•For proper operation the track must be securely attached to the header, plumb and level. Vertical jambs must be perpendicu-
lar for proper operation. Use instructions for proper installation
•Do not rapidly pull or force any folding door across openings or around corners
•The hinge system may be sti initially and will gradually ease after a period of time with regular use
•During normal use of your Woodfold door watch for instances of binding during movement. If there is binding, inspect the
track for loose screws, dirt, debris and wheel alignment.
•Track may be periodically lubricated with a petroleum jelly type material. Do not use aerosol lubricants
Care/Cleaning
•Avoid exposure to excess or continued moisture
•As with all materials, exposure to light will cause fading
•Regular cleaning of the Vinyl/Acrylic/Aluminum/Veneer- use mild soapy water then dry with a soft cloth or chamois. Do NOT
use household cleaners, abrasive towels or scouring pads.
•Wood veneer doors can be treated periodically using a furniture polish/cleaner
• Acrylic/Aluminum panel doors can be treated periodically with non-abrasive anti-static cleaner to reduce dust accumulation
Check it out! Open and close the door a few times then step back and admire your work.
Installation is complete!
Magnetic Latch
Dry t the Interlocking Jamb Molding against the wall, directly under the track. It should
t snugly against the wall and the track at the top. Each jamb molding is pre-cut to t the
opening, however, trim the molding with a hacksaw at the bottom if needed.
Attach the Interlocking Jamb Molding to the wall with #6 x 1½” at head screws.
