Woodson Pronto W.PO52 User manual

Model:
W.PO52
A guide on the use, care and maintenance
of your quality Woodson Pronto product
Pronto Quick Performance Oven
Rev: F - 21/11/2018
SPECIFICATION, INSTALLATION
AND OPERATION MANUAL
READ ALL INSTRUCTIONS BEFORE USE

Page Intentionally Left Blank
Page 1
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz

Page 2
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
Introduction
Your New Woodson Product � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 3
Warranty Registration � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 3
Product Overview� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 3
Attention � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 4
General Information � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 4
Service
Installation
Setting Up � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 5
Handling
Unpacking
Positioning
Disposal
Electrical Connection � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 6
Information
Quick Installation � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 7
Specication
Technical Specifications � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 8
Operation
Operating Instructions � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 9
First Time Operation
Basic User Interface Functions
Programmed Menu Selection
Manual Cooking Selection
Software Instructions (PC) � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 15
Prepare Cookbook For Uploading to Oven
Upload to Oven
Cleaning � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 26
Cleaning Schedule
General Information
Materials Required:
Cleaning Assist
Oven Cavity Cleaning Procedure
Oven Exterior Cleaning Procedure
Using Oven Protective Agent
Air Filter Cleaning Procedure
Catalytic Converter Maintenance Procedure
Troubleshooting � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 30
Error Codes
Order Form
Order Form � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 32
Contents

Page 3
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
NOTE: Please read the Software instructions Page 15-25 before using the USB
On/Off
HOT AIR
Exhaust Vent
Heat Deflector
Wall Spacer
Rating Plate
Wire Rack
Crumb Tray
Air Filter
Control Panel
Foot
USB Port
Catalytic Converter
Introduction
CAUTION
Surface is Hot
Thank you for choosing this quality Woodson product� All our products are designed and made to meet the needs of food service professionals�
By using, caring and maintaining your Woodson product according to these instructions, your Woodson product should give you many years of
reliable service�
Stoddart is a wholly Australian owned company, which manufactures and distributes Woodson commercial catering equipment�
Stoddart products are manufactured and/or engineered in Australia to provide excellent results whilst offering-value-for-money, ease-of-use
and reliability�
Stoddart manufacture and distribute a comprehensive range of equipment for kitchens, food preparation and presentation�
Configuration may vary according to model�
To register your new product go to: http://www�stoddart�com�au/warranty-registration
Your New Woodson Product
Product Overview
Warranty Registration

Page 4
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
• Only specifically trained/qualified Technicians (Stoddart, one of our service agents, or a similarly qualified persons) should carry out any
and all repairs, maintenance and services
Carefully read this instruction booklet, as it contains important advice for safe installation, operation and maintenance� Keep this booklet on
hand in a safe place for future reference by other operators or users�
Stoddart design, manufacture & distribute Food Service Equipment (appliances) exclusively for the commercial market.
This appliance is not designed nor intended for household or domestic use & must not be used for this purpose.
This product is intended for commercial use, and in line with Australian electrical safety standards the following warnings are provided:
• This product is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision or instruction concerning the use of the product by a person
responsible for their safety� Children should be supervised to ensure that they do not play with the product
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid
a hazard
• All units MUST be installed according to the procedures stated in the installation section of this manual
• In the case of new personnel, training is to be provided before operating the equipment
• DO NOT use this unit for any other purpose than its intended use
• DO NOT store explosive substances such as aerosol cans with a flammable propellant in or near this unit
• Keep fingers out of “pinch point” areas
• Unit is not waterproof DO NOT use jet sprays, hoses or pour water over/on the exterior of the unit
• Only use this unit with voltage specified on the rating label
• Do NOT remove any cover panels that may be on the unit
• DO NOT use sharp objects to activate controls
• If any fault is detected, refer to troubleshooting
• The manufacturer declines any liability for damages to persons and/or things due to an improper/wrong and/or unreasonable use of the
machine
When using any electrical unit, safety precautions must always be observed�
Our units have been designed for high performance� Therefore, the unit must be used exclusively for the purpose for which it has been designed�
Read these instructions carefully and retain for future reference�
The manufacturer and distributor cannot be held responsible or liable for any injuries or damages of any kind occurred to persons,
units or others, due to abuse and misuse of this unit in regards to installation, removal, operation, servicing or maintenance, or lack of
conformity with the instructions indicated in this documentation�
Disclaimer
All units made by the manufacturer are delivered assembled, where possible, and ready to install� Any installation, removal, servicing,
maintenance and access or removal of any parts, panels or safety barriers that is not permitted, does not comply in accordance to this
documentation, or not performed by a TRAINED AND AUTHORISED SPECIALIST will result in the
IMMEDIATE LOSS OF THE WARRANTY.
The manufacturer cannot be held responsible or liable for any unauthorized modifications or repairs� All modifications or repairs must
be approved by the manufacturer in writing before initiating� All modifications or repairs performed to this unit must be performed at all
times by a TRAINED AND AUTHORISED SPECIALIST.
Attention
General Information
Service
Introduction
Thank you for choosing this quality Woodson product� All our products are designed and made to meet the needs of food service professionals�
By using, caring and maintaining your Woodson product according to these instructions, your Woodson product should give you many years of
reliable service�
Stoddart is a wholly Australian owned company, which manufactures and distributes Woodson commercial catering equipment�
Stoddart products are manufactured and/or engineered in Australia to provide excellent results whilst offering-value-for-money, ease-of-use
and reliability�
Stoddart manufacture and distribute a comprehensive range of equipment for kitchens, food preparation and presentation�
Configuration may vary according to model�
To register your new product go to: http://www�stoddart�com�au/warranty-registration

Page 5
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
Installation
• Use suitable means to move the unit: eg� A lift truck or fork pallet trucks (the forks should reach more completely beneath the unit)
• Check the unit for damage before and after unpacking� If unit is damaged, contact the distributor and manufacturer
• Should any item have physical damage, report the details to the freight company and to the agent responsible for the dispatch within
seven (7) days of receipt� No claims will be accepted or processed after this period
• The unit is supplied fully assembled
• Remove all protective plastic film, tapes, ties and packers before installing and operating
• Clean off any remaining residue from the interior/exterior of the unit using a clean cloth dampened with warm soapy water
• Choose an area that is well ventilated and provides access for future maintenance
• Place the unit on a level stable work surface capable of supporting its weight
• Do not position the unit in a wet area, an area with a lot of heat and steam or near flammable substances
• Allow an air gap between the unit and other objects or surfaces� We recommend a minimum gap of 100mm for normal operational use
(if the unit is near any heat sensitive material we suggest you allow additional space)
• Please consult national and local standards to ensure that your unit is positioned in accordance with any existing requirement
• At the end of the appliance’s working life, make sure it is scrapped & components recycled properly
• Current environmental protection laws in the state/country of use must be observed
• Doors must be removed before disposal
• Power supply cable must be removed before disposal
• For further information on the recycling of this product, contact the local dealer/agent or the local body responsible for waste disposal
WARNING
Improper installation, adjustments, alterations, service or
maintenance can cause property damage, injury or death.
Setting Up
Handling
Unpacking
Positioning
Disposal
WARNING
DO NOT cover or block the exhaust vents.
Doing so can cause a re, property damage, injury or death.

Page 6
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
Electrical Connection
Information
Installation
On-site Connection:
• The electrical supply must comply with the rating plate data
• Ensure that the machine is connected to a suitably rated and earthed power source
• Ensure that there is an isolation switch installed near the unit
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a
hazard� Please contact Stoddart for parts and we will advise how to do this in order to avoid any electrical hazard
• The power cable should be dry and/or isolated from moisture or water
Aggregate electrical ratings of the Unit are expressed in kilowatts in this manual�
Single Phase Units:
Supplied with an appropriately rated plug and lead fitted and be indicated as:
• 32A plug & lead fitted
WARNING
This unit must be installed in accordance with AS/NZS 60335.1
Some procedures in this manual require the power to the equipment to be turned
o󰀨 and isolated. Turn the power OFF at the power point and unplug the power
supply lead by the plug body. If the power point is not readily accessible turn the
equipment o󰀨 at the isolation switch or the circuit breaker in the switchboard.
Attach a yellow “CAUTION-DO NOT OPERATE” tag. This must be performed
where relevant unless the procedures specify otherwise.
FAILURE TO DO SO MAY RESULT IN ELECTRIC SHOCK.
WARNING

Page 7
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
Quick Installation
Tilt the oven, and secure the four feet to the
underside of the oven.
pronto
Open the oven door and remove all
documents, accessories, packing materials
and protective plastic film.
Attatch the wall spacer brackets provided,
using the thumb screws provided.
1. 3.2.
Place Oven on the working surface, keeping a recommend gap of 55mm between the back of the oven and the wall and a 55mm gap
from the sides of the oven and other appliances and or walls. Level by adjusting the feet.
pronto
55mm55mm 55mm
4.
Connect to an appropriately rated and
earthed power supply (see Page 6).
Switch on.
Enjoy cooking with your new
Woodson Pronto Oven!
pronto
6.5.
CAUTION!
DO NOT leave the hot air exhausts exposed, contact with hot air
exhaust can cause burns and serious injury.
Installation

Page 8
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
Technical Specications
Specications
Model W.PO52
Height 613mm
Width 520mm
Depth 714mm (689mm without spacer)
Net Weight 56.5kg
Operating Ambient Temperature 10°C - 40°C
Operating Ambient Humidity 20 - 60%
AMPS 21Amp Single Phase
weiVediSweiVtnorF
714
180
320
843
594
87˚
62
520
613 550
Specication

Page 9
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
Operating Instructions
First Time Operation
Basic User Interface Functions
Upon setting up your equipment, the following steps must be followed:
1� Turn the unit on at the “Power Switch”� The oven will enter the warm up mode and display the warm up screen�
This will take approximately 5-10 minutes for the oven to reach operating temperature
2� Once the warm up sequence has reached the standby temperature of 200°C, the oven is ready for use and will display the
Basic User Interface, as shown below
Main Menu
Scroll Up
Scroll Down
Manual Cooking
Cookbook Menu
The oven is designed for easy use through a pre-programmed “cookbook” which can hold up to 50 cooking recipes� The oven comes pre-
loaded with a cookbook�
To add or adjust cooking recipes users must do this on a PC using the MakeProfile software� This software is installed on the USB supplied
with the oven and must be copied to the PC�
A saved “cookbook” is copied to the USB then transferred to the oven by inserting the USB into the oven and uploading the file�
Operation

Page 10
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
From the “Basic User interface” touch the Main Menu icon to enter the Main Menu:
English
English
Simplified Chinese
Japanese
Korean
Traditional Chinese
Return: Return back to the Basic User interface
Software Upgrade: Update system to latest software
Language Selection: Choose from five different languages
Information: Serial number, software and hardware version
Temperature Display: Change temperature to Fahrenheit or Celsius
Cookbook: Upload a custom cookbook, this will overwrite the existing cookbook on the oven (pin required), refer to page 24
General Settings: Adjust Standby temperature, Power saving temperature, temperature correction, idle timer, change temperature
display� (Note settings stored manually on the oven will be overwritten when a cookbook is uploaded to the oven)�
- Enter the general settings PIN “9999” use the tabs to change the number (0 - 9)� Touch the icon, this will bring up the
general settings display� (The PIN “9999” cannot be changed)
Cleaning Assist: When this icon is touched, the device enters the cooling state� The device can be cleaned only after the cooling is
completed, refer to page 27
A
A
B
B
C
D
E
C
A
B
C
E
D
C/F
Enter PIN
9999
A
B
C
D
Default Settings: Adjust Standby temperature, Power saving temperature, temperature correction, idle timer
D
Operation

Page 11
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
180°C
200°C
30:00
25°C
0
Standby Temperature: Default temperature 200°C� Adjustable range 150°C ~ 250°C
Temperature Correction: Technician use only
Power-Saving Temperature: Default temperature 180°C� Adjustable range 100°C ~ 180°C
Temperature Zone: Default Zone:5°C ~ 30°C� This function is strongly recommended for high volume use� After setting the
temperature zone, the device will start cooking without having to reach the set temperature (For example, if the set temperature is 200°C
and the set temperature zone is 30°C, then the device will enter the cooking status when the device’s actual temperature reaches
170°C ~ 230°C)
Idle Time: Default idle time 20minutes� Adjustable range 0 ~ 30minutes� Oven automatically enters power-saving mode after idle time�
(When “0”is selected oven will not enter the energy saving mode)
A
E
B
D
C
A
B
C
D
E
Operation

Page 12
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
Programmed Menu Selection
• Turn the unit on at the “Power Switch”� (The Start up screen will display)
• Wait 5-10 minutes for the oven to reach the preset standby temperature (200°C default)
• When the oven reaches the standby temperature it will automatically enter the default Basic User interface
• Up to 50 cooking recipes can be stored in the cookbook menu, with 4 appearing on the display screen at one time
• Touch the icons to scroll through the stored cookbook cooking recipes
1. Select a cooking recipe from the programmed cookbook selection ( e�g� “Chicken
Mid-Wings Raw”)� Touch the required icon, if required the Pronto oven will heat up
or cool down depending on the selected product
6:00
2. When the device reaches the set cooking temperature, the display will show the
“Load Product” screen
3. A signal will sound once the cooking program has finished, remove the food from
the oven� (The screen automatically switches back to the default interface after the
oven door is closed)
4. When cooking is in progress, The countdown timer will start as soon as the door is
closed�
Load Product
Note: Cooking recipes are programmed on a PC using the software supplied with the oven� See pages 15-23 for instructions on how to
program the cooking recipes and upload to the oven�
Cancel Operation
Cancel Operation
Operation

Page 13
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
Manual Cooking Selection
1 2
200°C
2:00
100%
0
1 2
200°C
2:00
100%
0
1 2
200°C
2:00
100%
0
Manual cooking can be programmed to operate with two stages� After Stage 1 has been entered, enter Stage 2 if required�
• Turn the unit on at the “Power Switch”� (The Start up screen will display)
• Wait 5-10 minutes for the oven to reach the preset standby temperature (200°C default)
• When the oven reaches the standby temperature it will automatically enter the default preset menu interface
1. Touch the Manual Cooking icon�
2. Cooking Temperature:
Touch the temperature icon or the number, and use the tabs to adjust
the parameter value� (100°C - 275°C)
3. Cooking Time:
Touch the time icon or the number, and use the tabs to adjust the
parameter value� (10secs - 10mins)
4. Fan Speed:
Touch the fan icon or the number, and use the tabs to adjust the
parameter value� (50% - 100%)
Operation

Page 14
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
1:15
Load Product
1 2
200°C
2:00
100%
0
1 2
200°C
2:00
100%
0
5. Bottom Infrared Element:
Touch the heating pipe icon or the number, and use the tabs to adjust
the parameter value�
Level 0: 800W (default)
Level 1: 1500W
Level 2: 2000W
Level 3: 2500W
Level 4: 3000W
6. After completing the settings, touch the icon
7. When the device reaches the set cooking temperature, the display shows the
words “Load Product”
8. When cooking is in progress, The countdown timer will start as soon as the door
is closed
9. A signal will sound once the cooking program has finished, remove the food
from the oven� (The screen automatically switches back to the default interface
after the oven door is closed)
Cancel Operation
Cancel Operation
Operation

Page 15
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
Software Instructions (PC)
Use the MakeProfile software to program your cookbook with up to 50 cooking recipes�
Note: Some computers may or may not show file extensions� e�g� file.bin / file.pdf / file.exe (this user manual shows file extensions)�
New
Open
Save
Save as
Exit
Menu connect versionIcons library
Cookbook version
File HelpEdit
File name: *.bin
Cancel
DATA (D:)
OS (C:)
USB (F:)
recipe01
Open
Recipe Cookbooks
Recipe Icons
Default Cookbook
Software
User Manuals
Default Cookbook
recipe01.bin
recipe02.bin
USB
default.bin
Recipe Cookbooks
Default Cookbook User Created
Cookbooks
profile.binRecipe Icons
Text Template Generic Icons
Text Icon Template.doc
Software
MakeProfile.exe
User Manual
User Manual.pdf
Recipe Guide.pdf
Warranty.pdf
Recipe Cookbook Creation/Alteration
1. Insert the supplied USB into your PC� USB file structure shown below�
2. Save a backup copy of all the files on the USB to the PC� ( We suggest this to be done regularly as the recipe library is increased)
3. Open the Software folder on the USB, then launch the “MakeProfile”software (right click MakeProle.exe then select Open). When
MakeProfile opens to the home screen you will see 3 drop down menus in the “menu bar” File, Edit and Help�
Note: If MakeProfile does not launch refer to troubleshooting on page 30
4. New Cookbook: To create a new cookbook from the menu bar select: File > New�
Existing Cookbook: To edit an existing cookbook from the menu bar select: File > Open > USB > Recipe Cookbooks
Operation

Page 16
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz

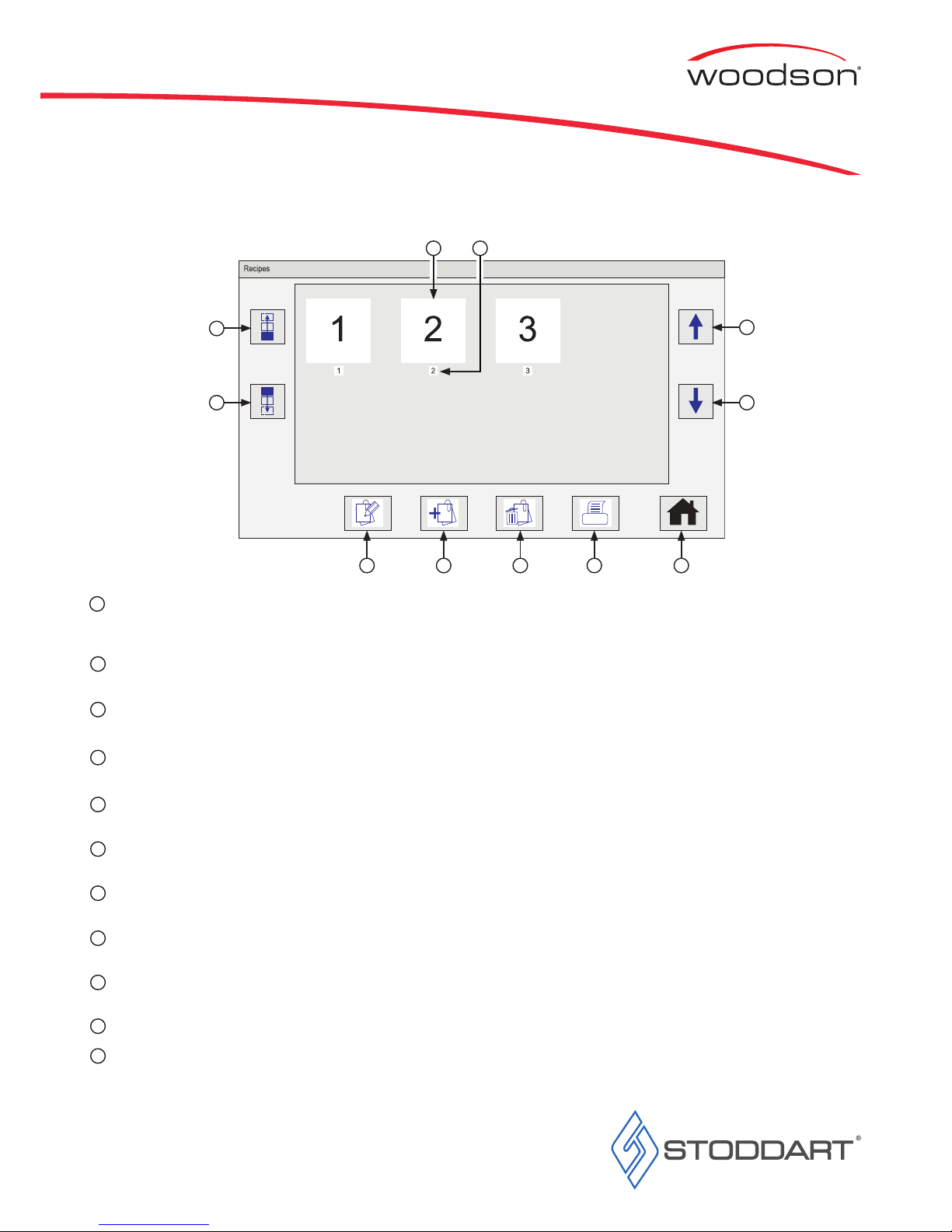

Cooking Recipe: When creating a new cookbook, 3 default cooking recipes are shown with 1, 2 and 3 as the default cooking recipe
icons, these cooking recipes can be edited/deleted� Create up to a total of 50 new cooking recipes on the cookbook�
(4 cooking recipes will be displayed at one time on the oven interface)
Scroll up: Use this to scroll up through the cooking recipes in the cookbook
Scroll Down: Use this to scroll down through the cooking recipes in the cookbook

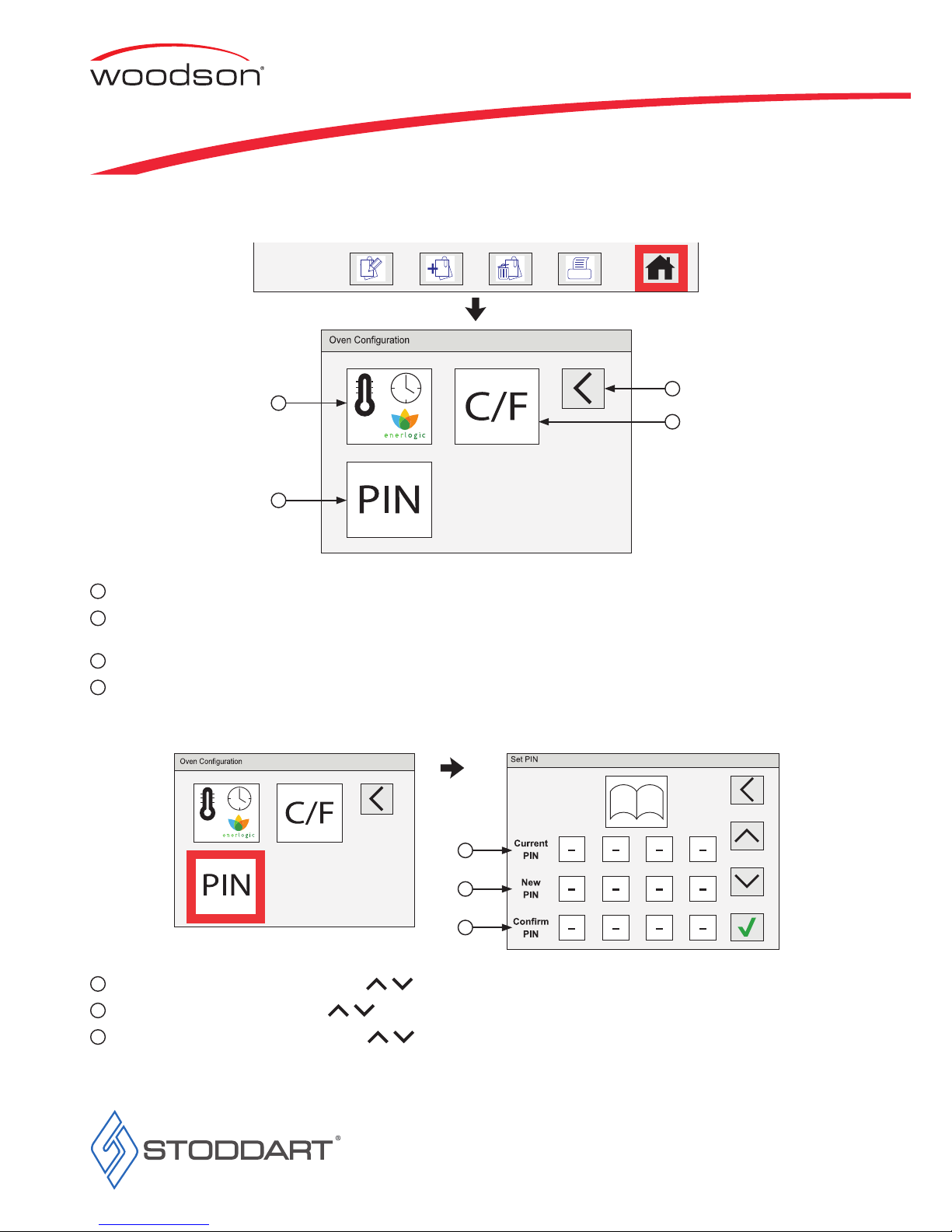

Oven Configuration: Adjust the temperature display (Fahrenheit or Celsius), temperature settings, Idle Settings (standby temperature,
power saving temperature, idle timer and temperature zone) and cookbook PIN
Print Cookbook: A cookbook with full program parameters for each recipe can be printed as a digital or hard copy (this is helpful for
users to test recipe programs and make notes for modifications to be made in the cooking recipes using the software)
Delete Cooking Recipe: Select the desired "cooking recipe" icon, then click the “delete cooking recipe” tab� This will permanently
remove a cooking recipe from the cookbook
New Cooking Recipe: Click the "new cooking recipe" icon, to create a new cooking recipe� Cooking recipes can be programmed to
operate with two stages
Edit Cooking Recipe: Select the desired "cooking recipe" icon, then click the "edit cooking recipe" tab� Cooking recipes can be
programmed to operate with two stages
Move Cooking Recipe Forward: Select the desired "cooking recipe" icon, then click the "move cooking recipe forward" tab to
move the cooking recipe forward in the cooking recipe index (1-50)� This will change the index numbers of the cooking recipes
Move Cooking Recipe Backward: Select the desired "cooking recipe" icon, then click the "move cooking recipe backward" tab
to move the cooking recipe backwards in the cooking recipe index (1-50)� This will change the index numbers of the cooking recipes
A
C
C
D
D
Cooking Recipe Index: Each recipe is allocated its own individual index number (1-50)� This indicates the recipe sequence in the
cookbook, this sequence can be adjusted using buttons C and D
B
E
E
F
F
G
G
H
H
I
I
J
J
K
K
A B
5. Recipe interface: It is the same process for editing an existing cookbook as it is for creating a new cookbook�
Operation

Page 17
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
Cooking Recipe Icon: Displays the selected cooking recipe icon� This can be changed by clicking the “Icon Library”tab
Cooking Recipe Index: Indicates cooking recipe sequence in the cook book� This can be changed in the “recipes interface”
Cooking Recipe Stage: Each cooking recipe can be programmed to operate with 2 stages� Toggle between the 2 stages and enter
each cooking recipe parameter D-G
1
A
A
B
B
C
C
D
E
F
G
H
K
I
J
Cooking Temperature: Click the “cooking temperature” value� Use the tabs to adjust the parameter value�
(100°C - 275°C)
Cooking Time: Click the “cooking time” parameter value� Use the tabs to adjust the parameter value�
(10secs - 10mins)
Fan Speed: Click the “fan speed” parameter value� Use the tabs to adjust the parameter value� (50% - 100%)
Icon Library: Click the “icon library” tab to change the cooking recipe icon� Custom icons can be imported from your PC
Parameter Value Up: Increase the value of the selected parameter
Parameter Value Down: Decrease the value of the selected parameter
Save: After completing cooking recipe, click the tab save and exit from the Parameters Interface
Bottom Infrared Element: Click the “bottom infrared element” parameter value� Use the tabs to adjust the parameter
value� (Level 0: 800W (default), Level 1: 1500W, Level 2: 2000W, Level 3: 2500W, Level 4: 3000W)
D
E
F
G
H
Return: Clicking the “return” tab will exit out of the Parameters interface without saving
K
I
J
L
L
6. Recipe Programming Parameters interface: To enter the Parameter Interface click on the “edit cooking recipe” or “new cooking recipe”
tab in the Recipe Interface� Here you can enter/adjust the parameter values for the selected 2 stage cooking recipe and change the
cooking recipe icon
Operation

Page 18
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
Scroll up: Use this to scroll up through the cooking recipes icons in the Icon Library
Scroll Down: Use this to scroll down through the cooking recipes icons in the Icon Library
Cooking Recipe Icon: Embedded recipe icons available for use in your cookbook
Embed Recipe Icon: Click the “embed recipe icon” tab, navigate to saved images on your PC, select the image to embed then click
open� When embedding a recipe icon, it needs to be a square shaped (e�g� 30 x 30mm) low resolution �jpeg, �png or �bmp file�
Custom Image files can be created by using the snipping tool to capture images of text or food items then saving as a �jpeg file�
Text images can easily be created to the required shape, using the Text Icon Template on the supplied USB
1
A
B
B
C
C
D
D
Delete Cooking Recipe Icon: Select the desired "cooking recipe icon”, then click the “delete cooking recipe icon” tab� This will
permanently remove a cooking recipe icon from the icon library
E
E
Save: After selecting the desired “cooking recipe icon”, click the tab save and exit from the Icon Library
F
F
A
7. Icon Library: Recipe icons can be changed to suit a users preference� Icons can be created from any digital image on the users PC� To
enter the icon library click on the “icon library” tab in the Parameters Interface� All icons uploaded to the cookbook are permanently
embedded into the cookbook file
Operation

Page 19
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
Cookbook PIN: Change the PIN code for the cookbook from the default “0000”� Ensure new PIN code is recorded�
(PIN code cannot be reset if forgotten)
New Pin: Enter the New PIN� Use the tabs to change the number (0 - 9)
Return: Return back to the Recipe Interface
Confirm Pin: Confirm the New PIN� Use the tabs to change the number (0 - 9)
Default Settings: Adjust Standby temperature, Power saving temperature, temperature correction, idle timer
Current Pin: Enter the Current PIN� Use the tabs to change the number (0 - 9)
Temperature Display: Change temperature to Fahrenheit or Celsius
A
A
B
B
C
C
A
B
C
D
A
B
C
D
8. Oven Configuration: To enter the Oven Configuration click on the “oven configuration” tab in the Recipe Interface
9. Change Cookbook PIN: To change the cookbook PIN click on the “PIN” tab in the Oven Configuration
Operation
