WoongJin STM-7700 User manual

STM-7700™USER MANUAL

- Table of Contents -
Copyright -------------------------------------------------------------------------------------------------------- --------------------------------------------- 4
Proper Handling of the device -------------------------------------------------------------------------------- ----------------------------------------- 5
Ⅰ. Before Using the device ----------------------------------------------------------------------------------- ----------------------------------------- 7
1. Product Configuration --------------------------------------------------------------------------------------------------------------- 8
2. Specifications (Device/Cradle) --------------------------------------------------------------------------------------------------- 9
3. Charging the Battery ---------------------------------------------------------------------------------------------------------------- 11
4. Replacing printer supplies –Thermal Paper --------------------------------------------------------------------------------- 12
5. Initialization ---------------------------------------------------------------------------------------------------------------------------- 13
I. Getting Started -------------------------------------------------------------------------------------------------------------------------------------- 14
1. Power On ---------------------------------------------------------------------------------------------------------------------------------- 15
2. How to use the Stylus Pen ------------------------------------------------------------------------------------------------------------ 17
3. Screen Description ---------------------------------------------------------------------------------------------------------------------- 18
4. Configuring the device ----------------------------------------------------------------------------------------------------------------- 20
5. Locking and unlocking the device --------------------------------------------------------------------------------------------------- 26
6. Manage battery life ---------------------------------------------------------------------------------------------------------------------- 27
II. Use File Explorer ----------------------------------------------------------------------------------------------------------------------------------- 29
1. Run and use the File Explorer -------------------------------------------------------------------------------------------------------- 30
III. Terminal settings, how to optimize … -------------------------------------------------------------------------------------------------------- 31
1. Background image -------------------------------------------------------------------------------------------------------------------- 32
2. Brightness ------------------------------------------------------------------------------------------------------------------------------- 34
3. Volume and Sounds ------------------------------------------------------------------------------------------------------------------ 35
4. Screen ------------------------------------------------------------------------------------------------------------------------------------ 37
5. Bluetooth --------------------------------------------------------------------------------------------------------------------------------- 38
6. Pictures and Videos ------------------------------------------------------------------------------------------------------------------- 45

- Table of Contents -
V. PC connection -------------------------------------------------------------------------------------------------------------------------------- ----- 44
1. Microsoft ActiveSync installation ----------------------------------------------------------------------------------------------------- 45
2. Connect to a PC to install the program --------------------------------------------------------------------------------------------- 47
VI. Appendix --------------------------------------------------------------------------------------------------------------------------------------------- 48
1. Troubleshooting -------------------------------------------------------------------------------------------------------------------------- 49
2. Initialize to factory default ------------------------------------------------------------------------------------------------------------- 53
3. Terminal maintenance ------------------------------------------------------------------------------------------------------------------ 54
4. Product specifications ------------------------------------------------------------------------------------------------------------------- 55
5. Others --------------------------------------------------------------------------------------------------------------------------------------- 56
6. Notes ----------------------------------------------------------------------------------------------------------------------------------------- 57

This user’s manual and related products are under the protection of the copyright
law, all rights reserved. This document and any part hereof may not be copied,
adopted or translated into other languages without prior written consent of
WoongJin System & Technology Co. Ltd.
Copyright
•Use the Windows System OS documentation for information regarding the same. For
information about the PC used, please refer to the PC instruction manual.
•All names and products used in this manual are names, service marks, and/or registered
trademarks of their respective owners.
•Picture, screens, features used herein may vary slightly with the actual product depending
on the product version.
•WoongjinST reserves the right to change/,modify this user’s manual without prior notice
depending on the circumstances that affects the product and/or its version.
•Users must read the PRECAUTIONS before using the product.
WoongJin System & Technology Co. Ltd., in reference to the instructions and/or
information in this user’s manual in relation to the products referred to herein,
does not provide nor implies the granting of an unlimited guarantee of any kind.
4

To insure the smooth and safe usage of this product, read carefully the
instructions detailed in this manual.
Proper Handling of the Device
Using accessories other than those recommended and/or included in this
product can cause accidents and product failures. Woongjin System &
Technology Co. Ltd. Will not be responsible for such accidents and/or failures.
Bringing this product to unauthorized repair or service centers/shops will void the
warranty. Please contact the manufacturer for any repair and maintenance
needs.
Counterfeit mobile phone
This product is identified through its unique phone number (ESN: Electronic
Serial Number). Illegally reproducing or changing this unique number is a
criminal act under Article 347,and is punishable with less than 10 years of
imprisonment or a fine of less than KRW 20 million. In addition, this illegal act
voids the warrant of this product.
Wireless/Radio Equipment Inspection and Registration
•This product is inspected by and registered with the Ministry of Information &
Communication.
•This product can not be modified that could cause changes in its performance
that infringes on the conditions of the registration.
5

•Avoid eye contact with the Barcode scanner. It can cause eye damage.
•Do not remove the battery while device is ON.
•Use only the specified battery charger. Using other chargers can cause
damage to the battery and/or be a fire hazard.
•Do not make modifications to this product. This could cause fire, damage,
electric shock, or serious injuries to users.
•Do not use this product near gas and other flammable liquid. This could
cause explosion.
•Avoid using this product during lightning and thunder storms.
•Keep this product out of reach of children and animals.
•In places where wireless/radio communication is restricted (air flights,
near medical equipments, or similar places), follow the instructions
provided for by the authorities of such places.
•Do not leave this product in areas with high temperature and/or extreme
temperature changes. Do not expose this product to direct sunlight.
(Exposing this product to high temperature for long periods could cause
explosion.)
•Avoid using this product in areas with high moisture level. Do not
submerge this product under water.
•When subjecting this product to search equipment (x-ray machines) in
airports, it is advisable to be aware of what is happening.
Proper Handling of the Device
6

Before using the device...
Ⅰ
1. Product Configuration
2. Specifications (Device/Cradle)
3. Charging the Battery
4. Replacing printer supplies –Thermal Paper
5. Initialization
7

2)Additional Product Configuration
Stylus Pen USB Cable Printer
& Connection Wire Thermal Paper
1) Basic product configuration
STM-7700 Battery & Power cord
Main device Cradle & Adapter
Product Configuration
Ⅰ-1
8

Specifications (Device)
Ⅰ-2
1) Mobile Device Description
9

Specifications (Cradle)
Ⅰ-2
2) Cradle Device Description
10

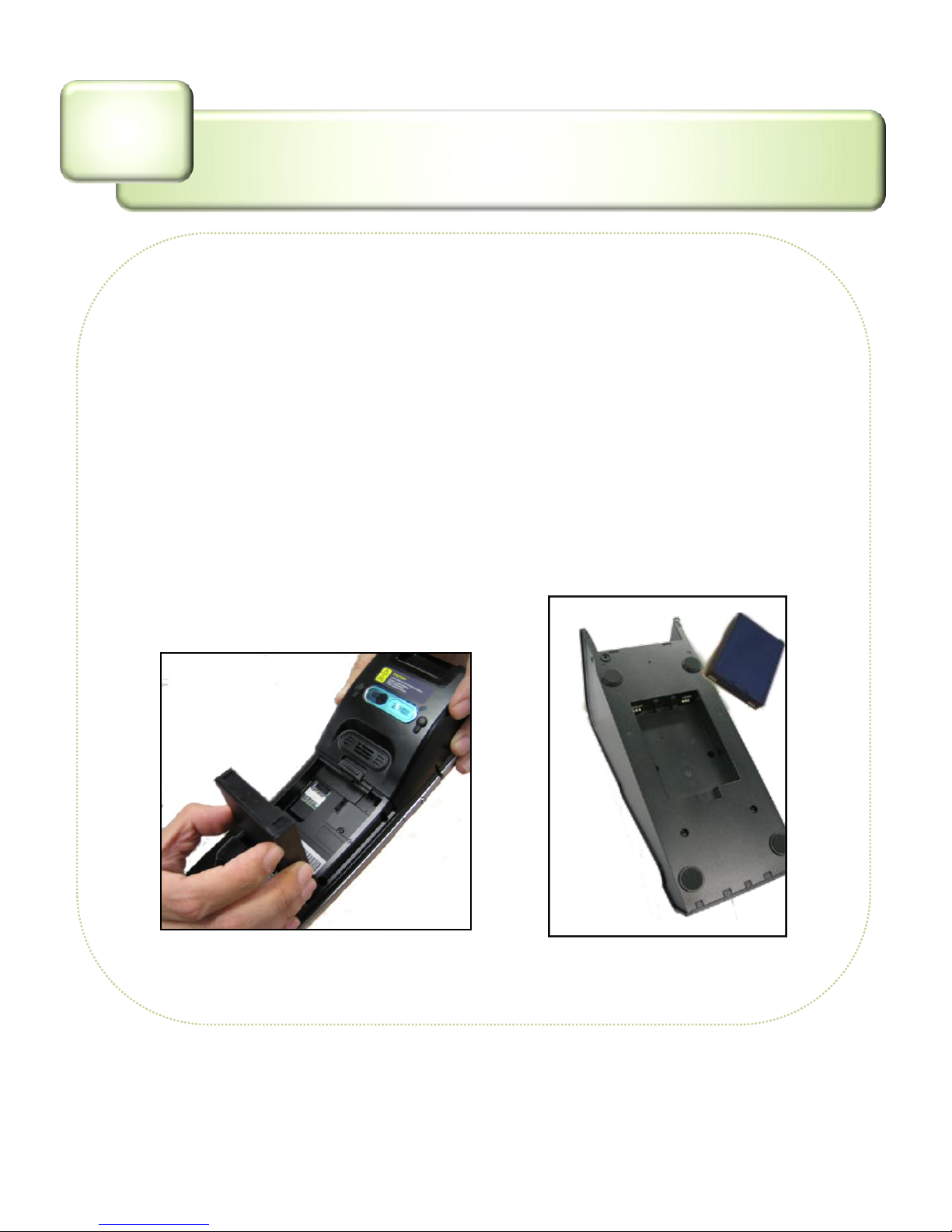

Charging the Battery
Ⅰ-3
1) Charging the battery from the device
Open the battery cover at the back of the device and place the battery
into it. Place the device on the cradle and connect the power adapter
with cord to the cradle to charge the battery.
2) Separately charging the battery
To charge the battery separately from the device, place the battery on
the bottom of the cradle.
11

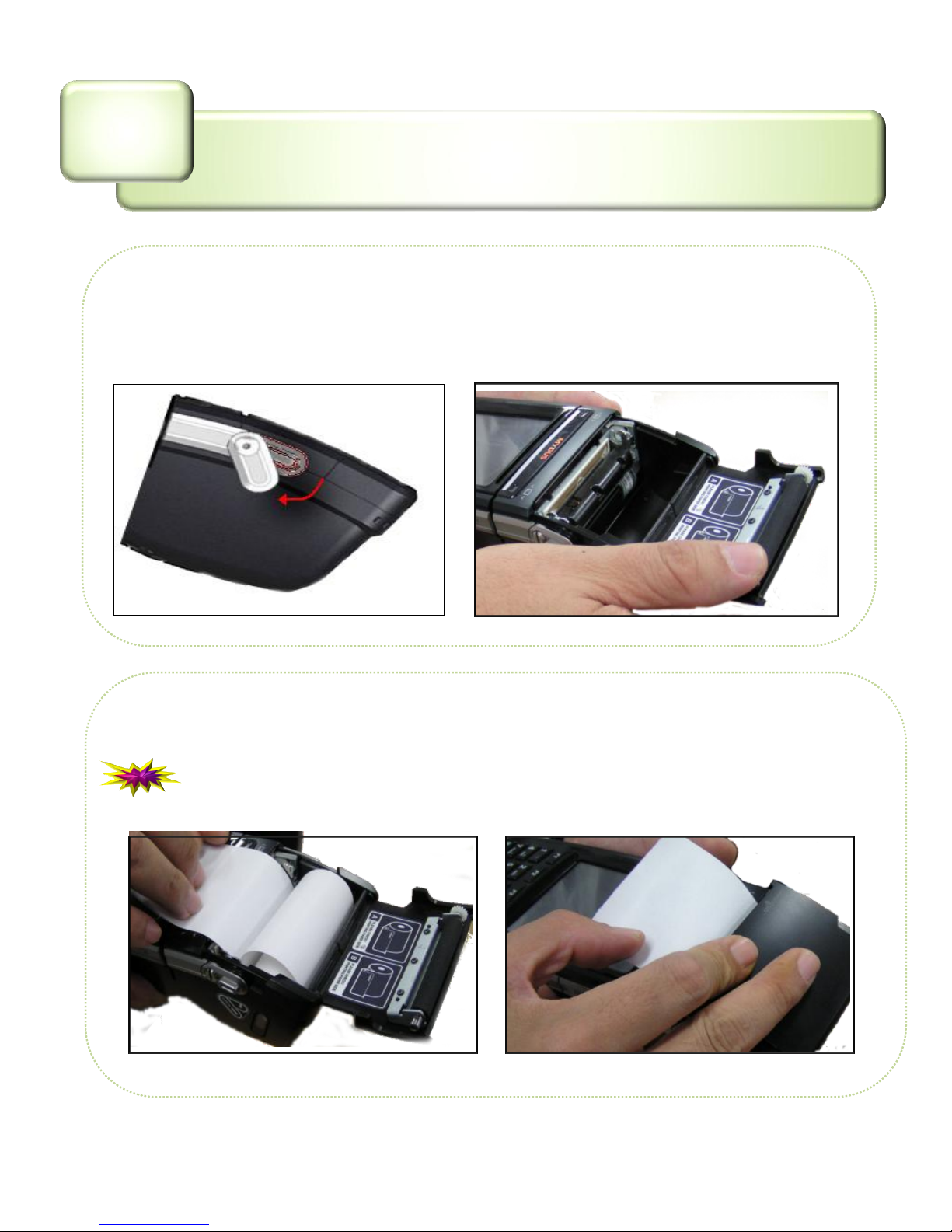

Replacing printer supplies –Thermal
Paper
Ⅰ-4
1) Open the printer cover by pressing down the printer cover lever that is found
at the right side of the device.
2) Place the printer thermal roll paper into the printer as indicated by the picture
instruction then close the printer cover.
Use thermal roll papers that conforms to the prescribed dimensions(2”).
12

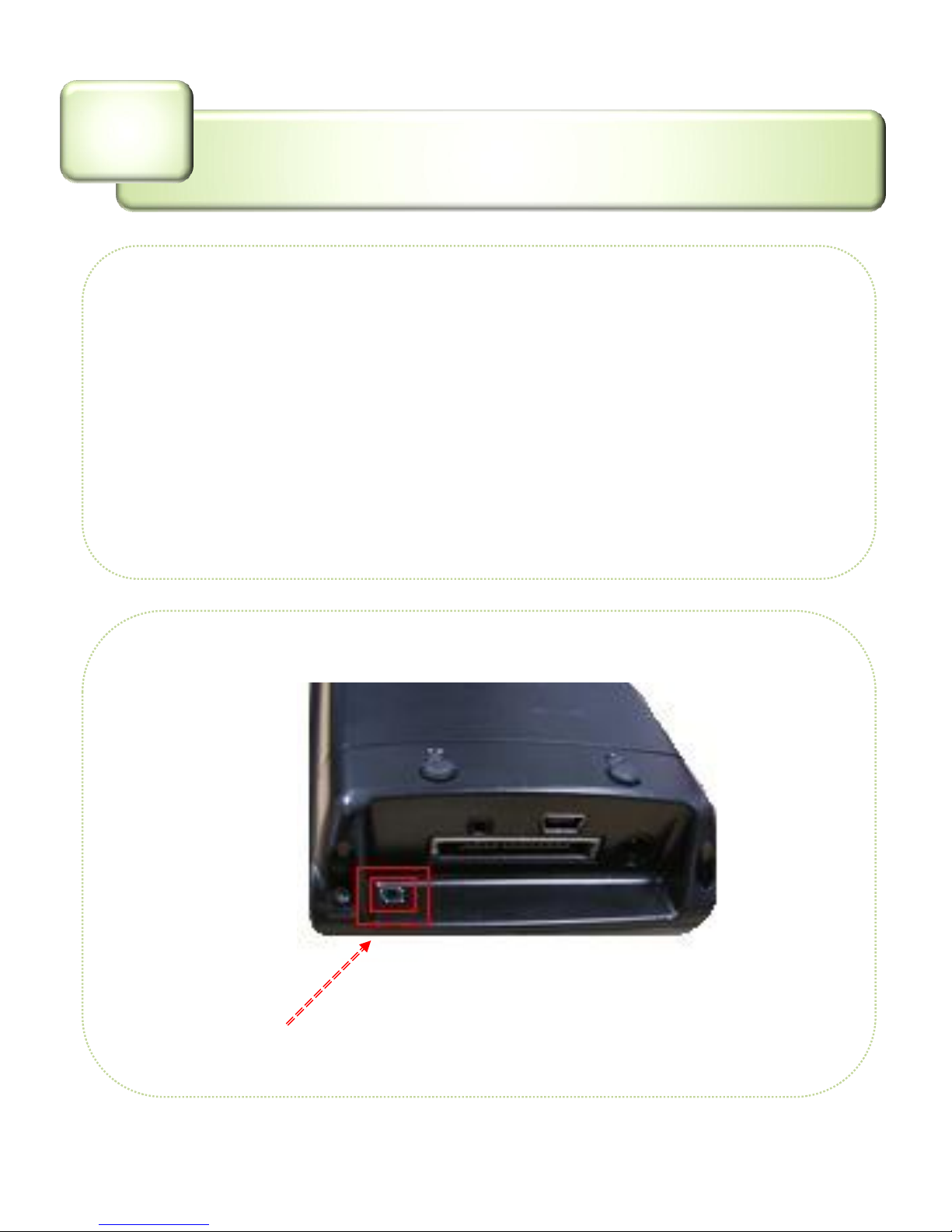

Initialization
Ⅰ-5
1) When the system does not response you may need to initialize the device by
inserting the stylus into the reset hole found at the bottom of the device.
2) When initializing the device all files will be deleted/lost and all running
programs will be terminated.
Backup all important files with the use of Micro SD cards before initialization
(reset).
Reset Hole
13

Getting Started
Ⅱ
1. Power On
2. How to use the stylus pen
3. Screen Description
4. Program Execution / Switching
5. Using the input panel to enter characters
14

Power On
Ⅱ-1
•Insert the battery into the device, press and hold the PWR button until the
device is powered ON.
•When the device is powered ON, pressing the PWR button again turns OFF
the device.
If the device does not turn ON, check the battery for proper charging.
Power
[PWR]
Button
[Insert the
battery]
15

Power On
Ⅱ-1

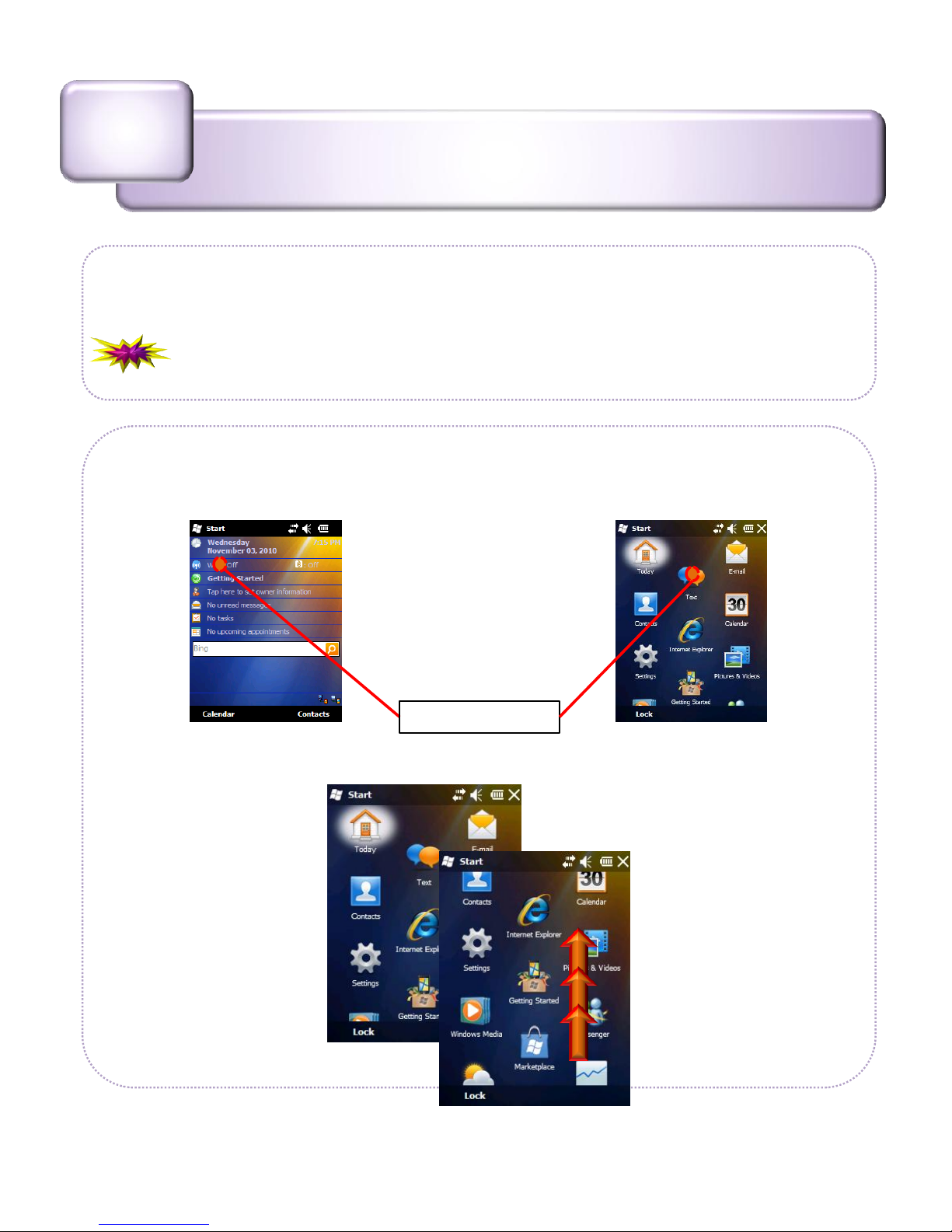

▶Initial Setup or Reset
The first time you power on your device or every system reset, it displays the
Windows Mobile® screen which guides you through a series of startup
procedures.
1. From the initial startup screen tap the screen using the stylus.
2. From the align screen, use your stylus to calibrate the touch accuracy of
the screen by both accurately and firmly tapping the center of each target
(crosshair). Repeat this process for every target that appears until
completed.
16

Tap the icon to select
How to use the stylus pen
Ⅱ-2
This section describes the basic use of the stylus pen in running or moving
programs on the touch screen.
Only use stylus pen that comes with this product or recommended by
WoongjinST. Other stylus pen can damage this product.
Tap: Selects an item (program) to run by tapping the stylus pen over the
item’s icon on the screen.
Scroll:Moving the stylus pen scrolls the page.
17

▶Status Icon
The task bar that you normally find at the top of the screen is similar to that of the
PC Windows. The icons displayed on the task bar indicates the status of the
application and/or device it represents.

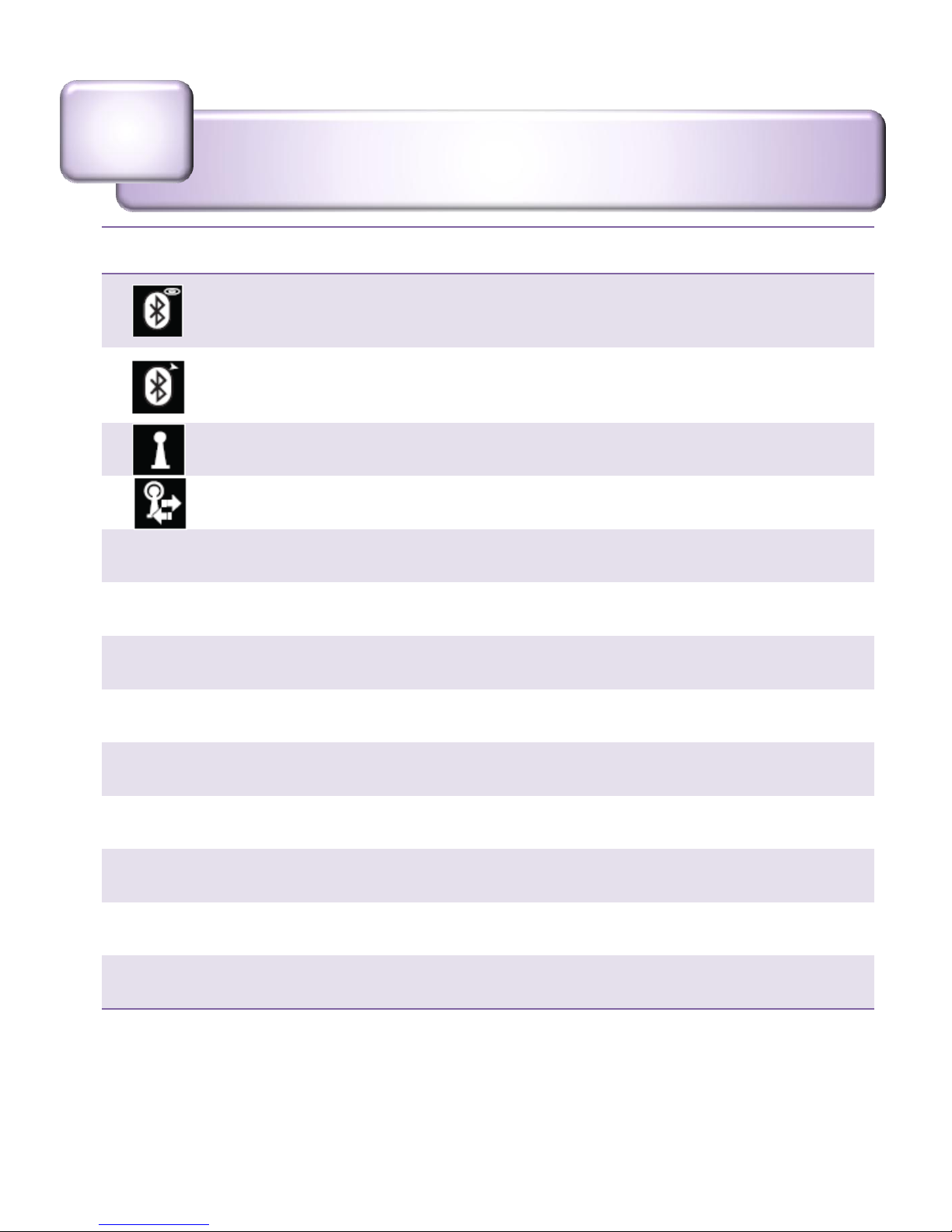

Icon
Icon Description
Battery Charge Level –Shows your current battery charge level.
(Icon shown is fully charged.)
Low battery –Shows your current battery charge level is low.
Battery Charging –Shows the device is connected to a power cable
and is currently being charged.
Windows Start –Provides access to the Windows Menu page.
OK –Tap to accept and save the current page settings, and then exit.
Cancel/Exit –Tap to leave the current page without storing any
changes.
Speaker On –Your device’s speaker is active. Tap this icon to access
the onscreen Volume slider and adjust the volume level.
Silence All –Your device has the ringer deactivated and the vibrate
option unchecked (disabled). No sound is made by the device.
Bluetooth Enabled –The Bluetooth technology is active and
enabled.
Screen description
Ⅱ-3
18

Icon
Icon Description
Bluetooth Visible –The Bluetooth technology is active and
the device is visible.
Bluetooth Connected –The Bluetooth technology is active and
communicating (paired) with a target Bluetooth device.
Wi-Fi Inactive –Your Wi-Fi connection is inactive.
Wi-Fi Active –Your Wi-Fi connection is active and communicating.
Screen description
Ⅱ-3
19

▶Set the date and time
Setting the date and time on your device makes sure that your calendar and
alarm alerts will be accurate.
1. Tap Start, tap Settings (you may need to scroll the page), and then tap
Clock & Alarms (you may need to scroll the page).
2. On the Time tab, select the correct time zone and set the date and time.
Notes: During synchronization, the time on your device is updated with the time on
your computer.
Configuring the device
Ⅱ-4
