Wortmann terra 2415HA User manual

ALL-IN-ONE 2415HA
USER MANUAL
+ENGLISH
Apps from Windows Store; vary by market.
Montage sample. Pictured configuration
can be different from the real configuration.

1
WORTMANN AG
TERRA
AIO System
User's Manual
Rev. 3.1

2
WORTMANN AG
Copyright
© 2019 WORTMANN AG All rights reserved.
The trademarks mentioned in this manual are legally registered to their respective owners.
Disclaimer
Information in this manual is protected by copyright laws and is the property of
WORTMANN AG. Changes to the specifications and features in this manual may be made
by WORTMANN AG without prior notice. No part of this manual may be reproduced, copied,
translated, transmitted, or published in any form or by any means without WORTMANN's
prior written permission.
Documentation Classifications
In order to assist in the use of this product, WORTMANN AG provides the following types of
documentations:
For quick set-up of the product, read the Quick Installation Guide included with the
product.
For detailed product information, carefully read the User's Manual.
For product-related information, check on our website at:
www.wortmann.de

3
WORTMANN AG
Table of Contents
Overview Of Your Documentation .......................................................................................4
Document Type ................................................................................................................4
Document Type.............................................................................................................4
Non-printed documentation ...........................................................................................4
Servicing .......................................................................................................................4
Typographics....................................................................................................................4
Box Contents .......................................................................................................................5
Standard Items .................................................................................................................5
Getting Start With Your PC ..................................................................................................6
Touring Your PC...............................................................................................................6
Front View .....................................................................................................................6
Rear View......................................................................................................................7
Right-side View .............................................................................................................8
Bottom-side View ..........................................................................................................9
Adjustment of view angle ...................................................................................................10
Setting Up Your PC ...........................................................................................................12
Preparing To Setup Your PC..........................................................................................12
Turning On Your PC .......................................................................................................13
Turning Off Your PC .......................................................................................................13
Using Your PC ...................................................................................................................14
Connecting To The Internet............................................................................................14
Troubleshooting .................................................................................................................16
Frequently Asked Questions (FAQ)................................................................................16
Power problems ..........................................................................................................16
Internet access problems ............................................................................................17
Display problems.........................................................................................................17
Keyboard and mouse problems ..................................................................................18
Sound and microphone problems ...............................................................................19
Miscellaneous problems..............................................................................................20
Specifications.....................................................................................................................21
Intel®Coffeelake CPU Support List ...................................................................................22
CE-mark ..........................................................................................................................23
Declaration of conformity with EU standards .....................................................................24
GENERAL PUBLIC LICENSE (GPL) - VER.2 ...................................................................25

4
WORTMANN AG
Overview Of Your Documentation
Document Type
Your documentation contains printed information and PDF user manuals to help you
perform various tasks.
Document Type
Quick Start Guide provides information about setting up your computer.
Non-printed documentation
Manual provides information about using your computer, cleaning and maintaining the
monitor and the accessories, and the common solutions to the problems you may
encounter while using your computer.
Servicing
Do not attempt to service this product yourself, as opening or removing covers may
expose you to the risk of electric shock and other hazards. If any of the above
mentioned misuse or other accident such as dropping or mishandling occurs, contact
qualified service personnel for servicing.
Typographics
Special tips, notes, and cautions that appear throughout this manual are designed to
ensure that you perform specific tasks properly, preventing unnecessary errors.
CAUTION: Indicates important information to prevent potential damage to the
unit and data, or personal injury caused by improper use.
NOTE: Indicates additional information for particular situation.
TIP: Indicates useful information for completing a task.

5
WORTMANN AG
Box Contents
Carefully unpack the system and check that the following items were included. If any are
missing or damaged, please contact your vender. Retain the box and packing in case of
you need to transport your personal computer in the future. The fitted foam packing is ideal
for protecting the device during transporting.
The appearance and contents of your package may be different from
those illustrated below due to regional variations.
Standard Items
AIO2415HA Power Adapter Power Cord
Quick Start Guide Screwdriver
The box contents above are for reference only and the actual items shall depend on the
product package you obtain.
The box contents are subject to change without notice.
The motherboard image is for reference only.

6
WORTMANN AG
Getting Start With Your PC
Touring Your PC
This section describes the views and the features of the controls, ports, buttons,
components, and connectors of your computer.
Front View
No. Item Description
1 Power Press power button to turn on computer.
2 Indicators LED indicators

7
WORTMANN AG
Rear View

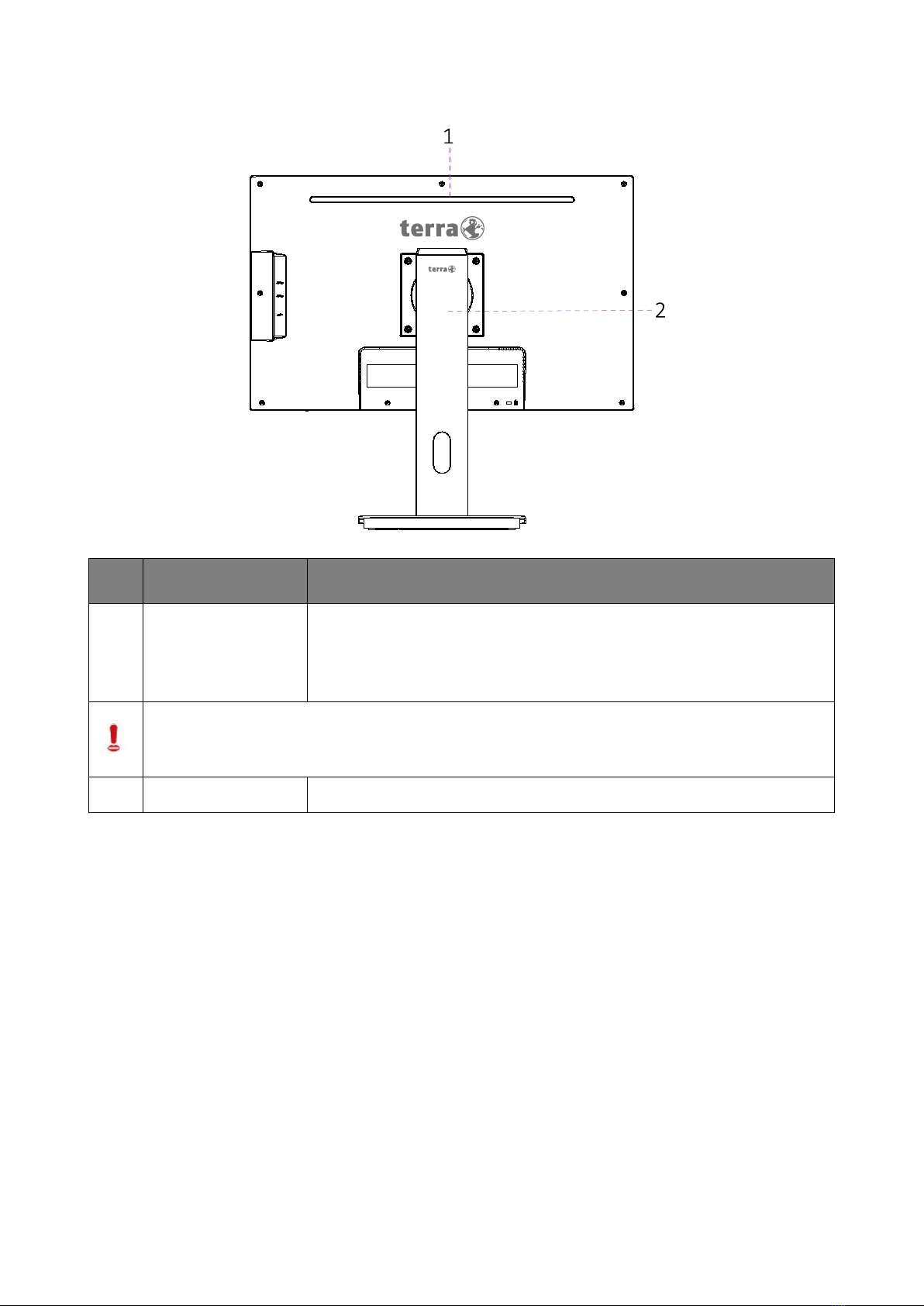

No Item Description
1 Vents The design of the vents is to prevent the computer from
overheating. The internal fans blow hot air away from
heat-sensitive components in the computer.
Keep the vents clean and free of dirt and dust, as blocking it may cause
serious thermal problems.
2 Computer Stand You can adjust the computer stand for the best viewing angle.

8
WORTMANN AG
Right-side View
No Item Description
1 USB 3.1(Gen1) Ports Connect the USB plugs into the USB ports to connect
your USB devices, such as MP3 players, digital
cameras, keyboard and mouse, or external hard disk
drives, etc.
2 Media Card Reader Insert your memory card into this media card reader to
access photos, audio and video files, or other data
stored in the memory cards. This reader supports the
following card types:
Secure Digital (SD)
Multimedia Card (MMC)

9
WORTMANN AG
Bottom-side View
Ver 3.1
No Item Description
1
DC Power Connector
Connect the DC power to this port
2 RJ45 LAN Port The Gigabit Ethernet LAN port provides internet
connection at up to 1 Gbps data rate. The following
describes the states of the LAN port LEDs
3 USB3.1(Gen1) The USB port supports the USB3.1(Gen1) specification.
Use this port for USB devices such as a USB keyboard/
mouse, USB printer, USB flash drive and etc.
4 Type-C The Type-C support data transmission only. Use this
port for Type-C device such as Type-C media disk.
5 DisplayPort DisplayPort is a digital display interface which is
primarily used to connect a video source to a display
device such as a computer monitor, though it can also
be used to transmit audio, USB, and other forms of data.
6 HDMI The HDMI provides an all-digital audio/video interface to
transmit the uncompressed audio/video signals and is
HDCP compliant. Connect the HDMI audio/video device
to this port. The HDMI echnology can support a
maximum resolution of 4096x2160 but the actual
resolutions support depend on the monitor being used.
7 Line Out Jack The default Line Out jack. Stereo speakers, earphone or
front surround speakers can be connected to Line Out
jack.
8 Mic In Jack The default MIC In jack. Microphone can be connected
to MIC in jack.
