SAFETY AND OPERATING MANUAL
ORIGINAL INSTRUCTIONS
WX178 WX178.1 WX178.2 WX178.3 WX178.4 WX178.9
Lithium-Ion Cordless Drill/Driver

2
WX178 WX178.1 WX178.2 WX178.3 WX178.4 WX178.9
Lithium-Ion Cordless Drill/Driver
GENERAL POWER TOOL
SAFETY WARNINGS
WARNING: Read all safety warnings
and all instructions. Failure to follow the
warnings and instructions may result in electric
shock, fire and/or serious injury.
Save all warnings and instructions for future
reference.
The term “power tool” in the warnings refers to your
mains-operated (corded) power tool or battery-
operated (cordless) power tool.
1. WORK AREA SAFETY
a) Keep work area clean and well lit. Cluttered
or dark areas invite accidents.
b) Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power
tools create sparks which may ignite the dust or
fumes.
c) Keep children and bystanders away while
operating a power tool. Distractions can
cause you to lose control.
2. ELECTRICAL SAFETY
a) Power tool plugs must match the outlet.
Never modify the plug in any way. Do
not use any adapter plugs with earthed
(grounded) power tools. Unmodified plugs
and matching outlets will reduce risk of electric
shock.
b) Avoid body contact with earthed or
grounded surfaces, such as pipes,
radiators, ranges and refrigerators. There is
an increased risk of electric shock if your body is
earthed or grounded.
c) Do not expose power tools to rain or wet
conditions. Water entering a power tool will
increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord
for carrying, pulling or unplugging the
power tool. Keep cord away from heat,
oil, sharp edges or moving parts. Damaged
or entangled cords increase the risk of electric
shock.
e) When operating a power tool outdoors,
use an extension cord suitable for outdoor
use. Use of a cord suitable for outdoor use
reduces the risk of electric shock.
f) If operating a power tool in a damp
location is unavoidable, use a residual
current device (RCD) protected supply. Use
of an RCD reduces the risk of electric shock.
3. PERSONAL SAFETY
a) Stay alert, watch what you are doing and
use common sense when operating a
power tool. Do not use a power tool while
you are tired or under the influence of
drugs, alcohol or medication. A moment of
inattention while operating power tools may
result in serious personal injury.
b) Use personal protective equipment.
Always wear eye protection. Protective
equipment such as dust mask, non-skid safety
shoes, hard hat, or hearing protection used for
appropriate conditions will reduce personal
injuries.
c) Prevent unintentional starting. Ensure
the switch is in the off-position before
connecting to power source and/or battery
pack, picking up or carrying the tool.
Carrying power tools with your finger on the
switch or energising power tools that have the
switch on invites accidents.
d) Remove any adjusting key or wrench
before turning the power tool on. A wrench
or a key left attached to a rotating part of the
power tool may result in personal injury.
e) Do not overreach. Keep proper footing
and balance at all times. This enables
better control of the power tool in unexpected
situations.
f) Dress properly. Do not wear loose clothing
or jewellery. Keep your hair, clothing and
gloves away from moving parts. Loose
clothes, jewellery or long hair can be caught in
moving parts.
g) If devices are provided for the connection
of dust extraction and collection facilities,
ensure these are connected and properly
used. Use of dust collection can reduce dust-
related hazards.
4. POWER TOOL USE AND CARE
a) Do not force the power tool. Use the
correct power tool for your application.
The correct power tool will do the job better and
safer at the rate for which it was designed.
b) Do not use the power tool if the switch
does not turn it on and off. Any power tool
that cannot be controlled with the switch is
dangerous and must be repaired.
c) Disconnect the plug from the power
source and/or the battery pack from
the power tool before making any
adjustments, changing accessories, or
storing power tools. Such preventive safety
measures reduce the risk of starting the power
tool accidentally.
d) Store idle power tools out of the reach
of children and do not allow persons
unfamiliar with the power tool or these
instructions to operate the power tool.
Power tools are dangerous in the hands of
untrained users.
e) Maintain power tools. Check for
misalignment or binding of moving parts,
breakage of parts and any other condition
that may affect the power tool’s operation.
If damaged, have the power tool repaired
before use. Many accidents are caused by
poorly maintained power tools.
f) Keep cutting tools sharp and clean.
Properly maintained cutting tools with sharp

3
WX178 WX178.1 WX178.2 WX178.3 WX178.4 WX178.9
Lithium-Ion Cordless Drill/Driver
cutting edges are less likely to bind and are
easier to control.
g) Use the power tool, accessories and
tool bits etc. in accordance with these
instructions, taking into account the
working conditions and the work to
be performed. Use of the power tool for
operations different from those intended could
result in a hazardous situation.
5. BATTERY TOOL USE AND CARE
a) Recharge only with the charger specified
by the manufacturer. A charger that is
suitable for one type of battery pack may create
a risk of fire when used with another battery
pack.
b) Use power tools only with specifically
designated battery packs. Use of any other
battery packs may create a risk of injury and fire.
c) When battery pack is not in use, keep it
away from other metal objects, like paper
clips, coins, keys, nails, screws or other
small metal objects, that can make a
connection from one terminal to another.
Shorting the battery terminals together may
cause burns or a fire.
d) Under abusive conditions, liquid may be
ejected from the battery; avoid contact.
If contact accidentally occurs, flush with
water. If liquid contacts eyes, additionally
seek medical help. Liquid ejected from the
battery may cause irritation or burns.
6. SERVICE
a) Have your power tool serviced by a
qualified repair person using only identical
replacement parts. This will ensure that the
safety of the power tool is maintained.
DRILL SAFETY WARNINGS
1. Wear ear protectors when impact drilling.
Exposure to noise can cause hearing loss.
2. Use auxiliary handle(s), if supplied with the
tool. Loss of control can cause personal injury.
3. Hold power tool by insulated gripping
surfaces, when performing an operation
where the cutting accessory may contact
hidden wiring. Cutting accessory contacting a
"live" wire may make exposed metal parts of the
power tool "live" and could give the operator an
electric shock.
SAFETY WARNINGS FOR
BATTERY PACK
a) Do not dismantle, open or shred cells or
battery pack.
b) Do not short-circuit a battery pack. Do not
store battery packs haphazardly in a box or
drawer where they may short-circuit each
other or be
short-circuited by conductive materials.
When battery pack is not in use, keep it away
from other metal objects, like paper clips, coins,
keys, nails, screws or other small metal objects,
that can make a connection from one terminal to
another. Shorting the battery terminals together
may cause burns or a fire.
c) Do not expose battery pack to heat or fire.
Avoid storage in direct sunlight.
d) Do not subject battery pack to mechanical
shock.
e) In the event of battery leaking, do not
allow the liquid to come into contact
with the skin or eyes. If contact has been
made, wash the affected area with copious
amounts of water and seek medical advice.
f) Seek medical advice immediately if a cell or
battery pack has been swallowed.
g) Keep battery pack clean and dry.
h) Wipe the battery pack terminals with a
clean dry cloth if they become dirty.
i) Battery pack needs to be charged before use.
Always refer to this instruction and use the
correct charging procedure.
j) Do not maintain battery pack on charge
when not in use.
k) After extended periods of storage, it may
be necessary to charge and discharge
the battery pack several times to obtain
maximum performance.
l) Battery pack gives its best performance
when it is operated at normal room
temperature (20°C ± 5°C).
m) When disposing of battery packs, keep
battery packs of different electrochemical
systems separate from each other.
n) Recharge only with the charger specified
by WORX. Do not use any charger other
than that specifically provided for use with
the equipment. A charger that is suitable for
one type of battery pack may create a risk of fire
when used with another battery pack.
o) Do not use any battery pack which is not
designed for use with the equipment.
p) Keep battery pack out of the reach of
children.
q) Retain the original product literature for
future reference.
r) Remove the battery from the equipment
when not in use.
s) Dispose of properly.

4
WX178 WX178.1 WX178.2 WX178.3 WX178.4 WX178.9
Lithium-Ion Cordless Drill/Driver
SYMBOLS
To reduce the risk of injury, user
must read instruction manual
Warning
Wear ear protection
Wear eye protection
Wear dust mask
Do not expose to rain or water
Do not burn
Wear protective gloves
Li-I on
Li-Ion batteryThis product has been
marked with a symbol relating to
‘separate collection’ for all battery
packs and battery pack. It will
then be recycled or dismantled in
order to reduce the impact on the
environment. Battery packs can be
hazardous for the environment and
for human health since they contain
hazardous substances.
Drilling
Screwdriving
Wood
Metal
Steel pipe
Ceramic tile
Stripped screw
Lock
Unlock
High speed
Low speed
Waste electrical products must not
be disposed of with household
waste. Please recycle where
facilities exist. Check with your local
authorities or retailer for recycling
advice.
xINR18/65-y: Cylindrical lithium
Ion battery cells with max diameter
of 18mm and max height of 65mm;
“x” represents a number cells serial
connected, blank if 1; “-y” represents
a number of cells paralleled
connected, blank if 1.

10
4
3
2
1
11 12
9
8
5
6
7
13

1
2
A2A1
B1A3
B3B2

C2C1
C4C3
D2D1

2
3
1
F
G
H
ED3

2
3
1
F
G
H
ED3

10
WX178 WX178.1 WX178.2 WX178.3 WX178.4 WX178.9
Lithium-Ion Cordless Drill/Driver

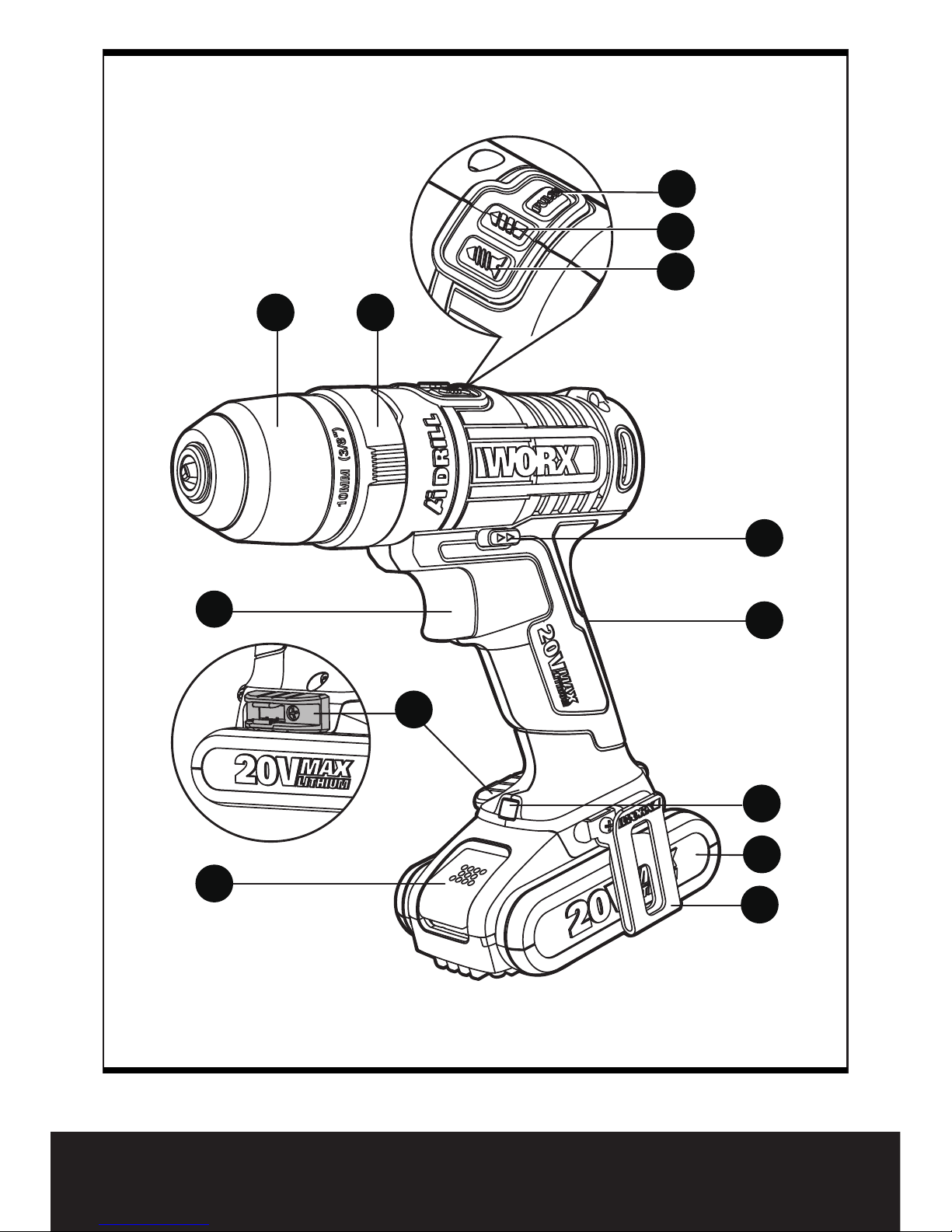

1. DRIVE MODE WITH SAFE DRIVETM
2. DRILL MODE
3. PULSE ASSIST
4. FORWARD/REVERSE ROTATION SWITCH
5. SOFT GRIP HANDLE
6. BATTERY PACK*
7. BELT HOOK
8. BATTERY PACK RELEASE BUTTON
9. LED LIGHT

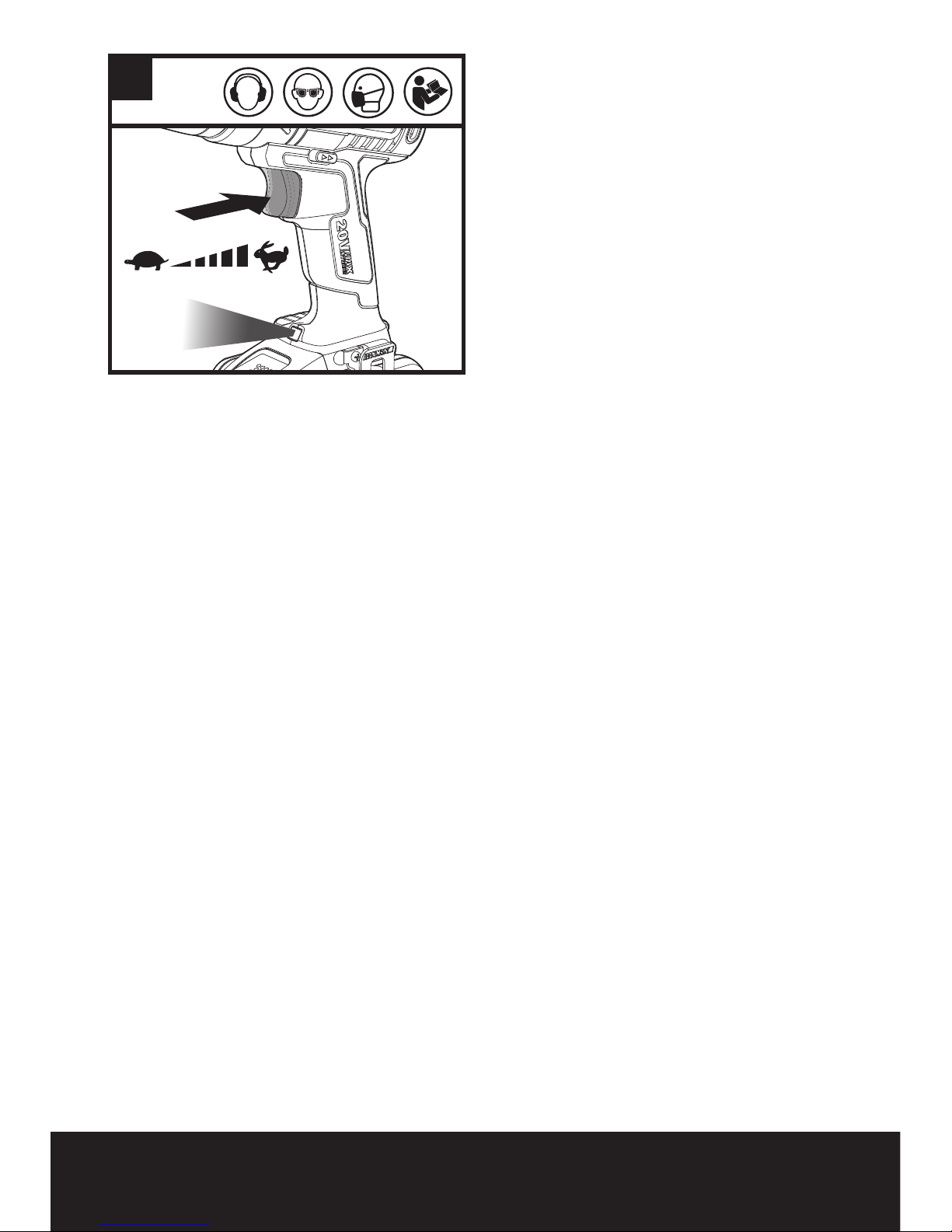

10. VARIABLE SPEED SWITCH
11. CHUCK
12. BIT LOCKTM SWITCH
13. BIT CLIP
* Not all the accessories illustrated or
described are included in standard delivery.
TECHNICAL DATA
Type WX178 WX178.1 WX178.2 WX178.3
WX178.4 WX178.9 (1-designation of
machinery, representative of Cordless Drill)
WX178 WX178.1
WX178.2 WX178.3
WX178.4
WX178.9
Charger voltage 100-240V ~50/60Hz /
Battery capacity 2.0Ah /
Charging time 1hr /
Rated voltage 20V Max**
No load speed 0-800/min
Max torque 20N.m
Chuck capacity 10mm
Max.
drilling
capacity
Steel 10mm
Wood 25mm
Machine weight 1.3kg 0.93kg
**Voltage measured without workload. Initial
battery voltage reaches maximum of 20 volts.
Nominal voltage is 18 volts.
NOISE INFORMATION
A weighted sound pressure LpA: 80.5dB(A)
A weighted sound power LwA: 91.5dB (A)
KPA& KWA 3.0dB (A)
Wear ear protection when sound
pressure is over 80dB(A)
VIBRATION INFORMATION
Vibration total values (triax vector sum) determined
according to EN 60745:
Drilling into metal
Vibration emission value
ah,D = 2,675m/s²
Uncertainty K = 1,5m/s²
Screw driving
without impact
Vibration emission value
ah= 1,831m/s²
Uncertainty K = 1,5m/s²
The declared vibration total value may be used for
comparing one tool with another, and may also be
used in a preliminary assessment of exposure.
WARNING: The vibration emission value during
actual use of the power tool can differ from the
declared value depending on the ways in which the tool
is used dependant on the following examples and other
variations on how the tool is used:
How the tool is used and the materials being cut or
drilled.
The tool being in good condition and well maintained
The use the correct accessory for the tool and
ensuring it is sharp and in good condition.
The tightness of the grip on the handles and if any
anti vibration accessories are used.
And the tool is being used as intended by its design
and these instructions.
This tool may cause hand-arm vibration
syndrome if its use is not adequately managed.
WARNING:To be accurate, an estimation of
exposure level in the actual conditions of use
should take account of all parts of the operating cycle
such as the times when the tool is switched off and
when it is running idle but not actually doing the job.
This may significantly reduce the exposure level over
the total working period.
Helping to minimize your vibration exposure risk.
ALWAYS use sharp chisels, drills and blades.
Maintain this tool in accordance with these
instructions and keep well lubricated (where
appropriate).
If the tool is to be used regularly then invest in anti
vibration accessories.
Plan your work schedule to spread any high vibration
tool use across a number of days.

11
WX178 WX178.1 WX178.2 WX178.3 WX178.4 WX178.9
Lithium-Ion Cordless Drill/Driver
ACCESSORIES
WX178 WX178.1 WX178.2
Double ended bits
(PH2/SL5.5) 1 1 1
Battery pack
(WA3551.1) 1 2 1
Charger(WA3860) 1 1 1
Bit clip 1 1 1
Hook 1 1 1
Multi-purpose drill
bits* / / 3
Roll-up drill bits kit / / /
WX178.3 WX178.4 WX178.9
Double ended bits
(PH2/SL5.5) 1 1 1
Battery pack
(WA3551.1) 2 2 /
Charger(WA3860) 1 1 /
Bit clip 1 1 1
Hook 1 1 1
Multi-purpose drill
bits* 3 3 /
Roll-up drill bits kit / 30 /
*Innovative drill bits for steel, wood, masonry, uPVC,
ceramics and concrete multi-layered materials.
We recommend that you purchase your accessories
listed in the above list from the same store that sold
you the tool. Refer to the accessory packaging for
further details. Store personnel can assist you and
offer advice.
OPERATING INSTRUCTIONS
NOTE: Before using the tool, read the
instruction book carefully.
INTENDED USE
The machine is intended for driving in and
loosening fasteners as well as for drilling in wood,
metal and plastic.
ASSEMBLY AND
OPERATION
ACTION FIGURE
BEFORE OPERATION

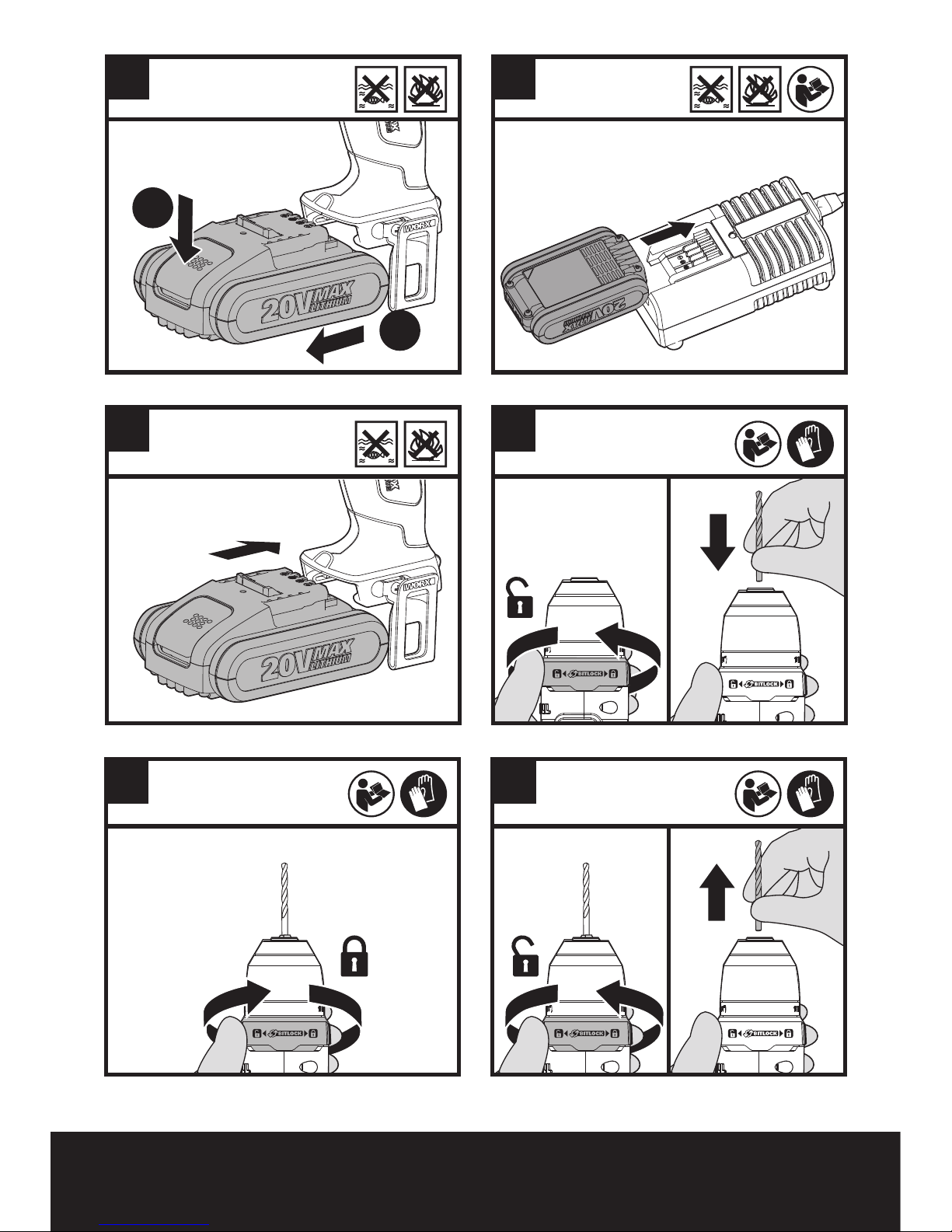

Removing the Battery Pack See Fig. A1
Charging the Battery Pack See Fig. A2
Installing the Battery Pack See Fig. A3
ASSEMBLY
--Inserting the Bits See Fig. B1 B2
--Removing the Bits See Fig. B3
Assembling the belt hook and
bit clip
See Fig. C1,C2,
C3,C4
OPERATION
Bit Lock
TM Adjustment
The Bit Lock
TM switch (12) equipped in this tool can
release or grab a bit very quickly and automatically.
This can be realized by rotating the Bit Lock
TM ring
clockwise or counterclockwise.
WARNING: Always ensure the bit is secure
before starting the tool. Damage to the Chuck
or a loose bit may cause possible personal injury.
NOTE: When the chuck jaws become fully opened
or closed, the clutch will activate, making a clicking
sound.This sound is normal.
If the Bit Lock
TM Switch (12) does not operate, confirm
the battery is charged and depress the trigger briefly.
Keep drill tilted upward when adjusting the chuck to
prevent bit from falling out.
Forward/Reverse Rotation Switch
WARNING: Never change
the direction of rotation
when the Chuck is rotating. Wait
until it has stopped!

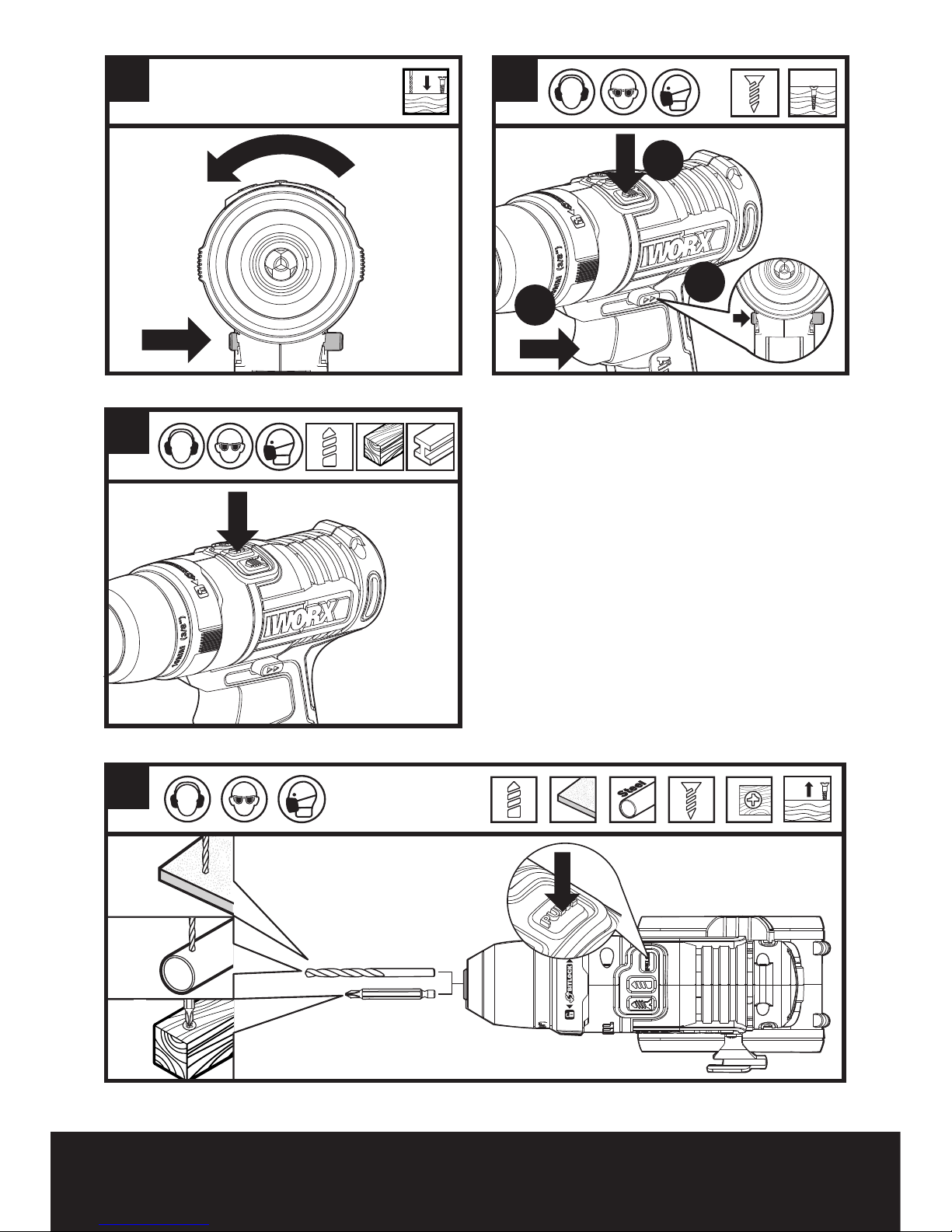

See Fig. D1,
D2, D3
Function Mode Selection
Press the function button to select operation mode.
The button will illuminate in blue for a few seconds.
Depress the Variable Speed Switch (10) slightly to
illuminate the function button again.

12
WX178 WX178.1 WX178.2 WX178.3 WX178.4 WX178.9
Lithium-Ion Cordless Drill/Driver
Drive Mode with Safe drive
TM
•When driving a screw, the tool
will automatically stop as the
screw head becomes flush with
surface of workpiece. If a deeper
screw is desired, continue to
fully depress the Variable Speed
Switch (10).The tool will make
slow rotations to drive the screw
deeper.
• Once the desired depth is
reached, please release the
Variable Speed Switch (10).
NOTE:
1. If the tool stops sooner than
desired, release the Variable Speed
Switch (10) and press it again.
2. Safe drive
TM function cannot
be activated unless the variable
speed switch (10) has achieved the
maximum speed.
See Fig. E
Drill Mode See Fig. F
Pulse Assist
WARNING: Do not work for
long periods with the Pulse
Assist activated as the motor can
be overheated.
NOTE: Pulse Assist is very
effective to prevent stripping
screws, removing stubborn screws
and to prevent the bit tip from
walking when drilling on smooth
surfaces. When the Pulse Assist is
activated, it can be switched with
the drill/drive mode.
• Make sure the Forward/Reverse
Rotation Switch (4) is pushed
to the left or right and the Pulse
Assist is selected.
• Press the Variable Speed Switch
(10), the tool will begin to rotate at
a controllable pace.
See Fig. G
Variable Speed Switch
WARNING: Do not operate
for long periods at low
speed because excess heat will be
produced internally.
See Fig. H
Using the LED light
To turn on the light, press the
Variable Speed Switch (10) and
make sure the Forward/Reverse
Rotation Switch (4) is on right or
left position. When you release the
Variable Speed Switch (10), the
light will go off after a moment.
The LED Light is also a battery
capacity indicator. It will flash
when power gets low.
The tool and battery pack are
equipped with a protection
system. When the LED Light is
quickly flashing, the system will
automatically cut power to the
tool to extend battery life.The tool
will automatically stop during
operation if the tool and/or battery
pack are placed under one of the
following conditions:
• Overloaded: The tool is
operated in a manner that causes
it to draw an abnormally high
current. In this situation, release
the Variable Speed Switch on
the tool and stop the application
that caused the tool to become
overloaded.Then pull the Variable
Speed Switch again to restart.
• Overheated: Under the
condition above, if the tool does
not start, the tool and Battery Pack
are overheated. Let the tool and
Battery Pack cool before pulling
the Variable Speed Switch again.
• Low battery voltage: The
remaining Battery capacity is too low
and the tool will not operate. Remove
and recharge the Battery Pack.
See Fig. H
TROUBLESHOOTING
1. WHY DOES THE DRILL NOT TURN ON WHEN
YOU PRESS THE SWITCH?
The Forward/Reverse Rotation Switch, which is on
top of the trigger, is positioned in the lock function.
Unlock the Forward/Reverse Rotation Switch by
putting it into the required rotation position. Push the
trigger and the drill will start to rotate.
2. REASONS FOR DIFFERENT BATTERY PACK
WORKING TIMES
Charging time problems, and having not used a
Battery Pack for a prolonged time will reduce the
Battery Pack working time.This can be corrected after
several charge and discharge operations by charging
& working with your drill. Heavy working conditions
such as large screws into hard wood will use up
the Battery Pack energy faster than lighter working
conditions. Do not re-charge your Battery Pack below

13
WX178 WX178.1 WX178.2 WX178.3 WX178.4 WX178.9
Lithium-Ion Cordless Drill/Driver
32°F (0°C) and above 113°F (45°C) as this will affect
performance.
3. THE BIT LOCKTM SWITCH WILL NOT
ROTATE.
Pull the trigger and have the drill rotate briefly.The
Bit LockTM Switch ring should release and operate as
normal .
MAINTENANCE
Remove the battery pack from the tool before
carrying out any adjustment, servicing or
maintenance.
Your tool requires no additional lubrication or
maintenance.
There are no user serviceable parts in your power
tool. Never use water or chemical cleaners to clean
your power tool. Wipe clean with a dry cloth. Always
store your power tool in a dry place. Keep the motor
ventilation slots clean. Keep all working controls free
of dust. Occasionally you may see sparks through the
ventilation slots.This is normal and will not damage
your power tool.
ENVIRONMENTAL
PROTECTION
Waste electrical products must not be disposed
of with household waste. Please recycle where
facilities exist. Check with your local authorities
or retailer for recycling advice.
DECLARATION OF
CONFORMITY
We,
Positec PowerTools (Europe) Ltd,
PO Box 6242, Newbury, RG14 9LT, UK
Declare that the product,
Description Battery-powered Drill
Type WX178 WX178.1 WX178.2 WX178.3
WX178.4 WX178.9 (1-designation of machin-
ery, representative of Battery-powered Drill)
Function Drilling/Tightening and loosening
screws, nuts
Complies with the following Directives,
2006/42/EC
2011/65/EU
2014/30/EU
Standards conform to
EN 55014-1
EN 55014-2
EN 60745-1
EN 60745-2-1
EN 60745-2-2
The person authorized to compile the technical file,
Name Jim Kirkwood
Address Positec Power Tools (Europe)Ltd,
PO Box 6242, Newbury, RG14 9LT, UK
Suzhou 2017/07/05
Allen Ding
Deputy Chief Engineer,Testing & Certification

Copyright © 2017, Positec. All Rights Reserved.
AR01277902
www.worx.com
After-sales Service and Application
At www.worx.com you can order spare parts or arrange
the collection of a product in need of servicing or repair.
Tel. Service: 0345 202 9679
E-Mail: [email protected]
