Quick-Start Guide
Wyse®X Class Mobile Thin Computer, Model Xn0L
Products: X90L, X90Le
http://www.wyse.com/manuals
See accompanying documents in the shipping carton for License Agreement and Warranty information. To find the latest Quick-Start
Guide, go to http://www.wyse.com/manuals and click on the name of your product.
Important: A printed copy of the Wyse Technology End User License Agreement is included in the shipping box and provided for your
reference only. The license at http://www.wyse.com/license as of the purchase date is the controlling licensing agreement. By copying,
using, or installing the software or the product, you agree to be bound by those terms.
Caution: Improper connection, mounting, or use of this product could result in component failure and/or flash memory corruption.
Read Caution Statements before setting up and operating your thin computer.
Caution Statements
Improper connection or use of this product could result in component failure or undesired interference. Read the following caution statements
before setting up and operating your thin computer.
Setup
•Do not force a connector into its socket. If any undue resistance is encountered, ensure that the connector is correctly oriented to the
receptacle.
•The main unit is not user serviceable; opening or accessing the case may violate your warranty.
•For wireless usage and requirements, refer to the regulatory notices in the thin computer’s documentation.
Venting and Care
•Allow sufficient space around your thin computer for ventilation; do not place your thin computer in any enclosure that restricts airflow around
the device, such as a closed briefcase, while the computer is turned on. Restricting airflow can damage your thin computer or cause a fire; do
not place any objects on the device or block the vent holes under the device. Find environmental operating specifications in the thin computer’s
datasheet located at http://www.wyse.com/products.
•Do not allow your thin computer to rest directly on exposed skin for extended periods of time during operation. The base surface temperature
will rise during normal operation (particularly when AC power is used). Prolonged contact with exposed skin can cause discomfort or a burn.
•To clean your thin computer, first disconnect it from the electrical outlet, and then use a soft cloth dampened with water for cleaning. Do not use
liquid or aerosol cleaners.
Power Sources
•To ensure regulatory compliance, use only the power adapter included in the shipping carton, or a Wyse-approved equivalent, with your thin
computer. Refer to the regulatory notices in your thin computer’s documentation.
•You can connect the power adapter at any time with the thin computer turned either on or off.
•Do not hard reset your thin computer by holding down the power button during normal operation.
•When turning off your thin computer, be sure to perform a complete shutdown (via the user interface). Do not disconnect the AC power cable,
DC power adapter cable, remove the battery, or shut off power at a circuit breaker (including power strips), etc., to turn off the device.
•Surge protectors for electrical devices are recommended in areas of lightning. However, when lightning is occurring, your equipment should be
properly shut down and unplugged from AC power until the storm has passed.
•Dispose of your battery properly when it no longer holds a charge or is damaged. Contact your local waste or environmental agency for
instructions.
Battery Warning
•The X class mobile thin computers contain a replaceable battery. There is a risk of explosion if the battery is replaced by an incorrect type.
Always dispose of used batteries according to the instructions accompanying the battery.

2

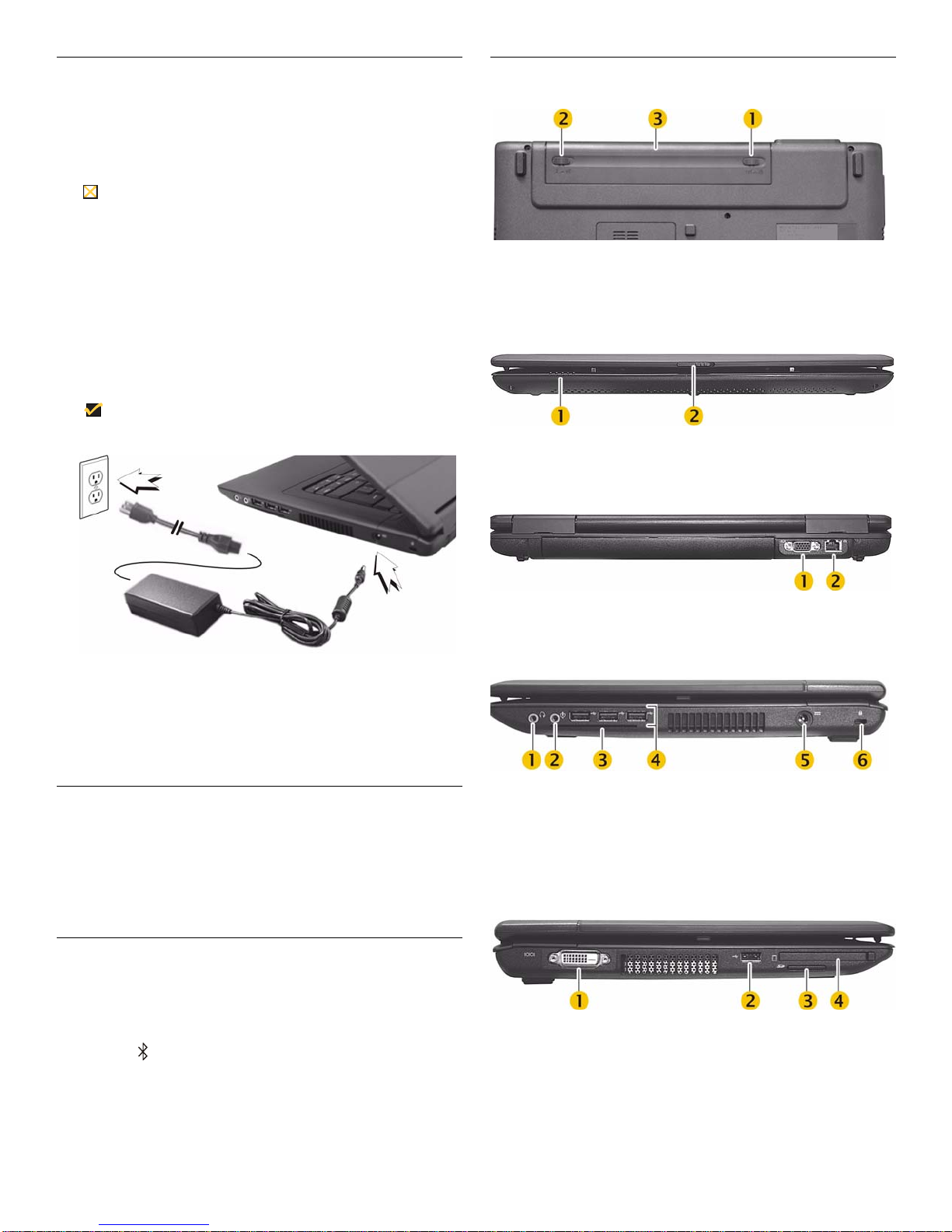

Connect
Refer to the figures and proceed as follows:
1. Install the Battery
With your thin computer turned off, insert battery in the battery
compartment located on the underside of the thin computer
and secure it by sliding the latches.
Caution: Fully charge the battery for four to eight hours
before first use in battery mode. Calibrating the battery before
use is also highly recommended (refer to the Users Guide:
Wyse®Mobile Thin Computer, X90L/X90Le).
To Remove Battery - With your thin computer turned off and
disconnected from the power adapter, slide the battery lock to
unlock, and then slide and hold the battery release latch to
gently pull the battery out of the battery compartment.
2. Connect the Power Cable
Plug the power adapter connector to the thin computer as
shown. Plug the AC power cable to the power adapter, and
then plug the other end of the power cable to a wall outlet.
Note: You can connect the power adapter at any time
with the computer turned either on or off.
3. Turn On the Thin Computer
Raise and adjust the lid, and press the power on/off button for
two seconds. When you release the power on/off button, the
power icon on the system indicators lights up.
To Turn Off the Thin Computer - Press the power on/off
button, or go to Start | Turn Off Computer and click Turn Off.
Configure
After power-on, the thin computer initially goes through several
boot sequence procedures before the operating system loads.
Information about setting up your server environment is available
in the thin computers’ operating system documentation,
Administrators Guide: Wyse®9 Series, Based on Microsoft®
Windows®XP Embedded.
Making Connections
Your Mobile thin computer makes connections through:
•Wired Net/LAN
•Wi-Fi
•Express card provided by data carriers
•Bluetooth*
*Bluetooth is a feature for X90Le.
Information about connecting your thin computer to the Internet is
available in the Users Guide: Wyse®Mobile Thin Computer,
X90L/X90Le.
Views
*Smart card slot is a feature for X90Le; insert with electrical contacts facing
upwards.
*Express card slot accepts either ExpressCard/34 or ExpressCard/54 formats..
Bottom View
1Battery lock
2Battery release latch
3Battery
Front View
1System indicator lights
2Release latch
Back View
1VGA port
2LAN RJ45
Right View
1Line out/Headset out 4USB port (3)
2Microphone in 5Power adapter input
3Smart card slot* 6Kensington lock slot
Left View
1DVI port
2USB port
3SD card slot
4Express card slot*

3
About Your Mobile Thin Computer
System Indicator Lights*
*System status indicators light when a particular function of the computer is active.
Numeric Keypad
The numeric keypad numbers and symbols are printed in blue on
the keypad keys. Press Num⇓to enable or disable the numeric
keypad.
Keyboard Function Keys for System Control1
1. To use the function keys, press and hold the Fn key while pressing the
appropriate function key (F2, F10, and the rest.).
2. Bluetooth is a feature for X90Le.
Power Management
Proper power management for your thin computer will prolong
battery life and reduce heat dissipation. For information on setting
up power saving modes and calibrating the battery, refer to the
Users Guide: Wyse®Mobile Thin Computer, X90L/X90Le.

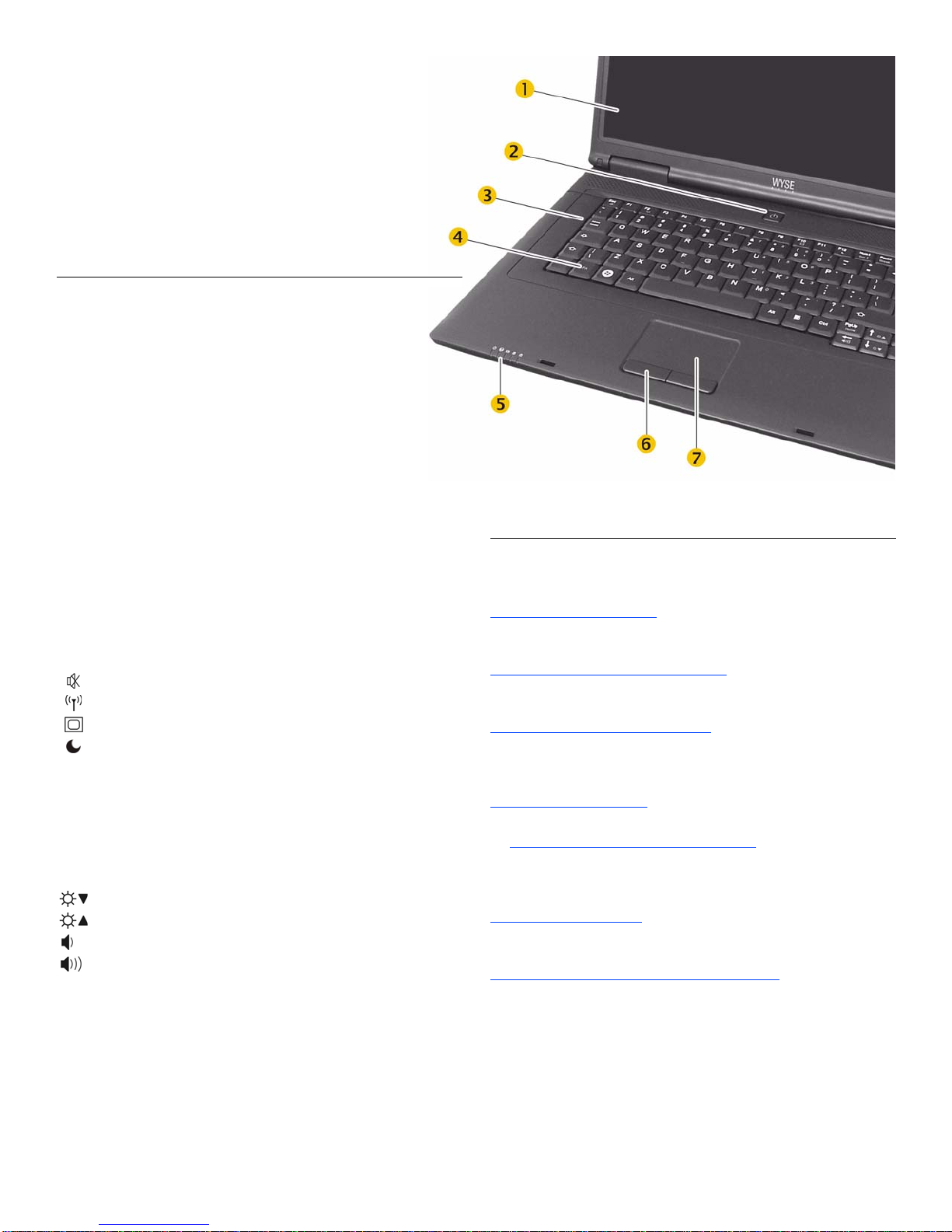

Inside View
1Display
2Power on/off button
3Keyboard
4Function key
5System indicator lights
6Touch pad button (2)
7Touch pad
Light Color Description
Power Blue Thin computer is powered on
Wireless Blue Wireless signal is enabled
Battery Amber on
Amber flash Battery is charging Battery is low (5% remaining)
Caps lock Green Keyboard caps lock is on
Num Lock Green Keyboard numeric lock is on
Icon Key Description
Fn Fn Function key
Fn + Esc Volume mute
Fn + F2 Wireless and Bluetooth2- on/off
Fn + F10 Display switch - LCD / LCD+CRT / CRT
Fn + F12 Suspend
Scr Fn + Num Scroll lock - on/off
Break Fn + Pause Break
Prt Scr Fn + Insert Print screen
Sys RQ Fn + Delete Sys RQ
Home Fn + PgUp Home
End Fn + PgDn End
Fn + ↓Brightness - decrease
Fn + ↑Brightness - increase
Fn + ←Volume - decrease
Fn + →Volume - increase
Need more information?
Wyse Reference Guides - User, Administrator, and related
documentation is available at:
http://www.wyse.com/manuals
Wyse-Approved Accessories - Information about approved
accessory options are available at:
http://www.wyse.com/products/accessories
Wyse Service and Support Web Site - Upgrade software
images for installation on your FTP file server are available at:
http://www.wyse.com/serviceandsupport
Wyse Device Manager - Information about Wyse remote
management software that comes with your thin computer is
available at:
http://www.wyse.com/bundle
Wyse WSM - Information about Wyse WSM software is available
at: http://www.wyse.com/products/software/wsm
Wyse and the Environment - Information about Wyse
compliance with RoHS and with the Waste Electrical and
Electronic Equipment (WEEE) is available at:
http://www.wyse.com/green
Wyse Warranty Registration - Wyse’s warranty registration*
process is available at:
http://www.wyse.com/serviceandsupport/register.asp
*The standard warranty is one year from the date of purchase of the device and six
months for the battery.

©2008 Wyse Technology Inc. All rights reserved. This product and/or associated software are
protected by copyright international treaties, and various patents, including the following U.S.
patents: 6,836,885 and 5,918,039.
883907-01L Rev. A
February 2008
