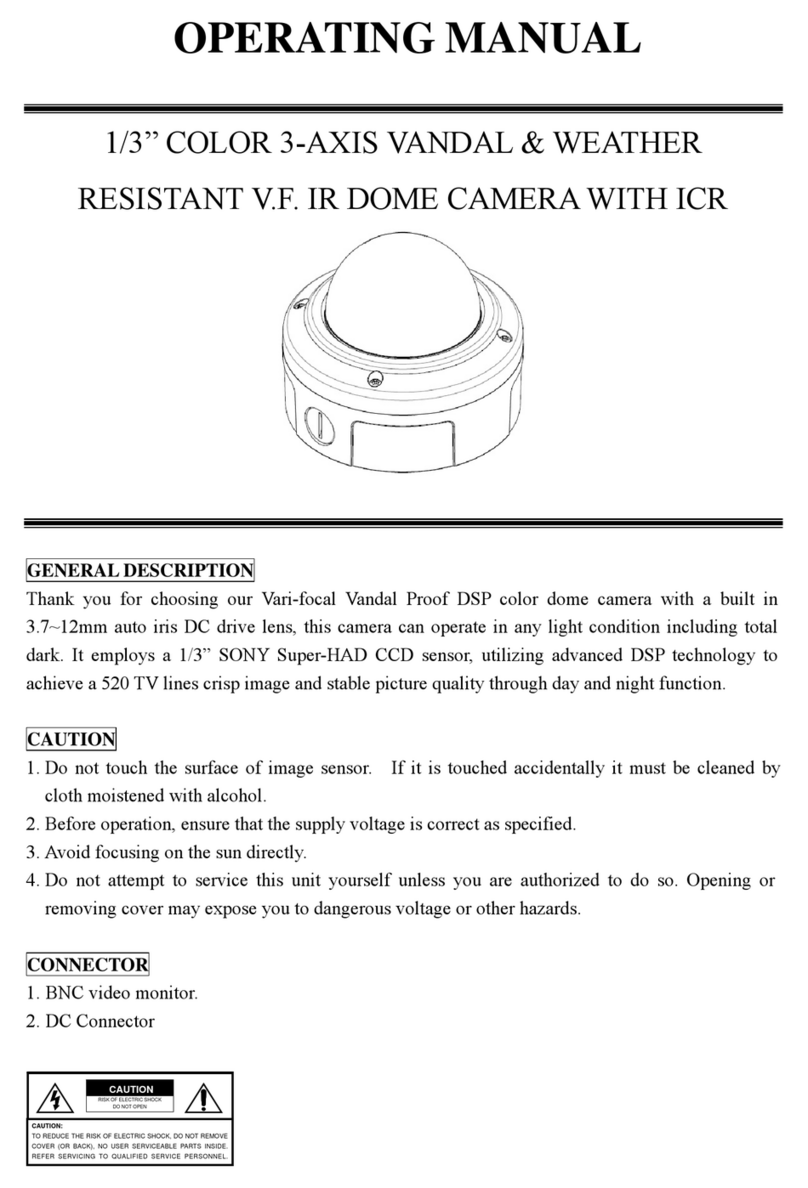

OPERATING MANUAL
1/3” COLOR 3-AXIS VANDAL & WEATHER
RESISTANT V.F. IR DOME CAMERA WITH ICR
GENERAL DESCRIPTION
Thank you for choosing our Vari-focal Vandal Proof DSP color dome camera with a built in
3.7~12mm auto iris DC-drive lens, this camera can operate in any light condition including total
dark. It employs a SONY 1/3” EXview HAD II high resolution CCD sensor, utilizing advanced
SONY Enhanced Effio-E DSP technology to achieve up to 700 TV lines crisp image and stable
picture quality through day and night function.
CAUTION
1. Do not touch the surface of image sensor. If it is touched accidentally, it must be cleaned by cloth
moistened with alcohol.
2. Before operation, ensure that the supply voltage is correct as specified.
3. Avoid focusing on the sun directly.
4. Do not attempt to service this unit yourself unless you are authorized to do so. Opening or
removing cover may expose you to dangerous voltage or other hazards.
CONNECTOR
1. BNC Video Connector.
2. DC Power Connector.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK), NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

FEATURES
zColor dome camera with SONY 1/3” EXview HAD II high resolution CCD sensor.
zEmploys SONY Enhanced Effio-E DSP chip-set for image control.
zControlled by OSD (On Screen Display) menu in 8 languages (Option).
zHorizontal resolution of over 650TVL, Pixel number: NTSC=480K / PAL=570K.
zHigh sensitivity, low smear, high anti-blooming and high S/N ratio.
zBuilt-in functions: Auto Electronic Shutter (AES), Auto Gain Control (AGC), Auto Trace White Balance (ATW).
zBuilt-in Vari-Focal auto iris DC-Drive lens.
zOLPF auto switching (IR-Cut Removable).
zBuilt-in 11 units of high efficiency IR LED.
zCCD color image automatically changes into B/W image in low light environments.
zFurnished with DC power cable and video cable.
zMax. 10 pounds sledgehammer impact durability.
zWater resistant IP66 protection.
z3-axis for wall or ceiling mounting with flexible lens rotation.
zEasy installation with attached cap.
NAME OF PARTS AND FUNCTIONS
INSTALLATION INSTRUCTIONS
(1) Connect the camera to a monitor with 75 ohm type coaxial cable.
(2) Connect the power cord to DC 12V power supply.
(3) Fix camera to the ceiling or wall by mounting device.
A. Lens
B. IR-LED
C. Side conduit entry
D. Back conduit entry
Dimensions Front View Bottom View
Top View Bottom View
D
E
F
G
A
C
B
E. Inner plate mounting holes
F. BNC Connector
G. DC Connector

ADJUSTING THE CAMERA ZOOM AND FOCUS
1. Loose the zoom ring screw.
2. Turn the zoom ring to the desired zoom condition.
3. Tight the zoom ring screw.
4. Loose the focus ring screw.
5. Turn the focus ring to focus.
6. Tight the focus ring screw.
7. Check the result with tools.
SPECIFICATIONS
MODEL XD2E5MR
IR OPTICAL FILTER Built-in anti-aliasing IR-pass (850nm) filter
OLPF Mechanical ICR
PICK-UP DEVICE SONY 1/3” EXview HAD II CCD High Resolution
EFFECTIVE PICTURE
ELEMENTS (H*V)
NTSC: 976*494
PAL: 976*582
SIGNAL PROCESSOR SONY Enhanced Effio-E DSP (Digital Signal Processor)
RESOLUTION Over 650 TV lines (700 TV lines in B/W mode)
MIN. ILLUMINATION 0.01Lux / F1.4; 0Lux / IR
S/N RATIO More than 54 dB
GAMMA 0.45
OPERATION OSD (On Screen Display) menu
LANGUAGE 8 languages selectable: English, Français, Deutsch, Español, Português, Русско,日本語,中文
GAIN CONTROL 4 levels: 0.25 / 0.50 / 0.75 / 1.00
WHITE BALANCE
1,800°K~10,500°K
ATW: SPEED / DELAY CNT / ATW FRAME / ENVIRONMENT--INDOOR / OUTDOOR;
PUSH; USER1; USER2; ANTI CR (Anti-Color Rolling); MANUAL; PUSH LOCK
BLC (BACK LIGHT
COMPENSATION) ON; HLC (High Light Cover); OFF
PICTURE ADJUSTMENT MIRROR: ON / OFF; BRIGHTNESS; CONTRAST; SHARPNESS; HUE; GAIN
ATR (D-WDR) ON: LUMINANCE--3 levels / CONTRAST--4 levels; OFF
PRIVACY ON: AREA--8 zones / COLOR--8 colors / TRANSP--4 levels / MOSAIC; OFF
DAY & NIGHT COLOR; B/W: BURST; AUTO: BURST / DELAY CNT / DAY ÆNIGHT / NIGHT ÆDAY
NOISE REDUCTION 2D-NR
CAMERA ID 52 digits, moveable position
SYNC. SYSTEM Internal, Negative sync.
POWER SUPPLY DC12V / 200mA; Dual Power DC12V/AC24V
LENS FURNISHED 3.7~12mm/F1.4 vari-focal DC-drive auto iris lens
VIDEO OUTPUT 1 Vp-p Composite Video / 75 ohm BNC connector
OPERATING TEMP. -10°C~50°C (14°F~122°F)
WATER RESISTANCE IP66
HOUSING MATERIAL Metal
IR-LED 11 units of high efficiency 850nm IR-LED
IR PROJECTION DIST. 30 Meters
VANDAL-PROOF 10 pounds of sledgehammer durability
