EAGLE EYE - is our most quality vehicle video recorder to
date. It provides excellent point-of-view (POV) shots on your
driving life. It got compact size and easy to mounted in the car,
equipped HD sensor and Super wide angle lens will capture full
range picture in every seconds for evidence purpose and safety
driving.
USER GUIDE
4
PRODUCT INSTALLATION
PRODUCT OVERVIEW
It is easy to install and mount the EAGLE EYE in the vehicle with offered mounts and 3 meters
car charger. The female at mount with reusable 3M adhesive and it will be more stable than
usual suction cup mount.
EAGLE EYE use the removable and angle adjustable male mount, it will easy to remove the box
and put away for safety, easy to capture different angle in different driving condition.
1.5” TFT LCD screen
5MP High denition image sensor
135° Super wide angle lens
1080P H.264 video recording
60FPS Smoothly pictures
Video playback available
Motion detect record
Loop Record
Continuous picture capture
Digital Zoom ( 720P)
Rec key
Up key
Menu key
Down key
Recording LED
GPS ANT
Socket
USB Port
TF Card slot
Mounting
Reset hole
Microphone
Power key
Power II
Charger LED
5
USER GUIDE
135° WIDE ANGLE LENS
FULL HD 1080P HIGH DEFINITION PICTURE QUALITY
Install EAGLE EYE in the vehicle, with its inside view
angle, you do not need to worry losing any moments
or Beautiful sences around during driving.
EAGLE EYE supports Full HD 1080P which means
the video size will be 1920 x 1080 high deniton, make
your own video with broadcast image qualit. Please
note it will cost more power and storage compare with
the lower resolution.

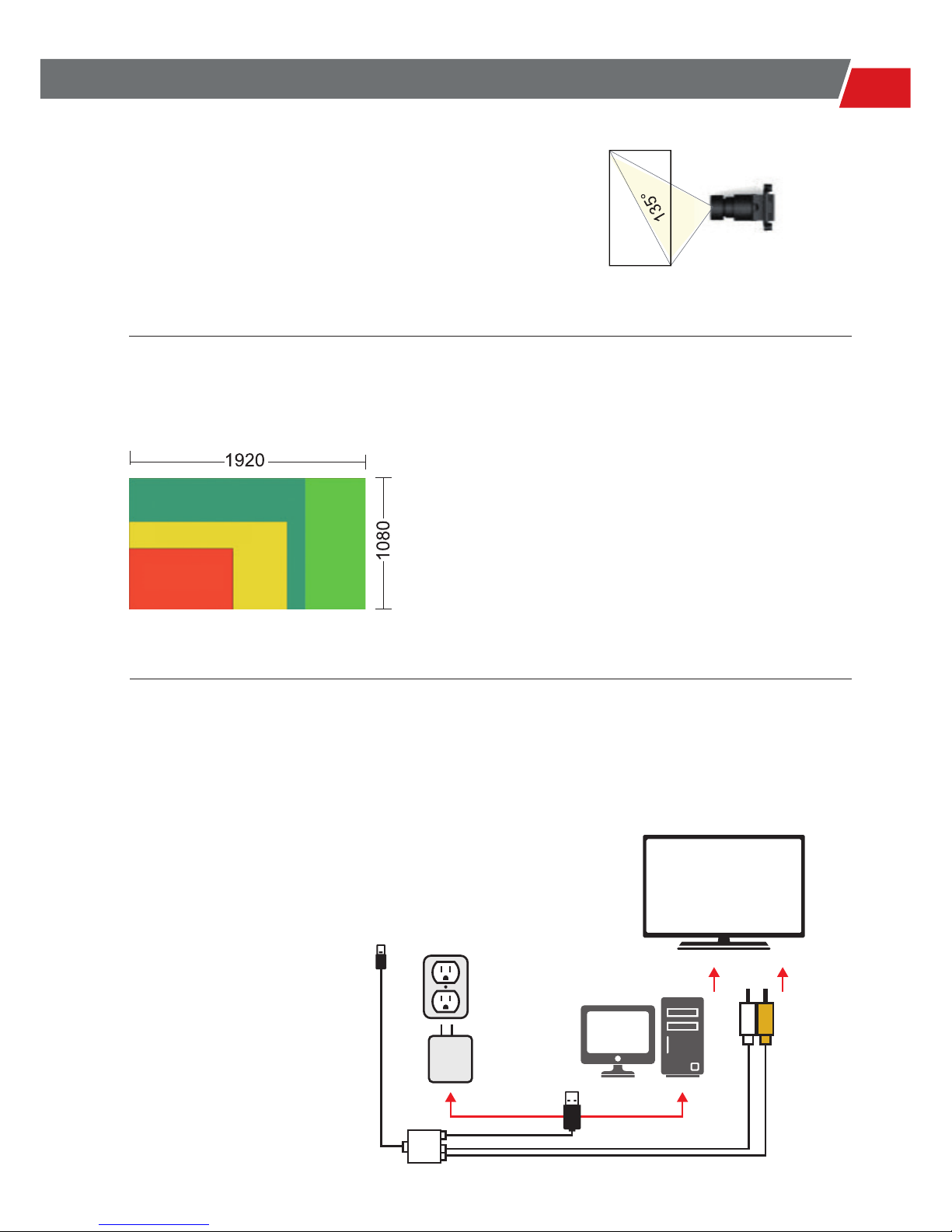

INTERFACE AND VIDEO OUTPUT
EAGLE EYE got mini USB port in the camera,
support RCA output to the display device and
standard USB for data transfer and power
charge with offered cable.
848 x 480
1280 x 720
1440 x 1080
TV or Entertainment system
Mini USB to camera
USB charger Computer
Audio
Video
6
4X DIGITAL ZOOM
COMPACT SIZE AND
1.5” LCD PLAYBACK
G SENSOR
60FPS 720P, 30FPS 1080P
EAGLE EYE got mini USB port in the camera, support RCA
output to the display device and standard USB for data transfer
and power charge with offered cable.
EAGLE EYE got compact size and very light, it won’t
shock even when driving on the uneven road. 1.5” screen
will show the real-time picture that the camera recorded
and playback the content that captured.
3 Axis G-sensor equiped in the EAGLE EYE, it could
detect movement to front and back, left and right, up
and down, it will active the recording according to
acceleration and orientation.
EAGLE EYE got high frame rate video option, with which you can get the
point that you need by watching the slow motion videos.
60FPS
30FPS
7
USER GUIDE
COMPACT SIZE AND
1.5” LCD PLAYBACK

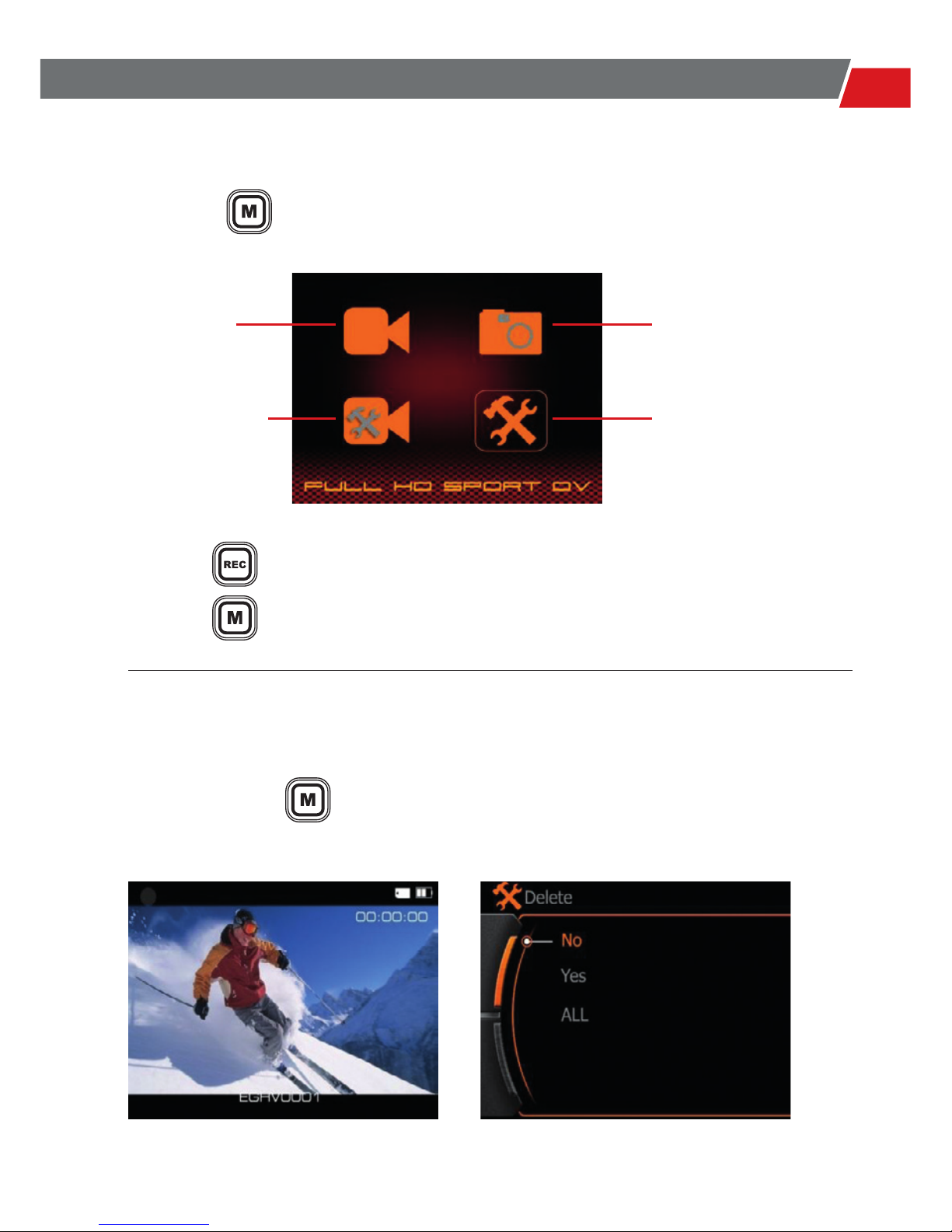

MAIN MENU
DELETE FILES
Long Press the button under playback mode of video/picture,
will display the Delete option menu.
Press the button to Conrm & Enter. Press go back.
Video Folder Picture Folder
Video Setting
Playback Mode Delete option
System Setting
Press the button to enter the main menu like below:
8
TAKE PICTURES & RECORD VIDEO
AUTO RECORD FEATURE OF CAR BLACK BOX
Under actual display mode, press button once to take a picture,
press once to start video record.
Note: The camera will start video record automatically only after you set these 2 features above.
Choose ‘ Auto REC’ Set a Time of Delay
9
USER GUIDE
SPECIFICATIONS
Camera
Interface
Performance
Setup
Other
Feature
Battery
Camera Unit
Video Resolution Option
Picture Resolution Option
Lens Type HD CMOS Lens
Lens View Angle 135°Field of View
Sensor 5MP 1/2.5” digital Image sensor
Storage Micro SDHC/SD ; TF card 32GB max.
USB2.0 Battery charge & Data transfer
LCD 1.5” LCD for video playback;
USB-RCA RCA video output to monitor
Sound Built in MIC and Speaker
Loop Record Option 1 / 5 / 15 / 25 / 35 / 45 Minutes ; Off
Photo Shot Option Single Shot / Continuous Shot
Self –Timer Option 3 / 5 / 10 Seconds delay
Image Flip ON / OFF
Power Saving Auto Power Off / Auto Screen Off
Time Stamp ON / OFF
File protection under low power condition
MP4 ( H.264 ) video compression
Type Rechargeable Li-ion battery
Capacity 600mA
Running Time 1.5 Hours video record max in Battery
Dimension: 80 x 40 x 33 mm
Weight: 56g ( With battery)
1920 x 1080 @ 30FPS
1440 x 1080 @ 30FPS
1280 x 720 @ 60FPS
1280 x 720 @ 30FPS
848 x 480 @ 60FPS
4000 x 3000 12MP
3200 x 2400 8MP
2592 x 1944 5MP
10
We value our customers very highly and would like to ensure that our products and service are
always of a top standard. However, if you are experiencing issues with your Xpro products, please
take a moment to read through the information below to establish whether your products are
covered under the warranty.
Any Xpro product purchased from store.xpro-cam.com or from an authorized dealer is set to a
warranty of one (1) year from the original date of purchase. Customers should be aware that this
warranty may not be offered to those purchasing Xpro products from non-authorized dealers.
This warranty does not apply under the following conditions:
● Product is damaged due to physical abuse, mishandling, accident, negligence or failure to follow
the supplied operating instructions;
● Product is physically modied by Purchaser in any manner other than that for which it was
intended or otherwise previously approved by the Manufacturer;
● Product is damaged or has developed defects caused by the use of unauthorized parts or by an
unauthorized repair service;
● The product has been subject to unsuitable operating or physical conditions outside those
recommended in product specications as provided by the Manufacturer;
● Product has it’s serial numbers altered or removed;
● Product is damaged due to improper packaging of the warranty return to the dealer or
manufacturer.
If your Xpro product fails under normal use within the warranty period, we will ensure that a repair
or replacement is sent out to you, the customer. It is essential that you inform the Xpro support
team or the retailer through email about the return of any faulty items. Returns that do not qualify
for warranty coverage will be returned to customers.
The warranty does not cover loss, accidental damage or costs incurred during the handling and
shipping of repairs or replacement products.
Xpro shall have no liability or responsibility whatsoever to the customer or any other person for any
loss, injury, death, or any damages derived from the use of the product or accessories.
If you have any questions regarding Xpro warranty procedure or terms, please do not hesitate
to contact us on www.xpro-cam.com , We will do our best to instruct you on how to obtain a
replacement product
Your Xpro Team
XPRO WARRANTY TERMS
