xDEEP BLACK EANX User manual

USER’S MANUAL
OLED DIVE COMPUTERFIRMWARE VERSION 2.9.3

32
The xDEEP BLACK EANX is an advanced dive computer, in which we have incor-
porated cutting edge technology and high quality components from the world
leading manufacturers.
While creating the BLACK EANX, we did our best to satisfy your expectations
and make your dives safer and more pleasant. If you have any feedback on the
BLACK EANX, please do not hesitate to contact us. We will be happy to hear
from you.
The BLACK EANX provides a quick and easy way to update the software. It is
necessary for you to register your diving computer on the manufacturer’s
website at the following address: www.genz.pl/support and visit the site occa-
sionally to check whether a new version of software or user’s manual for your
device has been made available.
The BLACK EANX was subject to certification issued by notified body and satis-
fies the requirements of EN 13319:2002 standard „Diving accessories – Depth
gauges and combined depth and time measuring devices – Functional and
safety requirements, test methods”, which was confirmed by the certificate of
conformity CW/GPS/01/2013. The CE marking visible on the instrument indicates
conformity with directive 2001/95/EC.
The BLACK EANX was manufactured by:
GENZ spółka z ograniczoną odpowiedzialnością sp.k.
ul. Ogrodników 3, 43-227 Góra, Poland
Attention: The BLACK EANX consists of built-in lithium-ion battery;
therefore it should be properly disposed of after use. In order to
receive more information on the disposal of devices containing
batteries, contact the vendor or the local authorities.
xDEEP BLACK EANX CONFORMITY WITH EU STANDARDS
As we’re constantly developing BLACK EANX software and
some functions may change or extend, if you come across
any discrepancies download the latest version from the above
mentioned website.
Attention: If a font of this printed manual is too small, you
can download it in .pdf version from: www.genz.pl/support

54
In this manual some information was marked in a special way by presenting it in
a frame with an international symbol. Pay special attention to it.
ATTENTION
This symbol is used to indicate significant practical information
related to the use of the BLACK EANX.
This symbol was used to indicate information and principles
crucial for safety, which, if unknown or not obeyed, may lead
to damage of the device or pose high risk of injuries or death
resulting from incorrect operation of the device.
READ BEFORE USE 1/4
It is likely that the BLACK EANX software still contains some
errors. We put a lot of effort into finding them and tested the
software carefully, but we need to assume that some errors still
remain undetected.
Those errors may cause the device to show incorrect data during
the dive, reset or even completely shut off during the dive.
It must be assumed that BLACK EANX as any electronic device will
fail sooner or later. Electronic devices cannot replace knowledge
and proper training. During the dive never rely only on one source
of information about current depth, dive time and decompression
time and/or no-decompression limits.
Use spare diving computer and device to measure time and depth
and dive tables. Make sure that you can finish the dive safely in
case you lose the diving computer or it will fail during the dive.
Warning!
This manual contains a lot of information very important for your safety.
Therefore, you must read it carefully and understand it before you start diving
with the BLACK EANX. Make sure you understand correctly all information. Oth-
erwise, there is a very significant risk of serious injury or even death resulting
from incorrect use of the device.

76
Before you move to further instructions or/and start using
BLACK EANX dive computer, read carefully all warnings and
information described below and always follow them.
READ BEFORE USE 2/4
• Before you start using the BLACK EANX diving computer, and after reading
this manual, practice using the computer during shallow dives (up to 10m) in
safe conditions within no-decompression limits (NDL).
• Despite the fact that the BLACK EANX displays data on no-decompression
time (NDL) and decompression stops, before each dive with the BLACK EANX
always plan your dive according to the knowledge obtained during the diving
course, using proper tables or computer programs for dive planning (decom-
pression planners).
• The BLACK EANX can never be the only device for measuring depth and time
which you take under water with you. Remember to always have with you a
spare device for measuring the depth and time of dive and dive plan (runtime)
which you can use in case of any failure of the primary device.
• Always take into consideration that as with any electronic device, the BLACK
EANX may also be subject to failure and display incorrect values of the depth,
time of dive or ascent rate despite apparent correct operation. During the dive
compare the readings of your BLACK EANX with a spare device and dive plan
(runtime) prepared before the dive.
• The BLACK EANX is equipped with o-ring seals which do not require any
servicing during the lifetime of the unit. The replacement of batteries should be
performed at a service point authorized by the device producer. Opening the
device by untrained persons may lead to damage of the device or its incorrect
operation.
READ BEFORE USE 3/4
• Use of the BLACK EANX requires knowledge of diving that should be obtained
during proper and correctly conducted diving courses. Therefore, the BLACK
EANX cannot be used by people who did not complete the relevant diving
courses.
• The BLACK EANX diving computer has a set of features useful for advanced
divers who perform accelerated decompression with the use of gas mixtures
containing high level of oxygen. The BLACK EANX does not replace any diving
course. Even if you already have the BLACK EANX but you haven’t finished a
proper course preparing for dives with enriched gas mixtures (EANx, Nitrox),
and with gas switching during the dive, you must NOT use it for such dives.
• Before the first use, set up carefully and understand all parameters, in par-
ticular operation mode, list of gases and conservatism settings.
• For the BLACK EANX diving computer to operate correctly, it is vitally impor-
tant that it is configured in a proper way, used in every single dive and not
used by other people.

98
• Exceeding the max. ascent rate may lead to decompression sickness which
in turn can lead to serious injury or death. Never exceed the optimal and
maximum ascent rates recommended by the diving federation with whom you
completed your diving courses, regardless of the readings of the speed indica-
tor (VSI) displayed by the BLACK EANX.
• Never leave your BLACK EANX within the reach of children and under no cir-
cumstances let the children play with it. Child may choke on small parts, the de-
vice can be damaged and its settings can be changed without your knowledge.
• If you observe incorrect operation of your device or any errors in its soft-
ware, under no circumstance should you use it for diving, instead immediately
contact the producer.
• Never use software from sources other than the website of the producer to
update the device. Such software may contain errors leading to incorrect use
of the device, which may result in injury or even death.
• The BLACK EANX computer is not designed for professional use but only for
recreational purposes. The characteristics of commercial or professional dives
were not considered during the design of the BLACK EANX computer and its use
for such dives may lead to high risk of decompression sickness (DCS) or oxygen
toxicity.
READ BEFORE USE 4/4
The BLACK EANX diving computer calculates no-decompression time (NDL) and
decompression stops using the Buhlmann ZHL16-C algorithm with conservatism
mechanisms based on Gradient Factor. ZHL16-C algorithm was developed by
Prof. Albert A. Bühlmann in Laboratory of Hyperbaric Physiology at the Uni-
versity Hospital in Zürich after over 30 years of research and is recognized by
many experts as the best tested decompression algorithm in technical diving,
including dives at record-breaking depths. The algorithm is based on simulation
of 16 types of tissues of half times from 5.0 to 635.0 minutes for nitrogen and
from 1.88 to 240.03 minutes for helium.
In order to improve safety in repeated and multi-day dives, the BLACK EANX
computer has implemented an algorithm for automatically adjusting the level of
conservatism which shortens the no-decompression limit and extends decom-
pression stops in particular situations, decreasing the risk of decompression
sickness (DCS). The BLACK EANX computer will also activate additional recom-
mended and required stops if it detects that during the dive the rate of ascent
was exceeded. The time limit for those stops depends on the exceeded value.
DECOMPRESSION ALGORITHM 1/3
Attention! Overweight, poor physical condition, cardiovascular
disorders, patent foramen ovale, age above 40 years and other
factors and diseases may lead to increasing the risk of decom-
pression sickness (DCS), despite obeying the principles of correct
diving. No matter if these factors are present or not, before the
dive it is necessary to consult the doctor specializing in diving
medicine, and if needs be, to shorten no-decompression limits
and/or increase the conservatism according to the doctor’s
recommendations.

1110
Attention! The decompression algorithm is based on simulated tissues and
calculates the saturation of tissues with inert gases in a continuous manner –
both during the dive and on the surface. Pay special attention to the following
information that will be displayed every time the device is reset, (e.g. after
discharge of battery or after restart using one of the functions in the menu).
When the computer displays the above-mentioned information it means that
simulated tissues were initialized - information on the residual nitrogen was
deleted. If you dived within the previous 48h, the computer will calculate no-
decompression time (NDL) and decompression stops in a manner that does not
reflect the real saturation of your tissues. Therefore, you must not use the
computer if the above-mentioned information is displayed and you dived within
the previous 48h, since it may lead to decompression sickness (DCS).
Attention! Buhlmann ZHL16-C algorithm implemented in the BLACK
EANX computer as any other algorithm applied in the diving
computers is a theoretical mathematical model which does not
reflect the real processes happening in the human body, but only
in approximate manner simulates the saturation of theoretical
tissues with inert gases and on the basis of that tries to calculate
the remaining no-decompression time (NDL) and the required
decompression stops. It means that no diving computer (including
the BLACK EANX) can 100% prevent the possibility of decompres-
sion sickness (DCS) or oxygen toxicity.
Attention! Diving at depth greater than 40m and/or with the use
of breathing gas mixtures with helium increases the risk truly
enormously. While performing such dives you need to have proper
training completed and you need to take into account that you
really risk your life with this activity.
Attention! Despite the fact that the device is designed to operate
at depth significantly exceeding 100m, due to poorly examined phy-
siological phenomena happening in the diver’s body at such depths,
BLACK EANX as any other diving computer can’t guarantee that the
information displayed assures desaturation of the body to such
level at which there is no risk of decompression sickness (DCS).
DECOMPRESSION ALGORITHM 2/3
Attention! Read carefully the following information and make
sure that you understand it since it is significantly important for
your safety.
DECOMPRESSION ALGORITHM 3/3
Decompression
algorithm
initialized

1312

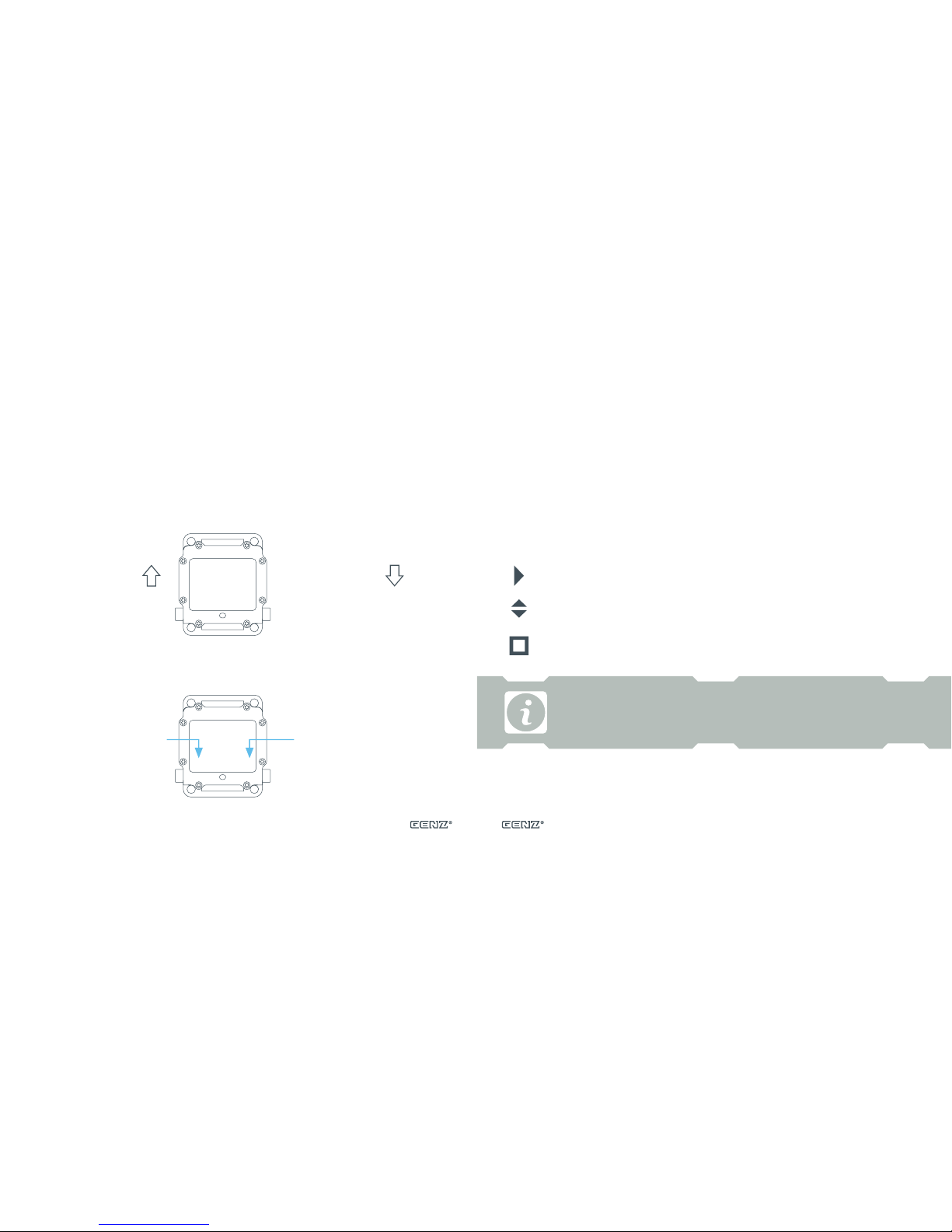

The BLACK EANX can be fixed on the hand with the supplied strap. In order to
fix it, you need to thread the strap through the holes in the case, as shown in
figure below:
BASIC ELEMENTS
AMBIENT LIGHT SENSOR PRESSURE
SENSOR
USB
PORT
OLED 1.8” SCREEN
MOUNTING POINTS OF STRAP
AND BUNGEE CORDS.
STRAP ASSEMBLY

1514
The BLACK EANX has four holes for bungee cord mounting:
In order to install the bungee cord:
1. Tie a knot at the end of the cord. Next, thread the bungee cord through hole
A so that the knot is placed from the display side.
2. Thread the end of the bungee cord through holes B, C and D. The length of
the knot between holes A-B and C-D should be adjusted to the hand size.
3. Tie a knot in the appropriate place on the free end of bungee cord. Cut the
remaining bungee part and singe it with a lighter.
BUNGEE CORD MOUNTING
It is advisable to tie a knot between points B and C
as protection against the loss of device, in case the bungee cord
should break.
INITIAL START UP OF DEVICE
Attention! At initial start up the BLACK EANX will display informa-
tion “Decompression algorithm initialized”. It means that the
decompression algorithm was initialized and the device stores in
its memory no information on nitrogen retaining in the human
body. It is not allowed to use the BLACK EANX, if you performed
any dives during the previous 48h, as this could lead to a very
high risk of decompression sickness (DCS).
Attention! Before the first use and also directly before each
dive check the settings of the device, in particular the operation
mode, conservative setting and gas configuration.
On initial start up of the device, the BLACK EANX will display the configurator
for setting some basic options (language, date and time, units). After they are
set, the computer will start its surface mode.
When first started, the battery indicator will always indicate total discharge of
the device. This is intentionally set like this during the production process, after
the complete charge, for user’s safety.
After connecting to the charger, the BLACK EANX will indicate subsequent
charging stages and when it detects that the battery is fully charged, value
100% will be displayed. It is a standard procedure resulting from safety mecha-
nisms implemented in this device.

1716
If the BLACK EANX was used during a dive, then after completing the dive the
main screen will display the following information:
• Surface Interval – time in hours since surfacing from previous dive.
• NoFly – minimum time in hours during which you mustn’t travel by plane or in-
crease your altitude. More information on „NoFly” time is available in chapter
„After dive – travelling by plane”.
• OTU – amount of OTU units that were calculated during the last dive.
The count does not include units from previous dives.
• CNS – current value of CNS% count, including CNS% units calculated during
the last dives and decrease in CNS% count resulting from surface interval.
DEVICE START-UP ON THE
SURFACE 1/2
In order to start up the BLACK EANX on the surface, simultaneously press both
buttons briefly with 1s interval several times.
Once done, the BLACK EANX will start up in surface mode and display the follow-
ing information:
To save battery energy, the BLACK EANX turns off after several minutes of
non-operation.
If the device fails to start, the battery is probably discharged. In
such case, connect the charger and then start the device again.
If during the previous 48h there were situations which could
increase the risk of decompression sickness (DCS) the device will
display a warning icon. You need to read information presented
in chapter „After the dive – warning icon”.
04.06.15
16:52
Surf.time: 1:20
Mode: EANx
ALERT ICON (IF DISPLAYED)
BATTERY INDICATOR CURRENT DATE
CURRENT MODE
AFTER DIVE
INFORMATION
CURRENT HOUR
START OF DEVICE ON THE
SURFACE 2/2

1918
The BLACK EANX has two buttons. Each of these buttons detects both a ‘quick
press’ (under 0.5s) and ‘hold’ (over 0.5s).
Button functions for the main screen, additional information screen and com-
pass screen:
In the menu, functions assigned to ‘hold’ are described on the screen:
BUTTONS
HOLD ACTIVATES THE
MAIN MENU SCREEN
FUNCTION ACTIVATED
AFTER HOLDING THE
LEFT BUTTON
FUNCTION ACTIVATED
AFTER HOLDING THE
LEFT BUTTON
Exit Set
HOLD ACTIVATES THE
CONTEXT MENU SCREEN
QUICK PRESS QUICK PRESS
The BLACK EANX has two types of menus:
• Main menu – activated after holding the left button on any screen;
• Context menu – activated after holding the right button on screens which
provide such menu type (e.g. compass).
Menu items include several types of graphical symbols indicating functions
performed by them:
Item including sub-menu. Hold the right button to enter the sub-menu.
Item for setting the value. Hold the right button to enter edit mode and
then by pressing briefly, set the value.
Turn on/off item. Hold the right button to change the state.
MENU OPERATIONS
By pressing briefly both buttons at the same time you immedi-
ately return to the main menu, regardless of the menu level you
are in.
