Xiaomi Mijia DC User manual

Operation Instructions for Mijia DC Frequency Conversion Tower Fan
Safety Instructions Please read this manual carefully and keep it properly
before.
Attention
Installation
Please be sure to install this product correctly according to the instructions, otherwise electric
shock, fire, personal injury and other damages will occur.
The tower fan has not been assembled, please do not connect the power supply.
Handling
When moving, be sure to stop the tower fan and unplug the power plug.
When moving, please hold the tower fan firmly to avoid machine damage or personal safety
caused by falling.
Using
If the product has abnormal noise, peculiar smell, high temperature, tilt, body shaking and other
abnormalities, please stop using it immediately.
Do not lean against or tilt the tower fan during operation.
Do not swing the tower fan body manually to avoid damage to the internal transmission
mechanism.

Power cord
Please unplug the power cord from the power outlet before performing maintenance work or
moving the tower fan.
When pulling out the power cord, pull it up from the power plug. Do not pull the power cord.
If the power cord is damaged, in order to avoid danger, it must be replaced by professionals from
the manufacturer, its maintenance department or similar departments.
Warning
If it is not used properly, electric shock, fire personal injury and other damages may occur.

Do not use this product in nearby places where there are easily inclined or unstable objects.

Please do not use this product in high temperature and humid environment such as bathroom.

Do not use this product when the power cord is damaged or the power plug is loose.

Do not run this product when the rear grille is not installed or when the rear grille is loose or
falls off.

Do not allow children or adults who do not understand this instruction to operate this product.

Please do not disassemble and repair this product without permission.

Do not excessively pinch, bend or twist the power cord to prevent the core from being
exposed or broken.

Do not insert fingers or foreign matter into the tower fan grille or the running impeller.

Do not put hair, fabric, etc. close to the tower fan to avoid danger caused by being involved.


Do not use inappropriate power outlets.

Before removing the rear grille, it must be ensured that the tower fan is disconnected.
包装清单
Packing List

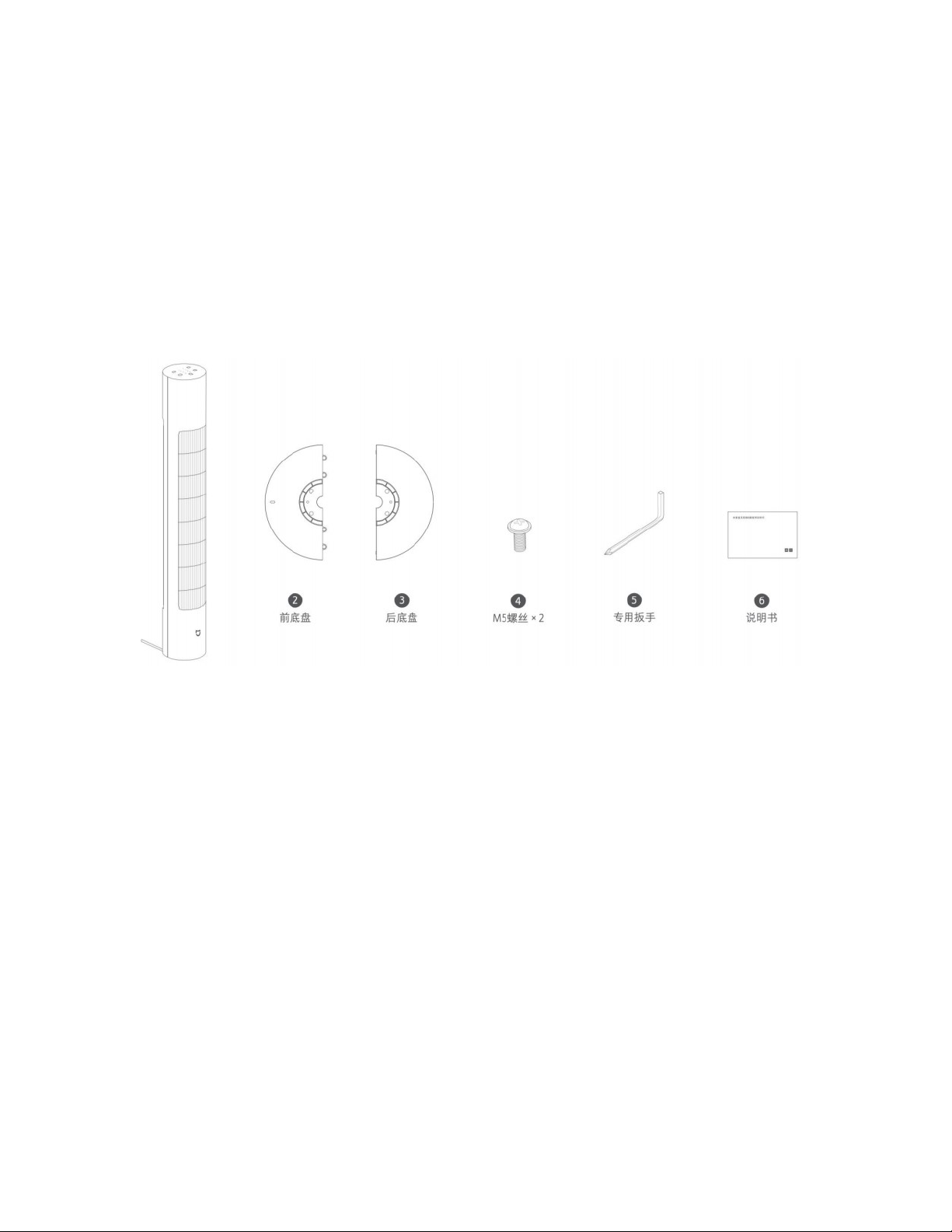

①Tower fan main body ②front chassis ③rear chassis ④M5 screw × 2 ⑤special wrench ⑥
operation manual
Hint: The illustrations of products, accessories and user interfaces in the manual are all schematic
diagrams for reference only. Due to the update and upgrade of the product, there may be slight
differences between the physical product and the schematic diagram, please refer to the physical
product.

Product Introduction

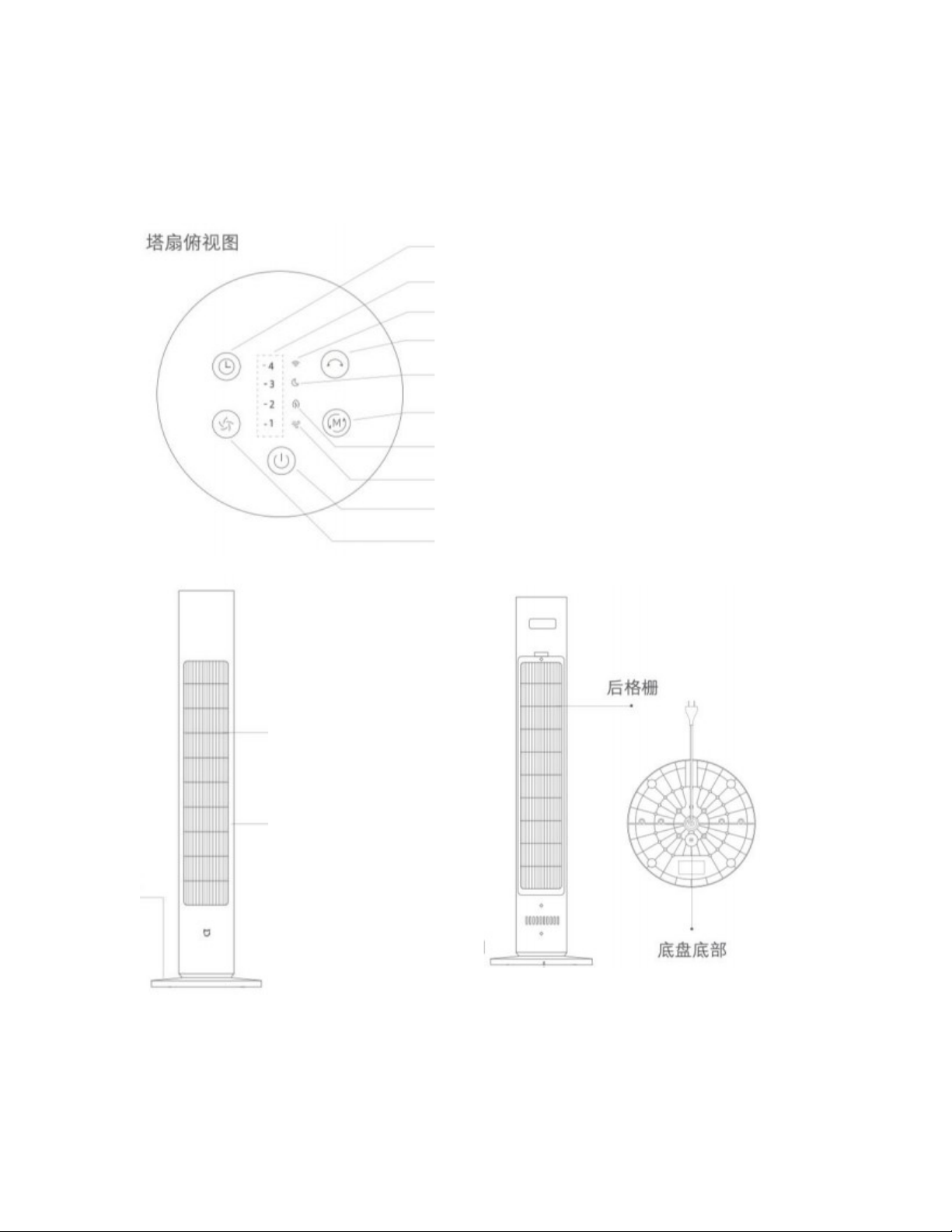

Top view of tower fan Timing adjustment key
Air Volume/Timing Indicator
Wi-Fi Indicator
Shake the head key
Sleep Wind Mode Indicator
Mode Switch Key
Natural Wind Mode Indicator
Direct Blowing Mode Indicator
Power
Air volume adjusting key
chassis, front grille, tower fan main body Rear grille, power cord outlet, chassis bottom

Installation
Step 1: Splice the chassis
定位柱 定位孔 底盘
Positioning column, positioning hole, chassis
1.

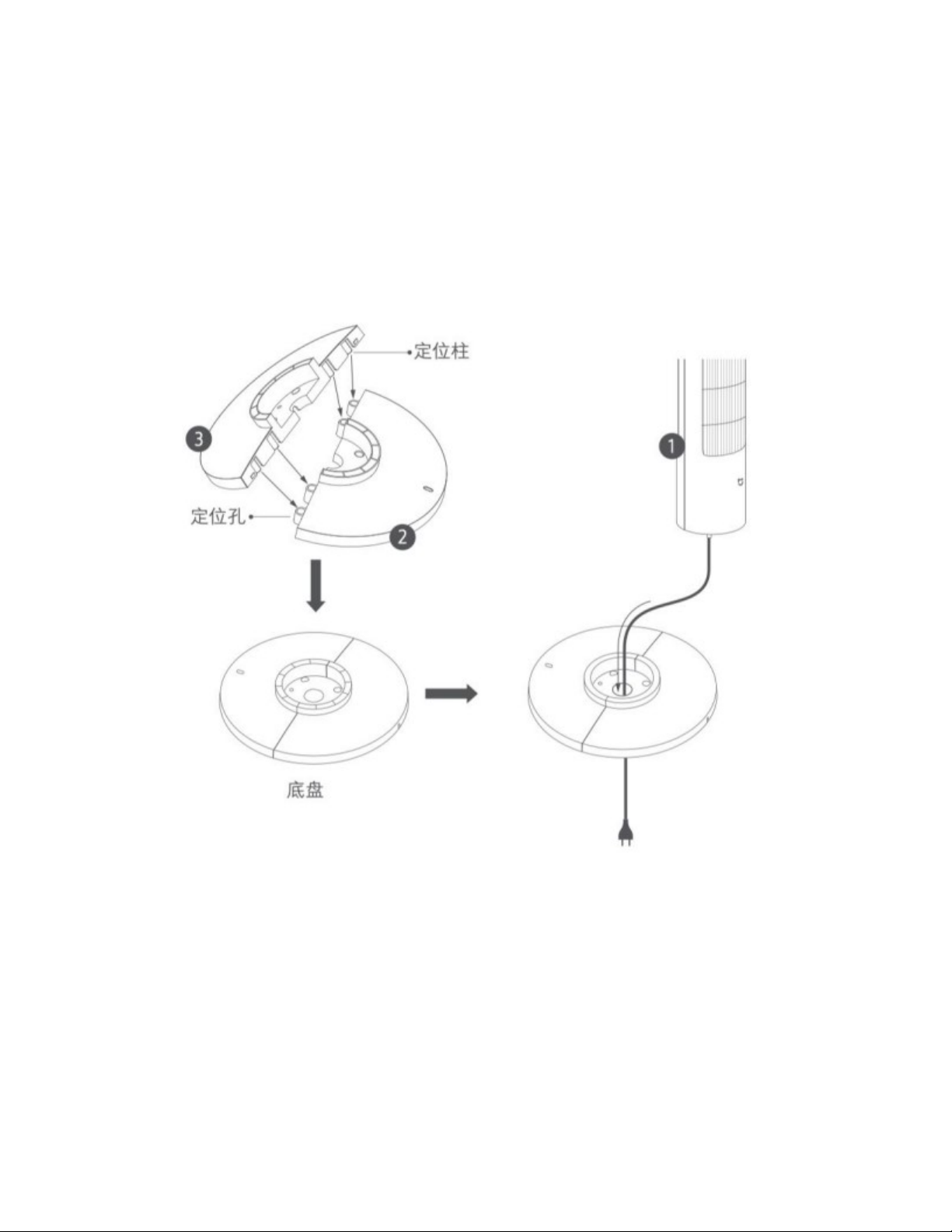

As shown in the figure, insert the positioning column of the rear chassis ③into the positioning
hole of the front chassis ②and press it to buckle it in place to splice the rear chassis and the front
chassis into a flat chassis.
2.

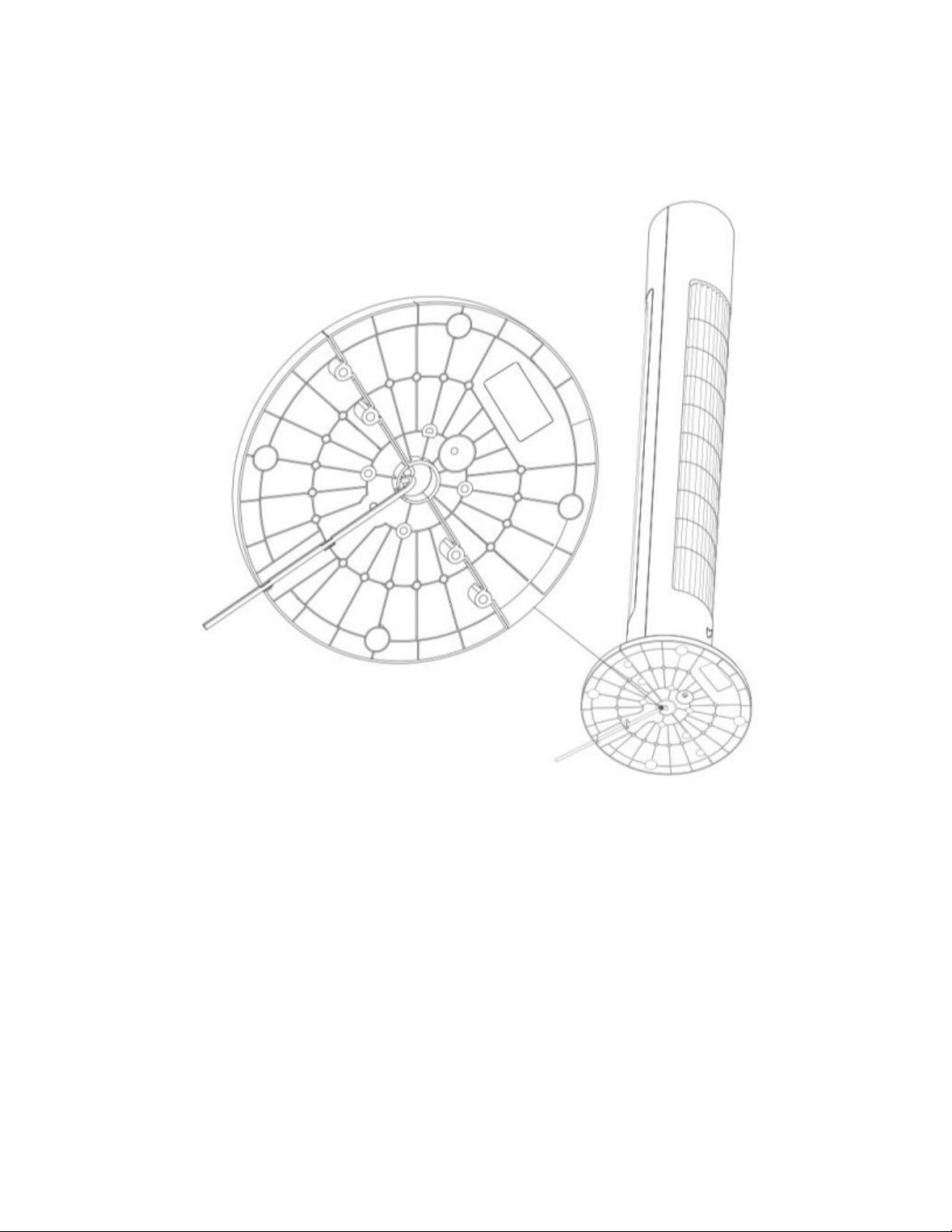

Pass the power cord at the bottom of the tower fan main body ①through the round hole in the
center of the chassis.

Step 3: Arrange the power cord
Install the power cord into the trunking at the bottom of the chassis, lead it out from the outlet of
the power cord, and complete the installation of the tower fan.
Hint: normally straighten out the power cord and load it into the trunking, which will not damage
the power cord.

Use
Connect the power supply
Insert the power plug into the qualified power socket, and after hearing the "beep" tone, the tower
fan is successfully connected to the power supply.
Switch on and off
Switch on
Press key and the tower fan starts to work. For the first time, the default is direct blowing
mode, with 1 windshield.
Switch off
Press the key in the startup state to stop the tower fan from working.
Switching air volume

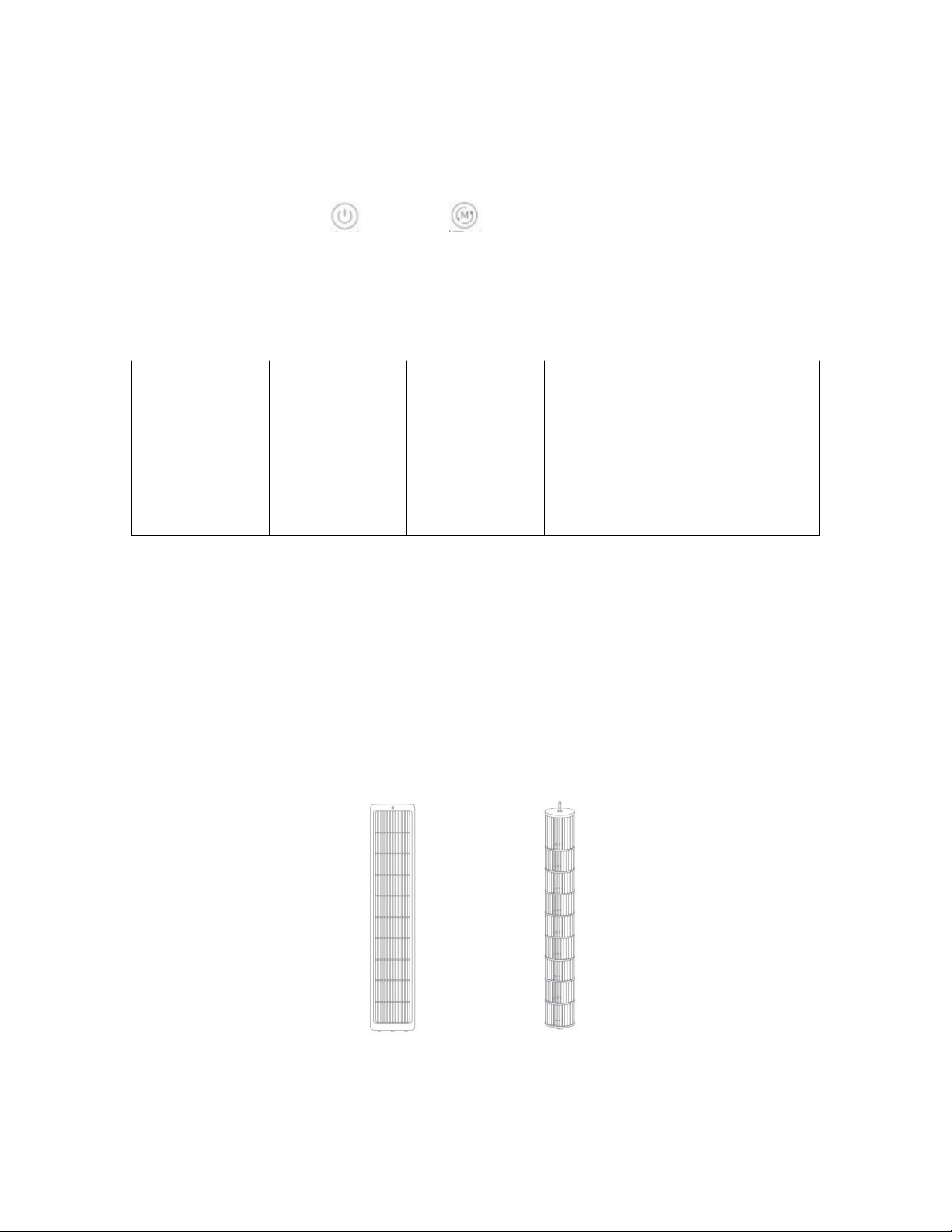

Press the key to switch the air volume gear, and the corresponding air volume indicator light
will be on for a long time (as shown in the following table). The next time you start up, the
default is the air volume gear used when you last shut down.

挡位
Gear
1挡
1st gear
2挡
2nd gear
3挡
3rd gear
4挡
4th gear
显示状态
Display Status *●●● **●● ***● ****
Tip: * Lighted State ● Off State
Switch Mode
Press the key to switch the modes of direct blowing, natural wind and sleep wind, and the
corresponding mode indicator lights will be on for a long time. The next time you start up, the
default is the mode used when you last shut down.
Set Shake Head
Press the key to turn it on or off and shake your head. Users can set the shaking angle in
APP.
The next time you start up, the default is the shaking head setting used when you last shut down.
Hint: After resetting Wi-Fi, the tower fan shaking angle will return to the default angle of 90.
Timing shutdown
Press the key to switch the timing gear cyclically: 1 hour, 2 hours, 3 hours and 4 hours, turn
off the timing, and the corresponding timing indicator light will be on for 5 seconds (the
following table). After the timing indicator light is on for 5 seconds, it will return to the air
volume indicator mode.

定时
Timing
关闭定时
Close Timing
1小时
1 hour
2小时
2 hours
3小时
3 hours
4小时
4 hours
显示状态
Display
Status
●●●● *●●● **●● ***● ****
Tip: * Lighted State ● Off State
Connect Mijia APP
This product has been connected to Mijia and can be controlled by Mijia APP or Classmate
XiaoAi, and is interconnected with other products.
Scan the QR Code, download and install the Mijia APP. Users who have installed the Mijia APP
can directly enter the device connection page. Or search for "Mijia" in the application store,
download and install Mijia APP. Open the home page of Mijia APP, click "+" in the upper right
corner of the page, and add devices according to the APP prompt.
Hint: Due to the upgrade and update of Mijia APP, the actual operation may be slightly different
from the above description. Please follow the current guidelines in Mijia APP.
works with mijia
Accessed to Works with Mijia

Connect to Wi-Fi
At the same time, press the key and the mode switch key for a long time. After hearing
the long sound "beep", enter the waiting connection state and connect the device according to the
APP prompt.
Wi-Fi Indicator Display Status:
Wi-Fi 状态
Wi-Fi Status
等待连接
Waiting for
Connection
连接中
Connecting
已连接
Connected
连接失败
Connection
failed
指示灯状态
Indicator status
橙色闪烁
Orange flicker
蓝色闪烁
Blue flicker
蓝色长亮
Blue long bright
橙色长亮
Orange long
bright
Maintenance
Washable parts: rear grille, and impeller
Rear grille, impeller

After the rear grille and impeller are removed, clean with clean water or diluted neutral detergent,
combined with soft cloth or sponge.
Note: Be sure to stop the tower fan from running and unplug the power cord before
disassembling and cleaning the machine.
After cleaning, please completely dry the parts before installing and using, and avoid direct
sunlight.
Do not use diluents, light gasoline, acidic or alkaline detergents for cleaning.
Removing rear grille
Rear grille
1.

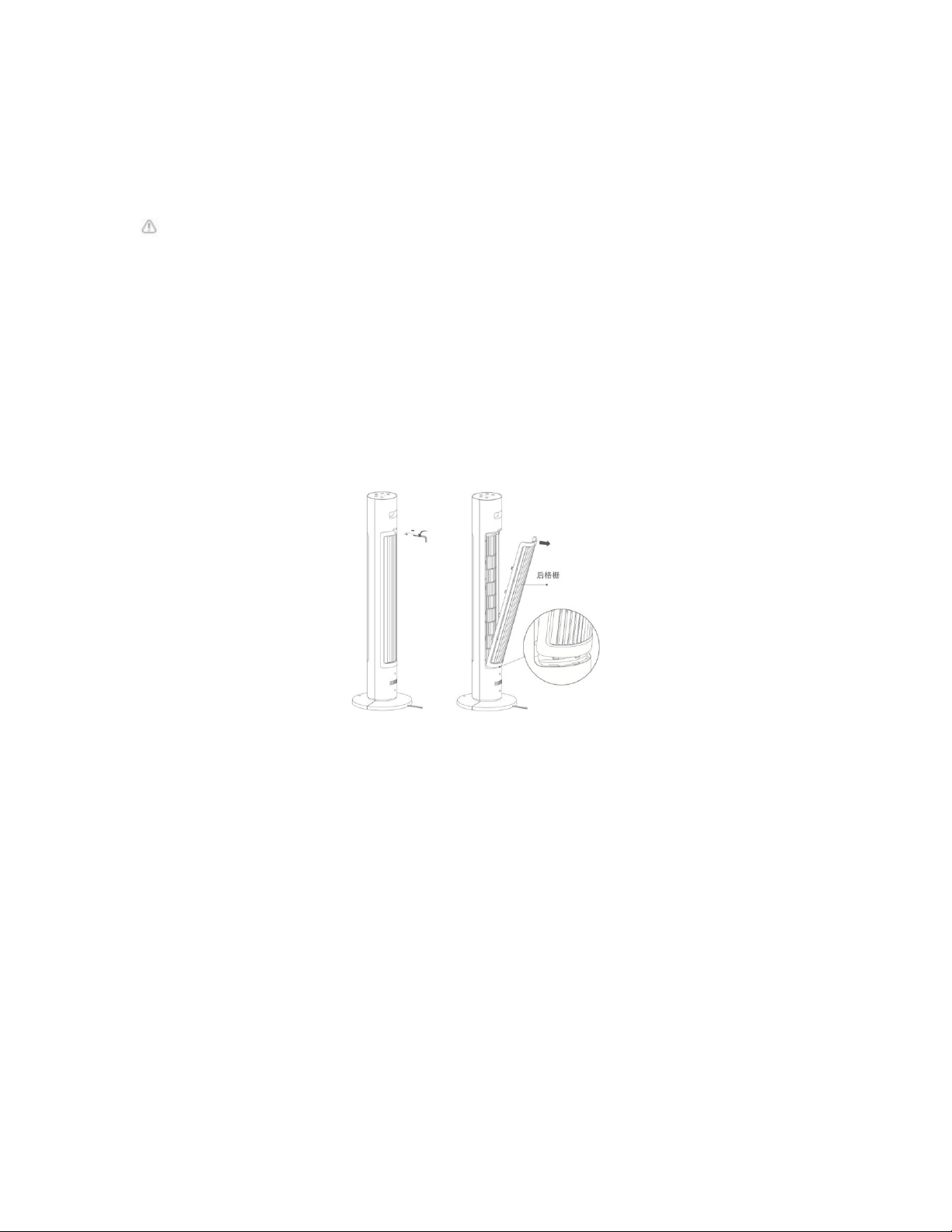

As shown in the figure, use ⑤special wrench to rotate counterclockwise to remove the rear grille
fixing screw.
2.
Buckle the groove at the top of the rear grille and pull back to remove the rear grille.
Hint: When installing the rear grille back, insert the positioning column at the bottom of the rear
grille into the positioning hole of the rear shell, and then buckle up from the bottom in turn.

Maintenance
Remove the impeller
叶轮Impeller
1.

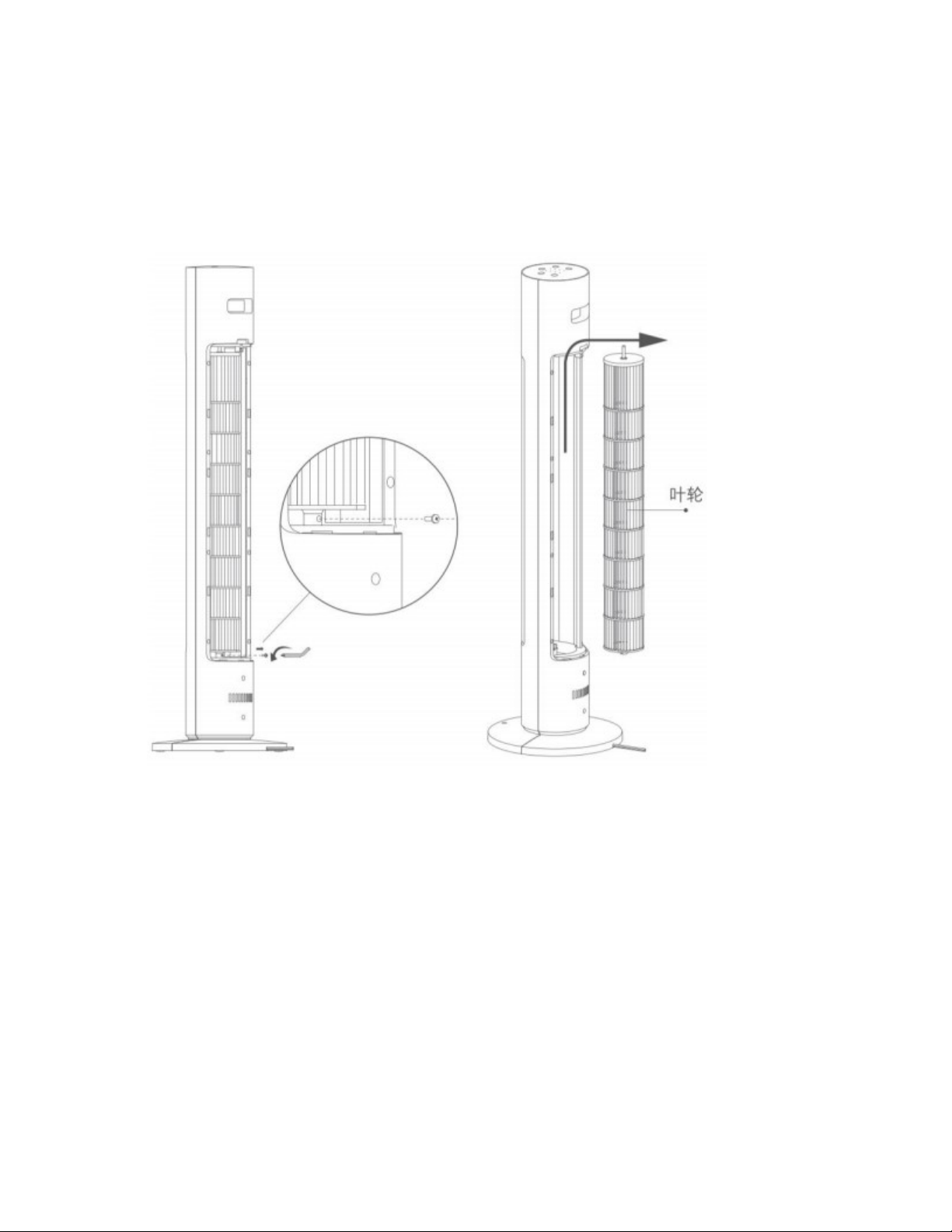

As shown in the figure, use ⑤special wrench to rotate counterclockwise to remove the fixing
screw at the bottom of the impeller.
2.
Push the impeller upward so that it can resist the top of the impeller bin, and then pull it out to
disassemble.

Non-washable parts: Tower fan main machine, and power cord
Please use a soft dry cloth to gently wipe the tower fan main engine and power cord.
Note: Do not clean any components except the rear grille and impeller with water or other
liquids.

Troubleshooting
故障现象Fault 可能原因 Reason 解决方法 Solution
塔扇不运转 The
tower fan does
not operate.
产品未通电Product is not powered on 连接符合产品要求的电源Connect the power
supply that meets the product requirements
塔扇后格栅安装不到位 The rear grille of
the tower fan is not installed properly. 将后栅格安装到位 Installing rear grid in place
塔扇主体与底座安装不到位 The main
body and base of the tower fan are not
installed properly.
将塔扇主体与底座安装到位 Install the tower fan
main body and base in place
童锁打开Child lock open 关闭童锁Close child lock
Wi-Fi 无法连接
Wi-Fi Unable to
Connect
路由器为5GHz 频段The router is in the
5GHz band
连接路由器 2.4GHz 频段Connecting the router to
the 2.4 GHz band
塔扇持续离线超过半小时The tower fan
was offline for more than half an hour. 重置 Wi-Fi Reset Wi-Fi
叶轮卡停
Impeller jamming
叶轮被异物卡住Impeller stuck by foreign
matter
关闭塔扇电源，取出异物Turn off the power
supply of the tower fan and remove the foreign
matter
塔扇摇头有异响
The tower fan
shook its head
and made
abnormal noise.
首次开启摇头，塔扇搜索摇头极限位置
Turn on the shaking head for the first time,
and the tower fan searches for the limit
position of shaking head.
正常现象，等摇头极限位置确认后，异响停止
Normal phenomenon, after the limit position of
shaking head is confirmed, the abnormal sound will
stop.
