Hair Clipper User Manual

Read this manual carefully before use, and retain it for future reference.
Precautions
This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the
appliance.
Cleaning and user maintenance shall not be made by children without
supervision.
Europe - EU declaration of conformity
We shenzhen Kolamama Technology Co., Ltd., hereby, declares that
this equipment is in compliance with the applicable Directives and
European Norms, and amendments. The full text of the EU declaration
of conformity is available at the following internet address:
http://www.mi.com/global/service/support/declaration.hmtl
WEEE Disposal and Recycling Information
All products bearing this symbol are waste electrical and electronic
equipment (WEEE as in directive 2012/19/EU) which should not be mixed
with unsorted household waste. Instead, you should protect human health
and the environment by handing over your waste equipment to
a designated collection point for recycling of waste electrical and
electronic equipment, appointed by the government or local authorities.
Correct disposal and recycling will help prevent potential negative
consequences to the environment and human health. Please contact the
installer or local authorities for more information about the location as well
as terms and conditions of such collection points.

WARNINGS
This appliance contains built-in lithium-ion battery.
Do not disassemble, impact, crush the battery or throw it into fire.
If there is severe swelling, do not continue to use.
Do not leave the battery in high temperature environment.
For the purposes of recharging the battery, only use the detachable supply unit
provided with this appliance.
Use only with <A520-050100U-EU1> supply unit.
This appliance contains batteries that are non-replaceable.
The appliance is intended for trimming purposes only.
Cutting blades may become hot after prolonged use.
CAUTIONS
If the battery has leaked and you accidentally touch it, rinse the area with plenty
of water and seek medical attention immediately.
Suitable for cleaning under an open water tap.

Product Overview
Fixed Head
Adjustable Head
Comb Slot
Trimming Lenght Indicator
Adjustable Head Dial
Comb Adjuster
On/Off Button
Working Indicator
Maintenance Indicator
Battery Level Indicator
Type-C Charging Port
3-21 mm
Adjustable Comb
23-41 mm
Adjustable Comb
Thinning
Comb
Hair
Clip

Charging Cable Cleaning Brush Power Adapter Sponge Barber Cape
I. Assembling the comb
To Install a comb, insert the numbered
end into the slot until it clicks into place.
II. Removing the comb
As shown in the image, hold the top of
the comb and pull it upwards to
remove it.
Note:
You can also attach and remove the thinning comb as shown above.

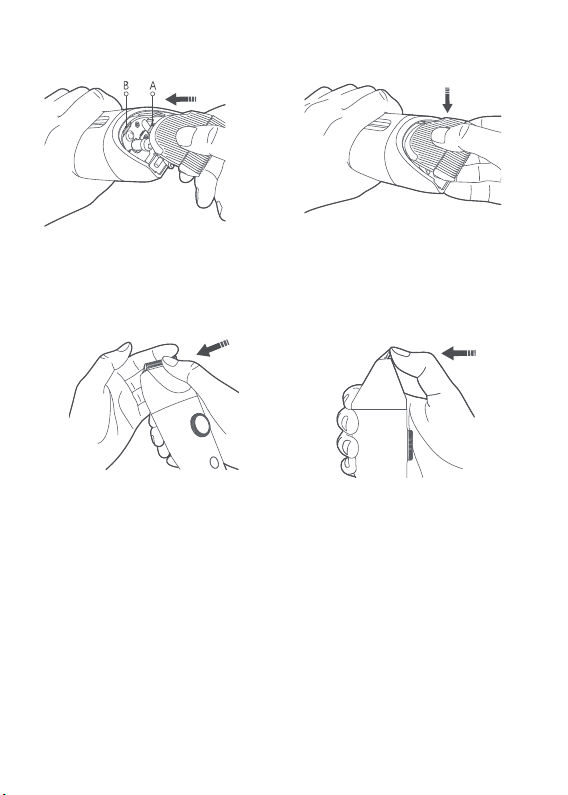

III. Attaching the blade head
1.Using the dial, set the adjustable
head to 1,7 mm.
Assembly & Disassembly

2. To instal the blade head, align clip (A) on the blade head with slot (B) on
the clipper, then firmly press the blade head until clicks into place.
IV. Removing the blade head
Turn off the power and hold the clipper with the front facing up, as shown in
the image. Place your thumb against the blade head and push firmly to
remove it.
CAUTIONS
1.To avoid dropping or breaking the blade head, push with one hand and use
the other hand to catch it when removing it.
2. If the blade head is damaged, it can cause hair to get stuck or the blade head
to not work, so please replace the blade head as soon as possible.
3. When is use, the blade head will heat up slightly. This is normal and does not
affect use.
4. The service life of the blade head depends on the frequency of use and
maintenance.

How to Use
Charging
1.Before charging, make sure the clipper is
turned off.
2. Plug the charging cable into the charging port
on the clipper, and use the provided power
adapter to charge the clipper. The battery level
indicator will blink white slowly when charging
and will remain white once fully charged.
3. It should take about 2,5 hours to fully charge the clipper.
4. The fully charged clipper should run for about 180 minutes.
Type-C
Charging Port
5. If the battery is running low, the battery level indicator will light up red.
You can continue to use the clipper after connecting it to a power source.
Note:
Connect the clipper to a power source and wait a few seconds before turning
it on again. If the battery is depleted before charging, please wait a few
minutes before turning it back on.

On/Off button
Operation
Press
Clipper status
On/off
Indicators
Clipper status Indicator status
On
Off
Blade head needs oil.
Blade head is working normally.
Sufficient battery
Low battery
Battery is depleted.
Charging
Fully charged
Always white
Off
Always white
Off
Always white
Always red
Blinks red 3 times then turns off
Blinks white slowly
Always white
1. Use a comb to brush the hair in the direction of the hair growth.
2. Choose a suitable comb and attach it to the clipper.
Using the comb
3. As shown in the image, slide the comb
adjuster up and down to charnge the
trimming lenght. The number shown by
the trimming lenght indicator is the lenght
of the hair left after trimming.
4. Place the teeth of the comb on the scalp
and move the clipper slowly against the
direction of hair growth.
Slide to adjust the
trimming lenght

Notes:
1.Start trimming at a longer lenght, and gradually reduce the setting until you
reach the desired lenght.
2.Use a higher speed setting when trimming thick or coarse hair and a lower
speed setting when trimming finer hair.
3. When using a comb, it is recommended to set the adjustable head dial to
0,5 mm, otherwise the final hair lenght may be different from the selected
comb lenght.
4. The length of the hair after trimming will differ slightly from the trimming
length.
CAUTIONS
1.Before using the clipper, make sure that the hair is clean and dry. Do not use
the clipper on wet, freshly washed hair.
2. Be careful when trimming for the first time. Do not move the clipper too fast
and make sure to move it smoothly and gently.
3. In the case of broken skin, infection or swelling on the scalp, do not use the
clipper to prevent any secondary injury.
Select the adjustable comb or thinning comb depending on the desired hairstyle.
3 - 21 mm
Adjustable Comb
23 - 41 mm
Adjustable Comb
Thinning Comb
It achieves a lenght of 3 - 21 mm after
trimming, has seven lenghts to choose
from and is best suited for shorter
hairstyles.
For trimming layers and ends.
It achieves a lenght of 23 - 41 mm after
trimming, has seven lengths to choose
from and is best suited for medium-length
hairstyles.

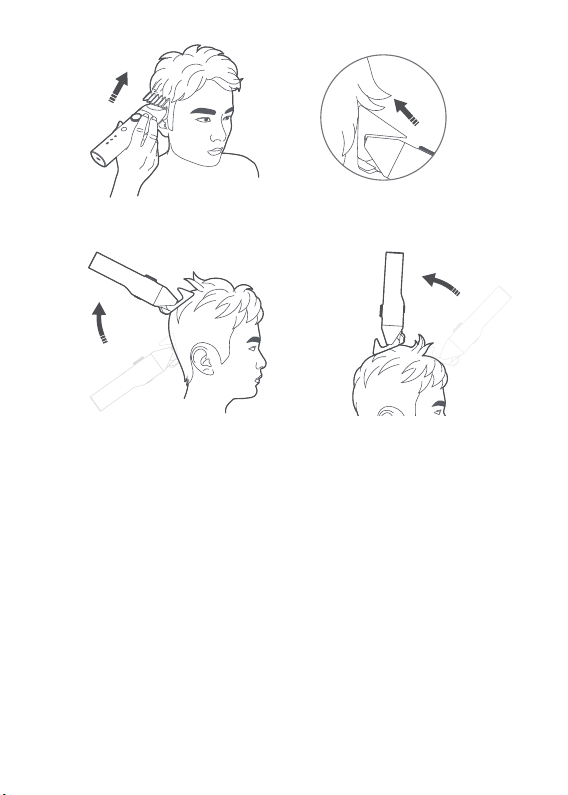

Move the clipper against the direction of hair growth
Go over multiple times with different lengths
Notes
1. Using a comb helps prevent trimming hair too short by accident and control
the overall lenght of the hairstyle.
2. Since hair tends to grow in different directions, the clipper must be moved
(upwards/downwards/across) to keep it going against the direction of hair
growth.
3. Trimm repeatedly across the whole head to ensure the clopper catches all
the hair to be trimmed.
4. Make sure the top of the comb stays in contact with the scalp to get an even
trim.
5. For better results on curly, sparse or longer hair, brush the hair in the moving
direction of the clipper.
6. Clean hair from the combs and blade heads to avoid them getting clogged
and affecting the clipper's performance.
7. If the neck hole in the barber cape is too big or small, use a clip to adjust it.

Using the thinning comb
The thinning comb will only cut half of the hair that goes through its teeth.
It can be used to thin thicker hair and create a natural look.
1.Push the thinning comb into the comb slot to keep it close to the blade
head.
2.Turn the clipper on and move it slowly against the direction of hair growth.
Thinning comb is close to the
blade head
Push eith your thumb to remove
the thinning comb
CAUTIONS
1.The adjustable combs will trim all hair in an area to the same length, while the
thinning comb will only trim half the hair of this area. Make sure you understand
this difference.
2. It is not recommended to use the thinning comb on very short hair.
3. Make sure to only use the thinning comb once in each area might get cut
short.
WARNING
Cutting blades may become hot after prolonged use.
Using the adjustable head
1.When trimming the contours of the neck and sideburns, there's no need to use
a comb. Instead, change the lenght of the adjustable head.
2. Rotate the adjustable head dial to change the length of the blade head.
The number pointed by the arrow above the dial is the length of the hair left
after trimming.
3. When trimming the contours of the neck sideburns, it is recommended to
move the clipper slowly with its back facing up.

Setting the adjustable head
Trimming the contours of the neck and sideburns
Care & Maintenance
WARNING
Before cleaning and maintenance, the charging cable must be unplugged
and the clipper must be turned off.
I.Cleaning the blade head and body
1.Remove the blade head.
2. Use the cleaning brush to remove any hair from the blade.
3. Rinse the blade head and body separately to remove all the hair.
4. Wipe with a cloth and leave to air dry.
5. Reattach the blade head to the clipper and store in a safe place.

CAUTIONS
Rinse the blade head with clean water. Do not use salt water or hot water.
Do not soak the clipper in water. After cleaning, be sure to dry the blade
head to prevent the spring from getting rusted.
Only clean the clipper with a soft cloth dipped in tap water or soapy water.
Do not use paint thinner, gasoline, alcohol, or other chemicals.
Never wash the charging cable.
Never take apart the adjustable head or any other parts for cleaning, as they
may not be able to be reassembled.
The appliance is intended for trimming purpose only.
II. Maintaining the blade head
As shown in the images, make sure to add lubricating oil (sold separately) to
the spots shown before each use and after cleaning. Add 1 - 2 drops to each of
the six spots shown.
Adding oil to the blade head Adding oil to the motor

Environmental Protection
When disposing of the clipper, do not throw it out with your household waste.
Instead, take it to a government-designated recycling center, as this helps
protect the environment.

Specifications
Name Xiaomi Hair Clipper
Model LFQ04KL
Charging Time 2,5 hours
Working Voltage 3,7 V
Working Power 3 W
Rated Input 5 V 1 A
Net Weight 266 g
Item Dimensions 47 x 45 x 182 mm
Power Adapter
Information Published Value and Precision
Manufacturer's Name
Model Identifier
Input Voltage
Input Frequency
Rated Output Voltage
Rated Output Current
Nominal Output Power
Average Active Efficiency
Efficiency at Low Load (10 %)
No-load Power Consumtion
Jiangxi Jian Aohai Technology Co., Ltd.
A520-050100U-EU1
100 - 240 V ~
50/60 Hz
5 V
1 A
5 W
73,62 %
68,32 %
0,075 W

Troubleshooting
Issues Possible Causes Solutions
The comb
is wobbly.
The motor is
not working.
Hair isn't cut
smoothly or
is getting
caught.
The blade
head doesn't
move or
shakes
abnormally.
Charging
errors
The comb is not properly
installed.
The battery is depleted.
The motor is damaged.
Using an unsuitable comb.
Blade head isn't lubricated.
Battery level is low.
The blade head is damaged.
The blade head is not
properly installed.
There are foreign objects
in the blade head.
The motor is damaged.
The charging cable is damaged.
The battery is damaged.
Working noise
issues.
Reinstall the comb.
Charge the battery.
Contact the
after-sales service.
Contact the
after-sales service.
Contact the
after-sales service.
Contact the
after-sales service.
The blade head is not
properly installed.
The blade head is damaged.
The motor is damaged.
Choose a different
comb.
Add lubricating oil to
the blade head.
Charge the battery.
Replace the
blade head.
Reinstall the blade
head.
Clean the blade head.
Replace the charging
cable.
Reinstall the blade
head.
Replace the blade
head.

WARRANTY NOTICE
1.LIMITED PRODUCT WARRANTY
2. REMEDIES
3. HOW TO OBTAIN WARRANTY SERVICE
THIS WARRANTY GIVES YOU SPECIFIC RIGHTS, AND YOU MAY HAVE OTHER
RIGHTS CONVEYED BY LAWS OF YOUR COUNTRY, PROVINCE OR STATE.
INDEED, IN SOME COUNTRIES, PROVINCES OR STATES, CONSUMER LAW MAY
IMPOSE A MINIMUM WARRANTY PERIOD. OTHER THAN AS PERMITTED BY
LAW, XIAOMI DOES NOT EXCLUDE, LIMIT OR SUSPEND OTHER RIGHTS YOU
MAY HAVE. FOR A FULL UNDERSTANDING OF YOUR RIGHTS WE INVITE YOU
TO CONSULT THE LAWS OF YOUR COUNTRY, PROVINCE OR STATE.
XIAOMI warrants that the Products are free from defects in materials and
workmanship under normal use and use in acordance with the respective
Product user manual, during the Warranty Period. The duration and conditions
related to the legal warranties are provided by respective local laws.
For more information about the consumer warranty benefits, please refer
to Xiaomi's official website https://www.mi.com/en/service/warranty/.
Xiaomi warrants to the original purchaser that its Xiaomi Product will be free
from defects in materials and workmanship under normal use in the period
mentiod above.
Xiaomi does not guarantee that the operation of the Product will be
uninterrupted or error free.
Xiaomi is not liable for damages arising from non-compliance with the
instructions related to the use of the Product.
If a hardware defect is found and a valid claim is received by Xiaomi within the
Warranty Period, Xiaomi will either (1) repair the product at no charge, (2)
replace the product, or (3) refund the Product, excluding potential shipping
costs.
To obtain warranty service, you must deliver the Product, in its original
packaging or similar packaging providing an equal degree of Product
protection, to the address specified by Xiaomi. Except to the extent prohibited
by applicable law, Xiaomi may require you to present proofs or proof of
purchase and / or comply with registration requirements before receiving
warranty service.

4. EXCLUSIONS AND LIMITATIONS
Unless otherwise stipulated by Xiaomi, this Limited Warranty applies only to
the Product manufactured by or for Xiaomi and identifiable by the trademarks,
trade name or "Xiaomi" or "Mi" logo.
The Limited Warranty does not apply to any (a) Damage due to acts of nature
or God, for example, Lightning strikes, tornadoes, flood, fire, earthquakes´or
other external causes; (b) Negligence; (c) Commercial use; (d) Alternations
or modifications to any part of the Product; (e) Damage caused by use with
non-Xiaomi products; (f) Damage caused by accident, abuse or misuse;
(g) Damage caused by operating the Product outside the permitted or
intended uses described by Xiaomi or with improper voltage or power supply
or (h) Damage caused by service (including upgrades and expansions)
performed by anyone who is not a representative of Xiaomi.
It is your responsibility to backup any data, software, or other materials you
may have stored or preserved on the product. It is likely that the data,
software or other materials in the equipment will be lost or reformatted during
the service process, Xiaomi is not responsible for such damage or loss.
No Xiaomi reseller, agent, or employee is authorised to make any
modification, extension, or addition to this Limited Warranty, If any term is
held to be illegal or unenforceable, the legality or enforceability of the
remaining terms shall not be affected or impaired.
Except as prohibited by laws or otherwise promised by Xiaomi, the after-sales
services shall be limited to the country or region of the original purchase.
Products with were not duly imported and/or were not duly manufactured by
Xiaomi and/or were not duly acquired from Xiaomi or a Xiaomi's official seller
are not covered by the present warranties. As per applicable law you may
benefit from warranties from the non-official retailer who sold the product.
Therefore, Xiaomi invites yoou to contact the retailer from whom you
purchased the product.
The present warranties do not apply in Hong Kong and Taiwan.

5. IMPLIED WARRANTIES
Except to the extent prohibited by applicable law, all implied warranties
(including warranties of merchantability and fitness for a particular purpose)
will have a limited duration up to a maximum duration of this limited warranty.
Some jurisdictions do not allow limitations on the duration of an implied
warranty, so the above limitation will not be applied in these cases.
6. DAMAGE LIMITATION
Except to the extent prohibited by applicable law, Xiaomi shall not be liable for
any damages caused by accidents, indirect, special or consequential damages,
including but not limited to loss of profits, revenue or data, damages resulting
from any breach of express or implied warranty or condition, or under any other
legal theory, even if Xiaomi has been informed of the possibility of such
damages. Some jurisdictions do not allow the exclusion or limitation of special,
indirect, or consequential damages, so the above limitation or exclusion may not
apply to you.
7. XIAOMI CONTACTS
For customers, please visit the website:
https://www.mi.com/en/service/warranty/
The contact person for the after-sale service may be any person in Xiaomi's
authorized service network, Xiaomi's authorised distributors or the final vendor
who sold the products to you. If in doubt please contact the relevant person as
Xiaomi may identify.
Importer:
Beryko s.r.o.
Pod Vinicemi 931/2, 301 00 Plzeň
www.beryko.cz
Manufactured for: Xiaomi Communications Co., Ltd.
Manufactured by: Shenzhen Kolamama Technology Co., Ltd.
Address: Room 705, Building 1, Xinyi Lingyu R&D Center, No. 30, Honglang North
2nd Road Zone 69, Xingdong Community, Xin'an Street, Bao'an District, Shenzhen
City, Guangdong Province, China
For further information, please go to www.mi.com
For detailed e-manual, please go to www.mi.com/global/service/userguide
User Manual Version: V1.0
