XIEGU XPA125B User manual

XIEGU

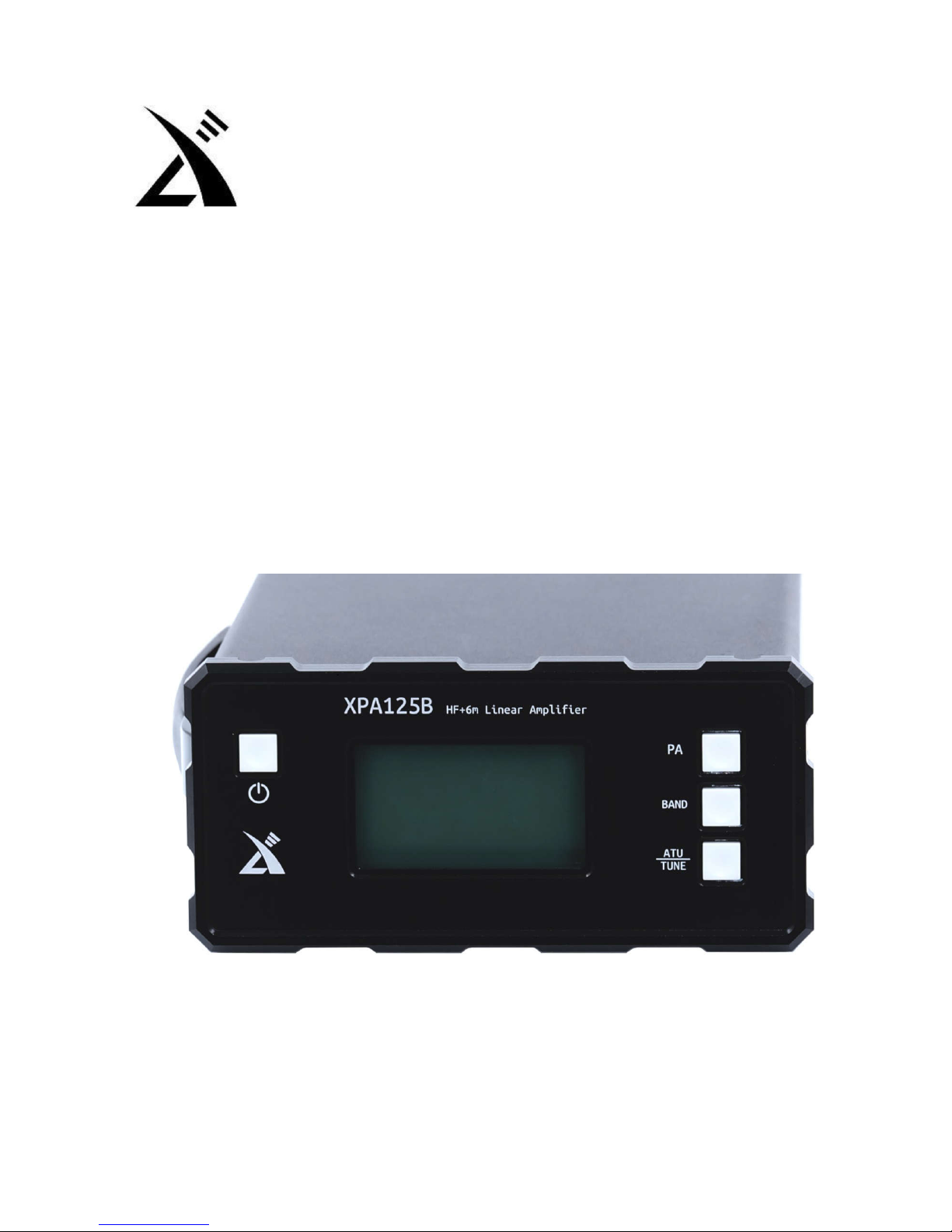

100 W Solid-State Linear Power Amplifier
XPA125B
Instruction Manual
Copyright © 2010~2017 Xiegu Communications
This device complies with Part 15 of the FCC Rules.Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
FCC ID: 2ANLH-XPA125B

XIEGU COMMUNICATIONS
1 XPA125B Specifications
1.1 Amplifier:
Frequency range: 1.0 – 55 MHz
Maximum output power: 1.8 - 30MHz ≥110W
50 - 54MHz ≥90W
Maximum operating ambient temperature: 55℃
Gain: 13dB (±2dB)
Supply voltage: 12 - 14.5 V DC
Current draw @ maximum output:
Standby: 260 mA @Max
Transmit: 30A @Max
1.2 ATU:
Tuning frequency range: 1.8 – 30 MHz/50 – 54 MHz
Maximum tuning range: 14 - 500Ω
1.3 Product specifications：
Dimensions: 260 x 150 x 100 mm (not including control knobs, feet, handles, etc.)
Weight：2.66 Kg(host only)
3

XIEGU COMMUNICATIONS
2 Equipment description
2.1 Front panel layout:
① Power key
When XPA125B is turned on, press this button and hold for 2 seconds,
XPA125B will shut down.
When XPA125B is turned off, press this button and hold for 2 seconds,
XPA125B will turn on.
② ATU function key
Via this button you can access the automatic antenna tuning function.
③ BAND selection key
Using this button you can select between manual band switching or
automatic band switching.
In manual band switching mode, the XPA125B will change bands in the
following order:
160m→80m→60m→40m→30m→20m→17m→15m→12m→10m→6m
④ PA key
Used to switch the power amplifier into or out of circuit.
4

XIEGU COMMUNICATIONS
⑤ LCD
All working status information is displayed here. The display is covered by an
organic glass protective plate.
2.2 Rear panel layout:
6
DC IN
Power supply socket:
The XPA125B requires a 12 - 14.5 V DC supply
7
ANT
Connector:
The ANT socket is connected to the antenna, the connector model is SL16-K.
8
FUSE
Holder:
Internal fuse holder. Fuse rating is DC 30A.
9
10
Ground
ACC socket:
The data interface connections are as follows:
5

XIEGU COMMUNICATIONS
PIN1：NC
PIN2
：
PTT Signal input
PIN4： ALC input
PIN5
：
NC
PIN3：Band voltage input PIN6： GND
11
TRX Socket:
The TRX interface is connected to the transceiver output, the connector
model is SL16-K.
12
Comm interface:
This interface is for XPA125B firmware updates and connection to a PC.
2.3 Display interface layout:
⑴
Input SWR value:
Displays the SWR value of the XPA125B input.
⑵ Operating voltage:
Displays the value of DC voltage supply to the XPA125B.
⑶ Operating current value:
Displays the current being drawn by the XPA125B.
⑷ Output stage temperature:
Displays the current temperature of the PA stage.
⑸ Output SWR value:
Displays the SWR value of the XPA125B output.
6

XIEGU COMMUNICATIONS
⑹
Power amplifier status:
Displays the overall status of the power amplifier as a whole.
Indicates that bypass mode is selected, the power amplifier is switched out of
circuit.
Indicates that the power amplifier is operational.
RX Indicates that the unit is in receive mode.
TX Indicates that the unit is in the transmit mode.
⑺
Input power value:
Displays the power input value to the XPA125B in Watts.
⑻ Current working band status:
Displays the current working band, and whether automatic or manual mode
is selected.
(9) Output power value:
Displays the output power being delivered by the XPA125B in Watts.
Automatic antenna tuner unit (ATU) status:
(10)
Displays the status of the automatic antenna tuner.
Indicates that the XPA125B is not connected to the automatic antenna tuner
unit.
Indicates that the XPA125B is connected to the automatic antenna tuner unit.
When tuning is successful,【INUSE】will be displayed.
If tuning fails,【Fail】will be displayed.
7

XIEGU COMMUNICATIONS
3. Operating instructions
3.1 Wiring connection method
3.1.1 Method for connecting XPA125B with X108G
The XPA125B can be directly connected to an X108G, which can then control
the band switching and ALC functions of the amplifier.
-
The ACC data cable supplied with the XPA125B is connected between
the ACC ports of the two units. Both connectors are the same so
either end of the cable can be connected to either socket.
Use suitable RF coaxial cable to connect the X108G ANT port to the
XPA125B TRX port.
-
-
XPA125B ANTportshould beconnected to theantenna.
3.1.2 Method for connecting XPA125B with X5105
Use the dedicated connection cable CN-115 to connect the X5105 ACC port with
the XPA125B ACC port. Please note the need to distinguish between the different
plugs of the connection cable CN-115.
3.1.3 Method for connecting XPA125B with X1M
As the X1M does not have a dedicated ACC interface and PTT signal output, it
can’t be directly connected to the XPA125B. A CN-17 converter is required to
connect an X1M to the XPA125B.
8

XIEGU COMMUNICATIONS
3.1.4 Connection method between XPA125B and other QRP radio
If you want to start the XPA125B power amplifier and put it into the transmit
mode, you need to set the PTT port to a low level [level≤0.1V].
If the PTT output signal of the transceiver is at high level, the high level
needs to be converted into a low level, and then input to the XPA125B
[ACC-PTT] port.
Pin 2 of the XPA125B ACC port is the PTT input port
In order to achieve automatic band switching, the corresponding band voltage
is needed. XPA125B band control voltage information is as follows.
BAND
LEVEL(mV)
230
460
690
920
BAND
LEVEL(mV)
1380
1610
1840
2070
BAND
50.0 MHz
----
----
----
LEVEL(mV)
2530
----
----
----
1.8 MHz
3.8 MHz
5.0 MHz
7.0 MHz
10.0 MHz
14.0 MHz
18.0 MHz
21.0 MHz
24.0 MHz
28.0 MHz
1150
2300
----
----
3.2 Procedure:
3.2.1 Using the power amplifier unit [PA unit] (ATU unit is set to BYPS)
-
-
PressthePAkey,sothatthestateoftheamplifieris[INUSE].
If your connected transceiver is an X108G or X5105, please set
the output power to 5 W.
If you are using any other QRP transceiver, please set the output
power to 1 W.
Set your transceiver to CW mode, press the CW key to
transmit, andtheXPA125B amplifier will be activated.
Theoutput powerofthe XPA125B canbe adjustedby adjusting
theoutputpowerofthe connected transceiver.
-
-
-
9

XIEGU COMMUNICATIONS
Warning:
1. Do not allow the maximum output power of the amplifier to exceed 120 W.
2. Using the XPA125B at high power levels for extended periods can lead to
overheating and potential damage to the PA stage.
3.2.2 Band switching
-
-
-
Youcanswitchbetweenthetwomodesof[AUTO-MANUAL]
via this key.
If you want to connect the XPA125B to an X108G or X5105,
please setXPA125B to[AUTO]mode.
If you want to connect the XPA125B to other devices,
please set XPA125B to [MANUAL] mode and manually
switch to the desired frequency band.
Manual switching of frequency bands follows this order：
160m→80m→60m→40m→30m→20m→17m→15m→12m→10m→6m
3.2.3 Using the automatic antenna tuner unit [ATU] (PA unit is set to BYPS
state).
-
Pressthe [ATU]buttonso thatthecurrentstateof theamplifier
is [INUSE].
SetthetransceivermodetoCW& settheoutputpowerto5 W.
-
-
Press the CW key to transmit, and the
XPA125B PA
amplifier
stage will be activated. The XPA125B ATU unit will start, the
screen will display [TUNE].
-
-
Iftuningissuccessful,thescreenwilldisplay[INUSE].
If tuningfails,thescreenwilldisplay[Fail].
If you need to re-tune, you can press the [ATU] button for two seconds to
force the XPA125B ATU unit to start re-tuning.
After successful tuning, switch the transceiver to the desired state for use.
10

XIEGU COMMUNICATIONS
3.2.4 Combined use of power amplifier + automatic antenna tuner
-
-
Press the [PA] button so the current state of the PA unit displays
[INUSE].
Pressthe[ATU]buttonsothecurrentstateoftheATUunit displays
[INUSE].
-
-
Set the transceiver mode to CW, the output power to 5 W, and
press the CW key.
If the current SWR value is more than 3.0, the ATU unit will start
tuningautomatically. Atthistime the PA unit will be disabled.
If the current SWR value is less than 3.0, the ATU unit will start
tuningautomatically,andthePAunitwill be activated.
If the current SWR value is more than 3.0, and automatic tuning
fails, the XPA125B will automatically switch to bypass mode
and display this informationonthescreen.
-
-
3.2.5 Flexible configuration of PA unit and ATU unit
The ATU unit and PA unit of XPA125B can be used independently of each other.
You can therefore use the XPA125B as either an automatic antenna tuner or a
separate power amplifier. You can also bypass both units, and your transceiver
will then be connected directly to the antenna.
3.2.6 Protection and warning
The XPA125B incorporates a variety of intelligent protection functions to ensure
as far as possible the safety of the equipment in daily use. When the XPA125B
enters an abnormal state, it will immediately enter protection mode and switch
to bypass mode.
3.2.7 Remove protection and warning
Release the PTT button. Protection will be disabled and the XPA125B will return
to the receiving state.
Warning messages are as follows:
SWRI too high! (Input value of Idd too high! (Operating
SWR is high)
PIN too high! (High input
power)
current is too high)
Vdd too high! (Input voltage is
too high)
SWRO too high! (Output value of Wrong band!
SWR is high)
(Filter error)
PO too high!
power)
(High output
Gain too low!
Temp too high! (Operating
temperature is too high)
Efficiency too low!
11

XIEGU COMMUNICATIONS
When high SWR, high current, high voltage, over temperature and other
error states are detected, the XPA125B’s internal sensors will trigger the
protection function beyond a certain threshold. The threshold of each
sensor is as follows:
-
-
-
-
High SWR
：
≥3.0
High current：≥30A
High voltage：≥15V DC
Over temperature
：
≥100℃
Warning
When the XPA125B current draw is too high (more than 30A), or a
short circuit occurs, the fuse on the rear panel may blow. The unit will
then no longer turn on. Please check the status of the fuse if this occurs.
12

XIEGU COMMUNICATIONS
4. General troubleshooting
The following are general troubleshooting suggestions. If they do not resolve
the problem the unit will need to be returned to your distributor. Please do
not disassemble the unit as this will invalidate the warranty.
Fault
Possible reasons
Solution
description
Power cord is not connected
Connect power cable correctly
The fuse on the back of the machine
Unable to turn on
has blown
Replace fuse
（
30A
）
your XPA125B
Power cable connection is bad
Power supply connection reversed
Other circumstances
Replace or repair power cord
Return to distributor
Return to distributor
Antenna is not connected
Antenna failure
Properly connect the antenna
Replace or repair antenna coax
Please confirm the propagation
characteristics of the current band
Return to distributor
No reception
No communication
Other circumstances
Antenna is not connected
Connect antenna
Inadequate power supply current
SWR is too high, protection has
been triggered
Replace the power supply
Start ATU/replace antenna/coax
No trasmission
Select the correct working
mode
Incorrect working mode
Power amplifier unit not enabled
Other circumstances
Set the PA unit to INUSE
Return to distributor
Antenna tuning
function does not
work
Antenna tuning function is not
enabled
Set the ATU unit to INUSE
Power cord is not connected
Connect power cable correctly
Screen has no The fuse on the back of the machine
Replace fuse
（
30A
）
display
has been blown off
Other circumstances
Return to distributor
Smoke comes
from equipment
Replace smoke – Only joking,
return to distributor
13

XIEGU COMMUNICATIONS
After-sales service policy
1. Warranty:
This product has a one-year warranty effective from the date of purchase.
This warranty covers only manufacturing- and parts defects. It does not
cover damage caused by lightning, excess voltage on the power supply,
accidental damage or purposeful damage or misuse.
If the product needs warranty repair within two weeks of receiving the
product, XieGu will pay for the shipping both ways. After two weeks XieGu
will pay only for return shipping.
If the product is not covered under warranty, the customer pays for shipping
both ways plus the cost of the repair.
2. Warranty limitations:
Any of the following will void the warranty applicable to the product and its
accessories:
A. Modification-, removal-, or maintenance of the internal circuitry,
without permission and authorization;
B. Unauthorized change of product’s embedded software;
C. Immersion in liquid or signs of external damage;
D. Warranty period expired;
E. Product’s serial number is missing, torn or blurred so we cannot determine if
14

XIEGU COMMUNICATIONS
the radio is under warranty;
F.Product was not bought from XieGu or authorized distributor of XieGu.
*None of the following conditions, are covered by the warranty:
A. Damage caused by improper use by the user；
B. Damage caused by an accident
；
C. Damage due to incorrect testing, maintenance, debugging, or other changes；
D. Damage is not caused by the material or the quality of production；
E. Damage to the shell or other external components due to improper use.
Contact us: [e-mail]
15

XIEGU COMMUNICATIONS
XIEGU COMMUNICATIONS
www.cqxiegu.com
16
