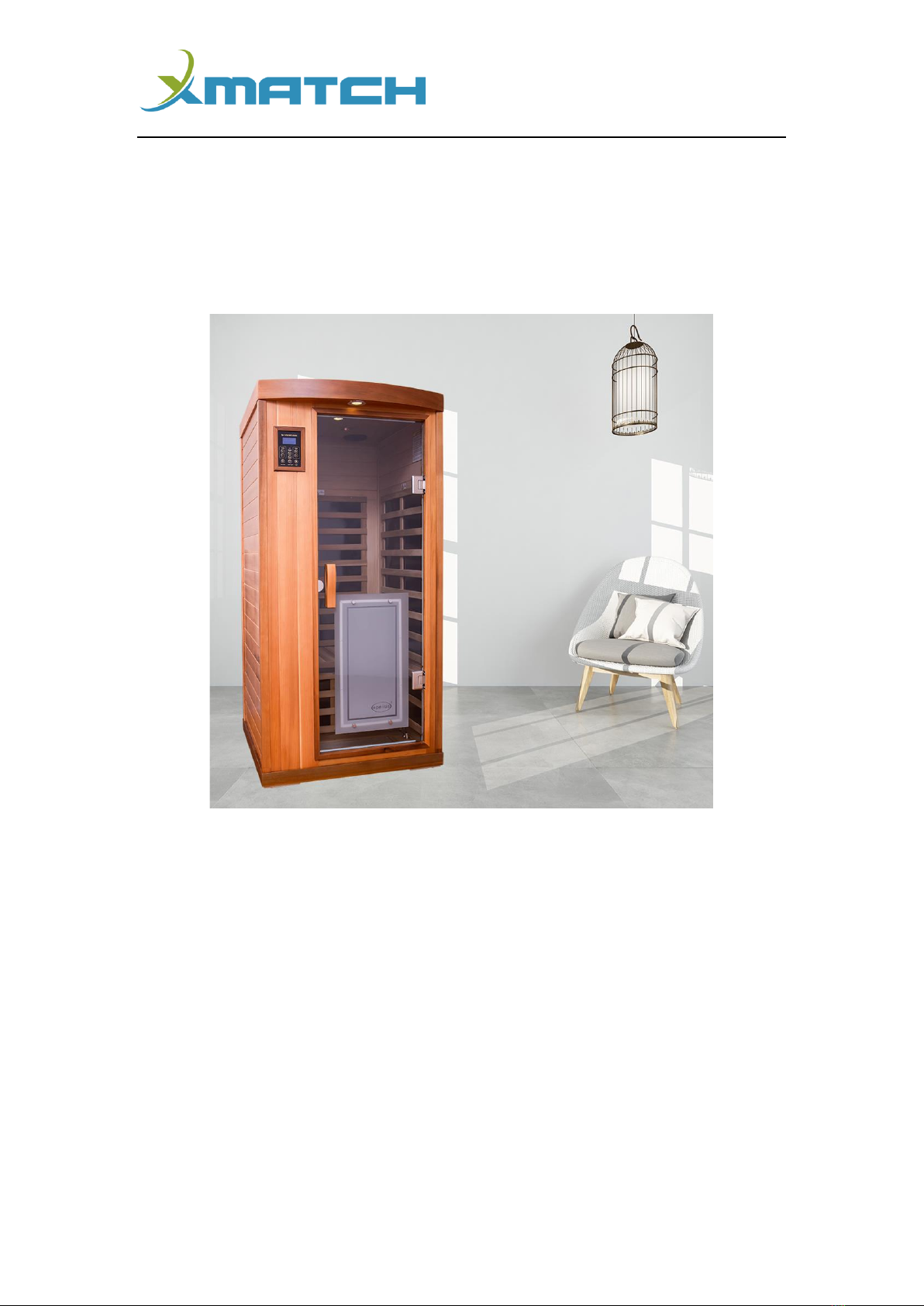

Xmatch LT-901B User manual

Prepared for Matching a Better Life [email protected]
FAR INFRARED SAUNA INSTRUCTION MANUAL
Read all instructions carefully before using the wooden sauna
Model: LT-901B (Amazon B09KCHMLDX)
PRECAUTIONS FOR USE……………………………………………………………………………………2-3
READ BEFORE INSTALLATION……………………………………………………………………………4
INSTALLATION OF SAUNA ROOM BODY…………………………………………………… 5-6
CONTROL PANEL INSTRUCTION…………………………………………………………………………7
CONNECT TO BLUETOOTH SPEAKER……………………………………………………………………7
WARNINGS AND SUGGESTIONS FOR USE………………………………………………………8
CLEANING AND STORAGE………………………………………………………………………………8
SPECIFICATION…………………………………………………………………………………………………… 9

Prepared for Matching a Better Life [email protected]
P 2/ 9
ATTENTION
◆Read all instructions before using this appliance.
◆Serious injury may result if warnings and instructions below are not observed.
◆When using an electrical appliance, basic precautions should always be followed,
including the following:
DANGER
To reduce the risk of burns, fire, electric shock, or injury to body.
◆Connect the power cord to a properly grounded outlet only.
◆Use this appliance only for its intended use as described in this manual. Do not use
attachments not recommended by the manufacturer."
◆Always unplug this appliance from the electrical outlet immediately after using.
◆Keep the electrical cord away from heated surfaces.
◆Heaters shall not be subjected to water spray; shower heads shall not be installed
within the sauna room.
◆If the temperature limiting control reset switch trips frequently, a qualified service
person should be contacted.
◆Never operate this appliance if it has a damaged cord or plug, if it is not working
properly or if it has been dropped or damaged.
WARNING
◆If you have any health problem or condition, consult your physician for permission
to use the sauna room. (“health problem” includes but not limited to acute
diseases, malignant tumors, high blood pressure, heart disease, allergic dermatitis,
pregnancy, etc.)
◆The sauna room should not be used by children.
◆Should you have any abnormal feeling with your body while using the sauna,
immediately exit the sauna.
◆If you feel uncomfortable while using the sauna, stop immediately and consult with
your doctor.
◆The use of alcohol, drugs, or medication is capable of greatly increasing the risk of
fatal hyperthermia.
◆Discontinue use if nervousness, tremor, headache, feeling of sickness or nausea
occurs.

Prepared for Matching a Better Life [email protected]
P 3/ 9
HYPERTHERMIA
Prolonged exposure of the user in the sauna room is capable of inducing hyperthermia.
Hyperthermia occurs when the internal temperature of the body reaches a level several
degrees above the normal body temperature of 98.6F. The symptoms of hyperthermia
include an increase in the internal temperature of the body, dizziness, lethargy,
drowsiness, and fainting. The effects of hyperthermia include:
a) Failure to perceive heat
b) Failure to recognize the need to exit the room
c) Unawareness of impending heat
d) Fetal damage in pregnant women
e) Physical inability to exit the room
f) Unconsciousness

Prepared for Matching a Better Life [email protected]
P 4/ 9
READ BEFORE INSTALLATION:
◆Each panel is heavy. Be careful to avoid injury when installing, ESPECIALLY WHEN
MOUNTING THE TOP PANEL.
◆Two adults are required for the installation of sauna room.
◆There is male and female slot (tongue and groove) at the sides of each panel,
which can be attached together: The tongue panel should be lifted upwards about
4 inches (10cm) higher than the panel with groove slot (Refer to Picture 1); place
the tongue panel against the groove panel (Refer to Picture 2), and then slide down
the male panel until two panels stand equal in height (Refer to Picture 3). If they are
not equal in height or there is an obvious gap between two right-angle panels, that
means they are not properly attached, and you should put them in correct position.
◆The panels should be installed in the following steps:
Floor Panel →Back Panel→Left Side Panel→Right Side Panel→Bench Support
Panel→Bench Surface Panel→Front Panel→Top Panel
Left/Right Side
Panel
Left/Right
Side Panel
Left/Right
Side Panel

Prepared for Matching a Better Life [email protected]
P 5/ 9
INSTALLATION OF SAUNA BODY
1. Place the floor panel on a levelled floor (Note: The floor panel must be level before
installing walls and ceiling panels. If the ground is not level, you may need to shim the
bottom panel to get levelled.) (picture 4)
2. Place back panel in the slot of floor panel. (picture 5)
3. Place the left-side panel in the slot of floor panel. (picture 6)
4. Place the right-side panel in the slot of floor panel. (picture7)
picture 4 picture 5 picture 6 picture7
5. Place the Bench Support panel and connect the wires behind (see picture 8）
6. Place the Bench surface panel (picture 9)
7. Place the front panel in the slot of floor panel. (picture 10)
picture 8 picture 9 picture 10 picture 11

Prepared for Matching a Better Life [email protected]
P 6/ 9
8. Top panel fixed and wire connection (picture
11/picture 12 /picture 13)
Make sure all side panels are slotted into
top panel, and all wires from side panels
are not pressed through the slot of top
panel.
Make sure that all wires in the top panel
are connected.
Picture 12- top panel wiring
Picture 13 - Door heater wiring
9. Plug in and power on to operate the sauna room.
WARNING: Pay attention to the risk of electric shock. Do not plug in before all the wires
are connected correctly.

Prepared for Matching a Better Life [email protected]
P 7/ 9
CONTROL PANEL INSTRUCTION
CONNECT TO BLUETOOTH SPEAKERS
1) When the sauna power cord is plugged in, the sauna speakers make a short musical
signal sound in 2-3 seconds telling you the speakers are ready for pairing.
2) Activate the blue tooth function of your smart phone/tablet
3) Search and find the sauna Bluetooth speaker “BT Speaker”
4) Click to link “BT Speaker”.
5) When successfully connected to the speakers, the speakers make a beep, then the
Bluetooth speaker is under the control of your phone/tablet.
6) When the sauna room is being powered off or the Bluetooth speaker is being
disconnected, the speakers will beep twice.
WARNINGS AND SUGGESTIONS FOR USE
Please read carefully the following warnings, to reduce the risk of burns, fire, electric shock,
or injury to persons:
※Do not put the sauna room in a moist environment.
※Place room on level surface.
※Do not disassemble the product by yourself except as indicated in the manual.
※Do not spray the heater with water.
※Do not use any sharp tools on or near the heaters (severe damage may result)

Prepared for Matching a Better Life [email protected]
P 8/ 9
※Do not use the product for any other purpose than originally designed and intended.
※Do not directly touch the heater with hands or body for extended periods of time.
※Do not use continuously for more than one hour.
SUGGESTIONS FOR USE
※When enjoying a sauna room bath, it is suggested to turn power on at least 15 minutes
beforehand. After 15 minutes of preheating, the temperature inside the sauna room
should reach about 105 degrees F (40°C); at this point most people find the sauna a
comfortable temperature to begin the sauna bath. The temperature will continue to rise
to the set temperature.
※If it feels too hot during use, adjust the temperature down, open the vent or open the
door to introduce fresh cold air.
CLEANING
Clean the outside and inside with a damp cloth, or clean with a small amount of hand-
soap mixed with warm water if necessary. Do not use benzene, alcohol, or strong cleaning
chemicals on sauna.
Note: Some chemicals can damage wood material and the protection layer that is
covering on the outside wood surface.
STORAGE
Do not store this sauna room in a moist environment or under direct sunlight.

Prepared for Matching a Better Life [email protected]
P 9/ 9
SPECIFICATION
Model
LT-901BR
LT-906
LT-906R
LT-902CH
LT-902 VS
SKU/ASIN
B09KCHMLDX
B09HGVYHBP
B09KCGQKJK
B09HH2RYMC
B09KCJF49K
No. of user
1-person Plus
1-person
1-person
2-person
2-person Outdoor
Material
Canadian Red
Cedar
Canadian Hemlock
Canadian Red
Cedar
Canadian Hemlock
Canadian Hemlock
Overall
Size/Inside
Space
35x35x79in
31.5x31.5x69in
32.3x32.3x66.9in
31.1x31.1x65.4in
33 x 33 x 67in
31 x 31 x 66in
43.7x38.6x76.4 in
39.5x33.5x71.5 in
58 x 41x 82in
40 x 34 x 72in
Rated Power
1510W/120V AC
1350 W/120V AC
1350 W/120V AC
1750 W/120V AC
1750 W/120V AC
Heating
Method
Carbon Far
Infrared Plate
Carbon Far
Infrared Plate
Carbon Far
Infrared Plate
Carbon Far
Infrared Plate
Carbon Far
Infrared Plate
Heating
Plates
8 Plates
8 Plates
8 Plates
9 Plates
9 Plates
Control
Panel(s)
2 (outside and
inside)
1 (inside)
1 (inside)
2 (outside and
inside)
1 (inside)
Temp Range
25-65 C/68-149 F
25-65 C/68-149 F
25-65 C/68-149 F
25-65 C/68-149 F
25-65 C/68-149 F
Time Range
0-60 minutes
0-60 minutes
0-60 minutes
0-60 minutes
0-60 minutes
Reading
Lights
1
1
1
1
2
Colorful
Lights
2
None
None
2
2
Shipping
Method
LTL (Oversized)
Small Parcel
LTL (Oversized)
LTL (Oversized)
LTL (Oversized)
Intend Life
Span
12 Years
12 Years
12 Years
12 Years
12 Years
