Xo XORI42SC User manual

RANGE HOOD - User instructions
HOTTE DE CUISINE - Notice d’utilisation
CAMPANA EXTRACTORA - Manual de utilización
USA
F
E
XORI36S
NEED HELP?
Call our ventilation experts toll free al 800-966-8300
AVEZ-VOUS BESOIN D’AIDE ?
Contactez nos experts au numéro gratuit 800-966-8300
¿NECESITA AYUDA?
Póngase en contacto con nuestros expertos a través del número gratis 800-966-8300

Proof of original purchase date and invoice is needed to obtain
service under warranty.
Limited 2 Year Warranty.
For 2 years from the original date of purchase, we will provide,
free of charge, parts and service labor in your home to repair or
replace any part of the hood that fails because of a manufacturing
defect.
The warranty is extended to the original purchaser for products
purchased for ordinary home use in North America.
Should you require service for your XO product call a product
service specialist at 800.966.8300
Improper Installation.
Service trips to the home to teach you how to use the product.
Resetting circuit breakers.
Damage caused after delivery.
EXPECT MORE FROM XO
When buying any XO appliance
you can be confident
you have purchased a high quality,
innovative, and stylish product,
from a company who cares about you
XO Hood Warranty
What is covered
What is not covered

- 3 -
IMPORTANT SAFETY INSTRUCTIONS
FOR RESIDENTIAL USE ONLY
READ AND SAVE THESE INSTRUCTIONS
PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING.
IMPORTANT: Save these Instructions for the Local Electrical Inspectors use.
INSTALLER: Please leave these Instructions with this unit for the owner.
OWNER: Please retain these instructions for future reference.
Take care when using cleaning agents or detergents.
Suitable for use in household cooking area.
WARNING - To reduce the risk of re or electric shock, do not use this fan with any
Solid-State Speed Control Device.
CAUTION - To reduce risk of re and to properly exhaust air, be sure to duct air out-
side – Do not vent exhaust air into spaces within walls or ceilings or into attics, crawl
spaces, or garages.
CAUTION - For general ventilating use only. Do not use to exhaust hazardous or ex-
plosive materials and vapors.
CAUTION - To avoid motor bearing damage and noisy and/or unbalanced impellers,
keep drywall spray, construction dust, etc. o power unit.
CAUTION - Please read specication label on product for further information and
requirements.
WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS,
OBSERVE THE FOLLOWING:
A. Use this unit only in the manner intended by the manufacturer. If you have questions,
contact the manufacturer.
B. Before servicing or cleaning unit, switch power o at service panel and lock the serv-
ice disconnecting means to prevent power from being switched on accidentally.
When the service disconnecting means cannot be locked, securely fasten a promi-
nent warning device, such as a tag, to the service panel.
WARNING - TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
A. Never leave surface units unattended at high settings. Boilovers cause smoking and
greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
B. Always turn hood ON when cooking at high heat or when ambeing foods (i.e.
ENGLISH USA

- 4 -
Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambè).
C. Clean ventilating fans frequently. Grease should not be allowed to accumulate on
fan or lter.
D. Use proper pan size. Always use cookware appropriate for the size of the surface
element.
E. Keep fan, lters and grease laden surface clean.
F. Use high range setting on range only when necessary.Heat oil slowly on low to me-
dium setting.
G. Don’ t leave range unattended when cooking.
H. Always use cookware and utensils appropriate for the type and amount o food be-
ing prepared.
WARNING – TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE
TOP GREASE FIRE, OBSERVE THE FOLLOWINGa:
A. SMOTHER FLAMES with a close-tting lid, cookie sheet, or metal tray, then turn o
the burner. BE CAREFUL TO PREVENT BURNS. If the ames do not go out immediately,
EVACUATE AND CALL THE FIRE DEPARTMENT.
B. NEVER PICK UP A FLAMING PAN – You may be burned.
C. DO NOT USE WATER, including wet dishcloths or towels – a violent steam explosion
will result.
D. Use an extinguisher ONLY if:
1. You know you have a Class ABC extinguisher, and you already know how to operate
it.
2. The re is small and contained in the area where it started.
3. The re department is being called.
4. You can ght the re with your back to an exit.
aBased on “kitchen resafety tips” published by NFPA.
Proper maintenance of the Range Hood will assure proper performance of the
unit.
INSTALLATION INSTRUCTIONS
WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURYTO PERSONS,
OBSERVE THE FOLLOWING:
A. Installation work and electrical wiring must be done by qualied person(s) in accord-
ance with all applicable codes and standards, including re-rated construction.
B. Sucient air is needed for proper combustion and exhausting of gases through the
ue (chimney) of fuel burning equipment to prevent back drafting. Follow the heat-
ing equipment manufacturer’s guideline and safety standards such as those pub-
lished by the National Fire Protection Association (NFPA), and the American Society
for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local
code authorities.
C. When cutting or drilling into wall or ceiling, do not damage electrical wiring and
other hidden utilities.

- 5 -
D. Ducted fans must always be vented to the outdoors.
E. This unit must be grounded.
WARNING - TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.
WARNING - UNDER CERTAIN CIRCUMSTANCES DOMESTIC APPLIANCES MAY BE
DANGEROUS.
A. Do not check lters with hood working.
B. Do not touch the lamps after a prolonged use of the appliance.
C. No food must be cooked ambè underneath the hood.
D. The use of an unprotected ame is dangerous for the lters and could cause res.
E. Watch constantly the fried food in order to avoid the cooking oil ares up.
F. Before performing any mainteinance operation, disconnect the hood from the
electrical service.
The manufacturers will not to accept any responsability for eventual damages,
because of failure to observe the above instructions.

- 6 -
Installation Preparation
DUCT FITTINGS:
This Hood Must Use an
6" Round Duct. It Can
Transition to 3-1/4" x
10"or3-1/4"x12"Duct.
Use this chart to compu-
te maximum permissible
lengths for duct runs to
outdoors.
NOTE: Do not exceed maxi-
mum permissible equivalent
lengths!
Maximum duct length:
100 feet for range ho-
ods.
Flexible ducting:
If flexible metal ducting
is used, all the equivalent
feet values in the table
should be doubled. The
flexible metal duct should
be straight and smooth
and extended as much as
possible.
DO NOT use flexible plastic
ducting.
NOTE:Anyhomeventilation
system, such as a ventilation
hood, may interrupt the
proper flow of combustion
air and exhaust required
by fireplaces, gas furnaces,
gas water heaters and other
naturally vented systems. To
minimize the chance of in-
terruption of such naturally
vented systems, follow the
heating equipment manu-
facturer’s guidelines and
safety standards such as
those published by NFPA.

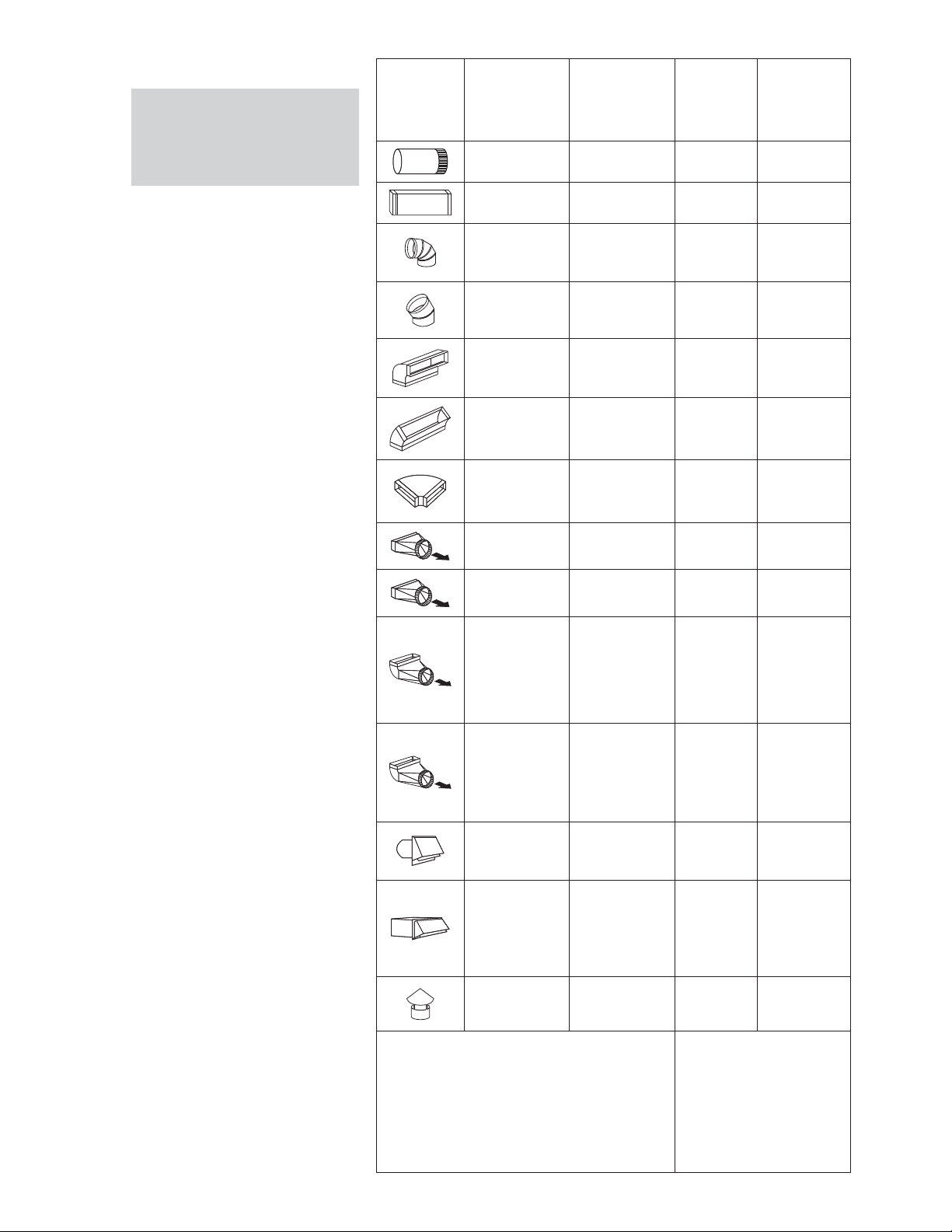

Duct
Piece: Dimensions:
Equivalent
Number
Length*:
Quantity
Used:
Total
Equivalent
Length:
Round, straight 1 ft. (per foot
lenhgth)
3-1/4" x 10"
straight 1 ft. (per foot lenhgth)
90° elbow 12 ft.
45° elbow 7 ft.
3-1/4" x 10"
3-1/4" x 12"
90° elbow
14 ft.
10 ft.
3-1/4" x 10"
3-1/4" x 12"
45° elbow
8 ft.
6 ft.
3-1/4" x 10"
3-1/4" x 12"
90° elbow
33 ft.
24 ft.
6" round to
rectangular 2 ft.
Rectangular to
8" round 2 ft.
3-1/4" x 10"
3-1/4" x 12"
6" round to
rectangular
transition 90°
elbow
4 ft.
4 ft.
3-1/4" x 10"
3-1/4" x 12"
Rectangular to
6" transition
90° elbow
4 ft.
4 ft.
Round wall
cap with
dramper 24 ft.
3-1/4" x 10"
3-1/4" x 12"
Rectangular
wall cap with
dramper
24 ft.
18 ft.
Round roof
cap 33 ft.
*Actual length of straight duct plus duct
fitting equivalent. Equivalent length of duct
pieces reflect requirements for good venting
performance with any ventilation hood.
Total Duct Run =

- 7 -
WARNING FIRE HAZARD
NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces,
ceiling, attics or garages.
All exhaust must be ducted to the outside, unless using the recirculating option.
Use single wall rigid Metal ductwork only.
Fasten all connections with sheet metal screws and tape all joints w/ certied Silver
Tape or Duct Tape.
INSTALL THE DUCTWORK:
NOTE: To reduce the risk of re, use only metal ductwork.
1.Decide where the ductwork will run between the hood and the outside.
2.A straight, short duct run will allow the hood to perform most eciently.
3.Long duct runs, elbows, and transitions will reduce the performance of the
hood. Use as few of them as possible.
4.Install a roof or wall cap. Connect 6” round metal ductwork to cap and work
back towards hood location. Use duct tape to seal the joints between ductwork
sections.
Installation - Ducting Options

- 8 -

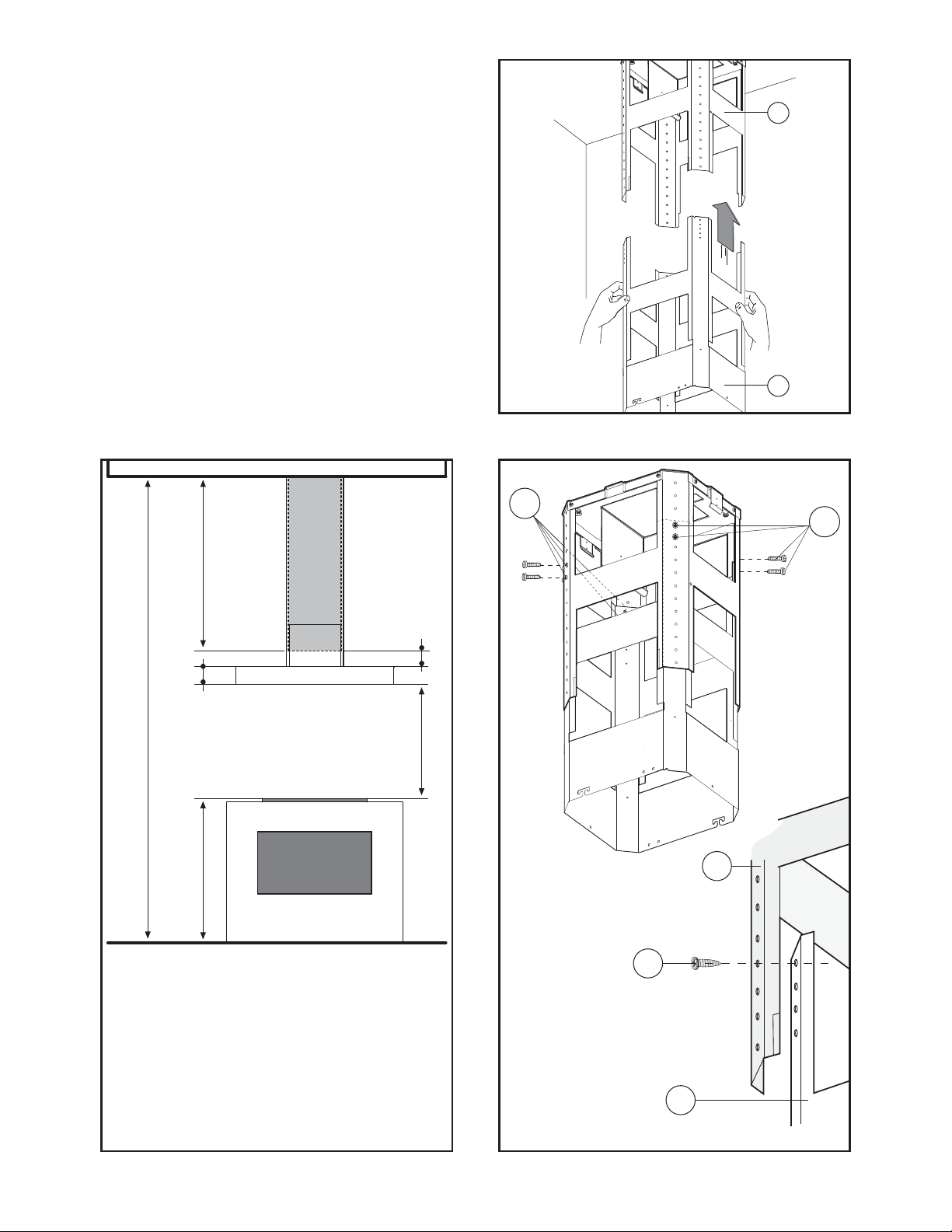

22-11/16”
12-15/16"
3-1/8"
Max 42-11/16” - Min. 29-5/16"
11-3/16"
23-5/8"
35-3/8"
Min 27" - Max 32"
36"
Hood Specications
 Front of hood  Side of hood
 Top of hood  Mounting height
and clearance:
PRODUCT DIMENSIONS AND CLEARANCE
XORI36S:

- 9 -
INSTALLATION INSTRUCTIONS
INSTALLATION  VENTED TO THE OUTSIDE
1. INSTALLATION:
- Remove the structure from the packa-
ging and remove the 2 screws Ato sepa-
ratethe upper part from the lower part
(Fig.1).
- Position hole template on the ceiling
paying attention that the arrow is posi-
tioned on the same side as the appliance
controls (Fig.2).
Make 4, Ø8 holes in the ceiling and drive
in 3 screws without completely tighte-
ning them. Pay attention not to insert the
screw into the hole marked with an Xon
the hole template (the screws and expan-
sion plugs must be suitable for the type
of wall).
- Take the upper part of the structure B
(Fig.3) and insert the 3 slots onto the 3
screws that are not completely tightened.
Rotate slightly to t (Fig.3). Drive in the
fourth screw Xand tighten the remaining
3 to allow denitive blocking of the upper
part ofstructure B.
- Take the lower part of the telescopic
structure Cand insert it into the upper B
X
A
B
B
Fig.3
Fig.2
Fig.1

- 10 -
structure B (Fig.4).
Adjust the height by referring to the
amounts indicated in (Fig.5) and block
it usingthe 8 screws Gthat are supplied
(Fig.6).

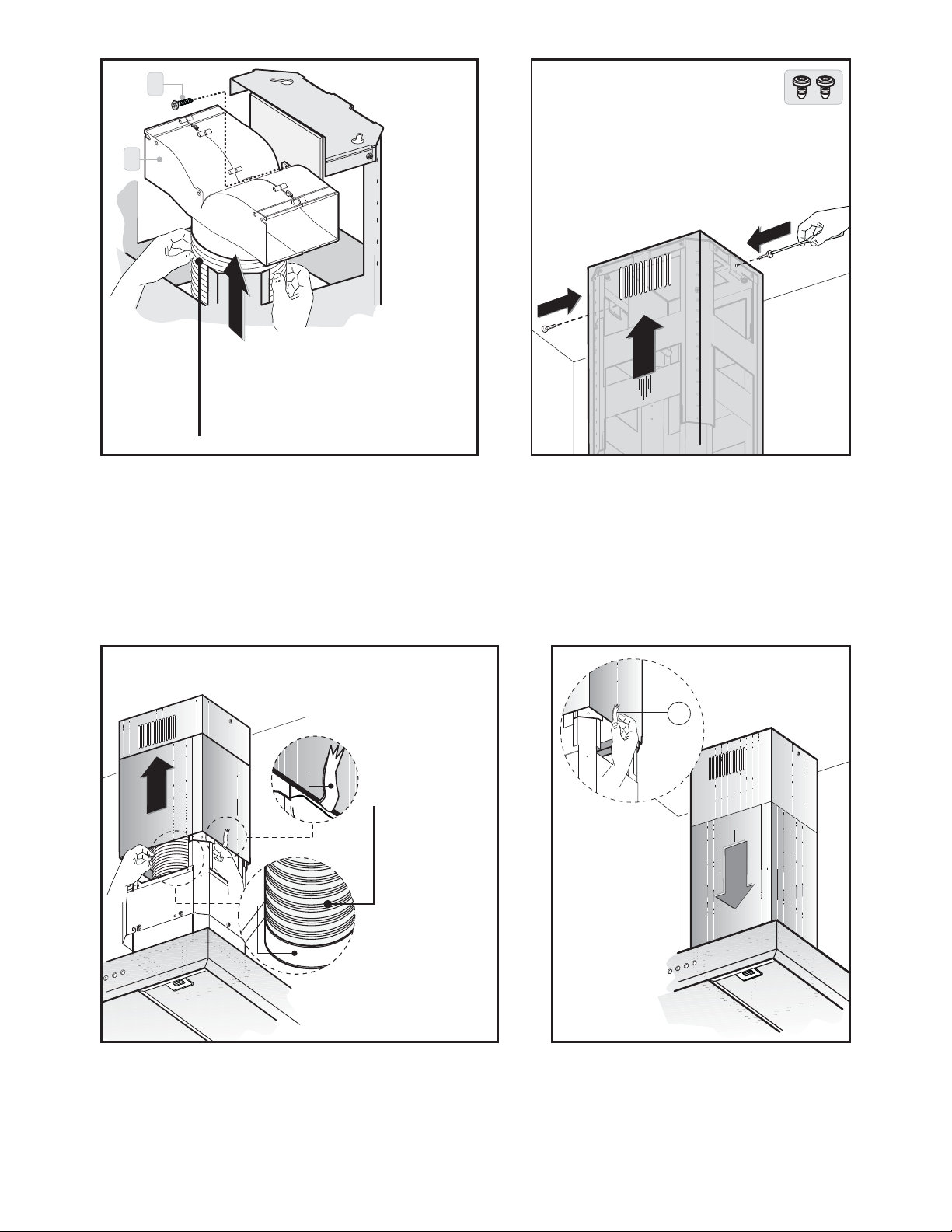

- Fix the exible pipe to the prepared air
evacuation hole (Fig.7).
- Take the upper chimney piece and x
it to the structure using the 2 screws A
(Fig.8). Join the lower chimney piece
with the upper one and x it carefully
using adhesive tape L (Fig.9A).
- Unscrew the 2 screws O, max 3 mm
(Fig.9A). Insert the exhaust unit inside
C
3-9/16"
25-9/16"
X
A
B
X = C - (3-9/16"+A+25-9/16"+B)
G
G
G
C
B
B
C
Fig.5 Fig.6
Fig.4

- 11 -
A
A
L
OO
Max 3 mm
B
L
N
ON
O
Fig.9
Fig.7 Fig.8

- 12 -
the structure paying attention that the
previously unscrewed screws O, hook
into the slots in the lower part as indi-
cated in (Fig.9B). Drive in the 3 screws
N(supplied)and tighten the 2 screws O
(Fig.9B).
- Fix the air evacuation pipe H(not sup-
plied) onto the connection ange F
(Fig.10).
- Remove adhesive tape Land rest the
lower chimney piece above the cooker
hood (Fig.11).
- If the cooker hood is supplied with a
lower chimney piece that must be xed
L
P
H
F
Fig.11 Fig.13
Fig.12
Fig.10

- 13 -
to the hood body with screws, remove the anti-grease lters from the hood by acting on
the relevant handles (Fig.13). Then screw the lower chimney piece pipe to the inside of
the hood, using screws P(Fig.12). Relocate the lters in their seat.
IMPORTANT -The range hood must be secured to wall studs or use drywall anchors
capable of supporting 75 lbs.

- 14 -
POWER SUPPLY:
IMPORTANT – (Please read carefully)
WARNING:
FOR PERSONAL SAFETY, THIS APPLIANCE MUST BE PROPERLY GROUNDED.
Remove house fuse or open circuit breaker before beginning installation. Do not use an
extension cord or adapter plug with this appliance. Follow National electrical codes or
prevailing local codes and ordinances.
Electrical supply:
These vent hoods must be supplied with 120V, 60Hz, and connected to an individual,
properly grounded branch circuit, and protected by a 15 or 20 amp circuit breaker or
time delay fuse.
t8JSJOHNVTUCFXJSFXJUIHSPVOE
t*G UIF FMFDUSJDBM TVQQMZ EPFT OPU NFFU UIF BCPWF SFRVJSFNFOUT DBMM B MJDFOTFE
electrician before proceeding.
t3PVUFIPVTFXJSJOH BTDMPTFUPUIFJOTUBMMBUJPOMPDBUJPOBT QPTTJCMFJOUIF DFJMJOHPS
back wall. Refer to Wiring Locations on page 15.
t$POOFDUUIFIPPEXJSJOHUPUIFIPVTFXJSJOHJOBDDPSEBODFXJUIMPDBMDPEFT
WARNING: The improper connection of the equipment-grounding conductor can
result in a risk of electric shock. Check with a qualied electrician or service representa-
tive if you are in doubt whether the appliance is properly grounded.

- 15 -
C
AB
2. CONNECT ELECTRICAL:
WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PER-
SONS, OBSERVE THE FOLLOWING: Before making electrical connections to power
supply, the electrical box must be secured in place as indicated in Fig.14.
Before installing the appliance x the electrical box as indicated in Fig.14.
Fig.14B: Remove the 3 xed screws.Fig.14A: Lift the electrical plant box.
Fig.14C: Position the electrical box so it is in the line with the holes of the previously
removed screws and tighten.

- 16 -

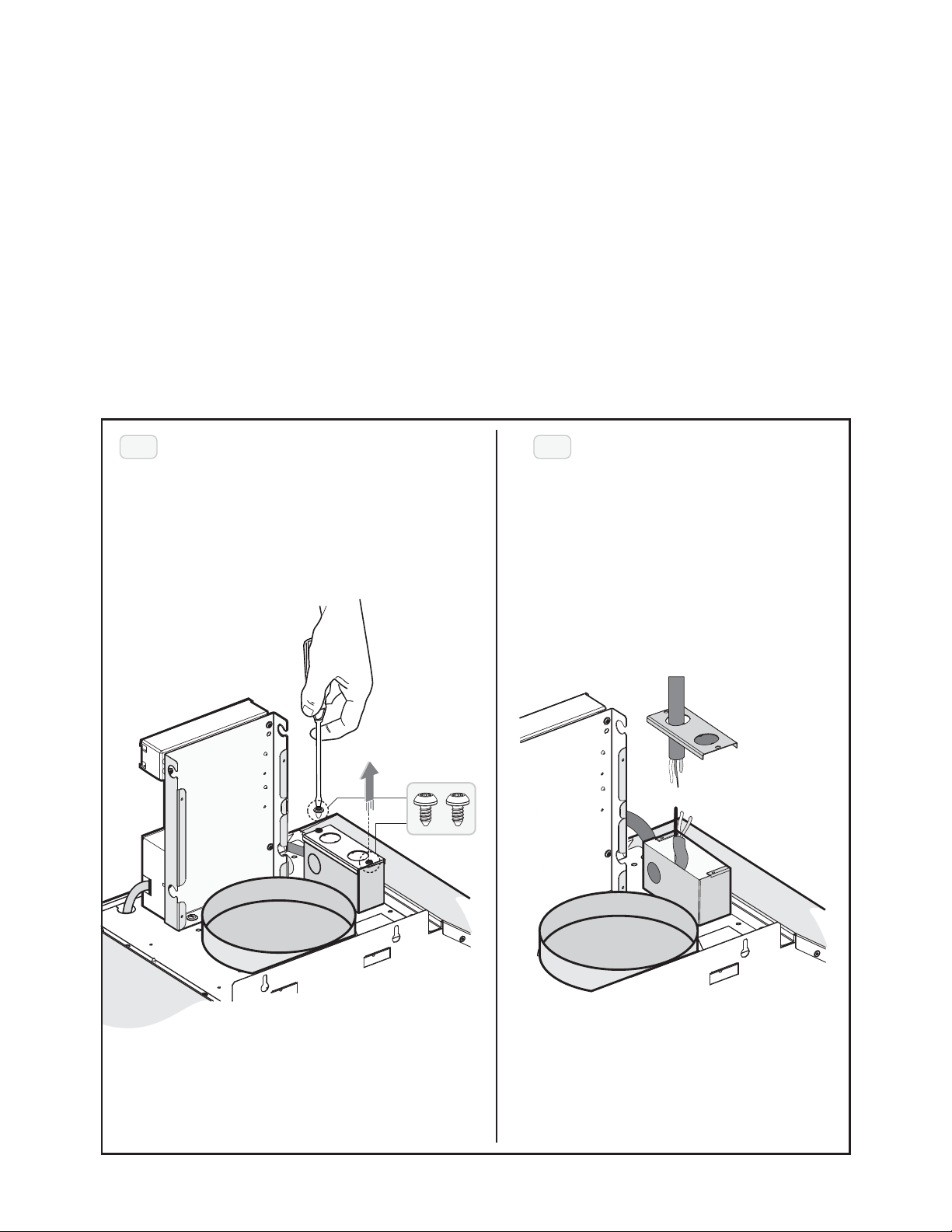

A B
t1PXFS4VQQMZ$POOFDUJPO
For connection to the power supply refer to the following Fig.15:
1.Remove the power supply cover by undoing the (2) screws (Fig.15A).
2.Break through the hole on the box cover.
3.Secure the power supply conduit to the cover.
4.Connect the wires of the hood to those of the power supply as described Fig.15B:
BLACK = Lline
WHITE = Nneutral
GREEN/YELLOW = Gground
- A double-pole switch properly rated must be installed to provide the range hood
power supply disconnection.
- Connect the electrical conduit to the Field Wiring Compartment using listed conduit
ttings.
- Carry out the power supplly connection in accordance with the national electric code,
Fig.15

- 17 -
Min 27" - Max 32"
36"
3. CONNECT THE DUCTWORK:
ANSI/NFPA 70-1999.
5.Insert the wires into the box, then close the box cover, securing it using the screws
that were previously removed.
The appliance must be installed at a mini-
mum height of 27" from an electric cooker
stove, or 32" from gas or combined cooker
stoves. If a connection ductwork composed
of two parts is used, the upper part must
be placed outside the lower part. Do not
connect the range hood exhaust duct air
to the same duct air used to exhaust hot
air or fumes from other appliances other
than electrical. Before proceeding with
the assembly operations, remove the anti-
grease lter(s) (Fig.16) so that the unit is
easier to handle.
Fig.16

- 18 -
DUCTLESS RECIRCULATING OPTION:
c
a
b
F
E
E
F
3.1
3.2
a
Fig.1: Put together the two parts of the air de-
viator as shown in picture no 3.1. It may be nec-
essary to cut the deviator to fit the width of the
chimney as shown in picture 3.2. A sharp blade
or Hacksaw is recommended to trim the plastic.
CARBON FILTER KIT XORFK01: The kit includes an air diverter A, 1 screw B and 2 rect-
angular lters C.
Fig.2: To remove the two screws
E, to take down the lower chi-
meny F.

- 19 -
1
2
3
F
E
E
F
2
2
a
b
1
Fig.4: To take the upper chimeny F
and to fix it to the structure using the
two screws E.
Fig.5: To join the lower chimney 1with the
upper one and to fix it carefully with the
adhesive tape 2. To fix the flexible pipe (6"
ROUND FLEXIBLE METAL DUCT PIPE NOT
INCLUDED) on the flange of connection 3.
Fig.6: Remove adhesive tape 2and
rest the lower chimney piece above
the cooker hood.
6" ROUND FLEXIBLE
METAL DUCT PIPE NOT
INCLUDED
6" ROUND
FLEXIBLE
METAL
DUCT PIPE
NOT
INCLUDED
Fig.3:Tofix theair diverterAonthe support’s
bracket using the screw Bas it is shown in
the figure. Once that the air diverter Ahas
been fixed, it is necessary to connect the
flexible pipe (6" ROUND FLEXIBLE METAL
DUCT PIPE NOT INCLUDED).

- 20 -
c
c
1
2
1
2
1
2

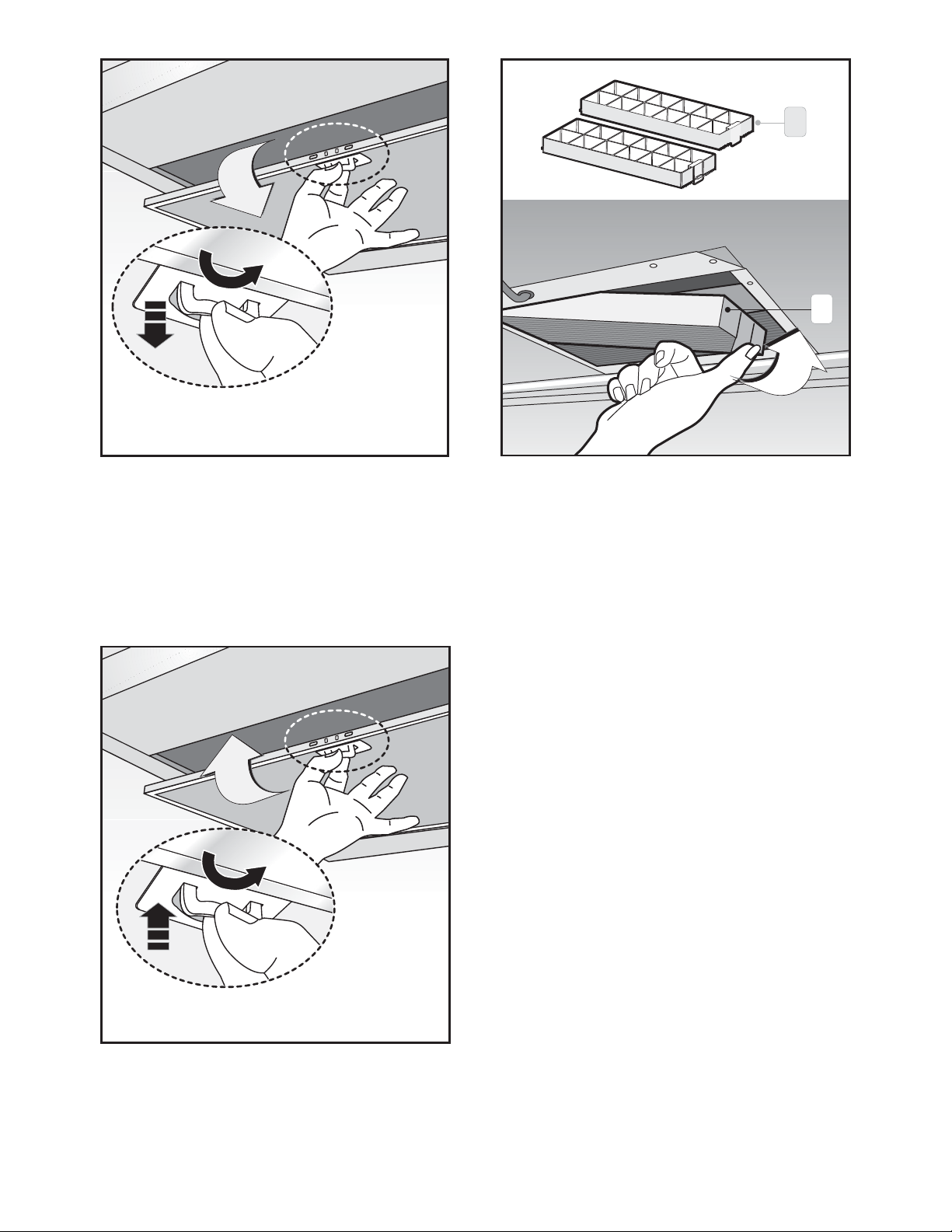

Fig.7: Remove the aluminum panels
by pulling the lever 1out and pushing
downwards 2.
Fig.8: The charcoal filters Cmust be fit-
ted in the ducting unit located inside the
hood.
Fig.9: Put the aluminum panels back in
place (Fig.7).
