XOCECO LET2751 User manual

COLOR TELEVISION
(TS2751)
LET2751

CONTENTS
Safety Precautions………………………………………………………………………..……
Alignment instruction. ………………………………….…………………………….…….
Debugging instruction …………………………………………….………………………….
Block diagram ……………………………..…..…..…..…..…..…….………….……………
IC Block diagram……………………..……………………….………………………………
Wiring diagram……………………………………………………………………………..…
Exploded view………..…..…..…..…..…..…..…..…..…..…..…..…..…..…..…..…..…..…...
Part list ………………………………………………………..……………............................
Schematic diagram …………………………………………………………………….……..
1
2
3
9
10
14
15
17
43

1
1. SAFETY INSTRUCTION AND GENERAL INSTRUCTION
Before servicing and aligning this equipment, please read the following “X-RAY RADIATION
PRECAUTION” , “SAFETY PRECAUTION” and “PRODUCT SAFETY NOTICE”.
1.1 X-RAY RADIATION PRECAUTION
1）Excessive high voltage can produce potentially hazardous X-RAY RADIATION. To avoid such
hazards, the high voltage must not be above the specified limit. The normal value of the high voltage
of this receiver is below 31.5kV at 1.6A beam current, the high voltage must not, under any
circumstances, exceed 33kV.
2）Each time a receiver requires servicing, the high voltage should be checked following the HIGH
VOLTAGE CHECK procedure in this manual. It is recommended the reading of the high voltage be
recorded as a part of service record. It is important to use an accurate and reliable high voltage
meter.
3）The primary source of X-RAY RADIATION in this TV receiver is the picture tube. For continuous
X-RAY RADIATION protection, the replacement tube must be exactly the same type tube as
specified in the parts list.
4）Some parts in this receiver have special safety-related characteristics for X-RAY RADIATION
protection. For continuous safety, parts replacement should be undertaken only after referring to the
PRODUCT SAFETY NOTICE below.
1.2 SAFETY PRECAUTION WARNING:
Service should not be attempted by anyone unfamiliar with the necessary precaution on this receiver.
The following are the necessary precautions to be observed before servicing this chassis.
1) Since the power supply circuit of this receiver is directly connected to the AC power line, an isolation
transformer should be used during any dynamic service to avoid possible shock hazard.
2) Always discharge the picture tube anode to the CRT conductive coating before handling the picture
tube. The picture tube is highly evacuated and if broken, glass fragments will be violently expelled.
Use shatter proof goggles and keep picture tube away from the unprotected body while handling.
3) When replacing a chassis in the cabinet, always be certain that all the protective devices are put
back in place, such as: non-metallic control knobs, insulating covers, shields, isolation
resistor-capacitor network etc.
4) When replacing parts or circuit boards, disconnect the power cord.
5) When replacing a high wattage resistor (oxiode metal film resistor) on the circuit board, keep the
resistor 10mm (1/2in) away from circuit board.
6) Connection wires must be kept away from components with high voltage or high temperature.
7) If any fuse in this TV receiver is blown, replace it with the FUSE specified in the chassis parts list.
1.3 PRODUCT SAFETY NOTICE
Many electrical and mechanical parts in the chassis have special safety-related characteristics. These
Note:This service manual is only for professional service personnel’s reference. Before
servicing the unit, please read the following items carefully.

2
characteristics are often passed unnoticed by a visual inspection and the X-RAY RADIATION protection
afforded by them cannot necessarily be obtained by using replacement components rated for higher
wattage, etc. Replacement parts which have these special safety characteristics are identified in this
manual and its supplement electrical components having such features are shaded on the schematic
diagram and the parts list.
Before replacing any of these components, read the parts list in this manual carefully. The use of
substitute replacement parts which do not have the same characteristics as specified in the parts list
may create shock, fire, X-RAY RADIATION or other hazards.
2 Alignment items and procedure
The alignment flow chart (see below figure).
3 TEST EQUIPMENT
3.1 AUDIO VOLTAMETER
EEPROM copy
B+ check
Field breadth
and field line
RF AGC adjust
Audio check
Focus adjust and aging
VG2adjust
White balance and sub-bright
H-field and center
field and field breadth
Leave factory state setup
OSD center position
Foucs fine adjust
check
High-handed
Filament voltage
X-ray protect
Picture and audio
Sub-brightness
White balance
Color pure and assemble
AV (S.DVD)
The button check
Remote control check
Assemble check
Safety check

3
3.2 OSCILLOGRAPH
3.3 HIGH-VOLTAMETER
3.4 DIGITAL MULTIMETER
3.5 AC ATTACK PULL TEST EQUIPMENT
3.6 SCAN frequency signal generator BT-3
4 Debugging instruction
4.1 enter into the factory debugging menu
use to the remote control(RC-A23),follow to the blow model enter into the factory:
DISPLAY →MUTE →MUTE →MUTE →enter into the factory
press “sleep” button for pages upward, press “return” button for pages downward, press “CH+/-” to
select alignment items and “VOL+/-” to adjust volume, press “MUTE” to exit.
If the remote sensor designed for alignment is unavailable, press the following buttons to enter by
using user remote sensor
4.2 B+ voltage adjustment
Check B+ voltage ( negative pole of VD509) by using DC voltmeter DC 200V of 135V±2.
4.3 AGC adjustment
Measure the voltage of RF AGC by connecting digital DC voltmeter with TP3, receive weak signal
(40dBu) and the static AGC voltage of TP1 AGC should be V1=4V±0.2V; the receive antenna signal
(60dBu), adjust the value of P6 RF. AGC of factory menu and the start-control voltage of TP1 AGC
should be V2=3.5V±0.2.if V2>3.5V, then the voltage is -1 or -2,if V2<3.5V, then the voltage is+1 or+2. the
antenna input 100dBu signal, after the picture should not be appeared no-sync , distortion and moire;
input 35-40dBu weak signal ,it should not be appeared distortion and no-sync and sound abnormity
electrophoresis of it.
4.4 White balance and screen-grid voltage adjustment
After enter P5 of factory menu, use remote sensor directly to adjust white balance by pressing the
following digital buttons:
“1”=R.BIAS(+) “2”=G.BIAS(+) “3”=B.BIAS(+)
“4”=R.BIAS(-) “5”=G.BIAS(-) “6”=B.BIAS(-)
press “p-p” button to select picture mode custom→T1→T2→bright→soft→nature→user→custom will
be display on the screen.
The T1 mode has the maximum value of brightness and contrast with all the other items minum. Value of
all the analog are minimum while in T2 mode.
Before adjustment you should set the following items: SUB-BRIGHT=50, R.B=100, G.B=100, B.B=100,
R.D=100, G.D=15, B.D=100
press “P-P” button to select T2 picture mode, press CH+/- to select LINE, press vol+ to let the field
scanning fail to oscillate, adjust the screen-grid potentiometer on FBT clockwise to let horizontal bright
line just appear on the screen; let the value of G.B unchanged, adjust R-B and B-B to let the horizontal
bright line appear white. If the green horizontal line don’t appear firstly, fine-turn the screen-grid voltage,
green and blue just appear. After adjustment press VOL- to obtain normal field scanning mode.
4.5 Receive signal (A7), enter P6 of factory menu, adjustment SUB-BRIGHT to let picture on the screen
micro-bright.
4.6 receive white balance adjustment signal
enter P5 of factory menu, press PP to select T1 picture mode, let the value of G.D unchange, adjust R.D
and B.D to let the white part of the picture appear “white”.

4
4.7 Use white balancer to rectify the white balance under following conditions
color temperature:12000K+8MPCD x =0.270± 0.008 Y=0.283±0.008; dark space: 4.5nit, bright space:
60nit
Note:1. While the colour saturation changed from maximum to minimum, if the dark balance appears
changeable,adjust RY.TV and BY.TV (P12) to let it coincide with white balance.
2. If the dark balance appears changeable while connected with DVD, adjust BY.YUV and RY.YUV
(P12) to let it conincide with white balance.
4.8 line-filed scanning amplitude and linearity and center adjustment and raster correct adjstment.
4.9 receive signal (A28), press the PP button the picture model, set standard adjustment the P1 of
V.SIZE and V.SHIFT and H..PAHSE and V.LINE and VSC, let the P2 coincide with request.
4.10 receive signal (G43), press the PP button the picture model, set standard adjustment the P3 of
V.SIZE and V.SHIFT and H..PAHSE and V.LINE and VSC, let the P4 coincide with request.
4.11 High voltage and filament voltage check
Connect a high-voltage meter between anode cap of picture tube and the ground, measure the filament
voltage using rms voltmeter, set the picture mode to “standard”, the high-voltage: 29KV±1.5KV,filament
voltage: 6.3±0.1Vrms.
4.12 x -ray protection check
Receive local TV signal, set the picture mode to “standard”, shorten the circuit and measure the
value of TP1-TP2, restart the TV 30 seconds after turn off the power source and it should return to
normal.
4.13 AV function check
according to the owner’s manual require, connect to the AV equipment and the AV interface:
VIDEO IN: 1 Vp-p 75OHM AUDIO IN: (-8±3)dBm>47 kOHM
S interface Y IN: 1 Vp-p 75OHM C IN: 0.3 Vp-p 75OHM
DVD Y IN: 1 Vp-p 75OHM Cr IN: 0.7 Vp-p 75OHM
Cb IN: 0.7 Vp-p 75OHM
4.14 AV parts check
incept to standard the TV signal:
a）AV and crossfire and allophone and shake ;
b）The user control function ana picture model
c）The remote control function check;
d）Color pure and converge check.
4.15 leave factory state setup
Picture model (PP) STENDARD
language All the country language
Color system AUTO
C.CAPTION C1
CCD ON MUTE OFF
RECEPTION AIR
AFT ON
MTS AUTO
PASSWORD CLEAR
volume 30

5
4.16 the factory menu adjustment model pre-set
OSD item Pre-set model
P1-60
V SIZE 60HZ field amplitude 63 4.9
V SHIFT 60HZ field center 0 4.9
H-PHASE 60HZ H-center 15 4.9
V LINE 60HZ V-line 15 4.9
V SC 60HZ field S-correct 23 4.9
V COMP field amplitude compensate 7 fixed
L.BLK Left blanking 7 fixed
R.BLK Right blanking 0 fixed
P2-EW-60
COR.SW margin correct 1 Fixed
H.SIZE.COMP High voltage compensate 7 fixed
TILT 60HZ echelon correct 44
DC 60HZ H-amplitude 32
AMP 60HZ pincushion correct 25
COR.TOP 60HZ Top margin correct 4
COR.BOT 60HZ bottom margin correct 3
Receive signal A12, adjust the linearity scanning and
geometric distortion and over-scanning coincide with it
P3-50
V SIZE 50HZ field amplitude 75 4.10
V SHIFT 50HZ field center 0 4.10
H-PHASE 50HZ H-center 10 4.10
V LINE 50HZ V-line 16 4.10
V SC 50HZ field S-correct 20 4.10
P4 EW-50
TITL 50HZ echelon correct 49
DC 50HZ H-amplitude 35
AMP 50HZ pincushion correct 41
COR.TOP 50HZ Top margin correct 6
COR.BOT 50HZ bottom margin correct 10
Receive signal G35, adjust the linearity scanning and
geometric distortion and over-scanning coincide with it
P5
LINE Level bright line 0 0=normal 1= Level bright line
RB Red cut off 100 4.4
GB Green cut off 100 4.4
BB Blue cut off 100 4.4
RD Red driver 100 4.4
GD Green driver 15 4.4
BD Blue driver 100 4.4
P6
RF AGC RF AGC 30 4.3
SUB-BRI Sub-brightness 60 4.4
SUB-CNT Sub-contrast 31 fixed

6
SUB-COL Sub-colour 3 fixed
SUB-SHP Sub-definition 0 fixed
SUB-TINT Sub-tint 28 fixed
P7
VOL.FIL Volume control ADC filter 0 fixed
OSD.COT OSD contrast 5 fixed
OSD.HPOS OSD center 10 fixed
AFT Line AFC loop gain and sync
gate switch 0 fixed
VIF SW IF3=45.75MHZ 3 fixed
SIF SW Sound IF0=4.5MHZ 0 fixed
VIDEO LEVEL VIDEO LEVEL 2 fixed
P8
A2 .SW 0 fixed
GY ANGLE G-Y demodulation angle 0 fixed
V.R TM Filed scan strting time 0 fixed
R/B ANG R-Y/B-Y demodulation angle 8 Fixed
R/B BAL R-Y/B-Ydemodulation
balance 8 fixed
C TRAP Color trap filter 6 fixed
H FREQ H-frequency 16 fixed
C.BPF TEST Color band filter center
frequency 0 fixed
P9
OVER.MOD.SW Selection over-modulation
function 0 Fixed,0=nothing 1=have
OVER.MOD.LVL Adjustment over-modulation
working point 0 fixed
BLK.STR Dark level expand starting
control point 2 Fixed,0=40IRE 2=60IRE 3-OFF
BLK.GAIN Dark level expand gain 2 Fixed,0=MIN 2=MAX
Y.APF Selection color trap filter 1 0=trap filter,1= direct pass(YcbCr&Y/C)
PRE.ADJ Pre-shoot 3 fixed, 0=narrow 3=width
OVER ADJ overshoot 3 Fixed,a 0=narrow 3=width
C.VCO.ADJ Color VCO frequency
adjustment 4 fixed,0－4－7=-120KHZ-0-90KHZ
P10
BRT.ABL.DEF Brightness ABL 0 fixed,0=ABL ON 1=ABL OFF
MID.STP.DEF ABL start control point 0 fixed
BRT.ABL.THR ABL threshold 7 fixed
WPL.OPE White peak limit 2 fixed
V BLK.SW Field blanking switch 0 fixed ,0=nomarl;1=width model

7
FBP BLK SW Horizontal blanking switch 1 fixed,0=inside produce;1=FBP and inside logic “and”
DC REST DC recover rate 1 fixed,0=100% 1=107%
CD.MODE Field frequency division
model 0 fixed,0=auto
P11
CORE GAIN Noise reduction 2 fixed,0=OFF 1=MIN 3=MAX
γ.GAMA r-correct 0 fixed,0=OFF
RGB TEMP.SW RGB DC output
temperature speciality 1 fixed
A.MONI SW Selection pin5 output 1 fixed，1=SAO
SVO OR FSC Selection pin5 output 0 fixed,0=VIDEO 1=FSC(color sub-carrier wave)
CROSS B/W Selection test signal 0 fixed,0=TV
CRAY.MODE Test signal 0 fixed,0=white(75%)1=grey(15%)
P12
BY TV Blue chromatism DC level 8 4.4 adjustment dark white balance(TV/AV model)
RY TV Red chromatism DC level 8 4.4 adjustment dark white balance(TV/AV model)
BY YUV DVD input Blue chromatism
DC level 8 4.4 adjustment dark white balance (DVD input)
RY YUV DVD input Red chromatism
DC level 8 4.4 adjustment dark white balance(DVD input)
S.TRAP.TEST Sound trap filter adjustment 6 fixed
LOW.BRI Min-brightness 28 fixed
LOW.CONT Min-contrast 30 fixed
P13
COL.KILL Achromatic level 7 fixed,0=-30dB 3=-40dB
VCO.FREQ VCO frequency 32 fixed
VM.GAIM VM gain adjustment 0 fixed
VM.DELAY ADJ VM relay time adjustment 0 fixed
VCO TEST VCO adjustment 0 fixed
VPOS-50 50HZ field center voltage
adjustment 15 fixed
VPOS-60 60HZ field center voltage
adjustment 15 fixed
P14
Y GAIN 0 fixed
Y TH 0 fixed
B OFFSET 0 fixed
B WIDTH 0 fixed
C OFFSET 0 fixed
C WIDTH 0 fixed
CAN.V CHIP V-CHIP 0/1 1=CAN.V-CHIP
OPTION

8
AV AV selection 3 AV input select(3=AV1/AV2/S/DVD)
MTS MTS IC selection 1/0 0=nothing,1=72700 2=AN5832
V.OFF.MOTE Turn off model 1 0=discharge,1=close
PWR.MEM Turn on model 0/2 0=standby,1=auto turn on,2=memory
1115 select LV1115 0 fixed,0=nothing;1=have
BLCK GROND No signal background
selection 1 0=nothing 1/3=blue background;2=black background
N/PN South America and North
America selection 1/0 0=south america;1=north america
1115(the unit no use)
VOL.OFFSET 0
GAIN 3
PWM LOGIC 0
AVL MODE 2
AVL DET LEVEL 0
AVL SLOPE 0
PWM SET
PWM.VOL Volume control of PWM set 1 fixed
1-CHIP.VOL Volume control of mono 0 fixed
VOL 1 1% volume control speciality 20 fixed
VOL 25 25%volume control speciality 60 fixed
VOL 50 50%volume control speciality 90 fixed
VOL 75 75%volume control speciality 100 fixed
72700
ALC ALC 1 fixed ,1=ALC ON
VOL Baseband model ,input level
adjustment 0 The unit no use
SAP LEVEL SAP level 1 fixed
SIF.M/BB.M SIF and baseband model 0 fixed,0=SIF MODE 1=BB MODE
5832
AGC 1 fixed
Note:above “/” are the adjustment data for north america, below it are for south america.

9
BLOCK DIAGRAM
IR TX M3428M1-D48GP IR RX
MEMORY N202 M24C08
T101 TUNER
SAWF
PIF
LA76932
I2C BUS LINE
DEFLECTION
VOUT N301 L
A
78041
HOUT V302 2SC2539
T301 FBT
CRT DRIVE CRT
EHV
28V
VIDEO
REM
IF
RF
SIF
CHROMA
R
G B
POWER N501 CQ12656RT
A
C 120V
/
110V
110V
A
UDIO
A
MP
A
N7522
14V
H VCC
N503
5V-1
V SWITCH 4053
VIN TV OUT
VIDEO
OUT
AUDIO OUT
V OUT
A OUT
Y Cr Cb AUDIO
IN
VIDEO IN
S IN
Y Cr Cb
C P U
A SWITCH 4053
MTS

10
MAIN IC
LA76930 BLOCK DIAGRAM

11
Function introduction to pin
pin function Reference
voltage
(V)
pin function Reference
voltage
(V)
1 SIF output 2.28 64 PIF input1 2.86
2 PIF AGC 2.61 63 PIF input 2 2.86
3 SIF input 3.11 62 IF GND 0
4 FM filter 2.64 61 RF AGC output 4.55
5 FM filter/sound output 2.25 60 Video output 2.30
6 Sound output 2.24 59 AFT filter 2.50
7 SIF APC filter 2.24 58 APC filter 2.60
8 IF VCC(5V) 4.92 57 Black level detection
filter
2.50
9 Expanded sound input 2.25 56 Internal video input and
S-C input
2.70
10 ABL 3.21 55 Video, colour and
deflexion power VCC
4.90
11 RGB VCC(8V/18Ma) 8.00 54 Expanded video input
and Y input
2.50
12 R ouput 2.65 53 Colour APC filter 3.40
13 G ouput 2.65 52 Selection video output
and FSC output
2.40
14 B ouput 2.67 51 Cr input 2.50
15 AKB (undo) 2.31 50 4.43 MHZ crystal 2.73
16 Field sawtooth filter to
capacitance
2.16 49 Cb input 2.50
17 Field output 2.34 48 Fast blank-out input 0
18 VCO Reference voltage 1.65 47 R input 1.89
19 H/BUS VCC(5V/27mA) 6.81 46 G input 1.90
20 H/APC filter 2.54 45 B input 1.90
21 H-output 0.28 44 Retrace impulse input 1.20
22 Video,colour and
deflexion ground
0 43 CCD VCC 4.50
23 x -ray protection, low
level availability
5.00 42 CPU GND 0
24 S input detection, high
Level availability
3.50 41 PLL 3.50
25 DVD detection, high
Level availability
6.50 40 reset 4.00
26 IR control input 4.90 39 Button input 0.32
27 AV1/AV2 H=AV1
L=AV2
0 38 TV/AV H=TV L=AV 0

12
28 POWER H=OFF
L=ON
0 37 BL 5.00
29 Turn voltage PWM
output
1.73 36 BH 5.00
30 Mute, high
Level availability
0 35 VDD 5.00
31 I2C DATA 5.00 34 x T2 4.50
32 I2C CLOCK 5.00 33 x T1 2.70

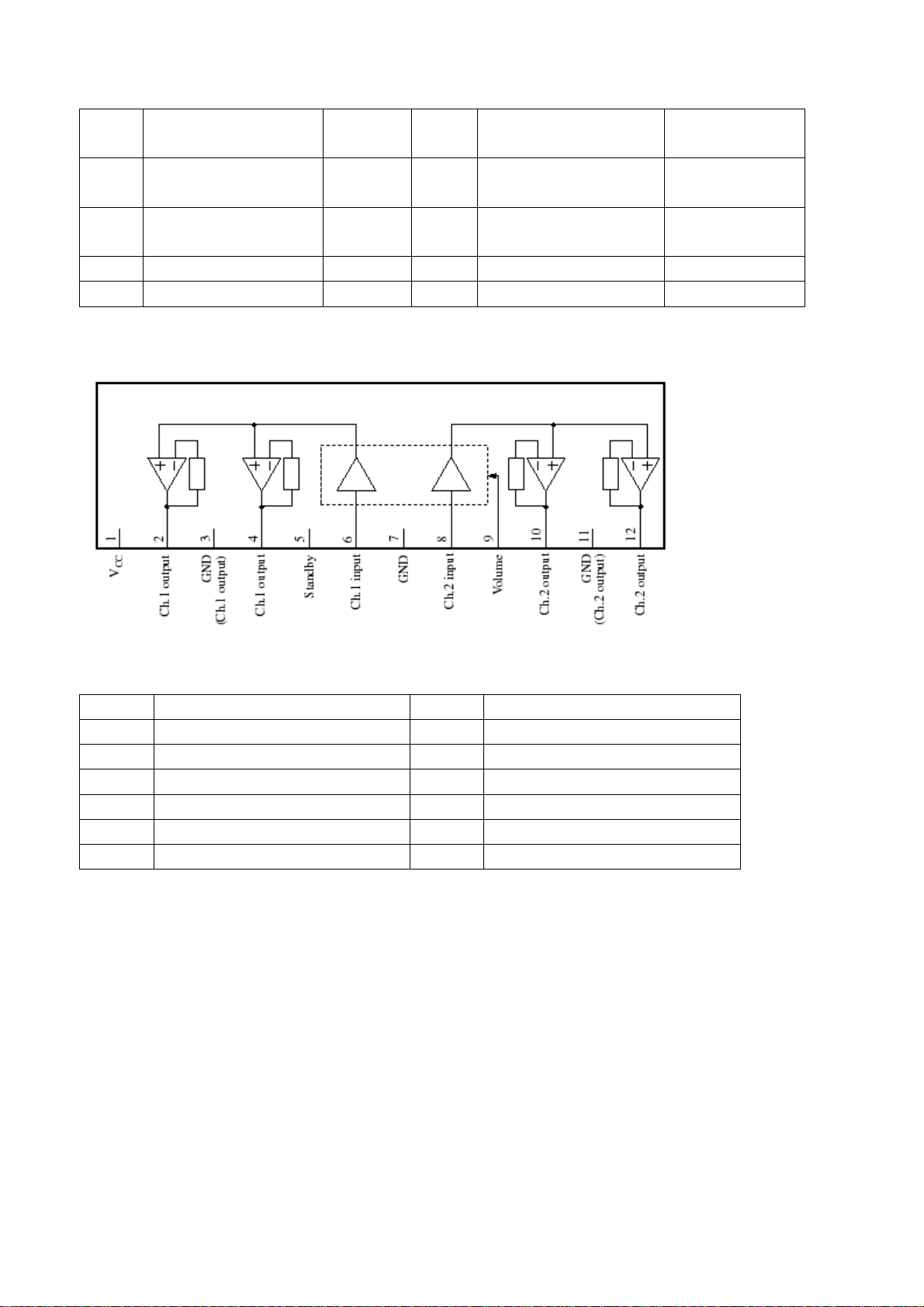

AN7522
Pins function
pin function pin function
1 power 7 GND input
2 CH1+ output 8 CH2 input
3 GND 9 volume
4 CH1- output 10 CH1+ output
5 Stand-by 11 GND (CH2 output)
6 CH1 input 12 CH1+ output

13
FSCQ1265RT

14
WIRING DIAGRAM

15
EXPLODED VIEW

TS2751
NO. DESCRIPTION PART#
1 BACK CABINET 780-10908-040
2 REAR PANEL 808-1M650-040
3 MAIN BOARD FRAME 863-6A127U000H
4 WASHER 868-10107-00
5
6
7 CRT SUPPORT 868-20175-00
8 POWER SWITCH/STANDBY
BUTTON BOARD 360-30028-00/667-TS32351-05
9 FRONT CABINET 611-E50Y3J0H1C
10 SIDE AV BOARD 667-TS2950-29
11
12 SPEAKER ST613-04 384-32108-50
13 TOUCH BUTTON 877-60595-00
14 BUTTON CAP 877-60531-00
15 BUTTON CAP (PLATING) 877-60530-01
16 WASHER 868-20217-00
17 SPEADER BRACKET 870-20693-00
18 LED COLUMN 700-60149-00
19 BUTTON 877-50409-00
20 CRT FIXER 615-10079/10080-00
21 COMPONENT NUT 648-30001-00
22 CRT 335-2942Q-00U
23 CRT BOARD 667-TSE30-02
24 RIGHT/LEFT COVER BOARD 808-10570/10571-40
25 LABEL 880-10205-895

PART LIST
PART# DESCRIPTION LOCA.NO.
100-TS27510-11 LET2751
100-TS27510-01 TS2751
100-U29F0-01FD ASSEMBLY ACCESSORY RATION U,V,29F6 BOARD
123-30001-04 TWIST WIRE
335-2942L-00 CRT A68QCP693X001 !
477-12904-00 DEGAUSS COIL DX-29!
488-10012-00 BATTERY 7＃( made in china
604-TS27517-00 OWNER'S MANUAL(LEGEND)
611-E51R3-0H1D FRONT CABINET ASS'Y
615-10079-00 CRT FIXER ASS'Y
615-10080-00 CRT FIXER ASS'Y
648-30001-00 COMPOSE NUTS SJ2843-87M6
700-60149-00 LED COLUMN
741-10001-02 WIRE FIXED BLADE
741-10001-02 WIRE FIXED BLADE
742-30005-09 LINE TIE
742-30006-09 GRADING TIE
742-30032-00 TIE
742-30032-00 TIE
742-30038-00 TIE
742-30043-00 LINE TIE
742-30043-00 LINE TIE
770-40151-40 IMITATEUL1672 22# 400mm BLACK
780-10908-040 BACK CABINET ( MOLD GREY )
807-20065-00 BACK CABINET PRESS BLOCK
807-20065-00 BACK CABINET PRESS BLOCK
808-10570-40 COVER BOARD ( LEFT ）( MOLD GREY ）
808-10571-40 COVER BOARD ( RIGHT ）( MOLD GREY ）
808-70239-00 EVA GLUE 150X50X1
838-10401-00 BRAIDED WIARE SPRING
851-23016-11 SCREW SJ2824 ST3X16C-DZn
851-23016-11 SCREW SJ2824 ST3X16C-DZn
851-24016-11 SCREW SJ2824 ST4X16C-DZn
851-24016-11 SCREW SJ2824 ST4X16C-DZn
851-24016-14 SCREW SJ2824 ST4X16C-Y
851-24016-14 SCREW SJ2824 ST4X16C-Y
851-24016-14 SCREW SJ2824 ST4X16C-Y
851-24016-14 SCREW SJ2824 ST4X16C-Y
851-24016-14 SCREW SJ2824 ST4X16C-Y
851-24016-14 SCREW SJ2824 ST4X16C-Y
851-24020-14 SCREW SJ2824 ST4X20C-Y
851-24020-14 SCREW SJ2824 ST4X20C-Y
851-24025-11 SCREW SJ2824 ST4X25C-D.Zn
851-24025-11 SCREW SJ2824 ST4X25C-D.Zn

851-53012-11 SCREW SJ2825 ST3X12C-D.Zn
851-53012-11 SCREW SJ2825 ST3X12C-D.Zn
851-53012-31 SCREW SJ2825ST3X12FT-DZn
851-53012-31 SCREW SJ2825ST3X12FT-DZn
855-A0024-00 SCREW M4X18
855-A0024-00 SCREW M4X18
857-10004-00 COTTON FLANNEL
857-10004-00 COTTON FLANNEL
857-10004-00 COTTON FLANNEL
857-10004-00 COTTON FLANNEL
862-20028-00 POWER CORD CLAMPE
863-80767-00A POLY FOAM (TOP ）( SMALL ）
863-80768-00 POLY FOAM (BOTTOM ）( SMALL ）
868-10107-00 CUSHION
868-10107-00 CUSHION
868-20007-00 SLEEVE
868-20109-00 WASHER
868-20175-00 SUPPORT CUSHION
868-20175-00 SUPPORT CUSHION
868-20271-00 RUBBER WASHER
868-20271-00 RUBBER WASHER
868-20452-00 CUSHION
868-20462-00A CRT SUPPORT
868-20529-00 CRT SUPPORT
868-20553-00 CABINET BOTTOM CUSHION
880-10205-A57 BACK PLATE (LET2751,LEGEND)
880-10777-A1 FRONT LOGO LEGEND SILVERY GREY 10C29"
881-60085 BLANK WARNING LABEL
881-80672-00 SERVICE CARD ( 27-32 CRT)
881-TS27517-00 OPERATION CARD (LEGEND)
886-31150-30 CARTON BOX (LET2751,LEGEND)
887-20044-01 POWER CORD COVER
887-20047-00 ACCESSORY PALSTIC BAG
887-21114-P0 PE/PEARL COTTONPALSTIC BAG 1300X1250
893-10600-11 NUT GB6170-86-M6 D.Zn
893-10600-11 NUT GB6170-86-M6 D.Zn
667-TS2755-31 MTS BOARD ASS'Y
667-TS2755-31\ MTS BOARD ASS'Y (MANUAL INSERTION ）
667-Q2735-31\ MTS BOARD ASS'Y (MANUAL INSERTION ）
998 JUMPER WIRE CS17
998 JUMPER WIRE CS20
998 JUMPER WIRE WS01
343-18150-104 TRANSISTOR 2SC1815-Y VS01
343-18150-104 TRANSISTOR 2SC1815-Y VS02
