XPower FM-48 User manual

PLEASE READ AND SAVE THESE INSTRUCTIONS
MISTING FAN
OWNER'S MANUAL
MODEL: FM-48 (115V/60HZ)
XPOWER MANUFACTURE, INC.
240 Clary Avenue
San Gabriel, CA 91776, USA
Tel: [phone] Fax: [phone]
www.xpower.com

TABLE OF CONTENTS
Introducon..................................................................................................................................... 3
Operaon Instruscons .............................................................................................................. 4, 5
Safety Instrucons .......................................................................................................................6, 7
User Servicing Instrucons............................................................................................................ 8
Troubleshoong ............................................................................................................................10
Specificaons...................................................................................................................................9
Parts List .......................................................................................................................................11
XPOWER Warranty / Service .........................................................................................................14
Warranty Registraon Form ....................................................................................................15, 16
More XPOWER Products..........................................................................................................12, 13

- 3 -
Intr
XPOWER MisFansare ETL & C-ETL cer professional level mul func blowers/
fans withthe most efficient engineeringdesign.
Feartures:
•Low power draw with a high velocity air flow up to 600CFM
•Super quiet and super light weight
•Easyand quick to disassemble for thorough cleaning and service
•Convenient cord and water hose wrap design
•Power cord length up to 7' / Water hoselength up to 10'
•3Speed switch
•Safety screens on open vents
•In-line GFCI cord for safe outdoor use
•Durable and rugged housingwith1 year warranty
Fused end plug•

- 4 -
Opera s
XPOWER MisngFans are intended to deliver a fine mist to cool and refresh outdoor areas
up to 30 °F. Durable and easy to operate withan effve balance of airflow and misng, the
units are suitable for a variety of applica ons.
1. XPOWER MisngFans are shipped ready-to-use. Prior to pluggingthe unit into the power
source, inspect completely for any shippingdamage.
2. Screw on the misngnozzles if they were removed duringstorage.
3. Unwrap the electrical cord and water hose. Connect the hose adapter to a standard garden
faucet if misngfun on isneeded.
4. Plugthe electrical cord into a 3-prongoutlet.
5. Carefullyplace the unit on a stable, flat dry surface.
6. Turn the switch to desired speed and rotate the
machine to desired posion, while makingsure
unit operatesnormally. Turn on the faucet and
the switch on the hose adapter.
(Con nued at Page 5) Adjust the misng angle

- 5 -
7. All units in opera on mustbe supervised at all mes.
8. When finished, turn offthefaucet and the switch on the hose adapter.

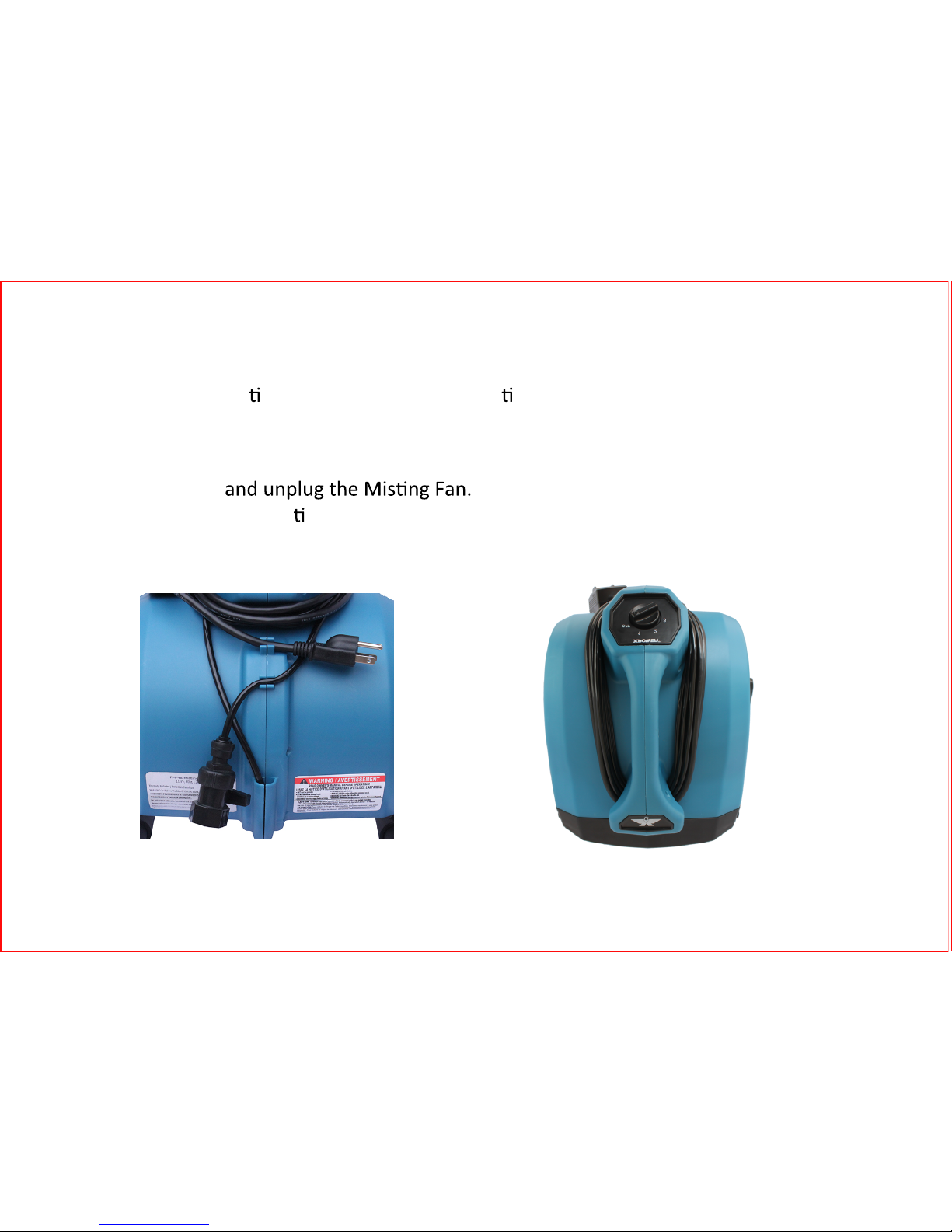

turn offWrap the water hose first around
the handle on the MisngFan and then the electrical cord.
Then

- 6 -
Safety Ins
2. To prevent electric shock, do not operate the unit in standingwater. Never plugin or unplug
the unit with wet hands or while standingin water.
3. To avoid riskof injury, do not redirect air flow at face orbody.
4. WARNING- To reduce the risk of fire or electric shock, do not use thisfan with any solid-state
speed control device.
5. CAUTION: To reduce the riskof the electric shock, connectonly to an outletprovided with a ground
lease contact a qualified electrician for verifica on and / or
installa on of a GFCI receptacle if necessary.
7. Do not operate the MisngFan witha damaged cord or plug. Discard the unit or return it to
an authorized service facility for examina on and / or repair.
8. Unplugthe MisngFan from thepower supplybefore servicingor cleaning.
9. Do not run the power cord under carpeng. Do not cover the cord withthrow rugs, runners, or
similar coverings. Do not route cord under furniture or appliances. Arrange cord away from
traffic area and where it will not be tripped over.
10. Do not allow children to play with or around the MisngFan at any .
siMehtyrracroevomtonoD.11 ngFan while theunit is opera ng.
12. Always place the MisngFan on a smooth and level surface for safe opera on.
13. Any misuseor abuseof this product will void its warranty.
servicing.
1. This fan is an outdoor product and is NOT intended for indoor use. Do not leave the fan
6

- 7 -
Safety Ins
The power cord is equipped with a three-prong, grounded fused end plug with a in-line GFCI (Ground
Fault Circuit Interrupter). It must be inserted into a grounded receptacle. Under no circumstances
must the grounding prong be cut off the plug.
WARNING: Do not use a three-prong to two-prong adapter.
1. Plug into power outlet,indicator is “ON”.
2.Press TEST buon,indicator is “OFF”.
3.Press RETEST buon again when using the Misng Fan.
DO NOT USE IF TEST FAILS.
WARNING
RISK OF ELECTRIC SHOCK. Test GFCI before each use.
14.This product employs overload protecon (fuse). A blown fuse indicates an overload or short-circuit
situaon.If the fuse blows,unplug the product from the outlet.Replace the fuse as per the user
servicing instrucons (follow product marking for proper fuse rang) and check the product. If the
replacement fuse blows,a short-circuit may be present and the product should be discarded or
returned to an authorized service facility for examinaon and /or repair.
15. Turn off water at the source before changing the nozzle or aer each use.
chemical-laden or where gasoline,paint or flammable liquids are used or stored.
other animals are confined.
.
indicator
RETEST button
TEST button

- 8 -
User Servicing Instrucons
1. To keep the MisngFan clean, use a damp cloth to wipe the surface of the housing.
2. To clean the misngnozzles, disassemble the nozzles (See picturesbelow) and soak the parts
withsoapy water or mild (or alkaline) detergent for several hours. Do not use vinegar or other
acidicdetergent. When finished, dry the surfaces completely and reassemble theparts.
3. When not in use, screw offthe misngnozzles, unplugand store the MisngFan and nozzles
in a dry indoor place out of reach of children. The nozzles must be dried completely before
stored.
4. Always disconnect the MisngFan from its power source before maintenance or cleaning.
Replace the fuse:
1. Grasp plug and remove from the receptacle or other outlet device. Do not unplug by pulling on cord.
2. Slide open the fuse cover on top of aachment plug towards blades.
3. Remove the fuse carefully.
4. Risk of fire. Replace fuse only with 5A,125 Volt fuse.
5. Slide closed the fuse cover on top of the aachment plug.
6. Risk of fire. Do not replace aachment plug contained a safe device(fuse) that should not be removed.
Discard product if the aachment plug is damaged.
fuse
fuse cover

- 9 -
Specifica
ModelNumber FM-48 Cer ca ETL / C-ETL
Volt / Frequency 115V / 60Hz RPM 900/ 1150/ 1400
Power 138 Wa sSpeeds 3Speed
Amp 1.2 AmpsUnit / Box Weight 10.1 lbs. / 11.7 lbs.
Rated Airflow (On High) 600 CFM Unit / Box Dimension
(L x Wx H)
13.3" x 12.3" x 15.2" /
13.6"x 12.7" x 14.6"
Power Cord (Length ) 7' HousingPP
Water Hose Length 10'

- 10 -
Troubleshoong
PROBLEMPOSSIBLE CAUSE SOLUTION
MisngFan not
running
No power input/ Switch not turned
on
Check outlet / switch to anotheroutlet, make sure
unit is plugged in and switch is turned on.
Intake or exhaustblocked Turn unitoff to cool down, then remove blockage
Fan jammed Remove material jammingthe fan
Wiringfailure / Motor Failure contact XPOWER Customer Service
MisngFan vibrates
/ makes noiseFan jammed / broken Remove material jammingthe fan or contact XPOWER Customer Service
Nozzles not misng
No water supplyCheck water supply/ Make sure the water hose is
connected and switch is turned on.
NozzlejammedClean thenozzleaccordingmaintenance
instrucons

- 11 -
Parts List
Item No. Parts Name
1 Le housing
2 Air outlet grid cover
3 Panel
4 Switch assembly
5 Fan
6Sha sleeving
7-1/7-2 Plug / GFCI
8 Water hose
9 Rack knob
10
Misngnozzles
11
Rack
12 Right housing
13 Capacitor
14 Grid Cover
15
7-1 7-2
15
Motor

- 12 -
Jan/San - Restoraon & Migaon Equipment:
Centrifugual Fans
Low Profile Air Movers
Scented Air Mover Fans
Airrow Pro Blower
Confined Space Fans
Axial Fans
High Temp Axial Fans
Air Scrubbers
Dehumidifiers
MisngFans
More XPOWER Products Available

- 13 -
Inflatable Adversing Equipment:
High Stac Blowers
Centrifugal Blowers
Vercal Adversement Blowers
Air Pumps
Professional & Retail Pet Grooming Equipment:
Professional Pet GroomingDryers
DIY Pet GroomingDryers
Air Care Equipment
Learn more at www.xpower.com or call 1-855-855-8868

- 14 -
