Xstatic Pro Lightning X-PAR5In1-9 IRC User manual

2
High Power Indoor PAR, 9x RGBWA 3W
User Manual

3
CAUTION! READ BEFORE USE!
For your own safety, please read this user manual carefully before you
initially power up your xture.
● Examine packaging to ensure all parts included
● Disconnect all power and other cables prior to servicing
● Always make sure to provide adequate ventilation
● Keep this device away from rain and moisture!
POWER
Be sure you have the proper power cables for the xture. A 120v cable
with a Standard PC Power connector is required, and included with
the unit.
There is also a power Output plug available for daisy chaining located
next to the power switch.
CONNECTIONS
Remote control and linking is available via four operation modes: DMX
512 Control, Auto and Master/Slave, and Sound Active modes to form
different led effects, and DMX-512 connection to connection between
xtures.
(Input and Output Ports seen here. See the DMX page for cabling details
and Daisy-chaining specics on Page 10).
SAFETY INSTRUCTIONS:

4
FEATURES:
● RGB Color Mixing
● Color Strobe Effect
● Color Mix Effect
● LED Chases (Adjustable Speeds)
● Electronic Dimming 0-100%
● Operating Modes: Sound Active, Master /
Slave, or DMX Control
● DMX-512 Protocol Compatible (ch’s 5, 7, 9)
● Digital Display for Address and Function
Settings
● IR Remote Control
Please Note: Specications and improvements in
the design of this unit and this manual are subject
to change without any prior written notice.

5
DMX Control and Chain Connections:
You can connect the DMX-output of a controller directly to the DMX-input of
the xture. If connecting mulitple units, be sure to use the proper cabling.
TERMINATION NOTE: These units are not self terminating. If the last xture
in the DMX chain will need to be terminated with a Terminator. (page 9)
● Voltage: 100V~240V,50Hz~60Hz
● LEDs: 9 x 10W RGBWA LEDs
● Power Consumption: 84W
● Weight: 3.4Kgs.
● Dimensions: 263 x 295 x 88mm
● Colors: RGB Color Mixing
● DMX In and Out
● LCD Control Screen
● Beam Angle: 25 degrees
● Chainable DMX and power ports
● Power Lining: 5pcs/110v, 13pcs/240v
● Lumens: R 2951ux /2m
G 2601ux /2m
B 360lux /2m
W 515lux /2m
A: 170lux/2m
RGBWA 1420lux /2m
TECHNICAL SPECIFICATIONS:

6
SETUP MENU: You can easily setup and control your TRI5in1-9LED Par
light from the on-board LCD screen. Using the MENU, SETUP, UP and
DOWN, buttons, you will nd the following options to select and modify:
LED DISPLAY OPERATION - These instructions will provide access to
the setup and control of the DMX light.
1. AUTO MODE
Press the MODE button until AUTO displays on the Menu screen. The
xture comes with a slow fading demonstration between all preset colors.
The demo will run in loop until stopped.
No adjustments are available for the Auto/Demo Mode.
2. BUILT-IN PROGRAM SELECTION
You can access several levels of programs and different styles by setting
the program number, then pressing SETUP button to select programming
options. To acces the pre-saved programs, press the MODE button until
you see Pr.0 1, then use the UP or DOWN buttons to choose betwen pro-
grams Pr.0 1 - pr.1 1. They provide the following effects:
Pr.0 1 Static Color
Pr.02 One Color Fading
Pr.03 Colorful Fading
Pr.04 Colorful Dream
Pr.05 One Color Hopping
Pr.06 Colorful Hopping
Pr.07 Red Fading
Pr.08 Green Fading
Pr.09 Blue Fading
Pr. 10 White Fading
Pr. 1 1 Amber Fading
MENU / CONTROLS:
The Control Screen with
MENU, SETUP, UP, and
DOWN Navigation buttons.

7
3. DIMMING/COLOR MIXING MODE
Press the MODE button until COLR displays on the Menu screen. Then
repeatedly pressing the SETUP button will scroll through 5 selections, RED
(R), GREEN (G), BLUE (B), and WHITE (u), and AMBER (A). Each selections
have 0-255 levels of dimmer.
The 9 LEDs in the light xture each have 5 individual colors present in each
lens. Red, Green, Blue, White, and Amber colors, all to provide 16 million+
options for color mixing.
Color Value Settings
r .25 5
RED LED Color portion setting. Use ^or vto
adjust color value from 0 - 255 .
g .25 5
GREEN LED Color portion setting. Use ^or vto
adjust color value from 0 - 255 .
b .25 5
BLUE LED Color portion setting. Use ^or vto
adjust color value from 0 - 255 .
u .25 5
WHITE LED Color portion setting. Use ^or vto
adjust color value from 0 - 255 .
A .25 5
AMBER LED Color portion setting. Use ^or vto
adjust color value from 0 - 255 .
When all values are set to 255 , the xture will display a full, warm White
cast of light. Reducing each color channel creates different hues and color
options.
Setting each value to 0, with only one at full 255, that color will be the only
color displayed. I.E. R set to 255 with G, B, W, and A all set to 0will only
display the color Red.
MENU OPTIONS CONT’D:
Now pressing SETUP and the UP and DOWN buttons will navigate within
these Program’s choices and settings. You will now see F500 in the
display eld indicating the program speed. Press UP or DOWN to scroll
through SP.0 1 to the highest speed at Sp.fl (1-100).

8
MENU OPTION CONT’D:
6. MASTER/SLAVE MODE
Press the MODE button until SLAV displays on the Menu screen. The xture
will be slaved to which ever lead device is being controlled.
7. RESTORE FACTORY SETTINGS
When xture is off, press the MODE and SETUP buttons at the same time
and hold while turning the xture power on. Hold the buttons until you see
024e and then u.40 will display on the Menu screen. The xture is now
reset.
NOTE: “LOCKED MENU” - To exit the LOCKED mode of the Menu, press
MODE and DOWN for 2 to 3 seconds and xture will Unlock and return to
normal Menu Navigation.
Note that this xture has DMX Auto Detection, so regardless of any other Mode
setting, if there is DMX signal present, it will automatically turn on it’s DMX Mode.
When DMX is no longer present, the xture returns to previous Mode setting
(infrared remote control also disabled when in DMX Mode).
4. SOUND MODE - This menu will let you select your desired Sound Mode
Setting.
Press the MODE button until SUND displays on the Menu screen. The menu
will display the parameters SU.00 - SU.3 1. where the user can set the level of
Sound sensitivity the xture.
5. DMX MODE
This menu will let you select the DMX mode.
For Manual selection, press the MODE button until d . 001 displays on the
Menu screen.
The DMX Channel can be selected by pressing the UP and DOWN buttons
and selecting d . 001 - d . 512 .
More Channel modes are available by pressing the SETUP button until
X -ch is displayed, and selecting either 5-ch , 7 -ch , or 9-ch , and
each have different Control Options. These mode charts are exhibited on
page 9.

9
DMX SETUP (CONTROL OPTIONS)

10

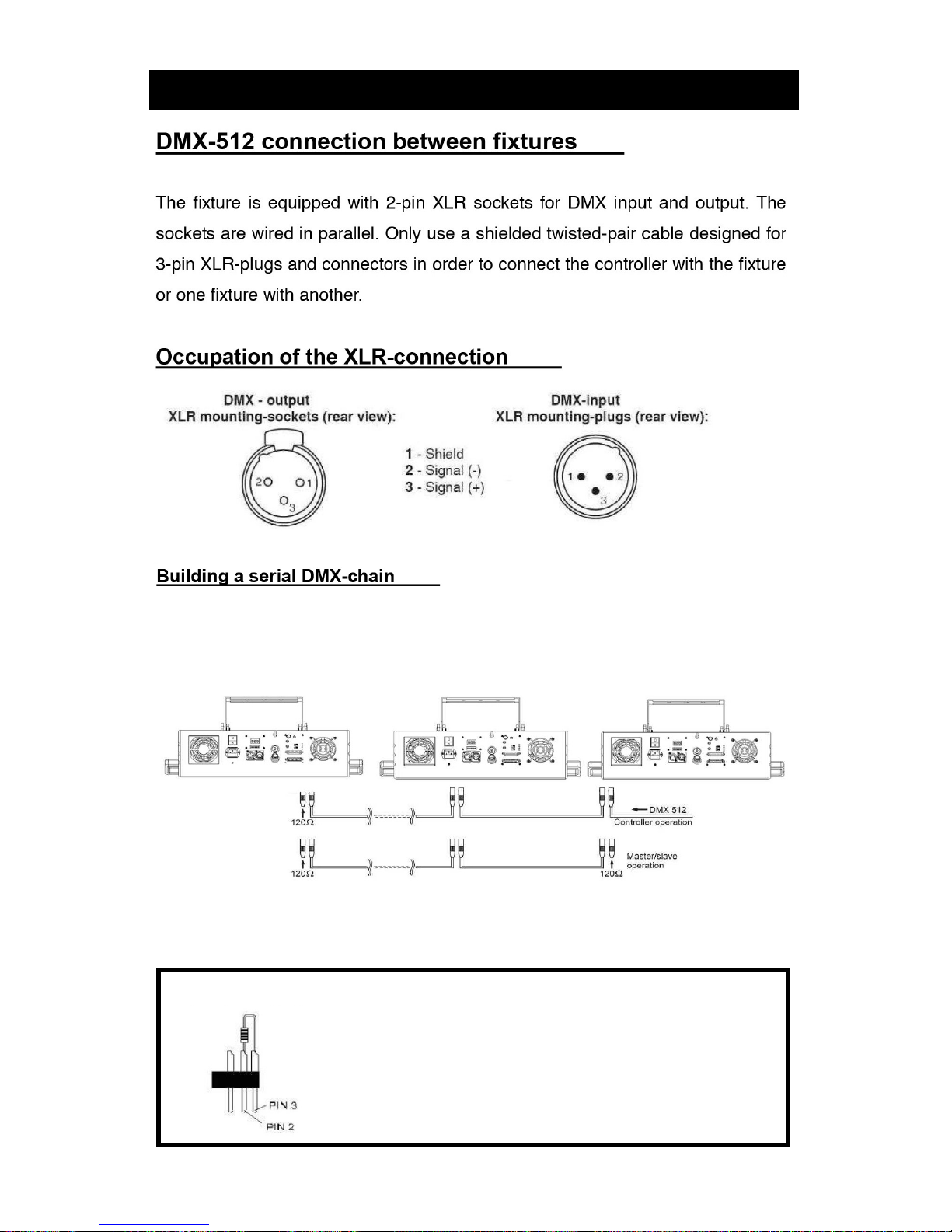

DMX SETUP CONT’D:
[To make Terminator; solder a 120 resistor between
Signal (–) and Signal (+) into a 3-pin XLR-plug and
plug it in the DMX-output of the last xture.]
NOTE: The last or nal xture in the DMX chain MUST have a terminator
plug. A terminator is an XLR type plug that does not connect to a cable.
Assembling a DMX Chain is as simple as connecting two more more
xtures with DMX In/Outs with the proper DMX specic 3-pin XLR-style
cables.
MAKE A TERMINATOR:

11
INFRARED REMOTE FUNCTIONS:
8. INFRARED REMOTE OPTIONS
Your xture comes with an Infrared Remote Control.
This requires aiming the remote forward and at the
face of the light in order to send it your selections.
The remote has two sections of control, settings and
colors. Each has the associated mode it will enter
upon pressing. They are:
ON/OFF All LEDs to On or Off state
AUTO Auto/Demo Mode
PRG Select Pre-Programmed Scenes
SOUND Sound Reactive Settings
SPEED Rate at which Colors Change
STROBE Flash On/Off and Freq. Settings
DIMMING Enter Dimming Mode
+ / - Increase or Decrease Selection
On Buttons 0-9, the LEDs will display the associated colors when selected.
0 1 2 3456 7 8 9
Cyan Purple Purplish-
Red
Orange White Bright
Pink
Light
Grreen
Water
Blue
Yellow Warm
Sunset
DIMMING MODE
By selecting DIMMING and then a Color Button labeled with either R, G,
B, A, or W, you can create your own color mix by increasing or decreasing
the value of that single color portion of the 5 in 1 LED. These buttons are
outlined on the remote in the form of a “T” shaped box.
Using the Settings Chart for Color Value Mixing on page 7, you can control
the xture in the same manner again, by rst pressing Dimming, and then
Selecting the lettered color buttons, and then + or - to increase or decrease
the values.

12
