Xterior MICRO FACET LED Configuration guide

1. This LED luminaire must be connected in series to a
350mA constant current converter.
WARNING! Incorrect connection may damage the
luminaire
2. Note the prescribed dimensions before installation
3. Ensure that the cables are not squeezed or
damaged by sharp edges
4. Clean the appliance with a soft cloth and a
standard PH neutral detergent
5. Stainless steel surfaces should be maintained
regularly
6. Misuse of, or changes to the appliance shall nullify the
guarantee
7. The manufacturer is free to change the design, speci-
cations and instructions of assembly
8. Connect the luminaire to the converter before the con-
verter is connected to the power source
9. The external exible cable of this luminaire cannot be
replaced; if the cord is damaged the luminaire needs to
be replaced.
MICRO FACET LED
[phone]
[email protected]
Current
350mA
Power
1W
LED
CREE

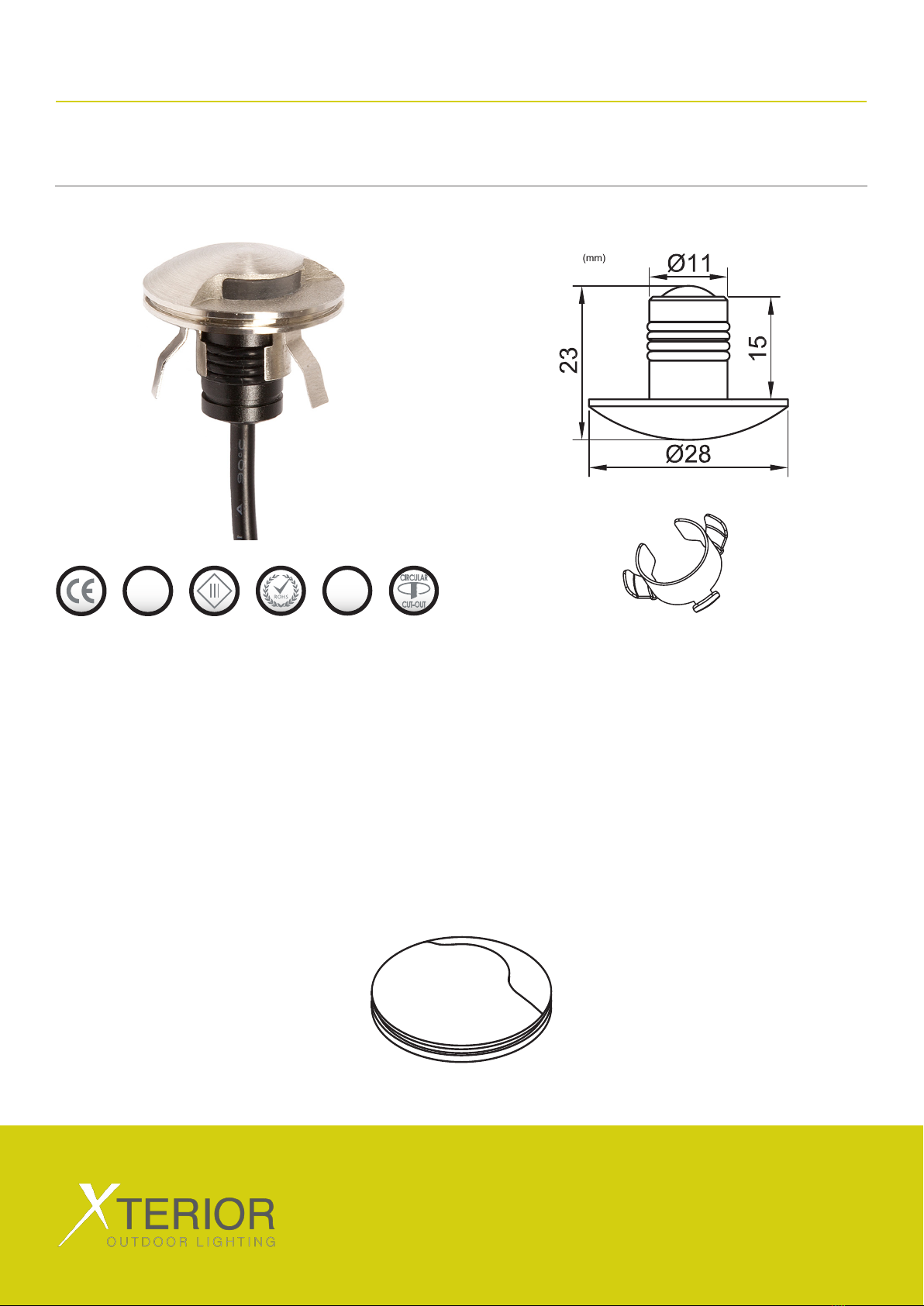

Dimensions
D.Ø28mm x H.23mm
PRODUCT OVERVIEW
Material
SS316 + Al
IP Grade
IP67
Beam Angle
120°
INSTALLATION, CLEANING AND MAINTENANCE
LED
RECESSED EXTERIOR IP67 FLOOR WASHER
IP67

MICRO FACET LED
[phone]
[email protected]
INSTALLATION INSTRUCTIONS - I
RECESSED EXTERIOR IP67 FLOOR WASHER
INSTALLATION INSTRUCTIONS - II
1 2
1 2

CONSTANT
CURRENT DRIVER
LED LED LED
IP RATED CASING
WIRED IN SERIES
IP68 RATED CABLE
MICRO FACET LED
[phone]
[email protected]
WIRED IN SERIES
RECESSED EXTERIOR IP67 FLOOR WASHER
