XtremepowerUS 71011 Original instruction manual
SAVE THIS MANUAL: KEEP THIS MANUAL FOR SAFETY WARNINGS, PRECAUTIONS, ASSEMBLY,
OPERATING, INSPECTION, MAINTENANCE AND CLEANING PROCEDURES. WRITE THE PRODUCT’S
SERIAL NUMBER ON THE BACK OF THE MANUAL NEAR THE ASSEMBLY DIAGRAM (OR MONTH
AND YEAR OF PURCHASE IF PRODUCT HAS NO NUMBER)
OWNER’S MANUAL AND SAFETY INSTRUCTIONS
FOR QUESTIONS PLEASE CALL OUR CUSTOMER SUPPORT: (909) 628 0880 MON-FRI 9AM TO 3PM PST
5 GALLON WET/DRY VACUUM 5.5 HP
ITEM: 71011
GENERAL SAFETY WARNINGS
Read all safety warnings and instructions. Failure to follow the warnings and instructions may
result in electric shock, re and/or serious injury. Save all warnings and instructions for future
reference.
Before operating the unit, carefully read the entire manual and be certain you know how to switch the unit
off in case of an emergency. Be sure to save these instructions and any other documents supplied with this
unit for future reference. The electric motor has been designed for 120V 60Hz only. Always check that the
power supply corresponds to the voltage on the rating plate.
Read and understand all instructions. Failure to follow all instructions may result in serious injury or
property damage.
1
IMPORTANT SAFETY INFORMATION
NOTE: The supply of 120V 60Hz on Populo tools are interchangeable for use in the United States and
Canada.
NOTE: The power outlet used for the vacuum must be protected by a 30mA Ground Fault Circuit Interrupter
or earth leakage circuit breaker. If the supply cord is damaged, it must be replaced by an electrician or a
power tool repairer in order to avoid a hazard.
NOTE: Double insulation does not take the place of normal safety precautions when operating this unit.
The insulation system is added to prevent against potential injury should an electrical failure occur within
the unit.
Using an Extension Lead
ALWAYS use an approved extension lead suitable for the power input of this unit. Before use, inspect the
extension lead for signs of damage, wear and aging. Replace the extension lead if damaged or defective.
When using an extension lead on a reel, always unwind the lead completely. Use of an extension lead
not suitable for the power input of the unit or which is damaged or defective may result in the risk of re
or electric shock.
Work area safety
1.1 Keep work area clean and well lit. Cluttered or dark areas invite accidents.
1.2 Do not operate power tools in explosive atmosphere, such as in the presence of ammable liquids,
gases or dust. Power tools create sparks which may ignite the dust or fumes.
1.3 Keep children and bystanders at a safe distance while operating a power tool. Getting distracted while
using the unit may lead to injury for the operator or bystanders if not exercising proper safety.
2. Electrical safety
2.1 Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter
plugs with earthed (grounded) power tools. Unmodied plugs and matching outlets will reduce risk of
electric shock.
2.2 Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
2.3 Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk
of electric shock.
2.4 Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep
cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of
electric shock.
2.5 When operating the power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord
suitable for outdoor use reduces the risk of electric shock.
2.6 If operating the power tool in a damp location is unavoidable, use a Gound Fault Circuit Interrrupter
(GFCI). Protected supply with a rated leakage current of 30 mA or less. Use of a GFCI reduces the risk
of electric shock.
2
FEATURES AND SPECIFICATIONS
3. Personal safety
3.1 Stay alert, watch what you are doing and use common sense when operating a power tool. Do not
use a power tool while you are tired or under the inuence of drugs, alcohol or medication. A moment of
inattention while operating power tools may result in serious personal injury.
3.2 Use personal protective equipment. Always wear eye protection. Under the appropriate condition,
protective equipment such as a dust mask, non-skid safety shoes, hard hat, or hearing protection can
reduce personal injuries.
3.3 Prevent unintentional starting. Make sure the switch is in the off-position before picking up or carrying
the tool or connecting the unit to a power source/battery pack. Carrying power tools with your nger on the
switch or energizing power tools that have the switch on
3.4 Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached
to a rotating part of the power tool may result in personal injury.
3.5 Do not over reach. Keep proper footing and balance at all times. This enables better control of the
power tool in unexpected situations.
3.6 Dress properly. Do not wear loose clothing or jewelry. Loose clothes, jewelry or long hair, can get
caught in moving parts resulting in serious injury.
3.7 If devices are provided for the connection of dust extraction and collection facilities, ensure these are
connected and properly used.
DO NOT leave appliance when plugged in. Unplug from outlet when not in use and before servicing.
Connect to a properly grounded outlet only.
DO NOT expose to rain – store indoors.
DO NOT allow to be used as a toy. Close attention is necessary when used by or near children. Use only
as described in this manual. Use only Manufacturer’s recommended attachments.
DO NOT use with damaged cord or plug. If appliance is not working as it should, has been dropped,
damaged, left outdoors or dropped into water, contact Shop-Vac Corporation for assistance.
DO NOT pull or carry by cord, use cord as a handle, close a door on cord or pull cord around sharp edges
or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
DO NOT unplug by pulling on cord. To unplug, grasp the plug; not the cord.
DO NOT handle plug or appliance with wet hands
DO NOT put any object into openings. DO NOT use with any openings blocked; keep free of dust, lint, hair
and anything that may reduce air ow.
Keep hair, loose clothing, ngers and all parts of body away from openings and moving parts.
DO NOT pick up anything that is burning or smoking, such as cigarettes, matches or hot ashes.
DO NOT use without dust bag and/or lters in place.
Turn off all controls before unplugging.
DO NOT use to pick up ammable or combustible liquids such as gasoline or use in areas where they may
be present.
DO NOT vacuum toxic, carcinogenic, combustible or other hazardous materials such as asbestos, arsenic,
barium, beryllium, lead, pesticides or other health endangering materials. Specially designed units are
available for these purposes.
DO NOT pick up soot, cement, plaster or drywall dust without cartridge lter and collection lter bag in
place. These are very ne particles that may pass through the foam and affect the performance of the
motor or be exhausted back into the air. Additional collection lter bags are available.
To avoid spontaneous combustion, empty tank after each use.
STAY ALERT. Watch what you are doing and use common sense. Do not use vacuum cleaner when you
are tired, distracted or under the inuence of drugs, alcohol or medication causing diminished control.
3

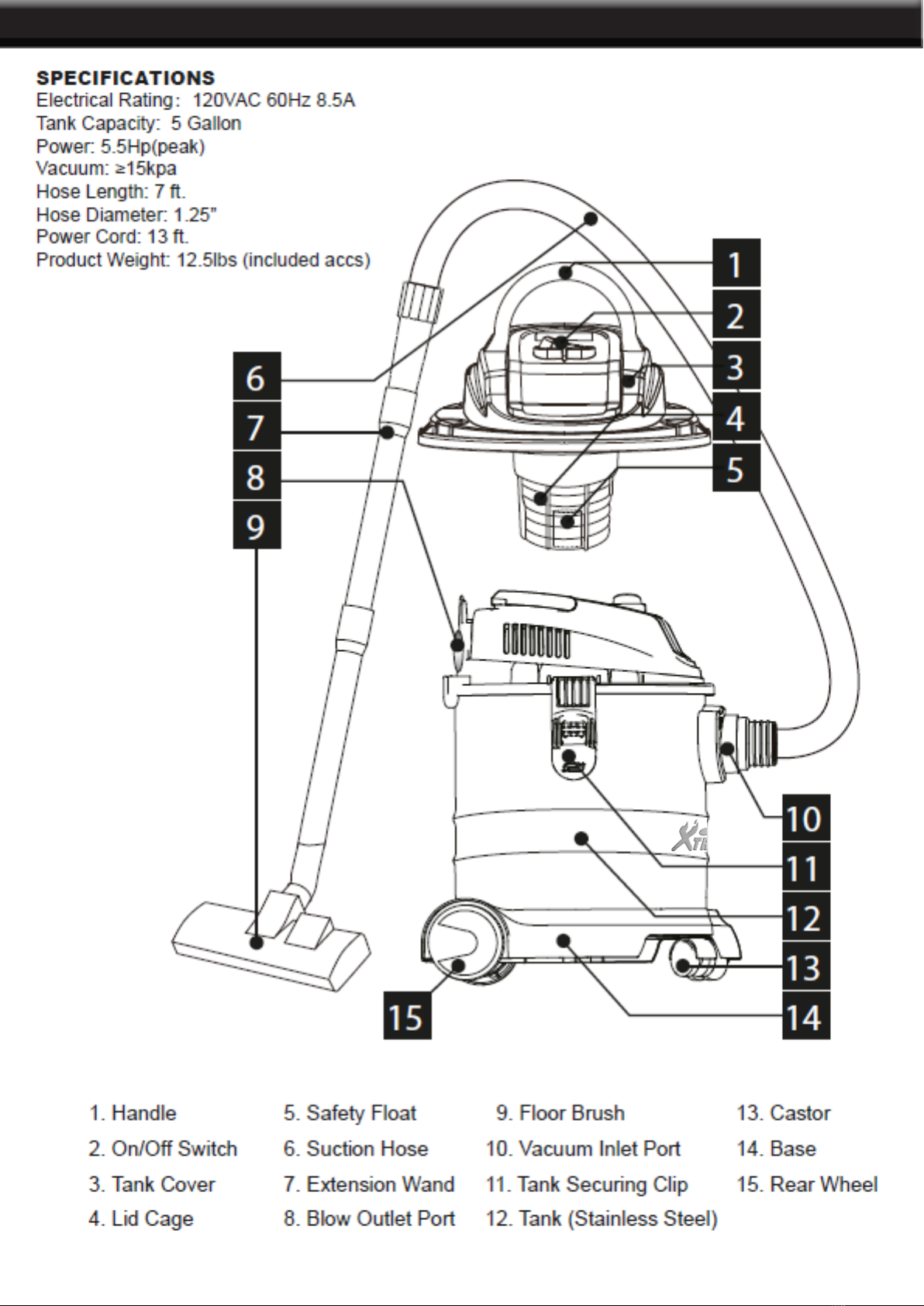

PRODUCT INFORMATION
4
UNPACKING AND ASSEMBLY
ASSEMBLY
5

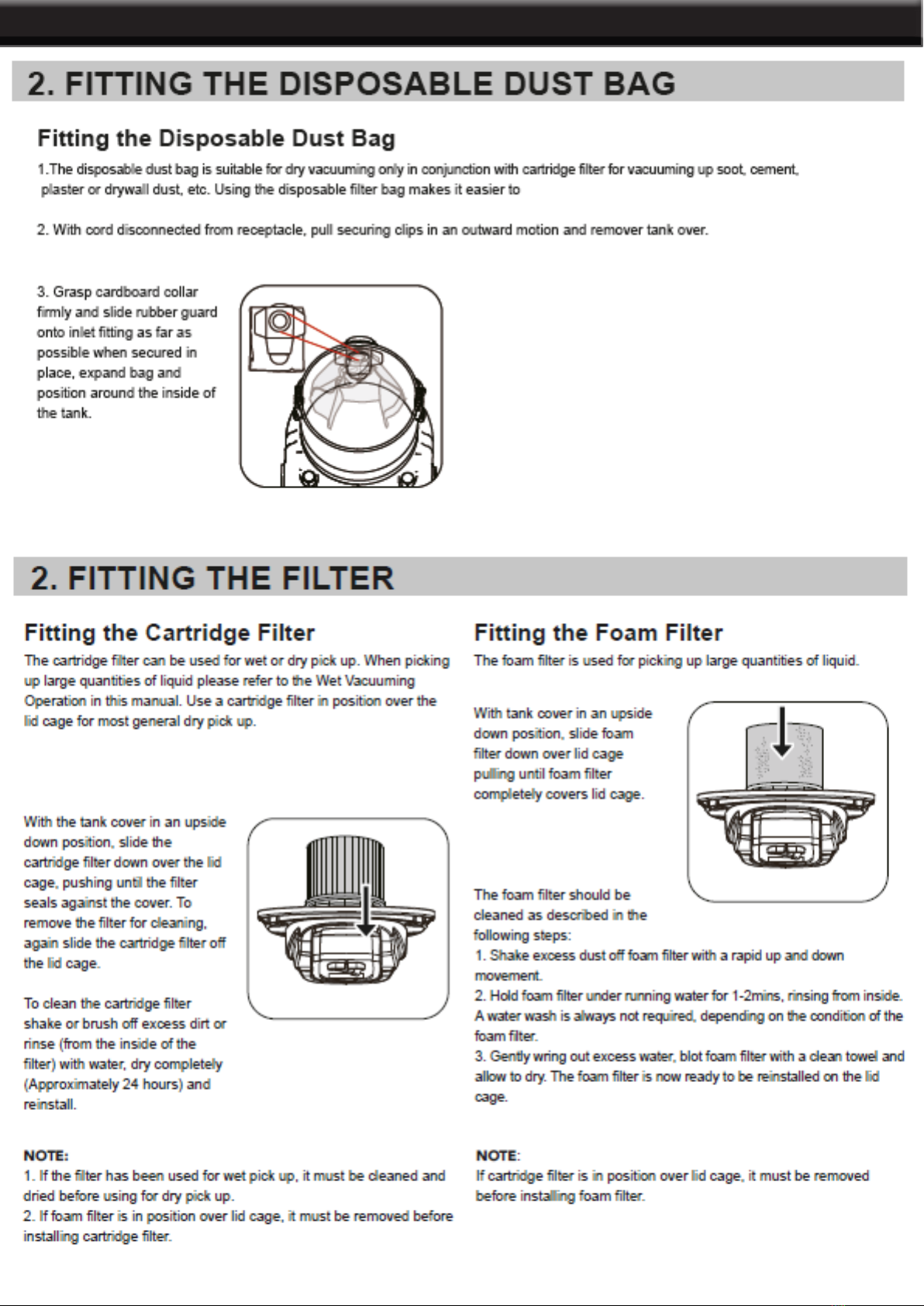

ASSEMBLY
6
OPERATION
7
MAINTENANCE
8
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY
DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR
DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT
HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS
QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR
DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE
UNDERTAKEN BY CERTIFIEDAND LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER
ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL
PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION
OF REPLACEMENT PARTS THERETO.
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only and are not available individually
as replacement parts.
PLEASE READ THE FOLLOWING CAREFULLY
5
